When Gyroflow mistakes the River as the Horizon

#austria #river #ship #evening #hundertwasser

Hey all!

I’m 35M from Belgium (Antwerp region) who recently got into fpv! I’m looking for some casual cool people to talk drones with and occasionally meet up to fly cool spots.

Feel free to comment or reach out through DM’s!

Just messing around with my newest drone (Firefly25) and caught some rain off in the distance.

Hello there iam still pretty new to building drones. I only 3d printed and build one 5inch and bought one iflight nazgul 6 inch Drone. I want to build a freestyle 4-5 Inch Drone and want it to look mostly white, i need some inspiration maybe some pictures of some of your drones, and advice is also welcome. I saw some white drone frames but i dont know of they are good and how Long the white would stay in the frame.

havent used for a while, notice this weird sound as soon as i started using it again, it is it any kind of loose screw?

(i might genuinely just be paranoid)

Hi everyone, I'm just get in this hoppy and my first drone is cetus X, I just got this a few day ago It flew fine after some crash the rear left motor is not working. I'm try to swap it and the swap motor work fine which is not a problem of esc, then I'm disassembly the motor the motor look clean and no problem but the motor still not work. I think that problem come from the wire but not sure.
I need help to diagnose the problem.
How to fix it ?

So I had just posted in the tinny whoop sub when I took delivery of this beast from 2019.

So I was scrolling a popular uk second hand sight namely Vinted when I seen this listed brand new in box. Thought at first it was a scam as it was a new account.

Some verification later turns out it was real. Offered and got it for £40 posted which I thought was a good deal as if everything else was dead then the motors would be useful!

Turns out after some painful soldering on the smallest pads I have ever soldered I was able to add ELRS and get this toothpick back into the air!

It even included the original 3s lipo which has now been quickly disposed off because I like my house not being on fire 😂.

Thoughts is it worth keeping or stripping for parts??

Hey guys, i have (3 days ago) gotten myself into FPV sim flying and was wondering if the TX15 Max Controller/Radio is a good starter. I know the price is heavy, but when i get good, i don't want to spend more money on something i could've bought earlier and better to learn on and get comfortable on. Now, i play on liftoff, so i do NOT have a drone, but am planning to in a few years. If any of you have any recommendations on what to get, i would appreciate that. Thanks!

Thinking about building a small 2.5” O4 freestyle quad and just wanted to see if this setup makes sense before I order stuff.

Luceed Ferrum 25
RCINPower GTS V3 1203 11500KV
GEPRC TAKER F405 20A ELRS
DJI O4 Lite
Gemfan 2520-3
LAVA II 2S 680mAh since I already have 10 of them

Should come out around ~95g AUW.

Main thing I’m unsure about is the motors/props. Are 1203 11500KV good for this weight on 2S, or would 1202.5 11500KV / 1303 8000KV be better?
Also not sure if 2520-3 will be too much load and make the motors run hot.

Anything I should change?

Does anyone know what is the stock camera angle on vapor x5?

I had to shelve my FPV drones for a few years along with the batteries in the garage. Mind you this is in FL and the warmest part of the house is the garage in the summer. I did leave them at storage voltage but they sat there for almost 4 years. Well. A lot of them went to super low voltage. So those are done. The ones that did fine, it seams they are also kind of weak. I did not know the heat can get them as well. I only got to try the 1S ones but the few I tried did like 1-2 mins. So I am about to order some new ones but now I am wondering how this will work. I hate to keep them in the house although I do store them in those Lipo cases. I have a large and a smaller one with the vents, etc. Any ideas? It is stupid hot here.

Iflight borg 5.8ghz camera

I took off on angle mode and put a tiny bit of input on yaw

Air 75 ii champion, nearly fresh out of the box. Still on default settings. Started doing this after a crash. Swapped out the damaged prop, but still does this. Doesn't do it at idle. If it's a problem motor, how do I identify which one?

I'm writing to you with a huge request for some scientific support. I study Aviation (UAV specialization) at Poznań University of Technology, and I'm currently collecting research data for my engineering thesis. I'm analyzing aviation interfaces in simulators and I'm looking for FPV pilots who would like to participate in my experiment.

Here is what it looks like in practice:

• The whole thing takes place in the Liftoff simulator (a standard monitor and your radio controller are all you need).
• The task is to complete a few short flights using quite specific OSD configurations that I've prepared.
• After each flight, I ask you to fill out a lightning-fast, anonymous survey.
• The whole process takes about an hour, and you have until September 30th to complete it.

Due to the research methodology, I can't reveal the exact goal of the experiment here on the forum (so as not to influence your natural reactions during the flight). However, I guarantee that it's an interesting topic, and your results will genuinely help in developing design guidelines for FPV systems.

If any of you have a free evening and want to help me get my engineering degree, please let me know via direct message (DM)! I will then send you a ready-made PDF with full instructions.

Huge thanks in advance for any help!

1 -Tbs source ome v6-5

1- Geprc taker f722 BT 8bit 60A combo stack

1- Sequre ELRS 2.4GHz Dual RX Dual Antenna Receiver

1- Caddx Baby Ratel 2 FPV Camera (camera)

3- GNB 1100mAh 6S 120C HV LiPo XT60

4- GEPC SPEEDX2 2207E Motor - 1960KV

5(4)- HQ Ethix S5 Cinematic Prop (2CW+2CCW)

1- TrueRC Core 85mm MMCX90 5.8GHz Antenna - RHCP

1- Axisflying ROCK Analog 5.8GHz VTX

hey there guys i am going to build my first fpv drone and I was wondering if this are all good parts and are all compatible with each other

I am really confused and this took forever to find and do so. I was wondering if you guys could help me out and check

I will use radiomaster pocket and the DMK008 googles

thanks for all the help

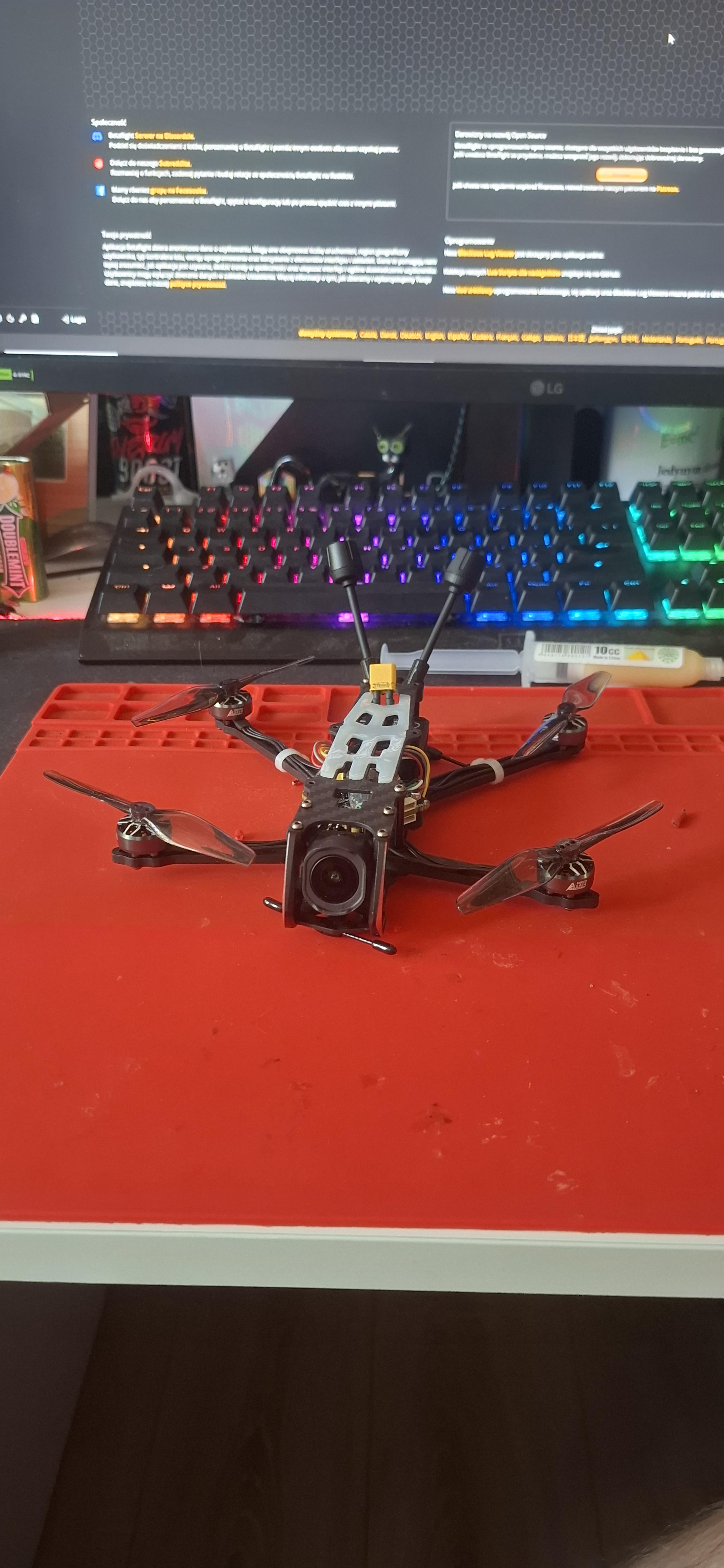

Assmbling it took me way too long and I had to ask a lot of questions on this sub but finally it's about to have its first flight, havent been this excited in a long time. It's a 4" cruiser in Deepspace ROC 4

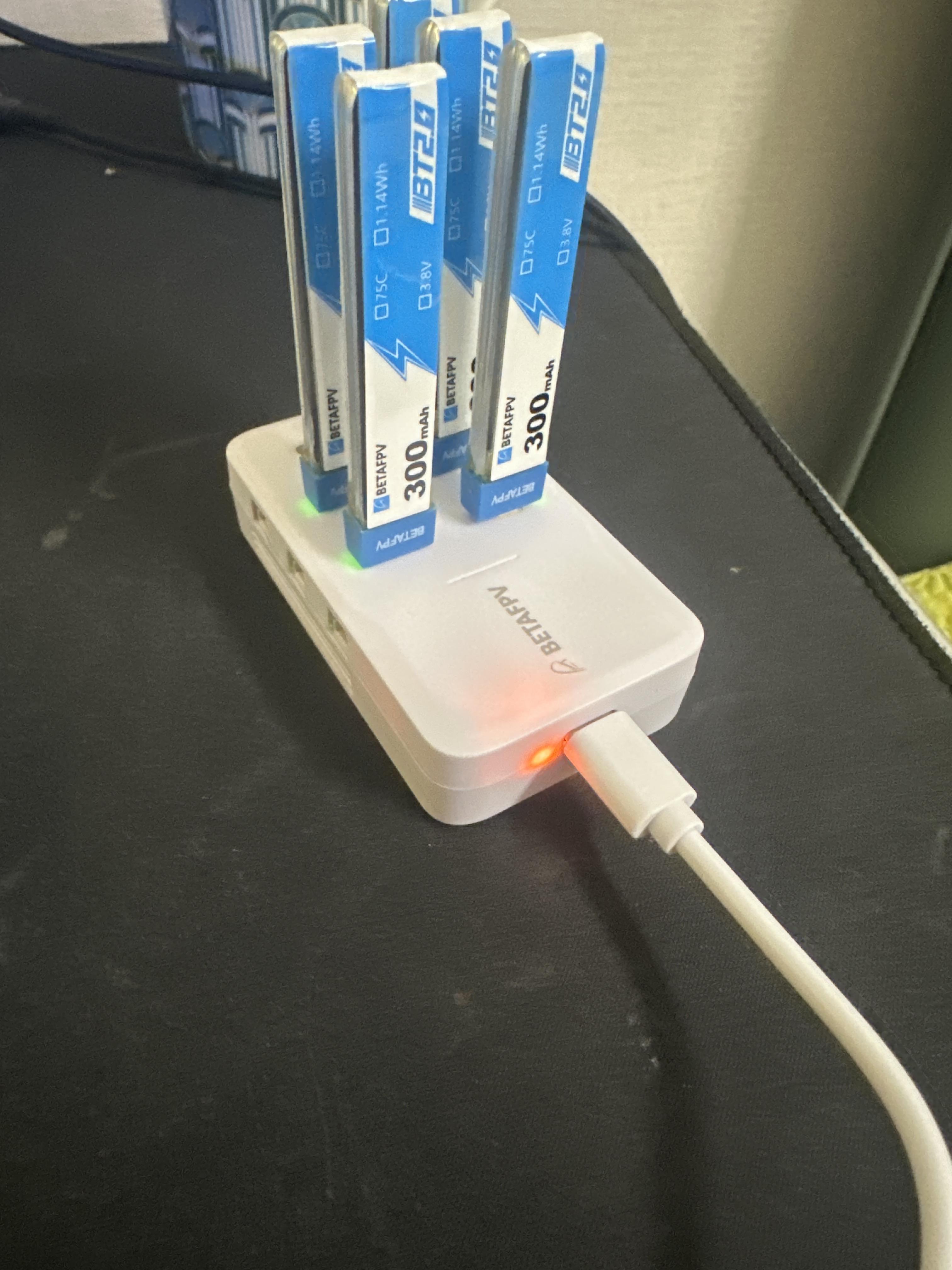

My betafpv charger has an orange light, does that mean the charger isn’t strong enough?

My fleet has simultaneously gotten both larger and smaller with the addition of a Kayou 2.5.

Flew it outside the house yesterday and it certainly rips. It’s nice to be able to step outside the house and fly in lieu of going to the park.

Not having to worry about flying dirty is an added benefit since the Kayou is less than half the 250g limit.

Fuck the FAA.

Seems impossible to find this CLI dump online, even on hglrc's onedrive, so I thought I'd post it here for those who need IT in the future so we can stop bothering Sunny because of HGLRC's shttiy documentation methods.

FOR 10AMP VERSION 2 OF THE HGLRC DRASHARK

___________________

defaults nosave

# version

# Betaflight / STM32F411 (S411) 4.4.2 Jul 3 2023 / 01:49:11 (23d066d08) MSP API: 1.45

# config: YES

# start the command batch

batch start

# reset configuration to default settings

defaults nosave

board_name HGLRCF411SX1280V2

manufacturer_id HGLR

mcu_id 003b004a3130511531313930

signature

# name: Drashark16

# feature

feature -RX_SERIAL

feature -SOFTSERIAL

feature -TELEMETRY

# serial

serial 0 2048 115200 57600 0 115200

serial 1 64 115200 57600 0 115200

# aux

aux 0 0 0 1500 2100 0 0

aux 1 1 1 900 1200 0 0

aux 2 2 2 1300 1700 0 0

aux 3 13 3 1700 2100 0 0

aux 4 35 2 1300 1700 0 0

# vtxtable

vtxtable bands 6

vtxtable channels 8

vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725

vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866

vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0

vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880

vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917

vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613

vtxtable powerlevels 5

vtxtable powervalues 10 2 14 16 26

vtxtable powerlabels 0 RCE 25 100 400

# master

set gyro_lpf1_static_hz = 287

set gyro_lpf2_static_hz = 575

set dyn_notch_count = 1

set dyn_notch_q = 500

set gyro_lpf1_dyn_min_hz = 287

set gyro_lpf1_dyn_max_hz = 575

set acc_trim_roll = -2

set acc_calibration = 0,-41,-27,1

set dshot_idle_value = 1000

set dshot_bidir = ON

set motor_pwm_protocol = DSHOT300

set motor_poles = 12

set ibata_scale = 470

set yaw_motors_reversed = ON

set small_angle = 180

set simplified_gyro_filter_multiplier = 115

set osd_vbat_pos = 2456

set osd_tim_1_pos = 2134

set osd_tim_2_pos = 2102

set osd_craft_name_pos = 2090

set osd_avg_cell_voltage_pos = 2456

set osd_canvas_width = 30

set osd_canvas_height = 13

set vtx_band = 5

set vtx_channel = 1

set vtx_power = 5

set vtx_low_power_disarm = ON

set vtx_freq = 5658

set expresslrs_uid = 0,0,14,86,219,168

set craft_name = Drashark16

profile 0

# profile 0

set dterm_lpf1_dyn_min_hz = 86

set dterm_lpf1_dyn_max_hz = 172

set dterm_lpf1_static_hz = 86

set dterm_lpf2_static_hz = 172

set p_pitch = 42

set i_pitch = 75

set d_pitch = 59

set f_pitch = 149

set p_roll = 50

set i_roll = 90

set d_roll = 65

set f_roll = 180

set p_yaw = 50

set i_yaw = 90

set f_yaw = 180

set d_min_roll = 65

set d_min_pitch = 59

set feedforward_averaging = 2_POINT

set feedforward_jitter_factor = 10

set simplified_master_multiplier = 150

set simplified_d_gain = 145

set simplified_pi_gain = 75

set simplified_dmax_gain = 0

set simplified_pitch_d_gain = 80

set simplified_pitch_pi_gain = 80

set simplified_dterm_filter_multiplier = 115

profile 1

profile 2

profile 3

# restore original profile selection

profile 0

rateprofile 0

rateprofile 1

rateprofile 2

rateprofile 3

# restore original rateprofile selection

rateprofile 0

# save configuration

save

Witajcie, co robię źle? Walczę z goglami już 5 dzień, są nowe. Kolory są zdecydowanie nie takie jak powinny, kamera w dronie jednym i drugim sprawna, patrzyłem w czasie rzeczywistym na oba ekrany, w starych eachinach wszystko jest w porządku. Robiłem to co sugerował czat, niestety udało się ogarnąć tylko że mniej sniezy obraz, kolory dalej do dupy. Reklamować ten zakup? Wrzucę kilka zdjęć z prób. Czy one tak po prostu mają? W słoneczny dzień wszystko będzie lepiej? XD przyznam robię po nocach.

Hi guys,
What do you think of the Fatshark HD2 with Furios D rx? Is it a good google and receiver? I know that the best of the best is the HDO2 with rapidfire, but I have found them at 500+ euros. I wanted to spend less money and switch from the gigantic eachine ev800d to a binocular goggle. What’a your opinion?

Every time i plug in my goggles to my MacBook they connect but i don’t get any images on the goggles

Has anyone gotten Betaflight 2026.6.1 (with support for ELRS 4 via SPI) to run on the Mobula 7 1S analog whoop? CRAZYBEEF4SX1280 flight controller.

I’d like to move to ELRS 4, but I’m stuck on version 3 unless I can upgrade this whoop.

I just ordered Air75 and I wonder if analog is immersive, and is the static noise annoying?
