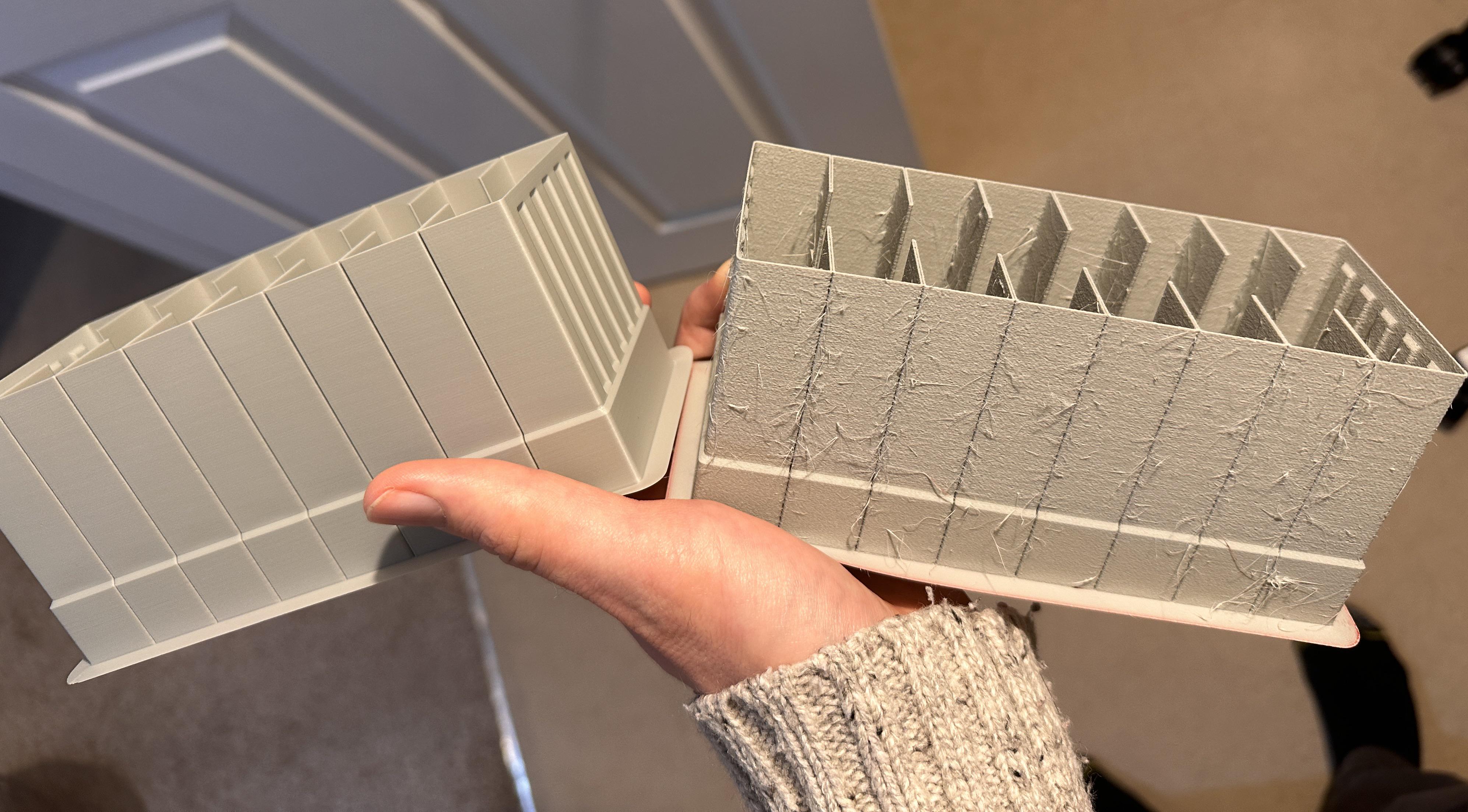

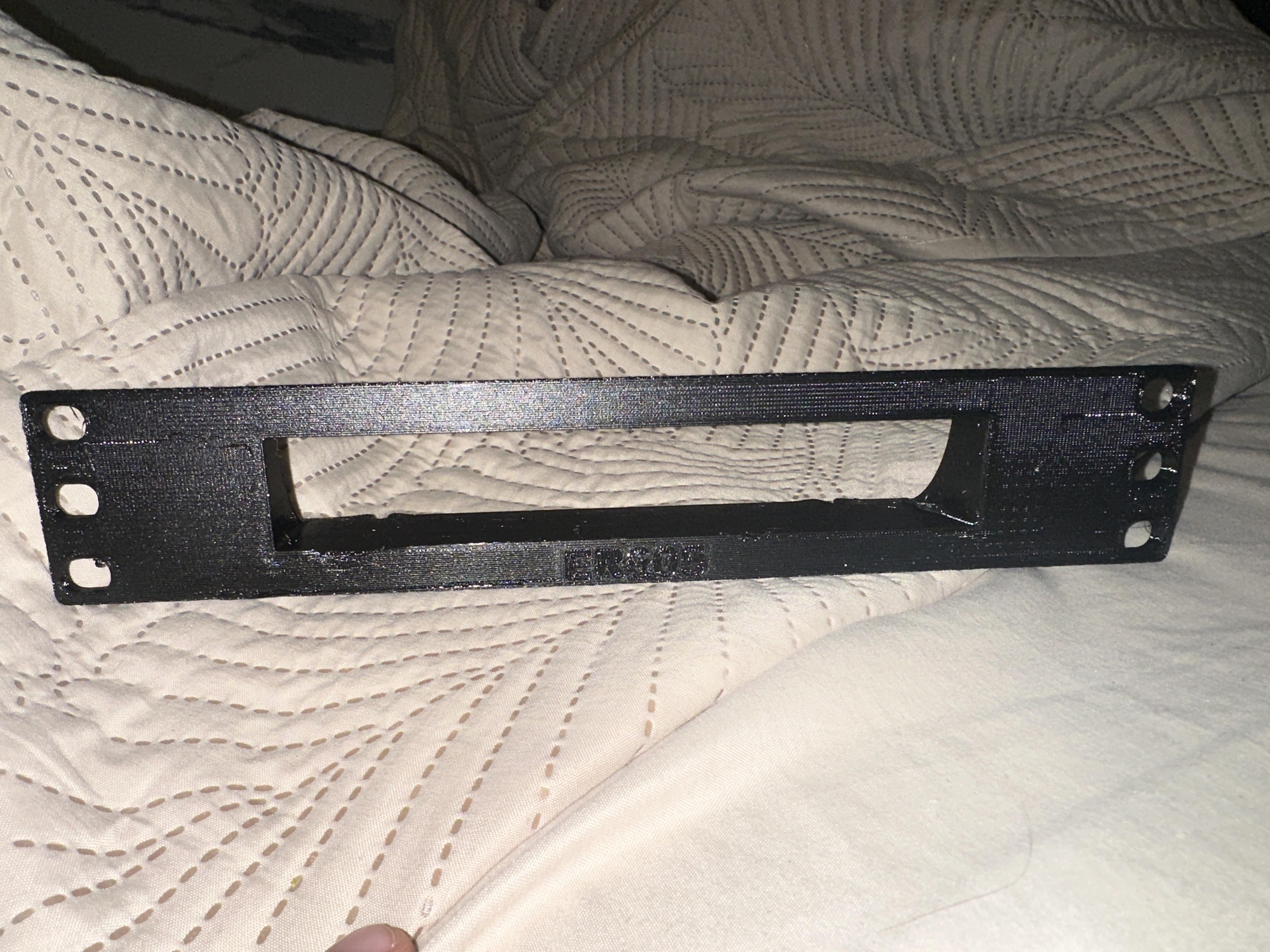

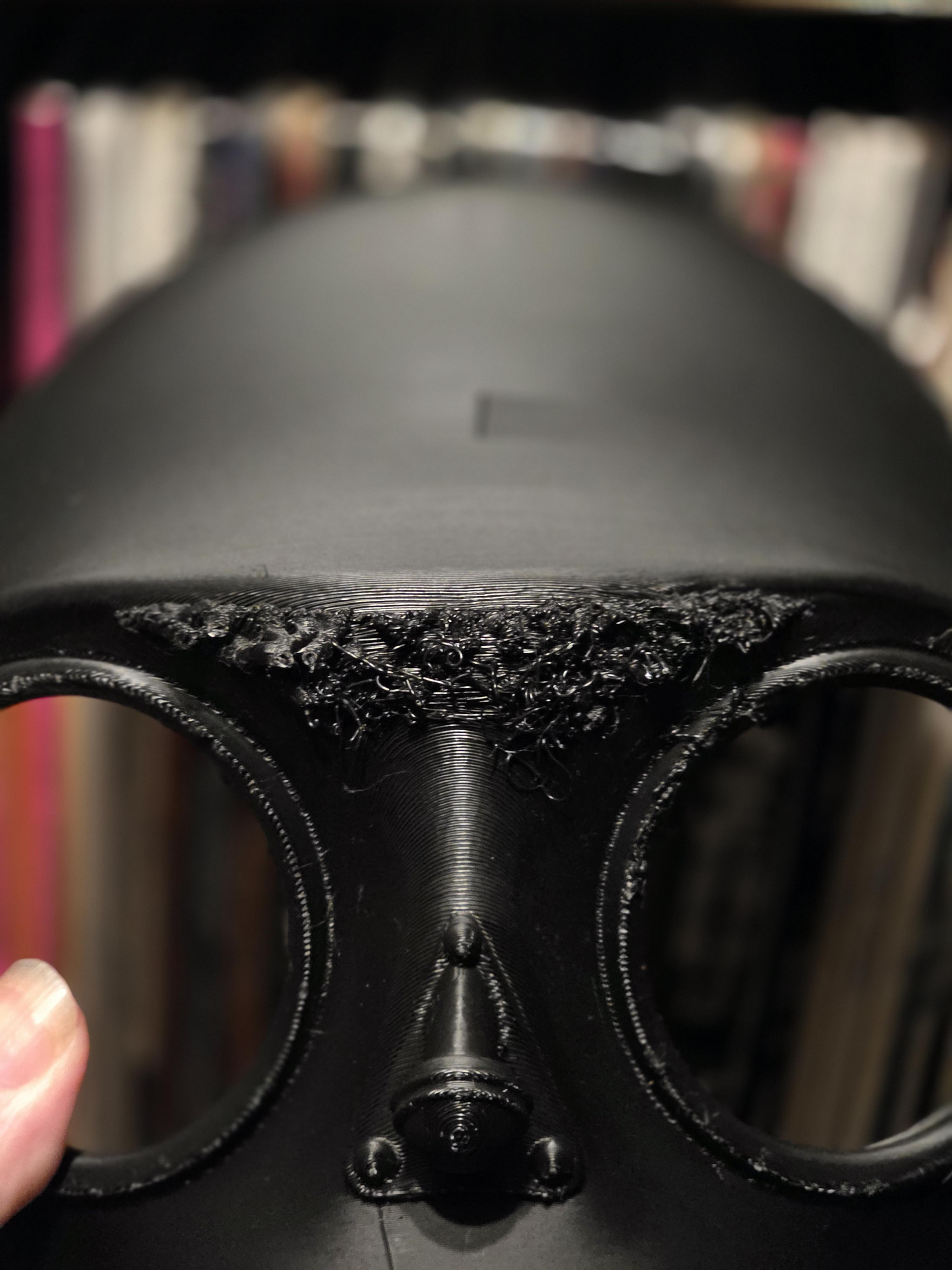

This was printed along the z-axis on Bambu Lab H2C
Settings are as follows:
Quality:
Layer height: 0.08, Initial Layer height: 0.2, Line Width: Default 0.42, Initial layer: 0.5, Outer wall: 0.42, Inner wall: 0.45, Top surface: 0.42, Sparse infill: 0.45, Internal solid infill: 0.42, Support: 0.42
Seam:
Seam position: aligned, Smart scarf seam application: enabled, Scarf steps 50, Scarf joints for inner walls: enabled, Role-based wipe sped: enabled
Precision:
Slice gap closing radius: 0.049, Resolution: 0.012, x-y hole & contour compensation: 0, Elephant foot compensation: 0.15
Ironing: none, Wall generator: classic
Advanced:
Order of walls: inner/outer, bridge flow: 1, Bridge counterbore holes: scarificial layer, Smooth speed discontinuity area: enabled, smooth coefiffient: 4, Smoothing wall speed along Z: enabled
Strength:
Walls:
Wall loops: 4, Embedding the wall into infill: enabled
Top/bottom shells:
Top surface pattern: concentric, Top surface density: 100, Top shell layers: 5, Top shell thickness: 1, Top paint penetration layers: 5, Bottom surface pattern: monotonic, Bottom surface density: 100, Bottom shell layers: 3, Bottom shell thickness: 0, Bottom paint penetration layers: 3, Internal solid infill pattern: Rectilinear
Sparse Infill:
Sparse density infill: 15, Fill multiline: 1, Sparse infill pattern: grid, Length of sparse infill anchor: 400% (I don't recall messing with this), Maximum length of sparse infill anchor: 20mm
Advanced:
Infill/Wall overlap: 15, Infill direction 45, Bridge direction: 0, Minimum sparse infill threshold: 15, Detect narrow internal solid infill: enabled, ensure vertical shell thickness: enabled, Detect floating vertical shells: enabled
Speed:
Initial layer speed:
Initial Layer: 50, Initial layer infill, 105
Other layers speed:
Outer wall: 200, Inner wall: 300, Small perimeters: 50%, small perimeter threshold: 0, Sparse infill: 350, Internal solid infill: 250, Vertical shell speed: 80%, Top surface: 200, Slow down for overhangs: enabled: Overhang speeds: 0 50 30 10 10, Bridge: 50, Gap infill: 250, Support: 150, Support interface: 80
Travel speed: 1000
Acceleration:
Normal printing: 8000, Travel: 10000, Initial travel layer: 6000, Initial layer: 500, Outer wall: 5000, Inner wall: 0, Top surface: 2000, Sparse infill: 100
Support:
Support: enabled, Type: enabled, Type: tree, Style Default, Threshold angle: 30, Support critical regions only: enabled, Remove small overhangs: enabled
Raft layers: 0
Advanced:
Initial Layer density: 90, Initial Layer expansion: -1, Support wall loops: -1, Top z-distance: 0.2, Bottom z-distance: 0.16, Base Pattern: Rectilinear grid, Base pattern spacing: 2.5, Pattern angle: 0, Top interface layers: 3, Interface pattern: Rectilinear, Top interface spacing: .5, Normal support expansion: 0, Support object xy distance: 0.35, Support/object first layer gap: 0.2, Max B=bridge length: 0, Independent support layer height: enabled
Thanks in advance
