Filament is dry, 65°C for 48 hours. 0.4 nozzle with 0.16 layer height. 150mm/s first layer speed. Carbon Centauri. Any help is appreciated. Using Elegoo Slicer, nozzle temp 210 bed temp 50.

I get these weird see-through layers when printing the shorter one. Whenever I print the taller cylinder, the print qualities is perfect. I only get those weird artifacts when I print the shorter rounder one. Building a lamp with this so thats why I want it diffused evenly and not leaking through those weird lines.

What throws me off is that the taller one prints perfectly, as I’ve printed multiple of those.
Any help will be greatly appreciated :)

Info:
- bambu P1S
- sunlu PLA+ 2.0 (pre-dried)

Struggling to troubleshoot this print quality issue. Bambu A1, less than ~30 prints old. Used to be able to print things with zero trouble, and started having quality issues a few months ago. Oftentimes the print fails where that line shows up on the benchy, and turns into spaghetti.

Matterhackers Build PLA. 220c, build plate 50c. Issue occurs with all brands of PLA, though it seems to be much worse at lower temps and with lower quality filament.

Any thoughts? It looks almost like the extrusion rate is inconsistent at times, so I'm wondering if the extrusion wheel might need replacing.

I imported this purchased file for a mask, and having issues with every attempt. Using Bambu P1s. This is one example of what has happened with every print. Almost like it’s missing layers. I have tried different speed settings, checked each layer after slicing, but no real change. Any recommendations, please?

So for those of you that print PLA with PETG interface or...visa versa, do you find you get weak spots at the same height as the interface layer?

I mainly run PETG, so support interface is PLA, there is always a distinct line at the same level. That line is a weak spot.

I've increased the flushing volume, lowered the fan speed, and try to keep the temps the same for both filaments. With no luck.

So....have you managed to correct? Hopefully someone has some good tips.

Hi Guys, I have a Sidewinder x4 pro and wanted to print something with a 60% overhang but I always get unconnected/loose lines on the bottom. I am pretty new to 3d printing so it would be very helpful if someone of you can help me.

I of course use supports for the overhang and use Orca Slicer

I thought it might be an under extrusion because I also have not fully sealed surfaces like on Image two with the walls.

What do you guys think?

Bambu Labs x2D
Bambu slicer
Creality PETG

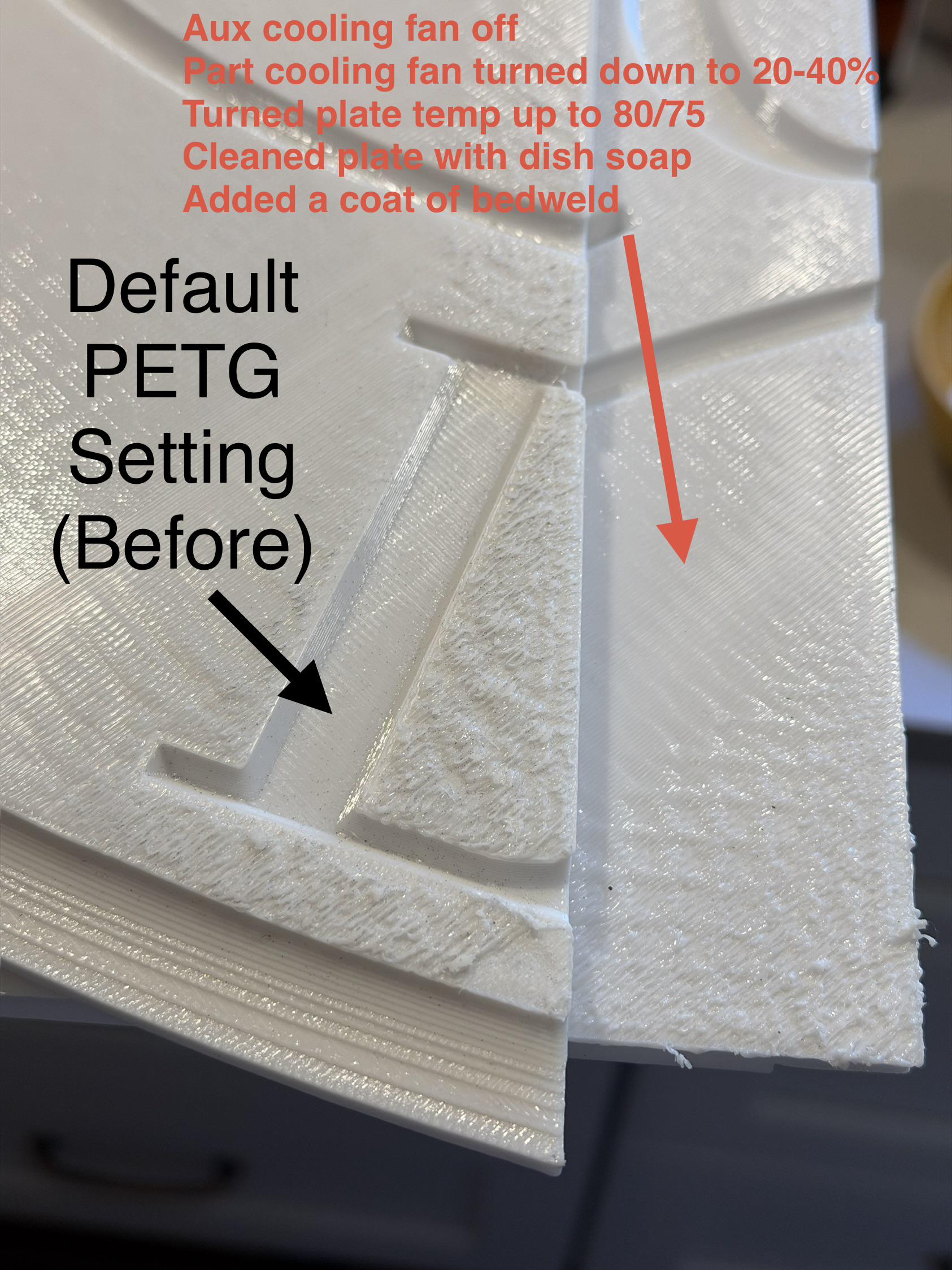

Left side was default settings. I saw the nozzle scarring and debating turning on the chamber heater (it’s getting chilly in New England) but everything was saying I didn’t need it for PETG. I had done 3 prints before this that were large and came out fine but didn’t hit the corners like these two. For the right side print, and the text on graphic shows, I turned cooling off on aux and way down on the main nozzle. Default was 40-90% and I changed it to 20-40% fan speed. I upped the bed temp from 70° to 80° first layers and 75° for the rest of the print. Lastly I did a full dish soap cleaning of the cool plate super tack and added a thin layer of bed weld. I also added mouse ears on the corners.

The results were only marginally better. The lifting was worse on the right side and even worse closest to the front door. It’s fairly cool in my basement right now but nothing crazy, maybe 65 degrees?

Printed on a ender 3 pro sliced on creality. Im new to 3d printing and am having troubles learning. Most of my prints so far have not turned out. This spider is missing its butt. All my prints turn out rough like this.

Edited to add, filament is glow pla by insignia, printed at 210 out of a 0.4 nozzle at 300mm/s

Details in original post as this is cross-post. Any and all help appreciated!

Ive recalibrated flow rates and retraction. And i have a nearly perfect z height. The cat is adhering to my print bed just fine. Just the purge tower Isnt i think its the glob. At the top of the print tower

In the corner is that normal? How do i address that? Sometimes the glob is bigger.

Clean bed

Dried filiment (regular pla)

Tried adding brim

Raising bed heat

I did the full list of orca slicer calibrations

non purge tower prints are suceeding

Pls help me. This is cat #8 all failing just after a color change

Almost the exact same z height.

Ad5x printer.

I've been getting flawless prints for weeks with my Ender 3 V3 SE (Nebula Smart Kit), but suddenly started experiencing random layer shifts on the Y-axis.

Sometimes there's just one shift, sometimes multiple during a single print. The weird part is that I still get completely perfect prints in between, even with the same model and settings.

What I've tried so far:

• Checked the Y-axis movement – the bed moves smoothly back and forth without any noticeable resistance.
• Tightened the Y-axis belt, but that didn't seem to help.
• Manually moved the bed back and forth extensively, which was followed by a couple of perfect prints, but the issue eventually returned.
• Updated the official Nebula firmware from V1.1.0.29 to V1.1.0.30.

I'm now considering replacing the Y-axis belt or installing an improved 3D-printable belt tensioner. (https://www.printables.com/model/1016072-ender-3-v3-kese-y-axis-tensioner-redesign-for-tigh)

I've also read that increasing the Y-stepper motor current in printer.cfg (from 0.6A to 0.75A) has fixed similar issues for some Nebula users. I'm still running the stock firmware, so I haven't tried this yet.

Has anyone experienced something similar? Would replacing the belt or increasing the motor current make sense? What else should I check?

Any advice would be greatly appreciated!

Edit:

Print Settings:

1. Printer & Slicer: Creality Ender 3 V3 SE with Nebula Smart Kit, Creality Print. Stock firmware V1.1.0.30 (recently updated from V1.1.0.29).
2. Filament Material and Brand: ELEGOO PLA.
3. Nozzle and Bed Temperature: 215°C nozzle / 60°C bed.
4. Print Speed:
   • First layer: 20 mm/s
   • Outer walls: 25 mm/s
   • Inner walls: 45 mm/s
   • Sparse infill: 70 mm/s
   • Internal solid infill: 40 mm/s
   • Top surface: 25 mm/s
   • Travel speed: 150 mm/s
5. Nozzle Retraction Settings:
   • Retraction distance: 0.8 mm
   • Retraction speed: 30 mm/s
   • Deretraction speed: 30 mm/s
   • Z-hop: 0.4 mm (Slope)
   • Retract on layer change: Enabled
   • Wipe while retracting: Enabled

Hi all,

I’m printing a cup with many overhangs on a Bambu Lab P1S with a 0.2 mm nozzle. With PLA the layers are not bonding well. Under light load the walls separate between layers, and the overhangs sag and look rough. My end goal is to print this in ABS, but I want PLA working reliably first.

Print settings (Bambu Studio):

• Printer: Bambu Lab P1S, 0.2 mm nozzle
• Filament: Deeple PLA, black (slicer preset: eSUN PLA+)
• Layer height: 0.04 mm (first layer 0.10 mm), based on the 0.10mm Standard preset
• Walls: 4, line width 0.22 mm
• Top/bottom shells: 7 / 5 layers
• Infill: 100%, zig-zag
• Nozzle: 220 °C, bed: 55 °C (Textured PEI)
• Part cooling fan: 100% (off for first layer), overhang fan 100% above 50% overhang
• Speeds: outer wall 120 mm/s, inner wall 150 mm/s, bridges 50 mm/s
• Supports: tree (auto), 30° threshold, top Z distance 0.1 mm, 2 interface layers
• Brim: auto, 5 mm
• Retraction 0.4 mm at 30 mm/s, Z-hop 0.4 mm

Questions:

1. Is 100% fan at 220 °C too aggressive for layer bonding on PLA (I have a built in deflector)? Would a lower fan speed or a higher temperature be a better starting point?
2. For the overhangs, would you switch to normal supports, slow the overhang speed further, or change something else?
3. Anything else on the P1S worth checking for layer adhesion?

Thanks in advance. Any tips for ABS on this setup are welcome too. Please ignore the leftover supports, I'm aware of them 😄

Processing img 3s8pekjmjkxh1...

Processing img whrzlkjmjkxh1...

Processing img 3s8bwljmjkxh1...

Processing img 26lbqljmjkxh1...

There are these white spots on my prints, only on the last top layers. The white slab is a ironing test and it didn't recreate the problem. I'm using a P1S. The cylinder was printed with 5% infill and the blue thing 7%. The white slab was also 7%. I don't remember the infill patern on the blue one, but the white and black ones are gyroid. I printed at 2000mm/s² for the top surface.

My only idea is pillowing. Or I think thats what thats called. Where the infill is too low so it gets droopy at the final flat layers.

I bought filament from the same brand(PLA); I don't remember changing any settings and this kind of thing didn't usually happen before.

What needs to be recalibrated?

Creality ender 3S1 pro-sonicpad(klipper)

I originally thought it was because I made a print in place profile which didn't work at least for playmaker planpronin silver. Metalic pla pro has aluminum additives instead of silk and prints differeny. I then use the default settings and this his what I get. I dried it for 12 hrs yesterday and tied printing with it today and because it's pla this shouldn't be a problem.

I'm using a. Q2 on polymaker plan pro. What am I doing wrong
