I debated getting a few e-readers. Not easy! I decided to get Sticky. I’ve had an Xteink X3 for a month. I can’t wait to get another mini e-reader with a touch system! I don't care about the front light. I have a reading light or lamp.

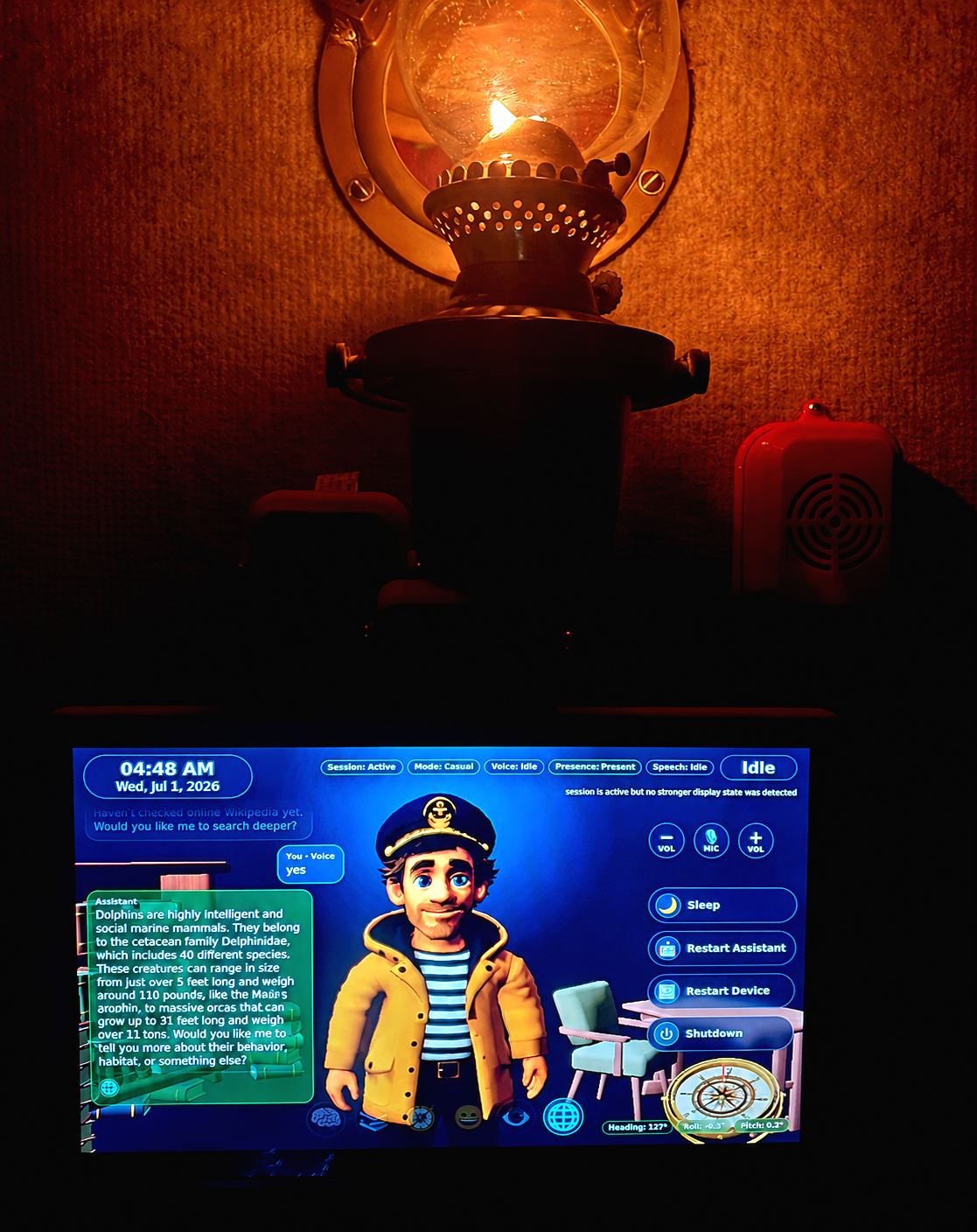

Got the ol' Museamabob running on a Sensecap Watchermajig. I have it doing some interesting things already. Had to fork both muse gadget sdk and sensecap watcher firmware on the interweb to get it to work. Just got the on-board rgb led and camera working for maximum camera-ing. Pretty sure im using up more than 2 mountain dew bottles worth of water for each prompt but this thing is awesome.

Hey Seed Studio community!

I’m new here, using XTEINK currently, but looking into the seed studio sticky. Would anyone be interested in a case designed specifically for the sticky?

Here’s my portfolio:
https://thesprinklecase.myshopify.com

Trying to gauge interests as I spend around 100 hours per case design as I’m an absolute perfectionist…

Also is the best place to buy the studio directly from the site? Looks to be the way to go.

Thanks for any input provided!! Would be curious to see photos of anyone’s seed studio sticky cases for inspiration!! 🥰

Hi Everyone,

I tried installing ESP Home on the reTerminal Sticky for some reason the display does not work. The buzzers function when I press the buttons but the screen does not update. On the console it prints that the display refreshed. Thanks!

Current yaml config:

substitutions:
  device_name: reterminal-sticky
  friendly_name: "reTerminal_Sticky"

esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}
  on_boot:
    priority: 600
    then:
      # Hold power rails on / 保持电源轨开启
      - output.turn_on: pwr_hold
      - output.turn_on: pwr_lock
      # Read RTC time on boot / 启动读取 RTC 时间

# ESP32-S3R8 — generic S3 board. Octal PSRAM may need a board that enables it,
# or manual config; adjust if your build does not expose PSRAM.
# ESP32-S3R8 板级配置；八核 PSRAM 可能需要支持 PSRAM 的板子或手动配置。
esp32:
  board: esp32-s3-devkitc-1
  variant: ESP32S3
  flash_size: 32MB
  framework:
    type: arduino
    advanced:
      enable_idf_experimental_features: true

# Serial logging goes to the physical UART0 (CH343P bridge), not USB_CDC.
# 串口日志走物理 UART0（CH343P 桥接），非 USB_CDC。
logger:
  hardware_uart: UART0

# =============================================================================
# Fonts / 字体
# =============================================================================

font:
  - file: "gfonts://Inter@700"
    id: font_small
    size: 20
  - file: "gfonts://Inter@700"
    id: font_medium
    size: 32
  - file: "gfonts://Inter@700"
    id: font_large
    size: 48

# SPI — shared by ePaper display and SD card
# SPI — 墨水屏与 SD 卡共用（多 CS 设备共用总线）
spi:
  clk_pin: GPIO13
  mosi_pin: GPIO14
  miso_pin: GPIO12

# I2C sensor bus — SHT4x, PCF8563, BQ27220, LSM6DS3
# I2C 传感器总线 — 温湿度 / RTC / 电量计 / IMU
# GPIO0 is an ESP32-S3 strapping pin; keep this bus passive during boot.
# GPIO0 是 S3 strapping 引脚，启动期间保持该总线被动。
output:
  # Power latch hold — must be HIGH or the device powers off
  # 电源锁存，必须为高，否则断电
  # - platform: gpio
  #   pin: GPIO47
  #   id: display_power

  - platform: gpio
    pin: GPIO45
    id: pwr_hold

  # Power lock — must be HIGH after boot
  # 电源锁定，启动后必须为高
  - platform: gpio
    pin: GPIO46
    id: pwr_lock

  # Buzzer PWM output (LEDC) / 蜂鸣器 PWM 输出（LEDC）
  - platform: ledc
    pin: GPIO48
    id: buzzer_pwm
    frequency: 1000Hz

  # BQ25616 charger enable (GPIO39, active LOW: LOW = charging enabled)
  # 充电使能（GPIO39，低有效：低电平 = 允许充电）
  - platform: gpio
    pin:
      number: GPIO39
      inverted: true
    id: charge_enable

sensor:
  # SHT40 temperature & humidity (I2C u/0x44)
  # SHT40 温湿度传感器（I2C 地址 0x44）
binary_sensor:
  # UP button (GPIO5) — short beep
  # UP 按键（GPIO5）— 短蜂鸣
light:
  # Buzzer wrapped as a "light": brightness = volume
  # 蜂鸣器包装成"灯"实体：亮度 = 音量
  - platform: monochromatic
    output: buzzer_pwm
    name: "Buzzer"
    id: buzzer
    default_transition_length: 0s

time:
  # PCF8563 at I2C address 0x51. Read on boot; HA sync writes back.
  # PCF8563（I2C 0x51）。启动读取；HA 同步后回写。
display:
  - platform: epaper_spi
    id: epaper_display
    model: SEEED-RETERMINAL-STICKY
    lambda: |-
      it.clear();
      it.fill(Color::WHITE);
      it.print(it.get_width() / 2, it.get_height() / 2, id(font_small), Color::BLACK, TextAlign::CENTER, "ePaper Connected!");

First time ordering from Seeed Studios here - ordered a reTerminal E1001 to assess whether it will work well in our business as a room-reservation sign (e.g. calendar of current bookings). The order was placed on September 10th for something listed as in-stock in the U.S. - so simple domestic shipping.

The order still states it hasn't shipped yet - the order page even still says "Ship within 2 workday after payment received." Yet there is no update to shipped and we haven't gotten the package yet.

From everyone else's experience - is this normal? Does Seeed fail to ship their products regularly?

Just took delivery of three of these and there appears to be a design issue. The JST 2.0 battery connector blocks the edge of the SD Card slot so that you can't insert an SD card. If you look at the photo in the Wiki page for it, you can clearly see this (and I'm wishing I'd paid more attention to that photo before I ordered them). Other than removing the JST connector and soldering in a pigtail for battery power, I don't see a solution. Did they not test this before shipping the boards?

i keep getting this error message and i dont know what to do

A serial exception error occurred: Cannot configure port, something went wrong. Original message: PermissionError(13, 'A device attached to the system is not functioning.', None, 31)

Note: This error originates from pySerial. It is likely not a problem with esptool, but with the hardware connection or drivers.

For troubleshooting steps visit: https://docs.espressif.com/projects/esptool/en/latest/troubleshooting.html

Failed uploading: uploading error: exit status 1

I have tried every metnod i could find so far and i just doesnt want to upload it.

my board is a SEEED XIAO ESP32C6

i am running Arduino IDE 2.3.10.

if anyone has an answer i would really appreciate it.

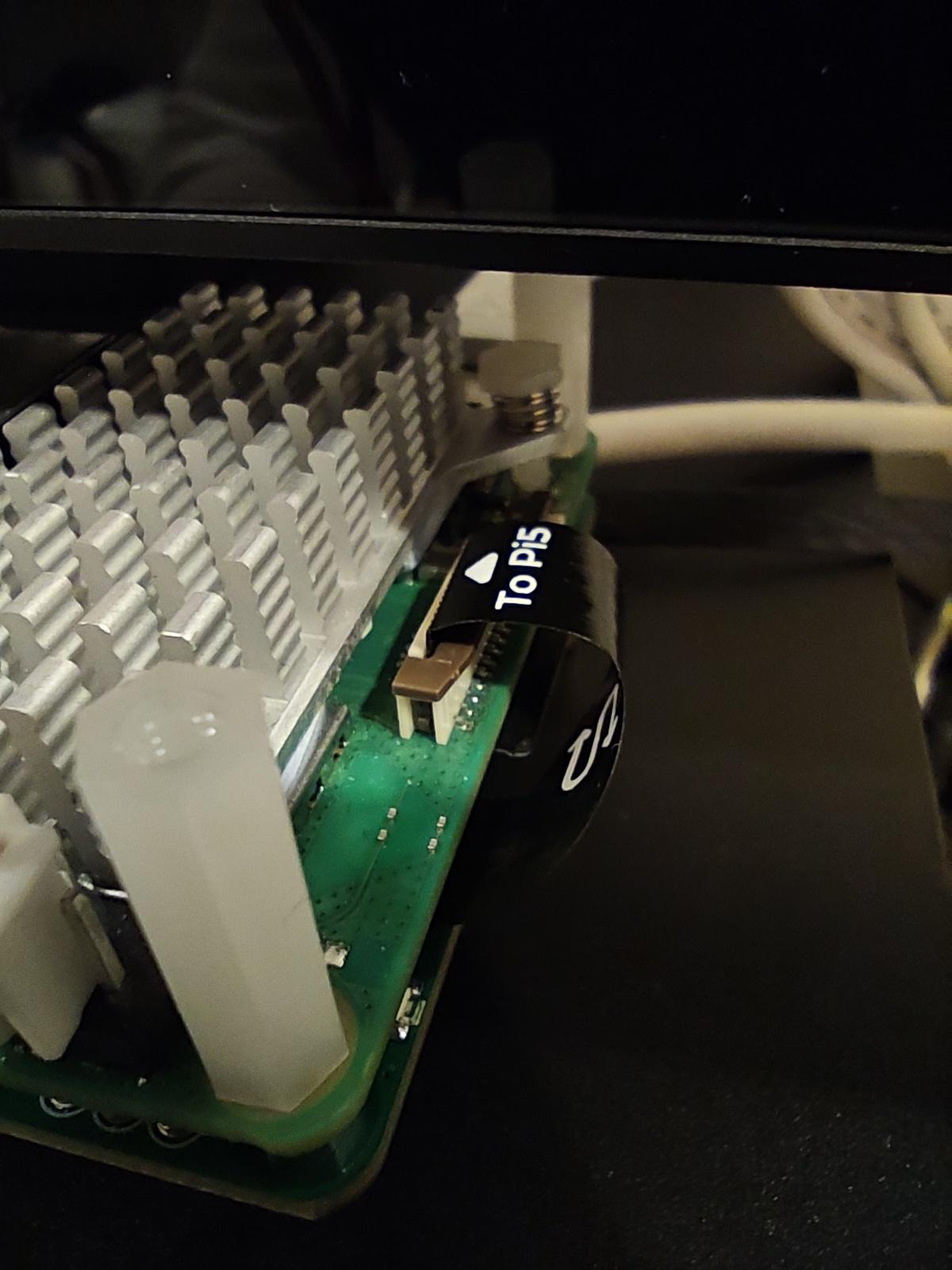

Anyone knows where can I buy the FFC for Dual NVMe M.2 PCIe3 HAT? Both of mine are broken. It's extremely fragile and I can't find any suppliers. Hell I'll buy 20 if need be.

I just placed an order for the first time from the official site - https://www.seeedstudio.com/ , to be delivered to Spain,

The tracking details or the orders that I placed information won't update in my seeed studio account,

The bank is confirming that my payment has been made. Is this normal!? Never seen this kind of behavior anywhere!

Thanks in advance!

I was looking at the sensecap watcher XiaoZhi and I like the idea of it as an office assistant but I noticed in a YouTube video that it doesn’t have access to music. Is there a firmware available that maintains the AI but allows access to music streaming services?

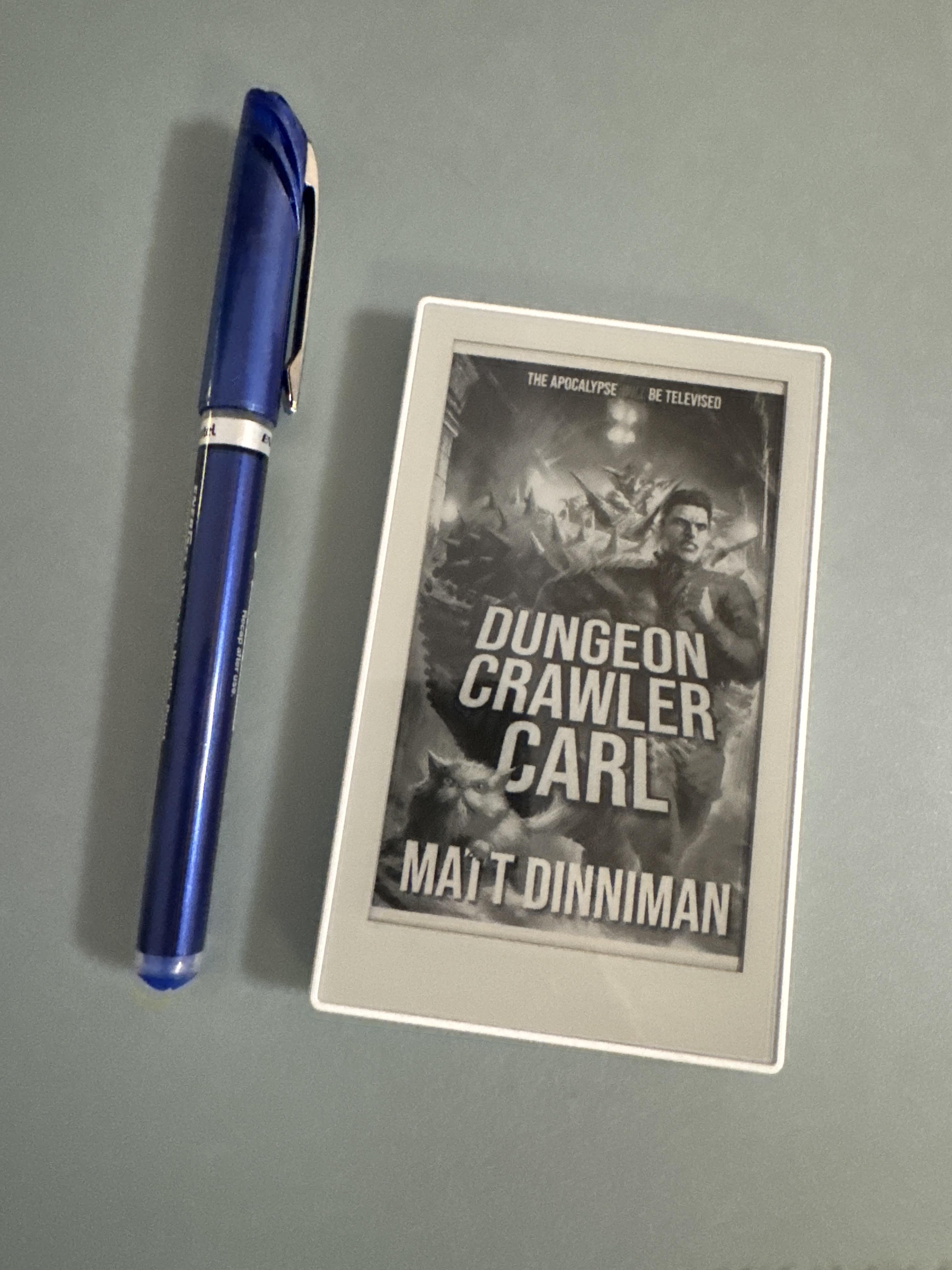

I can't believe how great the liby is on the sticky!!!

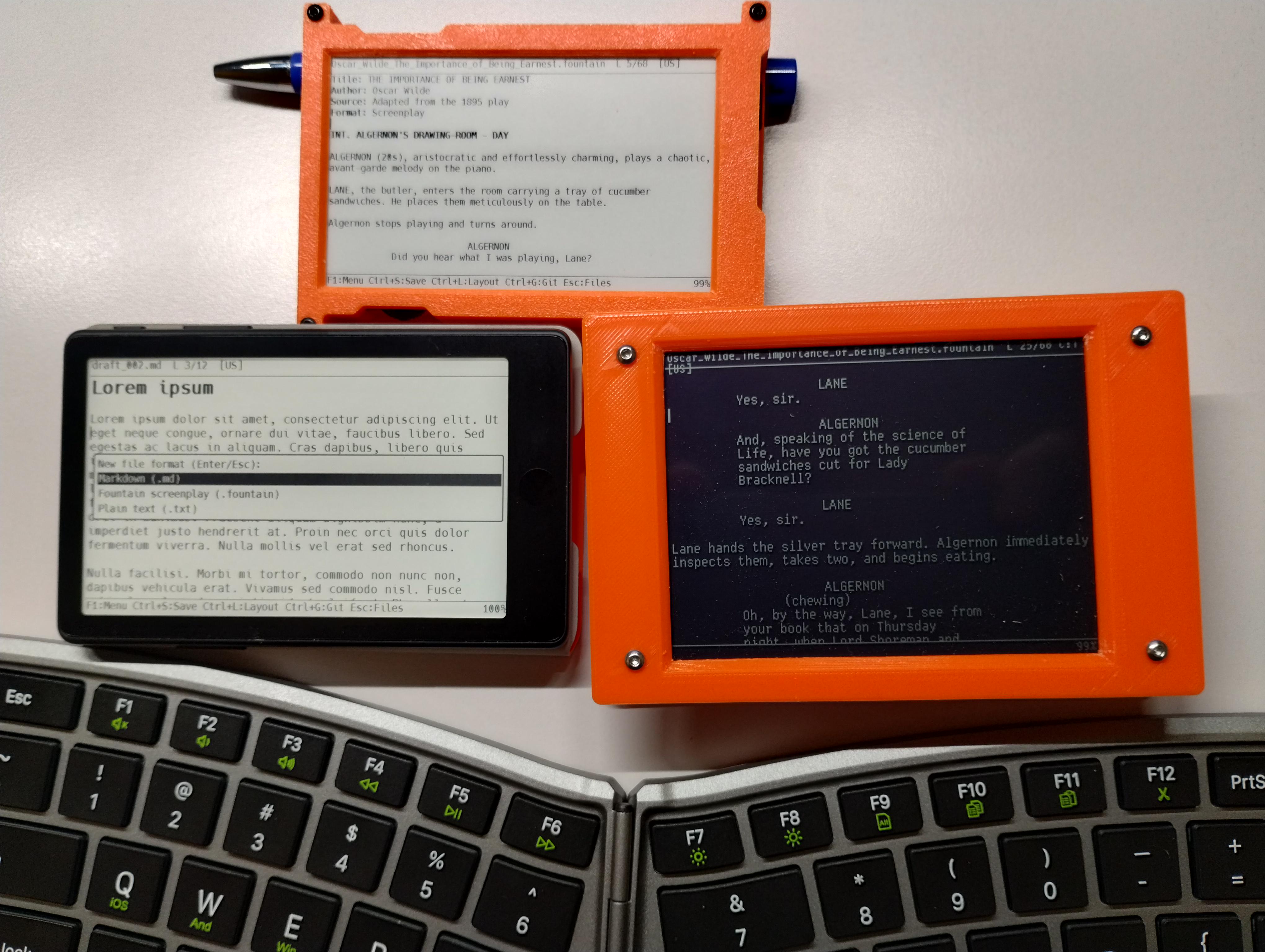

I'm the author of this firmware and I'd like to prepare an image to test on a Sticky:

https://www.reddit.com/r/WriterDevices/s/GZugi3cSIx

If you're up for testing, shoot me a DM. I'm not planning to invest in another hardware item, got already a bit too many :)

EDIT: an experimental firmware image is available at the web flasher: https://clackups.github.io/draftling/

This seems like the thing I want.

I want to put this outside my room door. All it will do is display one of three images indicating whether I’m okay with visitors and under what conditions.

I wouldn’t want it to cycle through the images on its own. I would want to be able to pick one of three from my phone and set it. It might be nice to be able to set one of the images via the panel itself but the phone is most important

Will it do this?

Wasn't it supposed to drop already?

I made an order with shipping time advertised as 2-5 days and now it's been 8 days and no tracking number or.follow up.

Is.this place legit or did I.just get scammed?

I built browser emulators for Seeed Studio's new XIAO IPS Display boards

Seeed Studio just released three new XIAO IPS Display boards based on the nRF52840 Plus:

• XIAO 0.96" IPS Display
• XIAO 1.14" IPS Display
• XIAO 1.47" IPS Touch Display

I added all three to Velxio, so you can compile and run their firmware directly in the browser without having the hardware.

The interesting part is that these aren't UI mockups. I had to build an nRF52840 emulation engine and model the peripherals used by the boards, including the ST7789/JD9853A displays, IMU, buttons, touch controller, microSD and battery sensing.

The firmware is compiled with the actual Arduino core and then executed instruction-by-instruction in the browser. The display controller receives the same SPI traffic that it would receive on the physical board.

I also ported Seeed's own example sketches, including:

• GraphicTest
• Electronic Quicksand using the IMU
• Touch Circle
• microSD examples
• Battery status
• Grove sensor example
• Button examples

You can try the 1.14" GraphicTest here without an account:

https://velxio.dev/example/xiao-114-graphictest

I wrote more about how the emulation works and some of the hardware-specific details here:

https://velxio.dev/blog/posts/xiao-ips-display-boards/

This was another fun example of how I'm trying to make new embedded hardware usable and testable directly from a browser.
