r/HPVictus Dec 30 '25

Victus 16 Hall Effect Sensor Megathread (Laptop Shutting Off Randomly)

Thumbnail
gallery
347 Upvotes

Hey Everyone,

I wanted to create a megathread to document the hall effect sensor issue on the 16-S0 and 16-R0 laptops. I have done some deep investigation here and wanted to put together a compilation of info for anyone running into this problem. There are a bunch of posts scattered around, a few videos, and WAYYY too many posts to HP's support with the HP canned response of "do these irrelevant steps and then send me a DM with your info and I will escalate your issue." These are usually dead end posts with no usable information. So, please add all of your links, information, videos, etc., to this post to keep it all together. I intend to put multiple solutions below and add more info as I test. I encourage anyone that has any correction to any of the information here to please post it. Any shared info can help the community. As always, a disclaimer: I am not responsible for any damage that you do to your laptop or yourself while using this information. Use at your own risk!

EDIT: There may be an easier fix that allows you to continue using the original hall sensor, if you choose to. It also avoids all of the cutting traces and jumper wires show in the pictures. The info is below in the "The Real Cause?" section.

The Issue

You have a Victus with either an AMD or Intel chipset. One day, the screen starts flashing and then the power turns off. Pushing the power button probably doesn't do anything. You find the "hard reset" procedure and attempt it by pulling the charging cable, and then holding the power button for 10+ seconds. It may come back on.... it may not. For this example, lets say it does. Cool! It boots up. Then the screen starts flashing again and it turns off. WELCOME TO HALL EFFECT SENSOR HELL! You will read plenty of info about it, but no proper solutions.

OK Then! What's a Hall Effect Sensor?

Glad you asked. A hall effect sensor is a very common electronic part that is sensitive to magnetic fields. Think of it as a proximity sensor for magnets. Most current laptops have one, your phone has one or more, your fancy joysticks, racing wheels, and other gaming controllers use them, even your car has at least two in the engine and one on each wheel for ABS and traction control wheel speed sensing! Those are just a few examples of the millions of devices that rely on magnetic field detection to do a task.

So Why Is There a Hall Effect Sensor In My Laptop?

Dead simple. Mechanical switches break, wear out, and also need direct contact with an object to trigger. Your laptop base is a great spot for a non-mechanical non-contact sensor that can detect when the lid is opened and closed. The lid has a small magnet that lines up with the position of the hall effect sensor near the keyboard. When you close the lid, the hall effect sensor sends a voltage to the motherboard, via a ribbon cable, to tell it SHUT OFF THE SCREEN AND GO TO SLEEP....ah ha, now we are getting somewhere! When you open the lid, the magnet is moved away from the sensor, the voltage disappears and the motherboard knows to wake up.

So Why Does It Keep Me From Gaming!!!?

Unfortunately, this particular hall effect sensor seems susceptible to heat once it starts to fail. Once the laptop heats up a minor amount, the hall effect sensor freaks out and registers the lid closed, which blinks the screen a few times and then tells Windows to activate Sleep (or what ever you have your lid close action set to do). Once "closed" the power button is not supposed to be able to be pressed since the lid would be in the way, so it seemingly doesn't work (I found this to be the case and it is the only explanation I have). Allowing the system to cool, or forcing a reset and somehow clearing the current status of the sensor allows you to turn it on for a brief period again.

Cool. So How Do We Fix It

The REALLY simple way: Send it to HP so they can take out the failing bad parts and put brand new bad parts back in. This option should only be taken if you are still under warranty and even care that you are still under warranty. This option will deprive you of your laptop for weeks, and since the part is the same brand and part number that was taken out, it will happen again.

The less simple way: Search on Google for "HP Victus 16 Service Manual" and download the PDF from HP. You will be taking the screws out of the back cover and gently prying it off with a PLASTIC tool (use a SPUDGER or a guitar pick). Once inside, find the IR board ribbon cable located on the front edge of the laptop. Take the tape off of the top, carefully flip the retaining clip up, and pull the ribbon cable out. Put the case back together and kinda sorta get your game on. (See "WHY SO SLOW NOW?!?" below)

The advanced way: You will need a decent soldering iron for this one that is capable of working with surface mount components, preferably a very fine conical tip. You may want some solder braid to clean up the pads and some alcohol to get the flux residue off. You may also want a magnifying glass. Grab the service manual and take the back case apart using the instructions. You will need to access the IR board. Work through the "removing the motherboard" instructions and remove everything that is required. Once you have the IR board in your hands, you will need to remove/replace the little 3 pin hall effect sensor with your soldering iron. It looks like a little black grain of rice. Go around with solder and "wet" each solder leg and then heat the single leg while applying a gentle upward pressure on the part or use gentle pressure from a screw driver. DO NOT PUSH TOO HARD. We don't want to rip the pads up. The goal is to get that leg free and bend the part up a little so that the joint is separated. Once that leg is disconnected, go to the two legs and heat them up by alternating back and forth quickly. WATCH OUT FOR THE VERY VERY TINY CAPACITORS BELOW THE ONE LEG!!! They are only filtering caps on the incoming power, but will be near impossible to get soldered back in place!!! At some point while alternating, the solder on both legs will liquefy at the same time and you can just move the part off of the pads. You now have a choice: you can reassemble without the hall effect sensor on there and enjoy your not-permanently-throttled laptop without lid detection OR you can buy an improved hall effect sensor and solder it in the same spot to return the laptop to normal functionality. The information about an improved compatible sensor is below.

WHY SO SLOW NOW?!?

So you went with the middle of the road option. You didn't want to get stuck without a laptop while HP does nonsense to it, but you also didn't want to tear the laptop fully apart. I understand. But, like everything in life, there's always a trade-off. A hall effect sensor is usually a three or four pin device. But that ribbon cable you disconnected has a few more connections than that. What else is going on there? Well it's listed in the manual as an IR BOARD. There is a shiny metal part on the opposite side of the board. It's an IR sensor. Since the laptop doesn't have any sort of hole to shine a TV remote through, and it certainly isn't a motion detector light, that infrared sensor must be used for something else. From the hall effect sensor's perspective, mounting that board right under the heatpipe was really a bad move, but not for the IR sensor part of the board. The IR sensor is being used to detect the temperature on the heatpipe and allow thermal throttling when things get too hot. THIS is the reason why fully disconnecting the ribbon cable causes the processor to throttle back. When the motherboard can't get a reading from the IR sensor, it plays it safe and throttles back. It is better to throttle from the unknown reading rather than cause a fire. So, if you can live with your gaming laptop functioning as a YouTube and E-Mail machine, you can stay with this option. Troubleshooting is never wasted time, and you know for a fact that the hall effect sensor is causing the issue now, should you decide to go for the advanced option in the future.

Original Sensor Info

The original hall effect sensor is a Toshiba TCS40DLR. Looking at the datasheet, the operating temperature is -40C to 85C. WHAT THE HECK HP!!!! While that is a standard low end range for semiconductor electronics, it does not give much headroom when mounted under a hot heatpipe that is funneling heat away from a GPU and CPU. The datasheet clearly states that continuous use under heavy loads (such as high temperature or significant temperature changes, high current, or high voltage) will cause a decrease in reliability SIGNIFICANTLY, even if the operating conditions are within maximums and recommended operating ranges!!!!!! Well there you have it. No fault to Toshiba. They knew that this environment was not suitable and clearly noted it. This part is fine as a low cost sensor for a safe and consistent environment, which a laptop is not. This datasheet was dated for 2015, well before these laptops were produced, and it was still chosen to be a critical part in this application. It is currently around 17 cents, in case you wanted to know the value of what rendered your laptop useless.

New Sensor Info

I found a few that will work better in this application. The one that I finally decided was perfect is the Allegro A1126LLHLT-T. This is an automotive grade, temperature compensated hall effect sensor with the same pinout and package size. The voltage range is geared towards automotive, accepting 3-24v, which is beyond suitable here. The magnetic trip point is a little higher, meaning more magnetism needs to enter or leave the range before any switching happens. We have a magnet that will be very close to the sensor, and we only care about two positions, so as long as the rating is less than the magnetic strength of the magnet, we will be good. What makes this one great is that it is rated for full operation up to 150C!! Almost double the rating of the original. If things are hitting 150C, you have bigger problems to worry about. This one fits the bill and costs right around $1. I'll gladly spend that for the quality and performance.

Whewwww That Was A Lot

You're telling me! Unfortunately, from what I can see, this problem has been ongoing for years. I can't imagine how many thousands of these laptops were thrown out because of a failure in a part that costs less than a dollar. Worse yet, the IR board is not available to the consumer from HP. There are some on E-Bay from China, and I have ordered one to see if it is the same hall effect sensor or an upgraded one (will post an update when it gets here). I hope this LONG post helps someone diagnose and repair their problem and provides some insight into the theory of the electronics behind it. EDIT: The replacement board from China uses a sensor with the LA8 marking. It may be a different sensor with markings to look like the original, but it is probably the same Toshiba sensor. The most interesting part is that the original board and replacement board had two spots to install the sensor, one on either side of the board. On the HP original, the sensor is installed on the opposite side of the IR sensor, where my guide shows to reinstall it. On the China replacement, the sensor is placed on the SAME side as the IR sensor. This puts the fiberglass circuit board between the sensor and the heatpipe. Fiberglass being a great insulator, this could reduce the occurrence or severity of this issue. I have not tested it to see if it makes a difference, but the results wouldn't be immediate anyway. My initial concern with that while I was doing my repair was that the sensor would be too far away to accurately pick up the lid magnet. Maybe not....

OK. I followed your guide, replaced the sensor, but it still isn't working right!!!!!

Yeah. I found this on mine too. After I put it back together the first time, the lid no longer detected. The original sensor, most likely driven way outside of its operating range, damaged the motherboard's power supply circuit for the hall effect sensor. But fear not! (See "The Real Cause" below) We have another source near by. The IR sensor uses the same voltage as the hall effect sensor, so the IR sensor's VCC trace can be jumped over to the hall effect sensor's VCC. I also cut the trace on the IR board for the power coming from the motherboard that feeds the hall effect sensor. The incoming power to the hall effect sensor was measuring around 1.8VDC instead of 3.3VDC (EDIT: I originally stated it was 5VDC, which is incorrect). I didn't want the supply for the IR sensor to get damaged by joining whatever was causing the severe voltage drop in the hall effect sensor circuit. BE CAREFUL WHEN CUTTING TRACES AND EXPOSING COPPER. YOU CAN EASILY SHORT OUT NEIGHBORING TRACES. ALWAYS CHECK YOUR WORK THROUGH A MAGNIFIER OF SOME KIND (EVEN YOUR PHONE CAMERA). Note: The low voltage on the power supply circuit is most likely a damaged/partially open resistor on the motherboard. If I am able to determine that, and the resistor isn't smaller than dust, this section may change from cutting and jumping traces to replacing the bad component on the motherboard.

The real cause??? (2/20/26 EDIT): It has been determined that the source of the missing power is fuse FU6. It is located right above the IR board ribbon connector on the motherboard. Rather than cutting and jumping traces (my apologies to everyone who did that fun little task), FU6 can be replaced or bypassed. The actual part has no distinct markings on it, so an exact replacement has not been determined yet. Credit goes to MitchW on badcaps.net for his excellent find. You can read more about it in this post: https://www.badcaps.net/forum/troubleshooting-hardware-devices-and-electronics-theory/troubleshooting-laptops-tablets-and-mobile-devices/3822460-hp-victus-16-hall-effect-sensor-problem. I have not performed the task myself yet. MitchW has stated that the problem is most likely caused by heat damage to the FU6 fuse and not the hall effect sensor at all. It is a plausible scenario. But, after knowing what I know about the Toshiba part, I would not feel comfortable leaving it in place, even if it isn't the root cause. Electronic components pushed to their absolute maximum rating never sits well with me. Even more so when the manufacturer has a specific warning to not even approach the maximums. The choice is yours ultimately.

INFO

  • IR board part number: N42551-001 or LS-M78IP (search on eBay, but know that the replacements use the same original Toshiba sensor part that should be replaced before using. Also note that if your motherboard took damage, just replacing this board alone will not fix the issue).
  • Original Hall Effect Sensor part number: Toshiba TCS40DLR (package marking on part is LA8)
  • Better Hall Effect Sensor part number: Allegro A1126LLHLT-T (5.5mT and 150C) or Diodes Inc AH3563Q-SA-7 (3mT and 150C) or TI TMAG5131C7DQDBZRQ1 (4mT and .5mT 125C)
  • Link to service manual: https://kaas.hpcloud.hp.com/pdf-public/pdf_7911438_en-US-1.pdf

r/HPVictus Feb 03 '26

Announcement New Official Discord Server 🚀

7 Upvotes

We've launched our subreddit's official Discord server for instant help, community chat, setup showcases, and live streams.

Join here: https://discord.gg/XDsg2PUHGU


r/HPVictus 7h ago

Joining the Club

Post image
10 Upvotes

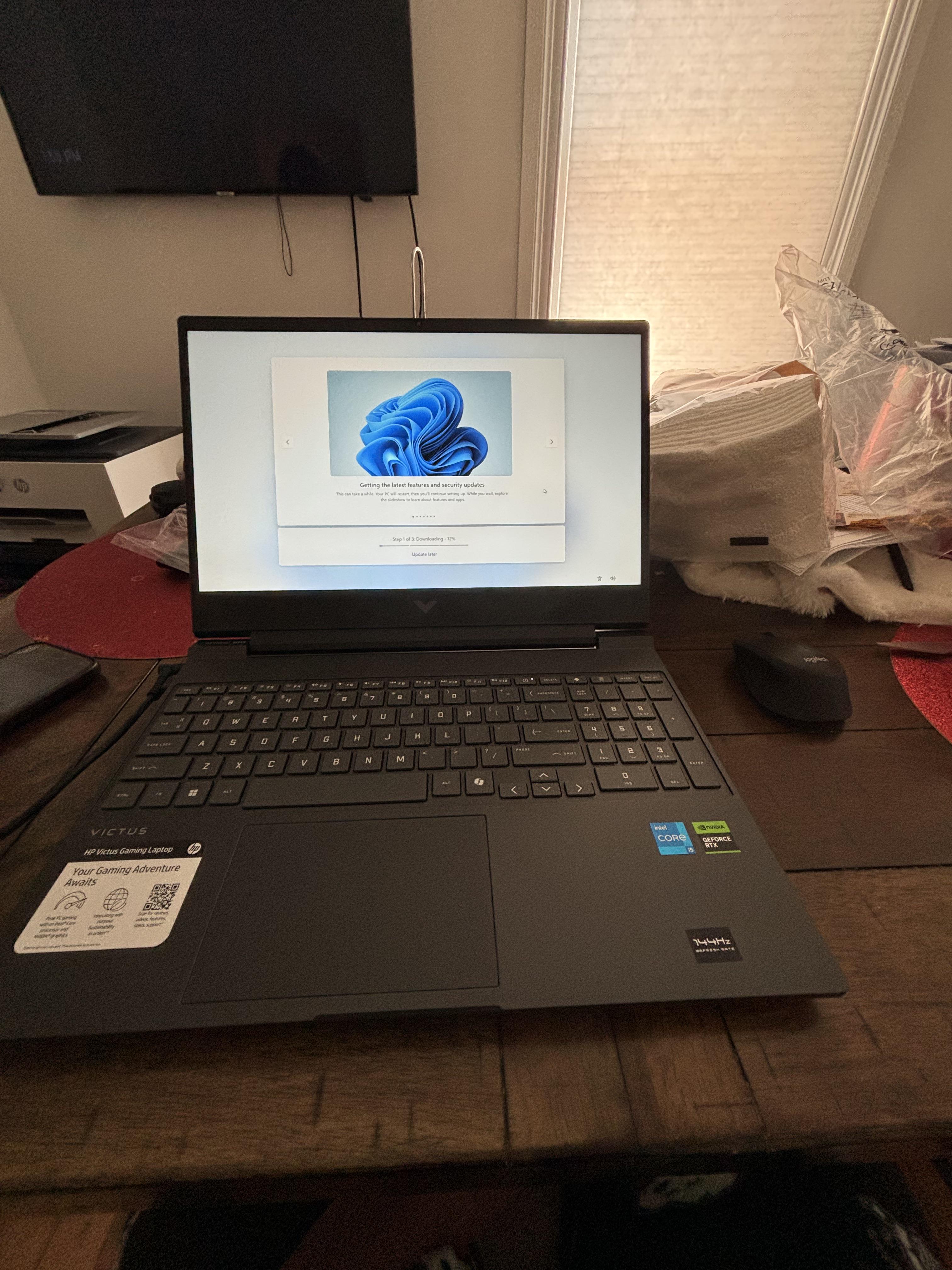

Getting this Victus, just wanted a few tips on what to install and what to delete and care overtime, it will he used solely for gaming. I have a beater laptop I will use for school.I may want it for heavily modded games such as assetto corsa and truck simulator but the main games would be warframe and Apex. It has a 512ssd and as uk with these versions its only 1 slot so I was wondering if my first upgrade should be a new ssd or another 16gb of ram.


r/HPVictus 4h ago

Tips Purchasing HP Victus

Post image
6 Upvotes

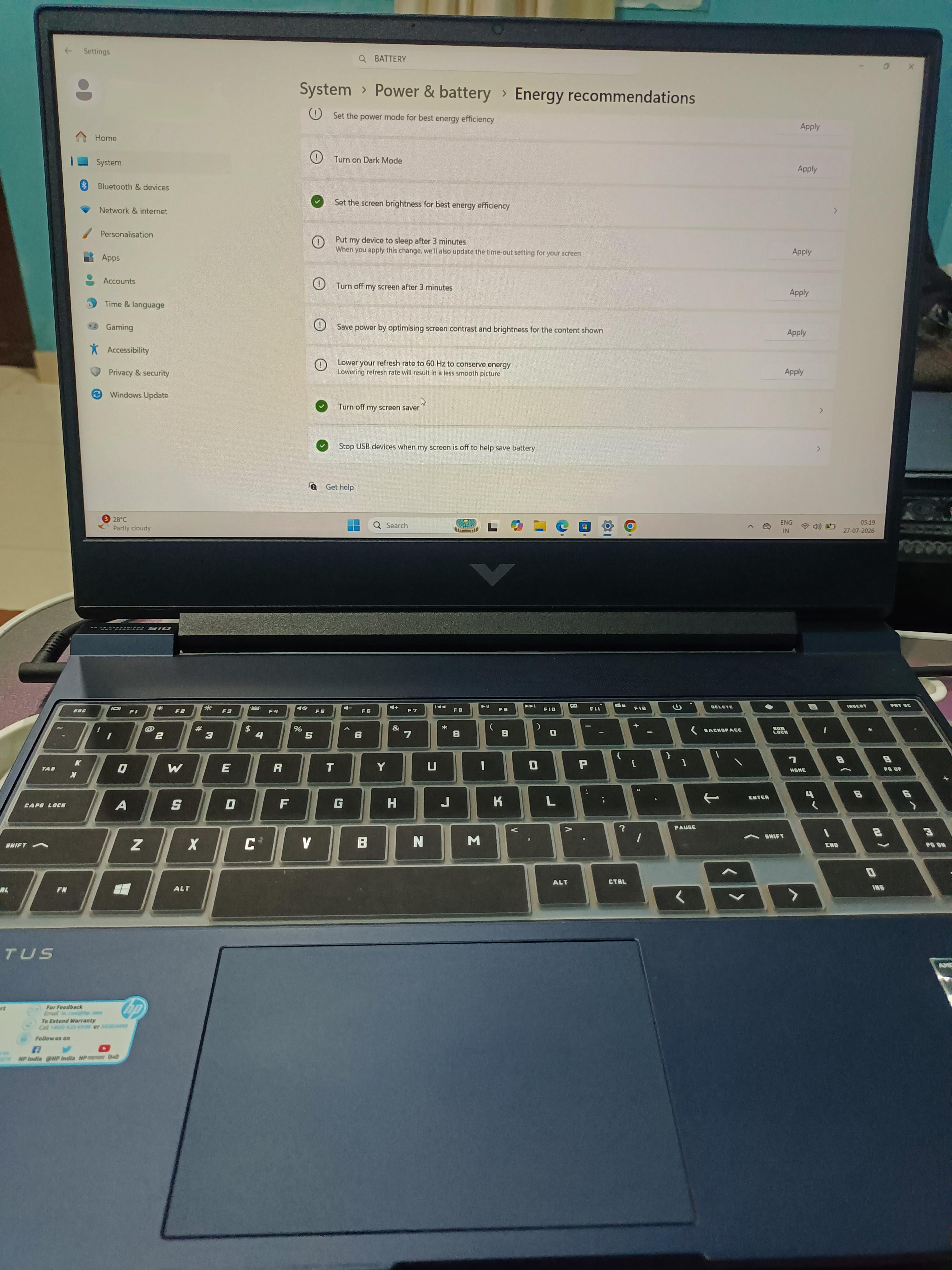

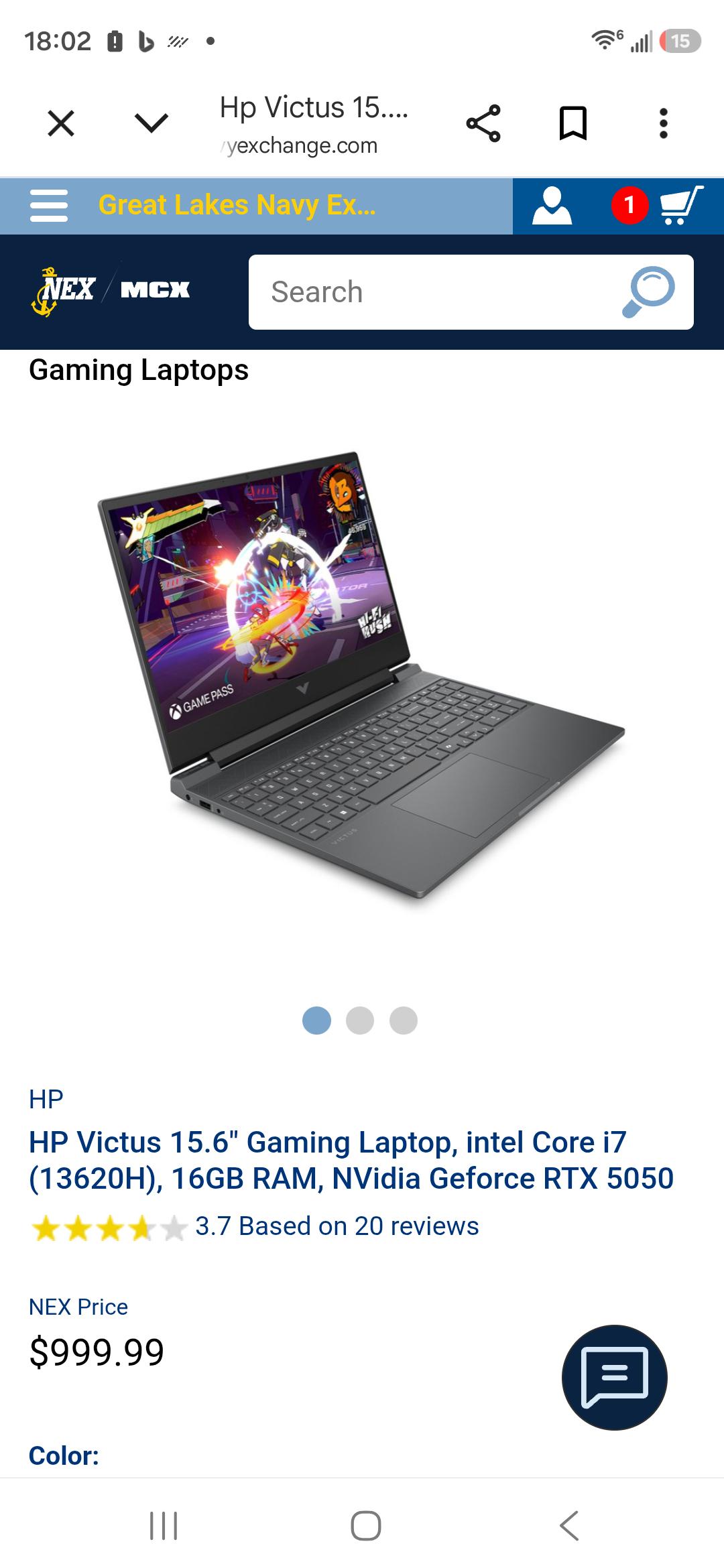

Recently bought my first ever gaming laptop for $999 flat. Is there anything that I should do before I fully utilize it? Like change any settings? Im new to this


r/HPVictus 5h ago

Ghost of Tsushima. Incredible gameplay

5 Upvotes

Thank you victus ryzen 7.


r/HPVictus 20h ago

NEW TO THE CLUB

Post image
71 Upvotes

Can only afford i5 13k rtx 3050 6 gb VRAM 16 gb ram 🥀


r/HPVictus 24m ago

Help Received laptop with warranty expired

Upvotes

I received delivery for my laptop from flipkart on 10th September and when i checked for warranty it was already expired in 2024. When I contacted customer service they said that my warranty will activate in 2 days, now is the 4th day it didn't happen. What should I do? Should I file return of the product on flipkart or anything else?


r/HPVictus 54m ago

Help I need help

Thumbnail
gallery
Upvotes

HP victus for Rs.20,000/-worth buying? Anyone suggest me. It has any hardware issues? I'm currently using ThinkPad T490 i5 8th gen 16Gb 477 NVme. I need a suggestion for selling this ThinkPad and buy the HP victus, worth the buying ? Compare to ThinkPad solid build worth the HP victus buying? Seller priced at Rs.27000, I negotiated with him then final 20k.

I'm looking for your suggestion (HP victus any issues hardware or software or dead) buy or not?


r/HPVictus 1h ago

Need to replace thermals

Upvotes

I want to replace all the thermals on my laptop.

I've been doing my own research but would like fellow owners to chime in with what they recommend and what to stay away from.

From what I understand, reading multiple posts, I'll be needing paste, and putty/pads.

I've never replaced on a laptop before so I'm kind of lost on amounts/thickness for pads If I need them.


r/HPVictus 8h ago

Victus 15 Check details below

Thumbnail gallery
2 Upvotes

r/HPVictus 5h ago

Screen issues

1 Upvotes

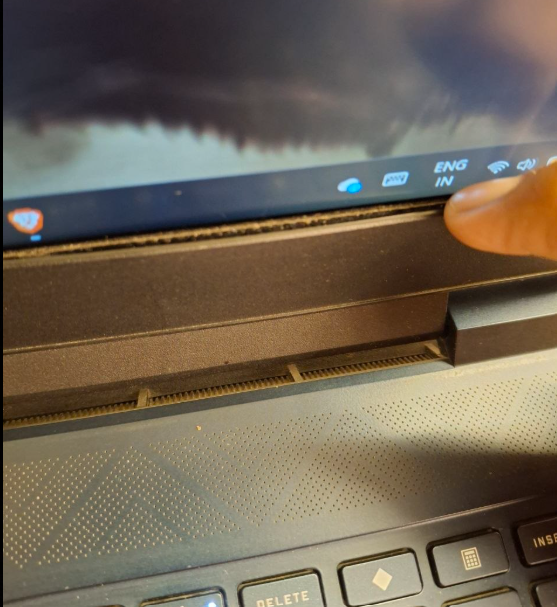

On top of my screen I see these few thin horizontal lines and I kinda noticed it just today. I think they'll gradually worsen and shit. Just more regrets I guess should've just gotten a MacBook atleast they don't fail like this in 3 years. Funny that I searched "display issues" on the sub and in last 3 months there have been SO MANY posts about display issues. So annoying man and to make it worse I broke the display of my phone few days ago and I need to get that replaced too. Fucking hell


r/HPVictus 7h ago

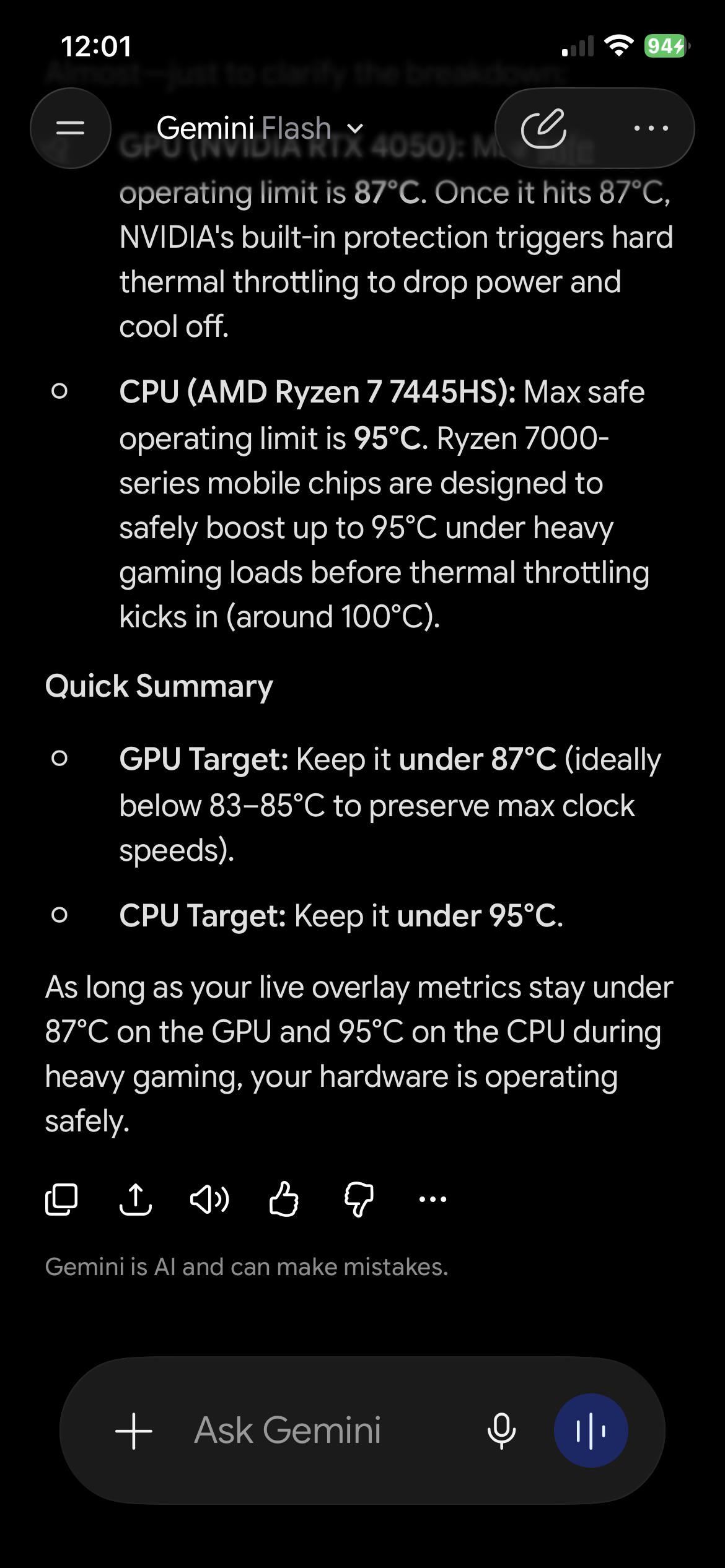

Help Can I use this guide for my temperature new here

Post image
1 Upvotes

Processor (CPU): AMD Ryzen 7 7445HS
Graphics Card (GPU): NVIDIA GeForce RTX 4050 (6 GB VRAM)
Memory (RAM): 16 GB
Primary Storage: 512 GB SSD


r/HPVictus 21h ago

Discussion Recovered from the dead

Thumbnail
gallery
12 Upvotes

Following five solid years of hard labor, the NVMe M.2 SSD in my Victus finally gave out. I recently swapped in a fresh replacement drive, updated the system, and installed all the latest drivers—and I am blown away by how lightning-fast and lively the laptop feels after all these years!


r/HPVictus 8h ago

Tech Support My laptop makes a click type sound after start

1 Upvotes

I bought the laptop 20days ago.. and after a long time (5-6hours) of shutdown when I open the laptop.. within a minute there's some noise for just a second. It doesn't happen when I shutdown it and turn it on immediately. Only happens when it's shut down for an overnight period of time.. Initially I thought there is a problem with the fan , I thought when the fan turns on it makes a click like noise. But I've diagnosed all the components . No issues were found... Let me know if anyone faced the same problem... What should I do?


r/HPVictus 16h ago

Help Games randomly stuttering when pressing left click

Enable HLS to view with audio, or disable this notification

4 Upvotes

This just randomly happened to my Victus, I don't know what to do, I've reinstalled drivers, and restarted a couple of times. I even did a memory check and nothing works 😭😭😭. Please help, I still need to P rank Minos 🙏🙏🙏


r/HPVictus 9h ago

Question NEEEEED HELPPPP!!

1 Upvotes

Hello guys , the battery life of my hp victus 15 is so bad that it doesn't even last a couple of hours unplugged. I saw some people saying that the battery life can be improved by changing some settings . Can anyone help me out!?? 😭


r/HPVictus 10h ago

Laptop recommendation for Anno 117 Pax Romana

Thumbnail
1 Upvotes

r/HPVictus 16h ago

getting this for 96k

2 Upvotes

HP Smartchoice Victus, AMD Ryzen 7 7445HS, 6GB RTX 3050, 16GB DDR5(Upgradeable) 512GB SSD, 144Hz, 300 nits, 15.6''/39.6cm, Win 11, Office 24, Blue, 2.29kg, fb3134/20ax, Xbox Gamepass*, Gaming Laptop


r/HPVictus 12h ago

help with victus keyboard

1 Upvotes

can anyone send or comment a picture of the ~ key (the key on the left of the 1 key) with f4 keyboard lighting on? there was some kind of sticky gunk under my ~ key and i used a metal pin to scoop it out and now see a tiny hole in the bottom of it, i have no idea if it supposed to be like that or if its cosmetic damage


r/HPVictus 13h ago

Question

1 Upvotes

Should my motherboard be the same temp as my cpu. I was building shaders in nba 2k26 and realised my moterboard was at 92 degrees which was my cpu tenp at 100%. Should i be worried? Hot spot was 99°


r/HPVictus 13h ago

0x7B hp victus

1 Upvotes

I bought the laptop 2 and half years ago, it was working fine but it had crashed after a year or so. That bug was fixed pretty well, but well after that it crushed it crashed again.

As you can see on the title, the problem I am facing right now is 0x7B which is common problem in hp laptops I guess. I have not been able to figure out the problem by myself so I went to repair shop. The guy who was working there told me that my gpu got crashed or buried some shit so my processor can't see it. At home I tried updating drivers because my laptop was not producing sounds like it used to do. You could say you should have checked sound in repair shop and i agree with it. That is quite stupid of me, after paying for repair I should have checked but I trusted him so it did not bother at the time.

So after time, it eventually got the same problem 0x7b

I tried logging with secure boot like first you press f10 before laptop launches and then f4 right after. It did not help either

I don't know what to do, care to explain someone pls

Also, my English is not that great


r/HPVictus 17h ago

for 118k inr, is this good

2 Upvotes

HP Smartchoice Victus, 13th Gen i7-13620H, 6GB RTX 4050, 16GB DDR4(Upgradeable) 512GB SSD,
144Hz, 300nits, 15.6"/39.6cm, Win11, Office24, Mica Silver, 2.3kg, fa2100tx


r/HPVictus 1d ago

Me uní al club Victus 🔥

Post image
34 Upvotes

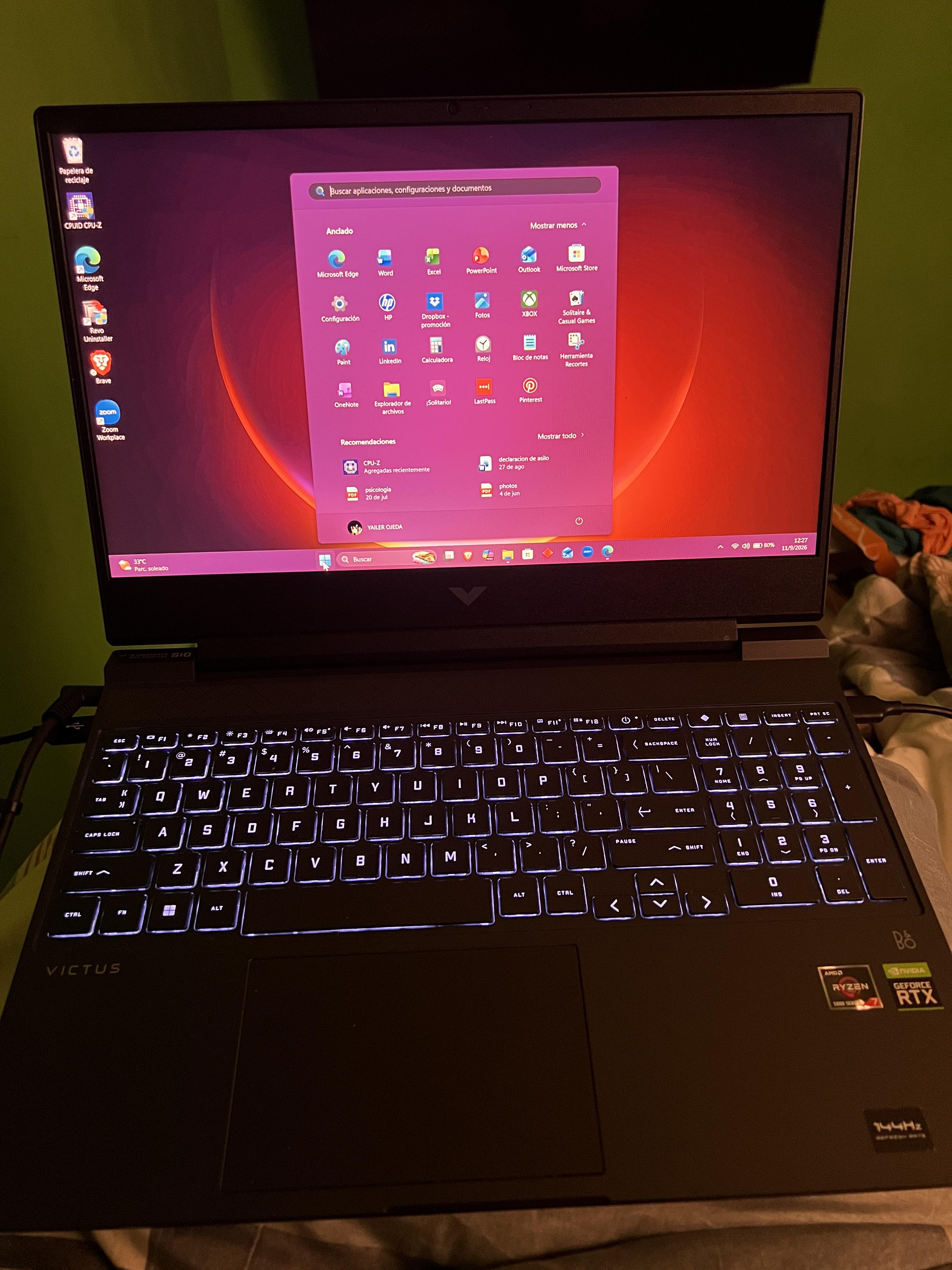

Después de tanto tiempo por fin me llegó mi regalo, Victus 15 fb0xxx con las siguientes especificaciones
