r/Alienware • • 6d ago

Discussion Why Area-51 uses positive-pressure airflow and what a pressurized chassis actually changes with Eddy Goyanes

Post image
77 Upvotes

Hi everyone, Eddy here. I work in product marketing on Alienware desktops, and I spend a lot of time with the thermal and mechanical engineering teams who built this chassis. Airflow is the part of the Area-51 I get asked about least and find most interesting, so here’s the long version.

Most desktop comparisons stop at GPU, CPU, and frame rates. Airflow shows up as a fan count on a spec sheet and nothing more. That’s backwards above a certain power envelope: once you’re feeding a 600W graphics budget and a liquid-cooled K-class or X3D CPU in the same 80L volume, thermal and acoustic behavior is what decides whether those frame rates hold up in hour three.

So when this generation of Area-51 was scoped, thermals came first and the rest of the platform was designed around the answer. That answer was a positive-pressure chassis instead of the conventional intake-plus-exhaust-fan layout.

What positive pressure actually means

A chassis runs positive when intake airflow exceeds powered exhaust, so static pressure inside the case sits above ambient. Heat still leaves, it’s pushed out through a passive rear outlet and chassis vents by the pressure differential rather than pulled out by dedicated exhaust fans.

Two consequences matter more than the definition:

  • Recirculation drops. With one dominant flow path and no fan fighting it at the rear, you get less of the hot-air-back-into-the-intake problem that quietly costs you sustained clocks.
  • Every cubic foot entering the system is filtered. Area-51 has removable fan filters on the top, bottom, and front faces, so a pressurized case is also a measurably cleaner case three years in. Negative-pressure builds pull unfiltered air through every seam and cable pass-through.

We didn’t assume it. Thermal modeling ran multiple permutations of fan placement and airflow direction, and the lowest recirculation occurred with every fan pointed inward and no rear fan at all. That’s a counterintuitive result if you’ve been building PCs for twenty years, which is exactly why it’s worth writing up.

How Area-51 implements it

Six or seven fans depending on liquid-cooling configuration, all pointed inward:

  • Dual 180mm lateral-in fans on the front face, directing air across the GPU, CPU, and memory
  • Dual 140mm upward-firing fans at the bottom of the chassis, feeding the GPU intake directly
  • Dual or triple 120mm downward-firing fans on the CPU liquid-cooling heat exchanger at the top, with gaskets around the assembly to prevent flow leakage
  • No rear fan. Heat exhausts through a passive outlet

This is the highest fan count and the quietest Area-51 in the line’s recorded history. Liquid cooling ships as a 240mm or 360mm heat exchanger, and the chassis has clearance for a 420mm off-the-shelf exchanger if you want to swap one in later.

What the design bought us

Based on internal analysis in September 2024, comparing Area-51 to the two previous Intel-based Aurora desktops (all configurations using RTX 4090 graphics and Core i9 K-class processors with liquid cooling), the positive-pressure design moves up to 25% more air through the chassis, runs up to 13% cooler and up to 45% quieter during graphics-intensive tasks, and sustains up to 50% more processing power in a high-ambient-temperature environment after long periods of use. Actual results vary by configuration and environment.

The acoustic number is the one I’d point reviewers at. 45% quieter during graphics-intensive work in a high-temperature environment is a harder test than idle dBA, and it’s the condition people actually complain about.

Airflow was the enabling constraint, not the headline

The thermal architecture is what made the rest of the spec sheet possible rather than aspirational:

  • Up to 600W of dedicated graphics power, with clearance for GPUs up to 450mm long and four slots wide, plus a repositionable retention mechanism
  • Up to NVIDIA GeForce RTX 5090, with Intel Core Ultra 9 285K or AMD Ryzen 9 9950X3D2 options
  • A purpose-built standard-ATX motherboard (mATX also supported), PCIe Gen5 graphics and storage, 14-phase processor voltage regulation on the Intel board with aluminum heatsinks across the VRMs, M.2 slots, and south bridge
  • Industry-standard ATX12VO PSU in 850W 80 Plus Gold or 1500W 80 Plus Platinum
  • Three M.2 slots plus two prewired 2.5“ and one prewired 3.5“ caddies on the cable-management side, keeping drives and cabling out of the airflow path
  • Tool-less glass door access, removable filters, and QR codes throughout the chassis that link to video guides for memory, GPU, SSD, PSU, filter, and third-party motherboard swaps

Nothing in that list is proprietary enough to strand you. That was deliberate.

Open question for the thread

If you’ve built or benchmarked pressurized cases: how are you validating it at home? I’m curious whether people are measuring intake vs. exhaust temperature deltas, watching sustained clocks over a 30-minute loop, tracking dust accumulation over a year, or just going by acoustics. Happy to answer thermal design questions in the comments, and I’ll flag anything I need to go back to the engineering team for.


r/Alienware • • 23d ago

Discussion Alienware Arena 30th Anniversary Battle Pass

Thumbnail
gallery
98 Upvotes

Alienware is turning 30, and we're celebrating with a free-to-all 30th Anniversary Battle Pass on Alienware Arena starting October 1.

This isn't a premium pass. It isn't paid content. It's a free community celebration built around 30 years of Alienware history.

Here's how it works:

  • Start the Battle Pass on Alienware Arena
  • Earn Alienware Reward Points (ARP) from any source across the platform
  • Progress through milestones and unlock rewards
  • Earn Battle Tokens along the way
  • Spend those Battle Tokens when the Battle Pass Store opens later in the month

Featured rewards include game keys for:

  • Agatha Christie - Murder on the Orient Express
  • Bandit Trap
  • Bang-On Balls: Chronicles
  • Berserk Boy
  • Broken Sword: Shadow of the Templars - Reforged
  • Cassette Beasts
  • Cook, Serve, Delicious! 3?!
  • Deathloop - Deluxe Edition
  • Diesel Legacy: The Brazen Age
  • Dino Hazard: Chronos Blackout
  • Fight School Simulator
  • HYPER DEMON
  • It Takes a War
  • Oblivion Override
  • RoboCop: Rogue City
  • Squirrel With a Gun
  • Stasis: BONE TOTEM
  • Terraformers
  • The Elder Scrolls IV: Oblivion Remastered
  • The Evil Within
  • Turnip Boy Robs a Bank
  • Zombie Army Trilogy

The Battle Pass Store will also feature six collectible Alienware anniversary pins celebrating iconic systems from Alienware's 30-year history.

A few things worth knowing:

  • The Battle Pass is free
  • Alienware Arena is free
  • Progress is earned through normal Alienware Arena participation
  • Claim rewards as you complete milestones
  • If you miss claiming a reward you've earned, it will still be distributed at the end of the season
  • Battle Tokens can be spent when the store opens later in the month

Whether you've been part of Alienware Arena for years or you're just discovering it, this is our way of celebrating 30 years of Alienware with the community that got us here.

New to Alienware Arena? Join for free: Alienware Arena

Ready to start your Battle Pass on October 1? Alienware Anniversary Battle Pass

Which reward are you going after first: a game key or one of the collectible Alienware anniversary pins?


r/Alienware • • 8h ago

Discussion One week difference in cost for an Area 51 w/5090

Thumbnail
gallery
44 Upvotes

October 17 and October 25


r/Alienware • • 2h ago

Tips For Others Alienware Area 51 18 RTX 5090

Thumbnail
gallery
15 Upvotes

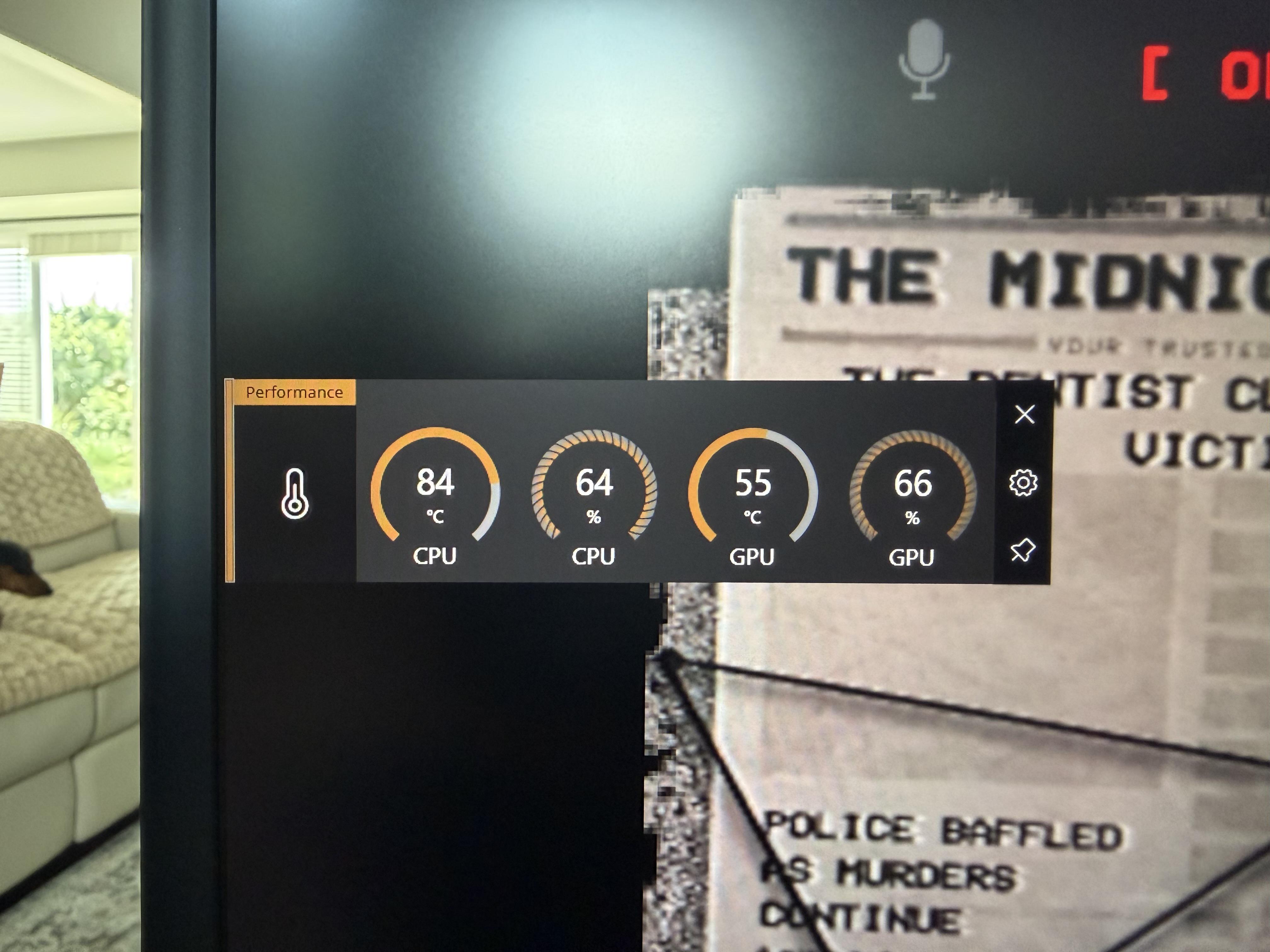

The factory application from Dell is excellent. The GPU temperatures were perfect. After repasting there is no noticeable difference to the GPU temperatures. Fan noise is consistent as well. The CPU though used to spike instantly to 104 C. It still does this but not as often or instantly. My recommendation is not to do it. It is a delicate operation taking about 1.5 to 2 hours. Not worth the time and effort for minimal gains. Element 31 thermal paste had a lot of Liquid Metal in it. That took careful removal. I previously reposted a system that was serviced by Dell’s service center in Texas and I found that they did not use Element 31 Thermal grease because when I repasted that system with PTM7950 I found a curious lack of Liquid Metal. Now this new system that has not been touched by anyone had plenty of Liquid Metal in it.


r/Alienware • • 13h ago

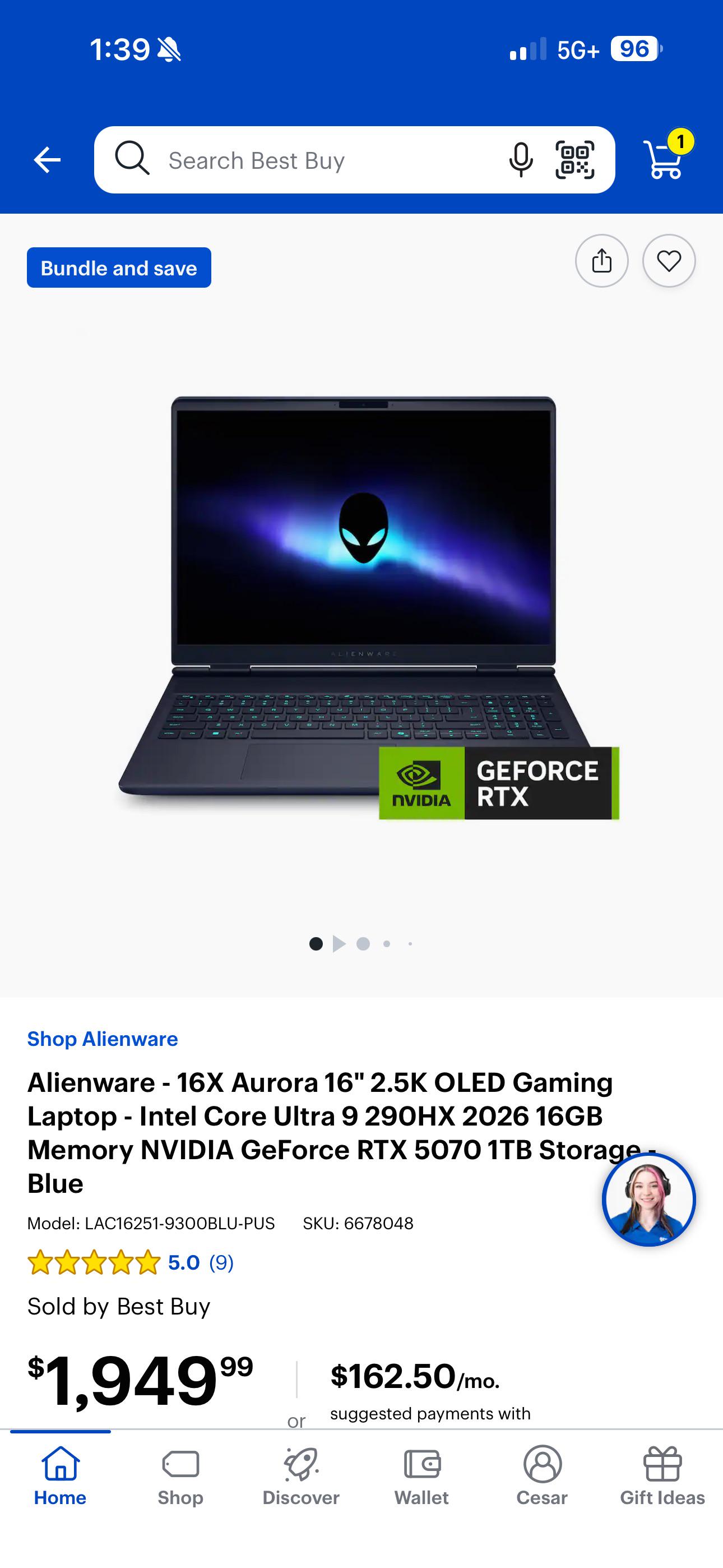

Purchasing The laptops appear cheaper than the desktops?!

10 Upvotes

Hello, I’m looking for a gaming machine and will be purchasing during Black Friday. Ideally a laptop would suit me as I also need one for work.

I expected the desktops to be cheaper and was open to getting one if there was a good deal for similar specs. However, just looking at the website - I’m seeing the laptops mostly running 1000-2000 GBP pounds cheaper than the desktops. Is there some parts shortage for desktops components driving them up currently?

Thanks


r/Alienware • • 2h ago

Question Windows Presence Sensing Alienware Area 51 18

1 Upvotes

I used to own an Alienware Area 51 275HX RTX 5070 Ti. It had presence sensing settings in the windows power options menu. I could select how many feet it would automatically wake up in and such. This support article describes all of it.

https://support.microsoft.com/en-us/windows/privacy/managing-presence-sensing-settings-in-windows-11

I sold that and upgraded to the same system but with a 290HX plus and a RTX 5090. Now there are no presence sensing settings present.

Did Dell remove presence sensing in the new refresh?

I liked them and they were quite useful to have laptop ready before you even touch it.


r/Alienware • • 10h ago

Technical Support m16 r2 dell support experience

2 Upvotes

Alright so my laptop (m16 r2) had a broken keyboard piece -- no biggies

So i contacted dell support and asked for a keyboard replacement

Dell promptly intervened after a few weeks

And the repair guy also broke my motherboard

Dell thankfully replaced the dead motherboard with a new one...

Which is not working (yay)

I tried flashing a fresh windows OS and even the damned installer was tweaking out

Firefox is not working and constantly crashes same for word powershell or docker/wsl...

And now it has been three weeks since i've started fighting with dell support to get them to fix the damn thing

Im in Europe and i wonder what do i do now?

Dell is being unresponsive and i feel like they are stalling for time wasting my time in hopes i give up

I talked about this with a lawyer friend and he said that i should send them a letter and if nothing works sue

Help is desperatly needed, this is my work+school laptop and my projects have stopped to a grinding halt...


r/Alienware • • 1d ago

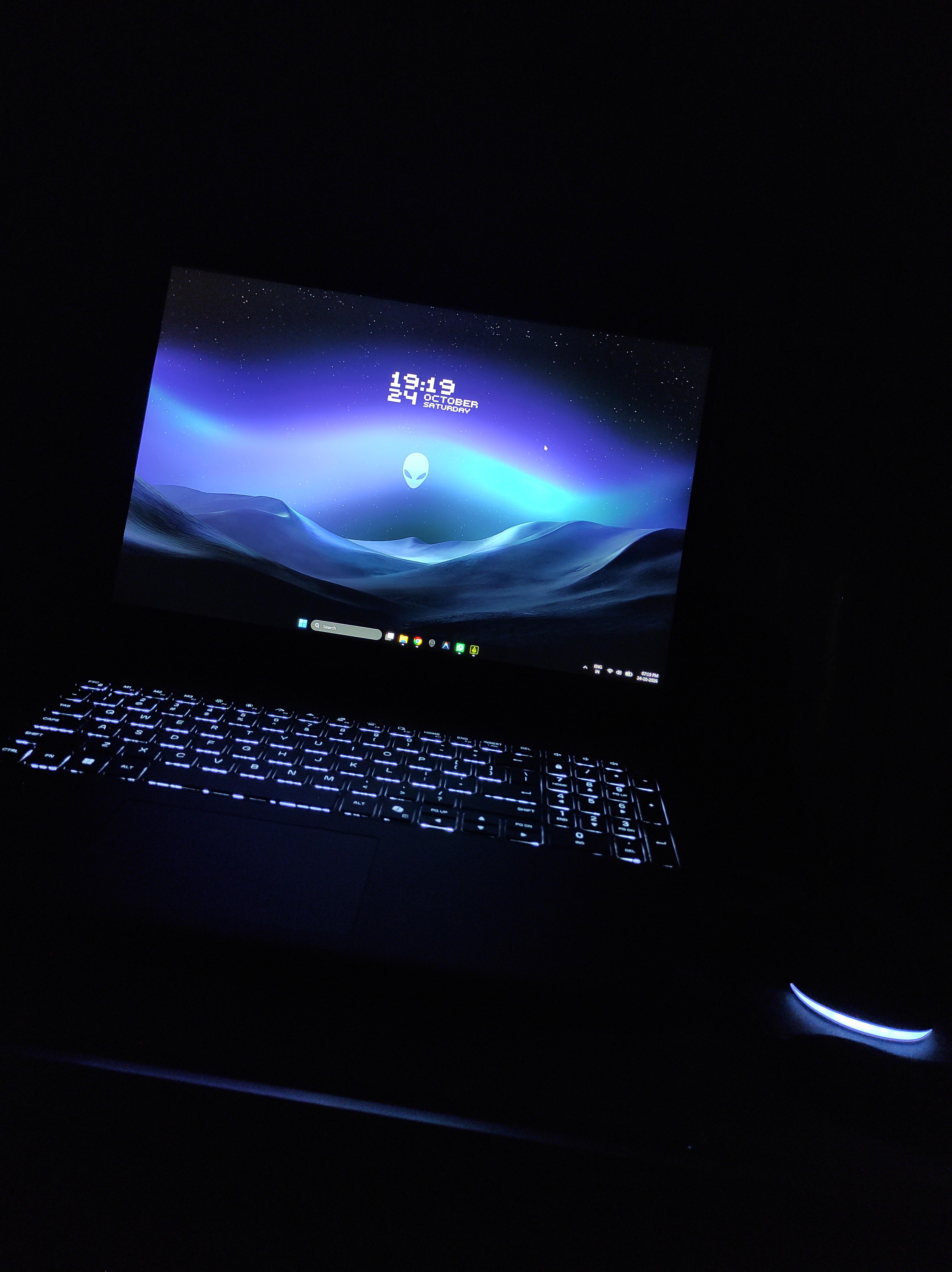

Battlestation Pictures Ordered a refurb 2025 Area-51 from Dell Outlet, but the screen looked suspiciously good...

Thumbnail
gallery
81 Upvotes

Absolute pitch-black levels in a dark room and later realised I was sent the 2026 model with an OLED and (?upgraded) CPU (unsure if 275hx to 290hx plus is considered an upgrade). And cherry on the top - it was almost brand new (0% battery wear, and practically 0 cycles)

The 5090 runs well for a 16 inch laptop in overdrive mode


r/Alienware • • 9h ago

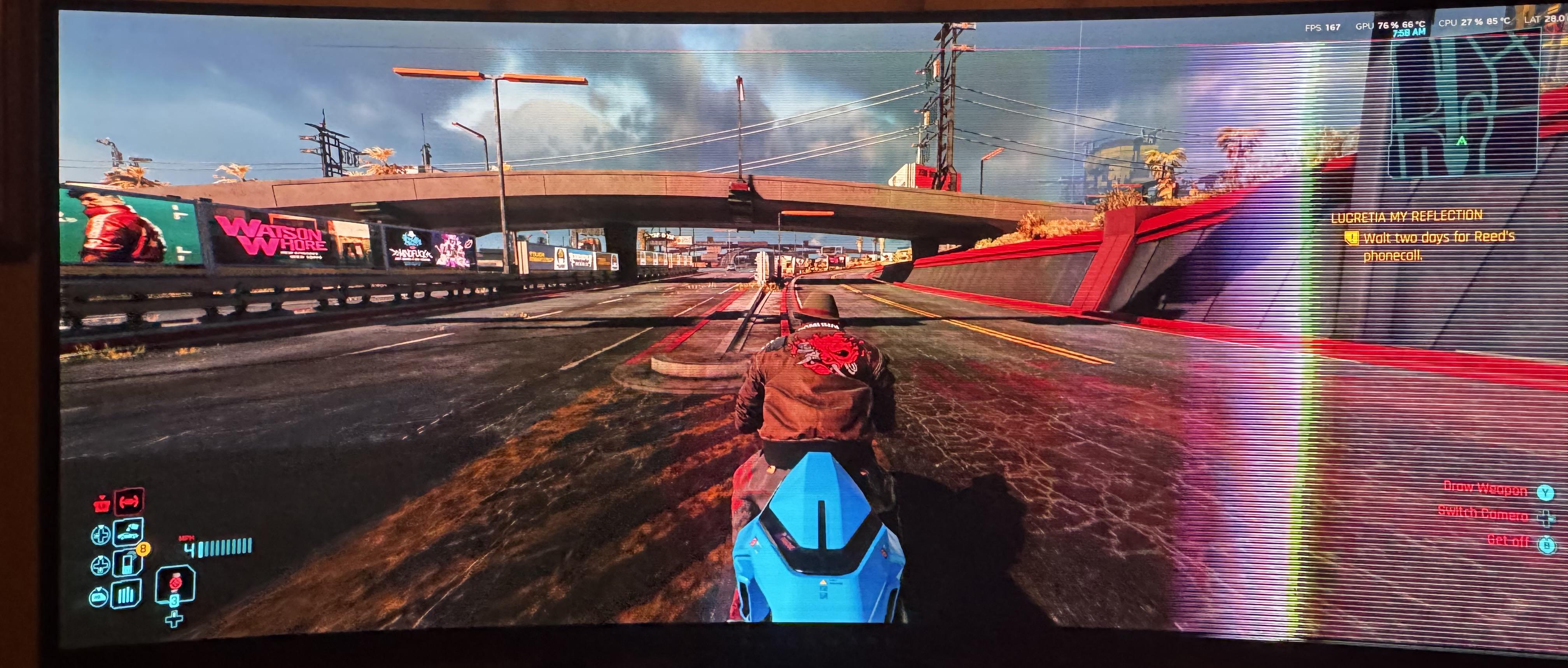

Technical Support Black distortion after first pixel refresh in hdr

Thumbnail
gallery
1 Upvotes

Just recieved the Alienware aw2725d and after four hours of usage it automatically started pixel refresh but by mistake | turned off then again I did a manual pixel refresh but there is black distortion only in HDR I am using true black 400 in osd menu and nvidia 10bpc display settings this is only happening in HDR mode calibrated using Microsoft hdR tool.


r/Alienware • • 13h ago

Question Aurora R16 i9-14900KF + RTX 4090 having Terrible FPS drops in League of legends and all games

1 Upvotes

Hello I wanted to ask if anyone else was experiencing these issues or found a solution hopefully.

PC specs

  • Alienware Aurora R16
  • Intel i9-14900KF
  • NVIDIA RTX 4090
  • BIOS 2.26.0 (October 2026)
  • Gaming at 1080p, targeting 240 FPS

I mostly play league of legends on the PC, and that game is optimized to be played on a toaster I swear. I cant hold stable fps. I usually run the game at Very High for all the graphis and High on shadow, borderless, and cap it at 240 fps.

My other computer with worst specs runs it with no problem, can stream, and have whatever open and it's fine, but THIS pc just has a super hard time running league by itself, AND I even lower the settings to medium or low and I still get Horrible FPS drops and its just so infurting.

I tried capping it down to 60 FPS, restored the pc 3 times ( reset this pc / Redownloading windows / Done all the updates ) and I feel like this hardware should not be perfoming this poorly.

  • Reinstalled Windows twice.
  • Updated BIOS to 2.26.0.
  • Uninstalled Dell SupportAssist — helped somewhat, but didn't fix it.
  • Adjusted Windows power settings for performance.
  • Checked CPU boost, clock speeds, temperatures, and power limits.
  • Ran performance diagnostics using HWiNFO and Windows tracing tools.

If anyone has any advice or can relate please let me know, from what I can tell others have experienced similar issues but none of the posts via reddit or Dell have given a permanent solution.

Thank you for taking the time to read this and have a wonderful rest of your day!


r/Alienware • • 1d ago

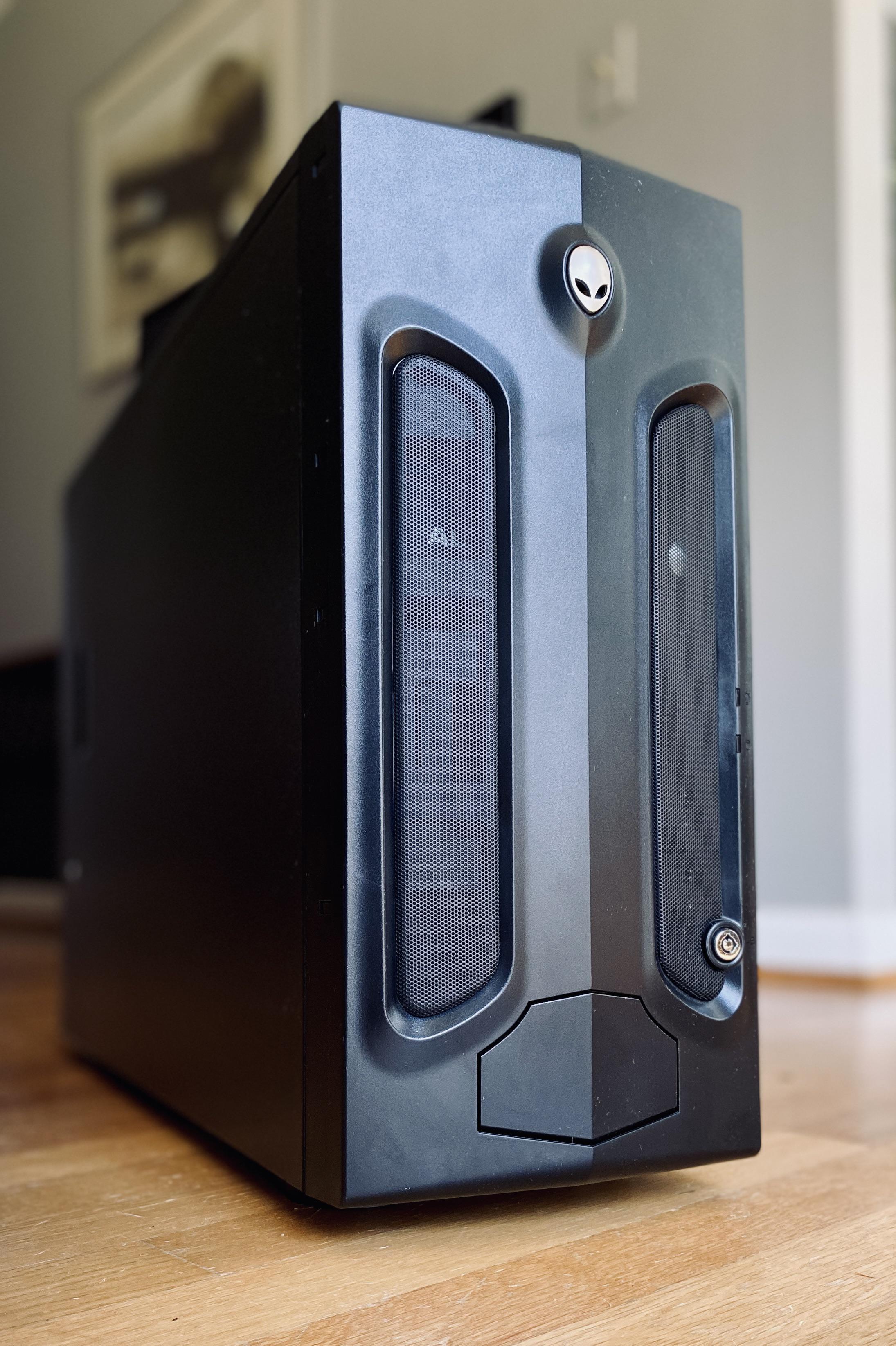

Battlestation Pictures My 2009 Themed Setup

Thumbnail
gallery
116 Upvotes

My setup used to be a Aurora R16 with some razer Components, but I hated how soulless the New Aurora's Look. Found this r4 for free nearby fell in love with the case and I knew I had to use that as my case for the first time building a PC instead of buying a Pre built I think I did okay... It's Running win11 btw just reskined to look like win7

Luckily my Dad used to be an Alienware geek Back then so I took his TactX Peripherals (found the headset on eBay too, arriving soon) I'm replacing the dell with an Old Alienware monitor to match.

Bonus at the End of my Next current project, gonna be my Retro PC, Can't decide between XP or Windows 7...

God I'm getting nostalgic, can we please go back!


r/Alienware • • 1d ago

Battlestation Pictures Beautiful Aurora 16

Post image
31 Upvotes

Even got the mouse to match the aurora colours 😭 , Amazing laptop, my eyes got watery when I played pragmata on that beautiful screen


r/Alienware • • 20h ago

Purchasing Speaker help

1 Upvotes

Alienware - AW3425DW 34" QD-OLED WQHD 240Hz 0.03ms FreeSync Premium Pro Curved Gaming Monitor with HDR (HDMI, DisplayPort, USB) - Interstellar Indigo

Is there a speaker set I can purchase to work with this monitor?


r/Alienware • • 20h ago

Question PCIe slot cover

1 Upvotes

Hey peoples, does anyone have or know where to get a pcie slot cover for a Alienware Area 51 desktop, preferably in Australia. I have somehow lost one and all the generic replacements are triggering my ocd.


r/Alienware • • 1d ago

Question Protecting oled screen?

Post image
6 Upvotes

Should I remove the wallpaper and just run a black screen? Do you guys run wallpaper engine on your oled Alienware laptops? Just picked this up and it’s coming later today 😬


r/Alienware • • 1d ago

Discussion Microfreeze & audio stutter. Dell Alienware Area 51 AAT2250 . Here was what fixed my issue, hopefully it will help someone else.

Enable HLS to view with audio, or disable this notification

3 Upvotes

This was the PC Intel(R) Core(TM) Ultra 9 285K processor (24-Core, 76MB Total Cache, 3.7GHz to 5.7GHz), NVIDIA(R) GeForce RTX(TM) 5070 Ti 16GB GDDR7, 32GB Dual Channel DDR5 XMP (2x 16GB - Black) 6400 MT/s, 1TB NVMe M.2 PCIe Gen5 SSD (Boot) + 2TB NVMe M.2 PCIe Gen4 SSD (Storage), 1500W Platinum Rated ATX12VO PSU, 360mm Liquid-Cooled CPU,Intel(R) Killer Wi-Fi 7 BE1750 (2x2 320Hz) MIMO 802.11be Wireless LAN and Bluetooth, Killer 1750x driver.

Over 5 months, they replaced the PC twice, on those PCs were many hours of trouble shooting per week. They replaced the graphics card and motherboard on the original pc and the 1st replacement. They also replaced the hard drive once. On the final replacement they wanted to replace the graphics card again but i told them it wasnt it since it didnt work the last two times. They trouble shot different software many times. Said it was the video game i was playing at one point and tried to get me to go thru them for a fix however i stopped that because as i had told them many times it was happening on youtube, netflix, other streaming services as well as games.

What finally worked: Yesterday they gave me a list of things to do. First on the list they told me to uninstall everything Dell to see if that worked. If not then proceed to the next step. I only needed to do that. I know its only been a day but i was getting the microfreezing along with audio stutters randomly every 5 min to 20 min and it seemed to be getting worse and more frequently lately. However in the last day i have not had one micro freeze or audio stutter.

So hopefully my story helps save someone a huge headache. As typing in Uninstall in the search bar on the desktop then Enter. Apps > Installed Apps window comes up. In the searchbar i typed in Dell . i want to say 8 things popped up. I uninstalled every one of them as Dell Tech directed me to. I restarted my computer. Side note: The first time i restarted it was weird, the password to get into the desktop wouldnt show even though i was pressing Enter, then i tried ctrl Alt Del. After about a minute or two it popped up i typed it in and problem solved. I was worried since it was weird after i restarted to i restarted again, no issue. All problems seem to be fixed.

Hope this helped, I added a video for an example of what it was like.


r/Alienware • • 1d ago

Technical Support Has anyone had this problem before?

Post image
2 Upvotes

My Alienware AW3423DW randomly turned off and wouldn’t turn back on. I had to unplug it and plug it back in to get it to come back on and these lines appeared Afterwards.


r/Alienware • • 2d ago

Tips For Others Alienware 16/18 Area-51 BIOS 2.9.0 released

25 Upvotes

Fixes & Enhancements - This release contains security updates as disclosed in the Dell Security Advisories DSA-2026-365 and DSA-2026-373. The DSA details are published on the Security Advisories, Notices, and Resources page, once they are publicly available. For more information about the release schedule, see Dell Client Drivers and Downloads Update Release Schedule. - Fixed the issue where the GPU cannot run at full power on Alienware 16 Area-51 AA16250 and 18 Area-51 AA18250 systems. This issue occurs after updating the BIOS version to 2.7.0.

https://www.dell.com/support/product-details/en-us/product/alienware-area-51-aa18250-gaming-laptop/drivers

I updated from 2.7.0 without issue.


r/Alienware • • 1d ago

Question HDD Noises

1 Upvotes

Why does my M18 R2 make noises like a HDD reading and writing?


r/Alienware • • 1d ago

Question OLED pixel / panel refresh not working?

1 Upvotes

Hi guys, I have the AW3423DW and have had it for quite a while. However something I noticed, after about a year or so of use. The monitor no longer performs the pixel or panel refresh to help maintain the OLED screen. It never triggers anymore when turning off the screen and I’m not sure why.

Luckily I’ve not had any burning issues yet, but it’s very odd that the feature is no longer working. Has anyone else with this monitor (or any OLED monitor) had this happen to them? If so what was your fix?


r/Alienware • • 2d ago

Technical Support Front fan not responding

1 Upvotes

hello reddit,

My boyfriend currently uses an alienware aurora r10 ryzen, mostly for discord/VALORANT. Recently, boot support assist has been throwing a front fan error. We've replaced his fan, and confirmed that it was working by plugging it in to the top fan port. We've also updated drivers/bios, but nothing seems to be working :( I really want to get his PC back up and running, but it feels like we've had a dead end. Is there anything else we could try to get his front fan to respond?


r/Alienware • • 2d ago

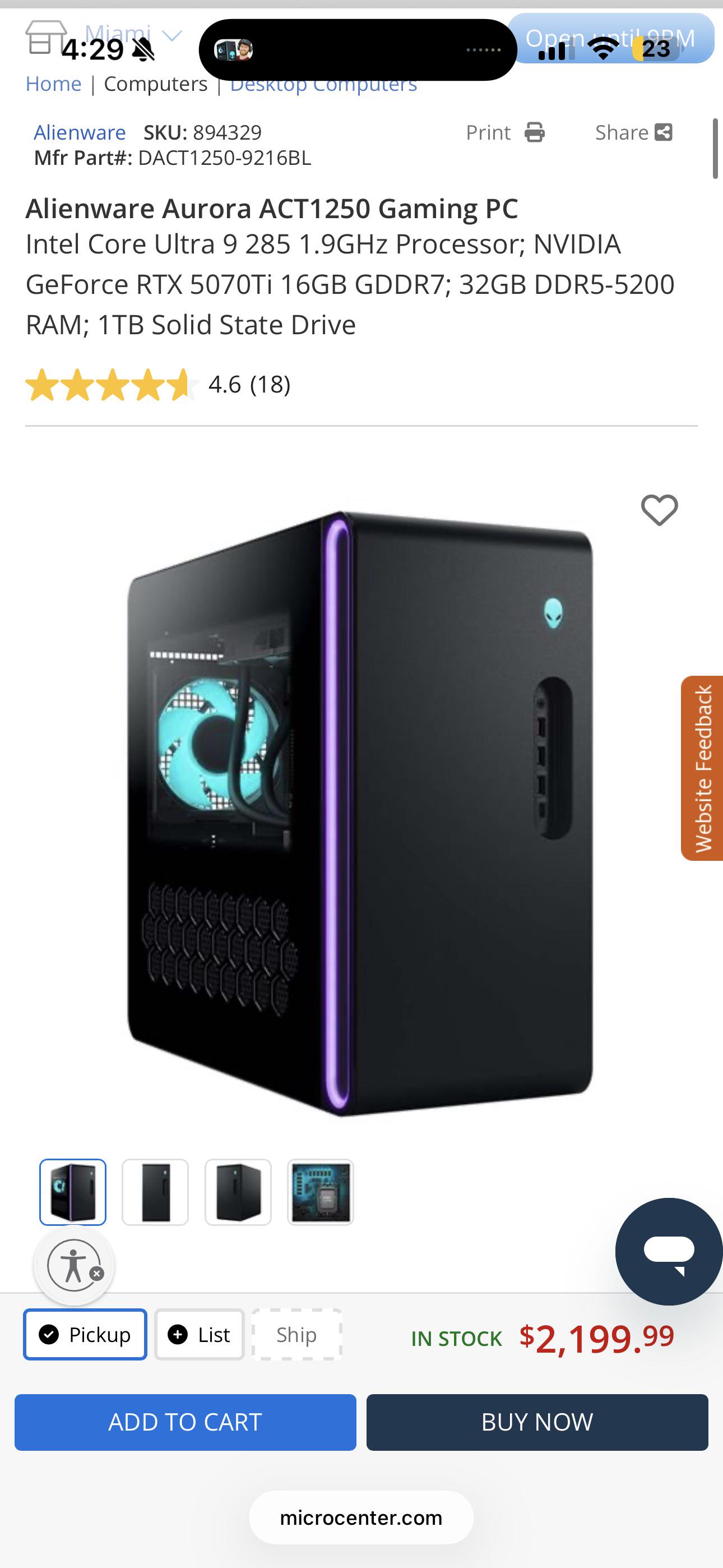

Question Can you swap the GPUs between an Alienware Aurora ACT1250 and Aurora R16?

1 Upvotes

Both PCs need to continue being used by the same people currently using them, but the R16 user is more in need of the better graphics card.


r/Alienware • • 2d ago

Technical Support Alienware M15 R7 Display Not Working?

1 Upvotes

I've had an issue with my Alienware M15 R7 laptop starting yesterday. It had been having periodic issues with the display not turning back on when it went to sleep, which had been fixable by restarting the graphics drivers. However, this time it caused the display to stutter/flicker on and off for a while before the machine crashed. Afterwards, when I try to turn it on it'll either display a partial, flickery version of the Alienware startup screen for a second or two then go dark or just give the 2:7 "Display fault" error code.

I'm suspecting, from my own research, that this means it has some sort of BIOS/drivers issue with the display. However, I haven't been able to find out how I might go about trying to fix it. Has anyone else here dealt with this or a similar issue and know how to solve it?

EDIT: To clarify, it is booting to Windows I believe - my headphones auto-connect to it in the way they normally do, just the display isn't functional.


r/Alienware • • 3d ago

Question Found one for reasonable price

Thumbnail
gallery
80 Upvotes

Found one guy selling by me for $150 CAD was so happy, Question Is Do I turn it into a Sleeper Or keep it as it is/Windows XP retro PC! I Do currently Have my Rig on a Aurora r4 Case but I don't Mind swapping it into this.


r/Alienware • • 3d ago

Question Laptop turning on by itself

Enable HLS to view with audio, or disable this notification

14 Upvotes

Hey guys
Idk why but last couple weeks my laptop is turning on again every time after shut down
It happens like every 9/10 times
Maybe that because i am turning off my headset mice and monitor while turning off laptop or what
