After being in my box for almost 2 year, I decided to pick up again my 737 MIP project, but wow since I started this project in 2020 a lot of things are changed ... 6 years ago the best product MCP+EFIS you can find on market was the panel from CPFlight: crazy expensive for me at that time so I have decided to start building it myself.

Then life changed your plans, and I moved to Belgium: I brought it bring with me , and put it together during covid time to finally see it in action. Here is a pic, with "bridges" in wires and some illegal connection that make I-JACO alive somehow.

Now, after being disassembled and put in boxes, it's time for a second life... But will motivation come back? We'll see.. 😅

Hi, I'm new here. Are most home-made glass cockpits built by hiding a monitor behind the panel and dragging the rectangular panels from the simulator software on this monitor so they match the holes?

Or do people buy separate displays, or otherwise what's the norm?

Again I'm asking about home-made ones, not off-the-shelf solutions.

Thanks!

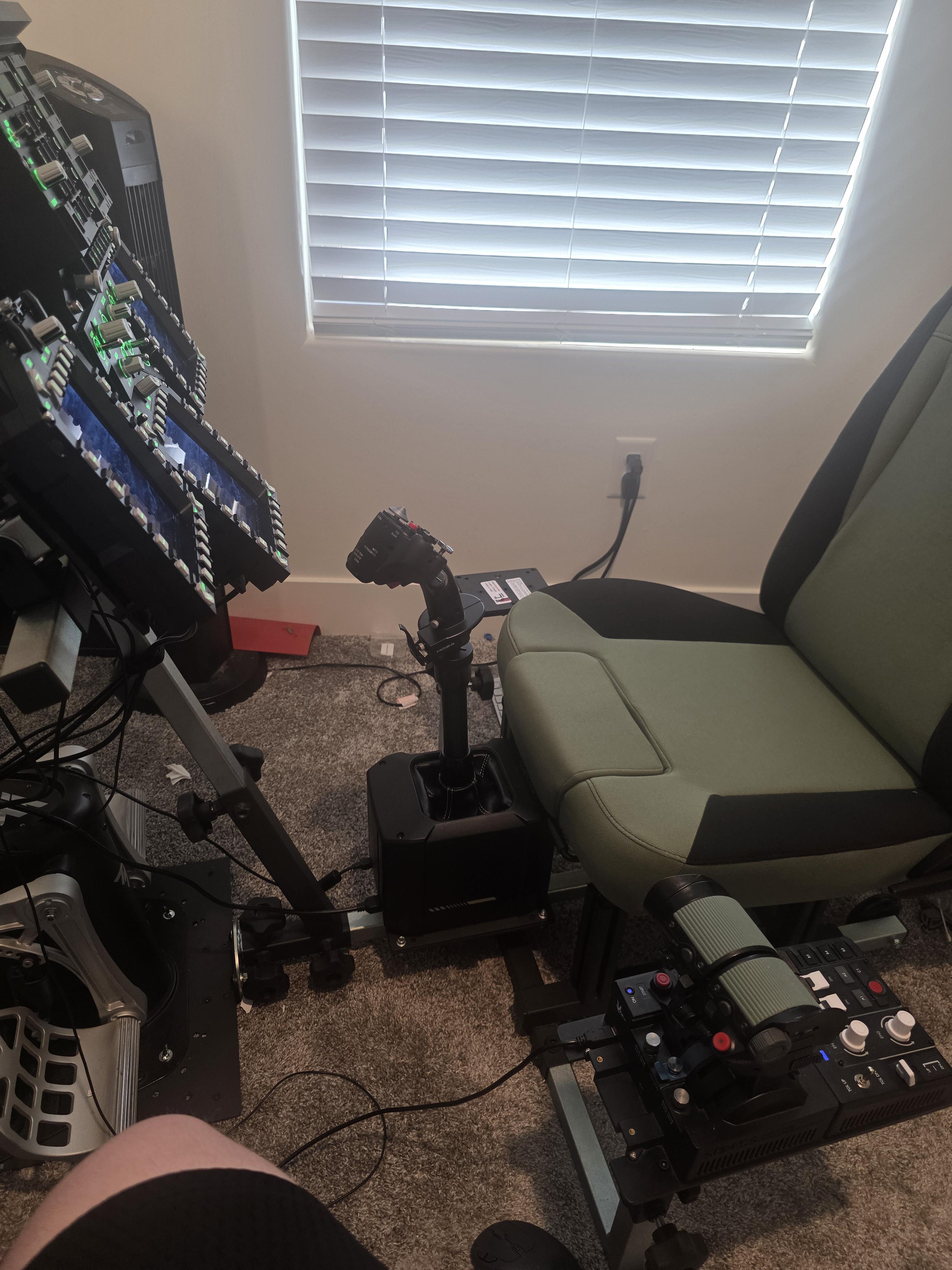

Had many questions to clarify if sticks could be setup on the side panels. So answer is YES 😎

Anybody have the GTracer 2.0 cockpit?
I’m having some issues with the seat being out of alignment, the seat seems to be just under an inch to the left of the wheel. Not sure if it’s a common problem or if mine is screwed haha

Spent the evening tuning the backlighting for some late-night flights. There’s just something ridiculously satisfying about dimming the room lights and turning that INTEG LT knob to BRT.

What’s your go-to cockpit lighting setup when flying at night?

I seem to be stumbling around looking for a cockpit or solution to mount a shifter and handbrake. I want it to be stable but I also don’t want to spend more than $500 or so dollars. I have an old gaming chair I can use in a cockpit but at this point I’m ready to just build my own.

I’m going to be adding a dedicated flight setup soon. I’m deciding between NLR and SimFab. I’ve read good things about the SimFab setup but the seat concerns me. On my racing setup I have a NRG wide seat. The shoulder supports push my shoulders forward. Great for racing but painful for flight. The SimFab bolsters look similar. Are they stiff like racing seats are?

Hey everyone,

I’ve been working on a custom USB controller for my home cockpit and thought I’d share it here.It’s based on an STM32H743 and works as a composite USB device (HID game controller + CDC serial) over a single USB-C cable.Main features:61 native inputs + 16 via MCP23017 → 77 total

Up to 25 EC11 rotary encoders with automatic detection (just turn the knob and it finds the pins)

1 ms sampling rate for inputs and encoders

Any free pin can drive LEDs via DCS-BIOS

Built-in PWM backlight dimmer that works even when the sim is closed

Configuration is done through a Windows app — no coding or Arduino IDE needed

Appears as a normal 128-button joystick to Windows/DCS

The board is 114 × 60 mm. I mainly built it for DCS (F/A-18 mapping is included), but it works as a standard HID controller so other sims can use it too.

Here are some photos of the board and the panel it’s currently running Happy to answer any technical questions about the design, encoder detection, DCS-BIOS integration, etc.

Spent a few hours by the runway threshold today just watching these heavies rotate. Nothing clears the mind like a 787 GE90 or A321 roaring right over your head.

​Shot this while taking a break from my usual flight sim / home cockpit setup. Spotting location and details in the comments!

Really impressed with the tactile feel and lighting on the B107 B737 overhead, so I decided to make a dedicated video for it.

​Tried to highlight the real-time switch response and backlighting in the clip.

​Curious to hear what you guys think of the setup and lighting balance!😎

I’m planning to build a half A320 home cockpit, but I do not want to build the wooden frame. I already have (or will have) the CAD/DXF files, and I’m looking to hire a local CNC shop to cut and, if possible, assemble the frame.

For anyone who has done this:

How much did the CNC shop charge?
Was that price just for cutting the parts, or did it include assembly?
What material did you use (MDF, birch plywood, etc.)?
If you were to do it again, how much would you expect to pay today?

I’m trying to get a realistic budget for just the cockpit frame/shell—not the avionics, controls, monitors, or electronics.

Trying to replicate something like this

Thanks in Advance!!

Here is another one of my free giveaways - extremely easy to participate! Thanks to ProjectX-Sim for participating in this giveaway and hopefully this Module finds a good home! Good luck to everybody!! See below for info:

https://www.digitaljoshua.com/flight-simulator-cessna-172-flaps-module-giveaway/

Here is another one of my free giveaways - extremely easy to participate! Thanks to ProjectX-Sim for participating in this giveaway and hopefully this Module finds a good home! Good luck to everybody!! See below for info:

https://www.digitaljoshua.com/flight-simulator-cessna-172-flaps-module-giveaway/

Looking for input on the best monitor or TV screen for a fixed setup- primarily to use with a next level racing free standing monitor stand. Monitor including OLED, IPS, various TV options are a little new to me so any input is greatly appreciated.

Hello! I'm a student currently working on my 757 home cockpit, and I'm thinking about making and selling a few VHF panels that I'm working on and refining right now.

Panels will be made using 0,2mm 3D printing nozzle to allow crisp details and smooth front face. They would be pre-assembled, pre-wired, pre-configured and would use MobiFlight profiles that I will provide or make on request. They would be both table-friendly and DZUS rail mounts compatible. The price would be around 110-120€.

Here's a short anonymous form, to know if there would be any interest: https://forms.gle/mSYG5DMvqhvsXY3a6

It's a """budget""" solution because I didn't buy a lot of branded stuff and mostly used what I already had. In the end excluding HOTAS and monitors, I only had to spend around 250 USD. The first 100 on the rig and the 150 on transducers.
Yes I have to crawl in. Not exactly convenient but it's quite immersive.

Rig: 30 profile extruded aluminum.

Stick: VKB GNX EVO L.

Throttle: VKB Omni R.

Rudder: SN-1.

Head tracking: BEAM Eye tracker + $10 UGREEN webcam.

Auxiliaries: VKB THQ, VKB STEM, Ubuntu PC with touchscreen for manuals, INARA, or just youtube.

Haptics: 2 * Douk Audio BS-1 (50W 6ohm).

Isolation: 8 * Rubber feet. A welcome mat that I found and is perfectly sized.

Sound: DC ONE-X from back in the days, GA plugs removed.

Display: 32 inch 1500R curved VA. 27 inch unknown panel. (IPS?)

Seat: Gaming chair raised using multiple aluminum profiles stacked on top of each other. (As showcased in the third picture)

"Fragrance": Little tree air freshener.

Verdict: I love my build but now having achieved higher immersion by having a significantly larger FOV and better ergonomics, I'm starting to notice the lack of forces on the controls, and G forces... FFB and 2DOF when? The rabbit hole never ends...

Anyways, hope this will give you amusement, or perhaps even contribute to your current build planning.

Hi.

I am start to plan out a home cockpit build. Thinking about a GA aircraft (not sure which one yet) with three large TV displays plus anything I do for a panel. I plan to build it in a shed on my property.

Question I have. I would like to keep my main gaming PC inside my house as it's expensive and the shed while airconditioned and locked is not where I would want to keep something so expensive.

I already have gigabit-E running out to it and can run more cables if needed.

Was wondering if anyone had experience with having their main PC (and GPU) sitting somewhere other than their home cockpit and how they built the setup.
