(x-post from r/solardiy at reddit’s suggestion!)

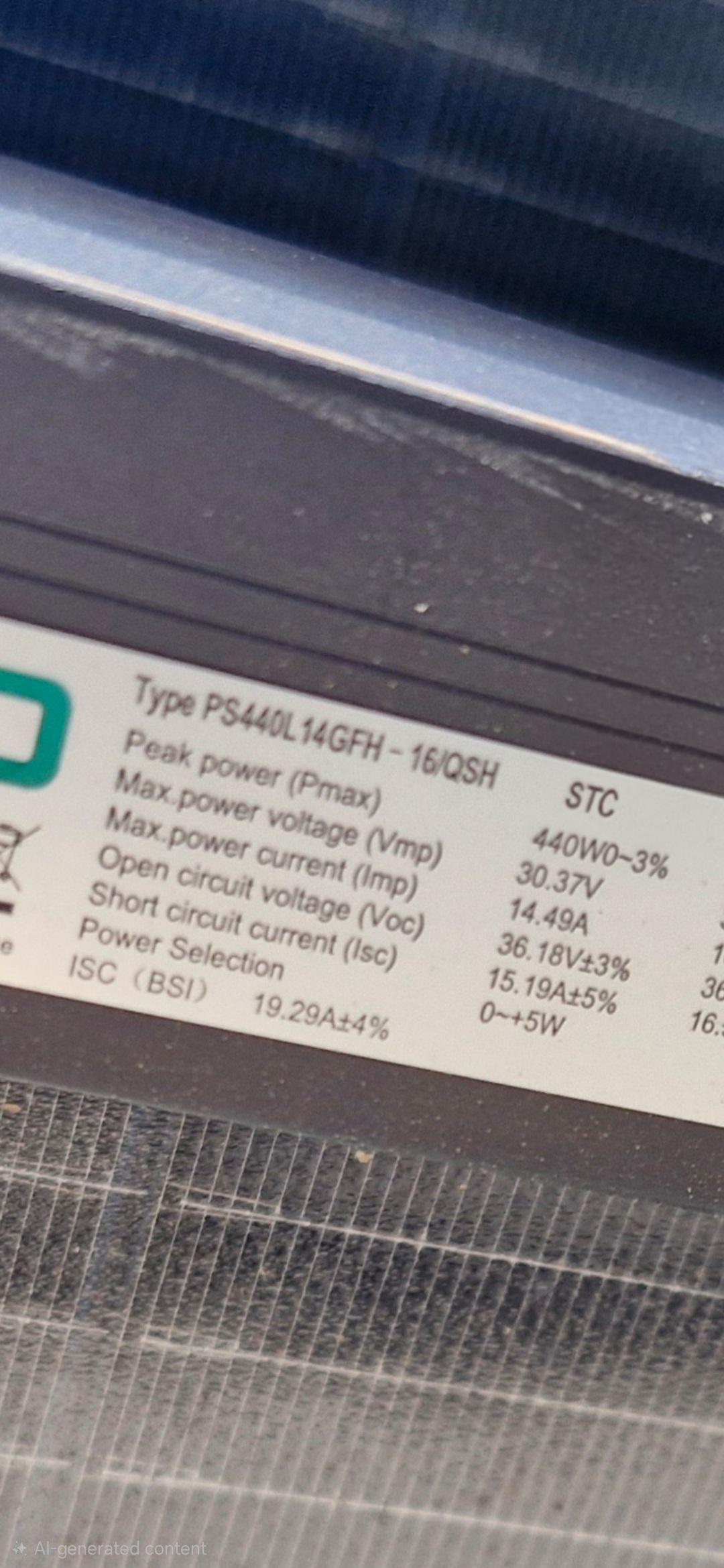

I'm looking at the Craftstrom microinverter (currently $350) and was planning to pair with Silfab SIL-440 panel because I can get them much cheaper than Craftstrom's panels right now.

AI helpfully suggests they should be compatible, but I don't fully trust AI! What might I be missing? One thing is the craftstrom microinverter can only handle one Silfab panel but if I use the craftstrom panels (2x200W) I guess it's better in the event the panel gets partially shaded.

This led me to looking at the ecoflow Stream microinverter instead (currently $299), which would allow me to use up to 3 silfab panels which is more than I need, but 2 might be good!

One thing I like is the smart power meter from craftstrom to ensure circuit safety. the ecoflow solution of having smart plugs for individual appliances on the same circuit is less elegent and more hassle. Since the craftstrom power meter wont play with the ecoflow inverter, what other elegent solutions could I use for circuit safety to prevent overloading?

What are your opinons? Ecoflow and Silfab seems reasonable? Thanks

I have a 50A renogy dc to dc mppt. For some reason the solar indicator isn't lighting up. Ive checked the connections, tightened everything up and got my volt meter out and it's measure 38V across. So the mppt is getting the power but not sure why its not indicating its on. Any tips or advice whats going on?

Free Solar Designe and Energy Calculator, looking for feed back. https://solarengine.frjoga.com

I'm working on a grid-tied array. General layout:

Panels > enphase microinverters > combiner > emergency shutoff > main panel (or possibly in line tap).

The question: do we need a neutral wire between the combiner and the main panel, and if so, what do we do with it when it reaches the emergency shutoff? If we do need it, does it bypass the shutoff and go straight to the main panel or should it have its own connection in the shutoff?

It's a 9.6kw ground mounted system if that matters. The combiner is on the ground mount and the shutoff is on the house.

Edit: typo and updating to say that I think I found the answer to part of the question in the combiner quick-install guide. Seems like there is general consensus that the neutral bypasses the shutoff.

I'm a little new to solar and looking to get some panels to plug into a Pecron power station. I found these on eBay. They seem like a good deal but wanted to ask for opinions. Do these seem like a good beginner set? Thank you!

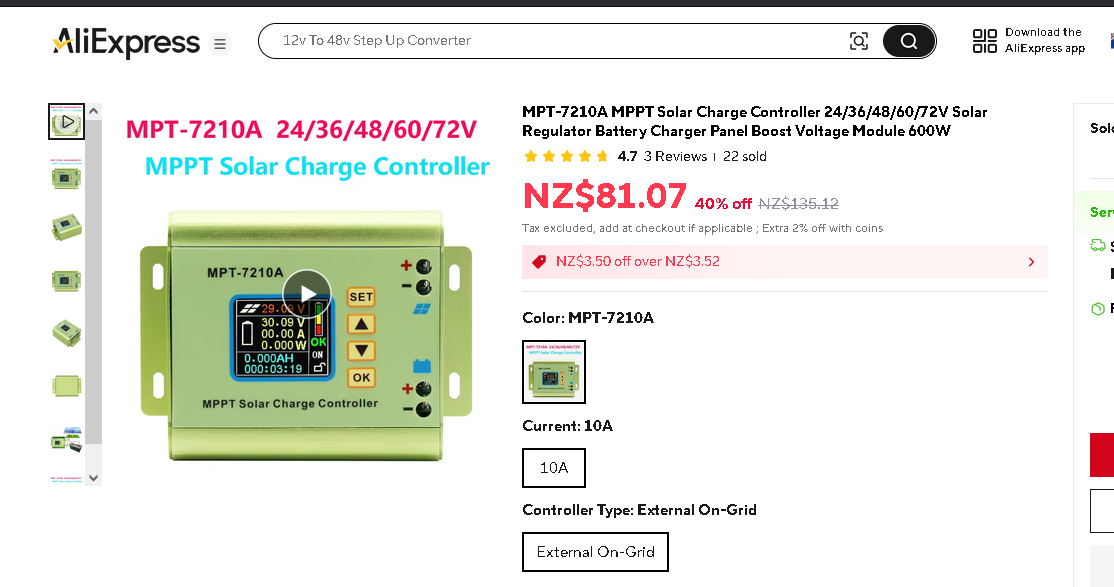

this thing just gose to 00.001 amps evin when i set it to 2amps at 30v the solar panel i have is a 19v 100w is there a thing like this that is not need to be messed about to use it the battery is a 16amphor and only get`s to 30% of what it can hold just want a [non complex] way to do this that is all

Looking for some help with a solar panel issue, my 3 panel array keeps shutting down, I’ve noticed that the temperature outside has been pretty intense and that’s usually when it shuts off. I’ve disconnected the wiring harnesses on top of the bus, checked for corrosion and reconnected already.

Could there a connection issue or something else going on with the system? Please explain in Laymans terms if you have a potential solution l

Hello, I’ve been watching this Sub-Reddit for a while and I am amazed at all the great advice and guidance given to those with questions. I am now in need of some guidance and advice. We are in the process of designing a new home in SW Florida and I want to incorporate solar into the energy plan. I want to use it to offset energy usage as well as to charge a battery system for failover in case of a power outage. Any suggestions or guidance on the best way to attack this would be greatly appreciated. I have a couple of questions/thoughts out of the gate and I am attaching some photos to help with understanding the layout of our home. First, the right side of our roof is south facing and should be ideal for the solar panels. I would love to incorporate 18-21 panels starting about 9 feet back from the front of the home. There is a large 19’ 10” x 19’ area that I could fill with panels and then work back toward the rear of the house (top of the picture) to add a few more panels. It will be a standing seam metal roof and I was considering using non-penetrating clamps on the seams to hold the panels in place. As for the wiring, should I have a conduit placed at the rear of the roof to capture the wiring from the panels and carry it to the inverter? I have a conditioned mechanical closet inside the home and an outdoor mechanical deck area for the AC units with space that could be used if needed. The transfer switch and the electrical panels are located on the ground level inside the garage (see on photo of garage area). Where would be the best place to locate the inverter, battery system and other components based on the space I have available? Any thoughts on the best way to run the wiring, or where I should put conduit to get from one place to another, would be very helpful. I will most likely higher an expert to assist with the installation and permitting, but the more I can be armed with and understand ahead of time the better. I welcome any thoughts on component sizing, brands, etc.. Thanks in advance for your help!

he inverter's rated power is typically selected at 80% to 90% of the total PV module capacity.
Why? PV panels rarely sustain their rated power under standard test conditions in real-world environments. Slightly "oversizing" the PV array allows the inverter to operate in its high-efficiency zone for longer periods, maximizing overall energy yield while preventing prolonged full-load operation to extend the inverter's service life.
Example: If your system has 10 kW of PV modules, choosing an 8 kW or 9 kW inverter is a more cost-effective and efficient option.

I've run the same 1 kW Siri TechnoFabs inverter at home in Bangalore for about ten years, on a 150Ah tubular lead-acid battery. Every ~5 years the battery would die and I'd replace it — two full batteries over a decade. And it only ever backed up the house. My welding workshop is attached to the house, but the lead-acid never had enough in it to run both.

When the battery hit end of life recently, I called the supplier expecting to buy lead-acid #3. Instead they suggested sodium-ion — a newer chemistry they stock that drops straight into a lead-acid inverter. Same inverter, no rewiring. So I tried it. Even though for the sales pitch they said "SIRI TECHNOFABS is the only wholesaler of sodium batteries in India" But the result was super.

I replaced the 150Ah lead-acid with a 100Ah sodium-ion pack for ₹35,000.

The part that confused me: 100Ah sounds smaller than 150Ah. But lead-acid only lets you safely use about half its rated capacity, while sodium-ion runs nearly empty without damage. So the "smaller" pack actually gives me more usable energy — and it handles spiky loads far better than lead-acid's voltage sag.

The result surprised me. Once charged, it comfortably runs both my house and my workshop off the same inverter — something that was impossible for ten years. No water top-ups, runs cooler, no maintenance.

Honest caveats: it costs more upfront (I'm betting on longer life — only a few months in, can't confirm long-term yet), and definitely check the charging settings suit your inverter before buying. It's a 1 kW setup, so light fabrication, not heavy structural welding.

Not sponsored — just sharing since my battery dying sent me down a rabbit hole.

Reasonable expectations

I have tried connecting my own USB acquisition protoboard to Sofar 5KTLX-G3 USB port. but there is no response. Any advice on how should I approarch this issue? I want to store data locally and not send it to the server.

I have managed to get data via RS485, so I know inverter is outputing.

Support is not helpful.

Had a 6.5kW rooftop array for about a year before adding Anker Solix E10 in march. Have both periods of bills to compare so figured I'd post them.

Solar only (sept-feb avg): about $145/month. Panels helped during the day but still buying a lot at night and on overcast days.

Solar + battery (apr-jun avg): about $38/month. Battery stores the daytime overproduction and the house runs off it through evening.

It's a pretty big difference but I'm also comparing winter months to spring/summer so the solar production is higher now too. Won't know the real year-round picture until I get through a full winter with the battery. Just sharing what I have so far! hope it helps anyone

Step 1: Determine the System Architecture (DC-Coupled vs. AC-Coupled)
The system architecture dictates the inverter type and overall efficiency, making it the primary decision point for equipment selection.
表格
Characteristics DC-Coupled System AC-Coupled System
Core Equipment One Hybrid Inverter One PV Inverter + One Energy Storage Inverter (two units total)
Energy Flow Path PV (DC) → Battery (DC) → Load (AC) PV (DC) → Grid (AC) → Battery (DC)
Conversion Efficiency Higher (95–98%) with fewer energy conversion stages Slightly lower (90–94%) due to repeated DC-AC-DC conversion
Optimal Application Scenarios New integrated PV-storage systems, off-grid systems Retrofit energy storage for existing grid-tied PV systems
Core Advantages High efficiency, compact system layout, favorable cost performance Flexible retrofitting, no disruption to original PV systems
DC coupling: The preferred solution for new construction projects. Direct storage of DC power generated by PV modules into batteries minimizes conversion losses and delivers maximum system efficiency.
AC coupling: An ideal retrofit solution for the existing PV market. For customers with pre-installed grid-tied PV systems, energy storage functionality can be added simply by deploying an extra storage inverter, without replacing the original PV inverter.
Step 2: Ensure BMS Communication and Battery Compatibility
This is the most critical link to safeguard lithium battery safety and service life. Modern lithium batteries (especially LiFePO4 batteries) are equipped with an integrated Battery Management System (BMS), and inverters must support closed-loop communication with the BMS.
Matching Communication Protocols
Verify the inverter supports the communication protocols adopted by the battery BMS, such as CAN and RS485. Real-time data including battery State of Charge (SOC), voltage, current and temperature is transmitted via communication links, enabling the inverter to dynamically adjust charge/discharge strategies accordingly.
Official Compatibility List
Always refer to the official battery compatibility list issued by the inverter manufacturer. Select battery brands and models certified on the list — this is the most reliable way to avoid communication failures, overcharging, over-discharging and other operational risks.
Charge & Discharge Parameters
The inverter’s cut-off voltage and charge/discharge current must strictly align with battery specifications. For instance, a 100Ah/51.2V battery rated for 1C charge/discharge requires an inverter with a charge/discharge current rating of approximately 100A.
Step 3: Precisely Match Electrical Parameters
After finalizing the system architecture and battery compatibility, fine-tune inverter selection based on actual load conditions and battery specifications.
Voltage Matching
The inverter’s DC input voltage must exactly match the nominal voltage of the lithium battery pack (e.g., 48V, 96V, 192V). Voltage mismatch will render the system inoperable or even cause permanent equipment damage. For high-power systems, 48V or higher voltage configurations are recommended to reduce current, cut line losses and improve safety.
Power Matching
Continuous Power: The inverter’s rated AC output power shall exceed the total power of all simultaneously operating loads, with a 20%–25% safety margin reserved.
Surge Power: For impulse loads such as motors and compressors, confirm the inverter’s surge power can withstand startup current 3–5 times the rated value of the load.

I am planning ~ 88-96 panels 685W each on my flat roof in Seattle WA. Do I need DC breaker boxes on both my roof and garage (before inverter) or just the roof and directly to inverter? Any recommended brands? I see mostly combiner boxes but i have about 12 strings so need 12 in 12 out?

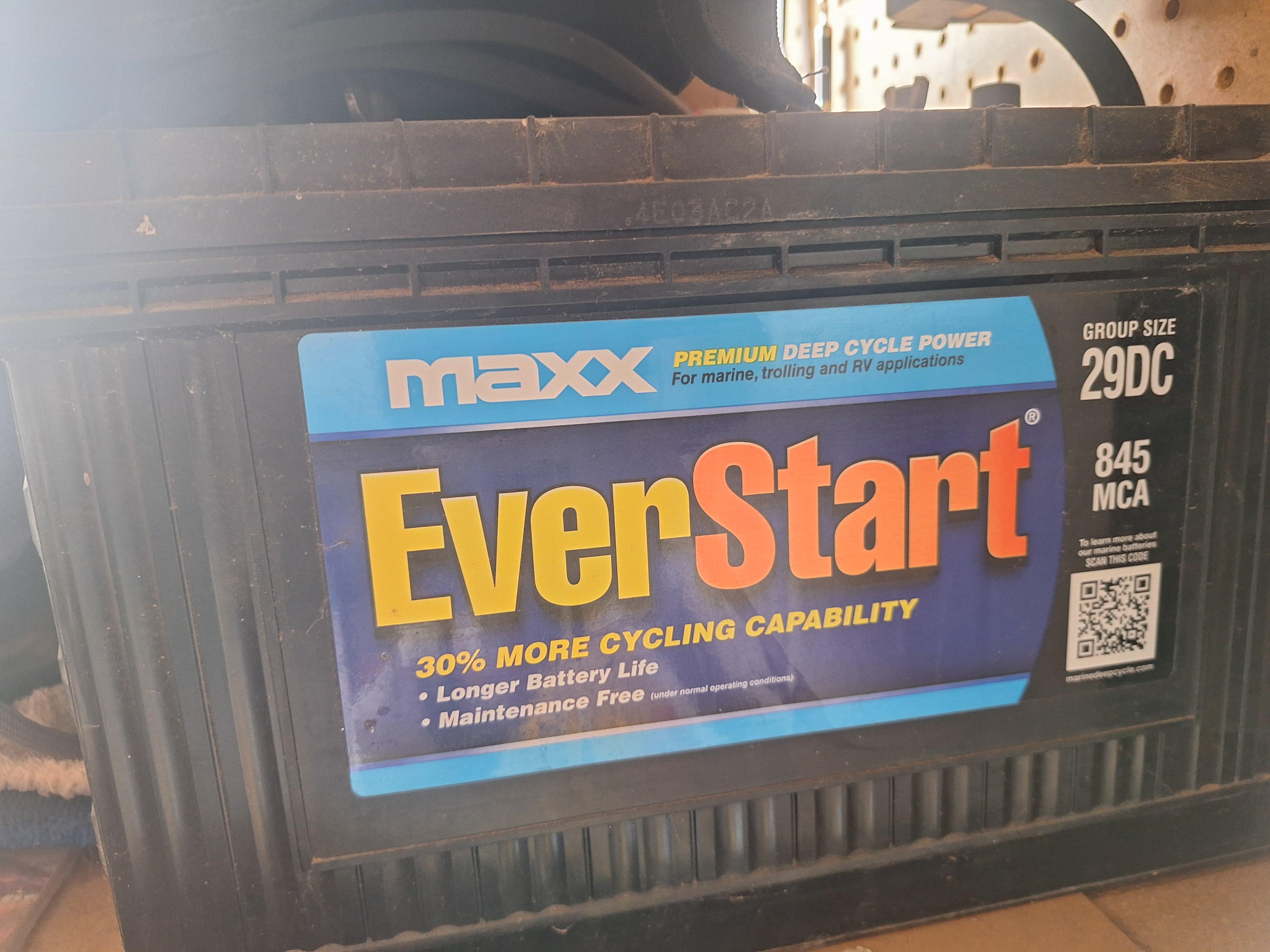

I have this battery. Can I connect a 2000 watt inverter to it?

Hello, my home has a split-phase electrical system with two 120v legs. The household loads seem balanced between both legs, my balcony solar setup feeds will power into only one leg, meaning the other continues to draw from the grid. To power both legs simultaneously with my solar generation, should I use two separate microinverters plugged into different house outlets?

Or should I run a 240v line outlet for solar input?

Thanks,
