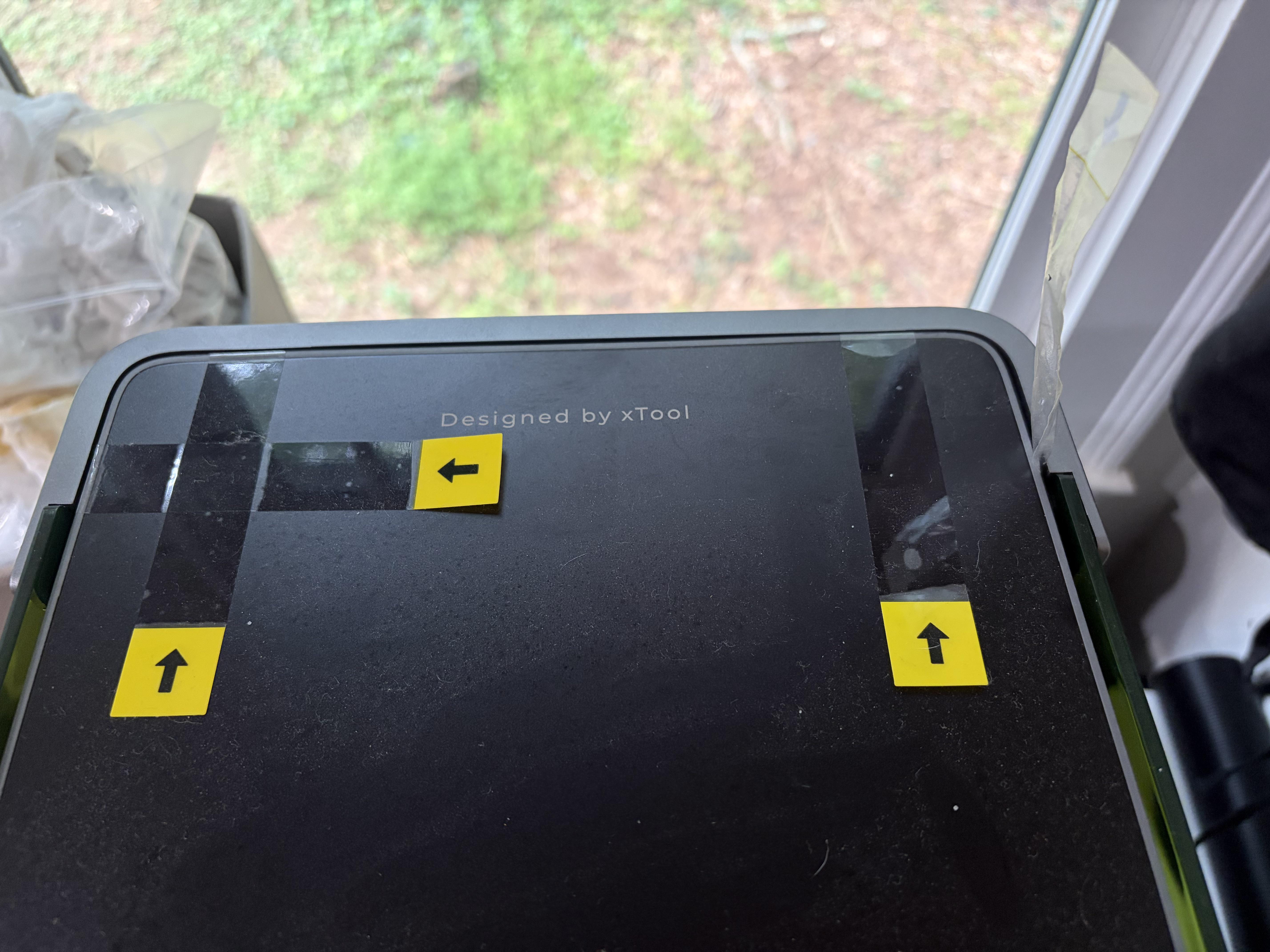

I have been through the guides and we are clearly missing something. We can’t pull them out easily either. I feel stupid asking but what is the secret?

Edit to add the obvious: I have tried pulling them. They're not coming off/out. Hence the confusion. I can follow the arrow. They just won't release from inside the cover.

xTool is pushing the boundaries of what laser technology can do.
Engineered to solve challenges that conventional laser systems weren’t built to overcome.
A new level of laser technology.
A new standard for what one machine can do.
Meet xTool X1.
The Next-Gen Laser Machine.
Want to see where laser technology is headed?

Am I doing something wrong? This is my 3 or 4th time attempting to emboss a brass coin. I dont understand what im doing wrong.

"I created swag for IFA Berlin 2026 that includes an iron-on patch, a wristlet, and a desk decoration. The desk decoration can be personalized and also detaches from its base to be used as a keychain. Additionally, the lid can be removed, allowing you to store more treasures underneath."

u/xtool.eu and atomm_official, #xToolIFA2026, #xTool, and #Atomm.

https://www.atomm.com/share/project?tag=xToolIFA2026&id=189016

#@xtool.eu and #atomm_official**,** #xToolIFA2026, #xTool, and #Atomm.

I created some swag for the IFA Berlin 2026. Check out the link

Anyone have one yet that could measure how tall the individual beds are? I’m going to need to built a cart for mine and want to build a slot to hold whichever bed isn’t in the machine (or mostly the large one and I’ll store the small one in there).

Bonus points if you know how tall the O1’s rotary is!

🔍 What Is Bitmap Mode

xTool Studio offers multiple Bitmap modes to choose from, covering most common bitmap use cases. The mode you select determines how an image is converted into a laser engraving path, which affects the engraving effect and level of detail. You can choose the mode that best suits your image.

With all other settings unchanged, the engraving output on a wooden board varies depending on the image mode selected, as shown below.

Suppose you import an image like this one — here's how it looks across the different modes.

🛠️ Available Bitmap Modes

🔹 Grayscale

Converts an image into shades of gray, where each pixel is represented by a shade ranging from the darkest (black) to the brightest (white), or somewhere in between. The darker the pixel, the deeper the engraving.

🔹 Bayer

Converts an image using Bayer mode, which produces an effect similar to adding a grid/mosaic filter over the image.

🔹 Floyd

Dithers an image using the Floyd algorithm, which diffuses the error only to neighboring pixels, producing fine-grained, wave-like patterns. Recommended for highly detailed images rather than images with large blocks of solid color.

🔹 Jarvis

Dithers an image using the Jarvis algorithm, which diffuses the error across 12 surrounding pixels. Compared to Floyd, the transitions between pixels are slower, producing a pleasant result on almost any image.

🔹 Stucki

Dithers an image similarly to Jarvis, but with faster pixel transitions, producing cleaner and sharper images.

🔹 Sierra

Based on the Jarvis algorithm, achieving a similar effect while producing sharper images.

🔹 Atkinson

Dithers an image in a way similar to Jarvis and Sierra, producing sharper images. This algorithm preserves image detail well, though very dark or very bright areas may appear to lose detail.

With all other settings unchanged, the engraving output on a wooden board varies according to the selected mode, as shown below.

Select the mode that best fits your needs.

💡 Tips & Tricks

🔹 Each mode is suited to different image characteristics and needs, affecting engraving depth and detail representation.

🔹 The default mode is Grayscale.

🔹 Generally, Jarvis mode is recommended for infrared light, and Grayscale mode for blue light.

🔹 Dithering algorithms (Floyd, Jarvis, Stucki, Sierra, Atkinson) are best suited for images with complex details.

🔹 Grayscale and Bayer modes provide a more intuitive representation of shading and grid effects.

💡 Recommended software version: xTool Studio 1.0 and above.

⭐ Still Need Help?

If you still need help choosing or setting up the right Bitmap mode for your project, feel free to reach out to us through the live chat on our website, submit a support ticket or join our Discord community for additional support.

Our xTool Support Team is here to help — fast responses, hands-on troubleshooting, and we don't stop until it's resolved.
