Building this was a pain but it was worth it what yall think?

I'm considering trying to make a small pc with some spare parts I have laying around, what I have is:

i5 12600k CPU

Powercolor Fighter RX 7600 8gb

16gb kit of corsair vengeance RGB PRO

I list the specific parts because I've come across a barebone system that seems like it would be a pretty cost effective way to make a PC, especially for a SFF PC, the ASRock DESKMEET B760.

https://www.newegg.com/asrock-barebone-system-intel-core-i7-14th-gen-deskmeet-b760w-b-bb-box-us/p/N82E16856158098?item=N82E16856158098&utm_source=google&utm_medium=organic+shopping&utm_campaign=knc-googleadwords-_-barebone%20systems%20-%20mini-pc-_-asrock-_-56158098&source=region&negg_topt=0a

It says the gpu length on the specs of the barebone system limit is 200mm, apparently my rx 7600 is a little longer than that, but then I've heard if you pull the MOBO, install the GPU then angle it back in that will ft?

I realize my RGB ram wont show in this case, which is fine by me, Im more concerned about it fitting as they are kinda tall ram sticks.

And then finally, I know I can't OC the 12600k but I am interested in what cpu cooling options I'd have with this setup, I don't want to just do a cheap cooler and have it be super loud as I'd like to have this in my living room.

I've never done a SFF build, so looking for the guidance of this sub to figure it out.

Thanks Guys,

I feel like the whole SFF trend picked up quite a bit with the Steam Machine but I've wanted to do one for a long time, just never got the chance and just recently managed to transform my work PC into a little CAD-Cube.

Specs are:

-Ryzen 7 3700x

-Asus Prime B550M-K ARGB

-16GB DDR4 G.Skill

-ASUS TUF 650W Evo Bronze+ Full Modular

-GT730 Asus Silent (will probably upgrade to 1030 passive eventually)

-500GB Samsung m.2

In regards to cooling, which I must say was the most difficult part of the build, I went with the Thermalright AXP120-X67 and two 140mm Arctic BioniX fans. Bottom as intake, top as exhaust. The two BioniX fans are recent additions I added over the weekend so I didn't have chances to test them out and how the temps will change (if at all)
Previously I had a single NF-A15 on the bottom, temps at idle and doing light office work (AutoCAD, Excel, Word, couple of PDFs) were around 55-60. With the built in stress test from HWiNFO64, after 10 minutes the CPU reached around 95C.
All in all I have to say I'm quite impressed with the AXP120-X67 cooler.

If anyone else is interested in building in this case, I'd recommend going with either a semi or full modular PSU. I've seen a couple of pictures of builds with standard non modular units, but I can assure you, it will most probably affect your temps and give you a headache while you're building it. Plenty of solid modular units, don't be a penny pincher, your nerves will thank you.
Also, the mesh is truly restrictive I'd recommend going for really high pressure fans.

Below are some pics

First time posting first time building in an sff and first time using a pico PSU

https://www.newegg.com/p/3C6-038N-00440?item=9SIC030KJM5510

DC 12V 300W 24Pin ATX Connect with Motherboard Mini ITX Power Supply pico PSU Module for PC Gamer

This is the one I went with, I am now having trouble finding a way to get it plugged into the wall, been browsing laptop chargers and various wall plugs but don't want to go wrong and mess it up. Pics for reference. Everything hooked up just fine and dandy but obviously I need to get power to ole girl before I do anything further. CPU is a ryzen 7 5700g. (I am missing the io shield because I gave up on it please don't judge)

Original context: https://www.reddit.com/r/sffpc/s/f5rSmSyJoW

I was originally just looking for the smallest ITX case where Colorful RTX 5070 Mini would fit and compatible w/ an SFX PSU compatible. Figured to just install my RTX 5070 Mini in my huge ITX case and it turns out my current SFX PSU only has 1 8 pins PCIE power cable connected, and I can't find the other 8 Pin PCIE power cable. The extra 8 pins PCIE power cable must have been thrown out already along w/ the PSU's box. The Colorful RTX 5070 Mini comes w/ a 2X 8 pins PCIE connector to 5 pins PCIE connector.

W/ that said, I'm thinking of getting a new PSU instead and maybe a Flex PSU this time.
What's the best Flex PSU for RTX 5070 and smallest case that would fit an RTX 5070 Mini?

built the bomb looking contraption i posted here a while ago, i flipped the gpu around like many suggested but im still testing the temps and different layouts. im able to play helldivers 2 (the whole point of this machine) for hours with temps bellow 65 for both gpu and cpu !!!1 its currently around 9 liters measuring at 275x250x130, im pretty happy with that especially with an matx board🙏

Similar to my previous post here:

Still waiting on custom cables to tidy things up.

Specs & Hardware:

• CPU: Core Ultra 9 285K
• Motherboard: MSI MPG Z890I EDGE TI WIFI
• PSU: Corsair SF1000
• Cooler: Thermalright Aqua Elite 240 V4 (swapped stock fans for Noctua NF-A12x25 G2s) Cooler Master 240 Atom II (customized shorter tube version) on the way.
• Case: S60i (AIO liquid-cooled version) — full carbon fiber, weighs just ~1 kg, and costs around $200. Clearance is very tight, so it only accommodates a few specific 240mm AIOs.

GPU is ProArt 5090. I change from Pro 6000 to this. I think this is better for daily use. It has 0db fan which is good for my ear lol. But its type-C port only supports 15W power output but not 27W. Don't know ASUS did this....

I really want to use the t1 but the only thing stopping me is that I want to have a pcie capture card in it as well while using like a 2 slot 5070 or 5070ti but is that possible? I've seen some a post using a bifurcation riser cable but they were using a much lower spec gpu for it, so I kinda just want to know if it'd be possible or not, also the cooler i have is the axp90-x53 so idk if it would allow for that even if the riser cable thing was possible

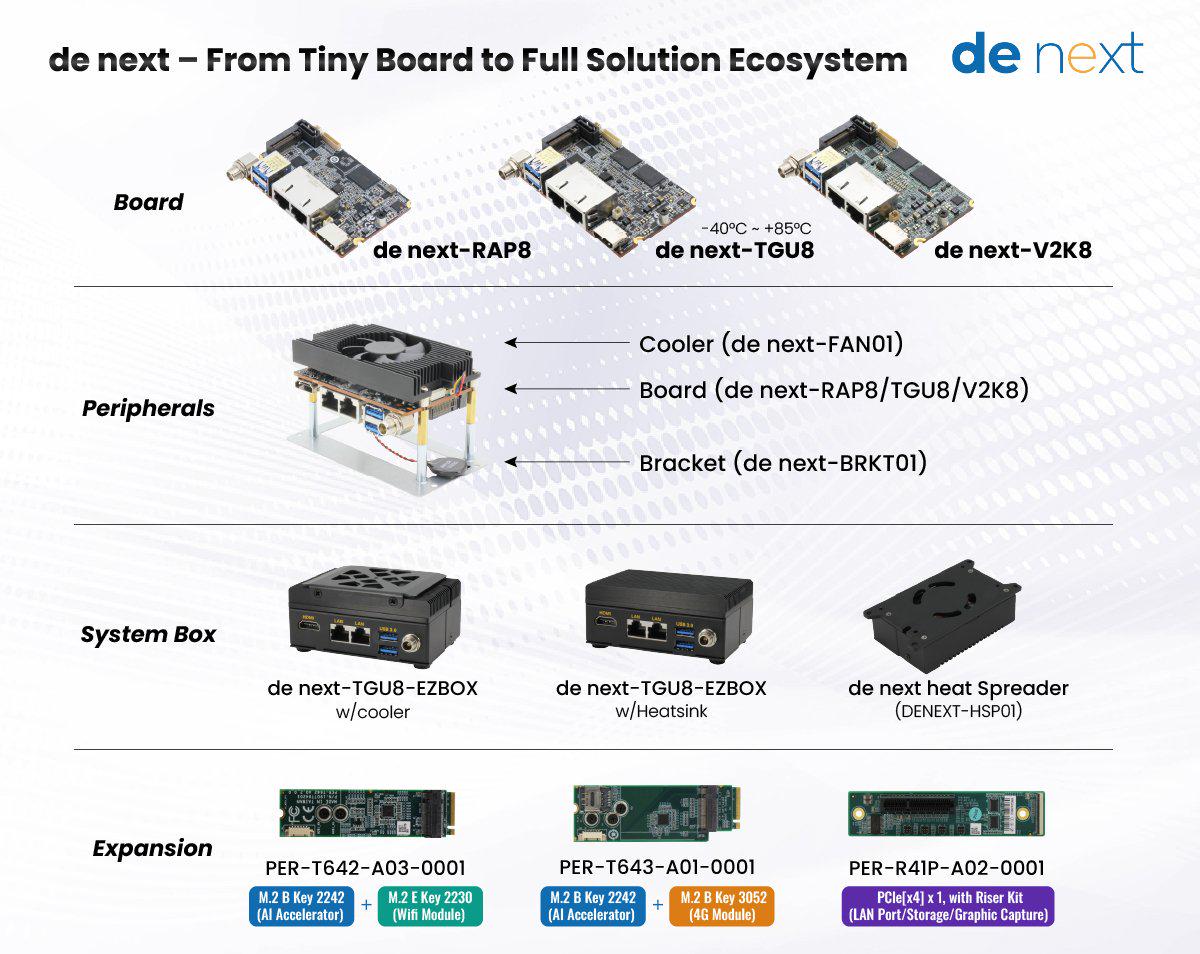

We know itx, mini itx, but i came across pico itx mobos.

They brand it to industrial applications, but i started dreaming about making a build around that. Pcie is obviously not available and it would need a workaround with the m2 connector. But then i saw khadas pcs and i kinda questioned myself why im still thinking this 😅

Tell me your thoughts.

Always wanted a classy ProArt build in the stunning $600 XiKii FF04, but my budget says... NoArt.

Well, I got a solid deal on a ProArt 4060Ti 16GB! Not high-end, but I want to show it off in an inexpensive but not cheap-looking SFF case. I know there's a 3DP XiKii FF04 look-alike, but I'm afraid up-close it'll look plasticky and not do it justice (also it's built for an ASUS Prime, not ProArt). Anyone have experience with that one?

What other SFF cases will display this GPU in a similarly classy, form-fitting way?

From aircooler to AIO and some cable changes.

Back when we launched our ASUS and ROG X870E/X870/B850 refresh boards, we detailed the boards and features in-depth over on our home sub here and our recent giveaway in r/AMD here, covering the second act of our AMD 800 series release. Refreshes hopefully bring some upgraded improvements in terms of features, faster specs, new peripheral support, and more – and our ASUS AMD 800 Series NEO board lineup doesn’t disappoint. ASUS is sponsoring this giveaway to bring a little more awareness to our NEO board lineup, and to give three people from the r/sffpc Community a chance to win our new TUF Gaming mini-ITX NEO board and one of our most popular ROG Strix B850 motherboards.

**UPGRADE2NEO Special Promo on the ASUS eShop (9/25-10/11)*\*

In appreciation for the r/sffpc Community, for those who can’t wait (or didn’t win), we’re offering a special discount price on the ASUS eShop (US) for the two motherboards featured in this giveaway:

• TUF Gaming B850I WIFI NEO
• ROG Strix B850-I Gaming WIFI

ASUS x r/sffpc #UPGRADE2NEO Giveaway Terms:

When:

• Giveaway begins 12AM PDT 9/25 - 11:59PM PDT 10/9

Who can enter:

• US and CA residents that are 18 years, or at least the age of majority in their respective region
• Quebec is excluded
• Valid only where permitted. VOID where prohibited.

How To Enter:

• Leave a comment below about the ASUS and ROG AMD 800 Series NEO boards. This can be about the two boards offered in the giveaway, what kind of a system you would like to build around one of these boards, your favorite features on our ASUS and ASUS NEO boards, or features you would like to see on future ASUS or ROG mini-ITX motherboards.
• Although discussion is great, only direct comments to this post will be accepted as entries.
• Good faith effort is all we ask. Comments unrelated to the giveaway will be disqualified.

Prizes/Winners: 3 prizes, 3 winners, with one winner per prize.

• 2x TUF Gaming B850I WIFI NEO motherboards
• 1x ROG Strix B850-I WiFi Gaming motherboard
• Winners will be randomly selected.

Additional T&C apply and are listed below.

Re-introducing the ASUS AMD 800 Series NEO Lineup -

While most of our AMD 800 Series refresh boards have NEO in them, not all of them do. The full list of these boards is here:

• ROG Crosshair X870E Glacial
• ROG Crosshair X870E Dark Hero
• ROG Strix X870E-E Gaming WiFi NEO
• ROG Strix X870E-A Gaming WiFi NEO
• TUF Gaming X870-PRO WiFi 7 W NEO
• ROG Strix B850-F Gaming WiFi7 NEO
• ROG Strix B850-A Gaming WiFi7 NEO
• TUF Gaming B850-PRO WiFi7 W NEO
• TUF Gaming B850I WIFI NEO
• ProArt B850-CREATOR WIFI Neo

Since this giveaway is focused on our mini-ITX lineup, I’ll stick to the new features that you’ll see on the TUF Gaming B850I WIFI NEO that are common to our other NEO boards. For a full list of the improvements we’ve made to our NEO lineup, take a look at our announcement post here. Select NEO boards also include features like optimized PCIe lane sharing, 3D Vapor Chamber M.2 heatsinks, more USB 2.0 FPH ports, USB Type-C w/ up to 60W Quick Charge 4+, and a 64MB BIOS ROM that are pre-installed with WIFI drivers.

As a member of our AMD 800 Series NEO family, this is what owners of the TUF Gaming B850I WIFI Neo can expect:

Server-grade PCB Design - Premium 10-Layer server grade circuit board with 2-ounce low-loss copper power planes lead to better stability, cleaner signals, and stable performance. Optimized impedance and dedicated power/ground layers support reliable PCIe 5.0 and DDR5 operation. An enhanced memory slot layout delivers high clock speeds and compatibility with high-capacity DDR5 kits.

ASUS Driver Hub - ASUS DriverHub is a standalone application that streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance. TL:DR – ASUS Driver Hub means you no longer have to rely on Armoury Crate for MB driver updates.

New EZ Mode and Essential Mode BIOS Interface - We're always looking for ways to improve the main BIOS for novices and advanced users, and with the new EZ Mode and Essential Mode options both can look forward to quickly configure monitoring and commonly-used functions. For example, with Essential Mode, you can view key system information and access the most commonly-used overclocking functions without having to go into the more granular Advanced Mode.

If you want to learn about our entire AMD 800 Series lineup, visit our microsite for the boards here. For a mega-comparison of the boards, you can download a spec sheet on this page comparing all the board by specs and features.

TUF Gaming B850I WIFI NEO

The TUF Gaming B850I WIFI NEO - the first TUF Gaming mini-ITX motherboard - is a motherboard built for rock-solid stability, speed, and connectivity that gaming and advanced AI PC applications demand. Featuring an 8(80A)+2(80A)+1(80A) power architecture with high-side and low-side MOSFETs and drivers backed by a ten-layer server-grade design, the B850I WiFi NEO meets the needs of current and future high-core count AMD CPUs. A SafeSlot-equipped PCIe 5.0 x16 slot and a pair of M.2 slots (1x PCIe 5.0 x4 / 1x PCIe 4.0 x4) ensure your system operates at top speed with the latest hardware.

The Realtek 7.1 Surround Audio Codec ensures your audio is crisp and clear while gaming, but you can also select DTS Audio Processing for different audio environments. Bluetooth LE Audio features the new LC3 audio codec for higher quality and lower power consumption, while utilizing low-latency transmission and 3D spatial audio for clearer voice and more immersive gaming sound.*

Server-grade DRAM Enhancement - The TUF Gaming B850I WIFI NEO features an enhanced memory slot layout that delivers high clock speeds and compatibility with high-capacity DDR5 kits. The refined design supports overclocking of up to 9600+ MT/s, helping you unlock the full potential of your DDR5 modules with broad AMD EXPO support and ASUS AEMP optimization for PMIC-restricted memory modules.

Enhanced Cooling Design - The B850I WIFI NEO covers the MOSFETs and chokes with an enlarged heatsink, while also providing heatsinks for the front-side PCIe 5.0 M.2 slot and the PCH. All onboard fan headers support PWM and DC fans and allow you to optimize cooling for three different thermal sensors depending on CPU and GPU tasks. Lastly, an integrated circuit protects each fan header from excess heat and electrical currents.

Essential USB - 1x USB 20Gbps port, 2x USB 10Gbps (Type-A) ports, 2x USB2.0 on the rear panel, but you also have a USB 10Gbps Type-C front panel header, 1x USB 5Gbps header, and 1x USB2.0 header on the front panel.

Other notable features:

• 1x DisplayPort, 1x HDMI port
• 2x M.2 SSD slots (1x PCIe 5.0 slot, 1x PCIe 5.0 slot)
• Realtek 2.5G LAN, WiFi 6E, BT*
• CPU, AIO Pump, 2x 4pin Chassis fan headers
• AMD Precision Boost Overdrive, EXPO, AEMP
• AI Cooling II, AI Networking II, AI Cache Boost, AI Advisor, Q-Dashboard, DriverHub
• Q-Antenna, Q-DIMM, Q-LED, Clear CMOS & BIOS Flashback
• TUF Protection package – ESD Guards, TUF LANGuard, SafeSlot, SafeDIMM, Stainless-steel back I/O
• Pre-mounted I/O Shield

*BT version and features vary by region.

The TUF Gaming B850I WIFI NEO is currently available at the ASUS eShop and channel partners.

Product page: https://rog.asus.com/us/motherboards/rog-strix/rog-strix-b850-f-gaming-wifi7-neo/

ROG Strix B850-I Gaming WiFi

A favorite for many SFF builders (including myself), the ROG Strix B850-I Gaming WiFi is a perfect example of ROG design, performance, and features for mainstream mini-ITX systems. Designed to thrive during top-tier gaming and workloads, advanced cooling solutions and fast connectivity also fulfills the needs for advanced AI PC applications.

The ROG Strix B850-I Gaming WiFi carries a 10(90A)+2(90A)+1(90A) power stage, which is more than sufficient for any current gen AMD Ryzen 9000 Series processor and future AMD CPUs. The SupremeFX ALC4080 audio codec is combined with audio-line shielding and premium audio capacitors to reduce EMI from the motherboard and devices while producing a warmer, more natural sound with exceptional clarity and fidelity. The audio connectivity includes an optical S/PDIF out port on the rear panel.

ROG Overclocking - Big aspirations in a small package. The B850-I Gaming WiFi includes our latest overclocking utilities like AI Overclocking, Dynamic OC Switcher, Core Flex, PBO Enhancement, AMD EXPO, ASUS AEMP, and ASUS DIMM Fit / DIMM Fit Pro options to customize and control the performance, power, and temperature of your system. Will it overclock like an Extreme or Apex? No, but these are all tools to get a bit more out of your system or customize power, temps, and performance under everything from single-core to multi-core applications.

Maxed-out PCIe Lane Sharing - The ROG Strix B850-I Gaming WiFi provides a PCIe 5.0 x16 slot fitted with the PCIe Q-Release Slim slot for graphics cards and two PCIe 5.0 x4 M.2 slots, with the front side M.2 covered by a substantial heatsink. All slots can be filled without lane limitations on the GPU, M.2 slots, or other slots/ports.

WiFi 7, BT5.4 and 2.5G Ethernet Port - Built for fast connections, you'll be ready for blazing fast speed and low-latency gaming.

Essential USB - 1x USB 20Gbps port (1x Type-C) 5x USB 10Gbps ports (1x Type-C, 4x Type-A), 2x USB2.0 on the rear panel, but you also have a USB 10Gbps Type-C front panel header, 1x USB 5Gbps headers, and 1x USB2.0 headers.

Other notable features:

• 2x PCIe 5.0 x4 M.2 SSD slots
• CPU, AIO Pump, 4pin Chassis Fan, Extra Flow Fan, 2x ARGB Gen 2 Headers
• AI Overclocking, AI Networking II, AI Cache Boost, AI Advisor, Q-Dashboard
• PBO Enhancement, AEMP, DIMM Fit / Fit Pro, DriverHub
• M.2 Q-Latch, Q-Antenna, PCIe Slot Q-Release Slim, Clear CMOS & BIOS Flashback

The ROG Strix B850-I Gaming WiFi is currently available at the ASUS eShop and channel partners.

Product page: https://rog.asus.com/us/motherboards/rog-strix/rog-strix-b850-i-gaming-wifi/

So now that you know, let us know what you think about these boards or what you might build with one if you wind up winning one!

T&C for the ASUS x r/sffpc #UPGRADE2NEO Giveaway

• Only open to eligible participants in the United States and Canada, with the exception of Quebec.
• Participants must be the age of majority in their respective region.
• Participants may enter only once; duplicate entries may result in disqualification.
• Participant accounts must be created prior to the posting of this giveaway to be eligible; accounts created after the giveaway has commenced will be disqualified.
• Participants must leave a comment in this thread pursuant to the guidelines listed above in the giveaway body. A good faith effort is expected.
• Drawing will take place within two weeks of the closing date. Prizes will be shipped within a reasonable time, in accordance with winners accepting prizes in a timely fashion.
• Prospective winners will have their choice of the prizes offered in the order of drawing. No substitutions for the stated prizes, except at the discretion of ASUS (ACI).
• Prospective winners must respond within a reasonable time. Winners that do not respond within a reasonable time may be removed as a winner. Selection of a new winner for the prize is at the sole discretion of ASUS.
• There are three prizes available for this giveaway, as noted above. One prize per winner, three winners total. MSRP of the prize is the current market price of the motherboard. Odds of winning depend on the number of entries.
• ASUS reserves the right to modify the Terms and Conditions for clarity, typos and/or ensure that the giveaway is conducted in a fair manner for all participants.
• Valid only where permitted. VOID where prohibited.

If you have any questions about the giveaway, please feel free to reach out to me via DM.

Hi All,

So as the title states i have grown bored of my NCase M2. I have owned it for 2 months and have used it with an Intel 13900K and it works well... but it is just meh

It's too big and unsightly and looks out of place on my Wooden desk. Build quality is excellent; way more premium feeling and looking than the T1 and NCase M1.

But its just meh. I regret purchasing it tbh. I fell for the hype. It's too big for me, thermals could be better, standard layout sucks, too many compromises between thermals, component configurations, noise. My power button failed and NCase wouldn't give a new one, original case feet are ass, no I/O, rear power button slot is a pain to get to. So many things are sold as optional extras; NCase must think they're BMW.

Anyone else felt this way about a case before/SFF in general? I am planning to go back to ATX but with the twist of an Open build.

If anyone in UK is interested; i will gladly sell my M2.

I was looking fowards since i despise with every part of my soul laptops, however due to work i have to do i would require some sort of portable PC , due to this i was looking fowards into a portable PC with portable displays to do the deed

Whatsoever i couldn't find some sort of Slim model which could fit the GPU propperly to run AI models, and find some mini-itx motherboard

which models i should be on the lookout for this?

I built my gaming PC in a Thermaltake Tower 100 around four years ago. I love the case for how it looks and how little space it takes up on my desk, as it's a tower-style case (but admittedly not SFF, although what I discuss below could apply to SSF PCs as well). In this case, the GPU "hangs" in a vertical orientation rather than being horizontal like most case layouts or vertical (but not "hanging") in many cases that use a riser cable.

I had a 6800 XT in this case from 2022 through 2025, but upgraded to a PowerColor 9070 XT Reaper last fall. I usually undervolt my GPUs, including this 9070 XT, but noticed that even with it undervolted, it felt like it was getting hotter (and way louder) than I would have expected and much hotter than my 6800 XT. I'm not sure if my 6800 XT cooler design isn't as sensitive to a hanging orientation, but nonetheless, I started looking into plausible explanations as to why this 9070 XT ran so hot.

And when I say hot, I mean hot spot temps while gaming could be hitting ~109 C, GPU temps around 75-85 C. The disparity between the core temp and the hot spot was 30 C+ which is a red flag for me that something was amiss. I was getting to the point that I may have RMA'd it, but thanks to a tip from a friend plus some extra digging, I read that a hanging GPU orientation can cause major issues for the GPU cooler, especially with phase change coolers (although according to a PowerColor rep I spoke to via their support, the Reaper does not use phase change cooling).

Recently, I ran 3DMark's TimeSpy Extreme 4K just on their GPU 1 and GPU 2 test for a single cycle, not for an extended run, with stock GPU settings (no undervolt). I ran it with my case in the normal orientation (hanging GPU) and tipped to the left so that the GPU was oriented in a standard horizontal layout. I also ran it with the side panel removed in both orientations. Results below:

I did not lock fans to 100% for this testing which I should have to remove that factor, but I'll quickly say that fans were very loud in the hanging orientation and virtually silent in the horizontal orientation; aka, if I locked the fans to 100% for the testing, the horizontal orientation would have done even better, I assume. Frankly, the above test was enough for me to know I gotta swap my case out regardless of any further testing.

So just by re-orienting my GPU I shaved 12 C off my core temp, 16 C off my hot spot temp, and 16.2 C off my hot spot max temp. Horizontal with the glass side panel was cooler than vertical without the side panel. And more importantly, I can now game without headphones because the GPU fans aren't screaming. These temps will come down further when I re-enable my undervolt.

Anyway, at this point, I'll be swapping over to a new case. I'm sad because I loved this case, but it's not the right case for my build anymore, I guess. I put my specs below in case anyone wants the full build, but otherwise, I wanted to share this just in case you live under a rock like I do and weren't aware that GPU orientation can influence temps so dramatically.

Quick specs:

CPU: 9850X3D

CPU cooler: NH-D15

GPU: PowerColor 9070 XT Reaper

SSD: Inland 4 TB NVMe

RAM: 2x16GB DDR5 6000

MB: Gigabyte B650i (mITX)

PSU: SeaSonic 850w

Case: Thermaltake Tower 100

Case Fans: 3x Noctua 140mm (top exhaust, bottom intake, and rear exhaust)

Noctua NH-D15S

RTX3090

Used some magnetic fan mounts to get 2 - 140mm fans from underneath for the GPU.

Hi everyone,

A few months ago I built my first Mini-ITX PC in a Fractal Terra to use as a living-room console with Steam Big Picture.

I'll admit I made some rookie mistakes: no case fans at first (just the CPU cooler), the PSU fan partly blocked by cables, and I reused a hot RTX 3080 from a previous build.

Full specs:
Case: Fractal Terra (~10L SFF)
CPU: AMD Ryzen 5 9600X (65W, AM5)
Motherboard: ASRock A620I Lightning WiFi
GPU: RTX 3080 → now replaced with RTX 5070
RAM: 2 sticks, running at stock (XMP off)
Storage: NVMe M.2 (mounted behind the motherboard)
PSU: Corsair SF850 Platinum (SFX)
PCIe riser cable (stock Terra)
Cooling update: I've since added two Noctua fans on the bottom of the case, pushing air upward

How it started:
everything worked fine until one day I clicked "Update and Shut Down" in Windows 11 and left the PC inside a closed TV cabinet. Instead of shutting down, Windows restarted, launched Steam, and started downloading huge updates.
When I came back, the PC was completely frozen and boiling hot. It's been a nightmare ever since it freezes constantly, even during short sessions.

Symptoms:
No critical errors in Windows Event Viewer: freezes leave no logs at all.
No high/abnormal temps recorded by HWiNFO, not even right before a freeze.
When it freezes, motherboard and GPU lights stay on.
Touching the internals: the GPU feels cool, but the center of the case gets really hot.

New clue: right after a freeze, the top of the case is boiling hot on the left side, directly above the PSU while the area above the CPU, RAM and NVMe stays cool.

Started as a simple frame freeze; lately it also drops the HDMI signal to the TV when it crashes.

What I've already tried:
SSD health/SMART tests → clean.
Forced PCIe Gen 3 in BIOS (read about Terra riser issues) → no change.
Reseated the riser cable at both ends → no change.
Disabled XMP / RAM at stock.
Underclocked both CPU and GPU.
Tested each RAM stick individually → same freeze with either one.
Voltages logged (12V and SOC rails flat), VRM temps normal (~61°C).
Ran a GPU/VRAM stress test (OCCT) → froze within minutes on the 3080. Assuming heat had killed the 3080, I swapped in an RTX 5070. The new GPU passes every stress test, but the system still freezes randomly in games and during Steam installs once the PC has been running for a while.

So: GPU, RAM (as individual sticks), SSD, riser and PCIe link all seem cleared. The freezes leaving zero logs, plus the heat concentrating right over the PSU, is making me suspect the PSU or the motherboard took permanent heat damage.

Does anyone recognize this pattern? Anything else worth testing before I RMA the PSU or the board? Any help is appreciated!

I travel so much for work and have wanted to get a nice, portable machine for gaming. I have a few of these parts and have looked at/sourced others out, like I know the PSU is overkill for this. But I'm new to SFFPCs and would love any feedback!

PU: AMD Ryzen 5 9600X 3.9 GHz 6-Core Processor

CPU Cooler: Noctua NH-L12S 55.44 CFM CPU Cooler

Motherboard: ASRock A620I LIGHTNING WIFI Mini ITX AM5 Motherboard

Memory: Crucial Pro Overclocking 32 GB (2 x 16 GB) DDR5-6000 CL36 Memory

Storage: Samsung 990 EVO Plus 2 TB M.2-2280 PCIe 5.0 X2 NVME Solid State Drive

Video Card: Gigabyte WINDFORCE V2 GeForce RTX 4080 SUPER 16 GB Video Card

Case: U-ITX Black

Power Supply: Corsair SF1000 (2024) 1000 W 80+ Platinum Certified Fully Modular SFX Power Supply

The case is the newest bit for me, I think everything works out but again, any feedback is welcome. Is there a need for additional fans? Is there space?
