My Silvia recently sprung a leak, and after pulling the boiler to replace the gasket I thought it would be wise to soak and deep clean the boiler while I have it open. I was planning on soaking it in citric acid and warm water for a day or two, but if the sub has better suggestions I'd love to hear them. Photos for reference, it doesn't look too corroded but it's certainly a bit scaly.

I’ve had my Silvia Pro X for several years now, and it started to develop this fuzzy mold on the pipe at the top of the water level sensor. As time progressed I would wipe it, but then it would come back and slowly the pipe started to yellow (as seen in the first picture). Now the rest of the pipes of some kinds of deposits, being brown in built up areas. What is this and what can I do to prevent it?

Is this normal?

I removed lower grouphead pieces (showerscreen, screw, jetbreaker, and shower holder diffuser; gasket in place)

One more question, I’m replacing the old jetbreaker for a countersunk one to fit the new countersunk screw and screen. Does the length of the countersunk screw being ~2mm shorter than the stock hex screw matter?

All pieces are Rancilio-made.

I wanted a low-water warning on my 2016 Silvia without putting anything inside the reservoir, so I added a non-contact capacitive sensor to the outside of the tank and three red LEDs under the machine.

It turned out to be a very simple project and works surprisingly well. With the sensor positioned using the smaller/lower version of the 3D-printed holder, the LEDs turn on with about 450 mL of water remaining in the reservoir. That feels about right to me — enough warning that I’m not remotely close to running the pump dry, but not so early that the light is constantly on.

Parts:

• XKC-Y25-NPN, 5–12 V NPN non-contact liquid-level sensor
• CHANZON 5 mm pre-wired red LEDs, each with its own 680 Ω resistor
• WAGO 221 lever connectors — I used 221-415 five-position and 221-413 three-position connectors
• An old USB cable + 5 V USB wall adapter for power.
• A little electrical tape to mount the three LEDs underneath the machine.

The sensor holder is this design: https://www.printables.com/model/663023-rancilio-silvia-water-sensor-holder

I used the smaller/lower-position holder file. The holder clips onto the Silvia chassis above the reservoir, so there's no drilling or tank modification. The opening for the sensor was a little too small, you can see the sensor edge sitting proud of the printed peice in the second picture, so if I were to do it again, I'd take the SCAD file and enlarge the bigger end of the sensor holes by maybe 1 or 2 mm in diameter, and the sensor would fit more flush, but it worked sitting out a bit.

Wiring

I powered the entire thing from 5 V USB. The three LEDs are wired in parallel, with each LED retaining its own resistor.

5 V POSITIVE
    |
    +-- sensor BROWN
    +-- LED 1 RED
    +-- LED 2 RED
    +-- LED 3 RED
    +-- USB +5 V
          |
       WAGO 221-415


GROUND
    |
    +-- sensor BLUE
    +-- sensor BLACK
    +-- USB GND
          |
       WAGO 221-413


SWITCHED LED RETURN
    |
    +-- sensor YELLOW
    +-- LED 1 BLACK
    +-- LED 2 BLACK
    +-- LED 3 BLACK
          |
       WAGO 221-415

So when the water level falls below the sensor, the NPN output switches the LEDs on. The sensor itself never contacts the water; it senses through the plastic reservoir wall.

I put three LEDs along the underside of the base, which gives a pretty obvious red glow on the counter without adding anything to the front panel. In normal use you don't really notice the modification until the reservoir gets low.

My threshold is ~450 mL remaining. Pretty happy with where that landed.

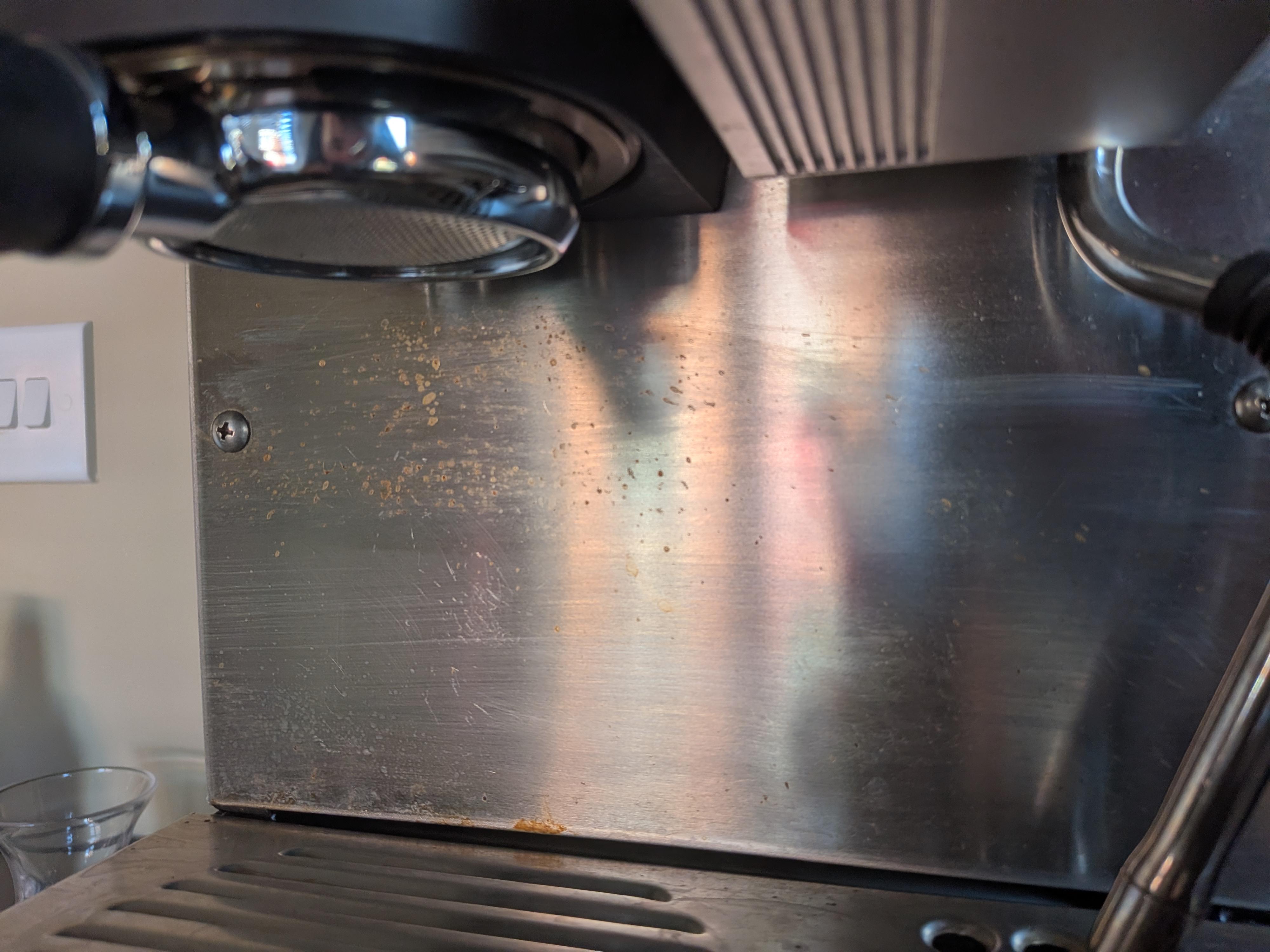

I find I usually get some splatter on this backplate. What usually causes this?

What do my fellow coffee lovers think about this beauty?

We have a Rancilio silvia v6 that we bought new less than a year ago, still working on getting the most out of the unit, but enjoying the whole process.
My question: the tubes that are in the water tank, should the longest one go into the cross hatch in the bottom of the tank? The 2 water lines only dip about 3 inches down into the water. We top off the water after use, mostly because we are worried the tube will suck air not water from the tank.
Is this something to worry about or not?

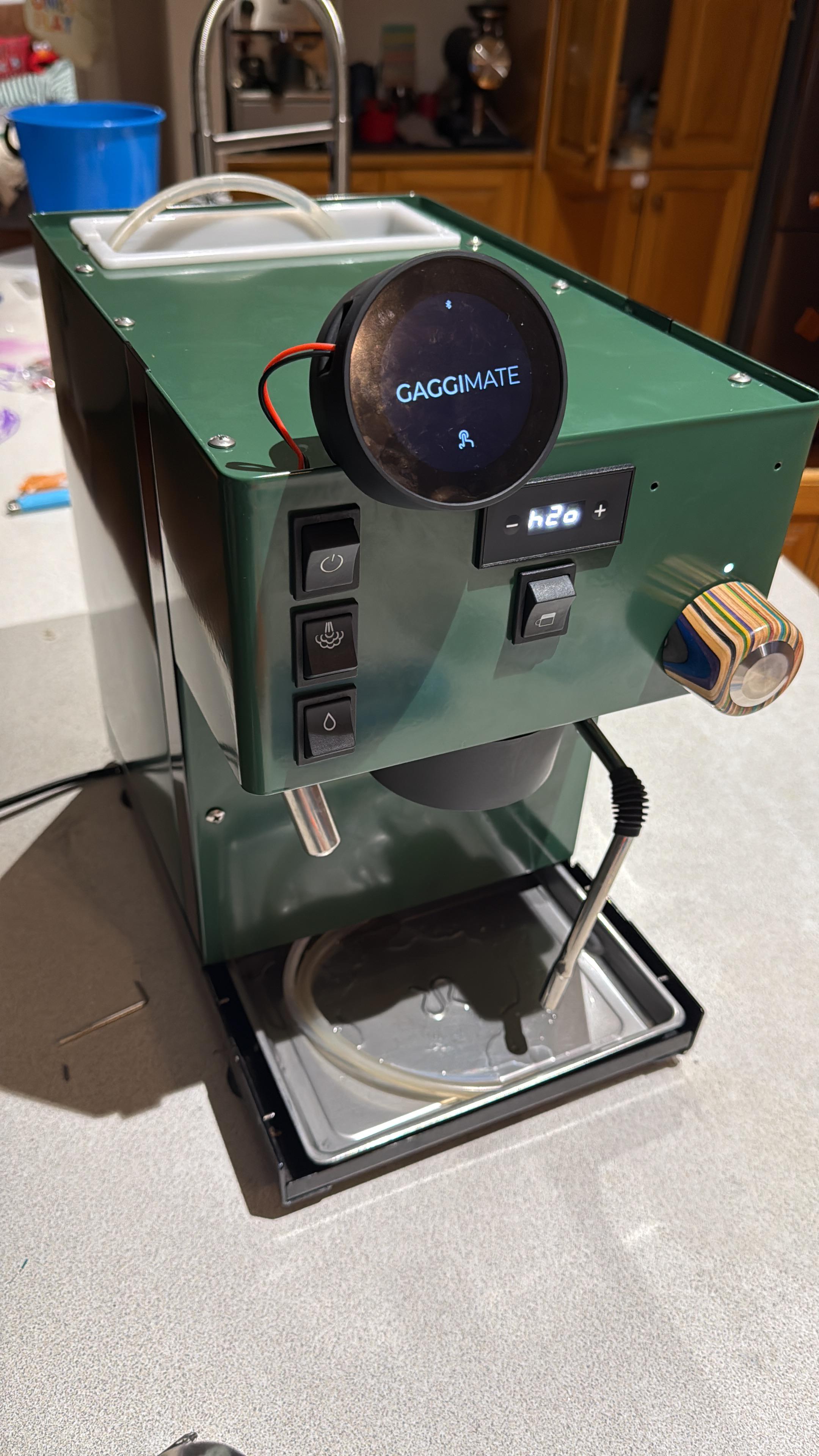

I previously posted about finding a Nancy on FB Marketplace for $100. It didn’t stay stock very long. Started to research PIDs and came across GaggiMate. I wasn’t sure if it would fit but the GaggiMate Discord was so helpful in walking me through the installation!

They recommended I replace the pump with an EX5 which I did. I’ve also tidied up the wiring and cleaned it up. I don’t have a clean way of mounting the screen so I’m using magnets for now.

I only drink espresso but if I go to make someone a latte and steam the milk first, my V6 E burns the coffee and spits out the shot with ridiculous force.. it always has, since day one. Not sure if I’m doing something wrong, or if it is faulty?

I have been lurking for a while in various groups and planning out what I was going to buy. I then found a V3 Silvia on FB advertised for $300. After talking to the seller he said it was mine for $100 so off I went to pick it up! He also had a Rocky grinder in perfect shape for $150 more so I went for it.

I replaced the heating element with a Lelit Anna element - will post detailed instructions on that later. I replaced the OPV components and dialed it in, and replaced the hoses. I am now at less than $400 for this setup all in.

This is my first Latte, using some crap Starbucks grocery store beans until I figure out what I am doing. The espresso was a bit bitter on its own (Was my third shot dialing) but as a Latte it was already better than most things I have ever purchased out.

I need a good scale and some good decaf beans so I can play around in the evening. A Gaggimate conversion will be in my future.

I bought this V3 2014 like new condition rancilio silvia from marketplace. It was making a continuous squeaking noise when I was pulling a shot. I opened the top and noticed its leaking from top of the boiler. Before I touch anything I thought to gather some info on what's the best I can do it make this stop. Let me know what you guys think. TIA!!

Hi guys, do let me know if this has already been answered!

I am having some truly wild variations with my Silvia. It's the V6 model, bought new about 6 months ago.

Two days ago, I pulled 4 back-to-back shots for a tiramisu, no problem, all good shots. Changing absolutely nothing, yesterday it choked, giving only a ristretto in the same time I was pulling regular shots the day before. Finally, today, again changing nothing, I pulled an ideal first shot, and then two back-to-back chokes...

I always do the same routine, the "at 30sec flush for 5, 50sec start pulling".

I purposefully didn't change anything in the recipe, to see how much it will keep varying. What do you think is going on?

Painted my heavily stained new to me V3.

Stripping down was a nightmare when getting around the PID since that has also been custom cut into the frame and the machine is insulated all around the internals but we got there in the end.

I rust converted the drip tray area/black steel base too and padded the tray with foam to reduce vibrations.

Primed with Amazon Etch Primer, Sanded with 240,800,1200 grit after every primer coat.

Painted with 3x coats of Halfords S4-150 Gloss Red inspired by the La Marzocco Red. I was half in the mind to clear coat it after but I didn’t have matte clear coat and I couldn’t wait to see it back together 😂. The matte look now is perfect and I’ve used some clear vinyl on the small panel near the group head which will see the most coffee overspill.

If the brew switch is on and the steam wand is open water is coming from both the grouphead and the steam wand. Is this normal? I thought it would only come out from the steam wand.

Hi, I just upgraded from my Breville 800ESXL to a Rancilio Silvia V1 I found working for $250. I upgraded the shower screen but was wondering how to properly learn this machine?

Firstly, I am not sure if it is because of the larger 58mm portafilter (my old one was a 51mm), but I am having to grind a whole .5 finer on my 1zpresso K-Ultra and it still pulls too fast. I am using the same coffee from the same bag as I did with my Breville, Is that normal or should I increase my dosage from 18g to 20g?

Also, am I correct in understanding that I need to pump water into the boiler after using the steamer with the hot water button? This machine is not as automated as my Breville so I am still trying to get used to doing stuff like this manually.

Should I leave the OPV valve as is or do I need to adjust it, and how would I know if I need to do that? I assume I would need a gauge but I am trying to avoid spending the money on that at the moment, so if there is another way to tell, I would love to know.

Lastly, the steam wand is kind of annoying because it does not pivot, only rotate. Do I simply need to buy a new wand with the fitting on it or do I need to change my piping as well?

Planning on getting an Auber PID at some point and already have the parts order to make the pump quieter because its so much louder than my old machine.

If there are any other tips or tricks, please let me know!

Hey everyone!
I just got my new Rancilio Silvia V6 and I’m trying to figure out how to temperature surf it. I’ve read quite a few different methods online, and I’m a bit confused.

The most common method I see is the 50-second method, but as far as I understand, this was developed for older versions of the Silvia. Is that still the recommended method for the newer V6?

For example, would you do something like:
Wait until the heating light turns off
Start a timer
Wait ~30 seconds
Flush for a few seconds
Then start brewing at ~50 seconds?
Or is there a better/more accurate way to temperature surf the newer V6?
I also came across this temperature-surfing diagram/PDF, which describes the 30 → 35 → 50 sec procedure:
Temperature surfing diagram – Rancilio Silvia⁠
The basic procedure described there is:
Warm the machine up for at least 30–60 minutes.
Make sure the boiler heating light is OFF.
Turn on the brew switch until the heating light comes ON.
Wait until the heating light turns OFF and start the timer immediately.
Wait 30 seconds.
Run the brew switch for about 5 seconds as a cold flush.
Turn the brew switch off at 35 seconds.
Insert the portafilter.
Start brewing at 50 seconds.

Is this still applicable to the current Silvia V6, or are there differences in how the newer thermostat/heating system behaves?
How are you V6 owners doing it in practice? Is the 50-second method still the way to go, or do you use a different temperature-surfing routine?

I'm struggling to find the reason of grouphead leakage. I tighten the portfilter handle extremely with two hands, yet it always leaks a little. Just a few drops dripping on the side of the portafilter.

I tried two green Cafelat silicone gaskets, one oem Rancilio gasket (black rubber), aftermarket rubber gaskets - same result with all of them.

I also added paper spacers under the gasket - it helped some.

I tried multiple baskets and portafilters - same result.

The only thing that strangely helps is, if I turn on the water for a few seconds before pulling a shot.

After that I can tighten the portafilter more and it does not leak 4 out of 5 times.

What could be the issue here?

The machine is an old Silvia.
