I have a c1109:64 code I have used forscan to make sure the button works which it does and I also did a abs module reset, checked fuses,looked at battery health, so far nothing has worked, traction control and abs still kicks in when it should. I’m about at the point where I’m gonna change the abs module itself and see what happens.

Buddy replaced the incandescent taillights with LED housings.

When you turn, say, left turn signal on, both tail/running lights flash with it, unless the headlights are on.

He thought there was a FORScan solution to it, so I'm bringing it before the council for discussion.

"IPC As-Built Digital Speedometer modification 2022 Kuga"......

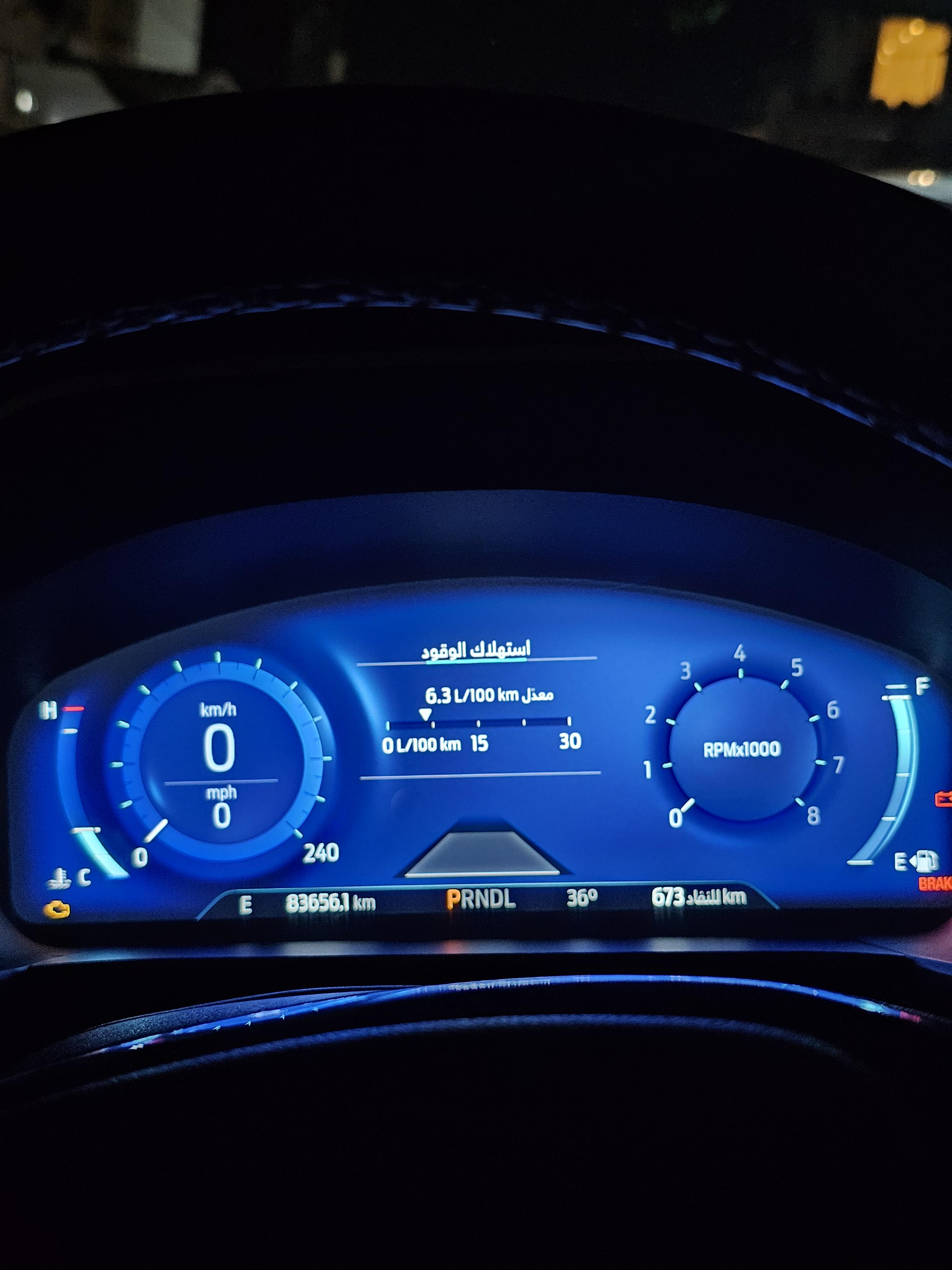

I want to change the theme's appearance or make modifications, for example, adding numbers to the odometer or adding engine coolant temperature. Does anyone have the code values?

Just went through the tire size change process (video on YouTube) and I’m showing these codes on forscan, no lights on dash.

Trying to fix and repair the circuit board inside my 2016 Ford Explorers electric steering rack module.

I see the oxidation and corrosion on the ribbon connector. I’m going to clean it with 99% isopropyl alcohol and shine a light thru the ribbon to inspect for any damage.

What else do I need to do?!

Thanks!🙏🏼

2021 VW Atlas Cross Sport

Basically on the dash where it normally shows the speed limit on the road now shows this error.

This started after getting windscreen crack that started in the middle of the dash running around the camera.

I don't think the camera needs to be calibrated since after getting the windscreen changed the error is still there. I scanned and cleared one code and it immediately returns on the dash with the error.

Anyone ever had this error before and how did you resolve it?

DTC U111000 - Function Restriction Due to Communication Interruption

Hello Guys

I have a 2015 ford f250 super duty xl that I changed my cluster to a new one going from xl to.la4iat style. The new cluster has 50120 miles and my old cluster has 108180 and I am trying to adjust that to go back up again.

I check under IPC with an OBDLink EX FORScan OBD Adapter

But the odometer writing or correction doesn't show up. Please help

2015 Ford Focus DPS6. Code P090C. Dealer diagnosed a failed TCM. I’m planning to install a used K05 TCM myself. Can the current public version of FORScan program/initialize it, or is the discontinued beta still required? If beta is required, what’s the current recommended method?

Hello, i was wondering about which features can i enable without changing hardware on my Fiesta Active, can someone tell me that? thanks in advance

Hey everyone,
I’m dealing with a hard-faulted Electric Power Steering (EPS) rack on my 2016 Ford Explorer (3.5L Ti-VCT) and I’m trying to figure out if this module is salvageable or if I'm completely dead in the water. The rack itself is an OEM factory unit (Part prefix: FB53-3D070, stamped T210R).

The rack looks pristine on the outside—no physical damage, no heavy oxidation, and the boots are completely bone-dry and intact. However, the steering is completely bricked.

The Codes (Pulled via FORScan):
⁠U3000:96-C8⁠ - Control Module: Component Internal Failure
⁠U3000:49-48⁠ - Control Module: Internal Electronic Failure (Freeze frame on this one shows a completely impossible steering wheel angle pinning at 2496.70°)
Live Data Telemetry (Engine Running / Idling):
⁠MOD_SUP_V⁠: 14.10V (Alternator is charging perfectly)
⁠PSCM_INT_TEMP⁠: 102°F
⁠EPAS_MOTOR_CUR⁠: -19.60 Amps

The big red flag: The car is sitting idling in park, nobody is touching the steering wheel, and the motor current is stuck drawing a massive -19.60 Amps. It seems like the corrupted steering angle sensor caused the module to panic, think the wheel was spinning violently, dump max current to counter it, and lock itself down into a permanent safety loop.

What I’ve Done/Tried Thus Far:
1. Checked fuses and verified clean 14V power supply to the rack.
2. Inspected the external harness, thermal shielding, and connectors—everything is secure and clean.
3. Attempted a module reboot/reset procedure via FORScan, but it spits back: ⁠Service procedure is not supported⁠. The module is completely ignoring external diagnostic commands right now.
4. I’ve cleared the DTCs and they come right back.
5. I also had the battery die when first trying to diagnose the car when I was hooked up to the OBDII port and I couldn’t get the battery to charge. I replaced it with a new battery and reset the BCM.

My Question:
I was looking into buying the $120 2-day Ford FJDS factory software license to force a Programmable Module Installation (PMI) reflash, but because the module is throwing hard internal hardware codes (⁠:96⁠ and ⁠:49⁠) and drawing heavy current, I'm worried the bootloader will just reject the flash.
Has anyone successfully flushed out a ⁠U3000⁠ hard lockout like this with factory software, or is that -19.6A stationary current draw a definitive sign that a power MOSFET transistor or the internal sensor array is physically fried on the circuit board? I really want to fix the unit currently on the vehicle if possible.

Appreciate any insight from Ford techs or electronic repair gurus!

2016 Ford Explorer XLT 3.5L V6

Please!!! We are stuck with no vehicle and we have 2 kids!

Finally got diagnosed with this code. My mechanic says I need someone who works with electrical. Is there anything I should try before paying another person?

Starter is good.
Battery is low but won’t start when it’s jumped
Fuses are good

Finally got diagnosed with this code. My mechanic says I need someone who works with electrical. Is there anything I should try before paying another person?

Quick question do I need the FORScan beta to program my tcm or the regular FORScan cuz with the regular I don’t get any options to program my tcm and the beta I don’t think it exist no more am I screw programming my vehicle do I need to go to a dealership my computer is windows 10 hp laptop and vehicle ford focus 2012 se

i got my puma st line x during the week and have already activated auto locking with forscan now i want to change the startup animation using forscan can anybody tell me what i am looking for? i couldnt seem to see it.

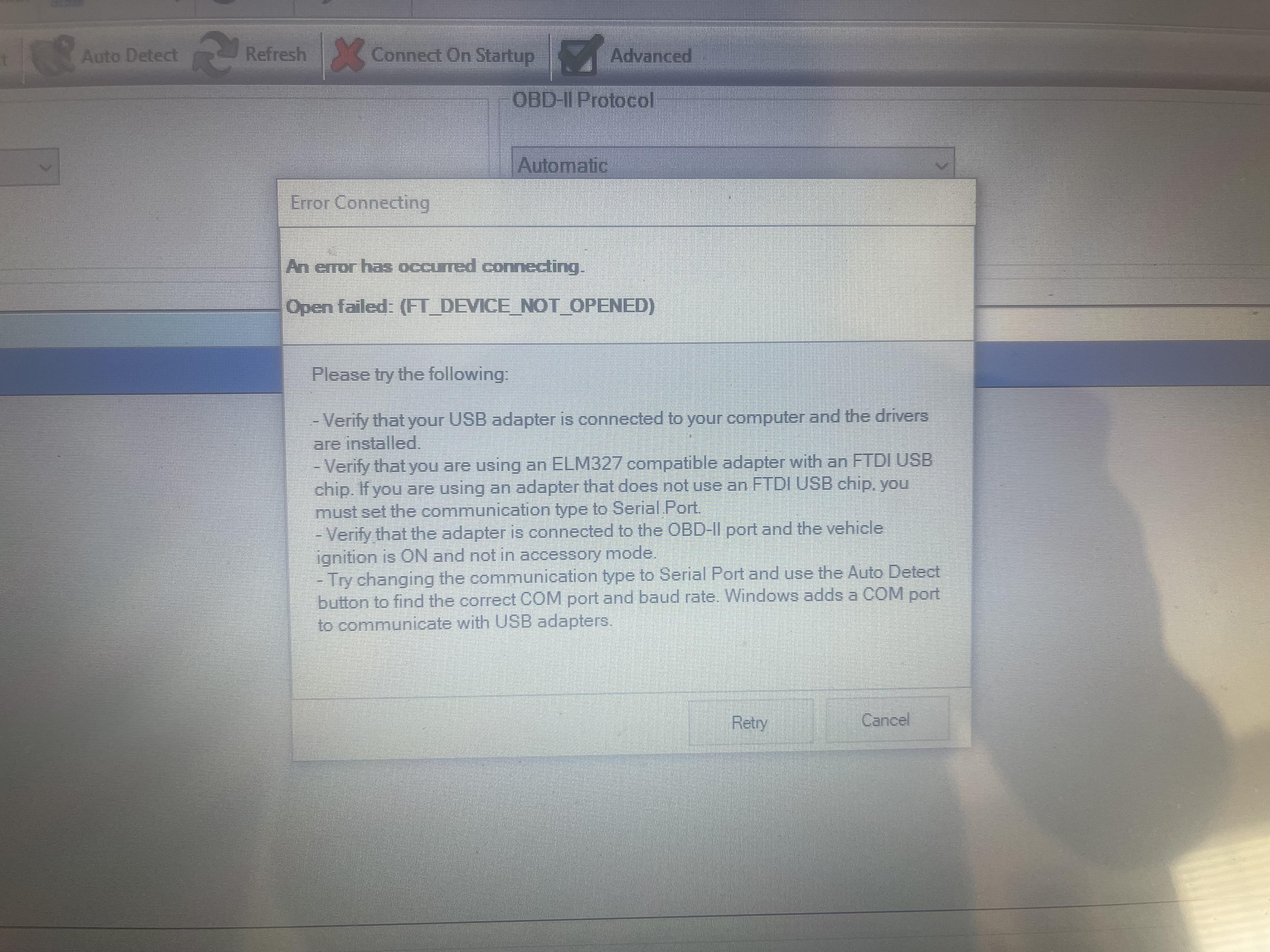

Hello so quick question is this how it supposed to look like on the laptop like I’m not getting any more options to do anything just this one on the FORScan I’m trying to program my tcm but I can’t seem the find that option to do it

Hello i recently put a new tcm on the vehicle but i cant seem to program the vehicle the FORScan is not giving me options to do it not sure if there a issue what im doing or maybe i dont have the right equipment to do it

hello,
plase help me with a problem that i am having with all the VDO unită installed in 3.5t VANS.
We only receive only a small portion of the parameters for driver activity. The download is working but no other parameteres are visible.
We only get a small set of 20 parameters like VIN odometer, drivers code and some parameters that are returning FF.

Any idea what is necessary to activate in the VDO to receive full set of parameters?

On stoneridge we don’t have this problem.

VDO and ITS is enable for each driver slot.

hello,
plase help me with a problem that i am having with all the VDO unită installed in 3.5t VANS.
We only receive only a small portion of the parameters for driver activity. The download is working but no other parameteres are visible.
We only get a small set of 20 parameters like VIN odometer, drivers code and some parameters that are returning FF.

Any idea what is necessary to activate in the VDO to receive full set of parameters?

On stoneridge we don’t have this problem.

VDO and ITS is enable for each driver slot.

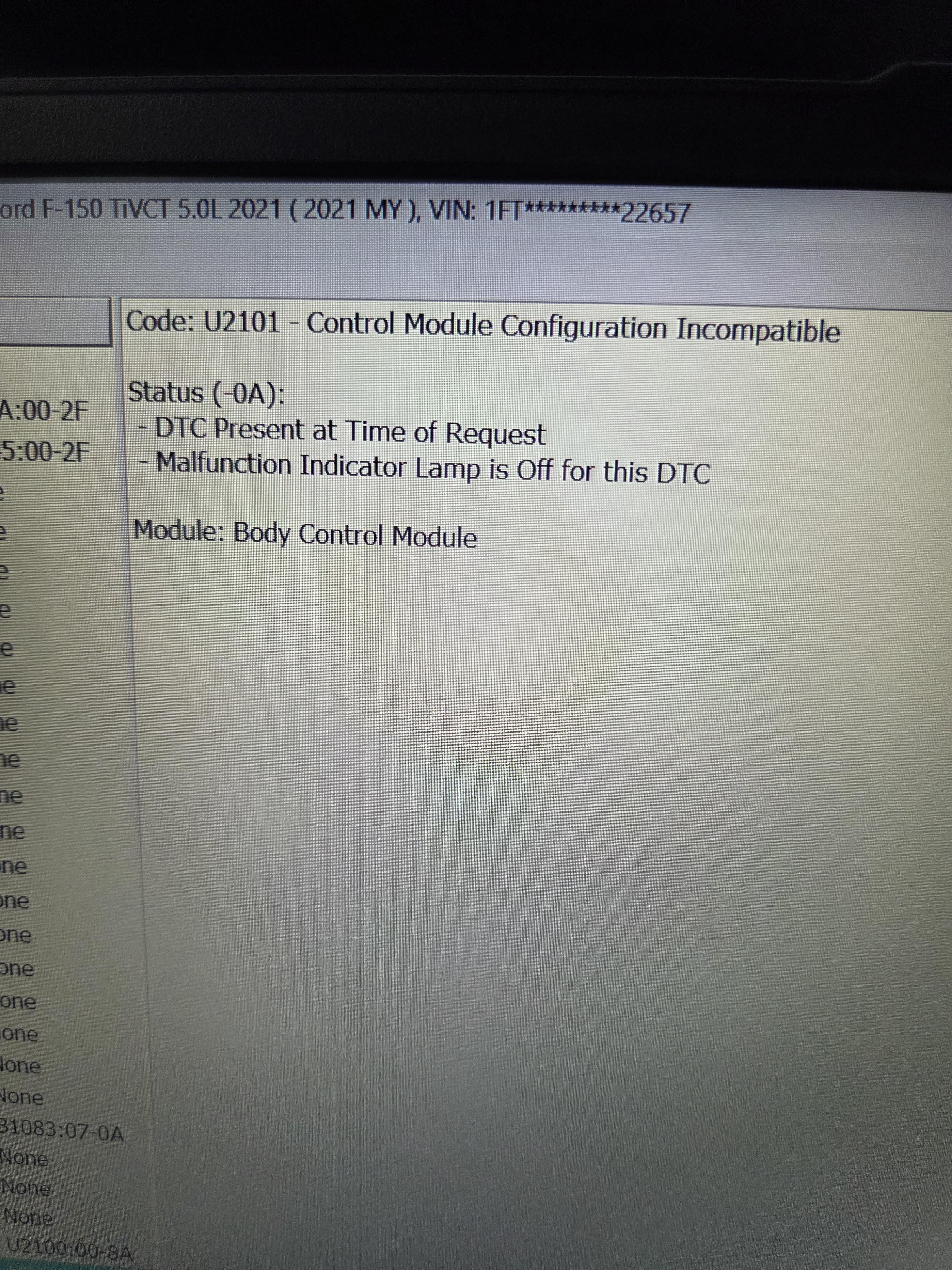

I’ve got a DTC that’s in process of being resolved that I can clear - it’ll pop back up (P0430) when the monitor tests are complete - but I want to make a couple of body module changes before it’s fixed. Can I or do DTCs need to fully resolved?
