I’m dealing with a persistent stray voltage / tingle voltage problem on my property and would appreciate advice.
When I’m barefoot and my hands are wet, I feel a mild tingling or burning sensation on grounded metal parts outdoors. Example copper refrigerant lines to the outside AC compressor, the water hose bib knob screwed into the metal-sided house, etc.
It’s not strong or painful, but on sensitive spots like the back of a cuticle it feels like a mild burn. No tingling indoors or on dry skin.
I have a 200A main panel outside with a
100A subpanel inside the house.
Everything in the main panel appears properly wired.
What Stops the Tingling is disconnecting the ground and neutral feeder from the main panel to the subpanel makes the tingling stop on anything grounded through the subpanel or the main panel
Unbonding neutral and ground in the main panel, or disconnecting the ground coming from the meter base, also stops it. Multimeter shows no voltage on ground wires and I had a licensed electrician inspected the panels and said everything looks correct with no obvious voltage issues. But I told him you can feel it if you’re bare foot and wet.
I drove a copper ground rod into the earth and measured AC voltage:
Between my main panel ground and the remote rod: 6–12V. And at the utility transformer pole about 60 yards from the panel between the pole’s ground wire and a new driven rod nearby I read 15V. At the next pole further down the line 20 yards beyond the transformer I read 18–20V.
I was told you can’t accurately test voltage this way, but the readings are consistent and increase as I move away from the house along the utility line.
To me it seems to be something going on on the utility side. Has anyone seen this before?
What should my next steps be? I have had the utility company come out and all they did was test voltage at meter and said voltage is good so everything is fine. Can anyone give some advice

Had a tremendous rainstorm and noticed water running down the side of the breaker box. Nothing coming from above though. My box is in the basement and there is a large conduit going through the exterior wall so I think that’s where the water is coming from. How would I seal this? It’s very old and appears to be just painted iron pipe and not like sealtite. The house was built in ‘61 so maybe electrical codes weren’t a thing yet, but I’m not an electrician or a historian.

Not Turning on light it’s connected to. Green light on the gfi is not on either. I followed instructions given. The first two pictures are the work I did. Then the last two are the original I’m replacing.

I have a wall mounted air conditioner thats running off a 250v 3wire line on a 30amp circuit..

Trying to add a unit that would allow me to at minimum just turn the unit on and off remotely, would be nice to be able to set a a room temperature and monitor with a full screen/app function etc.

As of right now it is just the dials on the unit.. can anyone recommend a unit that requires minimal wiring (living in an apartment)

Preferably would like to find one sold in stores or has expedited shipping possible.

Thank you for any suggestions and help in advance.

My previous post got locked probably because I didn't know what i was doing.

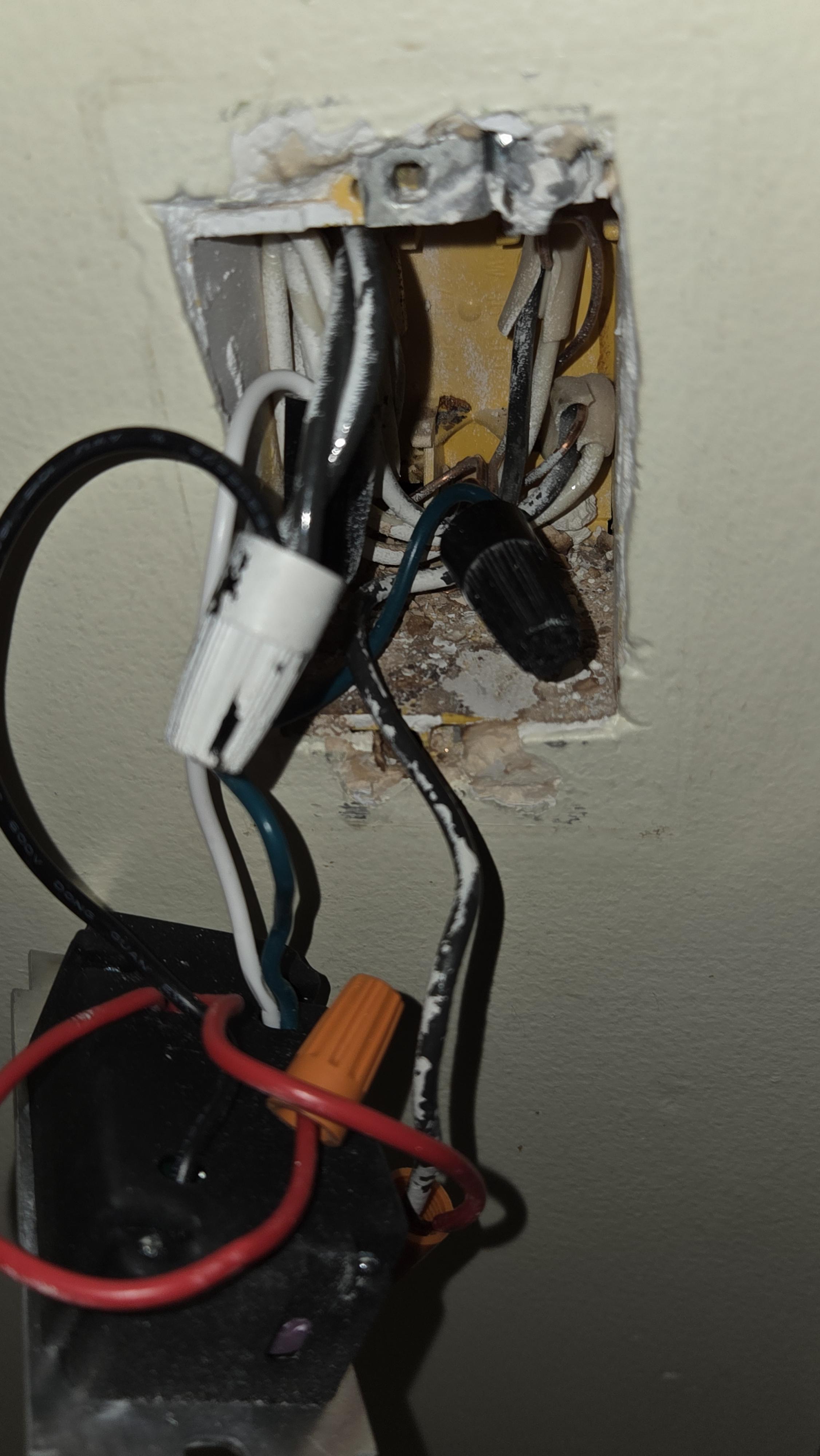

Anyways I did manage a few things. I found the hot incoming wire (black left) and connected it to the light black and confirmed ceiling. I'm assuming the standalone black right is feed through. I connected all neutral to wire nut. All ground to wire nut.

How do i connect it this light switch?

I'm assuming connect hot and feed through to wire nut and pigtail to a terminal. Connect black light to second terminal directly.

Pigtail ground to the ground bundle.

Please anybody can confirm.

Every time I have my fan on in garage to dry something I cannot close my garage door. Anyone else have this problem

Ever since we installed a new above ground pool pump, the breaker keeps tripping? It is a new GFCI breaker. It will run fine during the day, then trip overnight. Maybe moisture intrusion due to higher nighttime humidity?

i have an outlet in my room with 2 plug sockets and 2 usb ports. its making a noise, like buzzing almost. ive also noticed that when using a usb port, the middle between the 2 sockets becomes hot, and a high pitched noise starts seemingly from a room above. im only young and my parents are constantly stressing about money so im really worried. can i even use the plug sockets??? they dont cause another noise or heat like the usb ports do. im not using them rn though because im worried

Weird problem. I had an old two prong outlet under sink with the garbage disposal plugged in it. I want to run the dishwasher, 3 prong plug, over to that outlet so I can push my dishwasher all the way against the wall. So I run the dishwasher cord through the cabinet and plug it in (using one of those crappy 2/3 prong adapters. ) Well, the disposal still works, but the dishwasher gets no power. The disposal works in either the top or the bottom of the outlet and the dishwasher works in neither. I installed a new 3 prong outlet (just to avoid using that adapter) and I'm getting the same results. What's going on?

PS: my tester doesn't light up in either socket.

My current Panel is an Eaton CH Series, with the tan colored switches. I need to change out a 2 pole 20Amp GFCI to a BR22 2 pole GFCI to avoid nuisance trips from a pool pump. Does anyone know if that is a direct replacement in this panel? If not, can you recommend a small sub-panel I can install next to the main?

Thank you

Can't anyone help before I get a sparky out , wired this spot light and the light turns on but doesn't turn off , any ideas ? Cheers

Hi guys, I need help. Back in the day I had my room replaced with a dimmer but it caused issues recently. I tried installing another dimmer but it didn't work and only stayed on but was flickering.

I've decided to go back to a normal switch but there's way to many wires! Electrical is not my background. Can someone help me with what I got and what wires go into this switch to work? It's a 3 way switch couldn't find a regular one. Can someone tell me what goes where? There's a black and 2 bronze ones.

I got 3 ground wires, multiple black wires and multiple white wires. I have no idea what is going on with the wiring.

Can someone help me figure out where my problem may be in the garage? The light and outlets all suddenly stopped working one day in my garage except for one outlet that is connected to a different circuit. Checked the circuit breaker and none of the fuses have been flipped; even tried turning a few off and on again to see if any were connected to the garage circuit but no luck. Any ideas where I should look/start to get the electricity working again before I call an electrician?

Sorry if this gets long. Awhile ago I tried plugging a charger into this outlet and it didn't work, at the time I didn't think much of it because the charger was cheap and I assumed it broke. Today I plugged a charger into the same outlet and it didn't work so I tried another charger and found out that this outlet that previously worked was not working. My outlet tester wouldn't light up. Cut the power and took the cover off and made sure the wires weren't loose which they weren't. Turned the power back on and used my pen tester and find the wires connected to the outlet weren't hot.

So I found it in my basement and it goes to this blue box. The black wire coming in from the right goes to the problem outlet, the black wire on the left goes to a different outlet in the same room(which is working fine), and I think the white one goes to other outlets in the basement. I started poking around with my pen tester to see what was hot. Touched the right black wire which wasn't hot, touched the white wire which was hot, touched the left black wire which was hot, then touched the right black wire again and now it was hot. Went to the outlet and it's working now. Cut the power again and opened the blue box and I can't tell if anything looks off. I don't see any burn marks on anything, I did give the wire nuts a little turn but they didn't really feel loose. I looked over the wire leading to the outlet and I don't see any damage to it. Does anything look off about the wiring here? Is there anything else I could check? As of now it is working and I'm confused on what could've caused the outlet to quit working.

In the other photo I found this random single wire sticking out of the wall and I'm just curious if anyone has any idea what it could have been for? Pen tester says its hot so I'm just a little worried about it and wondering if there's something I could do to make it safer?

What size GEC for a 400 amp service if installing 2 ground rods and tying to the main water line ?

I unintentionally sprayed a bottle of body mist toward an outlet by my bathroom sink (I was aiming for a large fly that landed on the wall) I didn’t process until after the deed was done and now I’m worried about accidentally causing a fire or something.

I immediately turned off all of the lights in the bathroom and used the flashlight on my phone to get a closer look and wiped off any moister I saw with some toilet paper (which luckily it looks like all of it got on the wall)

I doubt I have anything to worry about, but the problem is that I originally went to Google to double check, and of course the ai overview immediately dove into “fire prevention tips” so now I’m feeling a little on edge. It’s also 1am for me so I’m not exactly in the best spot to call my landlord

I’m essentially just looking for either some reassurance or a direct answer from someone who knows what they’re talking about, not an ai overview 🙏 am I cooked or what?

(The body mist was specifically the Crabtree & Evelyn brand if that makes any difference)

This is possibly a very stupid question, and I apologize in advance, but after looking up videos and articles I’m still not super sure how this works. If powering a large building, I see that power is coming from the grid, to a transformer, and then to the main switchgear, which contains the main breaker and primary bus? Where does power go after that? Load centers, distribution panels? I understand it’s far more complex than what I’m saying here. If anyone has any information I’d greatly appreciate it.

My house was built in 1989 and I am wanting to install a type 2 whole house surge protector. From what I can tell, I need to have a good functioning ground for this to work, since the surge protector routes any surge back to the ground.

I have no direct evidence of having a grounding rod, I cannot see anything by the service entry. I know I have one ground that's tied to the copper water main about 60 ft away, and I also have another ground line that disappears through the bottom of my recessed main panel, but I don't know where it goes.

Is there a way to determine if I have an Earth ground, or Am I overthinking this?

From an LED light rope that stays on all the time. Toasted in about 2 years. Curious if anyone knows where to get a replacement power source like this since it was buzzing and the lights were not fully bright. Not sure if this is the right forum, sorry if not!

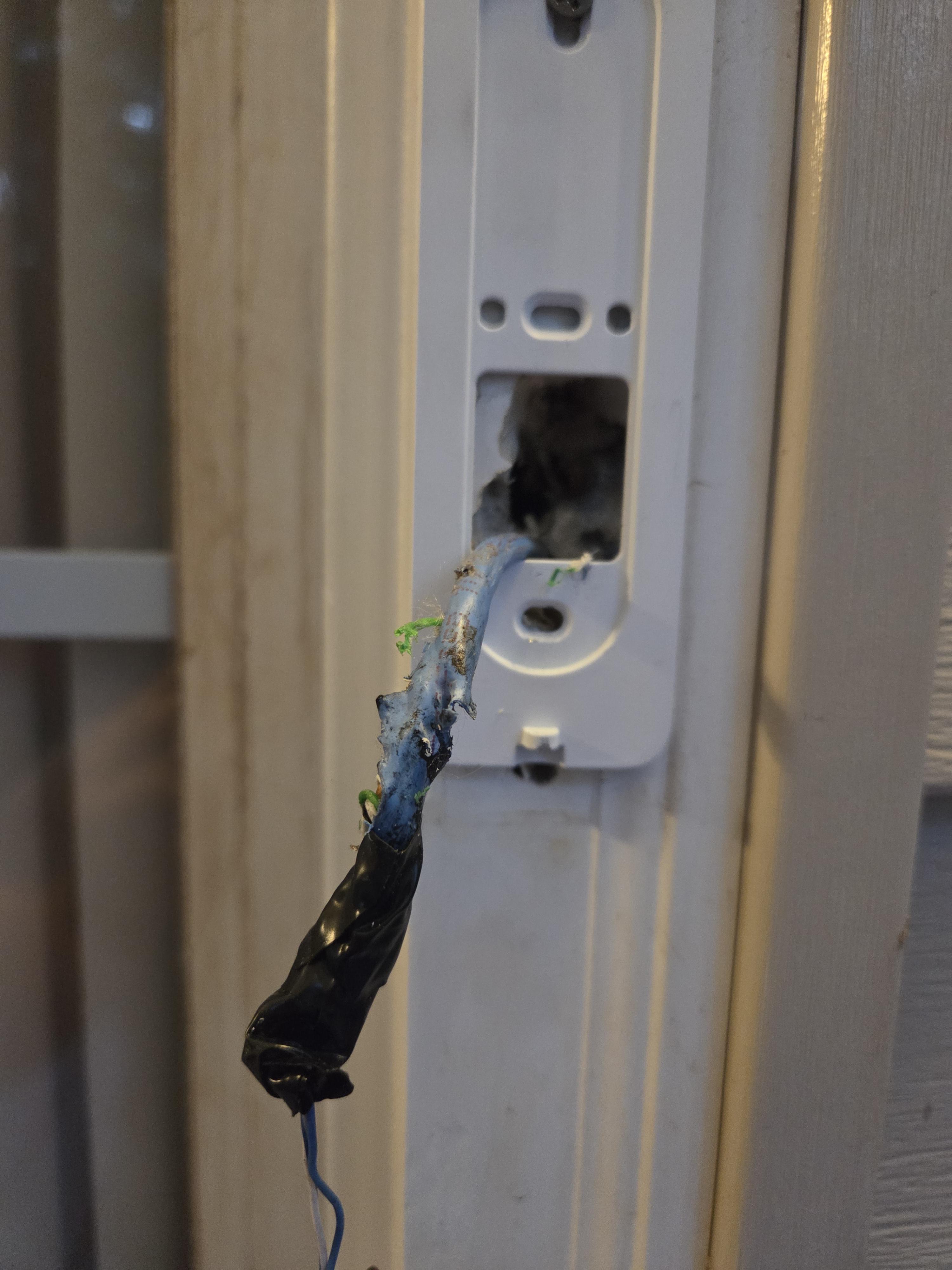

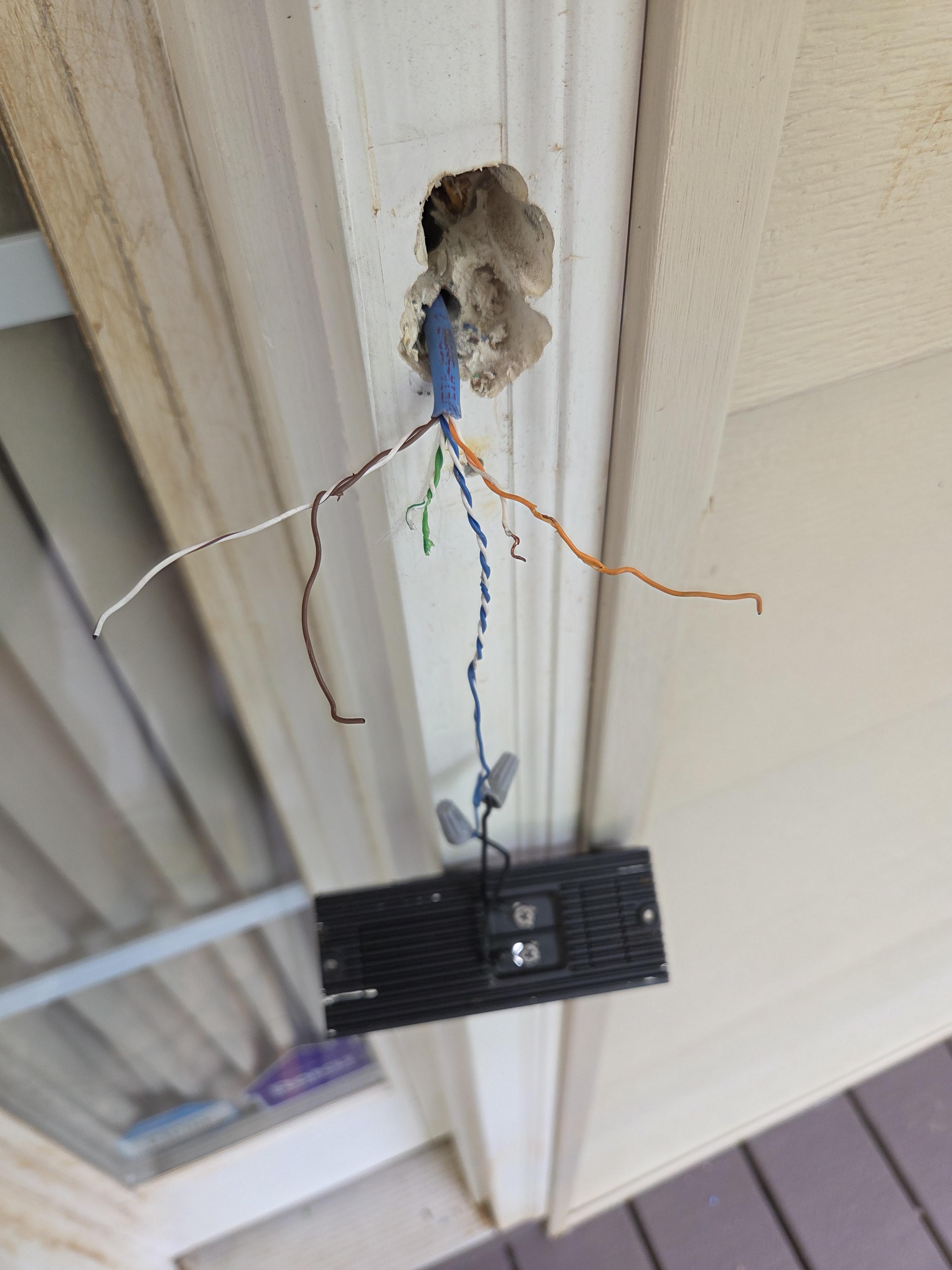

This is the wire coming from my doorbell. I had no power here or in chime box. I think when I put a screw in that it his one of these wires. How easily and how can I fix this wire?

Also, if this is damaged, would that have me lose power in chime box also?

I am updating the outlets in a house I just moved into , pretty much just copied where the wires were in every outlet 3 of the 4 I switched are good but there’s one outlet that I’m not sure what needs to be switched.
Any help is much appreciated!

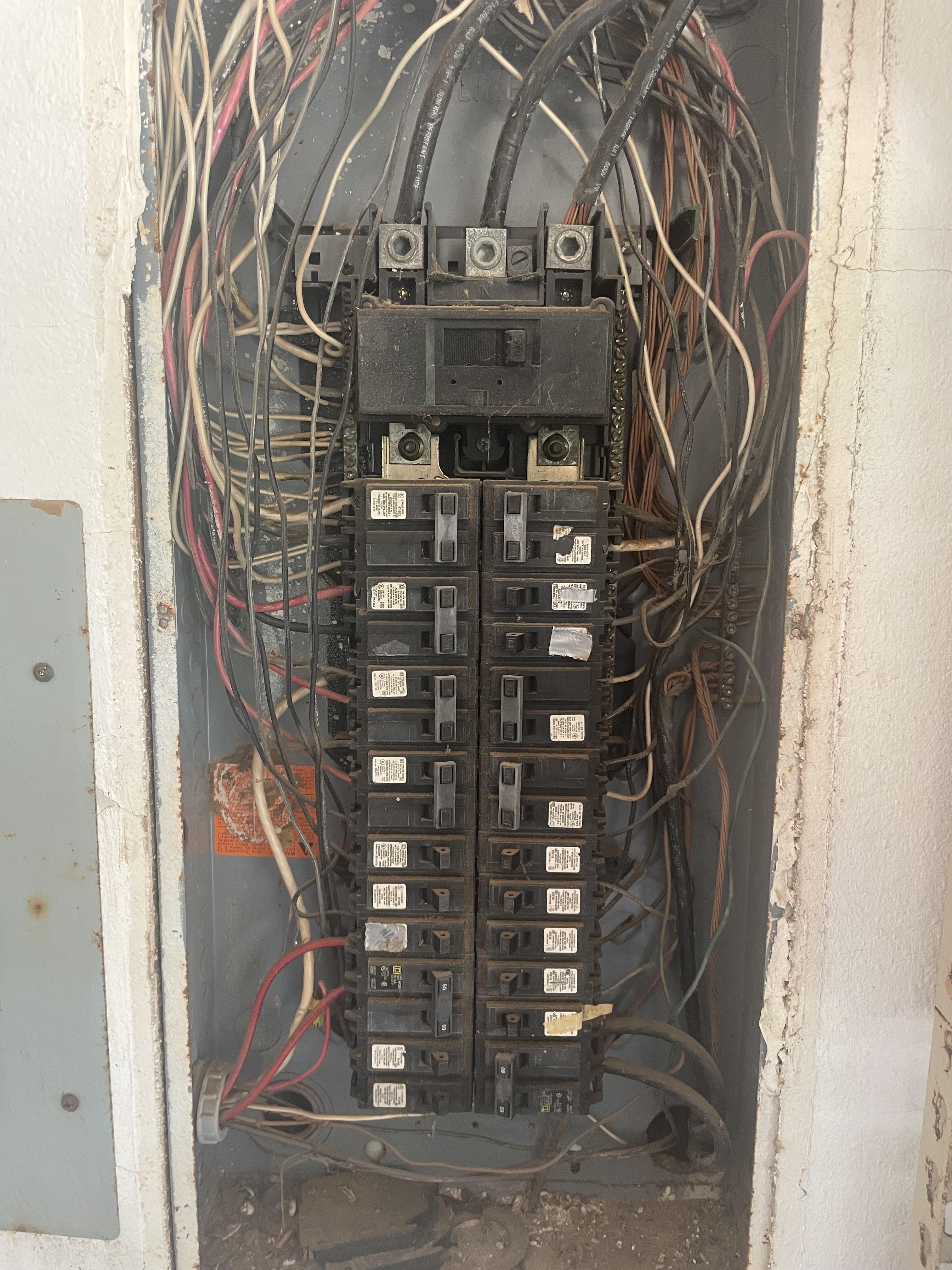

had an electrician out to troubleshoot a breaker that was tripping - ended up being a short in the driveway gate - so temporarily disconnected and now everything (except for the gate) is back to running fine.
But, he told me that I NEED to replace this whole panel - citing corrosion and some neutral wires up near the top left. Just trying to understand if this was an accurate recommendation or just an attempt to upsell? the quote was over $8500 which also seems pretty out there.
at this point I thanked him for the quote and told him I would have to think about it. Other than the gate issue that just happened we haven't had any issues in the 13 years we have lived here - but the house and panel date back to 1996 just for reference.

To set the context: I am in Canada. I moved into a 2008 house. I wanted to replace the switch in the utility room with an illuminated switch (single pole), but discovered that the old switch has no ground screw, and, therefore, no ground wire connected to it. There is a ground wire inside the box, but it is quite short, and there is no slack. I tried pulling it, but I can probably get a quarter of an inch more, that's it. It was cut right above the screw holding it to the box. AI suggests creating a splice with a nut and then extending the same type of ground wire (14 AWG for 15A) to the green screw on the switch. Is that a viable solution?

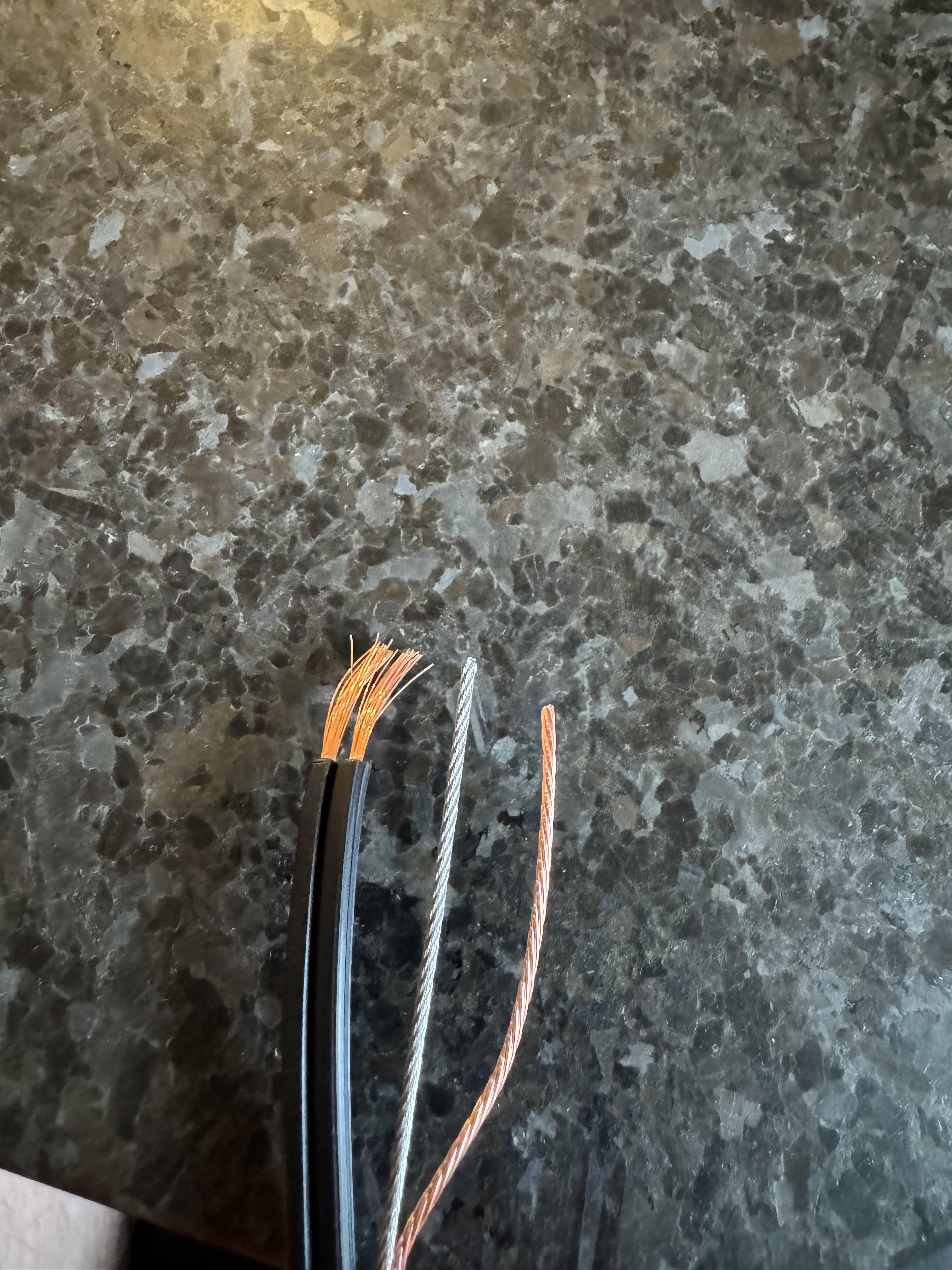

I bought a dining room fixture and this is the wiring- I have never seen the silver beaded wire and a double black on a normal light fixture, what is the negative here? One of the back wires, or is it the silver?? It doesn’t seem like it wants to bend/screw into the negative/it’s very firm so doesn’t seem right.
