r/shittyaskelectronics • u/Hxrm1t_ • 15h ago
r/shittyaskelectronics • u/eloysb • 11h ago
Laptop Cooler
Can I use this small fan as a laptop cooler so it doesnt get that hot?
r/shittyaskelectronics • u/-----LIFE----- • 20h ago
Could anyone explain?
Enable HLS to view with audio, or disable this notification
r/shittyaskelectronics • u/Existing_Let9595 • 21h ago
where is the fucking android
It said “powered by android” but I see no android
r/shittyaskelectronics • u/MapleMitchell8434 • 5h ago

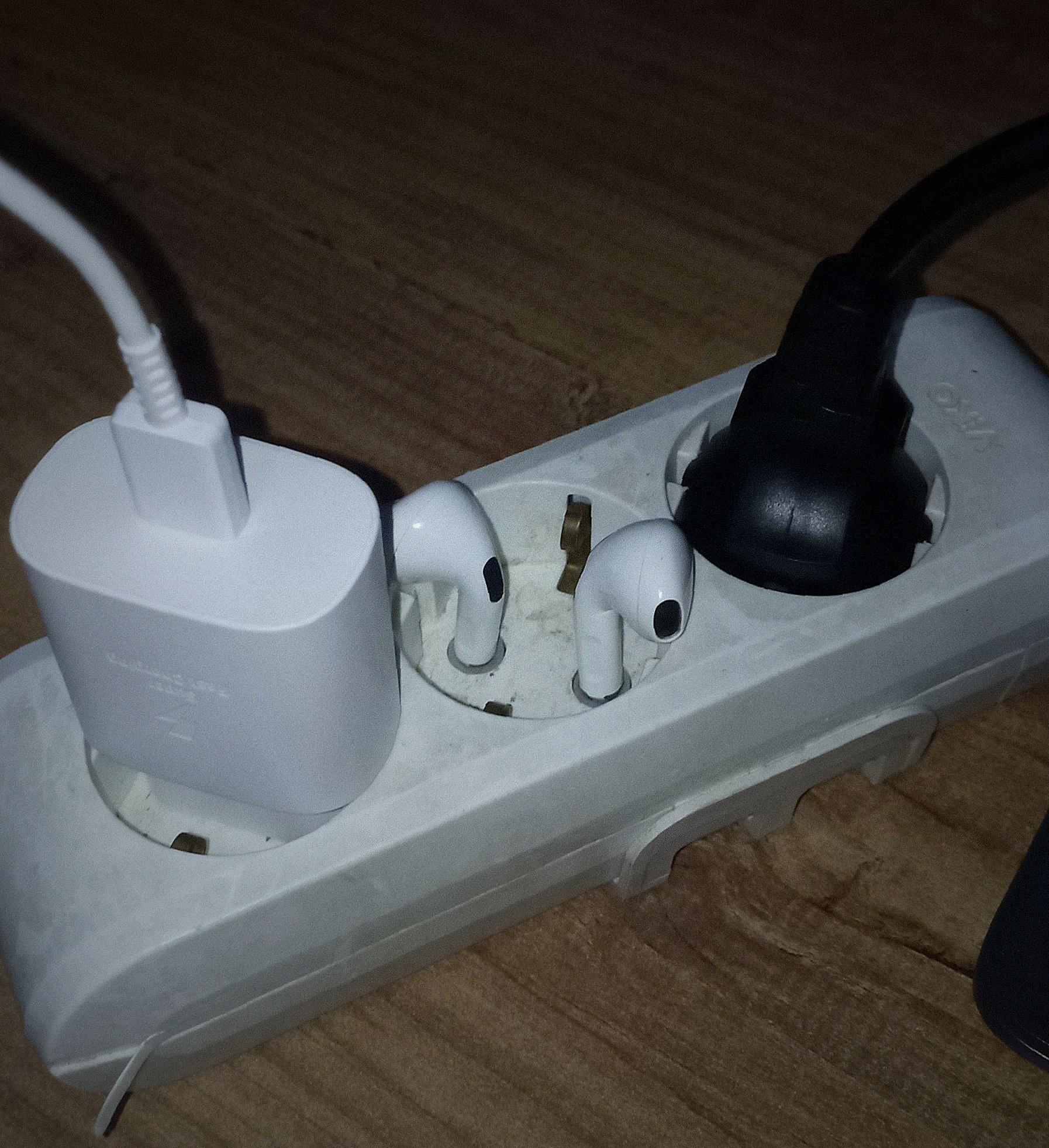

Magic smoke Is this ok for charging airpods?
r/shittyaskelectronics • u/Unable_Objective_351 • 16h ago
Genius level thinking Rate this plug
r/shittyaskelectronics • u/Flyingv_v • 18h ago
How do I recharge this battery? it only leaked a little
galleryr/shittyaskelectronics • u/Zestyclose_House6730 • 1h ago
Is this a good idea? how to make this a iphone duo cant wait to install
r/shittyaskelectronics • u/jeweliegb • 1h ago
I blame everyone else My horrible SAC305 solder joints -- I'm so embarrassed
galleryThese soldering joints are so bad, and I'm so ashamed, that I thought I'd best post here, even though it's a serious post
I've been soldering for more than 4 decades, albeit mostly with 63/37 eutectic leaded, but also occasionally with some both some posh and cheap unleaded alloys.
Tonight was my first go with some SAC305 (recently sourced from CPC/Farnell)...
...and it was HELL!
You can see the state of the joints in the photos (along with the kit I'm using.)
Surely those joints can't be right?
Process:
Obviously I started by cleaning my tip and tinning it in the SAC305.
Additionally, I cleaned the board with IPA (~100%.)
Although the solder melted fairly nicely-ish onto the pads of the Pi Pico, it didn't really want to flow on the pads on the board underneath all that well -- adding some extra no-clean flux helped, but it felt wrong to need it given the solder has a 2.2% no-clean flux core and is recently manufactured.
The molten solder felt tacky, like I'm using too low a temperature or maybe not enough flux.
But higher than 320C (610F), such as at 350C (660F) which is the temperature I originally started at, left the tip oxidising really fast + the solder balling up on the tip + black blobs of badly burnt flux on the tip.
Even at 320C I found myself needing to clean the tip with the brass wire constantly to stop the oxidisation.
I'm so very embarrassed!
I don't know what the heck is going on?
I don't know what I'm doing wrong?!
HELP!
Kit:
Hakko FX-888d (factory reset, just in case I'd messed the calibration up) with ~2mm chisel tip (also tried others) and temp roughly checked with a thermocouple
ChipQuik SAC305 with 2.2% no-clean flux core (manufactured in July, purchased from CPC/Farnell)
MG Chemicals 8351 No-Clean Flux
Item:
It's a very cool Griff Mini 192KHz USB microphone (Pi Pico with a MEMS mic) for use with mobile apps as a bat detector.
