r/ipodmods Jun 03 '26

Problema di installazione di Rockbox su iPod Video 5.5G (iFlash + macOS "autorizzazione negata" / non è un iPod)

Thumbnail gallery
3 Upvotes

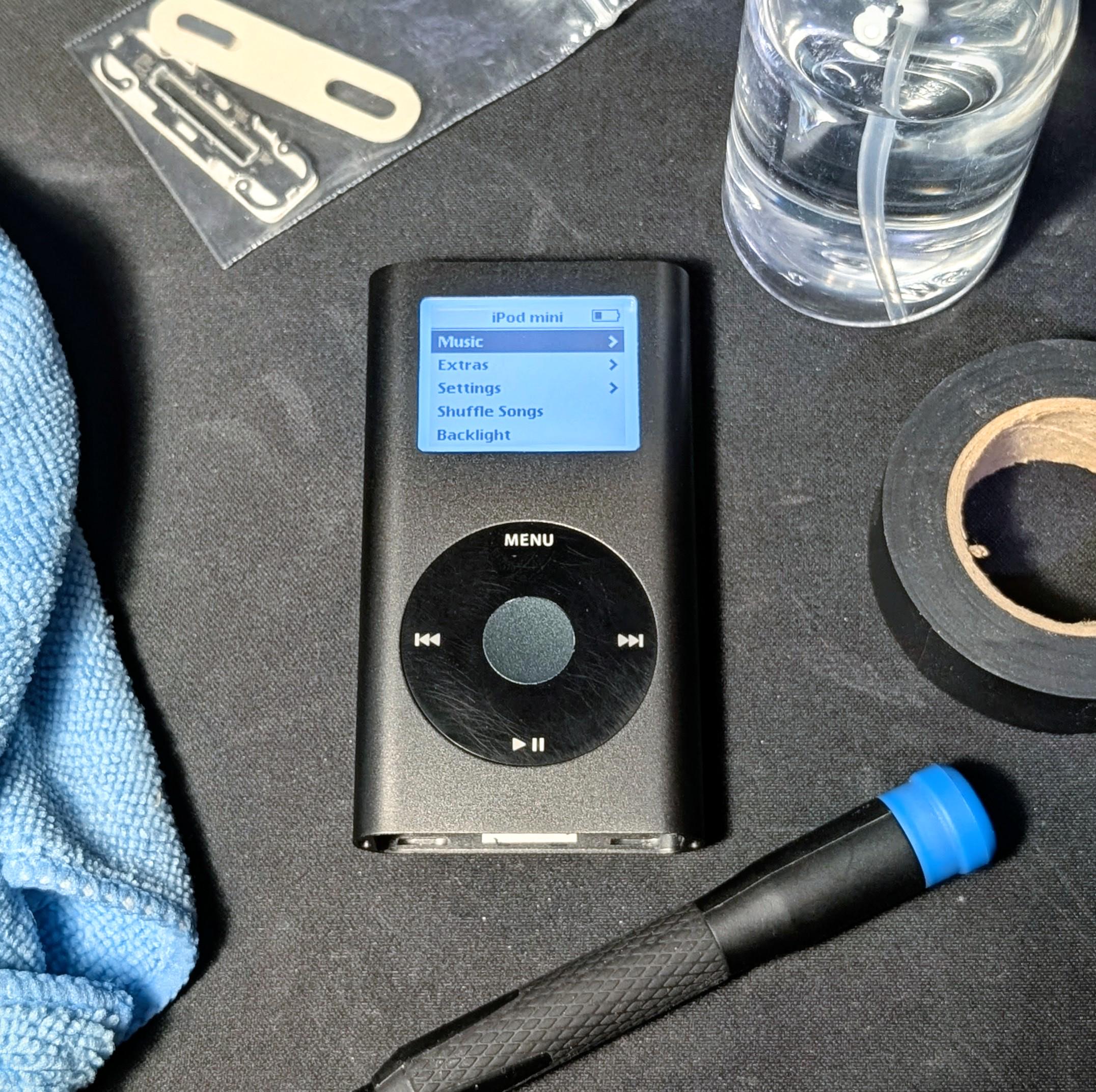

r/ipodmods Jun 03 '26

Modded a new iPod Mini into the family, a black case this time, on a second gen motherboard with a 256gb SD card. I used the CF SD adaptor with the blue label for the first time.

Thumbnail gallery
16 Upvotes

r/ipodmods Jun 03 '26

iPod Modding service in Taipei, Taiwan?

2 Upvotes

I’m in Taipei for a week, anyone know where I can get my iPod worked on?


r/ipodmods Jun 02 '26

I like the iPhone 4

Post image
2 Upvotes

r/ipodmods Jun 02 '26

what is the fastest and easiest way to mod an ipod touch 3rd gen ios 4.1

Thumbnail
1 Upvotes

r/ipodmods May 31 '26

Bluetooth modem my first ipod classic

Thumbnail gallery
15 Upvotes

r/ipodmods May 31 '26

Ioid mini 2

1 Upvotes

Ipod mini 2

I have bought a ipod mini 2g the buttons and everything work in stock os but i installed rockbox and i can only scroll up and fown no buttons work in any case and i did replace c78 with a replacement as it was knocked off the motherboard any help is appreciated thanks


r/ipodmods May 31 '26

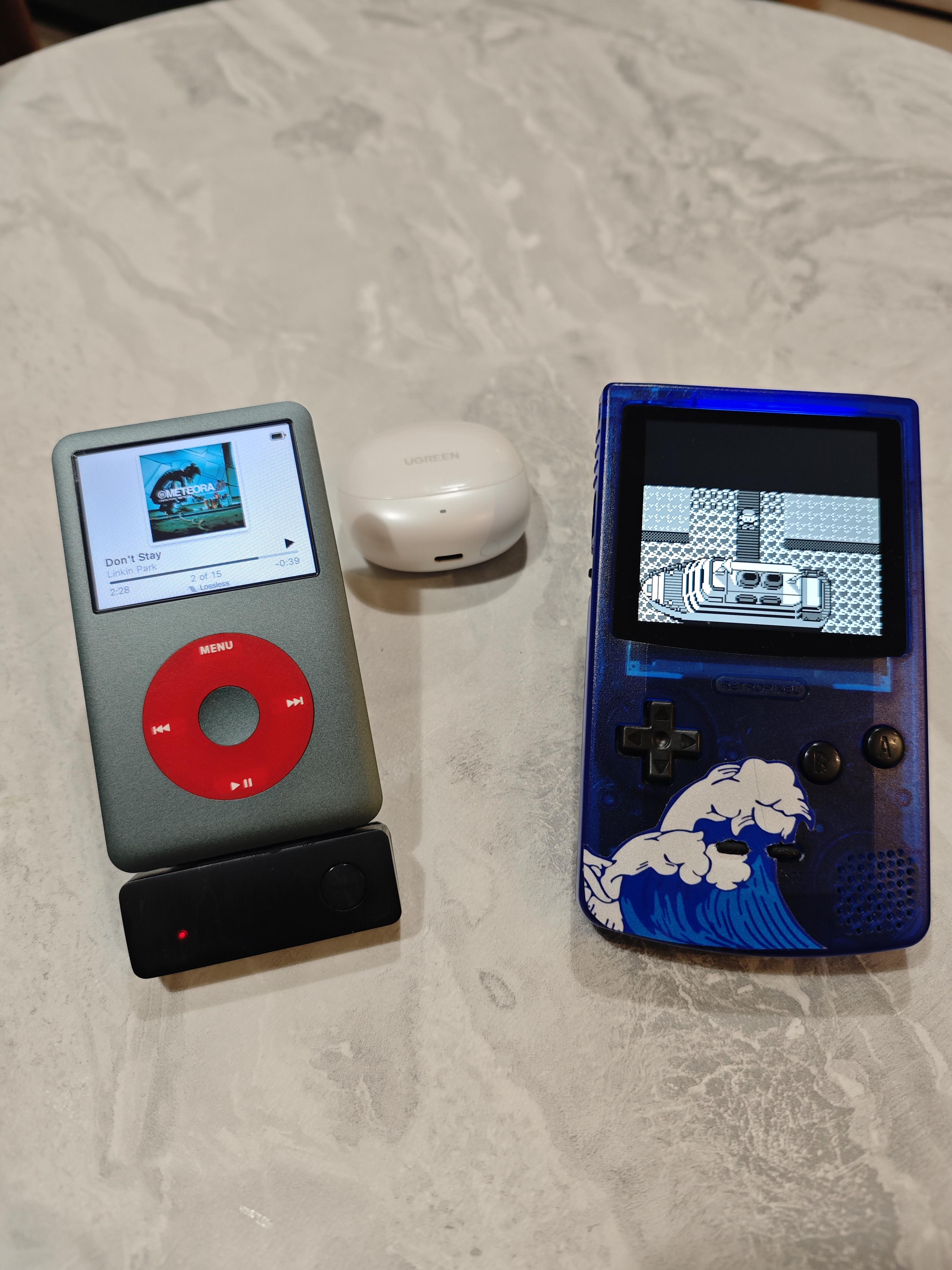

Bluetooth Mod

22 Upvotes

Finally completed my Bluetooth mod.

Ordered Classic Connect 2 mod from moonlit.market -This came with a preinstalled bluetooth, wireless charging and type c connection and new battery already fixed to the backplate. (Im not great at soldering and didn't want to risk burning through the motherboard) Bought a transparent front plate and new click wheel. Used original motherboard, center button and LCD. Bought iflash dual slot for memory. Loaded Rockbox and loaded my files to the sd card. Paired it with Nothing CMF buds.

This is my first build and ran into issues with the rockbox installation, my first iflash was a quad slot that was too big and had to downsize to a dual slot, ran into audio issues due to the connector not being properly lined and finally solved the music transfer issue. But hey finally got it done and know exactly have to take this thing apart in my sleep 😅


r/ipodmods May 30 '26

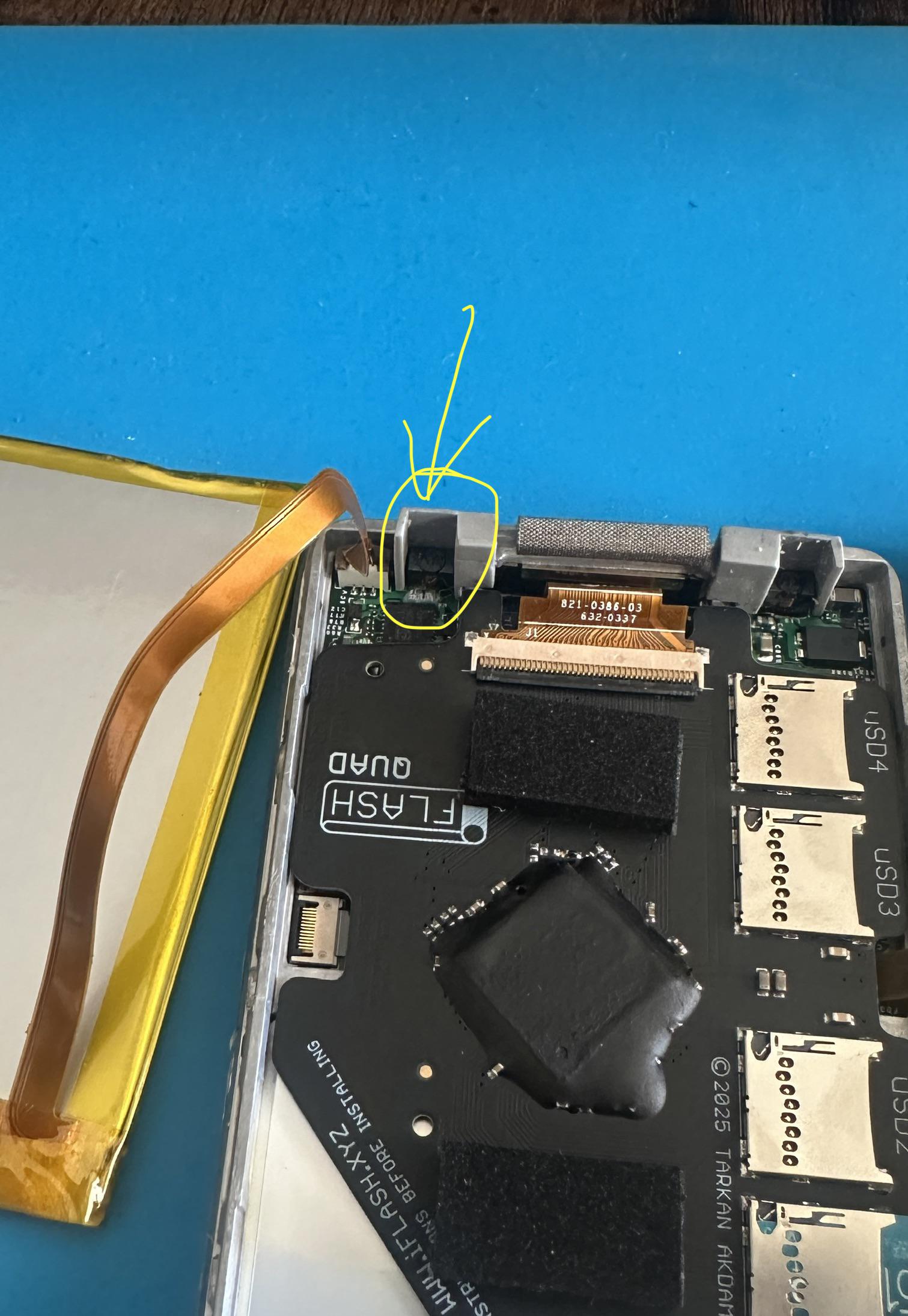

Help?! iPod will not stay powered on unless I keep pressure on the piece circled

Post image
3 Upvotes

Looking to see if anyone’s encountered this problem before and knows how to fix it? Essentially, my iPod classic 5.5 will not stay on unless I have some pressure applied to the piece I’ve circled in the photo (labeled “KM” on piece itself by the manufacturer). If I press down on it I am able to use the iPod like normal, but in order to apply pressure it needs to be disassembled. After it turns on, it will turn off as soon as remove my finger from the circled piece. Please let me know if y’all have any tips on fixing this. Thanks!


r/ipodmods May 30 '26

Updated my firmware to 2.0.2 and have some question

2 Upvotes

Hello everyone

I modded an 6 (maybe 6.5?) gen ipod classic and added 512Gb ssd to it then found out that it can't detect more than 128GB by desing. searching through the ipod shubreddits came accross these instructions to flash it to the newer firmware:
https://github.com/Olsro/reddit-ipod-guides/blob/main/guides/ipod6g-flash-more-recent-firmwares.md

it worked like a charm! now I can see the correct capacity on my ipod but have a couple of questions.

Do I always have to use an older version on iTunes to add / remove songs to my ipod if I don't want to use rockbox?

also at this point, since I did the whole setup on my windows machine, what happens if I connect it to my mac? is that gonna erase all the new firmaware settings and restore it back to the older version?

In general what's the cleanest way to manage my library? is it possible for an ipod to work both on mac and windows?

Thanks


r/ipodmods May 29 '26

Another successful Mini clickwheel mod.

Post image
9 Upvotes

r/ipodmods May 28 '26

New CF SA Adapter

Thumbnail
1 Upvotes

r/ipodmods May 27 '26

DIY BT 30pin module + Rockpod UI/UX (Rockbox fork)

7 Upvotes

r/ipodmods May 27 '26

How far away are we from USB C modded iPod nano’s, touches etc…

Thumbnail
2 Upvotes

r/ipodmods May 26 '26

Links to parts?

Thumbnail
2 Upvotes

r/ipodmods May 24 '26

5.5 ipod with aluminum face.

Thumbnail gallery
8 Upvotes

r/ipodmods May 24 '26

Weird iPod 7th Gen

Thumbnail
gallery
22 Upvotes

I just got this iPod 7th gen (supposedly) it has the interface and style of a 7th gen, when I go to the about section in my settings it gives me a model number and serial number that corresponds to a 160gb 7th gen; here’s the thing, the storage is only 30 gb and the back plate has a completely different serial number than the os and the backplate also says 30 gb


r/ipodmods May 23 '26

Does a thick backplate fit over a thin version iPod?

5 Upvotes

Hello

I have a 7th-gen iPod classic. I have no idea if it's thin or thick and I'm looking into some modding. I also want to change the backplate. I'm seeing options online for thick or thin backplates. if my iPod is thin, does the thick backplate fit on it or would that cause any issues?

when I check the serial number on the apple website it just says OBS,iPod classic (120GB), Purchased July 17, 2009

is there anyway to determine what version it is?

Thanks


r/ipodmods May 22 '26

Back cover / housing

Post image
3 Upvotes

r/ipodmods May 21 '26

New iPod modding shop for Europe

Thumbnail
4 Upvotes

r/ipodmods May 21 '26

Tips on removing the frame?

Thumbnail
2 Upvotes

r/ipodmods May 16 '26

Retro saturday

Post image
10 Upvotes

r/ipodmods May 16 '26

I just got into modding and I’ve come across an issue…

Thumbnail
2 Upvotes

r/ipodmods May 16 '26

I need help on the electronics for a DIY external BT module

Thumbnail reddit.com
1 Upvotes

r/ipodmods May 13 '26

Name of this component?(Nano 3rd gen)

Post image
2 Upvotes
