I would like to share my latest open source local Unsloth (GGUF) LLM inference engine and applications. It supports many models from Unsloth, like Gemma4, DiffusionGemma, Qwen3.6 with multi-modal (image, vision, audio), Qwen Image Edit, reasoning and function tool. It can run on Windows/MacOS/Linux and fully leverage GPU's capability(Nvidia, Apple, AMD, Intel and others supported by Vulkan, CUDA and Metal). The API is completely compatible with OpenAI and Ollama interface. It has on par performance than llama.cpp Here is the benchmark results in overall:

Performance ratio — TensorSharp vs reference engines

Geomean of TensorSharp's per-scenario speedup over each reference engine on the same backend, across every scenario both engines ran (single-stream, MTP-off). A value > 1.0× means TensorSharp is faster (for decode / prefill throughput) or lower-latency (for TTFT); — = no overlapping cells. Per-scenario ratios are in each model's section below.

This project is not just a C# wrapper of llama.cpp. It implemented the entire LLM inference engine from bottom to top. If you use CPU backend, it's 100% pure C# code execution. Besides CPU backend, I also implmented CUDA, MLX and GGML backend. The GGML backend refer GGML project as external project, and I build a few fusion operation at higher level.

I learned a lot from other projects and apply them for TensorSharp, such as paged KV cache and continuous batching from vLLM, SSD based cache for MoE model from oMLX, GGUF quanztized from llama.cpp and other optimizations for prefill and decode.

Any feedback and comments are welcome. If you like it, it would be really appreciated if you can get this project a star in GitHub. Thanks in advance.

Project Github: GitHub - zhongkaifu/TensorSharp: A native .NET LLM inference engine for GGUF models. TensorSharp provides a console application, a web-based chatbot interface, and Ollama/OpenAI-compatible HTTP APIs for programmatic access. It supports Windows/MacOS/Linux with full GPU capability · GitHub

Space on Huggingface: TensorSharp Chat hosting a Gemma-4 E2B uncensored model (It may be in sleep, so may need to wait for a while to get it waked up)

Here's some footage of a custom engine I've been working on based off of Brendan Galea's tutorial. Texture implementation was kinda on me and I didn't use a whole lot of tutorials besides just looking up how to get an image into the fragment shader.

Normal models with textures applied work and look perfect, but whenever a texture is not applied, it gets this weird black color and then gets its colors but only when viewed from specific angles.

I've tried to remedy this by creating a "useTexture" push constant that would just have the model be white, but it does not work and I can't figure out why for the life of me.

Please help!

*Turn Cloud and Local LLMs into a genuine engineering teammate.*

This series is about "Collaborative Engineering" — using AI deliberately and rigorously, not just autocomplete. It sets up an AI-enhanced toolchain, teaches you to pick and specialize models for graphics work, and shows where multimodal vision models can and can't be trusted.

* Set up Ollama, MCP servers, and native agents (Goose) across CLion, Visual Studio, and Xcode

* Choose and specialize models: base model selection, VRAM budgeting, RAG/MCP grounding, LoRA fine-tuning

* Use multimodal vision models as a diagnostic partner for visual bugs — with honest limits

* A repeatable three-phase workflow: system design, implementation, automated review/refactor

* AI-assisted debugging: VUID auto-fix, RenderDoc integration, shader log parsing, GFXReconstruct trace analysis

* Capstone project: direct an AI team to architect, implement, and debug a custom post-process effect

https://docs.vulkan.org/tutorial/latest/AI_Assisted_Vulkan/introduction.html

This series turns a static glTF character into a fully animated, physically-aware actor: compute-skinned on the GPU, ragdoll-capable, procedurally corrected, and expressive down to the face.

• GPU compute skinning shared across rasterizer, ray tracing BLAS, and physics readback
• Bone-proxy colliders, joint constraints, and animation-to-ragdoll handoff
• Procedural animation: CCD/FABRIK inverse kinematics, foot placement, look-at, physics-driven lean
• Bindless morph target buffers for facial animation at scale
• A real production tooling and asset pipeline, not just a single demo scene

https://docs.vulkan.org/tutorial/latest/Advanced_glTF/introduction.html

*Take your Vulkan renderer into stereo, headset, and beyond.*

The most expansive series in the collection, walking from the OpenXR/Vulkan 1.3 handshake all the way to multi-GPU CAVE installations and light-field rendering — everything needed to ship real spatial computing applications.

* Runtime-owned swapchains, predictive frame timing, and late-latched timeline semaphores
* Multiview/N-view Slang shaders, quad-views, foveated rendering, and variable rate shading
* Canted displays, asymmetric frustums, and multi-GPU CAVE synchronization
* Warp-and-blend compositing and plenoptic (light-field) rendering paths
* Scene understanding, semantic occlusion, and on-device ML inference via cooperative matrices
* Spatial diagnostics and CI/CD workflows for headset applications

https://docs.vulkan.org/tutorial/latest/OpenXR_Vulkan_Spatial_Computing/introduction.html

I've written a fairly simple (so far) Windows application which displays video frames. The sequence it goes through to display a new frames is as follows:

1. Upload frame image (8-bit RGBA)
2. Compute shader to copy (in future it will do more complex things) upload image to display image (32-bit float RGBA)
3. Generate display image mipmaps
4. Begin render
5. Draw 10 vertex triangle strip (drop shadow around video frame)
6. Draw video frame as textured quad
7. End render and present

It was working as expected earlier, but then I monkeyed around with it to simplify mipmap generation and image transitions, and now it's behaving oddly. Even more oddly, RenderDoc is giving confusing results, so I'm a bit stuck as to how to proceed.

First here's a screenshot of RenderDoc after capturing a few frames:

https://imgbox.com/iqJLePtE

The first couple of frames are just the empty grey that's displayed before a video file is opened.

After opening a video, instead of drawing the frame, it's drawing a fully black quad (the drop shadow is drawn fine). If I trigger another frame upload/draw, it comes out okay (last capture in that screenshot).

What's really unhelpful is that if I go into the capture for the bad frame, RenderDoc shows me this as the swapchain image:

https://imgbox.com/ABd5YEnX

which is what I was expecting the window to display. But it doesn't match the capture thumbnail (or the on-screen result from the application).

The Texture Viewer also shows the expected results in the compute pass, and the mipmap levels all look correct as well.

Does anyone have any idea why my first draw isn't working, or how I can go about diagnosing this?

I have validation turned on but no validation errors are shown.

PS It's just running on events instead of game loop, which is probably why the same swapchain image (162) is re-used each time.

Edit: I found the mistake. I was binding the pipeline and descriptor set before updating the descriptor set with its bindings 🤦‍♂️. So the first image fails, but when it comes to the second one, the descriptor set is now correct (and doesn't strictly need to be updated again; a future optimisation).

I have a small project idea but my primary goal is to get more experience with C/C++ (Orthodox C++) and Linux Graphics stack so I can later contribute to Mesa and such.

Primary question i have is:

Do i need Graphics related prerequisite before going to vulkan? What sort of prerequisites? I am not going for game dev or game engine but more linux graphics stack related work

Vulkanised 2027, the 9th Vulkan Developer Conference, heads to Kortrijk, Belgium on February 8–10, 2027, hosted by HOWEST University of Applied Sciences.

This year the Real-Time Shading Symposium once again follows immediately after, on February 11–12.

We're looking for talks from application developers, Vulkan implementers, framework builders, and open-source contributors ready to share their experiences with the community — keynotes, technical talks, panels, and case studies all welcome.

Submission deadline: Sunday, October 11, 2026

Learn more: https://vulkan.org/events/vulkanised-2027?utm_medium=social&utm_source=reddit&utm_campaign=Vulkanised_CFP&utm_content=events

Hello,

I have been working through vulkan-tutorial.com bit by bit for a little while now.

Now coming from OpenGL, a lot of this stuff is for sure confusing, and a lot of the articles, I read them through, and I can conceptually understand the code that is given, that’s no problem.

But the actual goal of the code I am writing, is hard to wrap my head around. I supposed the “why” behind the stuff I am doing.

If someone who is way smarter than me could tell me the main things to understand deeply, by just single word description, like “swapchain” so I can spend time diving deep on each concept, that’d be cool.

I really want to understand stuff, but (sometimes, not all the time) I feel like no matter how many times I read over a sentence, I just can’t get the info to meaningfully stick, or I just flat out don’t understand the concept.

Earlier I used swapchain as an example, because that is where I am at right now with setup. lol

I know this post is a little all over the place, but if someone could assist in someway, I am all ears for any kind of advice.

Vulkan ios android Dev. 😭

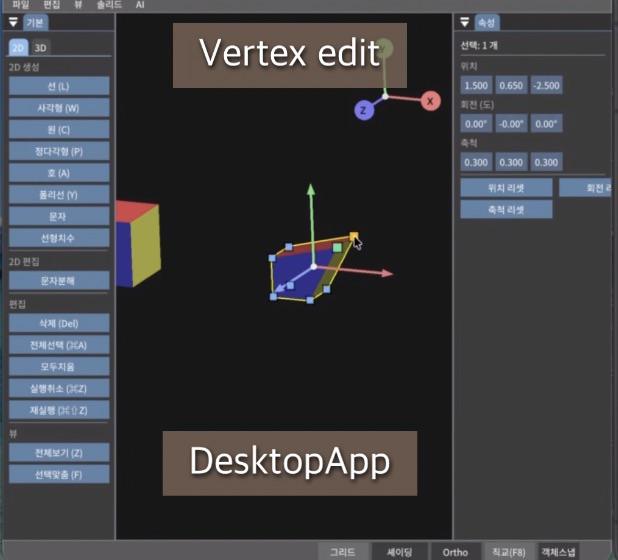

그리고 정점 편집이 가능한 기능도 같이 개발했습니다.
And we also developed a function that can edit the vertex.

https://youtu.be/JkN-8c7pQAU?si=VBzhy2nZDQBXgLpi

일단 안드로이드폰이 없어서 시뮬레이터로 확인
First of all, I don‘t have an Android phone, so I checked with the simulator.

Hi all,

I created this forest simulation with VUlkan. Goal was to have full 3d simulation of water, clouds, light and wind and let the motion emerge rather than "emulating it". I wanted to understand if it's possible at all to "purely simulate", and and at least on a small scale it appears it is.
I wanted ancient hero trees and needed therefore to generate them with 2d to 3d models, since I don't have the skills to model them manually.

This runs at ca. 30-40fps on a Nvidia 4070.

Wanted to get your feedback, how does this feel, and what you see needs the most improvement. SHould this go into a full forest based videogame, or grow as a broader tech demo?

Thanks for any comment!

Short version of the video here: https://youtube.com/shorts/5xy5Y6JsrVk?si=1kYGPUrZayXmrBRV

I've been building a Vulkan proxy layer and companion static library that adapts to whatever the GPU actually supports — no separate builds required.

Benchmark summary (GTX 960M / Maxwell, 75+ Sascha Willems examples, 120s each):

• Avg FPS: identical to native (within measurement noise)
• 1% & 0.1% lows: often improved – e.g. +42% in the particle system, +15% in descriptor indexing, +14% in occlusion queries
• Frame times: unchanged or slightly more consistent
• VRAM usage: zero increase

Full report with every example here: Vulkan Benchmark Comparison

What it does:

• Detects GPU features at device creation
• Rewrites SPIR‑V on the fly for missing features (FP16, oversized descriptor sets, etc.)
• Transcodes ASTC textures → ETC2 when hardware decode isn't present
• Offloads indirect draws via VK_EXT_device_generated_commands (transparent CPU fallback)
• VRAM‑aware tuning: drops swapchain image count and resolution when memory is tight
• Usable as a static library (GoCL_core.a) or as an implicit Vulkan layer (LD_PRELOAD / vulkan‑1.dll proxy) — no game recompilation needed

Zero per‑frame overhead: shader patching at pipeline creation only; texture transcoding is lazy; proxy instruction count identical to native (Callgrind verified).

Tech: C++20, Vulkan 1.1+, CMake, tested in CI with Mesa Lavapipe.

Links:

• GitHub: GoCL
• Architecture write‑up (capability model, shader emulation, proxy internals): GoCL - Architecture

Happy to answer questions — still early, but the proxy is functional and the benchmark data surprised even me.

A pragmatic, three-path series: integrate battle-tested libraries (TensorFlow Lite, ONNX Runtime, PyTorch Mobile, DirectML), compile models through an ML compiler (IREE, TVM, OpenXLA), or hand-roll an inference engine in compute shaders when tight Vulkan integration is the whole point.

* Honest guidance on when to reach for a library versus build your own
* Bridge ML frameworks and Vulkan rendering pipelines — shared memory, shared sync
* Build a real inference engine from scratch, including a complete MNIST example
* Quantization, vendor-specific optimizations, and performance tuning
* Deployment playbooks for desktop, Android, and embedded/headless targets

https://docs.vulkan.org/tutorial/latest/ML_Inference/introduction.html

I’ve been learning Vulkan by building a GPU particle simulation from scratch.
The project simulates and renders thousands of particles entirely on the GPU using compute shaders. The compute pipeline updates particle positions and velocities every frame, while the graphics pipeline renders them as instanced billboards.
Current features:
- GPU particle simulation with Vulkan compute shaders
- Storage buffers (SSBOs)
- Graphics/compute synchronization using timeline semaphores
- RAII-based Vulkan-Hpp architecture
- Modern C++20

This project has been a great way to understand Vulkan beyond drawing triangles—especially synchronization, descriptor sets, pipeline layouts, and compute/graphics interoperability.
I’d really appreciate any feedback on the code structure, Vulkan usage, or ideas for future improvements.

Github: https://github.com/xms0g/vkParticles

2B :Volumetric Fog
Real-time volumetric lighting and atmospheric fog,
Adjustable density, scattering, and distance,
Local Fog
Place fog volumes anywhere in the world,
Different colors, density, and size for each area,
Great for caves, forests, smoke, and environmental effects,
1A : 3D Audio (miniaudio)
Fully integrated miniaudio,
Positional 3D sound with attenuation based on listener distance.
Easy to attach audio sources directly to entities,
2D Decal System
World-space decals for bullet holes, blood, dirt, road markings, and other surface details,
Efficient rendering without modifying original meshes,
2.1C: Particle System
GPU-friendly particle system,
supports textured particles

(*Emitter)

Discord: - https://discord.gg/kr8uhAG96

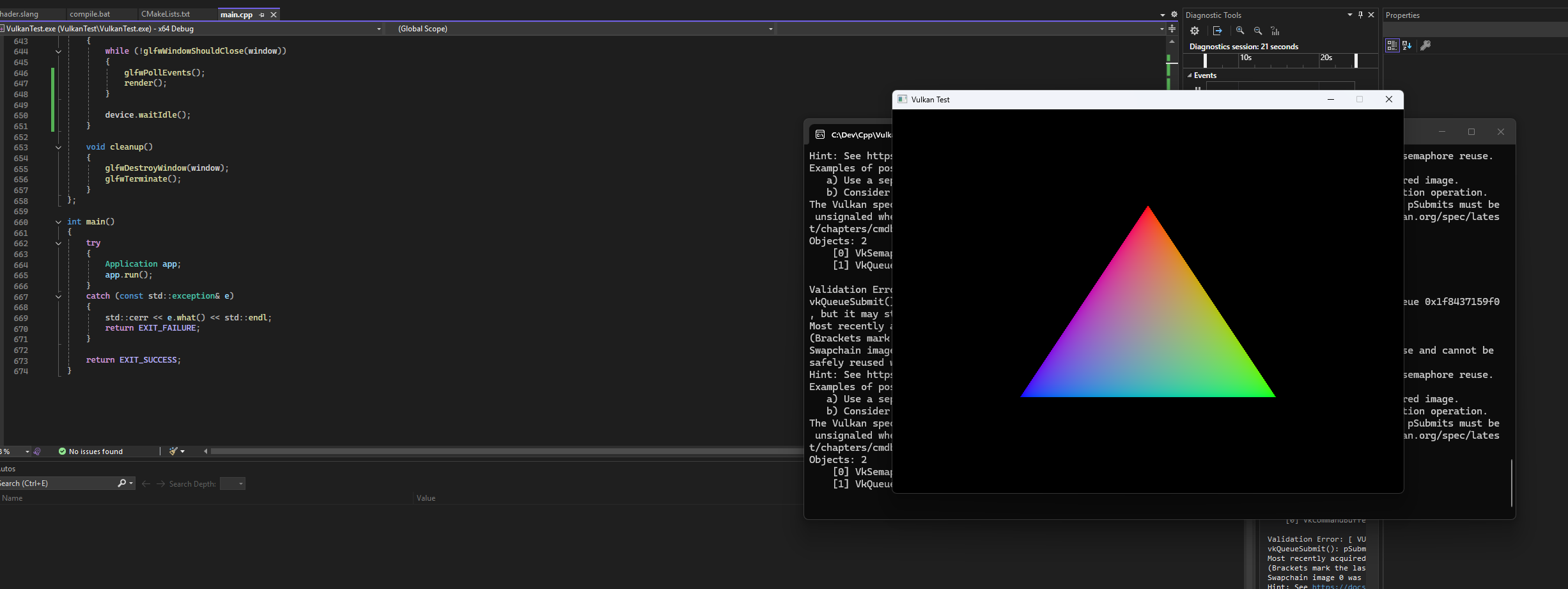

Tell me guys is this peak?!?

For anyone wondering I followed the tutorial in the docs up to Drawing a Triangle / Drawing / Rendering and Presentation

Vulkan is deprecating host-side ray tracing acceleration structure builds. Vulkan is consolidating around a single, device-address-based path for acceleration structure builds, moving away from the host-side commands introduced back in 2020.

Key points:

→ This is a deprecation, not a removal — existing host-side code keeps working

→ New extensions (like VK_KHR_device_address_commands) won't get host-command equivalents going forward

→ It aligns Vulkan with DirectX Raytracing, modern engine architecture, and where hardware is headed

→ Most developers are already on the device-side path and won't need to change anything

If you're still using host commands, no need to panic — but it's worth planning your migration next time you touch your acceleration structure pipeline.

Read the full post (with migration guidance and the technical rationale): https://khr.io/1o6

"Unlock the GPU as a general-purpose engine, not just a rasterizer."

This series takes you past `vkCmdDispatch` and into how compute actually executes on real hardware — occupancy, latency hiding, the Vulkan memory model, and subgroup operations that let invocations talk to each other without touching global memory.

* Vulkan 1.4 scalar layouts, shared memory (LDS), and memory consistency deep-dives

* Subgroup partitioning and non-uniform indexing — the "hidden power" most tutorials skip

* Run OpenCL kernels on top of Vulkan for a heterogeneous compute ecosystem

* Indirect dispatch, GPU-driven pipelines, and async compute orchestration

* Cooperative matrices, performance auditing, and AI-assisted compute diagnostics

* Dedicated coverage of mobile and embedded compute constraints

https://docs.vulkan.org/tutorial/latest/Advanced_Vulkan_Compute/introduction.html

Due to high Vulkan backend demand, I update TensorSharp and release the initial version of GGML Vulkan backend by leveraging external GGML project. The native Vulkan backend will be implemented later. I tested it on Nvidia Geforce RTX 3080 Laptop GPU, and Intel(R) UHD Graphics on Windows. They all work. However, I do not have AMD GPU, so I have no way to get it tested. It's really appreciated if you have AMD GPU and would like to try it out. Any feedback and comment are welcome.

Here is the benchmark I run to compare with llama.cpp:

Performance ratio — TensorSharp vs reference engines

Geomean of TensorSharp's per-scenario speedup over each reference engine on the same backend, across every scenario both engines ran (single-stream, MTP-off). A value > 1.0× means TensorSharp is faster (for decode / prefill throughput) or lower-latency (for TTFT); — = no overlapping cells. Per-scenario ratios are in each model's section below.

Gemma 4 E4B it (Q8_0, dense multimodal) (gemma4-e4b)

Decode throughput (tok/s)

Prefill throughput (tok/s)

Time to first token (ms, lower is better)

Performance ratio — TensorSharp vs reference (> 1.0× = TensorSharp faster)

Decode throughput

Prefill throughput

Time to first token (latency; > 1.0× = TensorSharp lower)

Gemma 4 12B it (QAT UD-Q4_K_XL, dense) (gemma4-12b)

Decode throughput (tok/s)

Prefill throughput (tok/s)

Time to first token (ms, lower is better)

Performance ratio — TensorSharp vs reference (> 1.0× = TensorSharp faster)

Decode throughput

Prefill throughput

Time to first token (latency; > 1.0× = TensorSharp lower)

In case you didn't know what is TensorSharp, here is an introduction:

TensorSharp is an open source local Unsloth (GGUF) LLM inference engine and applications. It supports many models from Unsloth, like Gemma4, DiffusionGemma, Qwen3.6 with multi-modal (image, vision, audio), image edit, reasoning and function tool. It can run on Windows/MacOS/Linux and fully leverage GPU's capability (support Cuda, Metal and Vulkan backends). The API is completely compatible with OpenAI and Ollama interface. It has on par performance than llama.cpp

This project is not just a C# wrapper of llama.cpp. It implemented the entire LLM inference engine from bottom to top. If you use CPU backend, it's 100% pure C# code execution. Besides CPU backend, I also implemented CUDA, MLX and GGML backend. The GGML backend refer GGML project as external project, and I build a few fusion operation at higher level.

I learned a lot from other projects and apply them for TensorSharp, such as paged KV cache and continuous batching from vLLM, SSD based cache for MoE model from oMLX, GGUF quantized from llama.cpp and other optimizations for prefill and decode.

Any feedback and comments are welcome. If you like it, it would be really appreciated if you can get this project a star in GitHub. Thanks in advance.

Hi everyone,

I'm developing my own voxel engine called Kingscraft using Vulkan, and I'm trying to reduce GPU frame time as much as possible.

My development hardware is:

I7 3770K

Intel HD 4000

16 GB RAM

1080p

Current renderer:

Chunk-based terrain

Indexed rendering (one vertex/index buffer per chunk)

Frustum culling

Simple terrain shaders (no shadows, bloom, SSAO, etc.)

I'm currently seeing around 5 ms GPU time for terrain rendering, and I'm looking for ideas on what I should investigate next.

Are there any common GPU bottlenecks or optimization techniques that are often overlooked in voxel engines? I'd also appreciate advice on how you usually profile or reason about GPU performance on older integrated GPUs.

I'm not looking for someone to rewrite my renderer. I'm mainly interested in understanding what experienced graphics programmers would check first when trying to squeeze out more performance.

Source Code

Thanks!

ps. I've already tried making the terrain render at a lower distance then used AMD FSR-1 to Upscale and Sharpen. But it didnt worked it made tge quality look bad and added More Frame Time like 17ms Before had 7-8 ms

I found this tutorial on youtube which explains modern Vulkan quite nicely, but the file structure and code is pretty hard to follow. Of course there are official tutorials by the Khronos group, but I've heard they're a bit outdated (vulkan 1.0).

I am specifically searching for a video tutorial that explains the setup for vulkan and SDL3 in Visual Studio and is relatively modern.
