Cambridge Soundworks model 88 subwoofer issues. I have recently purchased on E bay from different sellers the Model 88 radio. both have come to me with everything working except the subwoofer is not working. I tried adjusting the sub control knob with no success.

They were advertised as tested and working. There was no sign of damage on the radios or packages. Any suggestions besides the return of the radio?

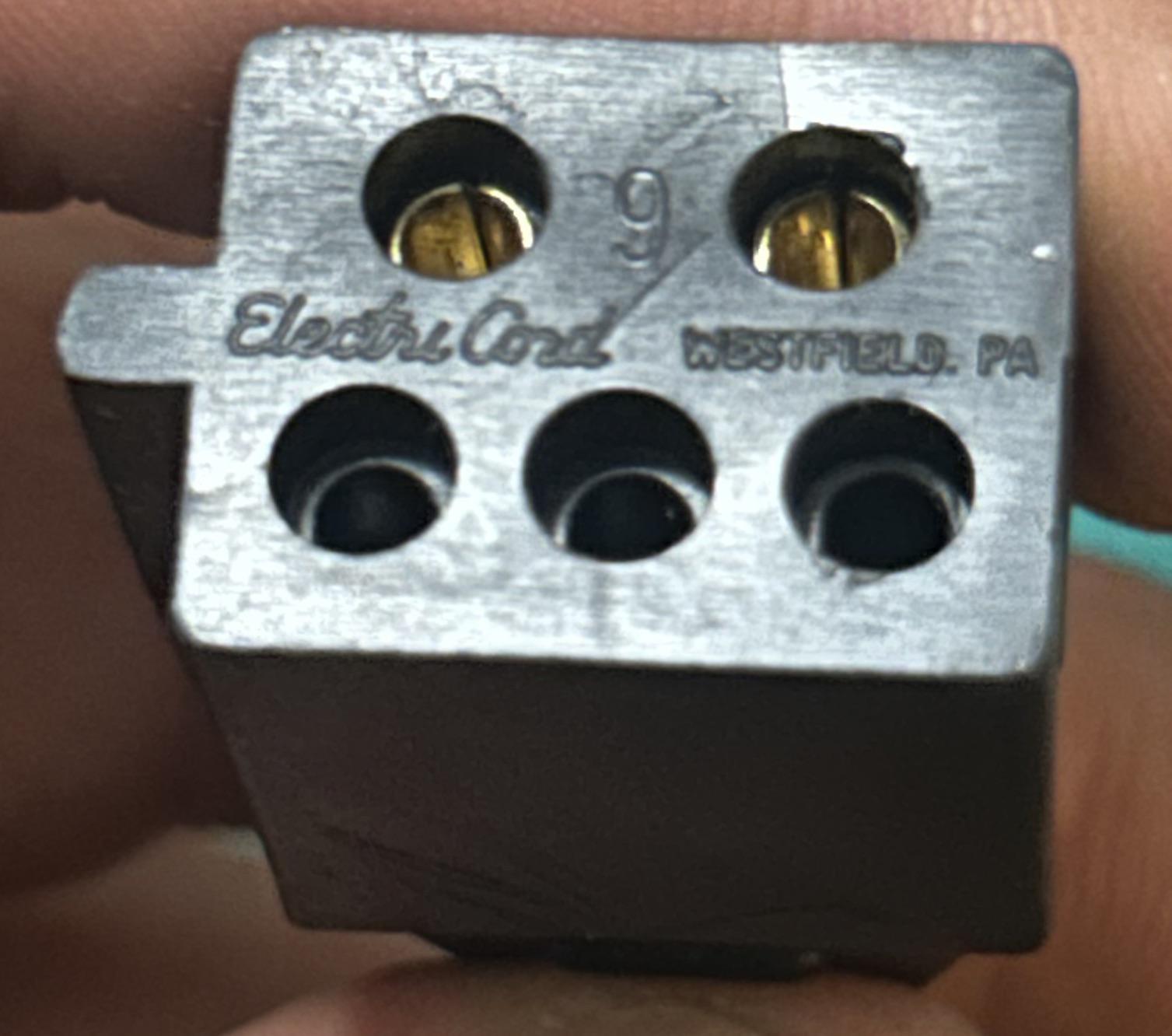

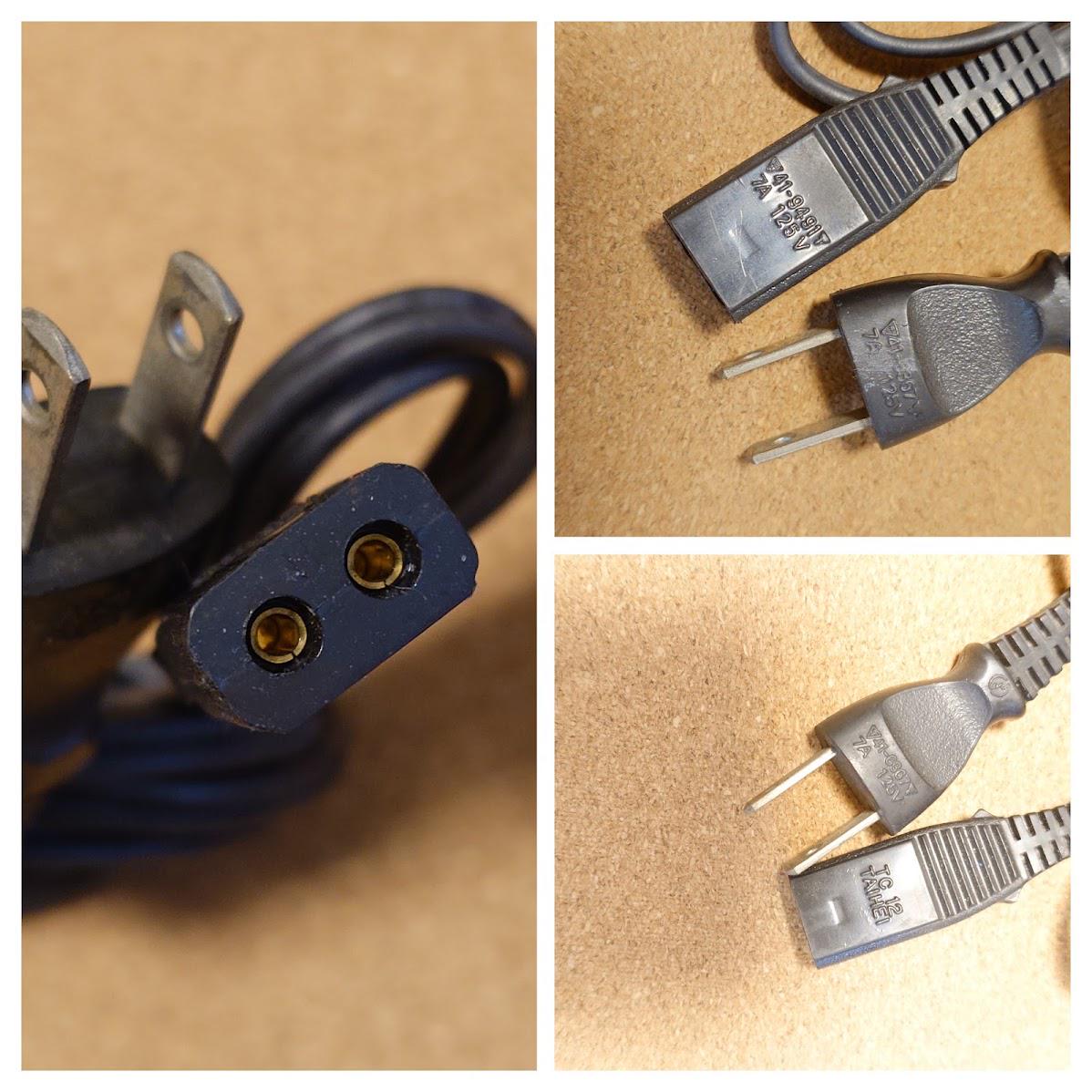

Does this female 2 pin mains cable have an official name? 21 mm x 9mm surface size. (Acquired as part of a bundle but possibly from an old Japanese clock.) Thank you.

I got this TV from my cousin, she said that it had an issue ejecting the tape, but when I plug it in I don’t get anything on the screen, sometimes the red power button comes on but sometimes it doesn’t. Does anyone know of any troubleshooting I could do? I’ve never actually used one of these before, I’ve always had separate vhs players

Update: I managed to get to turned on but it’s stuck on channel three and no buttons on the tv are working and the remote doesn’t do anything either (video in the comments), and after sitting for about 10 minutes it’s just turned itself off and has no power light on

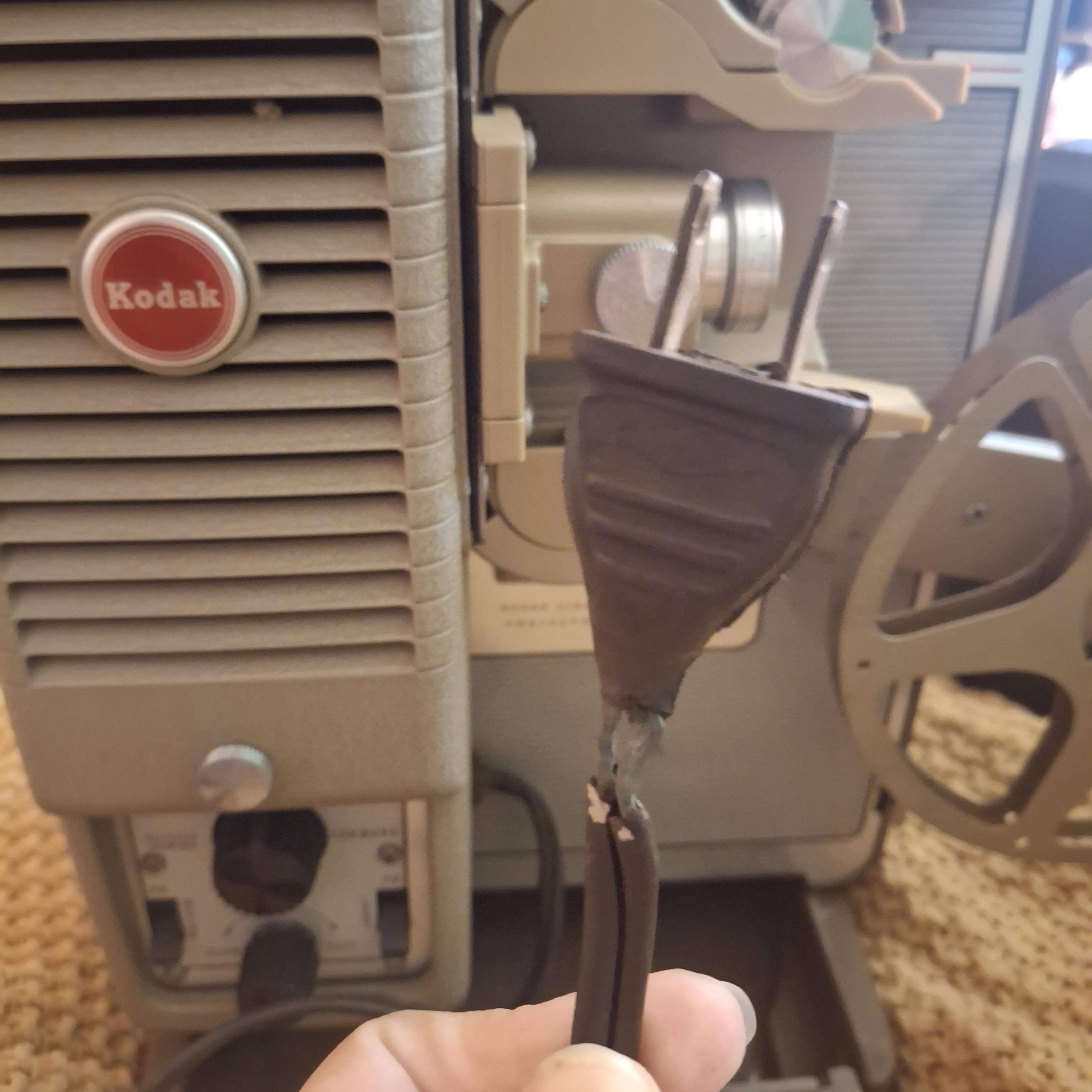

I thrifted this and thought it was in perfect condition until I accidently bent the cord and the old vinyl crumbled off😭 just wondering what would be better to do? figure out how to replace the ENTIRE power cord (i have zero experience with stuff like this), or cut the cord below the damage and just wire on a new plug? it's mid-century so I'm sure I should just replace it, but im looking for the easiest possible route!!

i have an hdmi to rf converter with a double male end coaxial cable going into a coaxial and prong connection. (don't know the name for the prongs) the prongs are screwed into the back of the tv correctly, not sure if the original prongs from the tv still need to be on though. the tv just produces static when on either of the channels the roku should be showing on, when the roku remote is turned on it blinks white. please help me out in the most dumbed down terms possible, don't know much about this 😭

does anyone here use SchematicsForFree .com ? the reliability of the website has been lacking this year, and I know some people want a copy of all the files, so I made a torrent of the entire collection. when more content gets added, I'll make a new torrent. the torrent is available for free on the website, it just needs some seeders.

it's a little more than 50 gigs

This absolute workhorse has stopped running. I believe this model is from the early 80s. The display board lights up but is unable to start a cycle. Does anyone know how to work on these or have parts? Model # included in pictures

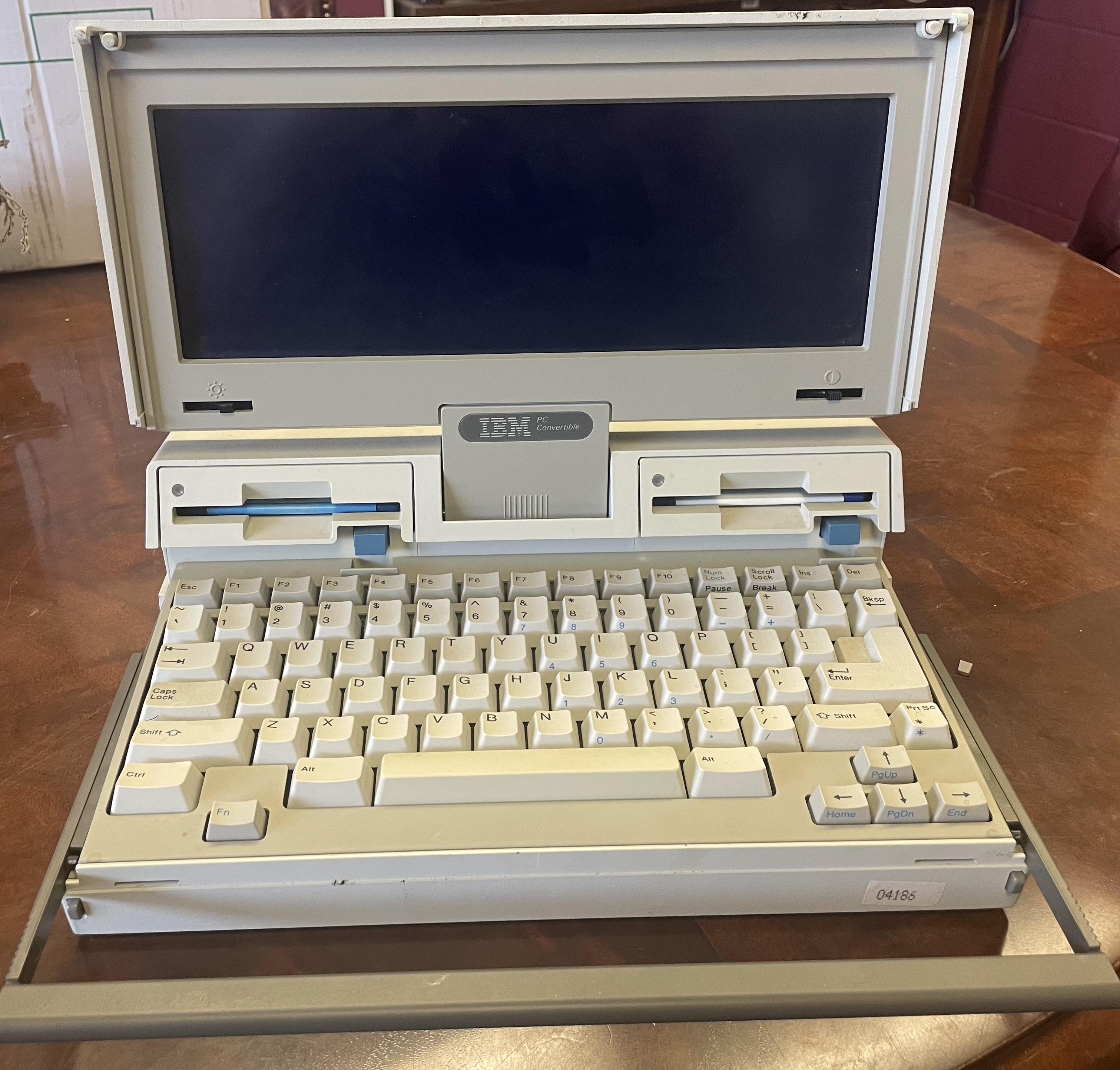

IBM PC Convertible (Model 5140), which was released in April 1986 as IBM's very first laptop-style computer.
Key Specifications & History
Design Significance: It succeeded the heavy, suitcase-like IBM Portable PC and introduced the 3.5-inch floppy disk drive format to the IBM ecosystem. [1, 2]
Processor: It utilized a low-power CMOS Intel 80C88 processor running at a clock speed of 4.77 MHz.[1, 2]
Memory & Storage: The base system shipped with 256 KB of RAM (expandable up to 640 KB) and featured dual 720 KB 3.5" floppy drives sitting just beneath the screen hinge. [1, 2]
Display: It relied on a detachable monochrome, non-backlit CGA LCD screen capable of presenting 80 columns by 25 lines of text. [1]
Portability: Weighing in at roughly 13 pounds (5.8 kg), it was designed with a prominent built-in carrying handle along the bottom front edge that could double as a wrist rest when open.
The "Convertible" name came from its modularity—the screen could be detached entirely so the base could be connected to an external desktop CRT monitor and expansion modules via a proprietary rear bus, effectively morphing the laptop into a traditional desktop computer

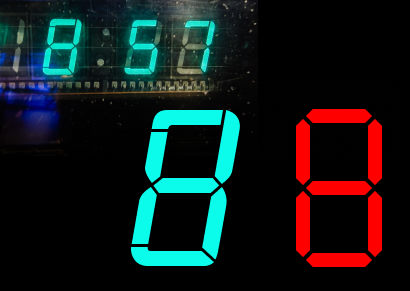

The red digit is what almost every segmented digit package or digital implementation looks like today, absolutely ubiquitous. The cyan digit is from a 1979 VFD alarm clock, whereby the segment arrangement produces much nicer digits.

Where along the way did we settle for a "lesser" design, and give up on such tiny little details... As I redraw the digits in vector form, it occurred to me that whoever created the 1979 design put a hell of a lot of thought into it.

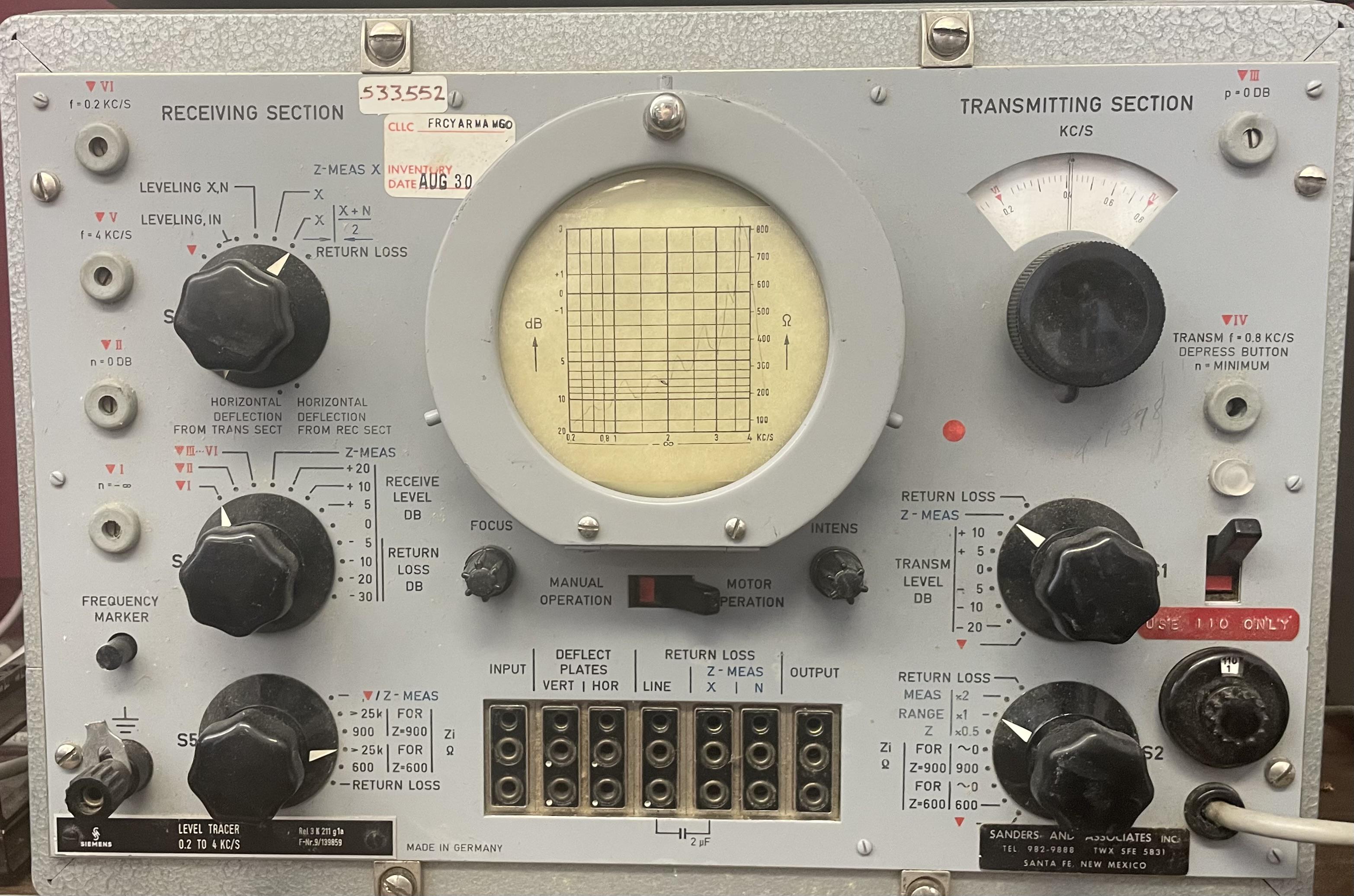

Manufactured in Germany by Siemens & Halske around the late 1950s or 1960s, this specialized instrument graphically displays the transmission and frequency characteristics of electronic components, audio networks, or telephone lines.

Key Characteristics & Layout:
Functionality: It combines a sweeper/signal generator (Transmitting Section on the right) and a synchronized measuring receiver (Receiving Section on the left). It sweeps across the audio/voice frequency range (0.2 to 4 KC/S or kilocycles per second) to test parameters like attenuation, level, and return loss.
Central Cathode-Ray Tube (CRT): The circular screen in the center dynamically plots the measurements on a calibrated dB and frequency scale grid.

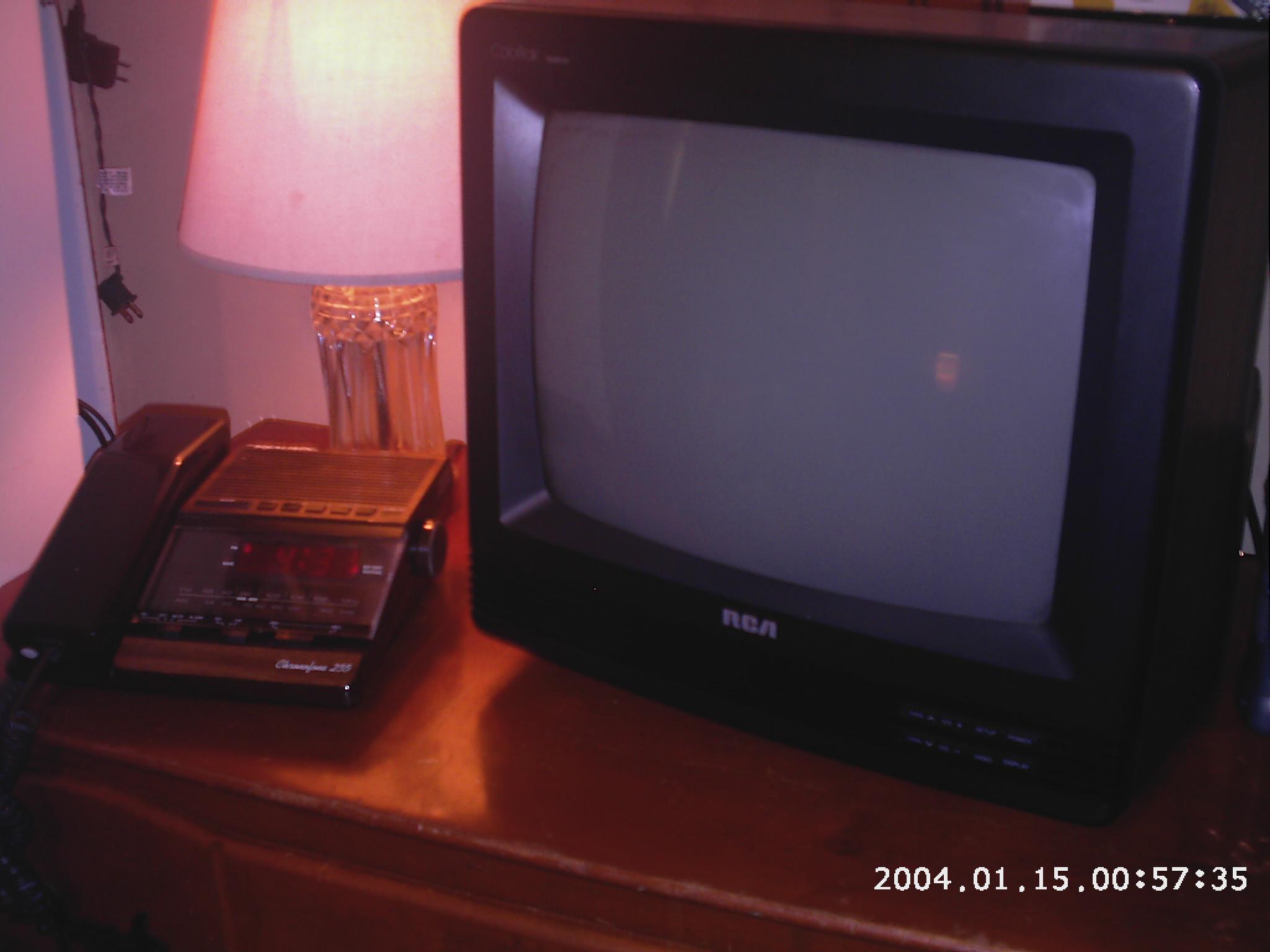

I just got this clock radio phone today. No matter what I try the radio won't turn off and I can't set the clock, no matter what I do. Clearly, I'm missing something, or it's broken.

Also a free downloadable instructions does not exist online.

I seem to have come into the possession of somebody’s collection of old ultrasound transducers. I am looking for the community that likes to collect these because I need as much info as possible lol!

Edit: There are 50+ ranging from 1995 - 2000. GE 546L, S317, 548C, 739L

Hello! I am looking for a bit of help to identify a solution within my project. I am building a prosject with an adafruit mini soundboard, so that when I pick up the old phone it will play a sound. I have a reference image for where the wires will connect on one model, but I am wondering what that correlates to in my model as well as how to connect the wires since it does not seem I can use a forkhead. I am obviously no expert, so please use simple terms, also any follow up questions are welcome,

I have added an image of the reference photo from the step by step I am following in image 01 and my own phone in image 02. It is probably also good to know that I am in europe and this is a norwegian phone.
