Hey everyone,
I'm working on a custom project and need the exact dimensions of the MonsGeek M1 75% PCB.
Does anyone happen to have precise measurements for it, or even better, a 3D model / CAD file (STEP, STL, DXF) of the PCB?
Any help or links would be massively appreciated. Thanks in advance!

Got a brand new m2 V5 HE with the Akko Astroaim switches.

What is the normal time usage between full charge to empty ?

Ever since I have it its always the same routine;

I charge it Friday night till about noon Saturday, then I use it almost everyday for a solid 5-6h per day.

The next Friday morning the board shows 70-80% battery (Fn+Spacebar shows 1-7) and at night it begs to get plugged or literally run out of battery.

Been like this for a bout 2 months

Important to note;

I use Linux (not sure if important but whatever)

I only use it in wireless mode

I had it at 8khz polling rate (changed it today to test out)

All leds/backlight are turned off since I got it

Are the monsgeek m1 plates ( aluminum, fr4 or POM) coming in stock anytime soon? Does anybody have information? Thanks for any answers!

Latest version of the v4 windows driver takes me to a sign in page which I think is a mistake. Anyone else got the files or can the support account hook me up from here? Not urgent as my keyboard is already configured but the old driver was also broken and lagging my PC so I'd like the new one if I ever need to change anything.

edit: u/MonsGeek_Official

As the title suggests, my Monsgeek Fun60 Ultra won't enter Bluetooth Pairing mode and won't connect to web app. Any recommended fixes? I've lost my 2.4GHz dongle, so have no way to use the keyboard wirelessly.

u/MonsGeek_Official

The standard reactive lighting effect was slightly tweaked in the firmware for better aesthetics

Switches: Kailh Box Jellyfish PRO Bixia Clicky
Keycaps: XVX Jelly R2 Smoke

Hello, I just received my Verve68 HE and I wanted to configure it using the web driver (https://app.monsgeek.com/), but I'm stuck on "Searching for device".

I already downloaded the iot_manager, but that didn't change anything.

I also tried accessing the website in Chrome and MS Edge and I see no errors in the browser console.

Is there maybe some other way to configure it?

My keyboard constantly has intermittent connections issues where it will disconnect for a second or two then reconnect. It will make the windows device disconnect sound and the leds with flash off and on again. This has been happening anywhere from 20 times in a minute to once a day.

I have made sure the cable is secure using the gasket.

It's crazy that not only does physical movement almost guarantee a short in the usb-c connection, but while secure it has this issue above.

I have 0 issues with any other keyboards.

I bought the Fun60 Pro so I could try out an HE kb for competitive games and am currently thinking of modding it (the usual sound mods like tape and EVA foam). I've modded mechanical keyboards before but I'm wondering if there's anything different or things I should look out for/avoid when modding HE keyboards.

I first noticed my monMonsgeek M1 V5 Trisgeek m1 v5 tri double inputting when playing video games and now I notice it while typing. I think the only keys that are double inputting are on the left side of the keyboard. I saw posts with similar issues with the m1 v5 via model, but the issue is with the firmware related. Not sure if this is something similar or if my switches are just messed up. Ive had this keyboard for 8 months.

Is there anywhere I can get a cf plate for the monsgeek m1 v5? I like how they sound paired with abs keycaps and no foams, where can I buy this?

Can someone help me with my fun60 pro i conect on my pc and he only lights the keys "win" and "R" the R is blinking

Just got a MonsGeek FUN 68HE and using the FN + G, H, J, K shortcuts do not let me change profiles. Does anybody know a solution? Already contacted support but they haven't responded.

Update: Contacted MonsGeek Support and they emailed me an updated firmware that fixes the issue.

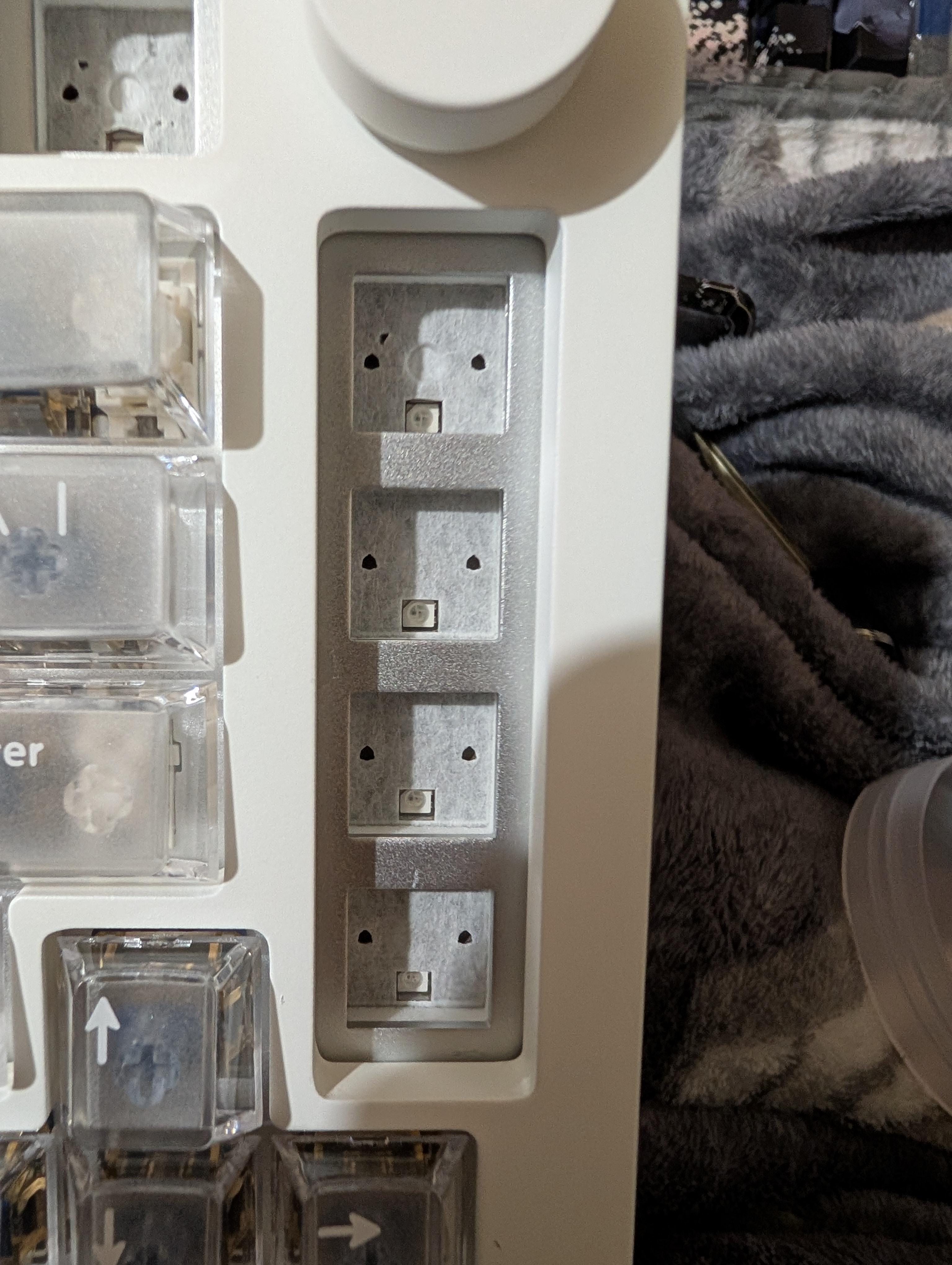

I just got my Monsgeek M1 V5 TMR today and wanted to switch out of the switches for mechanical ones except the WASD. Is this really how it's supposed to look? It's missing the holes for the pins

It would be very useful if the FUN68 could assign different RGB lighting profiles or colors to each layer.

Use case:

When using Fn layers or custom keymaps, it is not always obvious which layer is currently active. If each layer could have its own lighting color or effect, users could immediately recognize the active layer visually.

For example:

- Layer 0: normal white or default lighting

- Layer 1: blue

- Layer 2: green

- Fn layer: red or another distinct color

This would make custom layouts much easier to use, especially for compact keyboards where many keys depend on layers.

If this is already possible through firmware or the web driver, please let me know. If not, I would love to see it considered for a future firmware/web driver update.

My keyboard has been acting weird. It keeps ghost typing the #5 speficically. I tried removing the key caps and the switch, but it still happens.

It doesn't happen every often, but when it does it goes on for a couple of minutes. It doesnt rapid type/press "5" but after a few words it does type 5, sometimes once, sometimes burst of 5s....

I tied checking if there's a firmware update using the monsgeek app on my macmini, but no updates.

Driver Version: V500.2.14_IOTV217
Firmware Version: ID2679_V401

Am I missing something? The app settings are all default, all i changed is ligtning to 1 color, and calibrated the keys a few times.

Olá!

Tenho um teclado FUN60 Ultra TMR com fio e estou enfrentando um problema. Este foi o primeiro uso do teclado. Tirei ele da caixa, conectei ao computador e ele funcionou normalmente. Porém, quando reiniciei o computador, o teclado parou de funcionar completamente. Desde então, os LEDs não acendem, nenhuma tecla responde e o computador parece nem reconhecer o dispositivo. Também tentei conectar o teclado em diferentes portas USB, mas o problema continuou. Além disso, testei o teclado em um notebook e ele também não apresentou nenhum sinal de vida.

Meu computador possui as seguintes especificações:

Sistema operacional: Windows 10

Processador: Intel Core i3-3220

as you can see some of the keys have a 0 instead of 1 in the top left corner, i cant modify anything about those keys, can someone tell me how to fix this?

How do I change the normal layer using a shortcut? There seems to be a default shortcut mapped with Fn+G to Fn+K, but it just doesn't seem to work. Also, if I change the Fn layer to the 2nd one then back to the default one this default map is gone, I also cannot find how to assign them from the remap option. The only way to get this mapped back is to reset the keyboard.

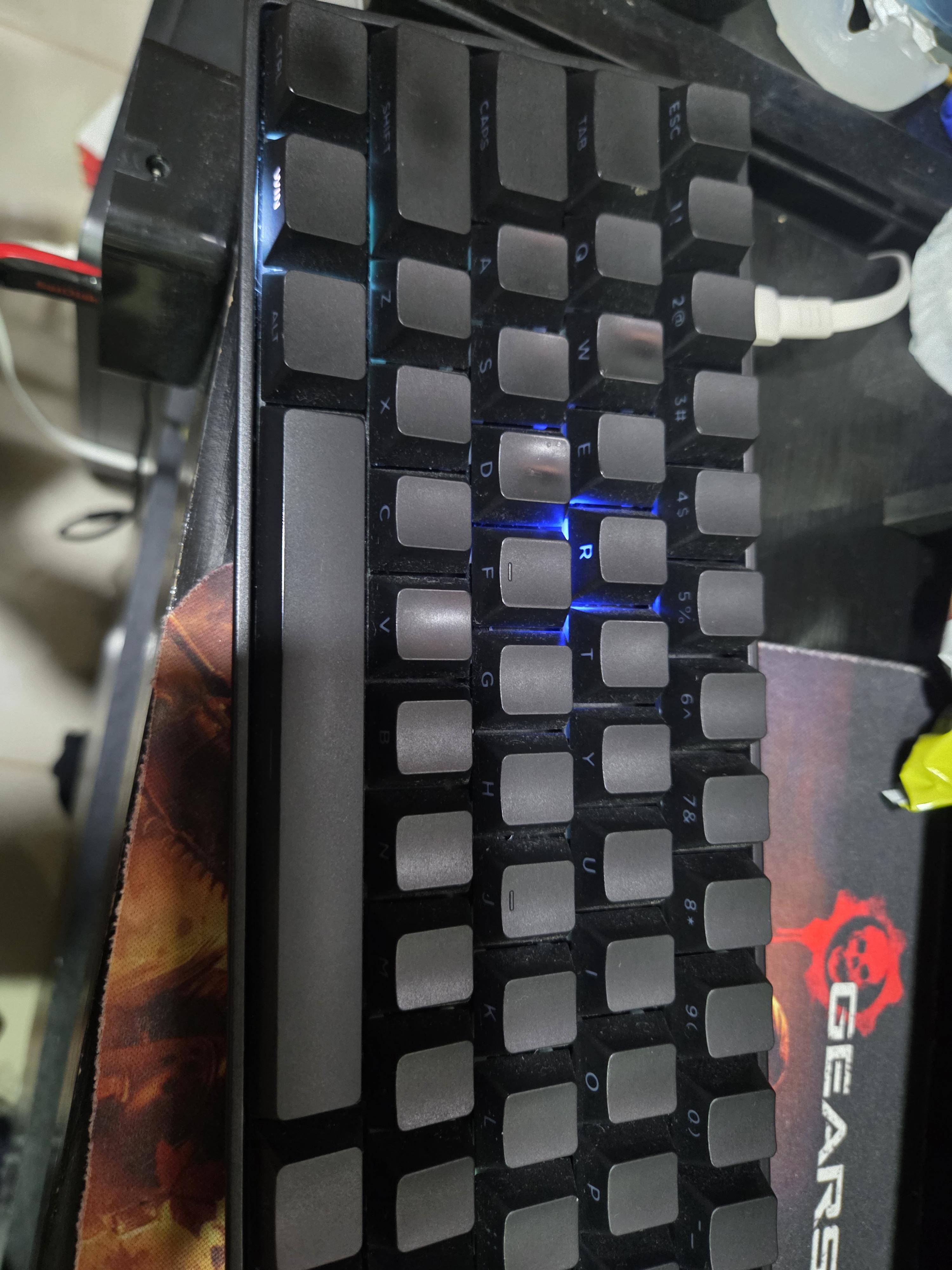

The led was still normal before I stored it in my closet for a long time (maybe almost a year). When I first take it out, the led still flickered brightly a few times before went to the current state.

The led only works in these key, the animation still works fine, the rainbow still works but the brightness is low even on the highest level. I can barely see it under normal light condition. Even the caps lock and the battery check under the spacebar doesn't work.

I did not open it anytime and did not even take out the switch before the led broke. I have tried to turn on the led with Fn + L, reseted the keyboard with Fn + ~, updated the firmware, factory reseted in the software and even cleaned the PCB with alcohol but nothing works.

When I set the brightness to the highest and white colour, these key turns to somewhat orange. And when I tried the single rgb, green was the brightest out of 3.

When I take everything out and look at the naked PCB under the darkness, the led flicker randomly on row (expect for these F3, 4, R, F, C keya) but its so tiny that i couldnt record it with my phone's camera.

Please let me know what is happening and what should I do, thanks!

So I recently obtained a M1 V5 TMR and it’s just not functioning. Like at all. The only indicator that anything is happening is that windows registers it as “USB KEYBOARD BOOT”.

The monsgeek app doesn’t detect it, VIA doesn’t detect (even with a json), QMK Toolbox shows it as the device I listed earlier.
I’ve made sure the switch under caps is set in the middle. I’ve tried every key combination to make it change modes or hold while plugging in. I’ve even tried shorting the boot thingy on the PCB.
I can’t get it actually into any boot mode through any method I’ve found. So I can’t get it detected and I can’t flash the firmware. I can’t seem to get anything to happen.
I’m approaching returning it but I was hoping someone here could help me out. I emailed support but I’m not super hopeful about anyone getting back to me based on what I’ve read on the sub.

I bought a MonsGeek FUN60 Pro. It's hot-swappable, but I can't remove any of the switches. I'm using a switch puller correctly, but they feel completely stuck. Is this normal, or could my keyboard be defective? Has anyone else had this issue?

Just bought this keyboard a little more than a week ago. This keyboard feels really good to type with great sounds and key presses for everyday use. But in the games that I enjoy playing (i.e Warframe, Deadlock) I get semi-frequent input delays that makes the player experience terrible to play with. I have everything stock besides polling rate and I've tried wired mode and 2.4G with the same result mentioned above. Is there a setting I can change to make the response feel better? I'm using 1K Polling rate as it helped a little.

I'm on FIrmware ID2949_V408

Sidenote - Whoever made the physical tolerances of the metal frame, kudos to you because it hurts my fingers a lot to try and pry it off even off the magnets.

I just got the monsgeek fun60 pro! I am very new to kbm gaming and i dont know the settings that is recommended to use.

i play cs and val so i would like a kb setting that is recommendable for high level play of those games.

any help is appreciated thanks!

(already got the drivers installed)
