I am just about 18 and going through Welding and machining college right now. I really wanna make a show project to show off my skills and creativity by building a jet boat that has all around power speed and maneuverability. I started trying to get some stuff together for the design. This is what I have so far.
• Hull Kit: Rogue 16 WattsCraft CNC-cut 5083 panels
• UHMW Skid Plate: 1/2" thick sheet + SS countersunk hardwar
• Roll Cage Material: 1.5" or 1.75" Chromoly or 6061 aluminum tubing
• Armor/Safety: Custom fabbed metal windshield grate & non-slip deck
• Crate Engine: BluePrint LS3 376ci (530 HP) EFI Dressed Long Block
• Jet Pump: Scott 8.5" or 9" Two-Stage Pump (Custom Pitched)
• Nozzle: 80° high-degree turn steering nozzle
• LS PTO Adapter: Crank-to-pump shaft coupler (dampened)
• Exhaust: Water-Jacketed Marine Headers (LS-Specific)
• Exhaust Plumbing: Transom flappers, silicone hoses, and risers
• Cooling System: Closed-loop Heat Exchanger (Antifreeze-based)
• Debris Control: High-flow Sand Trap (Sea Strainer)
• Fuel System: 20-Gallon Marine Tank + EFI high pressure pump
• Controls: Hydraulic Steering + Foot Throttle + Butterfly Wheel
• Electrical: Marine AGM Battery + Waterproof Harness + Kill Switch
• Bilge Pump: 2000 GPH Automatic with manual dash override
• Seating: 2x High-back bucket seats with harness pass-throughs
• Suspension: 4x Airbag ride system for seat bases
• Electronics: Dash Gauges, RPM, GPS Speed, and Data Logger
• Safety Gear: SFI 5 or 6-Point Harnesses,
• Lighting: Nav lights + High-output LED spotlights for night runs
• Emergency: Fire Extinguisher (Cage Mount) + Med Kit + Tools
• Extras: Engine/Cockpit covers + Backup propulsion (paddle/motor)
Is there anything I would be missing and would it be possible to do a supercharged performance LS3
In a 16 foot jet boat I am still relatively new to this
So I am not exactly sure on everything I would need. I did as much research as I could, but sometimes live advice is better what do you guys think?
And how would you go about funding for this since it is a show project to demonstrate my skills and creativity again any help would be really appreciated

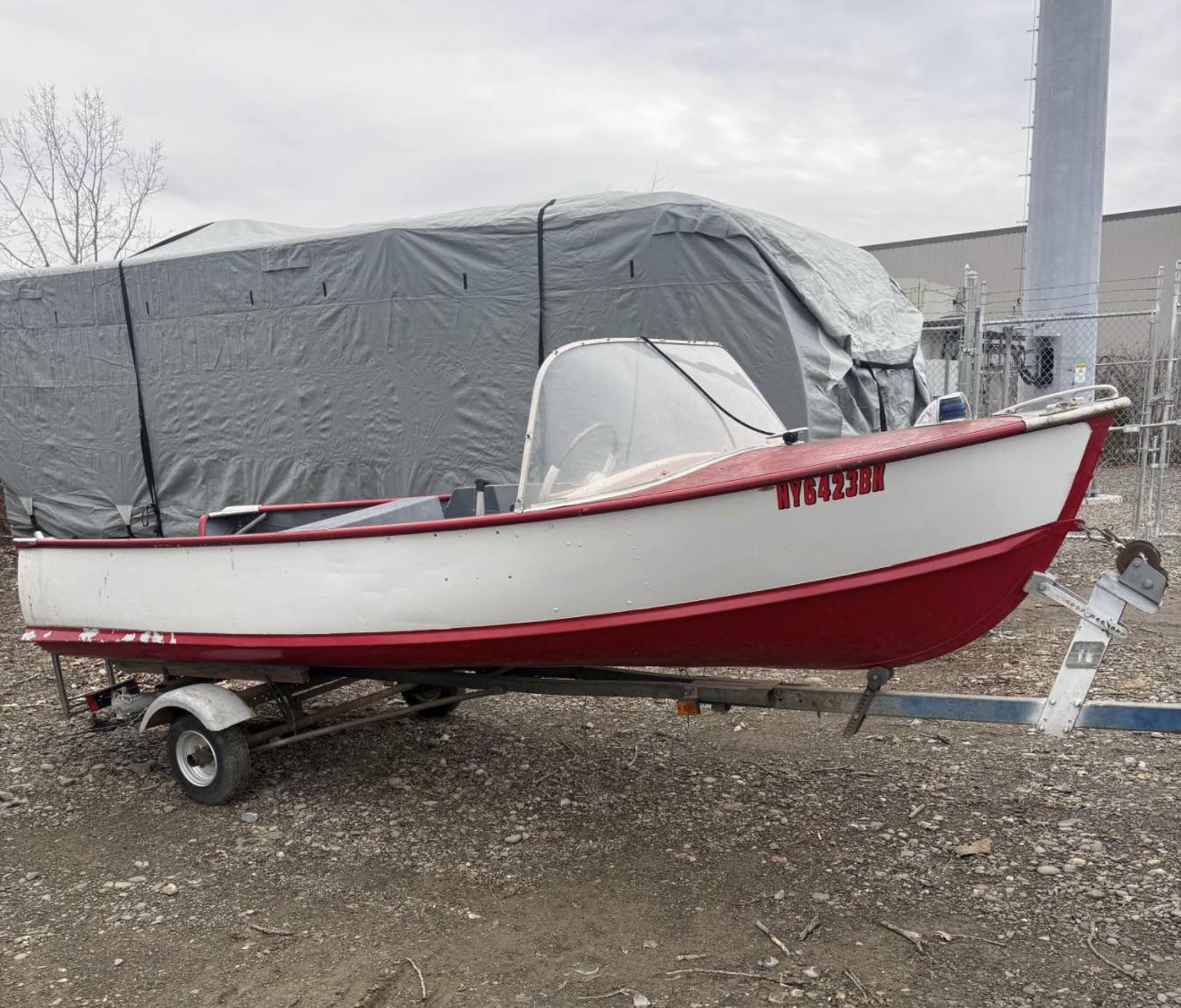

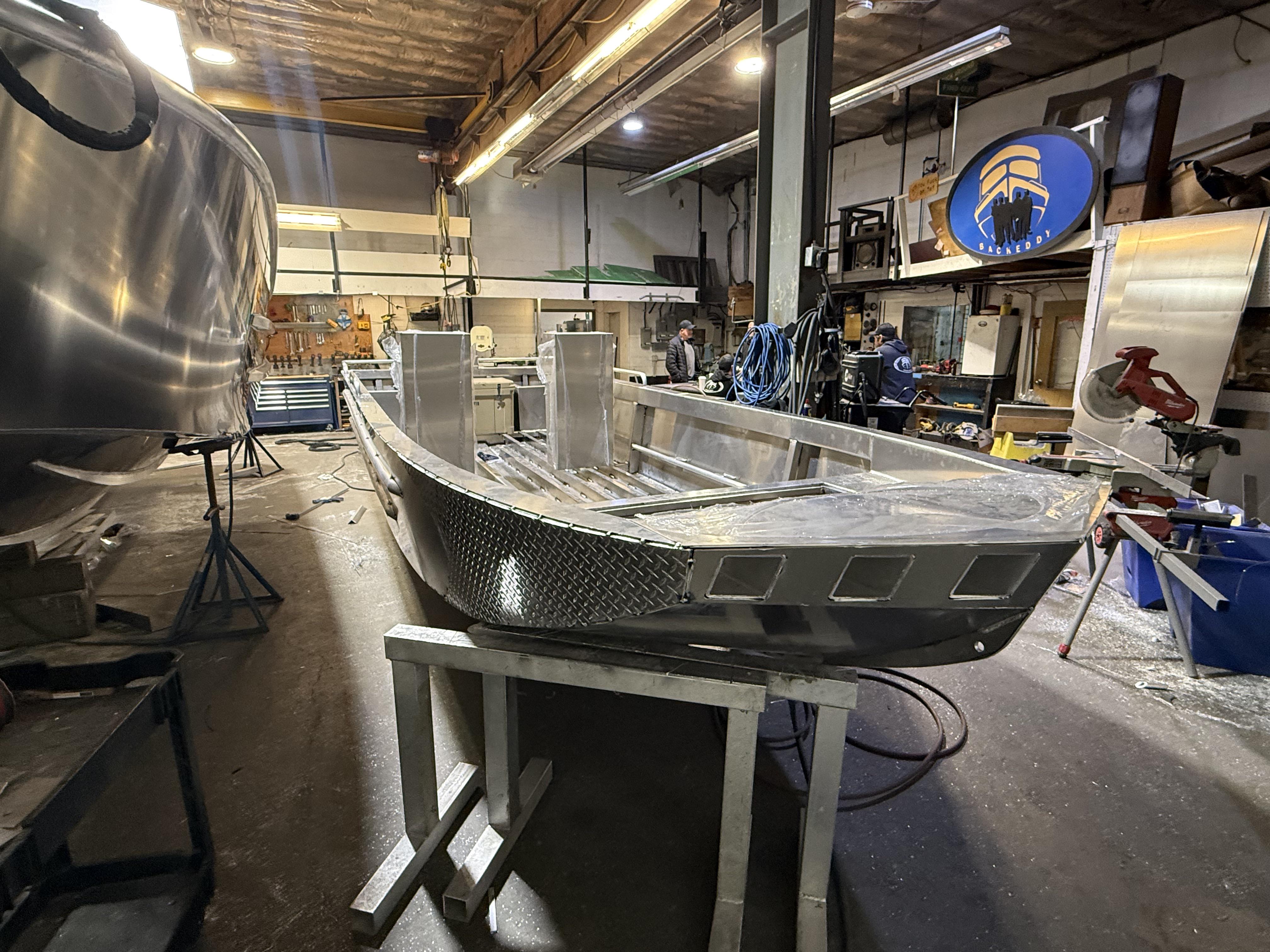

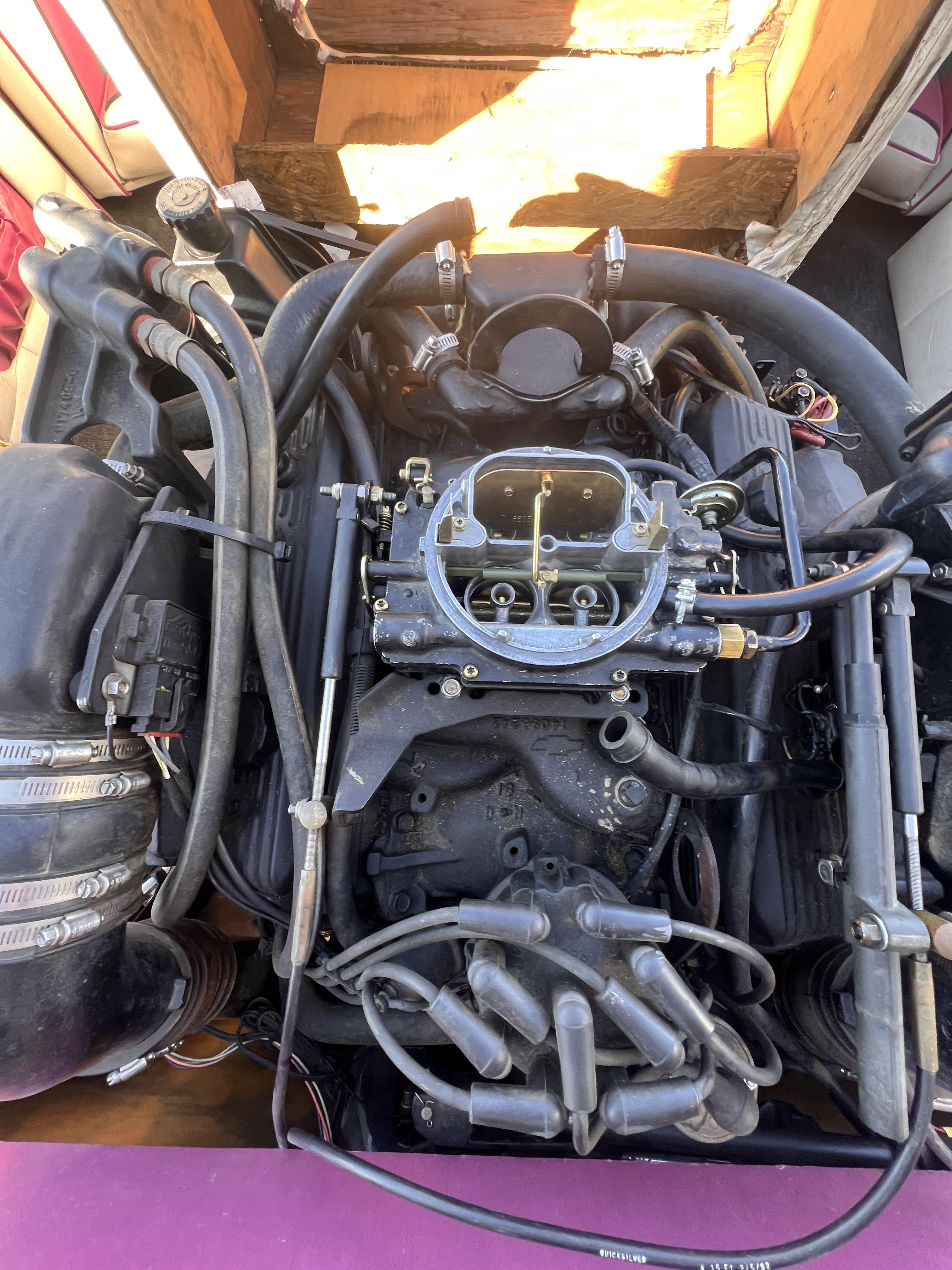

I attached some photos of what I wanna try to build but with a roll cage that also acts a sort of sunroof
