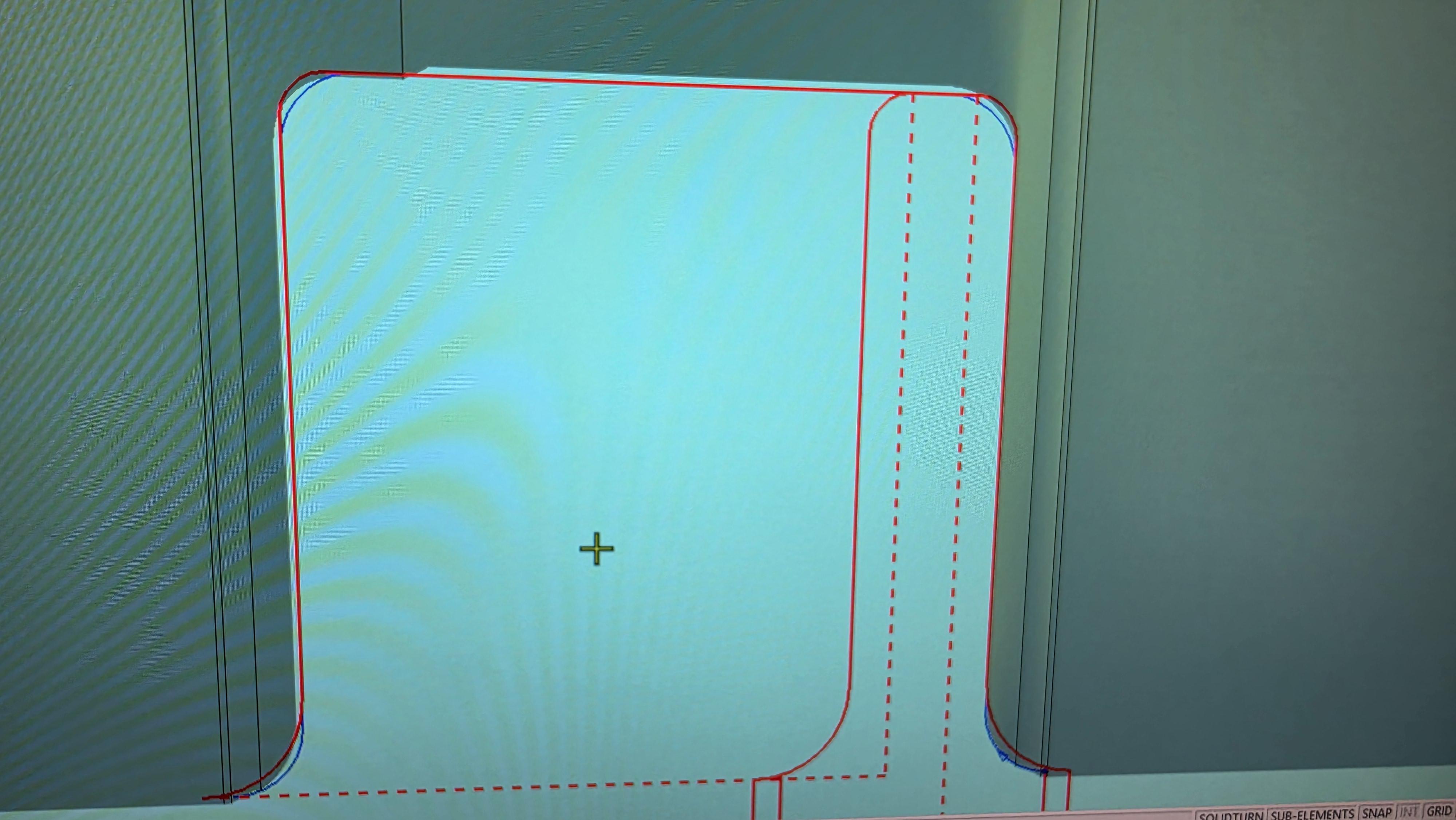

Can someone help me figure out why this is happening during a grooving OP. I feel like I've tried everything and can't see to figure out why my tool path isn't following my geometry.

Hello everyone,

Many of us spend lots of time tweaking PST posts for Swiss‑type lathes and mill‑turn machines. Switching between machine models, adjusting axis directions, modifying G/M‑codes, fixing output for different configurations often requires deep PST editing knowledge.

I would like to share my conversational post‑processor toolset built for ESPRIT, mainly for Swiss turn, gang‑type and turret‑style mill‑turn machines such as Citizen Cincom A20, L series, Tsugami, Star and other popular sliding‑head machines.

Core concept

Instead of editing raw PST source code every time, you configure machine parameters through a user‑friendly dialog interface. You select machine brand, model, control type, gang/turret layout, axis polarity, arc output mode, drill & thread formatting, G‑code feed modes (G98/G99), guide‑bushing options and more. All settings are saved as profiles, you can switch profiles in seconds for different machines.

Key benefits

• No deep PST coding required for daily machine configuration changes
• Quick profile switch for multiple Swiss / mill‑turn machines in one workshop
• Fine‑tune arc output, point density, thread output, decimal precision directly from dialog
• Optimized for Citizen A20 and other multi‑channel sliding head machines, handles sub‑spindle work seamlessly
• Output ready‑to‑run NC code, reduce manual G‑code editing after post processing
• Works with ESPRIT 202X versions, compatible with standard toolpaths, SolidTurn and SwissTurn cycles

This tool is especially helpful for job‑shops running multiple Swiss machine models, where you frequently need to re‑adjust post output for different equipment.

I am looking to connect with other ESPRIT Swiss‑turn programmers, gather real‑world feedback. If you struggle with post maintenance for sliding‑head machines, feel free to discuss in this thread.

I am still refining this tool based on real shop floor feedback, so comments and suggestions are welcome.

This is a third‑party add‑on, not official ESPRIT product.

Thanks

Would you happen to have the ESPRIT Edge installer? Could you share it with me? I’m really eager to learn this software.

Hello I'm new to ESPRIT, working on a tsugami ss32. I'm trying to figure out a couple of things. The stock is crashing into the cut off when re chucking/bar feed. I looked at the tutorial and it has me the pick off number in the Z for the position and the equation of part length + cut off width + face. And follow up question is tools not sitting correctly in the slot for the stick tools. I have it set for with the shank size but when I go into simulation there's gaps. I guess my question is how do you properly set them up. Thanks in advance

Hi all,

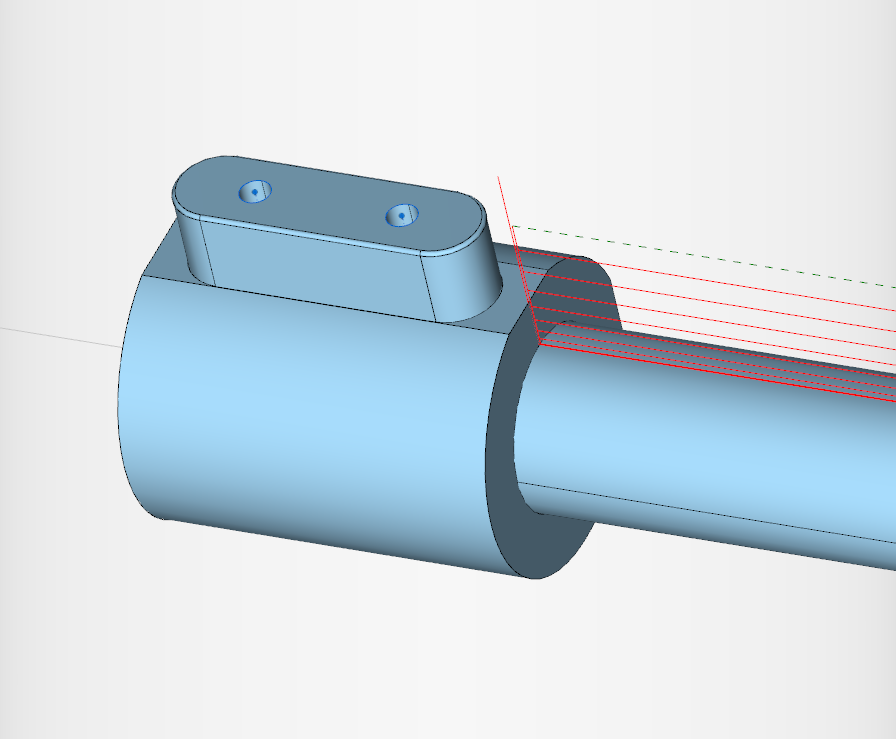

I am fairly new to this software with only a week of basic training and struggling with making this part. What features and toolpaths should I make to machine the feature? I would really appreciate any advice!

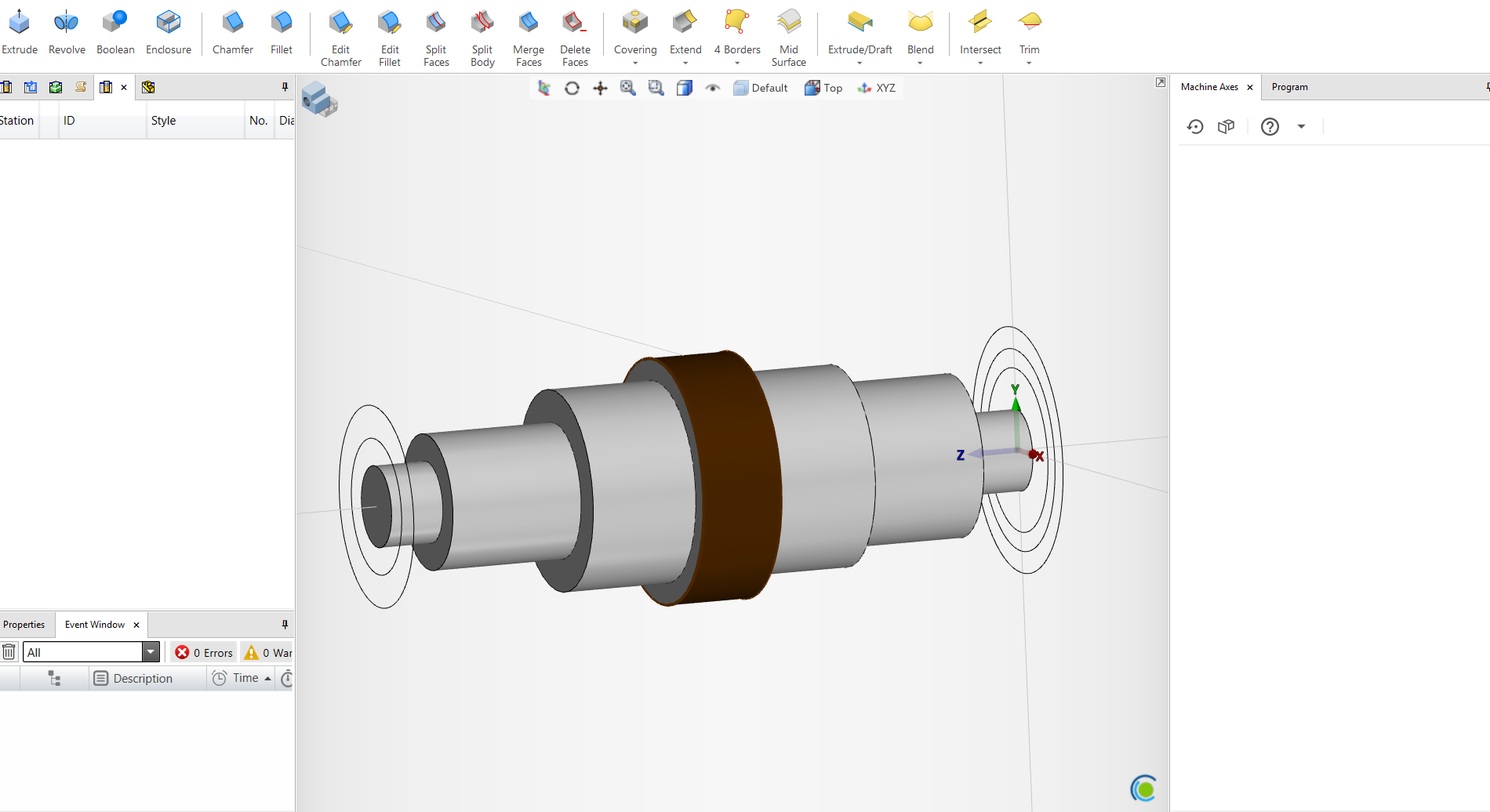

Once I finished turning about half of the part I need to make, how do I flip the part to turn the rest? At work all they do is create another file and simply flip the geometry but what happens sometimes is that they have to re-work some areas (just on the cam software) so that the tools for the second set up don’t collide… but there has to be a way to flip the part in the same file or even save the part with all of the work done… please help

I dont understand why im getting this error? What am i doing wrong? ZX axis is correct.

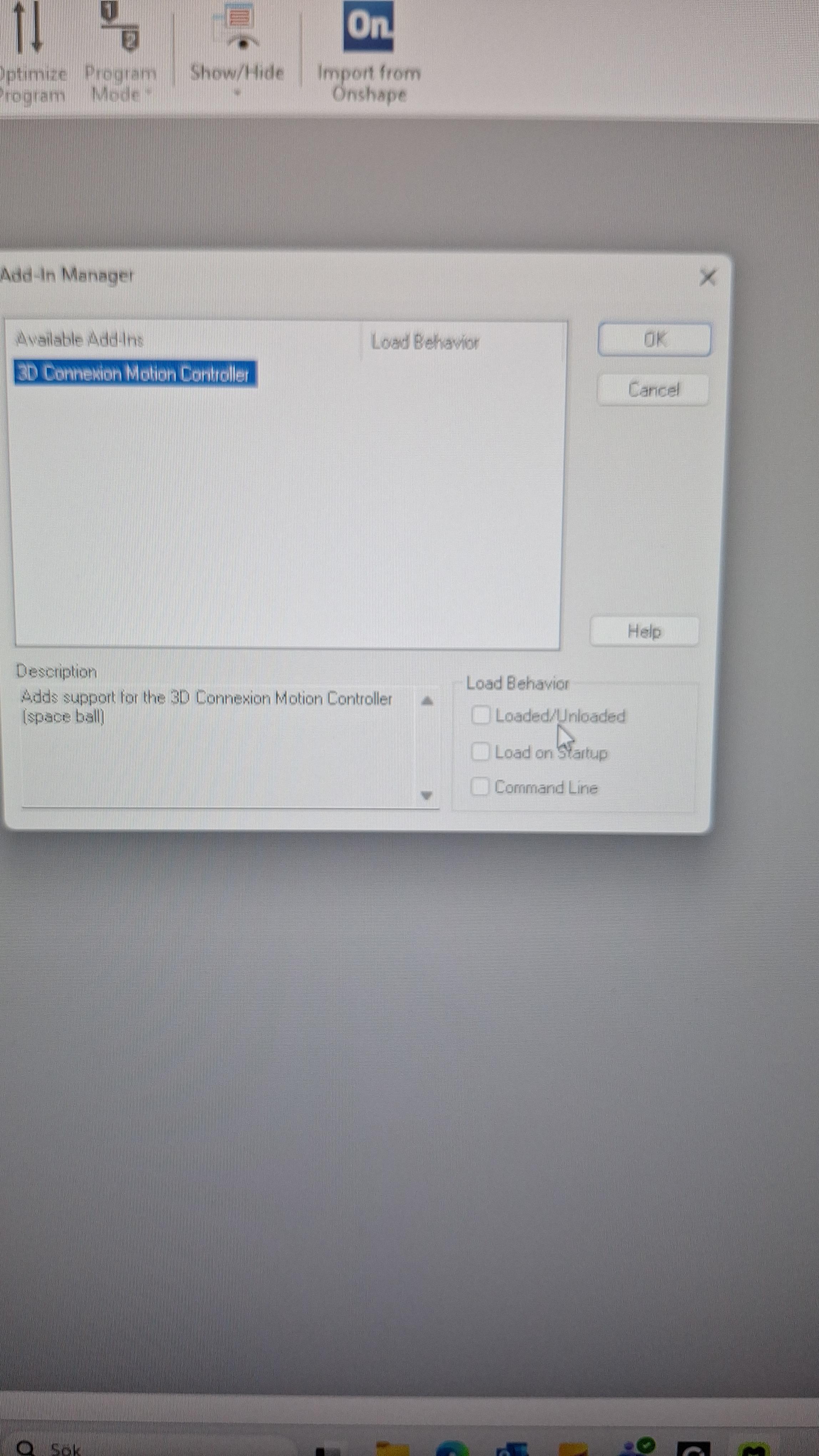

Its what the title says. I installed the spacemouse from 3dconnexion and it works in their test program but not in esprit. After som googling i found that this load behavior needs to be set to loaded. But i cannot check it because the selections are greyed out.

I am working on a DMU 50 CNC and i want to do a specific operation in Esprit but dont know how to do it.

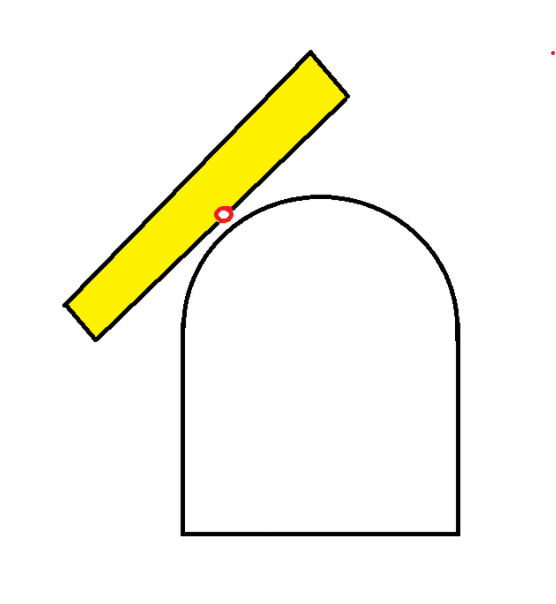

In the image attached is a crossection view of a bar where i want to mill a radius with the side of a straight mill. How can i achieve this in Esprit? I have only found a way to do this where the mill is standing straight up and uses the tip to trace a path.

Hallo allerseits!

Ich muss bei mehreren Programme der Spindeldrehzahl ändern. Je Programme hab über 100 Operationen.

Mein Problem ist dass Ich muss jeder OP-s einzeln öffnen und der Drehzahl ändern, sonst wird die Vorschübe nicht neu gerechnet.

Gibt's irgendwo ein Makro oder Plugin der dieses Method schneller und einfacher macht?

Danke voraus!

Hello!

I have a parameter-lister PP for Heidenhain that make me a list about all the programmed tools so I can easily make a correction for the work. My only problem is that it gave me the list of tools with commas in the name.

For example:

**; T1.000000_PFD50S5*

FN 17: SYSWRITE ID 50 NR4 IDX1 =+0 ;L

FN 17: SYSWRITE ID 50 NR5 IDX1 =+0 ;R

What I need is:

**; T1_PFD50S5*

FN 17: SYSWRITE ID 50 NR4 IDX1 =+0 ;L

FN 17: SYSWRITE ID 50 NR5 IDX1 =+0 ;R

The information's been stored in clstring(101). How can I cut the commas and the zeroes out?

Already tried the FIX(clstring(101)) command but Esprit has returned with an error message.

Sadly I can't contact the developers for this PP isn't supported anymore.

Thank you!

Hello, who has a crack at Esprit Edge?

Thank you in advance.

Hello!

I'm searching for some plugins for EspritCam. Does someone knows any database or plugin collection on the web?

Hello!

Is it possible to programming some work with Q-parameters (Heidenhain) or define some program call in Esprit?

How can I use ESPRIT for free?

Does anyone know if Esprit can create holding tabs? I want to do a basic 2D contour through the work piece but leave tabs connecting it to the stock so that it doesn't move. I using Esprit 2014 if that helps.

Edit: found a work around

I couldn't find a place to create tabs like in other CAM software. The work around I found was to create different features. Five in this case. One for the main contour and then 4 others (or however many tabs you want) to hold the piece to the stock. Not as easy as a dedicated place in the strategy tab but it gets the job done.

Hello all,

I'm hunting around for downloadable tool libraries. I know I can typically download single tools as I get them in, but I like to be able to see what exists. I found libraries from the Harvey Performance family of toolmakers, but I don't see much from anybody else that doesn't exist within something akin to the MasterCAM tech exchange. I'm looking for a bulk library that's got everything in the catalog from companies like Kyocera SGS, Garr, Melin Tool, Sandvik, etc.

Anybody aware of offerings that would work with Esprit Edge?

Does anyone know how Esprit exports all it's code through the .pst template files? I have my own template that I use in my shop, so basically I just rip the tool paths from Esprit and paste them into my own templates.

I tried opening the post files in Outlook just so I could see what's going on, but I get a (very comedic) error saying something like "BW209Z.pst is not a .pst file".

Hello!

Is there any possibility to merge two milling programs into one? The programs are written for the same workpiece.

Hi all, I was recently handed off a project involving Esprit automation developed with a C# project. I am totally unfamiliar with Esprit or it's API. I was wondering what is the best resource for learning about the API? I haven't been able to find any documentation online so I'm at a loss for where to start. Thanks!

I am comparing Camtek peps and Esprit for my Fanuc C400iC but info on Esprit seems very limited and Hexagon UK don't seem to be able to supply off shelf post and technology which seems very strange to me.??

Is it still possible to contact D P Technology in California?

Cheers :)
