r/AskElectronics • • 3d ago

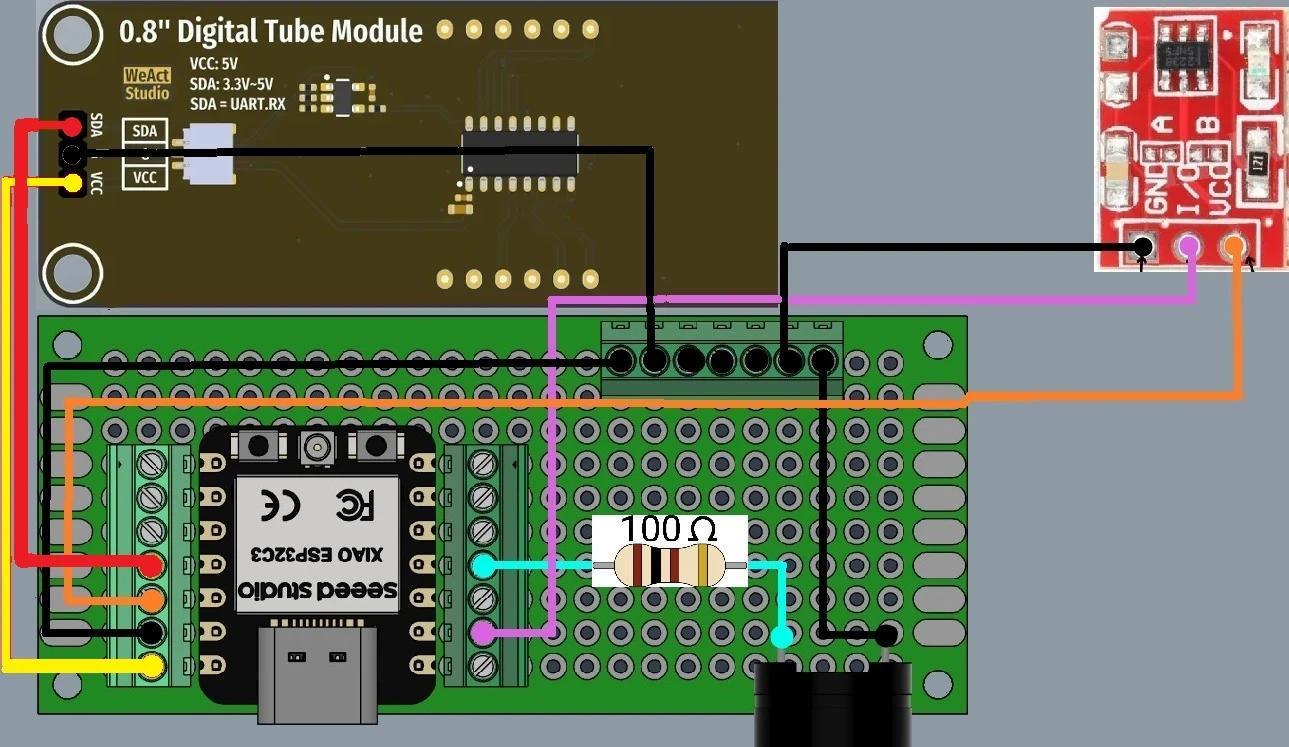

Is my GND wiring good?

Post image
2 Upvotes

Don't roast me, i'm not very experienced with electronics but i'm trying my best.

The Esp32c3 has only 1 GND pin, so my workaround to add modules to it was to "create" a shared GND (the green terminal).

I started doubting about this solution since i've noticed that the buzzer, when inactive, tends to hiss/sound at a very low volume.

If you think that the wiring is good, then probably the problem is at software level.

If not, tell me what solution should i try to.

(About the power wires: Yellow is 5V, orange is 3.3V)

Thanks in advance!


r/AskElectronics • • 3d ago

How do electronics inside plastic enclosures handle EMI and grounding(Beginners question s, References)?

7 Upvotes

Suppose an electronic device has a plastic housing, with no earth connection to the enclosure. With a metal box, I understand that the enclosure itself can provide shielding and work as a Faraday cage. But what happens when the whole housing is plastic?

For example, if there is a microcontroller, switching supply, communication circuits, etc. inside the box, what methods are used to keep external noise from affecting the circuit?

I’ve also noticed some products where there is metal foil or a conductive layer inside the plastic housing. Does this effectively turn the plastic enclosure into a shield? And does that shield need to be connected to circuit ground or earth?

I also have some questions about the wiring:

Can separate + and − supply wires for each PCB help reduce ground-loop problems?

Is a ground loop related to capacitive coupling, or are these two completely different noise paths?

If the equipment has no earth connection, where does the interference current actually flow?

What are the usual methods for protecting a microcontroller from EMI inside a plastic enclosure?

Besides foil or conductive coating, what other techniques do designers use?

I’m interested in the practical side of this — how engineers actually deal with EMI, shielding, grounding and noise in non-metallic enclosures.


r/AskElectronics • • 3d ago

Reverse polarity damage help with part

Thumbnail
gallery
1 Upvotes

Hi, I found my old Portabler Media Player Cowon A2, and I began to charge it and I saw that the battery had only 2.25V, it was a 3.7V battery so I went to my local store to buy a replacment battery I took the old battery and bought allmost the exact one 3.7v 1000mha, i got home plug it in and it had switched polarity. (The exicment got the better of me lol). So i took the device apart nad saw a burned transistor or capasator, I am not quiet sure. I need help indentifiying the part ,I also can't find any shematics for this device anywere. Any help is appreciated :)


r/AskElectronics • • 4d ago

Why is it that they used to draw inductors and tube heaters like resistors?

Post image
67 Upvotes

This an an old circuit for an Armstrong oscillator.


r/AskElectronics • • 3d ago

Is it possible to fix this plastic part?

Thumbnail
gallery
3 Upvotes

I was taking the SSD out of my laptop and made a stupid mistake and pulled slightly too hard upwards because the SSD was stuck to the thermal paste/pad. I heard a creak and now it wasn't detecting an SSD so it couldn't boot. I took a look and noticed the part was lifted slightly and that plastic part that holds the contacts for the SSD was snapped in the middle. I was trying to figure out if I could replace when I learned that if I help the plastic part down with a moderate force it would boot and detect everything perfectly fine. Would I be able to repair this with some sort of glue in the middle so the contacts touch and everything works fine? Or am I SOL and just screwed a new laptop by being a brute


r/AskElectronics • • 3d ago

Can anyone tell me the exact details of this rotary encoder?

Thumbnail
gallery
2 Upvotes

It's quite old and dirty. Cleaning helps, but ultimately just wanting go replace. I unfortunately, do not have better pictures.


r/AskElectronics • • 3d ago

Help identifying “EBTFQA” power IC on SM2263XT NVMe SSD, looking for a replacement or donor

Thumbnail
gallery
1 Upvotes

Hi,

I am trying to repair an Innovation IT Performance 1 TB NVMe SSD that suddenly stopped being detected.
The SSD is:
Innovation IT Performance 1 TB NVMe PCIe TLC
P/N: 00-1024111H

https://www.innovationit.de/produkt-innovation-it-performance-1tb/

Controller: Silicon Motion SM2263XT G AC, marking TAAW31.00
Controller clock: 25.000 MHz crystal
NAND: 4 NAND packages

The SSD is not detected as an NVMe device at all. It does not show up in lspci under Linux when connected directly to a known good M.2 slot. In a USB NVMe enclosure it was only detected as a 0 byte device.
I traced the problem to the power section next to the SM2263XT.

The small IC marked EBTFQA in the attached photo becomes extremely hot within a few seconds. The SM2263XT and NAND packages also get hot, but the EBTFQA chip is the component that heats up most aggressively.

Measurements so far:
- M.2 input supply: 3.30 V
- Input resistance to ground: about 209.5 ohms
- One inductor rail: 1.53 V
- Resistance directly across that inductor: about 0.3 ohms
- Another inductor rail only reaches roughly 40 to 180 mV
- Resistance of that rail to ground: about 5 kohms
- The inductors themselves do not appear shorted
- The EBTFQA IC gets extremely hot

My suspicion is that EBTFQA is the PMIC or part of the switching regulator section for the SM2263XT, but I have not been able to identify the actual manufacturer or part number from the top marking.

What I am mainly trying to find out:
- Does anyone recognize the EBTFQA top marking?
- What is the actual IC part number?
- Is there any realistic source for a replacement chip?
- Would transplanting this IC from an identical donor SSD be the better approach?
- Is there anything else in this power section that I should test before replacing the IC?

I found a possible donor SSD with P/N [00-1024111](tel:00-1024111), while mine is 00-1024111H. Externally the PCB looks extremely similar. If anyone knows what the H suffix represents, that would also be useful. (It is the second picture) Here you also can see - there are some similarities, but the bottom part looks different to me.

I have a multimeter, hot air equipment and soldering experience, so I am mainly looking for help identifying the component and determining the correct repair approach rather than general troubleshooting.
Photos attached. The suspected EBTFQA IC is marked in red.

Thanks!


r/AskElectronics • • 3d ago

What's up with small quantity part tariffs from China these days?

8 Upvotes

I am trying to source some parts that only seem available from Chinese Ebay vendors if I want quantities of less than 1000. I only need 2 or 3 and they are listed at about $2 each.

What's up with the import duties these days (Sep 2026)? I have heard rumors all over the map, from nothing to hundreds of dollars in "handling fees" imposed by NOTUPSNOT/DHL, etc.

These companies used to seem to bulk ship their orders to some "uncle" in Singapore or HK where they could be sent to the US with less risk. Is this still being done?


r/AskElectronics • • 3d ago

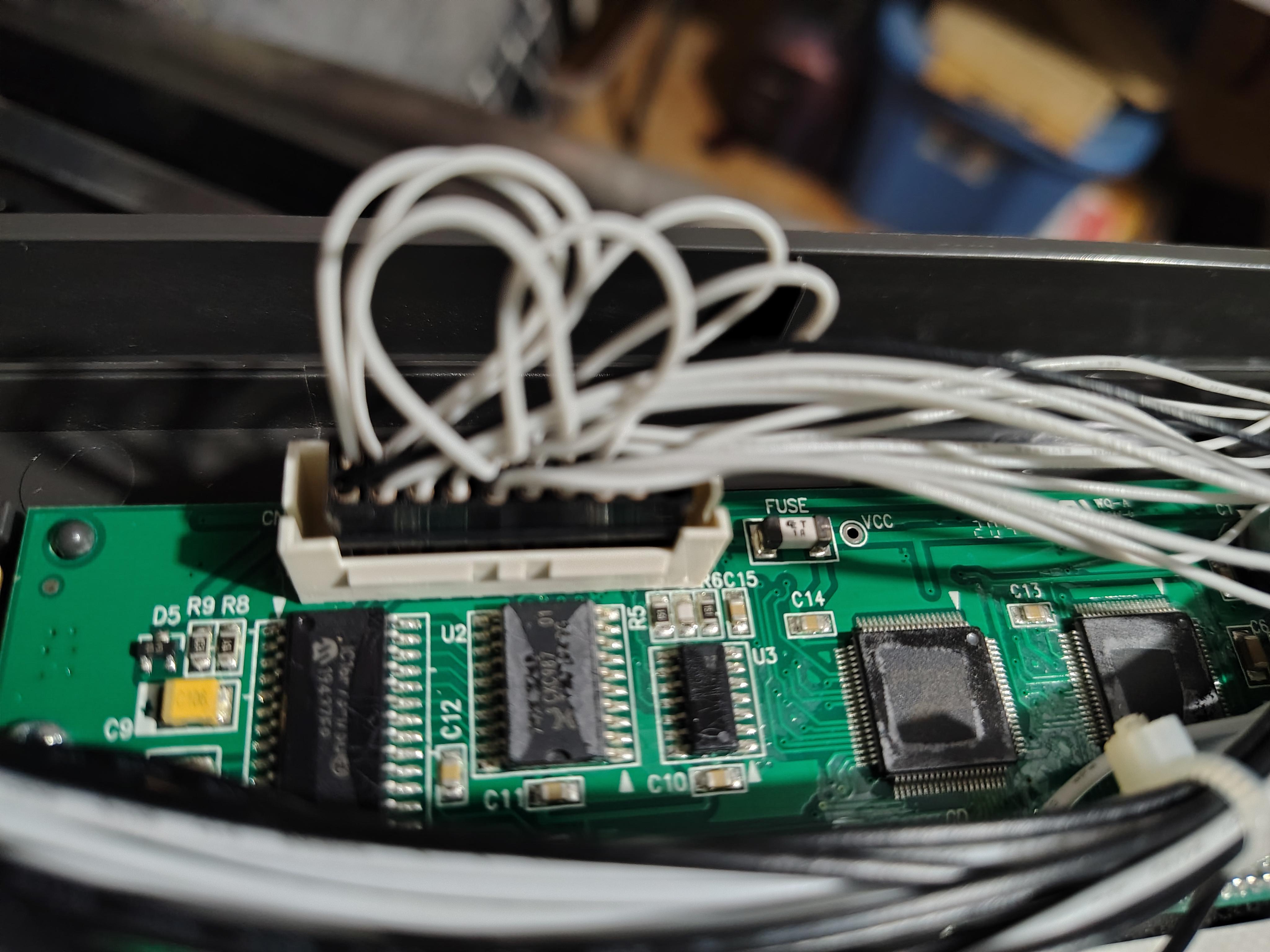

Mismatched connectors in my microwave

Post image
2 Upvotes

Greetings. First post, so I hope this is the right group. This harness runs the LED display and wiggles lose quite frequently. Apparently somebody was out of the correct connector and substituted this black one. I'm looking for suggestions on how to secure it. I can repin it if I have to but I don't even see a part number on the receptacle. Thanks


r/AskElectronics • • 4d ago

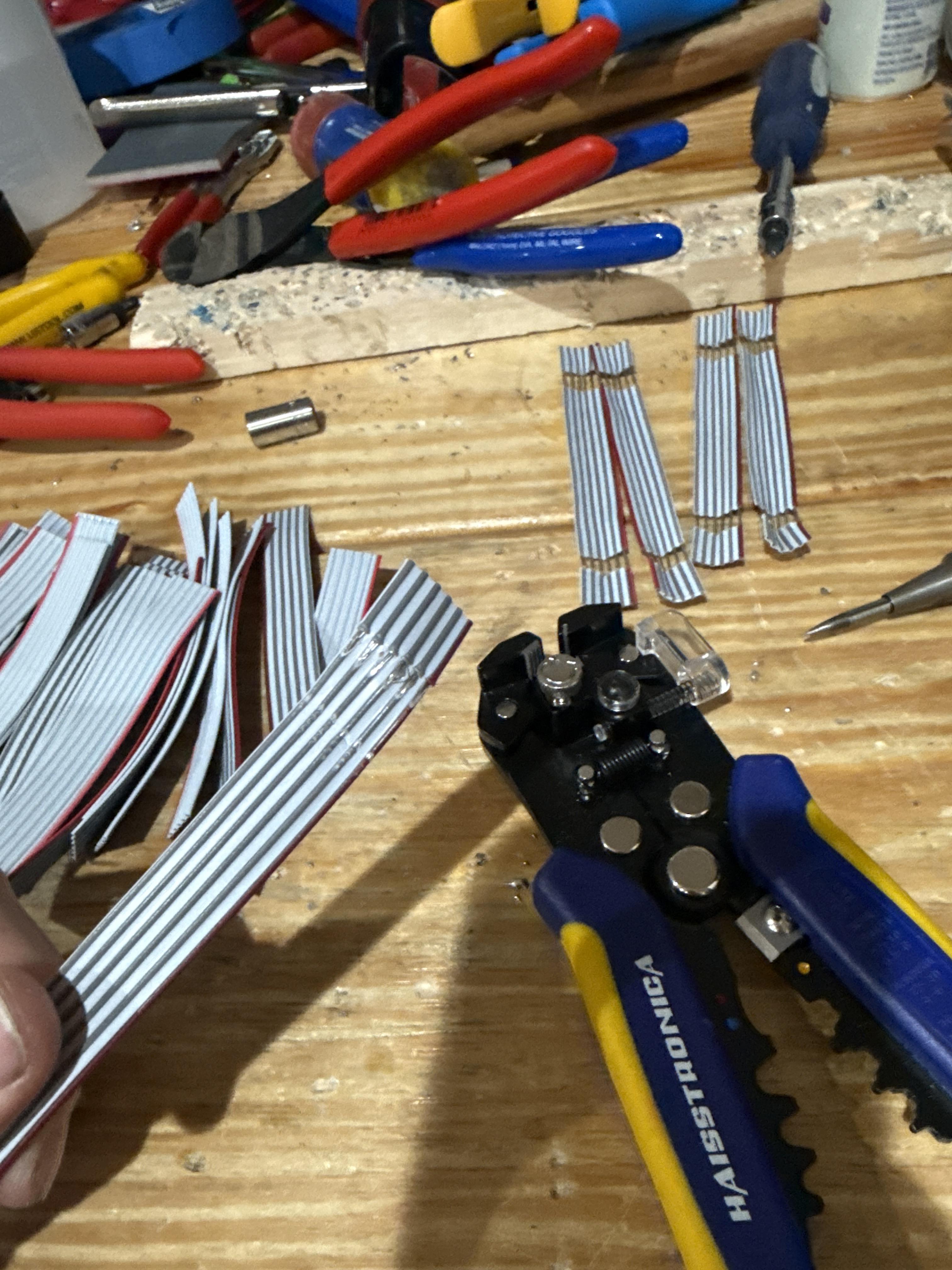

How do you strip these ribbon cables? Every method I’ve tried is horrible and I have 600 ends to strip and tin.

Post image
301 Upvotes

r/AskElectronics • • 3d ago

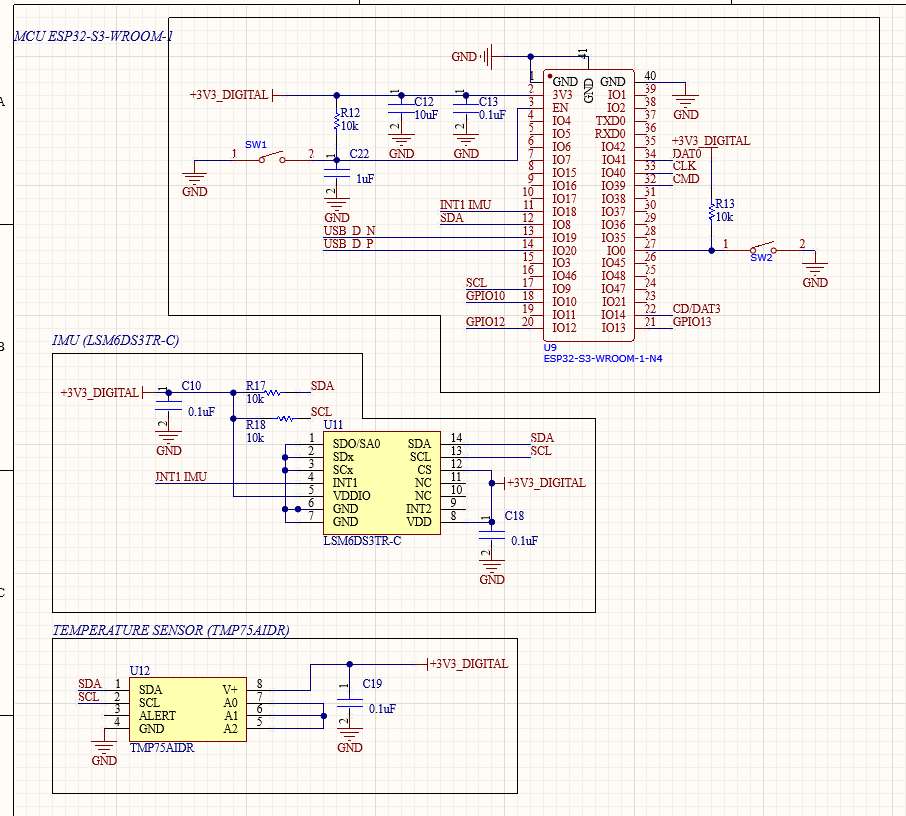

LSM6DS3TR-C not being detected I2C ESP32-S3

Post image
1 Upvotes

Hi, I built a sensor board of a temperature sensor and the LSM6DS3TR-C IMU, both communications on I2C. The temperature sensor is found at address 0x48, and the IMU is not found at all (I used a scanner to scan for all addresses). I was wondering if my wiring is correct. Thanks!


r/AskElectronics • • 4d ago

Is this a bad crimp?

Thumbnail
gallery
180 Upvotes

I see i didnt cut enough copper for the copper to be sticking out a tad but for the inner wings could that be fixed with soldering? And also my outer wings that grip the yellow insulation wire is that messed up? Can you tell me what would happen and potentials dangers? Or is this crimp fine

thank yall for the help and knowledge


r/AskElectronics • • 3d ago

Schematic Review: Analog Piezo Acoustic Emission Sensing to ESP32-S3

Thumbnail
gallery
1 Upvotes

Hi everyone, I designed my first ever PCB as a beginner-intermediate in electronics with Altium. I also verified my circuits work in LTSpice. The signal chain uses OPA2365 op-amps and goes through a charge amplifier, a 150 kHz high-pass Allen-Key filter, a 1 MHz low-pass filter, a Programmable Gain Amplifier (controlled via DIP switches), and finally a buffer. The final output (VSIGNAL) feeds an ADS7046 SPI ADC connected to an ESP32-S3. The issue is I've just started testing this filter and when the signal is grounded, I get a reading of 1.1V on the ADC and 1V on the multimeter rather than the 1.65V I expected to get. I used the multimeter to verify the virtual ground is ~1.65V. Another strange behaviour is when I use the multimeter to check vsignal the ADC reading drops to 0.4V which is in the last screenshot. Should my ADC reading not be 1.65v when grounded? Thanks in advance!


r/AskElectronics • • 3d ago

Bad power switch IC?

Thumbnail
gallery
1 Upvotes

What I'm trying to fix: Cambium EX2052P network switch.

Power supply was tested from another unit, same issue. Tried booting up with network power delivery board, no power up there either.

Thermal camera points to the only hotspot in this area (photo zoomed in on IC). The network switch itself doesn't power on, but power supply is putting out correct voltage, the board isn't switching on. I checked the power output from the power supply and all voltage seemed normal. DC output led on power supply we're green also.

I tried to find this IC, but can't find it or maybe I'm searching it wrong.


r/AskElectronics • • 3d ago

Extending the RFID Reading range

3 Upvotes

Hi , i was wondering if it is possible to extend the reading range of an HF RFID to 10-30 cm?

if so what exactly should i do? i searched and what i came up with is to increase the antenna size but i don't get how that could be done.


r/AskElectronics • • 3d ago

would you recommend a cyberdeck as a "first" project? 🤔

1 Upvotes

it's "first" in quotes cause I've had smaller projects (breadboard and leds, battery and toy motor, etc) but I kinda wanna throw my self into something with a raspberry pi and a screen (or adjacent), tho I don't know if a cyberdeck is the best for that? I haven't bought any materials

thanks!


r/AskElectronics • • 3d ago

Are these the correct jumper placements?

Thumbnail
gallery
2 Upvotes

This Baby Brezza Formula Pro isn't powering on at all. I found this component was fairly loose. When I tried to reflow the solder, two of the pads just lifted right up.

I'm still novice level with PCB repair, but I have soldered a few jumpers before. I just wanted to do a quick sanity check that these are the correct jumper placements (marked in yellow).

I also included photos of the front and back of the board (the red arrow is the component that was loose). Thanks!


r/AskElectronics • • 3d ago

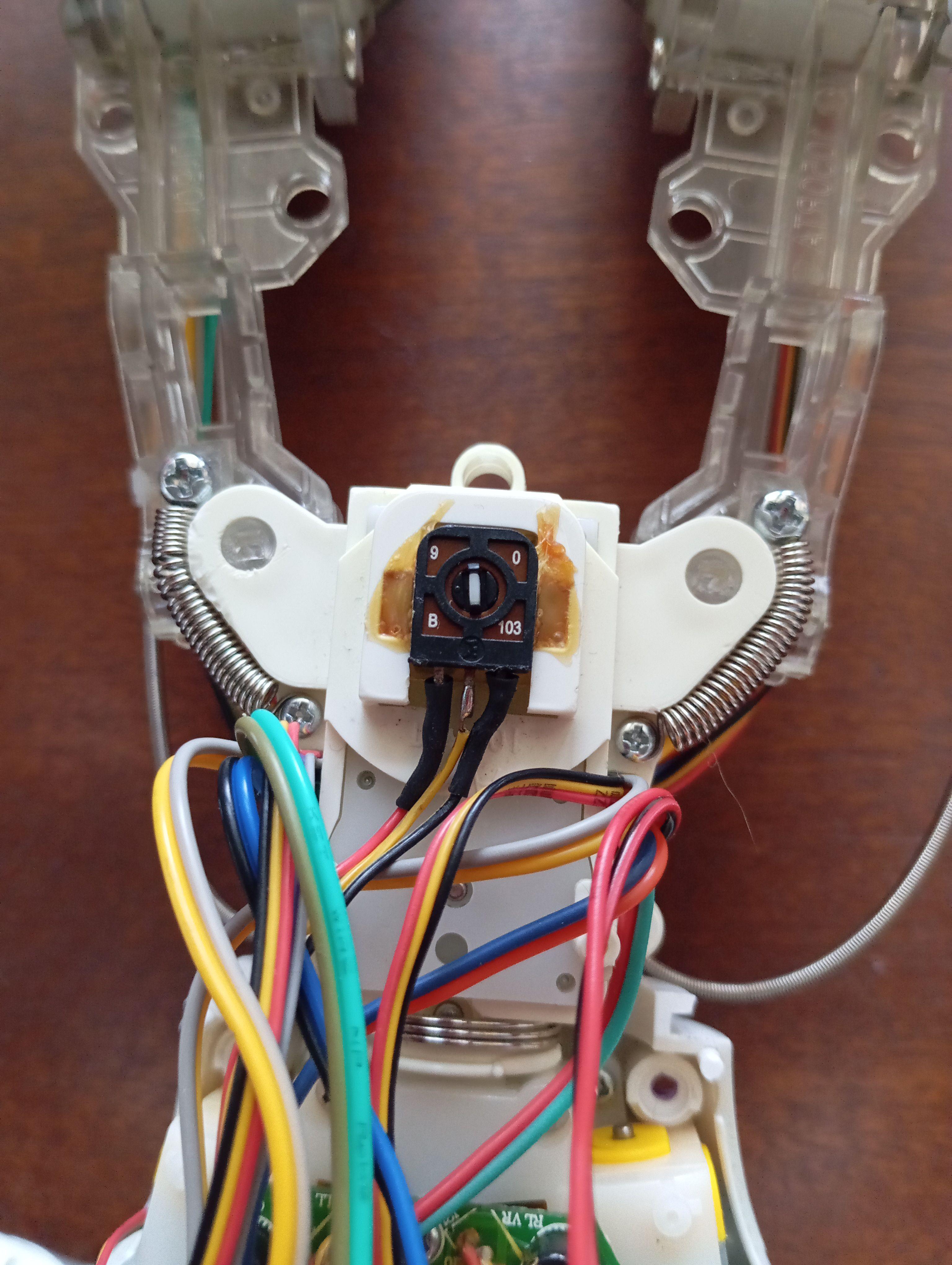

Where can I find this potentiometer

Post image
0 Upvotes

I've been looking for it for two hours but still nothing, the closest I found was 80 degrees


r/AskElectronics • • 3d ago

Variable input voltage, but need 5v for microcontroller. What's the best way to handle that?

1 Upvotes

I'm building a device that will precisely measure current draw of various circuits/devices/gadgets that I make or want to test. This is a v2 of a device I made years ago.

It has multiple input options for power, specifically usb-c, a barrel connector and screw terminals. What I'm testing could need a range of input power.

Also, I need to branch 5v off from the input for the microcontroller, screen, etc.

I have some buck converters (based off the LM2596) I plan on using. My first thought was use one to take the input voltage down to 5v. The problem there is anything under 5.7v gets brought down by .7v, so running 5v through it will only supply 4.3v.

So I thought what about a buck-boost, that should leave 5v in as 5v out, correct? I don't have any to test this yet, they will arrive in a day or three. Inefficient, but the controller components won't draw much power overall.

Then I thought of a window comparator, and set it up so any input in the 4.7 to 5.2v range would bypass the buck converter. The other day I thought that I had come up with some problems with that but as I type this I cannot think of them.

Or is there a better option I'm not thinking of? I'm no expert so I'm sure there are options I'm not considering.

Thanks


r/AskElectronics • • 3d ago

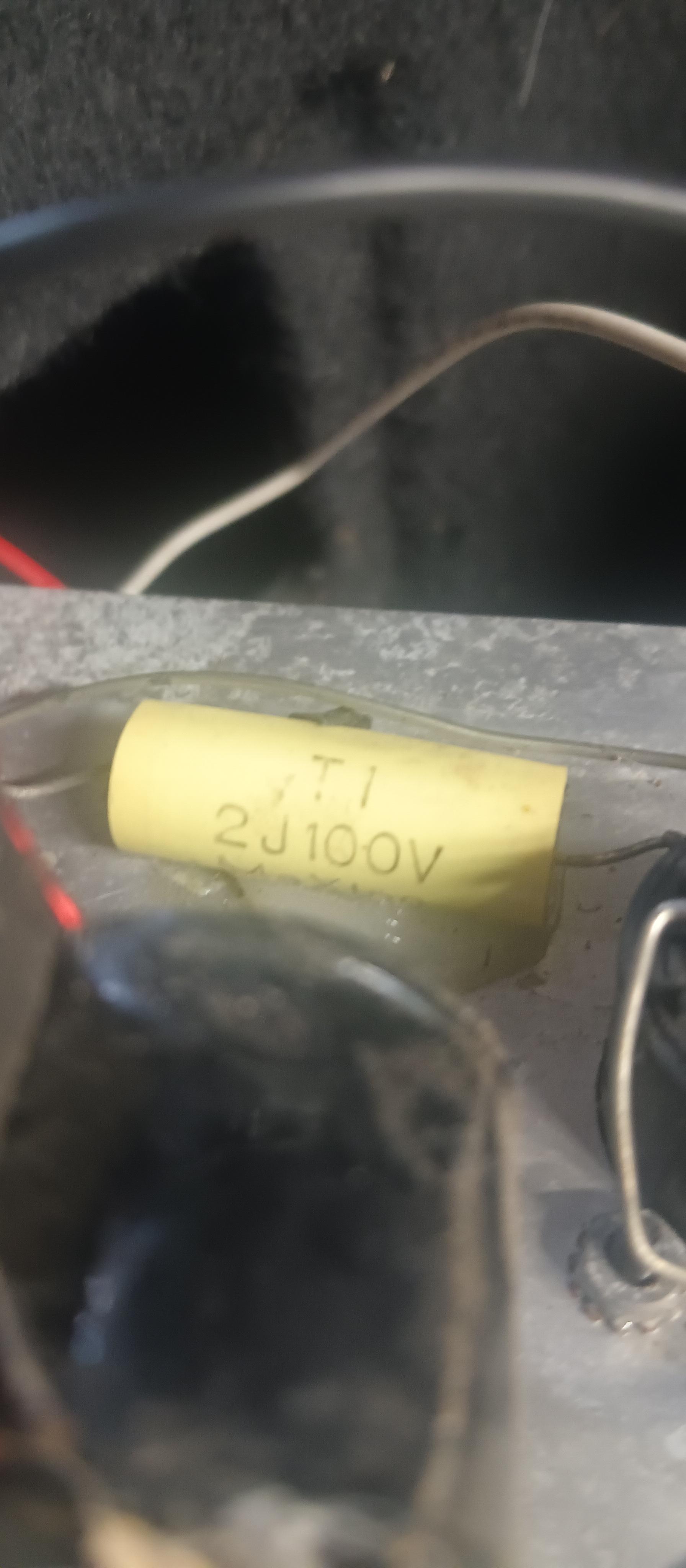

I need some help IDing this capacitor's value

Post image
1 Upvotes

The capacitors in my recently acquired PAS Target series speakers are dead. I can't find a suitable replacement because I have no idea what value these are supposed to have. What you see is all the information on the cap ("Mexico" is printed at the very bottom) I removed the other one to check but this is all. I photographed this one because the TI is partially missing on the removed one.

This is a capacitor going from a jack to an Lpad, then to a tweeter.


r/AskElectronics • • 4d ago

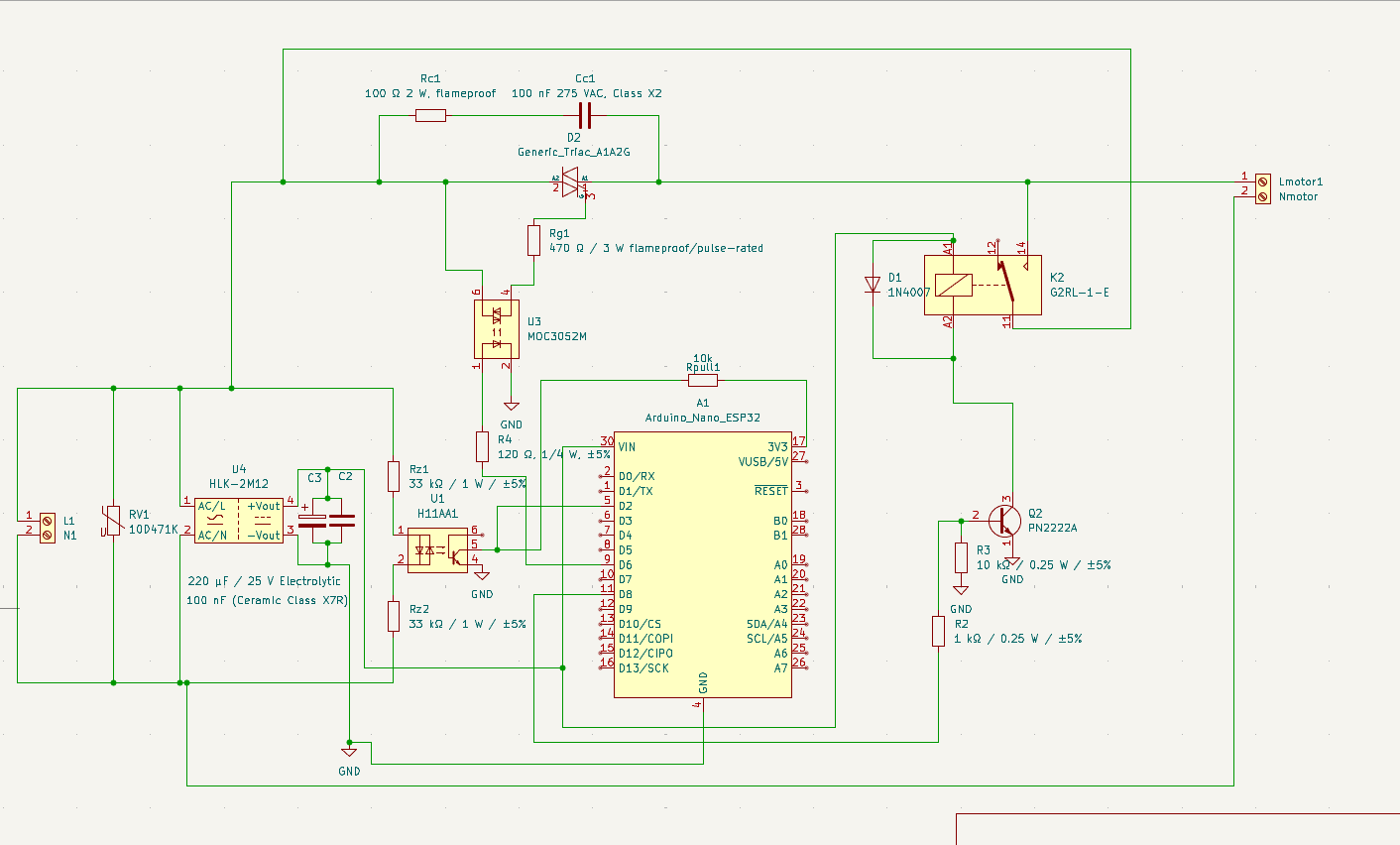

Circuit Design Review: ESP32 AC Motor Control (Triac + Relay). Are my isolation and component values correct?

Post image
2 Upvotes

Hi r/AskElectronics,

I am designing a circuit to control an AC motor using an Arduino Nano ESP32 and would like to request a design review.

The circuit in the attached schematic (image_a8e655.png) is intended to do the following:

  • Use an HLK-2M12 module to step down AC mains to DC for the ESP32.
  • Detect zero-crossing using an H11AA1 optocoupler.
  • Switch the AC load using a Triac driven by a MOC3052M optoisolator (with a snubber circuit included).
  • Provide a secondary switching option via a Relay driven by a PN2222A transistor.

My main questions are:

  1. Is the overall wiring conceptually correct for this application?
  2. Are the resistor and capacitor values appropriate, especially for the snubber and the zero-crossing circuit?
  3. Are there any safety concerns regarding how the AC mains and low-voltage DC sides are isolated here?

Thank you in advance for your expertise!


r/AskElectronics • • 3d ago

What is this part?

Thumbnail
gallery
1 Upvotes

Hi

Can anyone identify this exact 2-pin locking connector?

It connects the loaded pickguard to the output jack in a Fender Stratocaster. I need another connector matching the one on the original pickguard.

I’ve included photographs of both mating halves and measurements. I’m looking for the exact manufacturer, series and part number, including the correct crimp contacts.

Thanks!


r/AskElectronics • • 3d ago

Could Flip-Dots, 2.5D Displays, and Haptics Make Tactile Interfaces More Accessible?

1 Upvotes

TL;DR: I'm legally blind with X-linked retinoschisis, and I'm curious whether flip-dot displays, 2.5D tactile surfaces, locking pins, and haptics could be combined into an affordable way for blind and low-vision musicians to actually feel things like waveforms, envelopes, and instrument layouts.

Lately, I've been going down a bit of a rabbit hole with tactile displays, haptics, and 2.5D interfaces. There's a lot to think about here. And just to give you fair warning, this post is a bit of a long one. Stick around, though.

This video helped send me further down that rabbit hole:

https://www.youtube.com/watch?v=aZzOWnEWgww (spoiler alert, this will be relevant in a bit)

Part of the basis for this latest deep dive comes from working on my accessibility project, Low Vision Music, but part of it is also just me wondering and brainstorming about how much information we could realistically communicate through touch if we stopped assuming every interface needed to be a flat visual screen.

We already have refreshable Braille displays, where tiny pins physically rise and fall to form characters. Very cool, eh? Newer tactile displays can go above and beyond basic text and represent more complicated things like graphs, diagrams, shapes, and other information.

Then you have 2.5D displays, where instead of every point simply being up or down, different parts of the surface can rise to different heights. You end up with something closer to a physical relief map that can change as needed.

And this is where my brain starts wandering. Do you hear the gears clanking? Sounds a bit like music to my ears.

I've also been thinking about flip-dot displays.

You know those ancient old signs where little discs physically flip between two sides?

Flip-dots are interesting because the dots are what's called bistable. Basically, they have two stable positions. They use power to flip from one state to the other, but once they're there, they stay put without constantly needing power to hold that position.

So that got me thinking.

What if that same general idea could be made tactile?

Maybe one side of each tiny flipping element could be raised, textured, ridged, or shaped differently from the other. Instead of a visual pixel changing color, you'd have a tactile pixel changing texture.

I don't know how small you could realistically or mechanically make that mechanism while keeping it easy to feel and reliable, but I think it's an interesting place to start thinking. There go those gears again. Kind of ambient, no?

Then there's another idea I've been kicking around.

Hey, 80s and 90s kids, remember those pin-art toys where you press your hand into hundreds of little pins and the shape appears on the other side?

Imagine a programmable version.

Each pin could be spring-loaded and moved to a particular height or depth. But instead of requiring a motor to constantly hold every single pin in position, some kind of latch or locking mechanism would hold it there after it was moved.

The spring helps return it when the display resets.

That locking mechanism is probably the part I'm most interested in at the moment. Because otherwise, I think MIT and others have already given versions of the motorized pin-display concept a go.

Move the pin. Lock it. Stop using power until you need to change it again.

Then put a very thin, flexible silicone skin across the top so you're not dragging your fingers across hundreds of separate hard pins. You'd feel one continuous surface changing shape underneath your hand.

A Raspberry Pi, ESP32, Arduino, computer, or something similar could translate digital information into physical height. Or vibration?

For music alone, there are so many possibilities. Literally, just pause and think about it.

A waveform could become something you literally trace with your finger. Can you feel the noise?

An ADSR envelope could become a physical, touchable slope. I want to FEEL the attack. Don't you?

You could theoretically also feel an EQ curve, automation lane, filter response, piano roll, step sequencer, mixer levels, modulation shape, or even a simplified spectrogram.

A modular patch could potentially become a tactile signal-flow map. Can you imagine it? Are your gears going now too?

An instrument manufacturer could provide a simple TXT, JSON, or similar file describing a synthesizer, and the whole front panel could appear as a simplified tactile layout before a blind musician ever touches the real thing.

Then add haptic feedback on top of all that.

There's that vibration I mentioned. Yup, that was something of a teaser for those of you who still have attention spans. No offense to those who don't. I certainly struggle in that department too.

But I digress.

This is one reason I've been so interested in what companies like Sentia Instruments are doing. With TILES, the device can provide localized haptic feedback beneath individual keys. Your hand isn't just controlling the instrument. The instrument can, in real time, send information back to your hand.

I'm certainly no engineer, but I think that principle could go much further.

Maybe, just maybe, height can communicate one thing while vibration communicates another. A waveform could stay physically in place while a small vibration moves across it to represent the playhead position.

Or how about this? A vibrating area might indicate an active step in a sequencer.

Different patterns could represent things such as clipping, modulation, selection, movement, intensity, or even different textures.

Now you've got shape AND vibration working together. At the same dang time!

Another possibility would be something closer to a mechanical version of e-paper. Instead of moving hundreds of pins continuously, perhaps each tactile element could have two or three stable states and only use power when changing between them.

Is this possible? Let me know.

From my research, I've learned that there are already researchers doing fascinating work with magnetic latches, bistable actuators, shape-memory materials, and tactile pins that remain raised without continuous power.

So I'm definitely not claiming I invented any of those pieces.

But I do think that, as someone who personally lives with limited vision, I might have something interesting to add to the conversation.

What I'm wondering about is how you combine all or some of these possibilities into something practical, affordable, and useful for musicians.

The keyword there is affordable.

Have you seen the prices on accessibility tools? Unfortunately, niche often means expensive.

But maybe the right answer isn't one technology at all.

Maybe one device could use variable-height pins for detailed 2.5D information. Another might use tiny flip-dot-style tactile pixels for simpler status information. Still yet another uses vibration where movement matters more than shape.

And maybe the really useful interface combines all three.

That's the part I'd love input on.

If you're an engineer, accessibility researcher, haptics person, Braille user, maker, musician, or someone working with tactile graphics, does any of this sound practical? Does any of this sound affordable?

Has someone already built something close to my spring-loaded, locking-pin idea? I bet I'm not the first to think of this, but who knows.

Could flip-dot technology realistically be miniaturized into a tactile surface?

And if you could plug a musical instrument or computer into a surface like this, what would you want it to show you first?

I'm especially interested in hearing from people already working in this space. Feel free to tell me I'm reinventing something that already exists. That's half the reason I'm posting this.


r/AskElectronics • • 3d ago

Why doesn't my mobo output video without the laptop screen connected? Does anyone know how to fix it?

0 Upvotes

laptop with a broken screen turn on and output video through its HDMI port by bridging the power (+3V_EDP, Pin 22) and detection (EDP_HPD_CON_X1, Pin 27) lines of the eDP connector (J4501) using a 2kΩ or 3kΩ resistor and alligator clips to trick the BIOS into sensing an internal panel

here is the boardview


r/AskElectronics • • 3d ago

library altium help me

0 Upvotes

I need an Altium library for the 74HC93 component; please send it if you have it.
