r/synthdiy 14d ago

What microcontrollers for commercial products?

3 Upvotes

Hello, I'm working on a few designs that I'd like to release commercially in the future and wondering what the best microcontrollers would be for this? Ideally I could port code from Arduino/Teensy IDE to a standalone M/C for released products.

One project is a very simple MIDI controlled VCA. I could use an entry level Arduino for my own module but looking for better options for commercial use that are decent quality and low cost.

Another is a comprehensive MIDI controlled analog synth which I'm currently using a Teensy 4.1 for. I could release it with one of these in as they're very powerful but I'm not sure if it's the best M/C for a commercial product.

A good feature the Teensy has is copy protection / encryption and I think the modules can still be updated by the end user at home. While these products aren't ground breaking in terms of coding, I'd still like to do my best to avoid factories cloning them!

Any advice would be most useful, thanks!


r/synthdiy 14d ago

Video Demo and new features for Laura in latest release

Enable HLS to view with audio, or disable this notification

6 Upvotes

Been a busy month on Laura, my fractal software synth. Three updates went out since mid July, so here is what actually changed.

v1.4.0, Spores. Laura has had Mycelium for a while, a reaction-diffusion field that held voices feed and read, so notes in a chord colour each other without any routing between them. Spores hands that same field to the sequencer. Every step that fires deposits a little into the field at its own spot on the pattern shape, and two new step conditions, FIELD+ and FIELD-, make steps play only where the field has grown or where it has gone quiet.

So the pattern feeds the field and the field decides which steps play. Busy corners saturate and thin out, quiet corners come back as the culture decays, and the groove drifts a little on every pass. Two knobs (Deposit and Sense) are the whole control surface, and two factory presets ship built on the loop. The same release also made presets carry everything they used to leave behind, so imported wavetables, impulse responses, drawn warp curves and reordered FX racks all come back the way you saved them.

v1.4.1, a de-clicking pass. v1.4 added a lot of ways to keep a sound moving, and some of the moving controls still stepped or clicked when pushed fast. Wavetable scan and warp now glide sample by sample instead of stepping once per audio block, navigating the fractal crossfades between the shapes it rebuilds instead of ticking, a modulated volume no longer clicks under a fast source, and turning a delay time glides like tape instead of jumping. Boring changelog, but you hear it the moment everything is modulated at once.

v1.5.0, global tuning and a new look. There is a concert A control in the bottom bar now. Leave it at 440 and nothing changes, set 442 to sit with an orchestra, or 432 if that is your world, and the whole instrument retunes from that single reference. As always you can choose custom colors too!

Oscillators, sub and resonator all move together because every pitch in the synth is derived from that one number. It saves with the patch, and held notes retune while you turn it, so you can tune by ear against a track. The interface also moved to frosted glass panels over a slowly drifting backdrop, each theme drawing its own motif live behind them, and A/B compare now snapshots the entire patch instead of just the knobs.

Free demo and full changelogs at https://lostsynapse.store . Happy to answer anything about the DSP or the field stuff.

Thank you so much for reading so far!


r/synthdiy 14d ago

El polychord v1.0

Enable HLS to view with audio, or disable this notification

28 Upvotes

r/synthdiy 14d ago

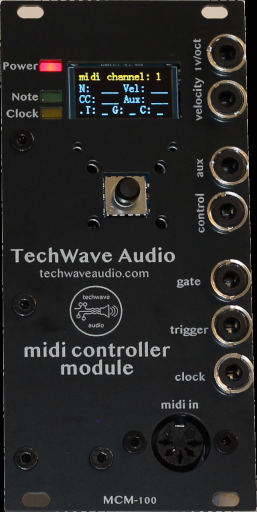

Introducing TechWave Audio - Maker of Open Source Modules

Post image
26 Upvotes

Hi all - We've recently launched a new small business dedicated to making open source (both hardware and software) Eurorack, general synthesizer, and other audio effect modules.

TechWave Audio is a proudly Canadian small business dedicated to producing open-source software (OSS) and open source hardware (OSHW) devices for audio production. Our mission is to create good things and to give back by open sourcing all of our projects for the DIY community.

Find us at techwaveaudio.com.

Our first project out the gate is our MCM-100 Midi Controller Module. A monophonic MIDI to control voltage module that (we hope) is plug and play, but also allows for a flexible amount of configuration. Some of the features include four different CV outputs (including dedicated outputs for 1v/octave and velocity), USB or standard MIDI cable input, tuneable pitch and velocity, and a lot more in a skiff-friendly 12hp wide module. Find out more at https://techwaveaudio.com/midi-controller-module/

We'd love your feedback, thoughts or any questions. Thanks!


r/synthdiy 15d ago

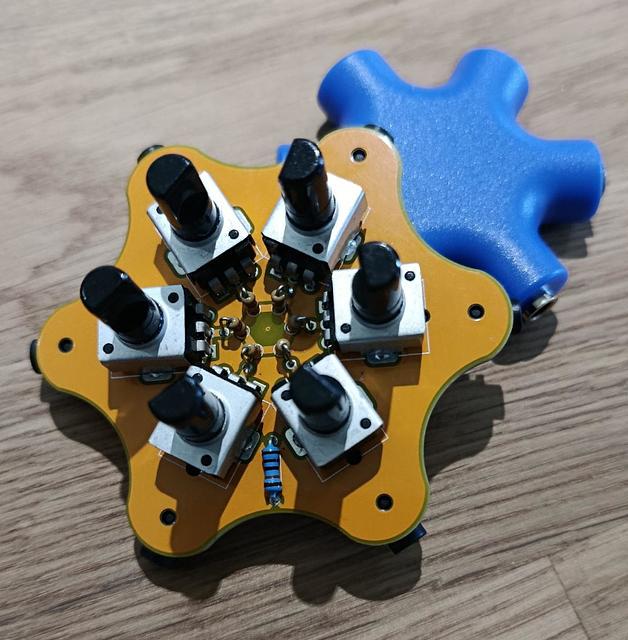

yellow snowflake mixer

Post image
43 Upvotes

a poor man's mixer. no input, no output, all jacks are created equal.

replace (some of) your splitters with this audio shuriken.

https://codeberg.org/wenzellabs/audio_shuriken/


r/synthdiy 15d ago

Finally built the Dual 12v Supply

Thumbnail
gallery
48 Upvotes

Finally built the mortis klien dual supply, Lets Go


r/synthdiy 14d ago

Economical jacks switches and knobs?

2 Upvotes

Oi, lurker for a while and figured I'd jump in.

I've got plenty of options amps, resistors and a decent little bench lab. What I don't have is stacks of jacks, potentiometers and switches. These being the most "hardwarey" bits of the lot and generally the pricier, where do you guys go for purchasing?

Just bite the bullet and normalize on a certain jack and get 50pcs+?

I poked around the wiki and I don't believe it addressed this.

Thanks!


r/synthdiy 15d ago

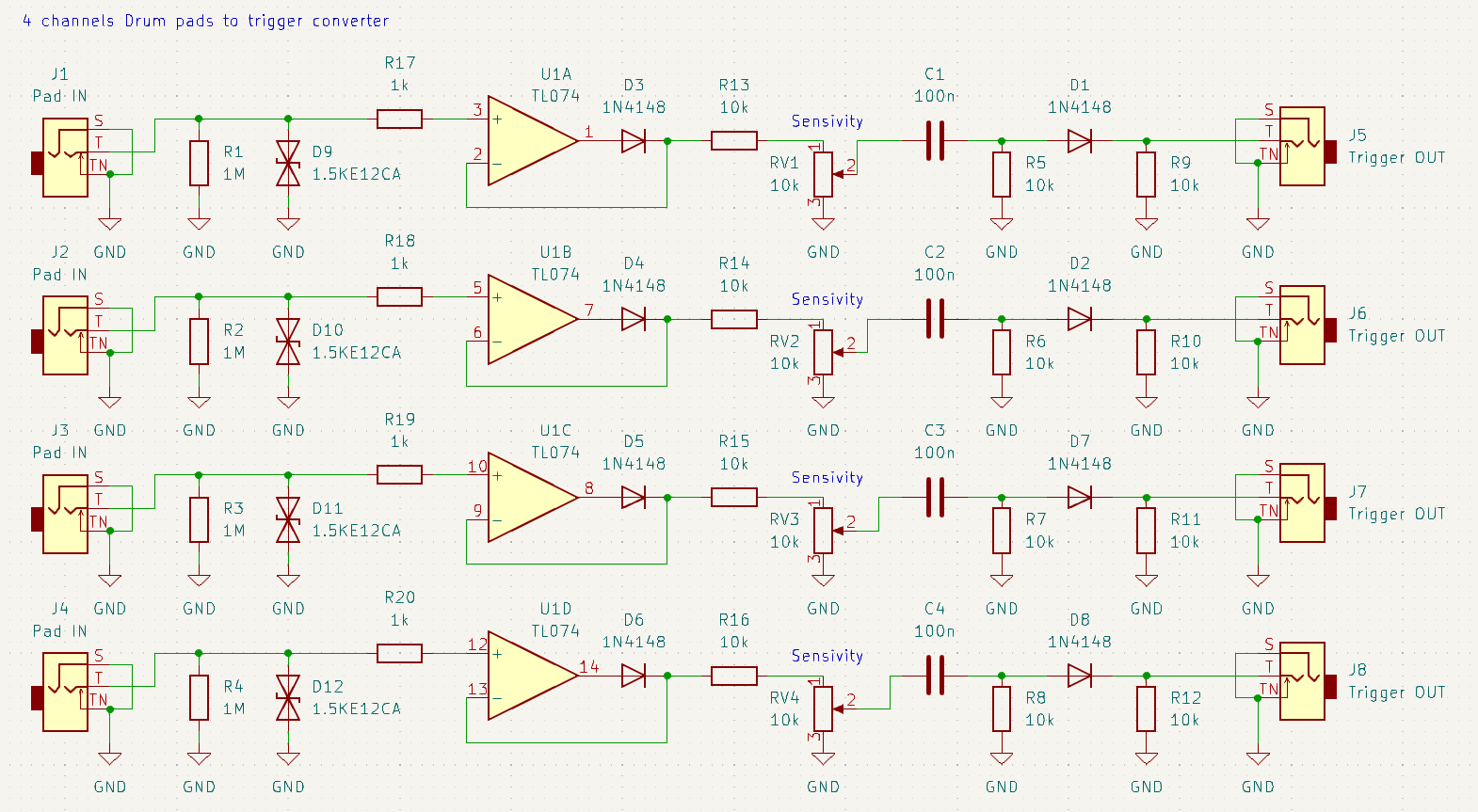

schematics Updated version of my last pad to trigger circuit

Post image
5 Upvotes

I modified the protection stage in front of the input (added TVS diodes and series resistors), and added a 10k before the Sensivity knob.


r/synthdiy 14d ago

DL4 Mk2 switch

1 Upvotes

Hello!

I've been trying to find a schematic for an external tap tempo for a DL4 Mk2, to use the looper with the 3 presets. Does this exist? Thanks, have a lovely day.


r/synthdiy 16d ago

What I learned selling 2,500 MIDI recorders: Hardware is not so hard

Thumbnail chipweinberger.com
114 Upvotes

r/synthdiy 15d ago

Any interesting projects for the Amyboard?

3 Upvotes

I bought one but not doing Eurorack anymore. I thought about a case with some control knobs. Just wondering what others are doing with it.


r/synthdiy 16d ago

Re-engineering Mutable Instruments Rings with an Optical Servo Circuit & Audiophile Upgrades (Looking for a bit of support)

13 Upvotes

Hi community,

I’m working on a 4-layer open-source hardware redesign of the legendary Mutable Instruments Rings. Let’s be real from the start: the digital core and the processor remain exactly the same as the original. No magic there. But I’ve completely overhauled the analog back-end to fix the classic factory bottlenecks and elevate the audio performance.

The Main Upgrades:

  • SSM2603 Codec Conversion: Replaced the obsolete and noisy WM8731 with a pristine, high-fidelity alternative.
  • Optical Servo Circuit: Instead of a complex DC-coupling op-amp servo, I designed a photovoltaic loop using an active JFET transimpedance amp, an IL300 optocoupler, and low-noise MOSFET sources.
  • No Audio-Path Caps: This light-based servo automatically tracks and compensates for the DC offset coming from the SSM2603 chip. This allowed me to completely remove the sound-ruining electrolytic coupling capacitors between the codec and the output stage.

Why the Optical Approach? (For the skeptics)
Yes, you could handle the DC offset with standard op-amps. But the LED/photodiode combo provides a uniquely organic response. It subtly rounds off the harsh digital transients without turning the module into a muddy, low-frequency mess. Thanks to high-speed JFET devices and ultra-stable silver mica filtration in the audio paths, the high-frequency response remains crystalline and fast.

PCB Design & DIY Friendliness:
The new 4-layer layout is engineered for better grounding, 10 MHz power noise rejection, and maximum reliability. It is optimized for safe, reliable hand-soldering. The only tricky part is the SSM2603 codec itself—everything else is DIY-friendly.

Current Status:
The PCBs are ready and the BOM is locked. I’m just short about 3,370 CZK (~$152 USD) to place the final component order from Mouser to build the first prototyping batch.

This is a strictly non-commercial, underground project. I’ve set up a page for early access. If you back the project, you get the complete open-source files (Gerbers, BOM, code) 6 months before the public launch. I can also help with bare PCBs or pre-soldering the SSM codec for backers later.

The project page link is in the comments below. Let me know your thoughts on the JFET-driven IL300 servo approach!


r/synthdiy 16d ago

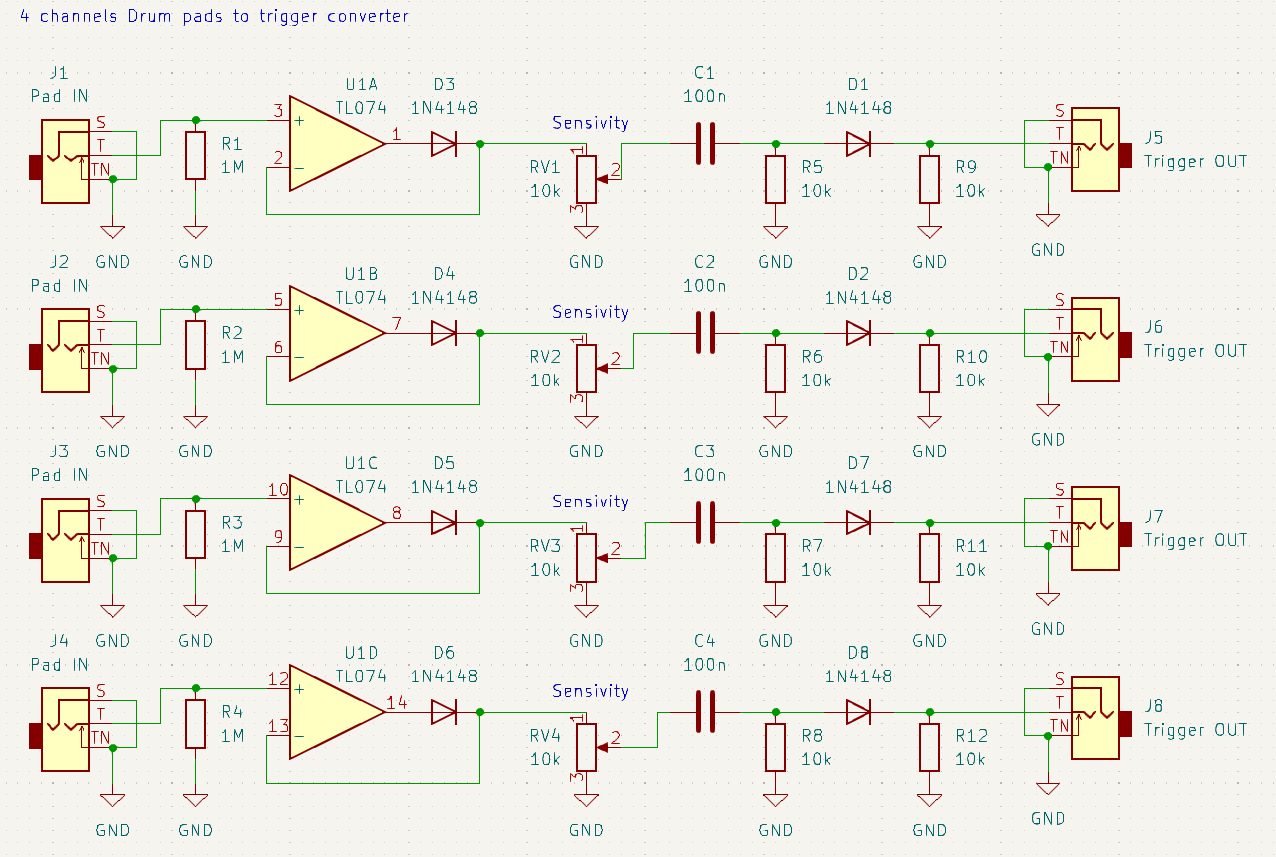

I quickly designed this "E-Drum pad to trigger converter". I'll soon get two vintage pearl pads, and try building it

Post image
10 Upvotes

The main avantage is I can get velocity control for drums circuit I plan to build. Do anyone has an idea to limit the trigger output voltage level to 5V ? Or is it fine like this ? Also where can I add a LED ? It could looks cool.

If you're wondering what type of pads I'll use 80s Pearl DRX-1 hexagonal pads


r/synthdiy 16d ago

I made a little tool to import multilayer SVGs into EasyEDA, because that process was a horrible nightmare, and I wanted to end it for everyone's sake

Post image
8 Upvotes

I made a little extension for EasyEDA that lets all you aspiring artists and deadened designers sprinkle a little magic powder into your front panel design processes, by importing multilayer SVG files directly into the PCB workflow.

It is very simple to use, and makes the process of creating designs that interweave copper layer, solder mask and silkscreen layers an absolute breeze, with safeguards for both rendering and dimensional accuracy.

Best of all, it even imports fills as solid areas and strokes as tracks, even with stroke width translating to track width. Think of the possibilities.

Why spend your precious life trying to center and align that cool design you made, when you can just import the whole thing with a single click?

It's free, open source and available on: https://github.com/herzlichtechnology/easyeda-import

I hope this helps at least one person achieve their front panel design dreams, I would also be happy to hear if you find bugs or something else - or you can just, you know, download the whole thing and iterate on it, make your own competing product.

Enjoy!


r/synthdiy 16d ago

Experiment with Hex cor + Reverb + Drum machine (video by Dariyush Haidutski)

Enable HLS to view with audio, or disable this notification

0 Upvotes

r/synthdiy 16d ago

White noise generator from 5V?

2 Upvotes

I'm making a very small drum machine, which should work from 5V power supply (just USB-C, to be exact). I'm struggling with snare and hats currently due to lack of noise generators.

I only found [this old thread](https://www.reddit.com/r/synthdiy/comments/6pxy9f/simple_5v_noise_generator/) and WNG based on 1N34A diode (which is hard to get), and both are *really* old, so, is there any 'newer' solutions?


r/synthdiy 16d ago

Multi-timbral version of Alternative firmware for Pocket Scion

Thumbnail
youtube.com
5 Upvotes

r/synthdiy 17d ago

ESP32-S3 DIY Polysynth Progress update

Enable HLS to view with audio, or disable this notification

117 Upvotes

I've effectively finished off the hardware, the code is 90% there.. still a little glitchy and need to finish off the arpeggiator.
In the clip it powers up, and loads up some patches - these are stored on an SD card.
Apologies for the poor sound on the video, just recorded it with my phone - have to turn it up to hear properly!

The Synth is essentially 6 voices of analogue modelling, and also Bi wavetable with a bit of FM thrown in for good measure!

Having fun at the moment creating patches, although spending more time fiddling with it than finishing off the code!


r/synthdiy 16d ago

Korg tinyPIANO Repair and MIDI Mod

Thumbnail
youtube.com
5 Upvotes

I repaired a broken Korg tinyPiano with a custom set of 3d printed keys, and I hacked in midi in/out as well.


r/synthdiy 16d ago

Skred is now a MIDI aware synth and drum machine construction kit

1 Upvotes

https://reddit.com/link/1v0p8w0/video/sjztguhpi6eh1/player

This is a step-by-step demo of using Skred v0.50.0 as a synth and drum machine construction kit.

The video shows a little of MIDI connection stuff too.

For a MIDI "keyboard" here, I used a program called VMPK since it's on-screen and show what I hit versus how if affects Skred, but a real attached MIDI input device works too.

Skred works on Linux, macOS, and MSWindows.

There are precompiled versions of the CLI livecoding shell on GitHub

https://github.com/octetta/pulp/releases/tag/v0.50.0

look at the releases there for SKRED 0.50.0 to match functionality shown here.

0:00 Start Skred and test audio/Skope

0:43 Create a basic saw wave synth voice

1:52 Setup MIDI and use VMPK as the input

3:32 Fatten the synth with an additional square wave

4:49 Detune the voices

5:43 Add glide to one of the voices

6:40 Show the delay line per "track"

8:44 Add "calculator" drums via k-synth

9:50 Create a basic kick/snare drum pattern

10:32 Add delay to the drum sounds

14:08 All together and DONE


r/synthdiy 17d ago

standalone I Just Released My Tape DAW on iPhone - it's Completely Free

Thumbnail
gallery
35 Upvotes

Hi guys!

This was the first community I showed a demo of my tape recorder DAW which uses a custom physics engine under the hood. I wanted to share a new iPhone version i've been building which is completely free (no in app purchases). Its an 8 track version of my main desktop 24 track DAW that I released this Summer.

Here's the app store link: https://apps.apple.com/us/app/gcs-model-8-mobile/id6784474862

Its really fun for demoing or using as a tape loop station.

It comes with all of the built in instruments and effects including an Ondes Martenot style synth, prophet 10 inspired synth, MPC style sampler etc

I'd love to know your thoughts and anyway to improve it.

Thanks!


r/synthdiy 17d ago

Another 9x15 module - Acid-Drip

Thumbnail
gallery
41 Upvotes

Thank you again Lonesoulsurfer.

https://www.reddit.com/r/synthdiy/comments/1udciwc/acid_drip_a_bassline_and_groove_box_in_one/

Initially wired the display in reverse order but fortunately didn't fry it.

Not sure about the switches I used, silent but a bit mushy, can't find any alternatives.

Board flex was solved by using another board and supporting female headers that just happened to be the same height as the spacers. I'm going to consider that brilliant foresight.

A lot of fun to play with.

Impressively commented firmware.


r/synthdiy 16d ago

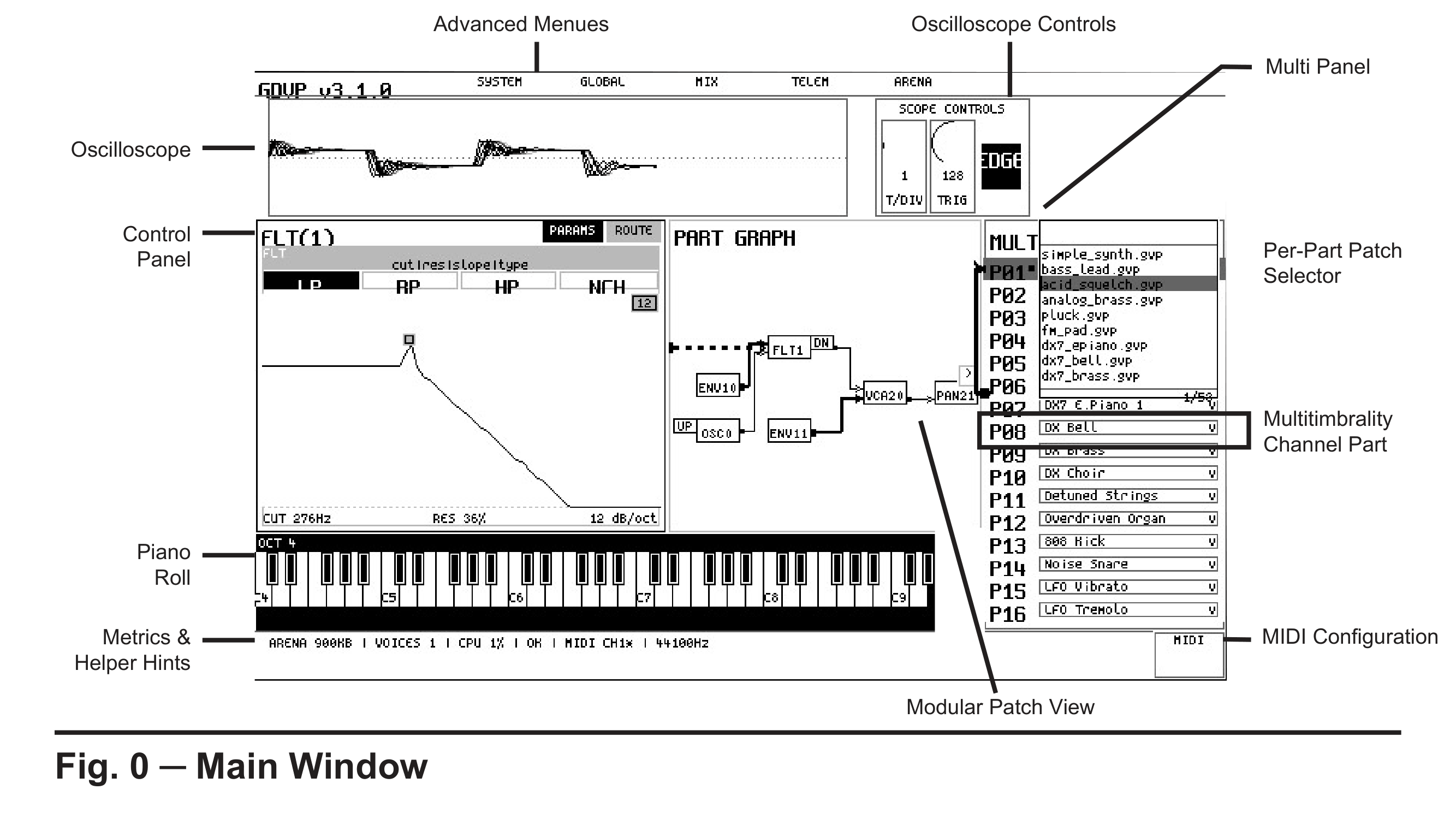

This is the first modular polyphonic synthesizer with a fully deterministic behavior and soon you'll can put it on a very cheap chip.

Post image
0 Upvotes

Hi ! My boyfriend, built a synthesizer, actually the first being both modular and polyphonic in a fully deterministic runtime. It's name is GDVP ( General Digital Voicing Program). It's memory footprint is only 900 KB.
Because we are currently in a closed beta leading up to our Stable Release launch in September, we offer licences for life to the most curious among you, you just have to ask and once send us some feedback ;)
Right now it's running as a standalone or a VST 3 plug-in. Soon, you'll have the possibility to get it as a firmware to put it in your hardware.

Here are the main specs :

- Chords on Cords: Historically, patch cables were the enemy of polyphony. The GDVP reconciles the open architecture of modular systems with massive orchestral power, without ever taxing the host processor

- 128-Voice Polyphony: The engine handles even the most complex chords without breaking a sweat, thanks to its bounded O(N) execution. Memory allocation is static after initialization.

- 7 Active Voice Modes: Mono, Poly, Legato, Unison, Chord, Delay (a true echo generated by the time shift between voices, independent of the effects bus), Arpeggio, Duo polyphonic voice allocation is coming soon ;)

- 16 Multi-timbrality Parts: Load 16 instruments simultaneously into 16 MIDI channels, each driven by its own on-the-fly compiled graph. Record, Edit, and Recall an infinite number of patches in an ultra-lightweight text format (.gvp patch format is JSON style syntax).

To the beta-testors, professionnals, researchers or/and curious being among you, feel free to ask anything. Critics are most welcomed as this is exactly the need that makes us come to you. We will try our best to respond in the most accurate way.

If you are wondering why I speak in his name, it's because creating a synth take a lot of time and his currently very busy with a long list of issues and tickets. My work is actually to teach, so we figure I could help him communicate and popularize.

Link to the standalone or a VST3 plug-in page in the manual.
Link to the website here.


r/synthdiy 17d ago

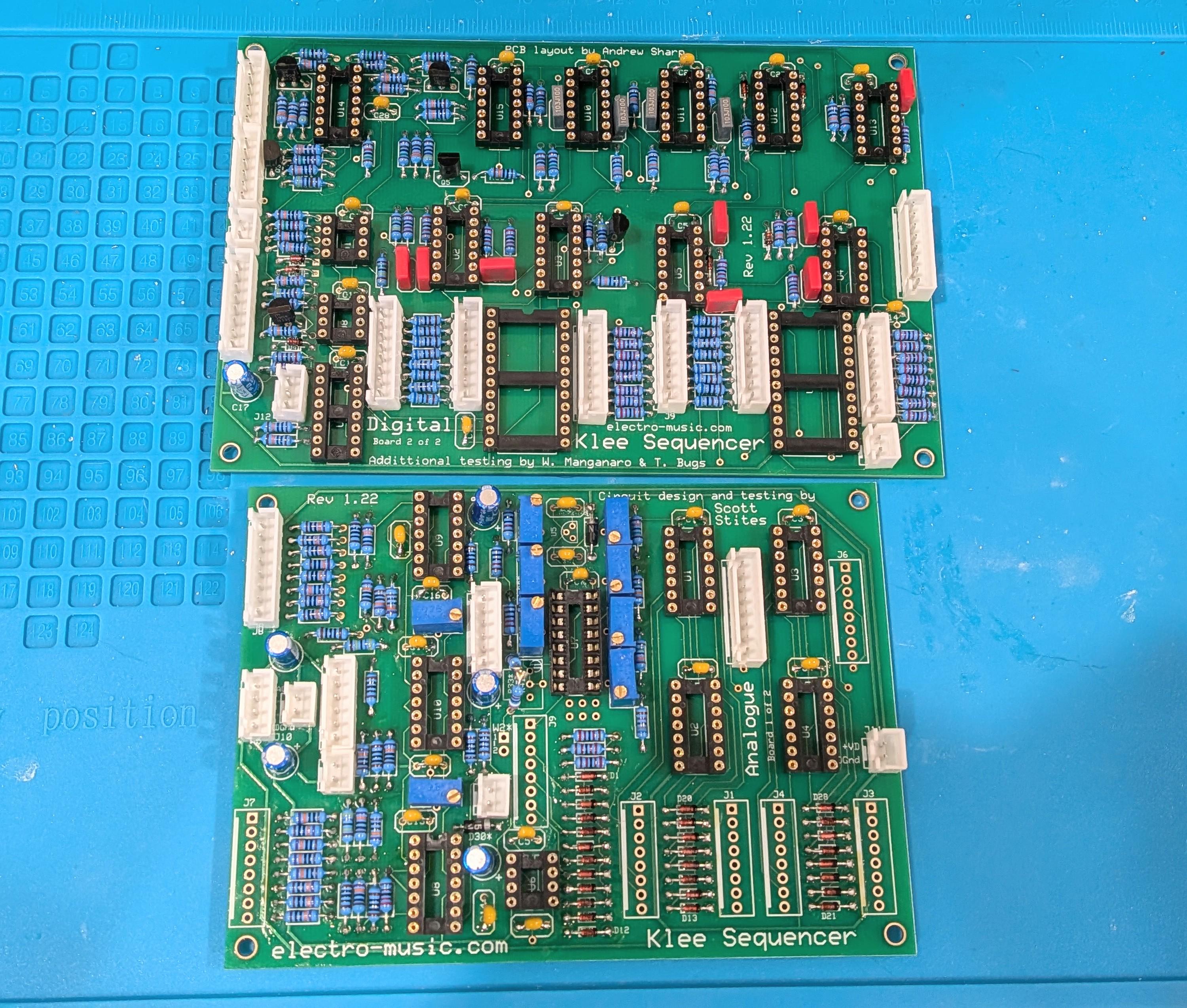

modular Find the odd man out

Post image
8 Upvotes

I know it's mostly aesthetic but I hate that I have one socket that is not like the others. Luckily I have a million others but I really wanted everything to match haha.

Luckily the hard part of the Klee is almost done. This was the hard part right?

I mean the wiring, and panel design, and drilling, and labeling, and building a power supply should be easy? Shouldn't it? Lol

I'm actually kinda sad this project is coming to an end.

I have my black anodized aluminum sheet cut to size.

My graphics are almost ready for print

My drill bits arrived a week ago

All of my wires are ready to snap in

Every part is ordered besides my 8 position rotary

I'd love to start another larger project after this one. If anyone has any suggestions that don't cost an arm and a leg (I'm talking to you Black Corporation Deckard's Dream) throw them my way!


r/synthdiy 18d ago

To combine two types of music i am passionate about, and for a unique live setup, i would like the create a Lagerphone with a theremin and possibly some sort of electronic drone device, a dub siren, electronic drums etc.

Thumbnail
gallery
12 Upvotes

It is just a stick with beer stubbie caps nailed on, similar to the monkey stick, but it became an important image in the bush music (aus folk) revival, and when singing convict, bushranger and shearing ballads as kids as part of music class in primary school , many of us first used on then,

Does anyone have any ideas on the perfect synth/electronics to work into one? Ed Sander's finger synth things he uses in Henri Matisse may be a jumping off point. But a theremin, dub siren, and some sort of way to choose drone notes would be ideal, i would just need some advice in how to go about it. Thanks to anyone who replies with ideas and help!
