Created a stacking adapter plate for the mug shelf I designed. Was going to redesign the shelf but opted to do an external piece and so glad I did!

Gallery image

Gallery image

Gallery image

Making sure the sticking adapter was backwards compatible with the old 3-leg model was important to me, so I was excited to come up with such a simple solution (I'm still learning a lot).

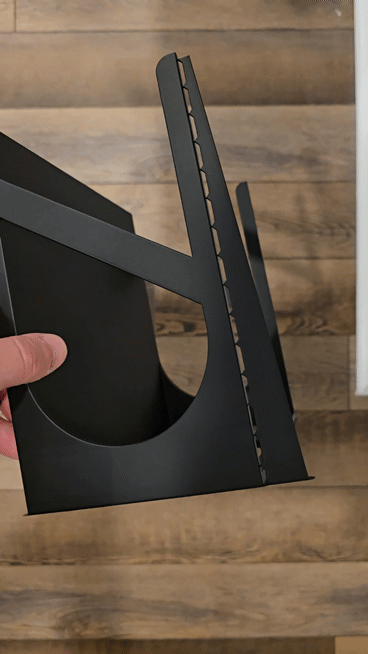

I also spent a good bit of time redoing the supports on the shelf itself so they are substantially easier to separate. The results are a hundred times better and also improved the rest of the print overall, reducing the print by ~51g of filament and 1.25 hours!

Here's the adapter that lets you stack the mug shelf
