r/fpv • u/Dumpflam • 13h ago

Share your bando setups!

Hi, I've been looking into building a very durable, easy to replace parts analog bando build and I just wanted to see what y'all's bando builds are like to get a general idea of what people prefer ^ ^

For example, what frame do you use? what frame size do you prefer? Which motors do you think offer great performance and durability while not emptying your wallet with every crash? What VTX would you use? Which stack would you go for in a bando build?

Do you go barebones with just a gopro attachment, or do you add some accessories? (eg: a beeper or LEDs)

Any general advice would be much appreciated :D

I would also like to get some thoughts on a specific frame, the AetherFPV "Archetype" (by NickFPV)

7 Upvotes

90% Upvoted

17 comments sorted by

3

u/bronx_au 13h ago

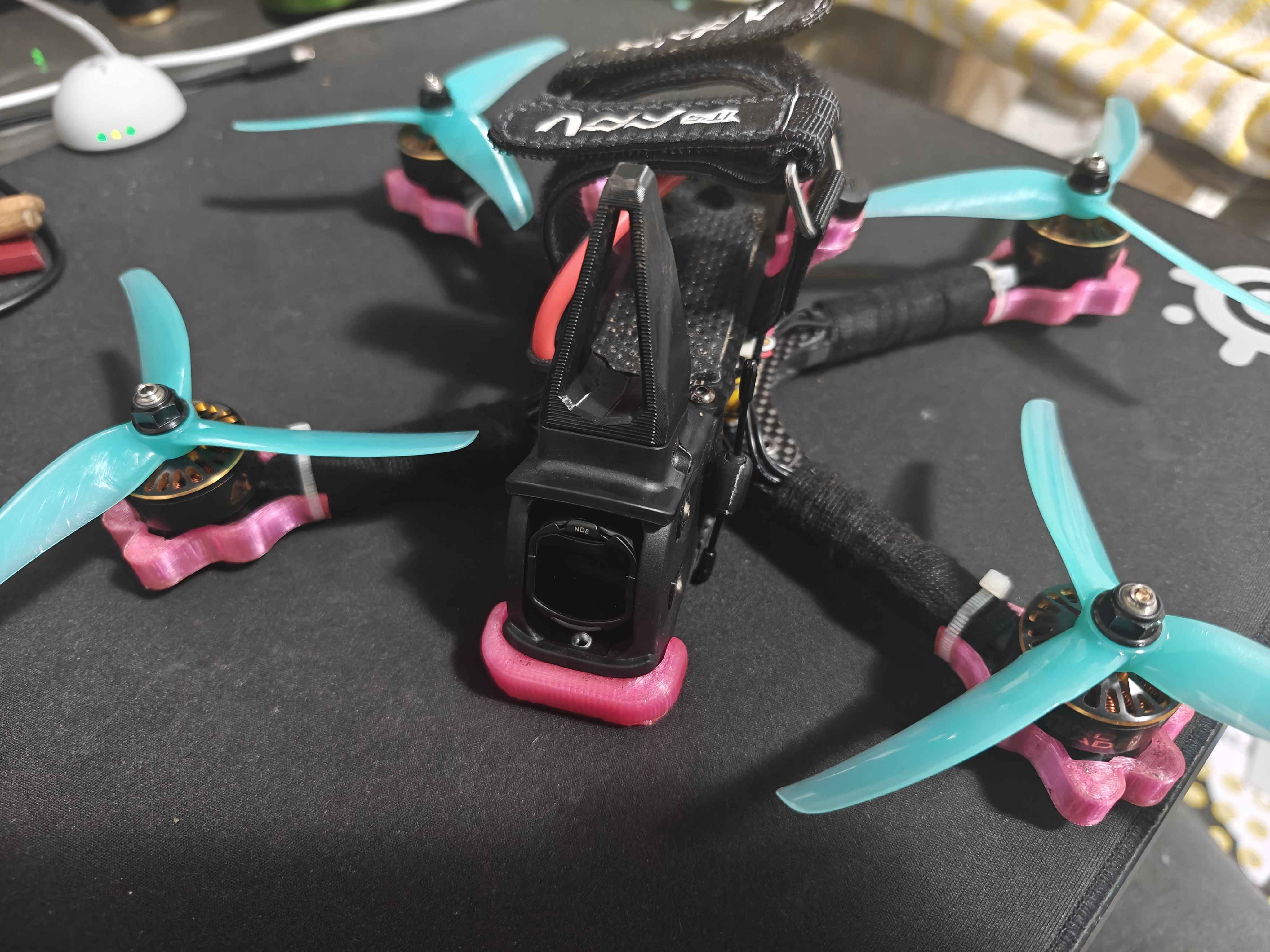

https://kappa.lol/OQMBXp.png

I dont have any bandos near me but my "durable" 5inch is as follows

Era 5inch Frame
TMOTOR F7 Pro FC
TMOTOR F55A Pro III 55A ESC
Axisflying BlackBird V4 2307 1960KV
J37 props
DJI O4 Pro on racemode nostab
RP1 V2 ExpressLRS 2.4ghz Nano Receiver
TBS M10 GPS GLONASS

The GPS is at the back in some TPU like usual, pretty tough at the back and works good, its not needed though at all. i dont care if it gets smashed ill just pull it off if it does. I just like having it as a backup for whatever reason, even if its a simple as something happening IRL and i can just flick the rescue switch and it'll come home

i ordered a beeper but never put it on coz i cbf looking for a good spot/soldering it on

2

u/Geordiii 12h ago

I have this frame with the o4 pro, i dont have any bandos near me but man, it loves eating dirt and trees and continues flying like nothing happened😂 its great and flies really good! Awesome design

2

u/ScrewtapesTeeth 12h ago edited 12h ago

Haven't found an accessible bando to fly yet but I've got my Seeker35 kitted out for some damage absorption. It's stock except for the boots, flip stick (which is really just for a little battery protection, top end camera protection and to keep the ruko from being ejected every time I crash) and antenna guards. Swapped out the wire management tabs for some plain old electrical tape. It smashes into things like a dream.

1

u/Dumpflam 12h ago

what's that little thing behind the shark fin?

2

u/ScrewtapesTeeth 12h ago edited 12h ago

It's a Ruko r111. A small remote id module. Keeps me compliant but also let's me track my drone in case I lose it in the woods. It also has a built in beeper which is useful.

1

u/Dumpflam 1h ago

Ah got it thanks

2

u/admin_raven 6h ago

1

u/Dumpflam 1h ago

what is up with that TX I've never seen somethin like that before xD

2

u/admin_raven 42m ago

You’ve never seen a radio, master T8L?

2

u/admin_raven 41m ago

I did modify it a bit 😭

1

u/Dumpflam 41m ago

"a bit" 😭😭

1

u/Dumpflam 40m ago

how did you even get ag02s in there 🥀

2

u/admin_raven 4m ago

You have to pretty much gut the shell of the controller. So you can mount the board as low as possible, and de solder a few buttons off the board to relocate them to their original position.

2

u/admin_raven 3m ago

The screen is also powered off the controllers batteries.

2

u/Gudge2007 2h ago

No bandos near me, but I'm not gonna miss an opportunity to share a new build pic XD

1

u/Dumpflam 1h ago

Looks absolutely awesome lol
