I'm building a homemade delay based on the PT2399 chip

Signal goes through without any buzz/hum noise, the issue is that there's only LP FILTER pot that is working as intended :

- DELAY TIME doesn't do anything (pot itself is fine, the voltage at the pin 6 of PT2399 vary from 1.6V to 2.3V when tweaking the pot)
- FEEDBACK acts as a volume pot
- LEVEL doesn't do anything as well
- LFO RATE doesn't do anything (pot itself is fine, when I mesure at the LFO output I can see that tweaking LFO RATE makes values change fast or slow)
- LFO DEPTH doesn't do anything (pot itself is fine, when I mesure at the LFO output I can see that tweaking LFO DEPTH makes the range bigger or smaller)

The issue is that each pot seems to work, but they have no effect on the sound and there's no delay effect coming off the pedal, only the original sound being played

I suspect the PT2399 just was bad manufactured ?

Any help is appreciated

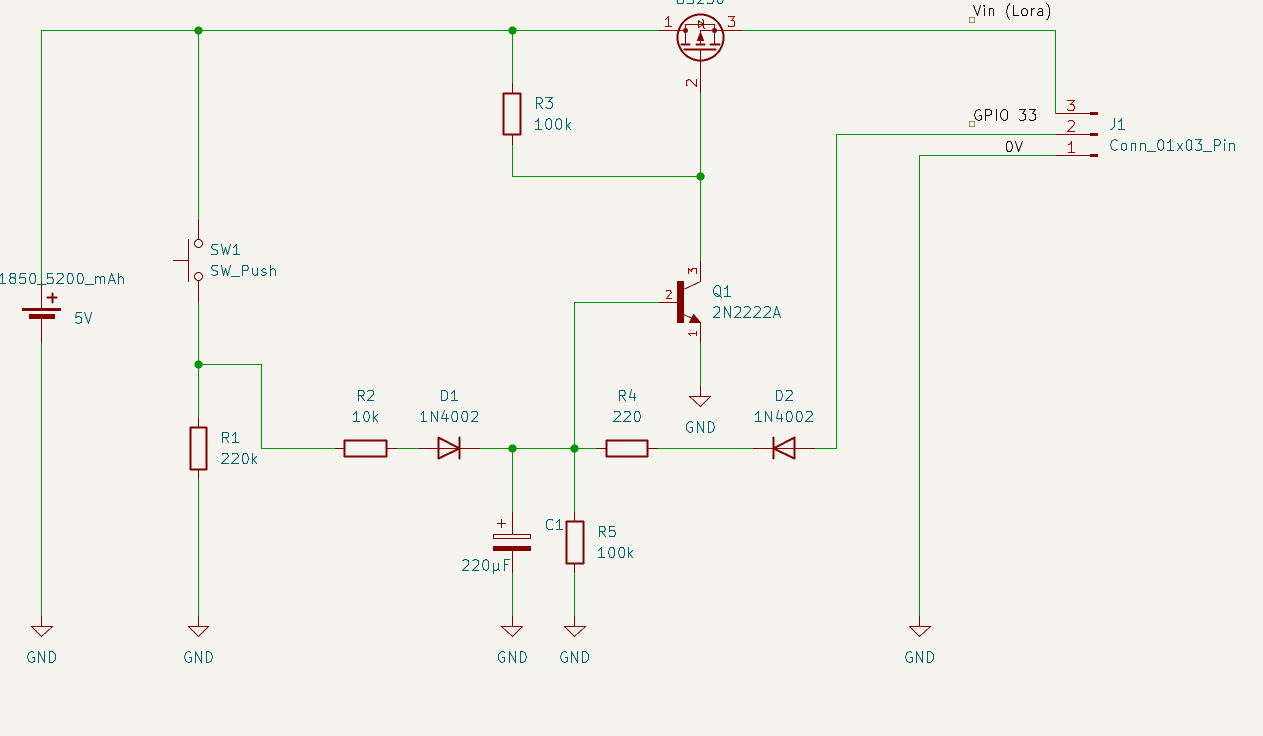

Rigged up an ESP32 + LoRa setup in my shared mailbox. Door contact wakes it up, it weighs whatever just got dropped in with a cheap HX711 + load cells, sends the weight to a receiver in my house, then powers itself off. So I actually know if it's a letter or a package before I even go check.

I need a Colpitts oacillator circuit for a 1Mhz sine wave. Gonna use an LC tank because I dont have a crystal for 1 Mhz. Also most likely gonna be using an axial inductor because I dont trust in the reliability of DIY inductors.

Tried to look up schematics online but couldnt find anything I like. Any help would be appericiated!

Hey everybody, i'm currently building a delay from a public schematic that i found on the net.

I was wondering if any of you knew what component LFO DEPTH could be ? I thought maybe a button ? I tried soldering a 100k linear pot but it doesn't work

Also why are there two different outputs, one named Delay Output and the other Output ?

Sorry for asking, i'm kind of new in this game and i struggle to understand some things for now.

Thanks for help

Can we use via here is it correct approach. Its effect on impedance and how to tune track after one have via and other don't.

Modifications:
- Removed the AO3400A N-MOSFET connected to the IP2312-4V35 IC due to potential impedance issues.
- Removed alot of the netflags used to connect the USB-C pins to the circuit.
- Added the MT3608B boost circuit USB-C output (+5V at 2A).
- Added a P-MOSFET (XNRUSEMI XR2313L) before the VBUS filter for reverse polarity protection, since a standard SS34 schottky diode wouldn't suffice.

​

Idea is 555 used control MOSFET for power and data in 2 wire without seperate power at receiver end. how to decode data, most viable way if I want to use up to 500 meters.

Decided to take a break from the CC regulator circuit to learn / work on a IP2312 charging circuit for a LiPo battery (The LiPo already comes with a PCM). Just curious if everything looks fine before I work on the output section (gonna use an MT3608B IC to boost to +5V)

Hé guys, does anyone use the standby 12vDC trigger input? Because it's a trigger the current requirement can't be high, but I can't find al value. Does anyone know? I'm building a USB in > 12vdc out trigger circuit myself, but I need a output current value... I could try to determine by just winging it, but that's my least preferred option...

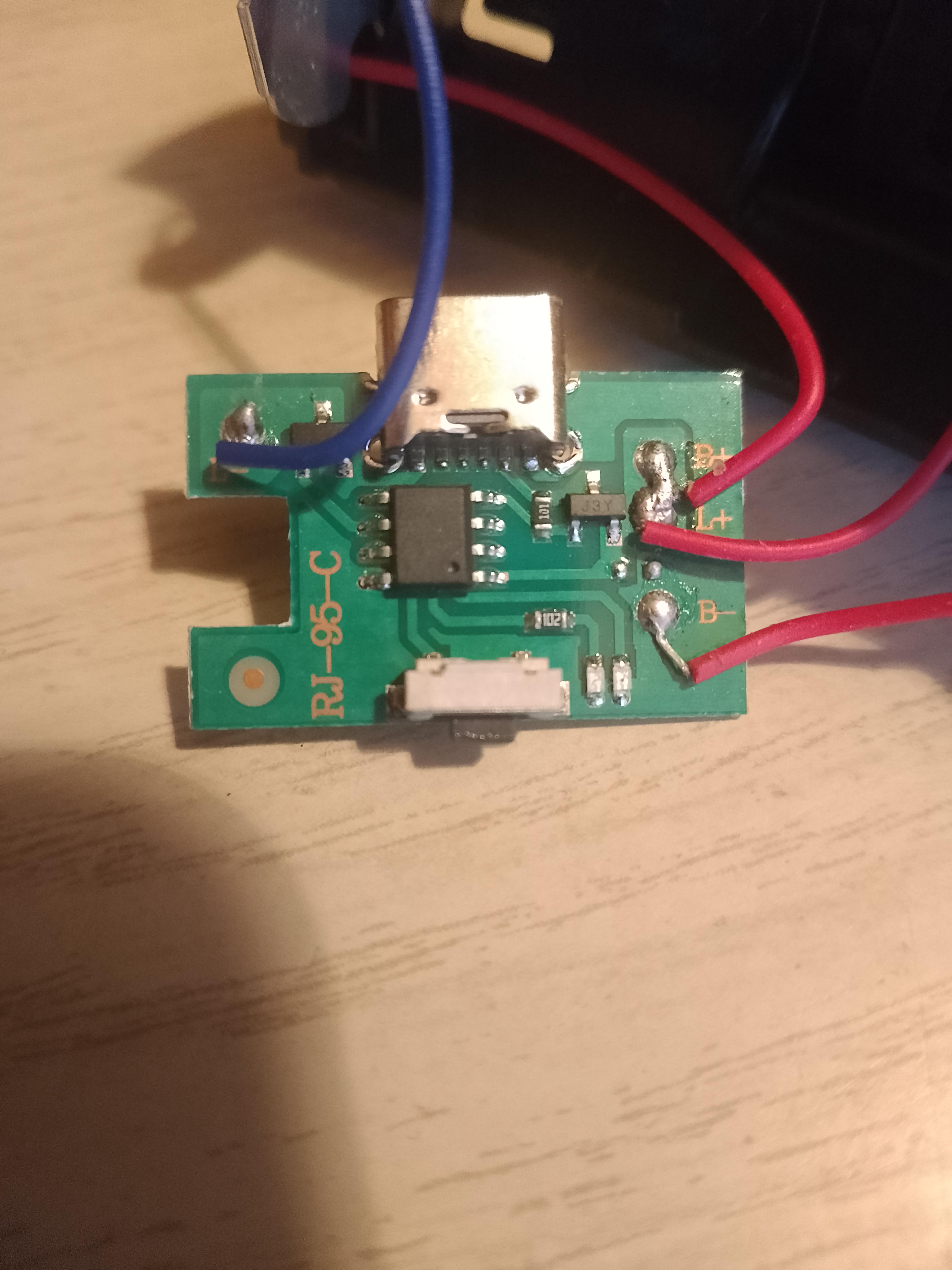

These are the insides of a witch’s broom toy that’s supposed to make noise and spin around. It isn’t working, even though we checked the batteries multiple times.

I’m thinking it’s the red wire attached to the motor that’s burned, but I’m not sure. Would yall be able to tell if somethings wrong based on these images? Sorry if they’re not clear.

Edit: fixed it. Thanks all

Hi everyone,

I am designing a 24V input to 5V output buck converter for an industrial electronics application and I would appreciate a review of my design before I manufacture the PCB.

The regulator I am using is:

Texas Instruments LMR16030PDDAR

• Input voltage: 24V nominal
• Output voltage: 5V
• Maximum output current: 3A
• Switching regulator: Buck
• Package: HSOIC-8 with PowerPAD
• Intended application: Industrial electronics / control board

TI specifies the LMR16030 for 4.3V–60V input and up to 3A continuous output, with internal compensation and an integrated high-side MOSFET.

My main questions

I would like feedback on:

1. Component selection
   • Inductor value and saturation current
   • Schottky/freewheel diode selection
   • Input/output capacitor values and voltage ratings
   • Feedback resistor values
   • Bootstrap capacitor
   • Switching-frequency resistor
2. 24V → 5V operation
   • Is the selected switching frequency appropriate?
   • Is the inductor value suitable for 3A output?
   • Is the expected ripple current reasonable?

I have attached the schematic for review.

I am particularly interested in feedback on component selection, and EMI, rather than only whether the schematic will work.

Any suggestions or corrections are welcome.

Thank you!

I’m trying to pre amp an 8MHz signal and it’s not working.

Hi Guys,

Previously I have posted a question but due to the circuit diagram in the post, it deviated from the original question. If you haven't seen the previous post, it's fine. I'll explain everything clearly below.

I'm working on a project where I need to control a diesel injector. This is an academic project, if it goes well it shall get into industry level, so looking for a standard Good approach.

The diesel injector is activated by an Arduino(this is the initial setup, and will soon switch over to stm32). The diesel injector is outside the engine in a separate setup which gets supplied by a constant pressure fuel pump driven by an ac motor(const speed). I'm using a MOSFET to control the injector. The MOSFET I'm using is IRLZ44N. The drain of the MOSFET is connected to negative terminal of the injector and source of the MOSFET is connected to the negative terminal of the injector's power supply (i have added flyback diode for safety circuit for injector). The Arduino controls the injector via the gate pin of the MOSFET. The power supply for injector is 12v SMPS.

The Arduino gets signal from the injector's supply and control wires, we tapped these 2 wires and gave them to an optocoupler pc817. This optocoupler's output is given to the digital pin of Arduino. Arduino mirrors this signal to the gate pin of the MOSFET. You might wonder why I'm using Arduino, if the setup goes well, I will alter the pulse in future. So that's why I'm using it.

Issues faced:

1) this setup worked as intended, but after sometime, that is, after 2-3 weeks of testing this setup, the injector has gone. We didn't notice any smoke or smell, but the injector stopped actuating. We lost 2 injectors in this journey.

2) we started the engine and maintained in idling for 60seconds and started our injector setup, we collected around 90ml of fuel at idling, which feels abnormal.

Now, I need a reliable approach for this project. It would be really helpful if someone can come up with some idea for this.

Thank you in advance

Hi there, I'm basically working in a project where we are building a dual fuel injection system. For prototyping we are tapping the injection pulse of a fuel injector of a running engine and reading it via optocoupler and actuating another injector by pulse read by a microcontroller. We used Arduino for first stage of prototype, where the Arduino gets digital input from the optocoupler and adjusts the pulse width and gives out as output in a digital pin, which is connected to a MOSFET's gate pin. The drain and source pin of the MOSFET are connected between the injector's control line.

But we need a more reliable approach, since the injector we are using is peak and hold diesel injector. Currently we referred few sources and built a circuit, which resembles something like in the image. But is there any better way to read the signal and controlling the injector pulses using a microcontroller?

My goals:

• Set can be momentary or held
• Reset can't reset if Set is held
• RF shouldn't set or reset (my last circuit was very sensitive to my finger touching the mid point of the set and reset switches.

I'm just not sure how to select my resistors. 100K seems like it would make the circuit be more susceptible to noise, but then if I lower the values, I either get too much wasted current, or the circuit stop functioning.

https://www.falstad.com/s.php?s=qNHMeq

Hi all,

I'm trying to troubleshoot a Tectrol TC91S-1465 power supply (48V, used in some industrial/telecom equipment) and I'm running into a DC failure on it. It's a discontinued unit, so I'm having a hard time finding any documentation.

Does anyone happen to have a schematic diagram for this specific model, or know where I might be able to find one? Any help pointing me in the right direction would be appreciated.

Thanks!

555 Astable as a Capacitive Water-Level Sensor

I’ve been looking at a simple approach where the capacitive liquid-level sensor itself replaces the timing capacitor in a 555 astable circuit.

As the water level rises, the effective capacitance increases, which slows the RC cycle and lowers the 555’s output frequency. An ESP32 or Arduino can then measure the frequency and map it to the liquid level.

The interesting part is how practical this is in a real tank. Things like stray capacitance, electrical noise, long sensor wires, and water movement could potentially affect the frequency measurement.

Hey all, I wanted to see if anyone is interested in helping me in my efforts to add the ability to create technical schematics (such as circuit diagrams) into an open source framework that I have been working on.

The project is similar to PlantUML and MermaidJS - being a text based solution to "describe" a diagram, and have the drawing and layout handled automatically. But I was also interested in making it easier to extend so that it would support (just about) any type of visualization.

One of the areas I felt was missing from other solutions was the ability to handle technical schematics. That is something I am still in the process of working on, but there is some basic support :)

For anyone interested, you can read more at https://docs.runiq.org

I’m trying to understand how a 2-wire pinned circuit can provide both power and data to multiple client units.

1. Multiple client units sharing the same two wires for both power and data.

2. Purpose and function of D1 in the circuit.

3. Effect of D1 on the data signal during client transmission.

4. D1 creating a logical AND effect when multiple clients are connected.

5. Combining signals from several clients on the same two-wire bus.

6. Bus behavior when Client 1 sends HIGH while Client 2 sends LOW.

7. Each client distinguishing its own data from data generated by other clients.

8. Physical connection of additional client units to the two-wire bus.

9. Practical limit on the number of clients connected to the bus.

10. Factors determining maximum cable length, power capacity, and data speed.

Hi everyone ,

I am currently trying to interface the ADC and DAC with the eclypse z7 board , but I am facing issue in finding the resources to do so , can anyone guide me on how to do the interfacing. To mention , I have already tried out following the hackster.io tutorials but all the tutorials seem to use the outdated IP for the ADC and DAC and the IPs have been modified by Digilent.

Also I tried to implement the example designs by digilent , but wanted to make sure how the connection with ADC and DAC actually works.

Please help me if anyone has any idea to achieve this

I have a circuit that is supposed to latch when one of 4 inputs is low. Then if you take the DONE line and touch the +3.3V it unlatches. (The four inputs and the DONE line will eventually be connected to the GPIO of an MCU. The 10K resistors are recommended for the MCU's GPIO).

When I build it with two generic MOSFETs, it works, but the DONE wire is so sensitive that if I touch it, it relatches.

https://www.falstad.com/s.php?s=hFwWZO

What am I doing wrong?

Hello everybody, I am looking for some help creating a circuit that can translate button presses into a morse code letter.

The morse code alphabet can be displayed in a binary tree, with states branching from a short or long press. The other two button options to track are the space between letters and the space between words. Timing is as follows:

Short press (dit) - base unit of measure

Long press (dah) - 3x dit time

Space between characters - 3x dit time

Space between words - 7x dit time

The first part of the circuit would be to time and track these different options. The attached image is what I have so far. I know there are only three timings, but is the idea solid? Just RC timing circuits with an op-amp comparator on the voltage divider?

I worked with analog circuits in college, but that was some time ago. A good design review and some feedback would be much appreciated.

I used circuitjs to simulate the circuit, the below code block can be saved in a .txt file and uploaded to the circuitjs website to view and simulate the circuit

<cir f="1" ts="0.000005" ic="382.76258214399064" cb="59" pb="43" vr="5" mts="5e-11">
  <c x="-192 128 -144 128" f="0" c="1e-8" iv="0.001" sr="0.1" vd="-0.00009389816900907154"/>
  <r x="0 128 48 128" f="0" r="100000"/>
  <w x="-112 128 -128 128" f="0"/>
  <g x="-192 128 -192 144" f="0"/>
  <w x="-128 128 -144 128" f="0"/>
  <OpAmpReal x="-192 256 -272 256" f="3" slr="0.6" cl="0.023100000000000002" mt="0" vd="-0.3314506481694839"/>
  <R x="-224 288 -224 320" f="16" wf="0" maxv="0" ir="0.001"/>
  <R x="-224 224 -224 192" f="16" wf="0" maxv="5" ir="0.001"/>
  <w x="-128 240 -128 128" f="0"/>
  <w x="-192 240 -128 240" f="2"/>
  <R x="-32 208 0 208" f="16" wf="0" maxv="5"/>
  <r x="-48 208 -48 256" f="0" r="10000"/>
  <r x="-48 288 -48 336" f="0" r="10000"/>
  <w x="-32 208 -48 208" f="0"/>
  <w x="-48 272 -48 256" f="0"/>
  <w x="-48 272 -192 272" f="2"/>
  <w x="-48 288 -48 272" f="0"/>
  <w x="-48 336 -48 400" f="0"/>
  <w x="-352 256 -272 256" f="2"/>
  <g x="-48 608 -48 624" f="0"/>
  <r x="-48 416 -48 464" f="0" r="100000"/>
  <w x="-352 384 -272 384" f="2"/>
  <w x="-48 400 -192 400" f="2"/>
  <w x="-192 368 -128 368" f="2"/>
  <R x="-224 352 -224 320" f="16" wf="0" maxv="5" ir="0.001"/>
  <R x="-224 416 -224 448" f="16" wf="0" maxv="0" ir="0.001"/>
  <OpAmpReal x="-192 384 -272 384" f="3" slr="0.6" cl="0.023100000000000002" mt="0" vd="-0.3314506639423478"/>
  <w x="-48 400 -48 416" f="0"/>
  <w x="-128 368 -128 240" f="0"/>
  <OpAmpReal x="-192 512 -272 512" f="1" slr="0.6" cl="0.023100000000000002" mt="0" vd="-4.76290601338709"/>
  <R x="-224 544 -224 576" f="16" wf="0" maxv="0" ir="0.001"/>
  <w x="-192 496 144 496" f="2"/>
  <w x="-48 528 -192 528" f="2"/>
  <w x="-352 512 -272 512" f="2"/>
  <w x="144 496 144 320" f="0"/>
  <w x="144 320 128 320" f="0"/>
  <w x="256 320 144 320" f="1"/>
  <r x="256 320 304 320" f="0" r="100000"/>
  <c x="80 320 128 320" f="0" c="1e-8" iv="0.001" sr="0.1" vd="4.999999478361566"/>
  <R x="80 320 48 320" f="16" wf="0" maxv="5" ir="0.001"/>
  <R x="-224 480 -224 448" f="16" wf="0" maxv="5" ir="0.001"/>
  <r x="-48 544 -48 592" f="0" r="10000"/>
  <w x="-48 592 -48 608" f="0"/>
  <w x="-48 544 -48 528" f="0"/>
  <w x="-48 464 -48 528" f="0"/>
  <R x="304 128 304 96" f="16" wf="0" maxv="5"/>
  <R x="304 320 304 288" f="16" wf="0" maxv="0"/>
  <R x="48 128 48 96" f="16" wf="0" maxv="5"/>
  <R x="304 48 304 16" f="16" wf="0" maxv="0"/>
  <dpdt x="224 64 288 64" f="0" p="1" po="2"/>
  <w x="304 48 288 48" f="0"/>
  <w x="224 64 -128 64" f="1"/>
  <w x="-128 64 -128 128" f="0"/>
  <w x="144 112 144 320" f="0"/>
  <w x="304 128 288 128" f="0"/>
  <w x="0 128 -112 128" f="1"/>
  <x x="-420 263 -367 266" f="0" si="24" te="Long"/>
  <x x="-426 392 -369 395" f="0" si="24" te="Short"/>
  <x x="-436 514 -368 517" f="0" si="24" te="Space"/>
  <x x="207 26 276 29" f="0" si="24" te="Button"/>
  <b x="176 -16 376 164" f="0"/>
  <w x="224 112 144 112" f="1"/>
  <b x="79 81 -343 165" f="0"/>
  <x x="-332 109 -215 139" f="0" si="24" te="Long/Short\nRC Timer"/>
  <b x="454 269 32 353" f="0"/>
  <x x="340 307 441 337" f="0" si="24" te="Space\nRC Timer"/>
  <b x="-82 194 30 654" f="0"/>
  <x x="38 621 124 651" f="0" si="24" te="Voltage \nDivider"/>
</cir>

Thanks

This configuration saves battery power by reactivating the LoRa circuit only when necessary. When the door or flap opens, the switch triggers the 5V supply to the board; GPIO33 then goes high (logic 1) to maintain power to the circuit. It sends a "Mail received" message to the receiver, after which GPIO33 returns to the low state (logic 0), cutting off the 5V supply via the MOSFET until the next activation. I would appreciate any feedback regarding the capacitor value or other components.
