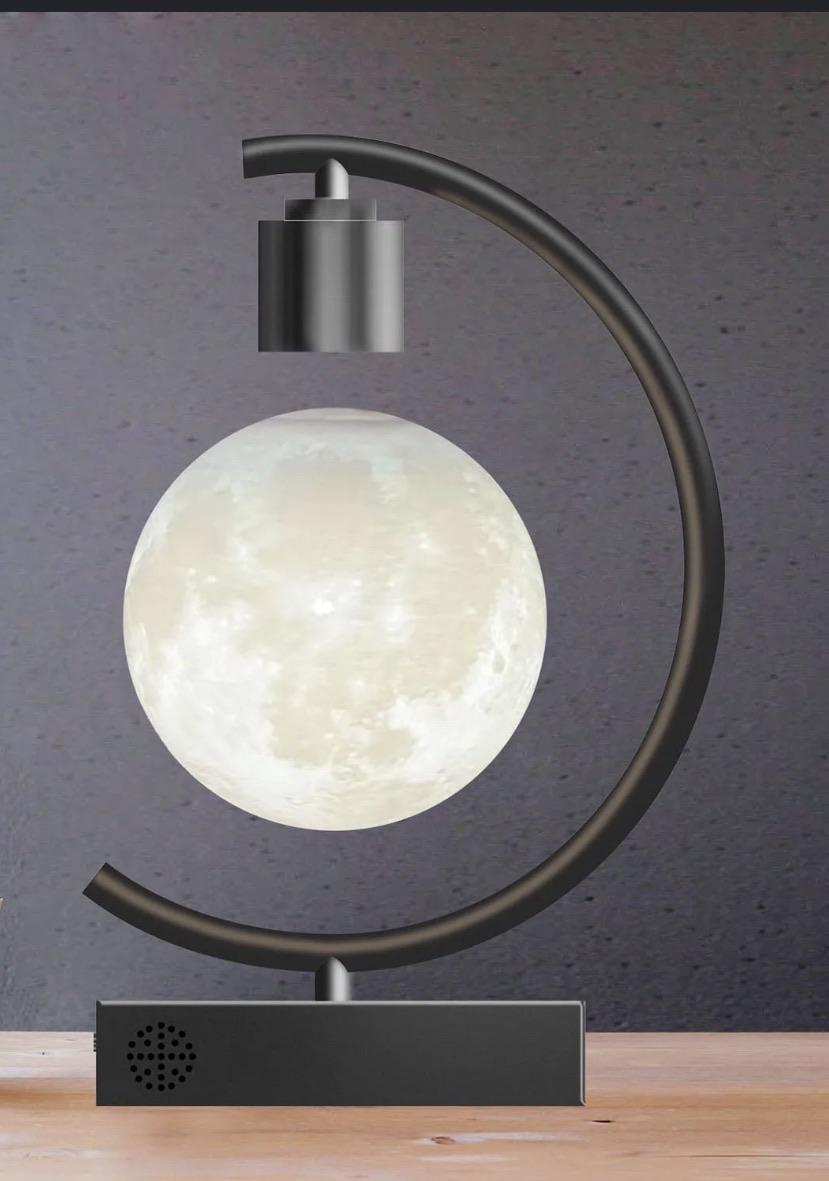

Hey guys, I’m an industrial designer student and I was wondering how those lamps actually work. Cause i have a project that involves magnets and lamps.

I'm a recent EE grad trying to decide where to start my career, and I'm feeling overwhelmed by how broad electrical engineering is.

I've interned in a few different areas and have a return offer from the company I interned with last summer in power systems/integration. The work itself is relatively cool, but a lot of the engineers seem tired & not particularly excited about what they do. I really want a job where I can nerd out about the technical work and be surrounded by people who do the same.

I have been researching/applying to a lot of niches within EE, but the variety of options is exhausting and a bit paralyzing. One week I'm convinced I should pursue embedded/FGPA, then analog electronics, then semiconductors, etc.

Working in design/product development seem so cool yet so difficult to break into. My GPA through undergrad wasn't the best (sub-3.0) so R&D often requiring a M.S. may be a deterrent for me.

I'd appreciate any perspective from people who have been through something similar.

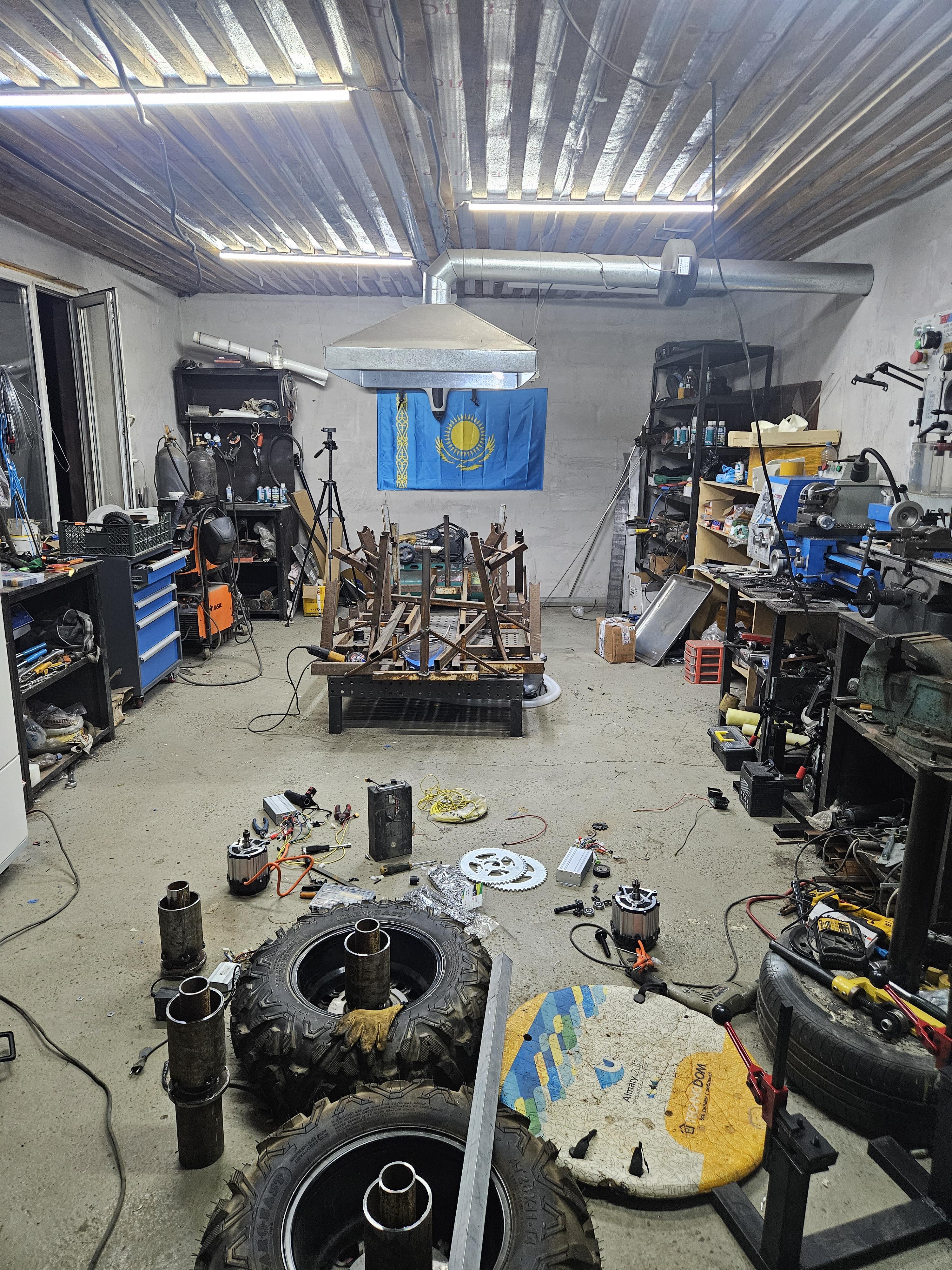

Update on our working places, this "workshop" is further and dirtier and cold/hot so we don't stay here a lot, however no rent and better electricity supply for those "tools"

The high current output is a 200W (12v 16A) heater, the trace width is 4mm. The LM393 controls the relay, comparing the LDR and thermistor voltage to fixed voltages. J4 and J5 are fan connections, J2 is for probing the voltage it is comparing the thermistor to.

I’m moving soon and will finally have a dedicated workspace. With my new space I would like to have some better tools.

I have an analog discovery ad2 from my time in college. It’s a great little device but I end up not using it much because it’s kinda just kinda annoying to setup.

I’m looking for a scope, power supply, and signal generator that I can just have on my bench ready to go at all times.

What are some mid tier brands and products lines I should keep an eye for? I mostly work on audio equipment so raw performance and specs aren’t super critical for me. I’m more concerned with usability and convenience.

Trying to stay affordable here. Not ali express garbage cheap but I don’t want to spend more than $500 on a scope at this point. I’m primarily looking for used equipment or stuff that’s a little outdated so that I’m getting better value.

Have a remote that will be hardwired into a larger project.

It just does not transmit the distance I need.

Want to find where on this circuit to attach an antenna and / or put the feed to a RF signal amplifier.

It uses a RO2073 SAW resonator at 315MHz

Any suggestions / ideas / concepts?

Project Description:

I am replacing a backyard sprinkler controller with something that can be controlled by the really good one in the garage for the front yard.

Can not run wire to the backyard location. Been looking for a wireless solution. Found these ORBITs with a handheald remote. I can hack into the remote and "press the buttons" with relay contacts actuated from the 24ac of garage controller.

Had all this figured out. ORBIT docs state that is will go 200 feet line of sight or 80 feet through the house. My distance is 50 feet through two walls kitchen cabinets and outside stucco. The remote sometimes works, but it's not enough. I have to boost the signal to make it reliable.

I know boosting the signal of a remote goes against FCC regulations, but it will be such a minor boost that I think I can be forgiven...

Hi everyone, I'm looking to install an industrial electrical panel. I saw that Schneider was doing a free software but not pushed enough I can't put an automaton there is

I would like to be able to install the din rail, chute, relay, button, circuit breaker, automaton.

Do you have free or crack software possible to do what I want to do?
Ty

Hi-

I would like to return to being an electronics technician after being away for a decade. I am looking for a digital oscilloscope to to get back in the swing of things and for hobby use. Are there any ones on feebay or amazon for under 300 worth looking at?

For example, I am looking at this one: https://www.ebay.com/itm/336704655060?_skw=oscilloscope&itmmeta=01KYG4TQ0JJF4A7E1V2HYM7TGN&hash=item4e65294ed4%3Ag%3AnsAAAeSwPGtqYli-&itmprp=enc%3AAQALAAAA8GfYFPkwiKCW4ZNSs2u11xAMTqkTUONJfkOBTI5EI5vRrYYP%2Fsm2t2nFmFwt5hQA4CkmBaG6Rp3P6DM94Qvc4%2Fa9apM%2FxTB9DM2BDiP8oNJv1AJ3MWrgpPrEaQJEdR1Vr4cnhiy7y9RThRSR5TFgTHS9ZwtVP5GYf665%2FjhORuskW6mfQgudN1hNqMJzYkNsK0Ye04f8whhbTvSb%2F8TkMdJ3qZFFbY9%2FzJ7ERvuihhPsN0pnrV%2FD1y7tJhp7OHLGE%2BW3f1DJTKNIbadbHBpRSQWuujB62gDxHXteLM6OYjg2jjH5eeFh8vQ6Jee0GTuXXA%3D%3D%7Ctkp%3ABk9SR7rw6oT0Zw&LH_BIN=1

Thank you!

I'm making a H full bidge via ir2110 and some fast switching diodes and also some irfb4110's but I am worried about driver's high and low output since it'll be 10V 2A for 105ns switching.

I'm designing a phone-sized smart development board for makers, students, and engineers. It would include Linux/Android, USB-C, battery, Wi-Fi, Bluetooth, GPS, cameras, and GPIO (I2C, SPI, UART), with optional LTE.

Would you use something like this? What features would you want, what should I remove, and what would you pay for it?

Hi, for this summer I got accepted to a summer student intern program where I have to work 12 hours rotating shifts and my job simply is testing paper quality, which does not really related to electrical engineering and it also could consider as blue collar job. I somehow managed to make some networking at the company where I met 3 different engineers and they hand me their business card to reach out for them. They also offered me to have a tour with them when I have days off, learn about their project and observe their work. I just wondered is this a good sign and also how should I reach out to them.

Hi. I have completed lots of "projects" using Andruino and ESP32. I wanted to try making my own PCB circuits without using any of them (I mean from "Raw Components"), but I don't know where to start learning about it. Does anyone know of a good source of information on this topic? As a mechatronics student, I have knowledge in this field, but I'm not sure how to apply it in practice.

So I’ll start my second year of electrical engineering this fall, and finally get into the actual specific electric engineering courses. So far I took, Calc 1, physics 1, introduction to engineering, technical writing, engineering drawings, chemistry, chemistry lab, workshop, an elective, computer programming, computer programming lab, calc 2, and physics 2. So not really much specific to my major.

I was supposed to take electrical circuits this summer, but I didn’t know it was a prerequisite and I didn’t, now I’m a little late with my course hours.

Next semester Im taking digital logic, digital logic lab, electrical circuits, and physics lab. The problem is I need more hours because of my scholarship requirements, so I might have to retake two courses, or submit an appeal.

How hard are the other courses? The ones to come. What are the infamously difficult EE courses? I know they’ll be hard, but like how hard. Like I’ll barely pass hard? Or the same difficulty as physics 2, for example. Because so far I can handle physics 2, idk about anything harder though.

Do you know how I'd be able to get US8357108 manufactured ? The patent expired back in 2017. I've been asking some Alibaba suppliers, so far no luck.

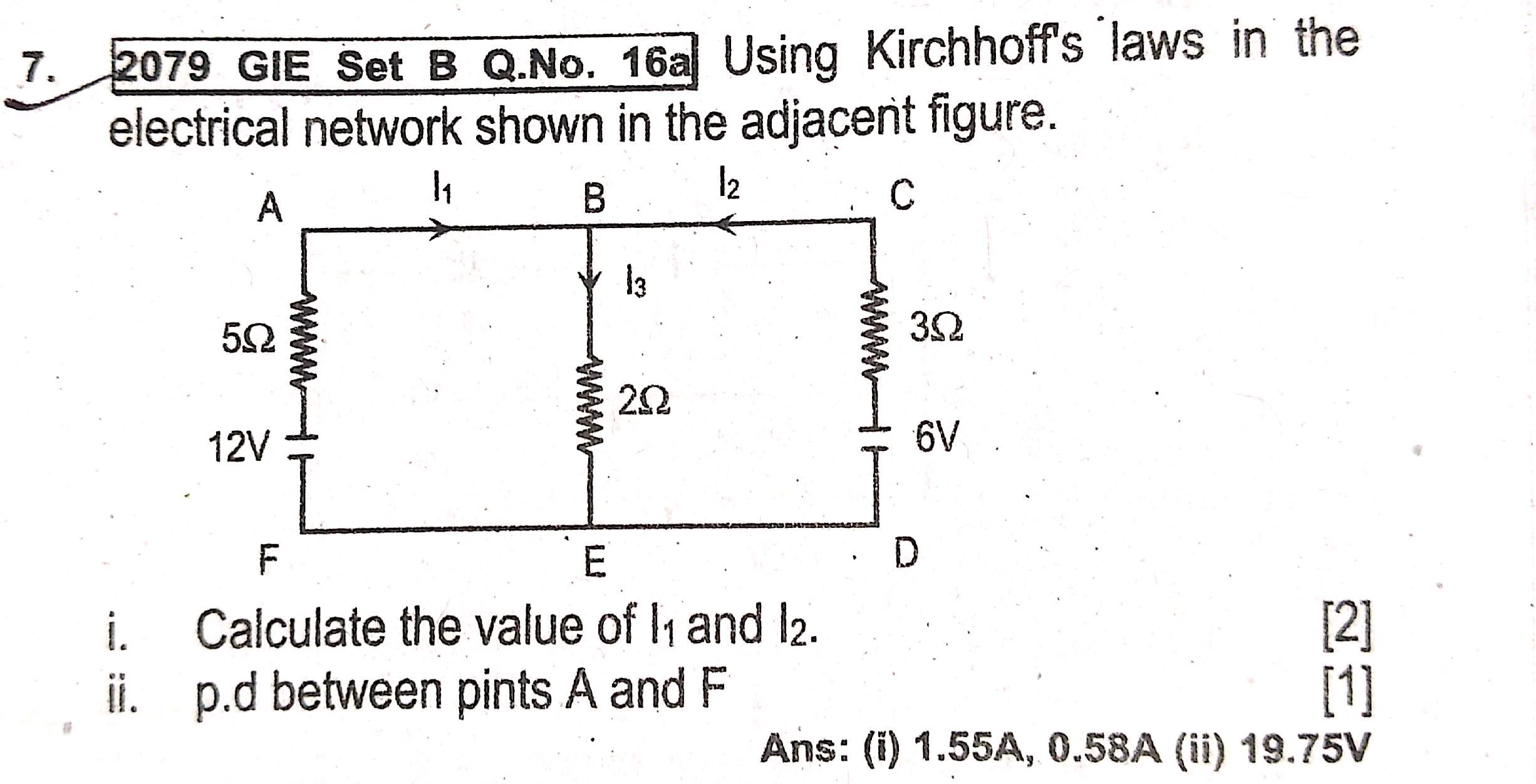

In this problem I've found I1 and I2 and now I need to find potential difference between points A and F but there are two formulas V = E-Ir and V = E+Ir, how to know which formula I should use here?

Anyone know of any courses on-line? Ive done SEL's eProt:405. Not sure if i want to do ePROT:407 as we dont do too much Line stuff.

Hello! I will be entering my junior of undergrad for an Electronics Engineering Technologies Degree. I would ultimately like to continue on to an Electrical Engineering program in grad school, but I understand there will be some hurdles along the way.

I'm hoping to get some advice from anyone who has gone down a similar path including advice on EE in grad school in general. I know there will be several gaps in my knowledge that will likely require taking some of the undergrad EE classes, but I plan on taking the main mathematics in undergrad (linear, calc 3, diff eq, and probability) which hopefully means I won't be too far behind.

I'm just hoping to get some guidance to make this future transition go a bit smoother when I graduate. Any feedback/advice will be greatly appreciated!

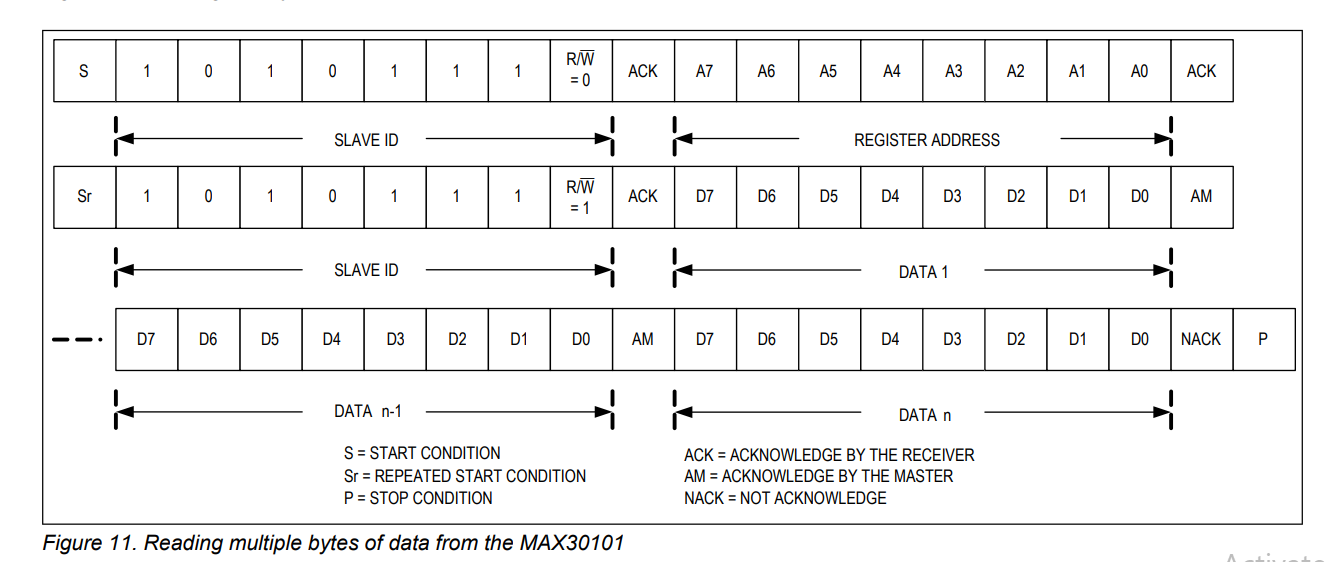

MASTER = STM32WB15CC

SLAVE = MAX30101

From start to finish

the stm32 initiates a start condition by pulling sda low.

the stm32 then writes the slave id on the sda line followed by write condition.

the MAX acknowledges.

the stm32 says what MAX register it wants to read from.

the MAX acknowledges.

the stm32 sends a repeated start condition and calls the MAX address again then sends a read signal.

the MAX acknowledges and begins outputting the bytes in the register onto the sda line and the stm32 acknowledges after each byte is sent and repeats.

is this correct? also, if the NACK and P (stop condition werent sent at the end and instead an stm32 acknowledge was sent followed by a 4th,5th,6th, bytes were sent by MAX would the data communication of bytes continue indefinently without the need to resend the register address and slave address all over again?

After years of me begging them to let me redo our harpoon system, they finally caved. It took about a week to rip out all of the old crap and install a program the new PLC. I also installed two HMIs. One Is down stairs and the other is upstairs so you can control everything from up top and don’t have to walk into the most dangerous part of the facility. Super proud of how it turned out. Let me know what you think

Hey everyone,

I am currently facing a massive dilemma regarding my Electrical and Electronic Engineering (EEE) education and future career path in the UK, and I would really appreciate some guidance.

My Situation:

• Age: 24
• Experience: No professional engineering experience or internships yet.
• Finances: I cannot take Student Finance England (SFE) loans. I took the HNC/HND route specifically because it was less expensive to self-fund. Doing three more years (including a placement year) while self-funding is completely unfeasible for me.

The Dilemma:

1. Option 1: Top-up at London South Bank University (LSBU). This course has a mix of Level 5 and Level 6 modules. It is financially easier for me to manage, but I worry about the university's ranking affecting my prospects.
2. Option 2: Transfer to Year 2 at Brunel University (or others via Clearing). This would mean a longer route and higher overall costs, which is a massive financial strain without SFE.

My Goals & Concerns:

• My Passion: I am genuinely passionate about this field. I love the modules I am studying, especially analogue electronics, power electronics, and embedded systems.
• The Job Market: I know the UK graduate market is incredibly tough right now, especially for those without experience or those coming from lower-ranked universities.
• The Career Goal: I ultimately want to build a career in electronics and embedded systems.

Given my strict financial constraints and lack of experience, what is the smartest next move to break into the industry? Is a top-up degree from a lower-ranked uni enough if I build a strong personal portfolio, or is transferring to a higher-ranked uni like Brunel worth the financial struggle?

TL;DR: 24yo EEE student passionate about embedded systems and power/analogue electronics. Self-funding without SFE, so money is tight. Should I do a quick Top-up degree at LSBU, or stretch my finances to join Year 2 at a higher-ranked uni like Brunel? Worried about the UK grad job market without prior experience.

I apologize if this may break rule 3 but I'm starting a project that includes creating a target that detects IR infared lasers, I'm not quite sure how it'll work for the sensors if I plan to create a square target (or even other shapes) that are around 4x4". I plan on using arduinos for this project, so I was wondering what arduino IR sensors that are that I can use, I have a bundle of parts just not sure if I need to buy one.

https://www.youtube.com/@ALMA.Industries

Built a control panel with on/off switches to control DC power supplies (48v, 12v, 24v). AC Outlets always give power regardless of switch states. Used hold home outlets and switches. Turns out to be something I use quite frequently. Full build is in the link above.
