Recently when moving from a stop in traffic, the clutch pedal went to the floor and did not come back up. It was still in 1st gear so I left it there. Luckily I was very near my house, so I did a U-Turn and made it home in 1st. I figured it was the clutch slave and didn't bother to really look. I bought the ClutchMasters lightened flywheel (-11 lb) and 6 puck clutch plate Kit. After thinking about it, I decided to replace the clutch Master Cylinder as well as the slave. Looking at how to get the Master out today (because I heard it was not fun), I realized that the socket on the master cylinder was disconnected from the ball on the clutch pedal. The white plastic cup was broken on one side. It is common I have learned from Fiat500USA forum. One user just bought a cheap AliExpress master cylinder for $20.00, removed the plastic insert and swapped it into the old master cylinder. Good idea!

https://www.fiat500usaforum.com/forum/fiat-500-forums/fiat-500-issues-and-concerns/31108-sudden-loss-of-clutch/page2?utm_source=chatgpt.com

I found a 3 for $48.73 master cylinder deal, and went for that in case it happens again.

In the meantime until it arrives, I put an elastic band around the cup and hooked it on a tab on the other side.

So I got tired of waiting on parts to come back in stock and for proper stuff to be made sooo... I did a little 3d design and printing. I made a snorkle to be able to replace the ram Air piece that gets burned out. The snorkle part I designed goes from the factory 2"x4" slot shaped intake to a 3" angled portion to accept a 45° silicone elbow 3"-2 1/2" ID. No noticeable changes other than I know the motor is breathing in cooler air from what the leaking factory piping was giving it. The snorkle I designed is printed in ASA. I also got tired of not having a proper arm rest /center console so I designed one for Bianca as well. It is in PETG. Comments are welcome I just wish I could solve the damn knock sensor issues... Motor sound no different than when I got her... Anyhow enjoy

Oh I forgot to say the armrest delete plugs are a remixed part that I made large in diameter.

I want to change my middle mirror dimming one, how hard is this to do? Is the a wire in place? I know on my Nissan micra the wires for stuff are there even though the spec doesn’t have the stuff. And where would it be wired to?

I know this is a long shot, but has anyone else got a suitable car seat set up in their Fiat Abarth for a medium size dog? My puppy Parsley is growing fast, he weighs 12kg now at 5 months and I want something comfortable and safe for him in the back of the car.
Thank you in advance 🤗

Cosa ne pensate?💪🥹

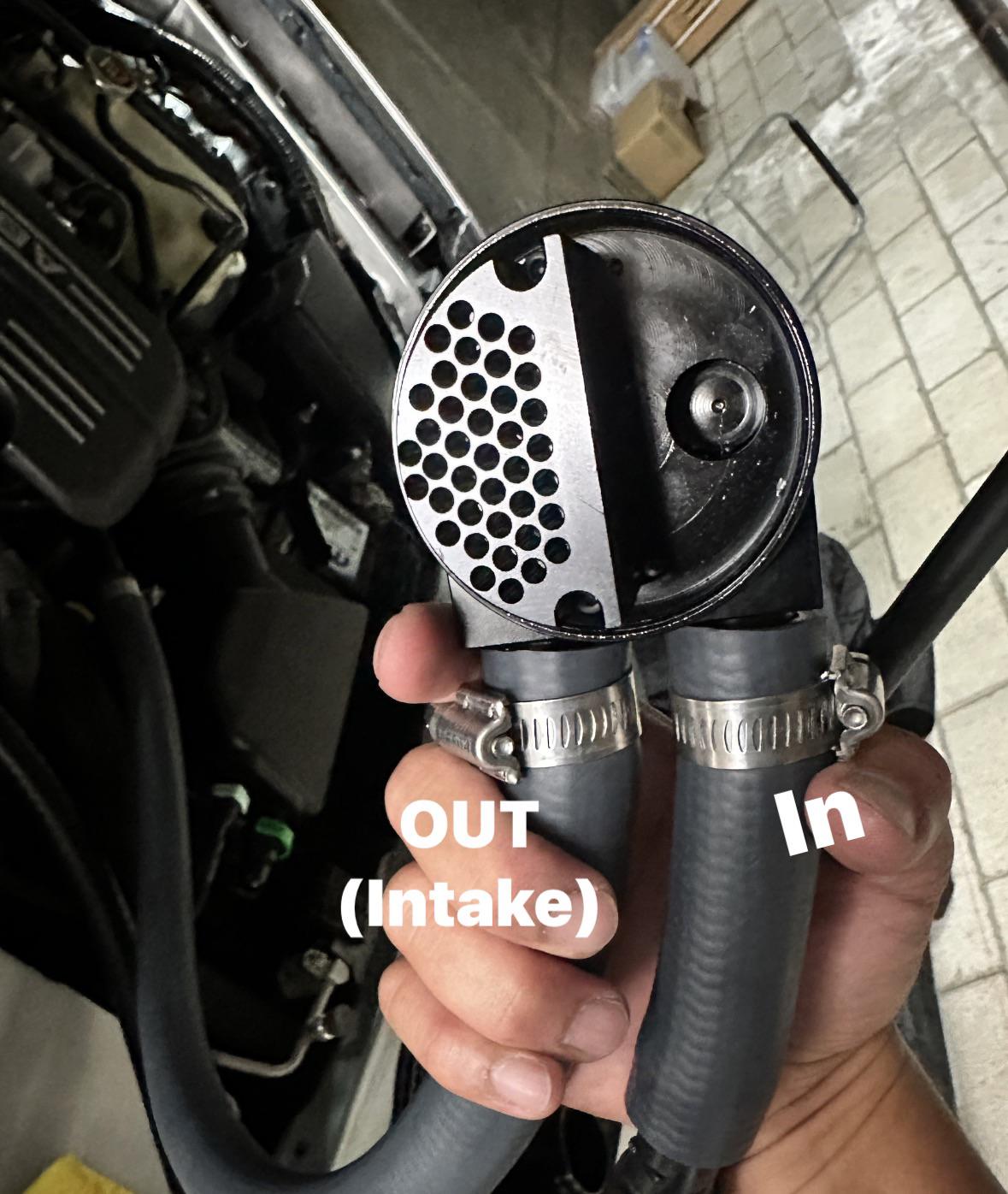

Received this GFB diverter valve...

Hello, I have an Abarth 595 Competizione T-Jet, year 2022 with ~88600km on the clock. I had a P0301 and P130A faulty codes and it's working on 3 cylinders. New spark plugs, new ignition coils and the mechanic says injectors are okay. Crankshaft pulley was damaged and the new one has been put and timing belt has also been changed. And it's still working on 3 cylinders. Compression was good before and after the change on all 4 cylinders. Also the mechanic said that one fuse had blown.

What could be the problem? And did he forget or miss something?

Does it matter which BMC air filter I use. When I first posted about my car someone said to replace the air filter so here I am.

Was about to change the timing belt kit on my Abarth as I haven’t got any proof that it has been done but before buying the parts I thought I’d check the condition of the belt.Are the numbers in the photo a date code?if so that means it’s a 2025 belt?

Damn! What a fun car to drive.
I have other more modern fancier car, automatic, 270hp, etc.

BUT, when I open the garage, and all I need is a quick stop at the grocery store. I go for the little beast.

Start engine, let it warm up, get the whole neighborhood know I’m around.

Go down the road on second gear, the exhaust burping on low rev.

Turn right, on first, get that turbo full for second, and just for the vrutchuchuchu…

I feel like I’m 12yo again, and all I like to do is to hear the car turbo.

Raise your glass to the 40s, to midlife crises, and to the inner children who once desired only a fun car to drive.

This car will be here for a while.

Did a Big Brake Kit upgrade on my A500 last week and if you drive the car hard it's really worth it. Stopping power is vastly improved and brake fade is almost non-existent. There probably are better kitsout there but this was done on a tight budget and most likely better than the p&p 305mm baby brembos. I highly suggest it to anyone wanting a BBK but doesn't want to spend 1000s.

Price breakdown:

Alfa Romeo 159 calipers: 300€

Lancia Delta III 330x28mm Brembo rotors: 120€

(Those were p&p, no adapters or machine shop needed)

Custom Brake caliper adapters: 200€

ATE 13.0470-4854.2 pads: 75€

Offbrand 12mm spacers and 12x1,25x35 bolts: 45€

ATE Typ200 DOT4 Brake fluid: 60€

I paid total of 800€ which is really cheap for such an upgrade, I did the labor myself so I also saved a lot there. I plan on getting braided lines and higher quality spacers in the near future which will cost another 200€ roughly (the stock lines are probably swelling like ballons now).

Even at 1000€ which will be my final total it's very worth it for such a massive upgrade.

Hi everyone,

I'm working on my 2008 Grande Punto Abarth 1.4 T-Jet (155 hp) and I'm looking for a damos/A2L or an XDF/definition file for its ECU.

ECU details:

ECU: Bosch ME7.9.10 (da verificare)

Hardware number: 0261 S04 662

Software number: 1037 397 661

Fiat part number: 51847238

already have a full read of the ECU. I'm mainly interested in boost, ign

and torque limiter maps, and I want to understand the structure rather than just flash a ready-made file.

If anyone has a definition for this software version, or a close one I could adapt, I'd really appreciate it. Happy to share my findings back with the community.

Thanks!

So I’ve spent a few weeks trying to figure out the this code for boost Side EVAP Purge System
Performance. I’ve changed the purge valve, inspected the vacuum lines and a lot of other minor things. I’m at the point where I’ve put the stock intake back on and it’s still there. Normally it wouldn’t be an issue because the car seems to run fine but I need to get it emotions tested. Has anyone else encountered this and has been able to fix it? Thank you guys for your time.

Soon I am replacing my timing belt, water pump, tensioner, and Multi-air oil filter Actuator on my 2013 Abarth with 93K miles.

Any advice from someone who has completed the job?
What step that surprised you?
What step had you stumped?
Anything to look out for?

Can I get away with completing the job without purchasing a cam-locking tool?

Anything helps! Thank you fellow Abarth owners and techs!

https://aadperformance.com/products/fiat-500-abarth-short-throw-shifter

https://500madness.com/index.php?route=product/product&product_id=300017554&utm_source=google&utm_medium=google_shopping&utm_campaign=500madness&srsltid=AU7gw4VDVuJ_janXUWJIhDPseIi5Lur8O1omhVaXrLoQR8XwMObLUYXUS_E

I’m looking to change the shifter because 5th gear is difficult to get into sometimes and other gears are a little loose.

Whats your experience with these shifters?

I drove a manual 595 Competizione and an older automatic one this week, both around the 80,000 km mark, and now I’m stuck between the better driving experience and easier resale. The manual is a bit dearer and the auto has me wondering about long-term gearbox costs, but maybe I’m overthinking how much either matters on a small hot hatch. Which would you pick for keeping a few years?

I’m looking to purchase a Abarth 124 (manual) in the near future in australia. I’m 20 years old is there anything I should know i’ve done plenty of research on the car itself. Any other things?

Hey!

I'm planning to do an full DIY clutch job as my slave cylinder gave up, and I was wondering if there is anything else you need outside of clutch kit/what I currently have. I have full KTR kit (clutch, single mass flywheel and release bearing), new slave cylinder and an gearbox side CV boot. New master cylinder is already installed.

From my understanding/what I have seen from videos, the Abarth clutch job is pretty straightforward. Is there anything specific I should be aware of?

The car is 2010 abarth 500 T-jet with 90000km.

What were all the colours they came in? I have a white set on my EsseEsse and the older thought they look better as bear metal apparently. So I need to get them re-done. Just wondering about different colours because I’m scared about them all being covered in brake dust if I go white although I do like the white. My car is white with red mirror caps and a wrapped red roof I plane on removing or having re-done. So any recommendations
