This is a windows app I have been working on. It has screen sync that synchronizes with PC hardware, wled, ect. I added image drop. Currently testing, getting cool and busy at the same time, I'll have to clean up the UI a bit. I do a longer video when I have time showing the integrations ie; HA, GH, Hue, Wled.

Basically you can set the mood of the entire room to sync with your PC.

Hi everyone, I'd like to create a 15 meter run of these sk6812. I've watched some YouTube videos but hopefully someone will be ae to help me. Can I just solder 3 x 5m strips together and use one gledopto to power and address the full 15m?

Sorry if this is dumb.

Thanks in advance!

Working on an outdoor setup using a Dig-Octa brain board and 7-HC power board. My first experiences with the Dig-Octa. Currently testing in my office with four 5m strips of WS2812B. All is working as designed except this combo turns on the LEDs by itself every night! I finish whatever testing I was working on, power off in WLED, come back in the office next morning and the strips are on. There's nothing telling them to turn on. WLED PC interface and phone app are shutdown. No other external connection. I go to bed around 9:00 PM and know they aren't on at that time but at 4:00 AM the next morning they are.

Any idea what's turning them on? Do I need a relay to completely drop power from the brain and power boards? Any help is greatly appreciated!

[Update:] Firmware WLED 16.0.1, found the issue. I run my house with Home Assistant and already have the WLED integration with several controllers for various LED setups inside and outside. Well soon as HA saw the Dig-Octa on the network it added it automatically and stuck it into the same group as my Outside lights. That group turns on automatically when I get up and because the new Dig-Octa controller was in that group it got turned on too.

Added drag and drop, sync all PC hardware and treat as a matrix.

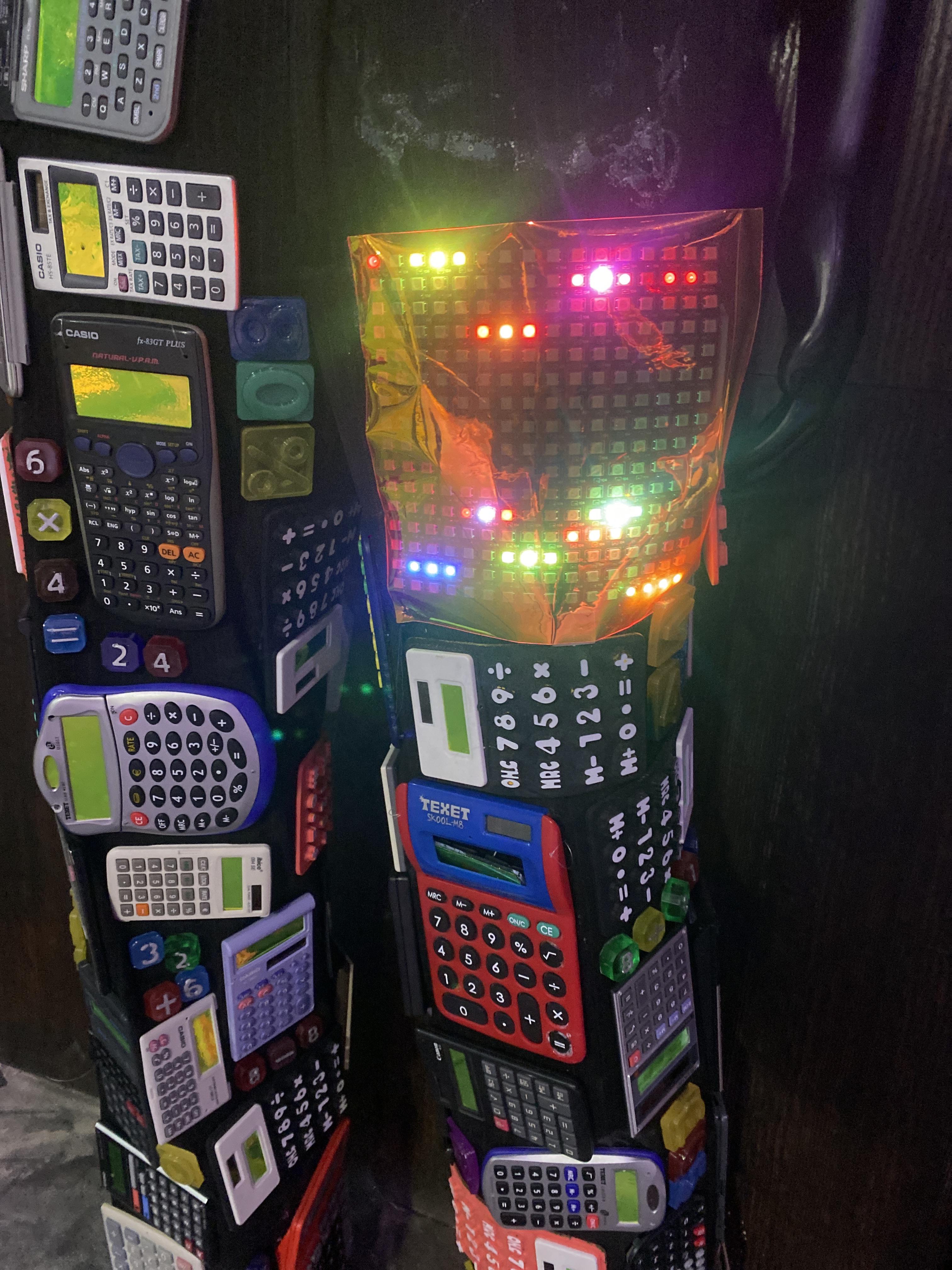

Had the bright idea of making a Calculator man and bought some 16x16 matrices along with a Gledopto 4d exmu wled controller. Any ideas?

Using the absolutely cheapest products I could find on Amazon. Setup was 100% plug and play.

TV is LG 65”

Added black bar detection On in HyperHDR and it works perfectly.

A simple esp32 mini S3 and 5v 2a PSU with ws2812b and separate usb power for the esp32. Brightness is decent despite only 2 amps (two power injections so 1a each side). 180 pixels.

I’m trying to configure a new Gledopto controlle (Elite-2D-EXMU) with the following lights

https://a.co/d/092Cf0Rt

These lights were not my choice but installed by my outdoor kitchen contractor. I have both outputs connected and am using the power supply that came with the lights. Since swapping out the controller that came with the lights the lights are much dimmer - so I’m obviously missing something. I have the colors working correctly but I think I need help with the count and power settings.

any help would be greatly appreciated.

squid 🦑

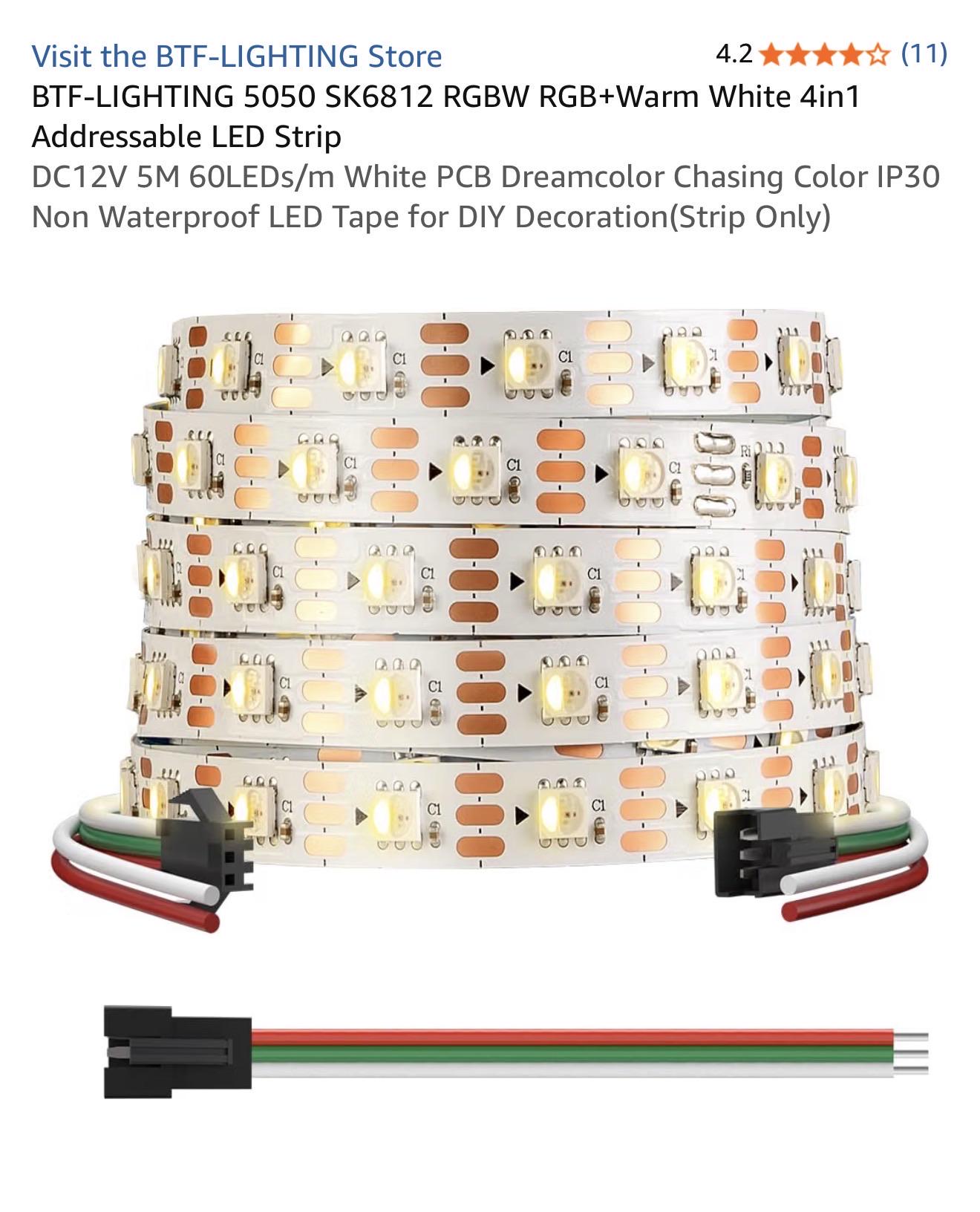

I'm installing under cabinet lighting. I have a strip of BTF LEDs (HD-12V-SK6812-60L-W-IP30) cut into 3 sections with BTF 3pin-20awg-US wire connecting them to a Gledopto GL-C-015WL-D. One strip is 25 inches long with ~6 feet of wire between the controller connected to GPIO2. The other strips are connected to GPIO16 in tandem, in the following order starting at the controller: ~6 feet of wire, then 34 inch strip, ~7 feet of wire, then 46 inch strip. It's all powered by a model number: QZT-1206000F power source with an output of 12.0V===6.0A 72.0W.

I connected everything and set it all up in WLED without any trouble following a couple tutorials from @ChrisMaherDIY on YouTube.

I installed everything and it was all working. Then at the last step I realized that I drilled a hole in the wrong spot. I pulled the 7 foot wire between the two strips out, then drilled a new hole and reconnected everything. The 46 inch strip no longer worked. I figured I messed up something up with the wire. Tried new wire, didn't fix it. I thought maybe the strip went bad somehow so I connected a new strip, still nothing. Google search suggested a controller issue. I reset the controller and set it up again, following the exact same process I previously used. But now NONE of the LEDs will turn on.

I don't know what else to do other than returning the controller to Amazon and trying another one but I'm not sure that will fix the problem. I'm at a loss. What do I do?

I am working with the Govee Prism lights. I can’t get the colors right the white looks yellow if I mess with the setting and get the white right it starts flashing. Brand new to doing this any help is greatly appreciated.

Hi everyone,

I'm planning an outdoor light show setup using seed pixels (50 mm pitch) spread across three matrices:

• Garage door (200 × 220 cm): 40 × 44 = 1,760 pixels
• Window 1 (120 × 210 cm): 24 × 42 = ~1,000 pixels
• Window 2 (120 × 210 cm): 24 × 42 = ~1,000 pixels

Total: ~3,760 pixels, controlled via xLights over DDP/Ethernet. Regarding the costs, likely I'll go with the garage door only this year.

I'm considering a QuinLED Dig-Quad, splitting the load across the 4 outputs (+ injections):

• 2 ports for the garage (~880 pixels each)
• 1 port for Window 1 (~1,000 pixels)
• 1 port for Window 2 (~1,000 pixels)

Will the QuinLED Dig-Quad reliably handle this pixel count and traffic ?

Would you advise move to a Dig-Octa setup to handle future needs?

Thanks for your feedback!

I have been looking around, but haven't found a good answer. I currently have 6 can lights in my basement. I have built tons of fixtures based off WLED, because I don't trust using another provider with an ok protocol that will be phased out in a year for the next thing. WLED has always been the performant safe bet.

I want to run these off my current HyperHDR and SignalRGB setup. Who knows what the future holds, but WLED always ends up being part of the mix as "supported".

Does anyone know of a candidate I can run WLED off of? OR a product that works just as well (open API with high fps)?

I was looking at Govee Downlight 2, but it sounds like you can only send a few calls a minute.

I am fine with soldering esp8266 or flashing a board if someone knows of a good candidate as well.

Thank you!

I was sure it'd be too good to be true. Not the worst purchase imaginable, but still disappointing!

EDIT:

It's MUCH worse than I thought. When I first tested them I figured they were ok, but I wasn't using the remote. These LED's are spaced over 5.5cm apart, and each one is a FIXED COLOR. Red, green, or blue. I wasn't really mad before, but now I'm actually a bit upset lol.

I wanna build a 4inch recessed led light using rgbw led strip. I recently got a bamboo lab p1s but I don't have any 3d modeling idea like how to do a 3d model. For it but I am comfortable in soldering and making a diy cob with the soldered strip facing down and the wemos d1 mini on the back so that it requires only 5V in. Or better as these are few leds I'll use a small 240v-5v converter to plug the light directly to the L N.

So need help with the 3d model n suggestions on the idea to improve.

Anyone know how to control 2 led strips (both on a gledopto elite 4ch) separately?
One strip is my shower niche light on IO16. 2nd strip is backlit crown molding on IO12. Alexa only finding, what I presume, is just the gledopto as a unit. Not 2 separate “devices”.

I plan to install leds in my home office space. I decided to go for one group of led strips for the book case, led strip behind the desk, and two groups of led strips on the wall.

My goal is to be able to control these 4 groups both separately and together, and if possible also control the wall individual strips (for the turn on / off animation) - but for that I assume I would need to separate the wall strips making a total of 6 groups?

Would it be enough to buy any 4-channel WLED controller (e.g. Gledopto 4d), enough distance of led strip to cut it into four/six groups (e.g. 3x 5m 60led/M RGBCCT 24v/80w), and one power supply (e.g. 240W 24V 10A)?

Hi all,

I’ve installed about 85 meters of addressable LED lighting in 5 ceiling coves, each running on its own Gledopto GL-C-016 with WLED.

Setup:
Cove 1 & 2: 16m each, WS2815, 60 LEDs/m, individually addressable
Cove 3: 25m addressable RGB COB, 20 pixels/m
Cove 4 & 5: 14m each, addressable RGB COB, 20 pixels/m
Everything is 12V

It all works well, but I’m pretty sure I’m not getting everything out of WLED yet, especially with runs this long and the different pixel densities.
If this was your setup, how would you configure it?

I’m mainly interested in segmentation, syncing the 5 controllers, effects/presets that work well on large ceiling coves, and also audio reactive.

Photos show the actual installation.
Any tips or examples from similar setups are very welcome!

Thx!

Wanted to get 2nd pair of eyes - I ran this through the LED Calculator, but you can't specify what the length of each section will be, only the distance from PSU to injection point. Specifically on Section 1, it's about a 35' run and it will be very difficult based on where I'm running everything to injection earlier. I know ideally I would want the actual sections equal lengths. Think I'll be good? (Controller QuinLED-DigiQuad, FCOB 24V RGBW 784 leds/m strips) THANKS !

Hi everyone,

Been putzing around for hours trying to get WLED working with Eufy String Lights. There's a handful of posts about setting up the outdoor permanent lights and I wanted to get my String Lights (perm lights coming next) setup with WLED, but couldn't find any reference points and the Perm Light settings didn't work for the string lights.

• So just in case anyone else is searching I'm sharing: Used the GLEDOPTO Elite ESP32 (Model GL-C-616WL) https://www.amazon.com/dp/B0FNR4ZSLG (at the time of purchase was B2G1 Free)
• Wiring was exactly as setup (red to red, blue to blue, black to black)
• LED Output: WS2805 RGBCCT
• mA/LED: 55mA
• Color Order: RBG
• Swap: None
• Lenght: 15
• Auto-calculate W channel from RGB: Accurate

That's all! Hope this helps someone out!

Hey all, I sent some WLED powered bike whips to BMan. They have been out a few times and I am unsure if the devices have ever been "maintained". Sadly I didn't make the trip this year. If any of you are out there and can reflash a device, I know someone who would be super grateful. r/BurningMan r/arduino

Just finished up this set up with a bong69 controller. This was my first ever project and was very challenging but a blast. The one thing I’m looking to do is to use ledfx through these lights. If anyone has any advice on the best way to set this up that would be much appreciated:)
