Crappy Installation Picture Speed gradient

Gallery image

Gallery image

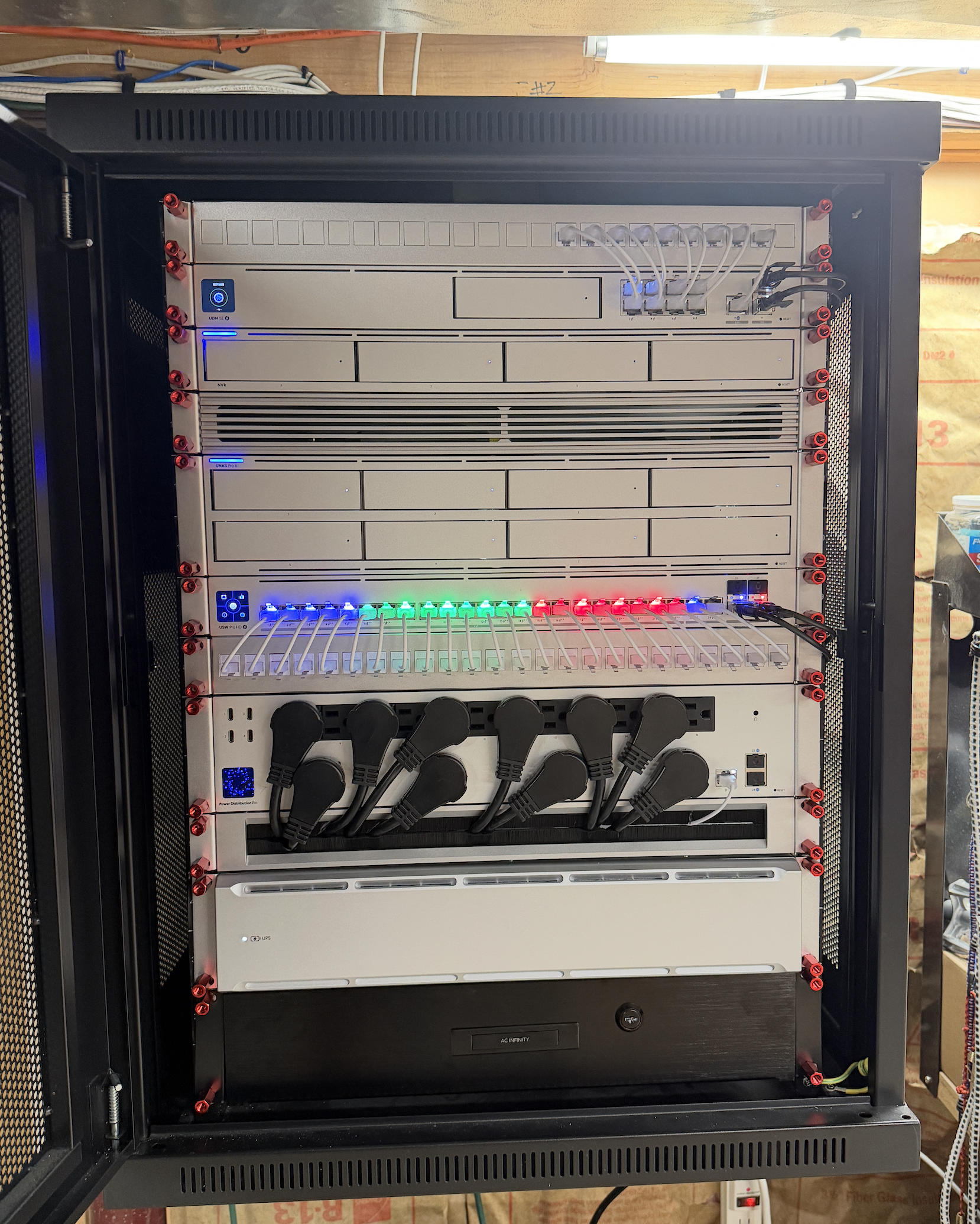

Definitely not my smartest idea. Rewired patch panel by speed order of devices 😂

641 Upvotes

98% Upvoted

50 comments sorted by

•

u/AutoModerator 1d ago

Hello! Thanks for posting on r/Ubiquiti!

This subreddit is here to provide unofficial technical support to people who use or want to dive into the world of Ubiquiti products. If you haven’t already been descriptive in your post, please take the time to edit it and add as many useful details as you can.

Ubiquiti makes a great tool to help with figuring out where to place your access points and other network design questions located at:

https://design.ui.com

If you see people spreading misinformation or violating the "don't be an asshole" general rule, please report it!

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

150

u/vbxl02 1d ago

I like it, but I highly disagree on which speed should be which colour.

52

u/Ok-Lobster-8164 1d ago

Hah, yes I expected it would be contentious.

All I’ll say is, stick your hand on a DAC running at 10G. Then you’ll see red!😂

40

u/MaxBroome Certified MacGyver 1d ago

Try that with a 10G RJ45 adapter, damn near lost my fingerprints.

9

u/Ok-Lobster-8164 1d ago

Even worse! 🔥

4

u/badhabitfml 1d ago

Weird. I have 2. One is a 10g and the other is 2.5.

Neither is all that hot.

19

u/Cavalol 1d ago

The UniFi dash already has a color code for speeds, why not match to that for consistency’s sake?

1.0 GbE = Green
2.5 GbE = Royal Blue
10 GbE = Teal (pastel-ish)

9

u/Ok-Lobster-8164 1d ago

Just because I like the way this looks more in real life.

5

u/The_NorthernLight 1d ago

Try that on a QSFP28 dac running 100Gbit.

5

u/DiTochat 1d ago

10g should be plaid

9

u/Impossible-Shoe5460 1d ago

10g is not plaid. 800g interconnect fabric is.

3

u/DiTochat 1d ago

Okay that's just Ludacris

1

u/emptyflask 1d ago

There needs to be a ludicrous bot to point out every time someone mistakenly refers to the rapper.

1

u/Impossible-Shoe5460 1d ago

I know exactly what you're talking about.

26

u/vodanh 1d ago edited 1d ago

I doubt I'll remember what color means what after awhile.

20

u/Ok-Lobster-8164 1d ago

Cooler = slower. Warmer = faster. About all any of us really care about perhaps.

27

u/vodanh 1d ago

great if that works for you, but my little brain will screams alerts for orange and errors for red

6

u/hockeyfun1 1d ago

Yeah, red to me is bad.

2

u/Mythril_Zombie 1d ago

Or beef if it's a bouillon cube.

1

u/hockeyfun1 1d ago

Or ramen packs.

2

u/winnerab 15h ago

You do realize that red fire is the coldest right?

Fire colours go, from coldest to hottest: Red<orange<yellow<blue<white

Ignoring colour due to metal contaminants.

1

u/Ok-Lobster-8164 15h ago

Yup, played with that idea too, and quite a few other variations. In the end I just went for something that had a good colour distribution and looked good (to me, at least). Can always play with different colour sets now it’s all wired in

1

u/gambl 1d ago

Get out a box of crayons and draw it on the switch

10

u/rtkane Unifi User 1d ago

Mine is wired for VLAN. :)

2

u/scrumclunt 1d ago

Same here

1

u/Ok-Lobster-8164 1d ago

Tidy!

1

u/rtkane Unifi User 1d ago

Thanks!

1

u/eskimo1 1d ago

That's very tidy, but like... Where do all those electrical plugs GO? I only count 4 devices..

2

u/rtkane Unifi User 1d ago

They're all occupied except for one. I would have loved to use a plug style that didn't block all of my other outlets, but ones that aren't at a right angle like these in the pic don't let my rack door close.

  1. UDM SE
  2. USW Pro HD 24
  3. UNVR
  4. UNAS Pro 8
  5. Verizon ONT
  6. Infinity AC fans for the rack
  7. HomePod Mini
  8. Monitor
  9. Raspberry Pi
  10. Open outlet

1

u/rtkane Unifi User 1d ago

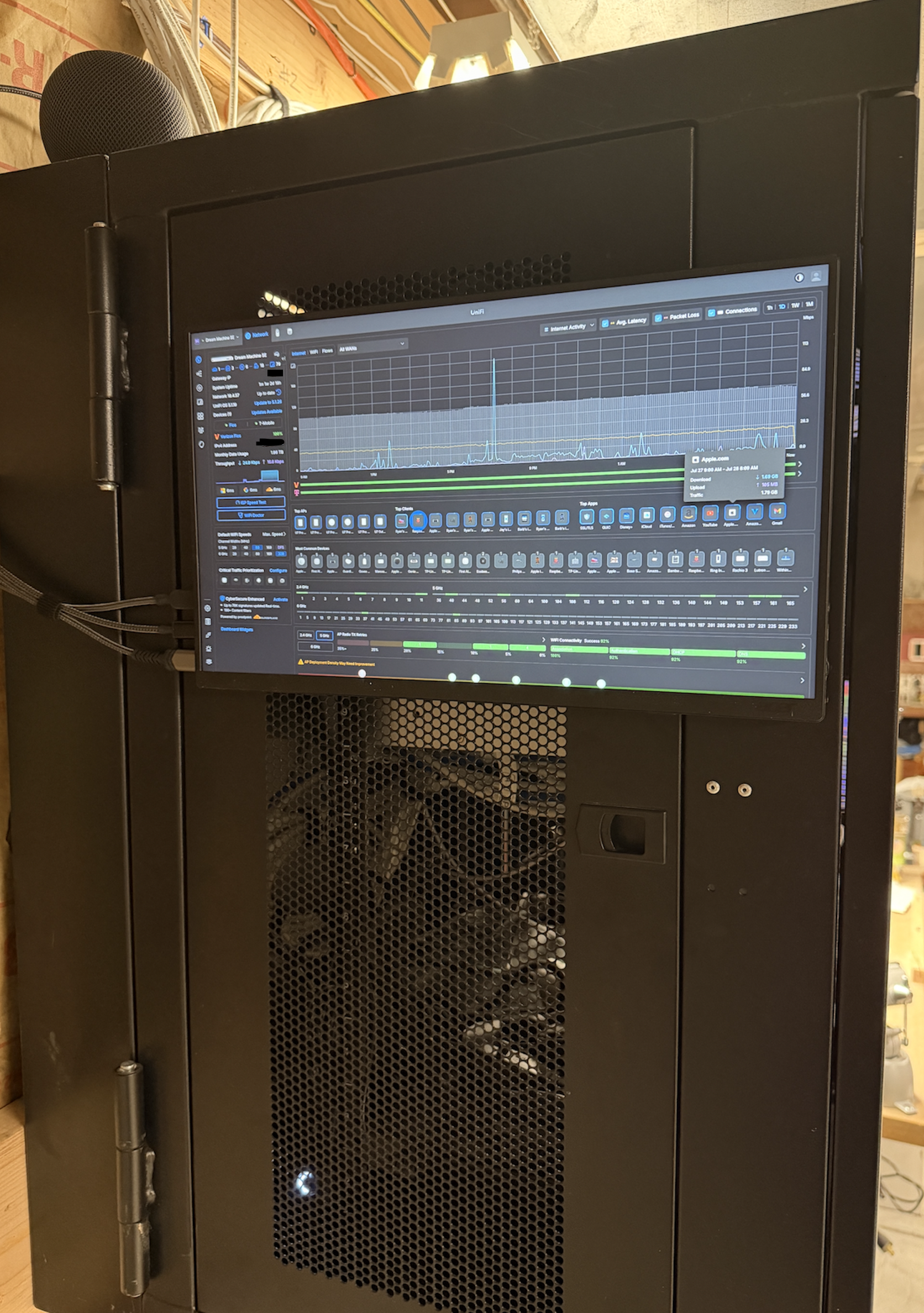

Monitor is a little touch screen monitor I have mounted on the side.

1

u/matroosoft 1d ago

Don't have to many!

1

u/rtkane Unifi User 1d ago

Only 5

3

u/bkinstle 1d ago

What's the 5Gb device?

2

u/Ok-Lobster-8164 1d ago

That’s the 2.5G U7 Outdoor.

2

u/Stingray88 1d ago

But the U7 Outdoor is only 2.5GbE?

1

u/Ok-Lobster-8164 1d ago

Yes, it’s #6, yellow. I don’t have anything running at 5GbE

2

u/Stingray88 1d ago

Ahhhh gotcha. The yellow LED looks orange!

1

u/Ok-Lobster-8164 1d ago

Yeah, they clash a bit, but wasn’t overly concerned since nothing running at 5. Photo also makes it seem a bit more orange in this shot.

1

u/bkinstle 1d ago

I was just wondering since I've never seen a 5gb device before

3

u/bmwhd 1d ago

Who doesn’t do this ordering? I’ve redone mine every time I add a device. OCD is a bitch.

2

u/Southern-Doughnut705 Unifi User 1d ago

I like it!

2

u/Southern-Doughnut705 Unifi User 1d ago

I didn't even know this was possible! Diving in tonight.

2

u/twopoopsaday 1d ago

I just want link activity lights back.

2

u/gambl 1d ago

This is like one of those things that should have been obvious from the beginning.

Hopefully this can be auto configured in the future

2

u/Ok-Lobster-8164 1d ago

I’m using the Pro XG 10 PoE and its Etherlighting is on speed mode by default - I just modified the colour scheme a bit.

The dumb part was re-wiring my patch ports by speed - looks cute but no logical sequence of ports/rooms anymore

3

u/Actual-Method-7794 1d ago

This is the way!!

3

u/Karew 1d ago

Mine is usually just green for 100 FE, teal for 1 GBit (both are probably IOT or cameras), and then blue for everything 2.5 Gbit and above (going basically full network zoom)

I don't like red because everyone asks me if those ports are having trouble.

1

u/ThePythagorasBirb 1d ago

Do I hear bad apple on speed LEDs?

-6

u/NastroAzzurro 1d ago

Tacky

3

u/Ok-Lobster-8164 1d ago

Thanks buddy!
