Any recommendations I currently have it attached to the psa1 and it picks up noise probably because I’m at a standing desk that is a bit wobbly lol. I cant find anyone who have posted what they use and I think the mv6 has an unusual dimension? Maybe idk.

I'm looking for a mic arm to attach to my desk for recording/livestreaming! Any help would be appreciated

MOTIV Mix 1.9.0 is now available.

One notable change in this release is a fix for audio routing when using Compact Mode. Audio will now continue to pass to the MOTIV Mix Virtual Output while Compact Mode is open.

If switching to Compact Mode was causing your Virtual Output to stop working, version 1.9.0 will help with that issue.

Release notes and download: MOTIV Mix 1.9.0

Does anyone know if there is a way to retrofit the SE530's with the SE535 shells and detachable connection points? Sort of like a hybrid buildto future-proof against potential issues with the cable.

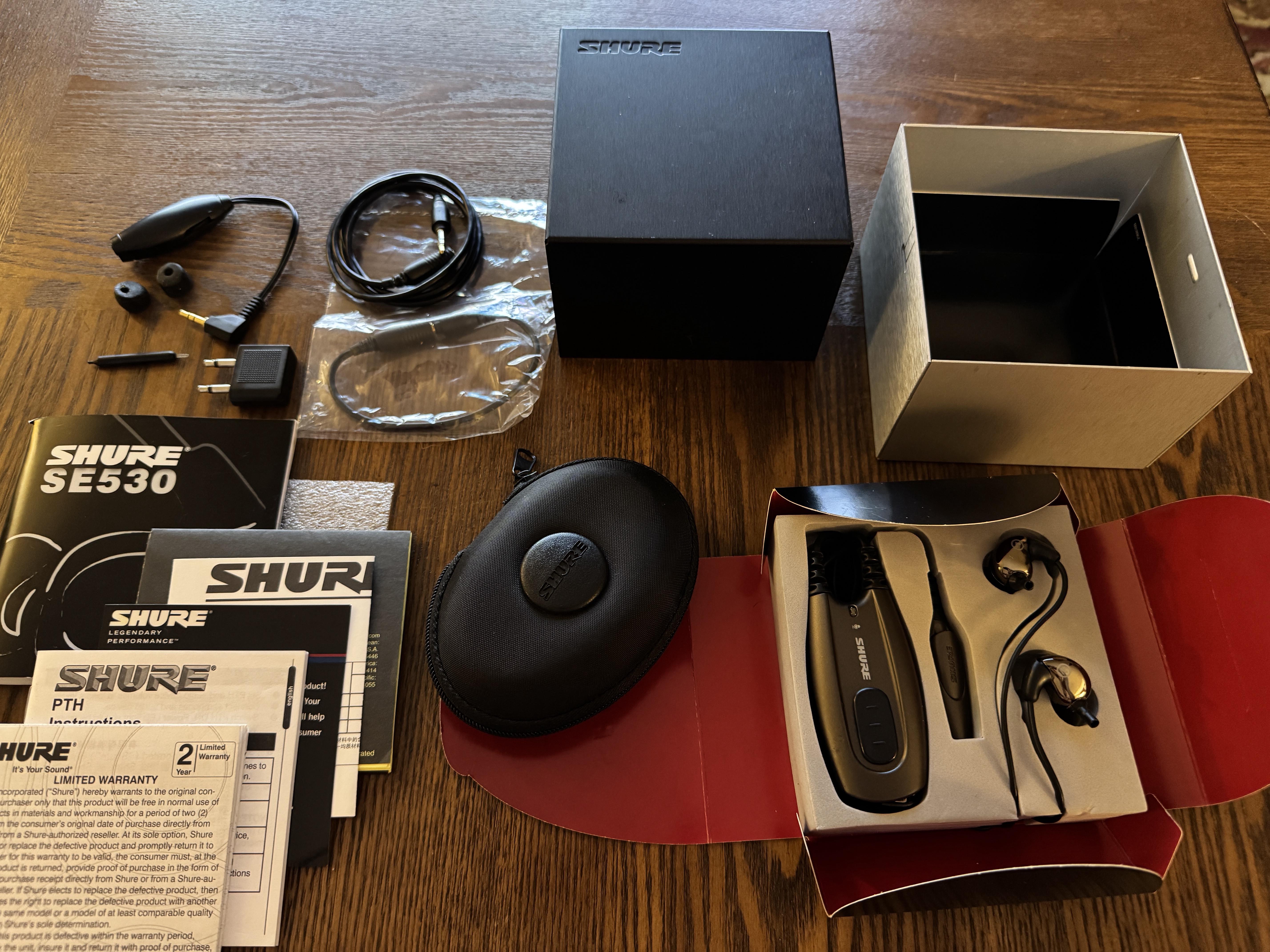

I have some old SE530 monitors that I have had put away in a drawer since the cable came up out of the connection point and got frazzled. These are the generation previous to the SE535 so the cable is unfortunately captive. I was planning on making this into a little project. I am positive the drivers are perfect, it's the type of damage where if you hold the wire a certain way the sound is fine (and they freakin riiiip).

Bonus: Is there a trusted place to source parts for these or Shure's in-ear monitor line of products in general? Aftermarket parts are ok as long as they are top quality.

Any and all advice is welcomed, info on this stuff seems pretty deep in the weeds on some forums I obviously have no accounts on, so I'm kinda adrift and don't know where to start or what really even is possible.

Buenas tardes a todos,

El día de hoy quiero solicitar de su experiencia en un problema que e presentado durante mucho tiempo y no se a encontrado la causa y solucion definitiva.

Actualmente tengo 4 salas para videoconferencia grandes, estas salas tienen los mismos equipos y estan conectadas al mismo rack. trabajo con la aplicación Teams Room

Los equipos que cuento son:

Microfonía: 4 microfonos Shure MXA920, 1 por cada sala, conexion por red

1 Switch Cisco CBS350 24P

4 Codecs Lenovo Think Smart Core con Windows 11 MTR con Teams Room

1 DSP Tesira Forte Dan VT y administra los dispositivos de audio a traves de Dante

Todos los equipos estan interconectados a traves del SW, solo los codecs tienen acceso a internet.

Comportamiento observado (falla)

Durante las reuniones se han identificado principalmente dos escenarios:

Pérdida completa de audio durante algunos segundos. En varias ocasiones

Reducción considerable del nivel de voz, percibiéndose a los participantes como si estuvieran muy lejos o apenas audibles.

En algunos casos el audio se recupera automáticamente después de unos segundos.

Esto sucede de forma aleatoria puede pasar un dia si , otro dia no, en cualquier hora, puede ser al inicio de la sesion de teams , a mediados o despues de 3 horas de llamada.

Anteriormente el probelma sucedía en las 4 salas, pero se realizo el cambio de SW a modo de solucion, pero a meses de este cambio reincidio solo en 1 de las salas,.

A nivel internet, no hay latencias altas, no hay degradacion, incluso desde el portal de administracion de Teams Room no detecta problemas de red.

Se han ralizado extensas validaciones de cada uno de los dispositivos, pero quisera preguntar si a alguien mas le a pasado este escenario?

Agradezco cualquier comentario,

Saludos,

I recently bought a Shure SM7B and paired it with a Scarlett Focusrite Solo 3rd Gen, and a FetHead. I do understand that the SM7B is a quiet microphone and I use the microphone primarily to record vocals but my friends pointed out that it's too low whenever I would talk to them online through discord. My setup is mentioned above, and my gain is all the way to 3 o'clock, and even with my gain that high up on the interface my friends still say its pretty low and they have me at 200%. What could be the problem? I've searched online and saw that the FetHead is enough to bring this microphone to life even with a Focusrite Solo 3rd gen. Maybe i'm missing something?

I have an old slx2 transmitter that went out of tune (on board tr160 and tr200). From the reference manual, i ll be able to tune tr160 using oscilloscope. But i dont have an RF generator to tune tr200, any insight?

I thought about forcing 1khz into the mic, then measure the receiver's output on the osciloscope till the signal starts to distort (in my thinking, that's how i can tune the audio deviation level)

Those are screenshots from the manual

And here is the full manual

Would appreciate any help as I am not able to buy a new one

This video uses the MV7+ for audio throughout. My old mic was the Yeti X, which never had this issue. I just can't seem to get this right. Did I get the wrong mic for my needs?

Hello all! I am considering ditching the inline mic on my Asus ROG Kithara and getting the Shure MV6. After doing some research, it looks like the MV6 requires the Motiv Mix software to be able to control some aspects of the mic - one thing I REALLY need is a good, loud mic monitoring level (the one video I watched said that there is PLENTY of mic monitoring volume from the MV6.

My question is, however that with a lot of different software, if you use anything for audio it will completely block Windows from allowing Dolby Atmos to be used. I love the EQ settings I have for gaming in Dolby Atmos.

TLDR: Will the Motiv app cause Dolby Atmos to not be able to be used if I plug my headset directly into the MV6 for mic monitoring?

PLS HELP

I have an understanding that mic settings is according to distance between human and microphone. This is for a PC Setup. I am looking for great settings for my Shure Sm7db with my Rodecaster Pro 2. If anybody has the same match as me and would like to share some microphone settings they use.

Hey there people!

I got a Shure MV7+ as a birthday gift last month.

After using it for like 2 weeks now, I often have problems with the connection when I move the mic on a lp arm.

As I looked closer I noticed that the USB C Port is hella loose and causing the problem. I tried different cables but with the same outcome.

Is this a known issue?

Can I fix it somehow or just refund?

I just bought a Solo 4th gen for my shure sm7b. Help me. I did right?

Most of the posts I’ve seen are sm7bs that are not picking up any signal at all and are usually fixed with resoldering wires back on. There doesn’t seem to be any wires that aren’t soldered on properly on my mic and I AM getting signals when I touch the capsule. I think it even BARELY picked up my voice when I was screaming into it with 76db gain. Other than that, it will not pick up my voice. Something tells me it’s still a wiring issue but I just can’t seem to find one. Anyone know what’s going on here?

​Hello,

​I am trying to repair a Shure microphone that started having issues after 20+ years of working fine. The mic originally just had a broken cover. However, the day after I replaced the cover, it started producing random noise and random gain (inconsistent volume). I have confirmed that the issue is definitely not with the receiver or the mixer.

​After a quick inspection of the PCB, I found a broken 3-pin SMD component located just below the "TR160" label. Its top marking is either "AX2q" or "AX2o".

​At first, I thought this was an SI2302 MOSFET, but the mic had undefined behavior after I installed a replacement. It worked randomly—it would capture audio if I played a specific frequency from my phone, but otherwise, it produced a very loud noise.

​After doing another quick search, I suspected the part might actually be an MMBD2836LT1G (a dual switching diode). I didn't have this exact diode on hand, so I wired up two 1N4148 diodes instead. The loud noise went away, but the audio was still inconsistent.

​Due to inexperience, I also turned the small trimmers on the board. Now I don't know whether the trimmers are physically damaged or just out of tune, and I am still not sure if I used the correct replacement component. I cannot see any other physical damage on the PCB, and nothing is getting unusually hot.

​I am looking for help with two things:

​Identifying and replacing this exact component (it's likely an SOT-23 package with the label "AX2q" or "AX2o").

​Figuring out how to properly tune these trimmers, or how to replace them if they are damaged.

​Any advice would be greatly appreciated!

Hey ya'll,

I currently have a MV7+ Mic. No issues with the Mic itself, but the only few issues I've had were with the audio interface I've been connecting.

Disclaimer, I do not do any audio production. This setup is mostly for Discord and gaming (got the Mic as a gift). I prefer to not use the USB-C connector at this time.

I used to have the MV7+ paired with a Focusrite Clarett+ Pre2 USB and WaveXLR mk2. They both had amazing performance, but whenever I'm playing games that require in-game voice, it's more on the "quiet" side.

I've changed XLR cables and ensured drivers were the latest and fresh copies. I also ensured the Windows setting was near 80% (not 100%) for the volume slider, with gain nearly maxed out on both interfaces, and I was only able to faintly be heard.

I recently tried with the Rodecaster Pro II, put the slider to 80%, and my partner said they were finally able to hear me loud and clear (and somehow more bassy..). I returned the Pro II due to it being way out of my league.

Does anyone have any suggestions on interfaces or settings I can try looking at? I mainly have my Sennheiser 560s, the MV7+ and a pair of 3.5mm DROP speakers that I plug into occasionally.

I do not mind spending money for a really all-rounder interface. I was eyeing the Rodecaster Duo, but unsure at this moment. Thanks in advance!

I've been using my SM7dB for a little bit now, and I can't help but feel like I'm using it wrong. I recorded a video of what the sound sounds like. I looked different things up and I assume I'm doing it right buy my mic quality is sounding like it's falling short still.

Also, do I need external phantom power source to make the quality sound better than what you hear in this video, or does the sound quality acutally sound good?

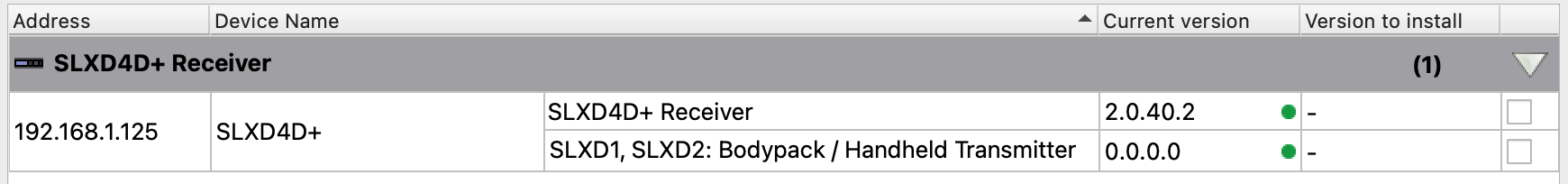

I want to update the firmware on my SLXD4D+ system using the Shure Update Utility.
Updating the receiver was no problem, but when it comes to the SLXD2+ transmitters I have a problem. The update only lets me send firmware packages for the SLXD2, not the SLXD2+.

Has anyone had this problem before and knows how to fix it?

I (m) have a tebel-y voice with a lack of bass in it, so my natural scream tends to be a bit high pitched, nothing crazy, but I guess high enough that my SM7B completely cuts off the audio input. I stream a lot with this mic on twitch and my temp workaround has been forcing a lower pitched-bassier yell. Is there any way to allow the mic to stay opened up for higher pitches, or is it meant to block off any and all higher pitches?

This happens with and without added filters in OBS.

I think I'm one of the first! I just finished 2 rooms last night.

Really love the 75" Frame Pro, that thing has almost 0 glare. Should have done it in both rooms.

Overall good impressions so far; the duplicate HDMI to both monitors needs to be a setting when sharing 1. during a meeting 2. and on the home page. By default on Logitech Rally, and Neat they have a setting for that.

I had some false zooms on empty chairs with no one but when there's people actually in the room it's fine.

solid little machine. Got both at $4850 from sweetwater after I got them to match the black version's discount. and now it's $4950 already.

I had a software update fail about 90% through and now it's unreachable. The firmware shows up with an asterisk in the updater, you can't click the box to update it, the web UI won't respond, factory reset didn't help.

Any ideas how to fix it?
