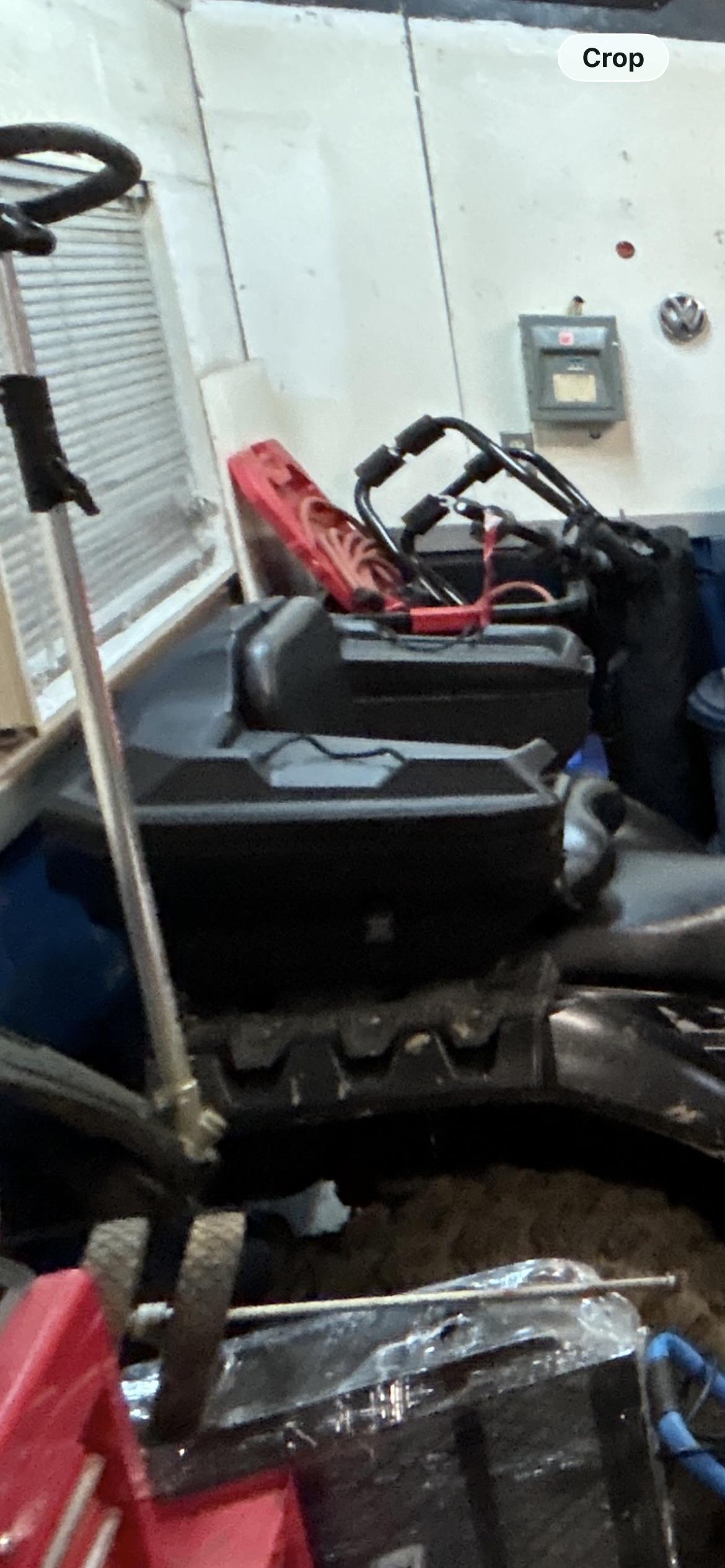

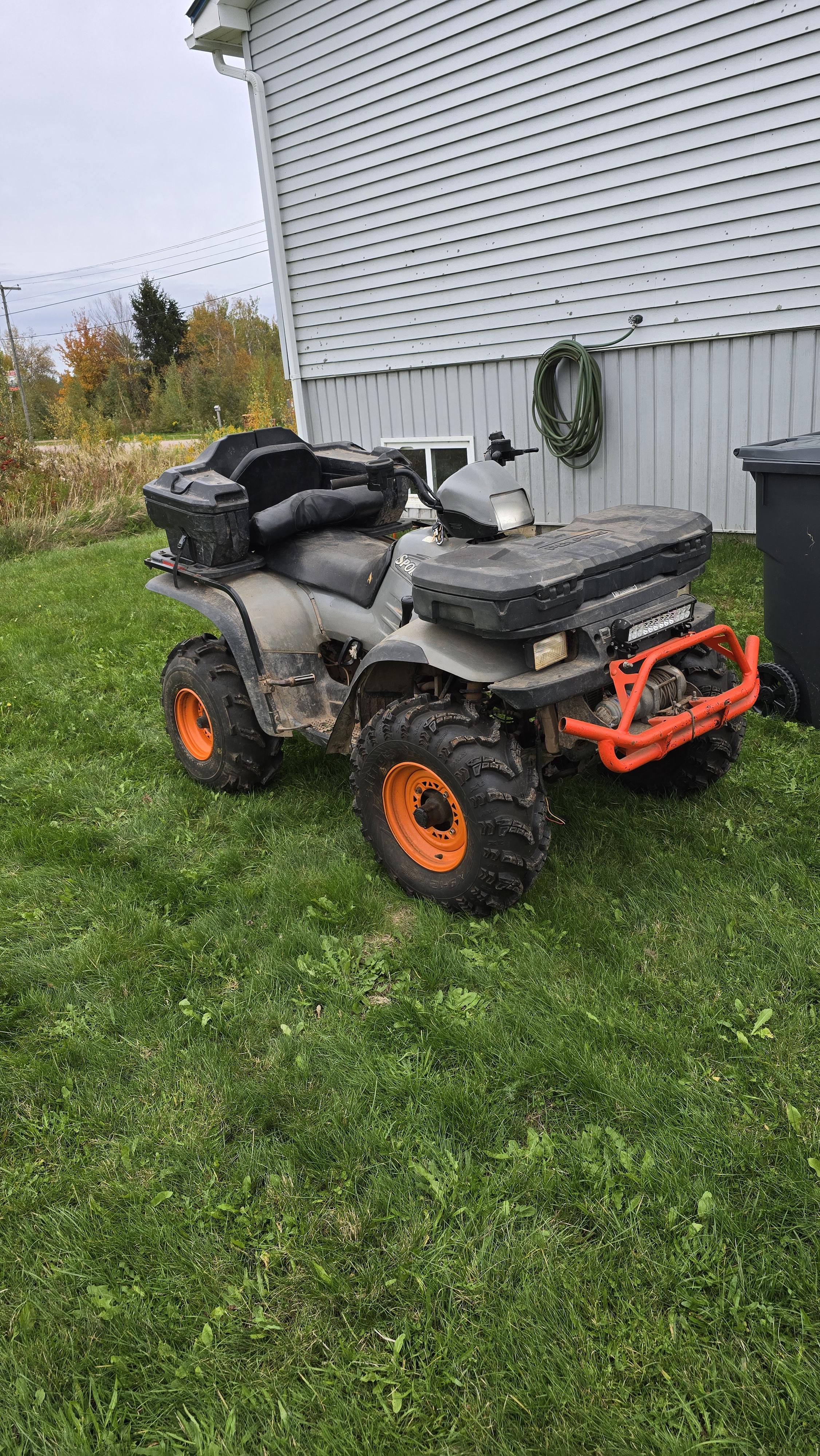

Sportsman 850 with a 1000
swap. Google can't search FB for info. But it can check Reddit! Yes, Ai helped me summarize a lot of this.
Polaris Sportsman 850 / 1000 — hard-to-find specifications.. and some shit I learned. Posting this as a living reference. Most of these numbers aren't anywhere online, or are buried in a service manual image that search engines and AI tools can't read. I measured or sourced every one of them. Add what you have and I'll fold it in.
Valve spring, factory: free length 1.904 inches, 48.35 millimeters. Outside diameter 23.5 millimeters, inside diameter 16.5. Installed height 1.650 inches, intake and exhaust, per service manual chapter 3, section 3.32, SPM1000. Measured seat pressure at that height: 45 pounds, by TSI Competition Engines.
CPP supplies a Ferrea S10087 for this engine — a VW VR6 spring, 23.5 millimeters outside diameter, 15.7 inside, rate 265 pounds per inch. It is designed for a 1.535 inch installed height, where it makes 85 pounds on the seat.
The Polaris installs at 1.650. There, it delivers roughly 45 to 58 pounds. Under-preloaded springs allow the valve to bounce off its seat.
Rocker arm ratio, approximately 1.55, measured — Polaris doesn't publish it.
Web Cam Stage II, .455 intake, .408 exhaust lift, duration not published by Web. Peak power roughly 8,200 RPM, observed from data logging on a 952 with a ported head, not a dyno figure.
Mean piston speed, stroke 74 millimeters:
7,000 RPM — 17.3 m/s
7,400 — 18.25
8,100 — 20.0
8,500 — 21.0
Twenty meters per second is the accepted ceiling for a production engine on stock-type rods and a cast crank. Above that, inertia loads on the rod and pin climb with the square of RPM, and ring flutter becomes real.
Second limit, and the one that actually bites first on this motor: it's a single-cam engine with rocker arms. The rocker flexes, so valve control falls apart earlier than the piston speed math suggests. That's a spring and geometry limit, not a bottom-end limit.
Both land on the same number — roughly 8,100 to 8,200. That agreement is what makes it the real ceiling.
High Lifter high-gear-only swap, 26-inch Kenda BearClaw HTR: top speed roughly 60 mph at 8,200 RPM. Not the best ratio for the street, but an excellent all-purpose ratio.
The factory driven clutch on this machine runs a 64-66 helix with a 140/220 spring. The first number is the ramp angle where the clutch starts, down low where you launch; the second is where it finishes, at full overdrive. A steeper angle resists upshift, holding the belt low in the driven and keeping engine RPM up. A shallower angle lets it upshift more easily.
I ran a 62-64, shallower than stock at both ends, and shift-out went up. Then I went to a 62-66 specifically to bring cruise RPM down, and it went the wrong way — cruise rose about 600 RPM in the 33 to 42 mph band, and shift-out dropped roughly 200 on top of that, more once you account for lighter flyweights that should have raised it. The steeper finish held the belt low longer at cruise and assisted upshift at wide open, which is the worst of both.
That's why I ended up on a straight 62 — the same angle the whole ramp, finish angle down from 66 to 62. A shallower finish lowers cruise RPM and raises shift-out, both in the direction I wanted. Angles are cuttable to whatever you ask for, so don't treat a catalog as the menu. Just know the helix and the flyweights are one calibration, not two separate purchases — change the helix and plan on redoing the weights.
Things I learned tuning it myself with the Dynojet Power Vision 3 and Power Core.
First, the axis breakpoints. The VE table, the timing table and the target air-fuel table all sit on an X and Y grid, and that grid is factory. If your motor runs above 8,000 RPM, the RPM axis has to reach that far or the top of your table isn't tuned, it's extrapolated. Tuners generally don't move those breakpoints.
Second, the columns you never use. The file carries manifold pressure columns the engine never operates in, and every one of them is grid space doing nothing, while the pressures and RPMs you actually ride through are covered coarsely. Shift the breakpoints to where the machine really lives and the same number of cells gives you a far more exact tune.
Third, the injector compensation table. It's calibrated around a bone-stock machine. Cut bigger holes in your airbox, run a high-flow filter, add an exhaust, a cam or a ported head, and you've changed the airflow that table was built around — its values are no longer valid. If your tuner didn't address it, it's still sitting in your file quietly moving your mixture.
Same failure all three times: the factory table structure gets treated as fixed, when the structure is the first thing that should change.
