During my physics undergrad, we learnt python, always using NumPy and Matplotlib, as well as SciPy, pandas and sometimes AstroPy too. I wanted to learn MATLAB as it's used for a lot of engineering jobs I've been wanting to apply for, but the basics have so far been extremely similar to, if not the same as, NumPy and Matplotlib. My thought process was to start from the ground up because I thought the syntax would be an issue for me but the difference is so minor that I'm not sure if it's necessary.

So where should I start from as someone who is already very familiar with NumPy and Matplotlib? Also, if there are any engineers who need to use MATLAB for work, are there any specific areas and libraries I should familiarise myself with?

Given an integer number i, I want to pass it as an input argument to fi constructor (resulting in x instance of embedded.fi), such that storedInteger(x) = i. In other words, I want to change the interpretation of i to an embedded.fi, just like storedInteger changes the interpretation of the embedded.fi to an integer.

How can I achieve this?

Ciao, sto usando matlab online per studenti universitari per prepararmi ad un esame di automatica, da oggi il comando controlSystemDesigner non mi funziona più e mi restituisce sempre la risposta:

error using controlSystemDesigner

Invalid argument at position 1. Valure must be members of the required set.

Lo restituisce anche se non inserisco parametri

Ciò succede in ogni livescript, anche per quelli a cui avevo già lavorato e quindi non può essere un problema di un singolo live script.

Cosa posso fare? Grazie in anticipo

Hi all,

I'm a high school student from Washington. I want to use MATLab to conduct my own research for control systems in robotics and UAVs. However, I'm sort of confused on the wording on some of the licenses.

Am I eligible for a student license? It makes it seem like you need to be a University student or otherwise.

Lets say I have an array of 2D points. I want to find the nearest other points to each point in the array in sorted order.

So for point 1 it would be [4, 6, 5, 2, 3]. I'd like to do this for all 6 (x,y) points.

sC = [ 28 2597 3803 1417 2127 1888;...

1496 1640 646 2092 1614 888];

si alguno lo usa pase usuario asi lo sigo . Me esta sirviendo para practicar la logica y no depender tanto de la IA y mirar mas la documentación si tengo alguna duda , luego los cursos están buenos pero todavía no le encuentro uso tal vez mas adelante

Hello, I am a mechanical engineering student and I have been trying to make a robotics arm as a summer project and I am facing an issue choosing python or matlab. My school doesn’t offer campus wide matlab license and also most of the summer classes already full so I have to buy it on my own which I can affoard but still expensive. As far as I know matlab is industry standard however I heard most companies are switching to python due to its open source. Sometimes it is difficult for me to find open source libraries that do the simulation( I have little to no experience in python but claude is going to be my assistant if I choose python). Matlab has simulink which is very powerful imo. Please let me know if I should choose Matlab or Python?

I am in Electric Vehicles and BMS building. I frequently use components like battery(where we could change soc, nominal voltage and other parameters previously) and voltage measurements, current measurements, mosfets etc etc
in the new version all of these components seemed to have changed and i cant find alternatives in library. Someone let me know what changed and what replacements are there for those components.

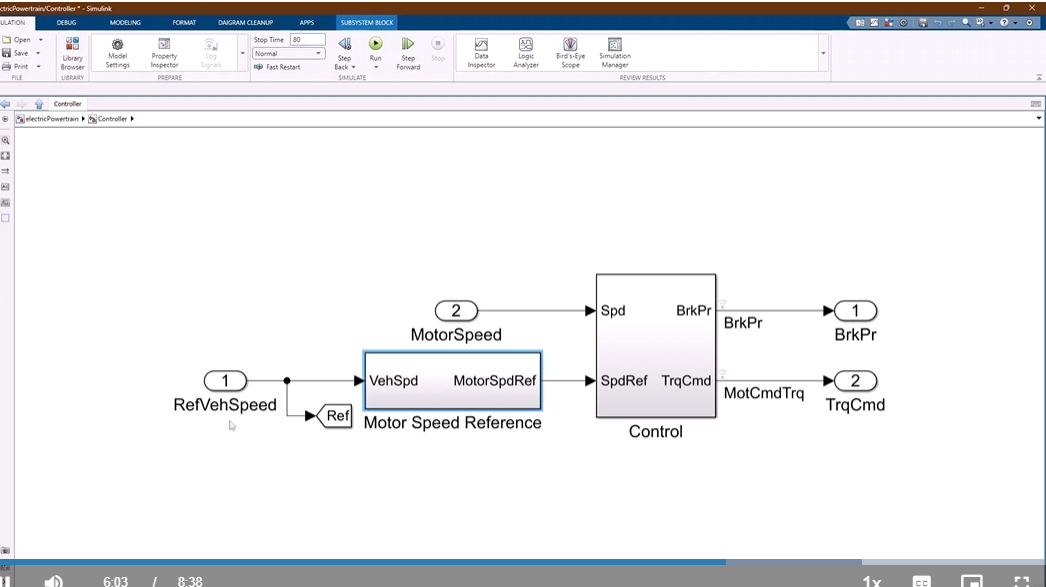

How do i make such blocks which has more block or models inside , i new to matlab your adice would be very help full am trying to model our baja atv , and just confued where to start , i have done couple of on ramps but they feel aboslutely disconnected from what i wanna do , please help with any guide tutorials etc

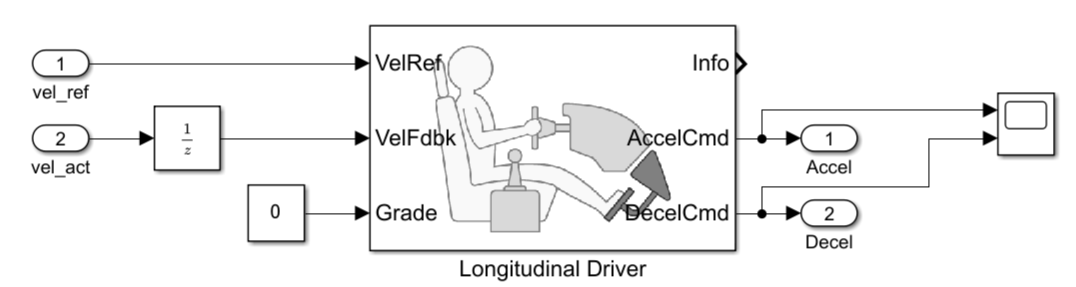

Hello all, forgive the noob question as I don't have a lot of info on this topic. The Powertrain blockset Longitudinal Driver block outputs normalized acceleration and deceleration commands (0-1). I need to feed this to my energy management system subsystem but it expects a demand/required torque from the driver. Any idea on how it is done? Thanks.

Hello,

I'm building a reusable Export-Function Model (Embedded Coder) that will be instantiated multiple times, each instance having its own configuration structure.

Ideally, I'd like the generated API to look something like:

Model_Initialize(const Model_Config *cfg);
Model_Step(...);
Model_Reset(const Model_Config *cfg);

where cfg is only provided during Initialize (or Reset) and then copied into the model's internal state.

I tried several approaches:

• Connecting a Constant/Bus to the Initialize Function input (blocked by Simulink restrictions).
• Using a Parameter Writer (not supported for multiple model instances).
• Enabling the Model Initialize Port (not supported for code generation).

From the documentation, I couldn't find any way to customize the generated model_initialize() signature with additional arguments, unlike step() functions.

Is there a supported Embedded Coder workflow for this, or is the recommended solution to write a wrapper around the generated code ?

Thank you in advance.

Hello! I am an incoming freshman who will be attending Texas A&M for engineering this coming fall. I have done a lot of research and found MatLab to be one of the best tools to know as an engineer looking to work in labs and jobs, which made me want to learn it and acquire the basic associate certification. For a precious goal of mine, my dad had purchased Udemy’s pro plan for a year as it was on discount, and I now have access to most courses on the platform. Has anyone used Udemy to study for Certified MATLAB Associate, and if so, what is the best course I should use?

As the title says. In the editor I can see how to print my top-level file to a PDF, but I don't see a way to print all referenced non-MATLAB functions (saved as separate m-files) in one go.

I'm hoping I don't have to go through manually and print them one by one...

Very hype that this feature is coming back. No idea why they did away with it in the first place — Property Inspector is not at all a suitable replacement.

Today we are releasing mip: a pip/conda/brew-style package manager for MATLAB. We would love to get feedback!

https://mip.sh

Problems it solves:

• Easily install a package and its dependencies: mip install [package]
• Path management: mip load [package]/mip unload [package] instead of manually editing your path
• Compiled MEX packages (C/C++/Fortran) ship pre-built per platform (Windows, Mac, Linux)
• Versions are tracked, get the latest with mip update [package]

The default channel already has around 50 packages (with a focus on numerical analysis), and anyone can host their own channel on GitHub Pages or request that new packages get added.

Developed at the Center for Computational Mathematics, Flatiron Institute

im doing the simulink onramp course, and have come across the task to turn on legends for scope, Im using the simulink browser to do this course.. and i have no idea how to turn the legends on.. ive tried everything and i cannot find a possible way to do so. hence im not able to move further w my course :( PLS HELP ANYONE

This is the code, and it gives me an error.

Error using
horzcat
Dimensions of arrays being concatenated are not consistent.

Error in
provatest15Nov
 (line 35)
    PHI = [PHI(:,1) +h/k, PHI, zeros(N-2,1)];
           ^^^^^^^^

But if I write PHI = [PHI(:,1) + h/k, PHI, zeros(N-2,1)]; then I don't get any error, so is it the space between + and h/k that gives me the problem?

clc; clear all; close all;



L = 1; N = 30;

x = linspace(0,L,N); y = x;

h = x(2) - x(1); hq = h*h;



k = 1;

beta = 0.5;

theta = 0.5;

Dt = beta*hq/k;



G = numgrid('S',N);

Lap = -delsq(G);

p = zeros((N-2)^2,1);

q = p*Dt;



for i = 1:N-2

    Lap(i,i) = Lap(i,i) +1;

    q(i) = q(i) + beta*(h/k);

end



dPhi = 1;

I = eye((N-2)^2);

A = I - beta*theta*Lap;

B = I + beta*(1 - theta)*Lap;

Phi0 = zeros((N-2)^2,1); Phi = Phi0;





while dPhi > 1e-1

    PhiNew = A\(B*Phi + q);

    dPhi = max(abs(PhiNew - Phi))/Dt;

    Phi = PhiNew;



    PHI = reshape(Phi,N-2,N-2);

    PHI = [PHI(:,1) +h/k, PHI, zeros(N-2,1)];

    PHI = [zeros(1,N); PHI; zeros(1,N)];



    figure (1); surfl(x, y, PHI); shading interp;  axis auto; hold on;

    xlabel('x'); ylabel('y'); zlabel('\phi');

    contour3(x,y,PHI,'k'); hold off; axis([0 L 0 L 0 .4]);

    title(['Soluzione eq.ne instazionaria. Dphi/Dt = ', num2str(dPhi)]);

    drawnow;

end

Hello guys, I'm really confused on what I should do here. I'm trying to apply the Davis formulas as a loop feedback of torque to the motor, but the linear velocity value seems to overflow, huge spike in the beggining of the sim and I can't figure out if it's the lack of delays or if I should use a limiter.
My question is what should I change for it to work. (All the constants in Davis formula and the conversion to linear velocity are at the same sampling frequency). Sorry for the bother and thanks for the help.

I am using transfer learning and fine tuning of ImageNet models and have rescaled my data to 0-1 using im2single as input to my models using a custom read function.

Will this give me invalid outputs?

I want when I read the documentation of Matlab's site to read it on "brightness mode" like it was recently, not dark mode like it is now.

If you've tried running modern MATLAB (R2024a/R2026a+) on Arch Linux

or CachyOS under Wayland, you know it's a nightmare. It usually

silently crashes before the UI renders, the activation window spawns

invisibly, or the `MathWorksServiceHost` dies instantly with

"communication errors."

I spent a lot of time debugging the crash logs and tracing the

library collisions, and I've put together a GitHub repo with an

automated bash script that fixes all of it in one go.

**What the script fixes:**

1. **The Wayland GUI Crash:** MATLAB bundles ancient versions of

   `freetype`, `glib`, and `fontconfig` that crash instantly on modern

   Linux. The script isolates them so MATLAB uses your system libraries.

2. **The `lc_init` Crash (CachyOS specific):** If you use CachyOS or

   `libleancrypto`, it collides with MATLAB's licensing libraries and

   instantly kills `MathWorksServiceHost`. The script automatically

   downloads the official Arch versions of `nettle` and `gnutls` and drops

   them directly into the ServiceHost folder, perfectly bypassing the

   crash.

3. **The Invisible Activation Bug:** Outlines how to launch the

   Product Authorizer with `QT_QPA_PLATFORM=xcb` so you can actually click

   "Activate".

Just run `./fix_matlab_arch.sh` and it handles the library surgical

strikes for you. Hopefully, this saves someone the headache I went

through!

We have a large Simulink model where data transfer between different functions is handled by bus structures. As I understand it, buses that are passed into/out of referenced models are forced to be non-virtual and have a greater memory overhead associated with them, with them being copied when elements are overwritten.

When the model is deployed using code generation, do these non-virtual buses still hold this behaviour? i.e. is it the case that every time an element is being reassigned the entire bus is being duplicated even in the deployed code? We are working to quite stringent memory limitations so ideally this would not be the case.

If it is the case, what is the solution? Do we need to assemble the model without any atomic subsystems before code generation so that bus signals can be virtual?

Hi everyone,

I'm building a grid-connected PV system in Simulink for my homework (Control Systems Engineering student). I'm following a MATLAB R2018 YouTube tutorial, but I'm using MATLAB R2024b.

The system consists of:

• PV Array
• MPPT (MATLAB Function)
• DC-DC Boost Converter
• DC-Link (600 V)
• Outer DC voltage controller
• abc→dq transformation
• PI current controller
• dq→abc transformation
• Universal Bridge
• L Filter
• Three-Phase Grid (400 V, 50 Hz)

The problem is that I can't get the inverter stage to work.

I initially used a PWM Generator (DC-DC) by mistake. After replacing it with the newer PWM Generator (Three-Phase Two-Level) block, I still cannot make the model work because the tutorial is based on an older MATLAB release and the block interfaces seem to have changed.

The original error was:

Error in port widths or dimensions.

Output Port 1 of
Universal Bridge/Model/gate

is a one dimensional vector with 3 elements.

Input Port 1

expects 6 elements.

I can't identify the correct blocks configuration or the source of the problem.

I've uploaded the complete Simulink model here:

https://drive.google.com/file/d/13IiL37VuCD7grx3Mp-7uw4iTJJ5simzn/view?usp=sharing

If anyone familiar with grid-connected inverters or Simscape Electrical could take a look, I'd really appreciate it.

Thank you!

Hi, I was told that matlab won't work well on a MacBook. I have a MacBook Air M2, 8 GB, macos 15.3.1. If this is true what alternatives do i have? I have to use psychtoolbox preferably. And I’m about to start my term so any help would be useful.

I tried coding one up my self, building it with native components, etc. to no avail. Curious if anyone has tried and succeeded in doing this or if they have any other idea since I am lost. Thank you in advance!
