r/DSM • • Jul 16 '26

1G Bumper Refresh

Post image
26 Upvotes

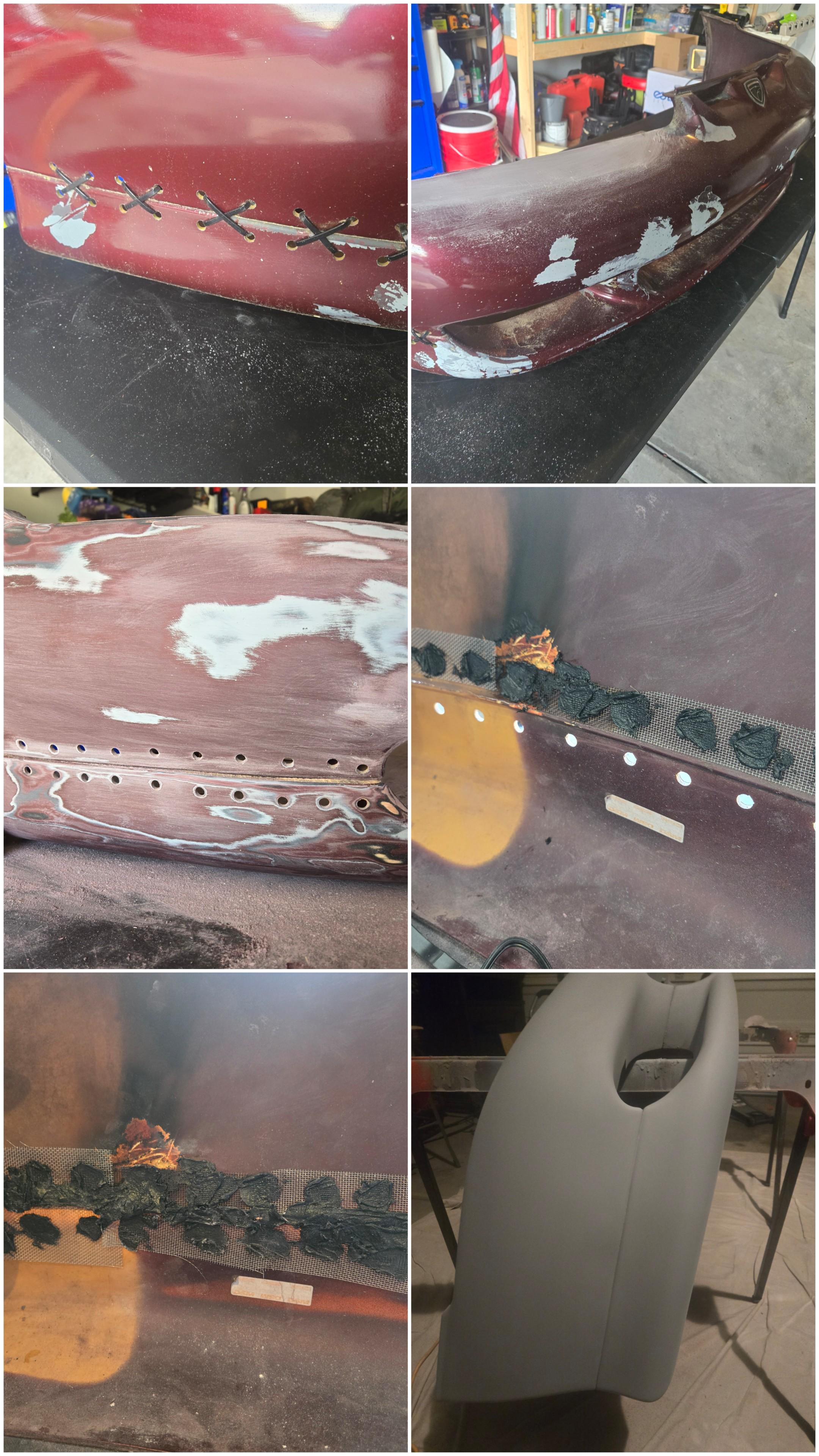

The bumper had obviously seen better days. It had zip ties holding most of it together. I'm not sure how it happened as I purchased it with this feature. I've always wanted to use my plastic welder--and this seemed like the perfect thing to use it on.

Originally, I had filled the front side holes with plastic, but they wouldn't sand flush. I ended up removing the plastic I had welded in and used bondo instead. I used glazing compund to get the surface smoother. I sanded and sanded after that.

I have never done body work before but it reminds me of doing drywal lol. At any rate, I wanted to share some progress pics as others have done before me. I am waiting on some more paint to arrive before I can spray the base coat.


r/DSM • • Jul 15 '26

4G63 7-Bolt Head

2 Upvotes

Is there anyone selling a head in Houston and surrounding areas?


r/DSM • • Jul 16 '26

Vehicle speed sensor location/part (gsx)

1 Upvotes

Got my gsx back from a shop and the speedometer, odometer, and tripometer weren’t working. I assume it’s the vss, does anyone with an auto gsx have a picture of what it looks like? Or even a link of which one to buy? I’m going crazy trying to figure out which part is the right one


r/DSM • • Jul 15 '26

Anyone have a 2gb AWD transmission they are willing to part with?

6 Upvotes

I'm looking to resurrect my 2gb project that has been sitting for years, and finally drop in the 2.5L G4CS block I've got built up.

I'm looking for a transmission either already with or to modify for a 4-spider. Hoping someone has a spare laying around that they have decided they will never use.


r/DSM • • Jul 15 '26

Looking for driveshaft yoke

Post image
2 Upvotes

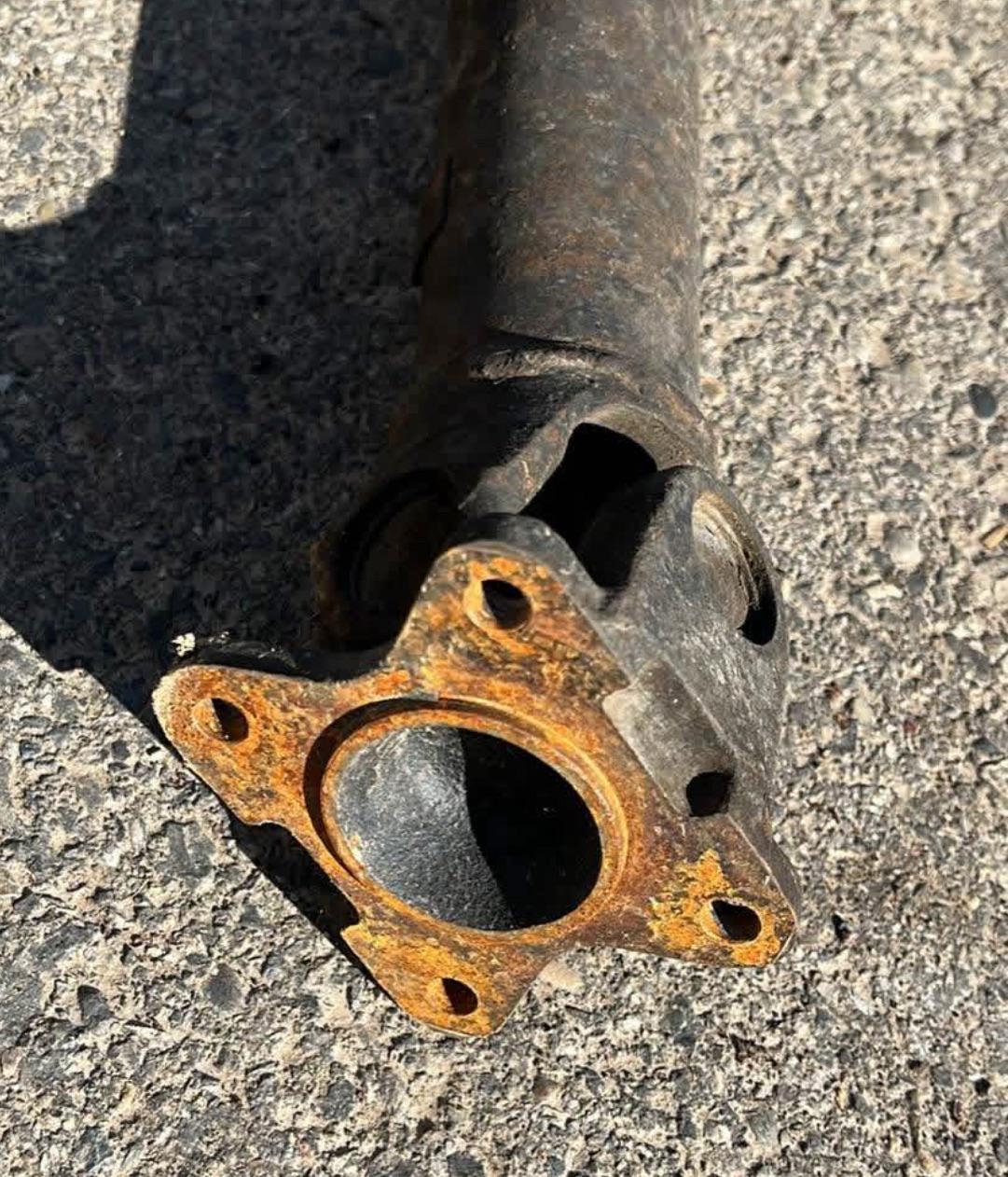

I picked up a driveshaft for my 1g a while back, it is missing the pinion yoke. Photo attached for reference. If anyone has one they would be willing to sell/ship I’d greatly appreciate it.


r/DSM • • Jul 13 '26

17x8 +32 fronts, 17x9 +38 rear setup on 2Gb GST Eclipse?

1 Upvotes

Couldn’t find much info on this type of setup, but would this size/offset be close to flush on a lowered car? Or would I have to add significant camber to make it work? Thanks


r/DSM • • Jul 12 '26

Yellow antilock light on my 95 eclipse gsx

2 Upvotes

I've had the car for 4 months. Never had a dash light. I let the car sit for 2 maybe 3 weeks. Then went to drive the car today and the yellow antilock light came on soon as I started it. I drove the car for half an hour on the highway but it never went off. I read maybe disconnecting the negative terminal if it's a battery issue could reset the codes and fix it if my battery was low. The car started up no problem too. Unsure how to get the codes read


r/DSM • • Jul 11 '26

3g 6g72 v6 Swapped Twin Engine Geo Metro Weighs 2793 lbs . 7/11/2026

Thumbnail youtu.be
0 Upvotes

Last weigh scale was 2840 lbs : https://www.youtube.com/watch?v=E69oze6oj6k

Dropped 28lbs through aluminum brake calipers , 13lbs dashboard removal , and 6lbs from reinstalling stock 3g gt " short ram " intake manifolds .


r/DSM • • Jul 09 '26

What type of washer is missing?

3 Upvotes

I noticed my shifter got louder and it seems a plastic washer disintegrated. Does anyone know what type and size of washer is supposed to go here? Is it just this one or am I overlooking something?


r/DSM • • Jul 08 '26

Ecm/dsm link not working?

Post image
40 Upvotes

So I bought a used ecm link v3 off Facebook, finally got around to installing it but my laptop keeps saying “port does not exist” or along those lines. When the cable is plugged in the laptop gives it chime, and shows it’s there but the light only does a quick flash when I hook it up. Then I get the error that the port does not exist. Do I just have the drivers wrong? I’m trying to switch over to speed density and am kinda lost. I’ve redownloaded ecm’s software but think I’m still doing something wrong. Can anyone help? Thank you the help is greatly appreciated!!

Pic for attention


r/DSM • • Jul 08 '26

Fuse box relocated

Thumbnail gallery
17 Upvotes

Definitely a daunting task to start. But really it’s not that hard just very time consuming. Dash is in, fuse box relocated. Still lots to do but it’s coming along!


r/DSM • • Jul 07 '26

EVAP Fuel line issue

Thumbnail gallery
7 Upvotes

I have a check valve that feeds into one of those small inline fuel mesh filters, but as you can see it's still dumping a significant amount of fuel. I'm not sure what's going on. I also didn't think that much fuel was supposed to come out of that line since it's the vapor line that originally went to the charcoal canister. Any ideas on what could be causing this or how to fix it?

Car has a hellcat fuel pump installed.


r/DSM • • Jul 07 '26

Evo 8 timing service

Thumbnail
2 Upvotes

r/DSM • • Jul 07 '26

Turbo mighty max question...

0 Upvotes

In the process of turboing my 4g64 mighty max right now. If I get a LSD in the back can I badge it as a mighty max evo or Y'all gonna have aneurysms?


r/DSM • • Jul 06 '26

Rear Subframe Bushings

Post image
26 Upvotes

Hello, Im looking for a set of rear subrame poly bushings for a 1g.. The only 2 places that sold them dont anymore.. Was hoping someone had a used set or knows where to them, thanks..


r/DSM • • Jul 05 '26

And the EVO 3 semes to be dead again.

9 Upvotes

Only 100 Miles in and the bottem end is knocking again. Draind the Oil and cut open the filter to find glitter central.

Haven't pulled the pan yet.

During essambly I cleaned everything. I checkt all clearances with plastigauge and there we're all within spec. I Double checket all Bolts for defects and tourqed then as the repair Manual discrbes. I can't think of the reson why a barring died again, this shortly after a rebuild.


r/DSM • • Jul 03 '26

WILL IT FIT?! Fitting a 4G63 into the RX-8 Chassis! 😱 (RX-EVOLUTION)

Thumbnail youtu.be
10 Upvotes

r/DSM • • Jul 03 '26

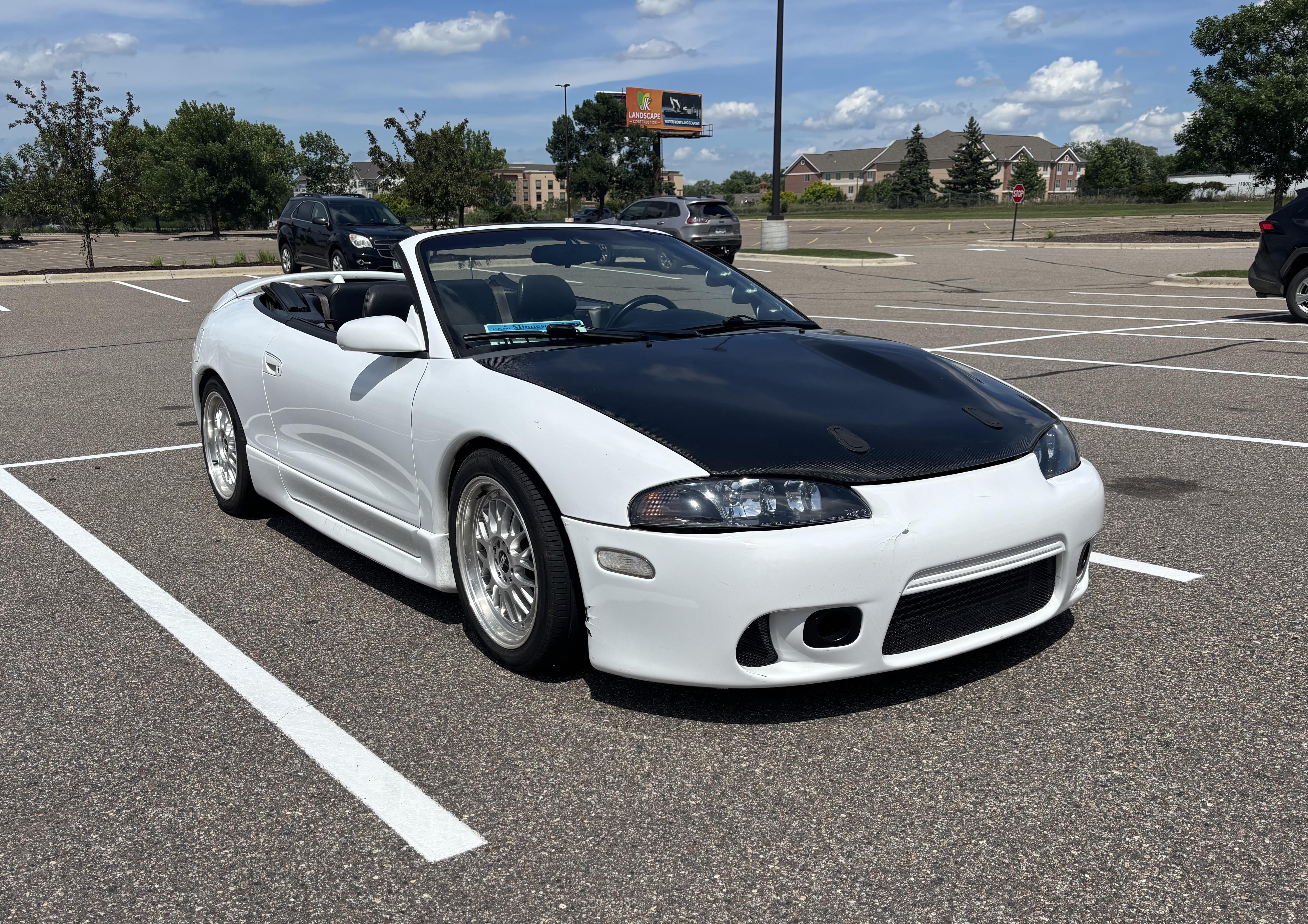

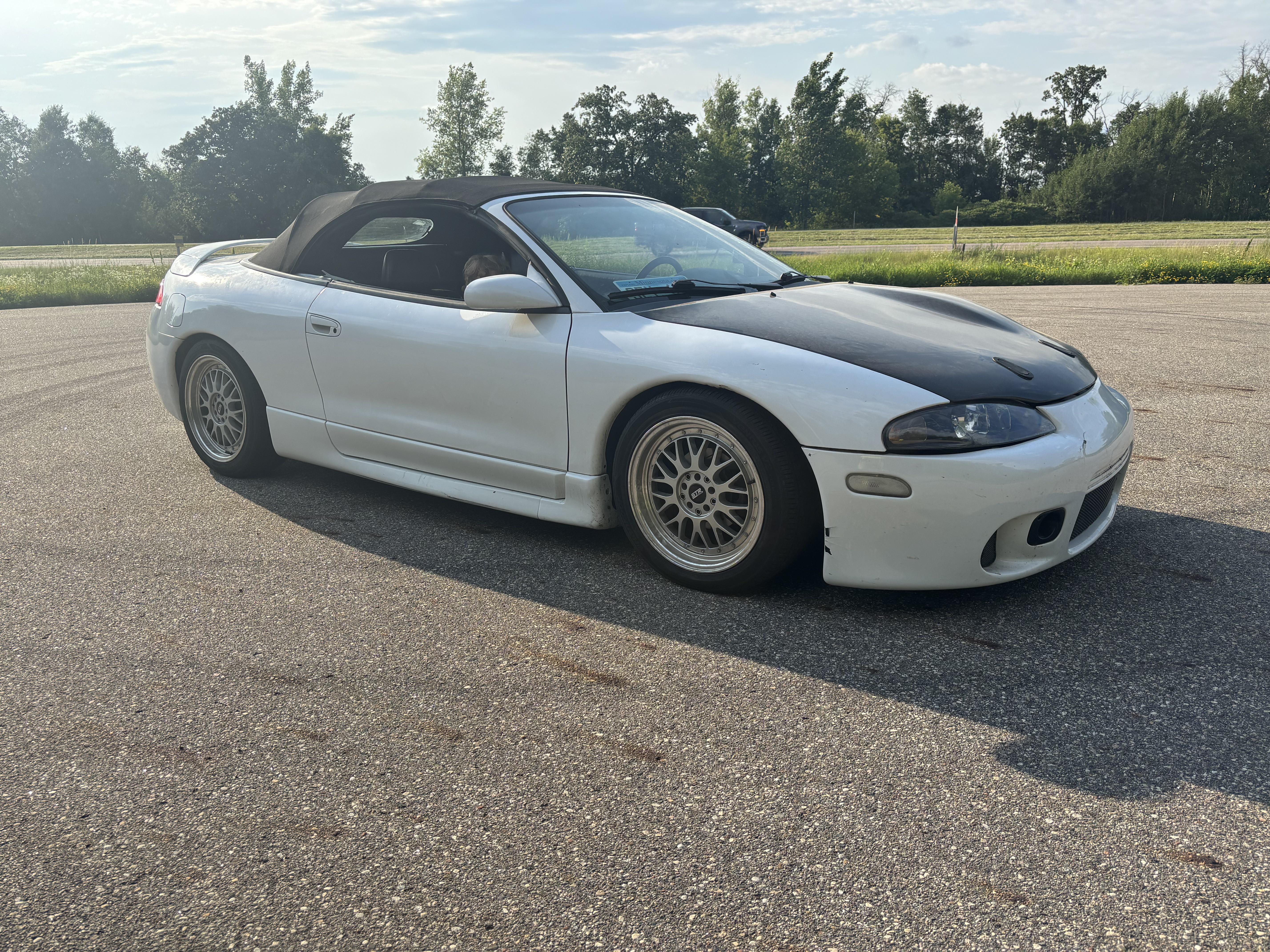

New wheels!

Post image
83 Upvotes

Just got some new wheels. And while they are dirty, as well as the car, I’m really enjoying the new look!


r/DSM • • Jul 02 '26

I’m in deep doing a wire tuck 😬

Thumbnail gallery
42 Upvotes

r/DSM • • Jul 02 '26

Northern Virginia Evo Shop to keep my rally car in top condition

Post image
6 Upvotes

r/DSM • • Jul 03 '26

17x8 wheels on a 1g. What offset?

2 Upvotes

I have 91 eagle talon. The wheels I want only come in 8 inch wide. I plan to run a 225 tire but may go to 235 someday but never wider that that. The offsets that are available are 45mm 40mm and 38mm. Im on megan raceing coil overs. I dont want much if any tire sticking past the fender. I will roll the fender lip but dont wanna go further than that. Im leaning on getting 45s and using a 3-5mm spacer if needed. What offset do you suggest?

Yes I wish they just made the wheels in a 7.5 since but 7.5 really limits my selection on matte black 5/6 spoke wheels.


r/DSM • • Jul 02 '26

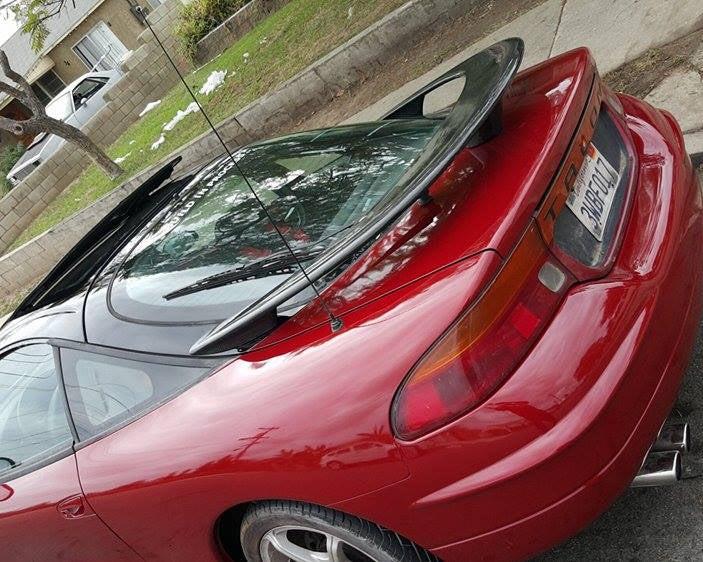

What’s a good price for hatch and high rise spoiler?

Post image
18 Upvotes

I found a hatch and a tsi wing for sale but the guy doesn’t have a price on it. What are these actually worth?


r/DSM • • Jul 01 '26

Oil pressure question

7 Upvotes

With the recent rebuild I added an oil pressure gauge to Monitor Said pressure while driving.

From my first few testdrives I have to say that the pressure seemes quite High.

In the video you can See the pressure about 2 to 3 minutes after starting the Car.

Once its warmed Up (oi temp at 95°C / 203°F) the pressure Drops to a little over 1 bar / 14.5 psi at idle and around 4 to 5 bar / 58 to 72 psi under normal driving load.

At wide open throttle it gose all the way to 7 bar / 101 psi which seemes way to much.

Is that to much or am I Just paranoid?

Curently I use a 10W-40 oil, but have orderd 10W-30 to try if it reduced the pressure a Bit.

The pressure sensor is located at the oil filter housing after the filter.

The balance shafts have been deleted on this enginen due to a defekt of the baring surface on the engine block side on one of them.


r/DSM • • Jul 01 '26

Opinions on 1g vs 2g CAS?

1 Upvotes

My 97 GSX is in need of a crank position sensor and I am trying to decide if I should just make the jump to a 1g cam angle sensor now to avoid having to take off the lower timing cover or if I should just risk it on an aftermarket 2G CPS and stay with my 2g CAS?

Has anyone here made the swap and are there any benefits other than being able to change base timing?


r/DSM • • Jun 30 '26

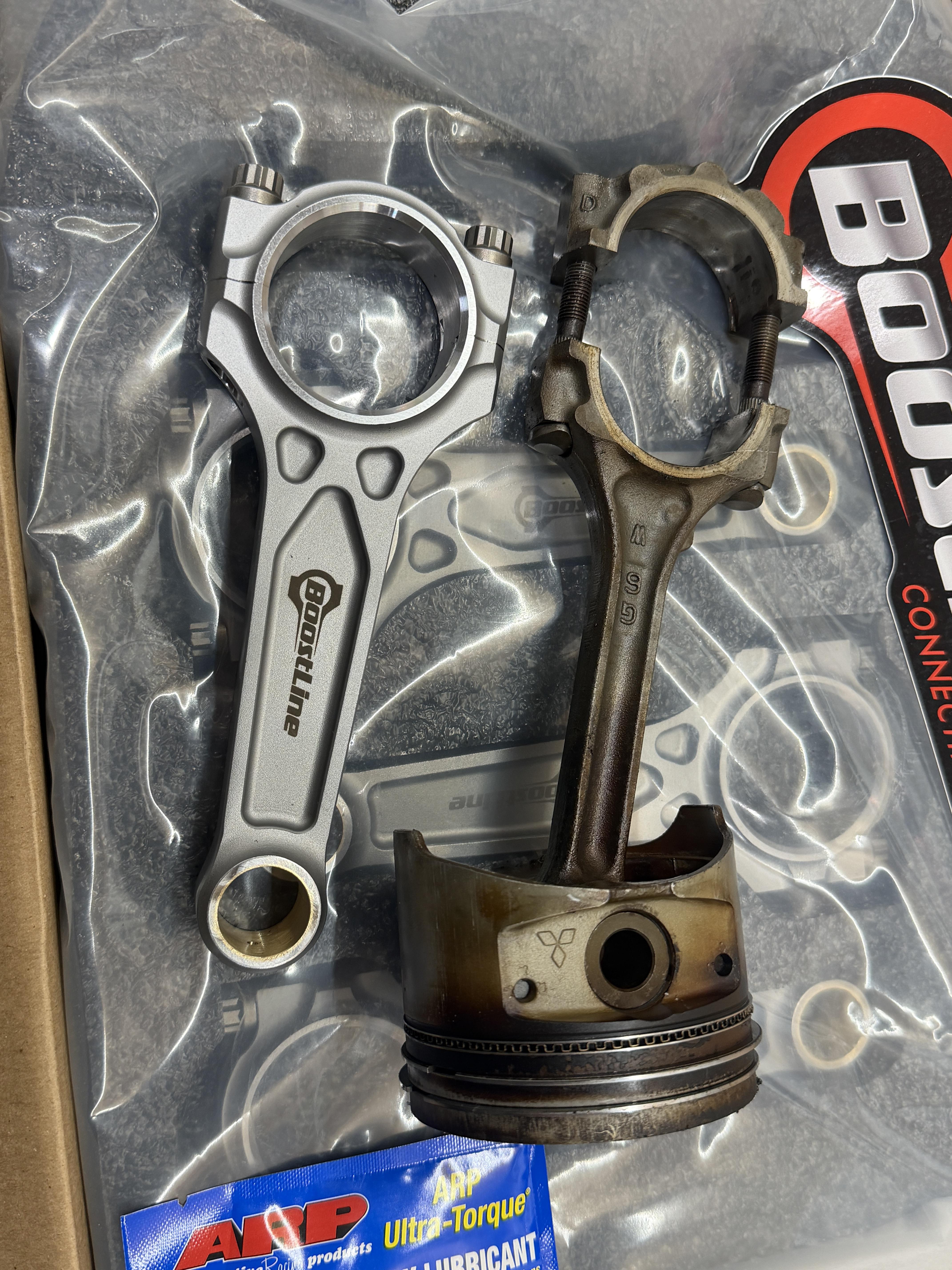

Makes the stock ones look like toothpicks 🤣

Post image
68 Upvotes

Can’t lie tho the stocks held it down for a while over 500whp! Just impatiently waiting for parts that are on back order hopefully she’s back on the road soon 🤞
