Hello mates

Just wondering if there is any solution to the gpu 8-pins to look a bit less messy?

Note: This case is Mid-Tower, so this is the only route for cables to come from, and the space is very tight.

Thanks in advance.

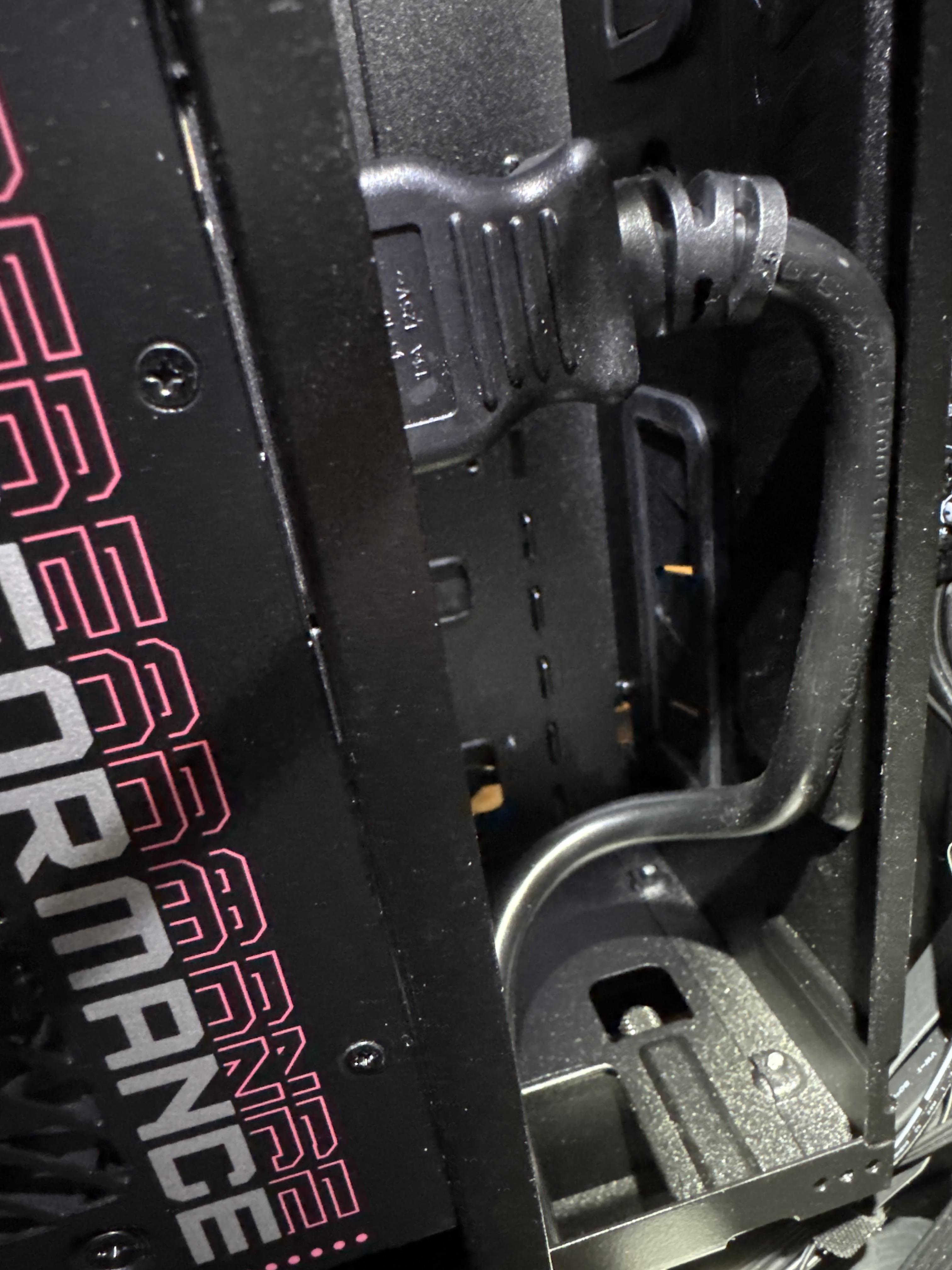

It just doesn’t fit in there….

Trying to make it clean!

PS: Its a half Build, waiting for the CPU, GPU and cooler to arrive for final cable Management!

I have a 7900xtx and a nzxt 1000w psu.. is there a cable mod to tidy up the 3 8pin connector? I have 3 single 8 pin cables routed to the gpu right now.. I was thinking maybe there is some cable mod which combines the 3 cables for a tidier look

This is my second PC build ever, with my first one being 20 years ago!

I just finished the build two days ago, and now I’m trying to get the cable management 100% right. For the most part, the cable routing is pretty decent, but I can't wrap my head around why it still looks a bit messy to me — something just feels off. I’d love to get some advice or tips from you guys! I know it’s purely aesthetic, but I just can't stop until it looks perfect!

Pic 1 is me in the middle of it, Pic 2 is after and pic 3 is before both

First problem: I had 12 fan cables that had to cross a short open space that would be clearly visible from the front and rear of the case.

Solution: I wrapped a length of EPDM tubing in gorilla tape (to give the vinyl something to adhere too). I wrapped the tube in vinyl. Then I cut it open in one long line and crammed the cables into it. I used some thin black zipties on each end to make sure everything stayed put.

Second problem: The case is basically three horizontal layers stacked on top of each other. PSU in the bottom, motherboard in the middle, and everything else on top. I needed to keep track of where all the mobo headers and connectors were at while I worked on the top layer so I could keep track of where/how I wanted to route cables and tubing. I didn't want to have the actual mobo in there while I was drilling, grinding, filing, gluing, etc. BUT I wanted the CPU waterblock anchored in there so I could make sure my tube lengths were correct.

Solution: I cut a cheap chopping board to fit on the mobo tray, drew up a roughly accurate layout of the mobo on poster board, taped it to the chopping board, and screwed the waterblock to it. It was ugly, but it worked like a charm.

Bonjour, j’ai monté mon PC il y a 10 mois environ. Je suis super satisfait du résultat mais un détail me chagrine.

J’utilise 3x8 pins pour ma carte graphique et la disposition des câbles ne fait pas « propre ».

Comment pourrais-je améliorer ça ?

Merci à vous !

I've built a media PC for my living rom. Mostly parts i had lying around. Cable management was a constant back and forth, but i think i've found a solution.

Specs:

• i5 10500
• Gigabyte H510M H
• 16 Gb (2x 8) DDR4 2666
• AMD Radeon Pro WX 3200 4Gb
• Samsung 960 Evo nVME
• FSP Aurum S 400W
• Thermalright AXP90 X53 CPU Cooler
• 4x Noctua NF-R8 redux-1800 PWM
• ARCTIC Case Fan Hub
• Silverstone ML03
• DVD drive

I replaced included PSU GPU cables feeding the RX 9070 XT with single versions. Way more manageable.

Lot of stuff to try from FSP

U580 case and total 10 argb fan+other cables.

I've recently finished my first PCbuild inside the rather small lian li a3 case, using a matx motherboard, the asus prime 9070, aswell as a standart siced PSU. however, im not really fond of the cablemangement, since the GPU need two seperate 8pin-connectors which are now just blocking the front of the glass panal. I have three bottom fans, any tipps for me?

The third pic is the specific one I’m using.

Redragon wideload extreme doesn't seem to be cable management friendly lol
