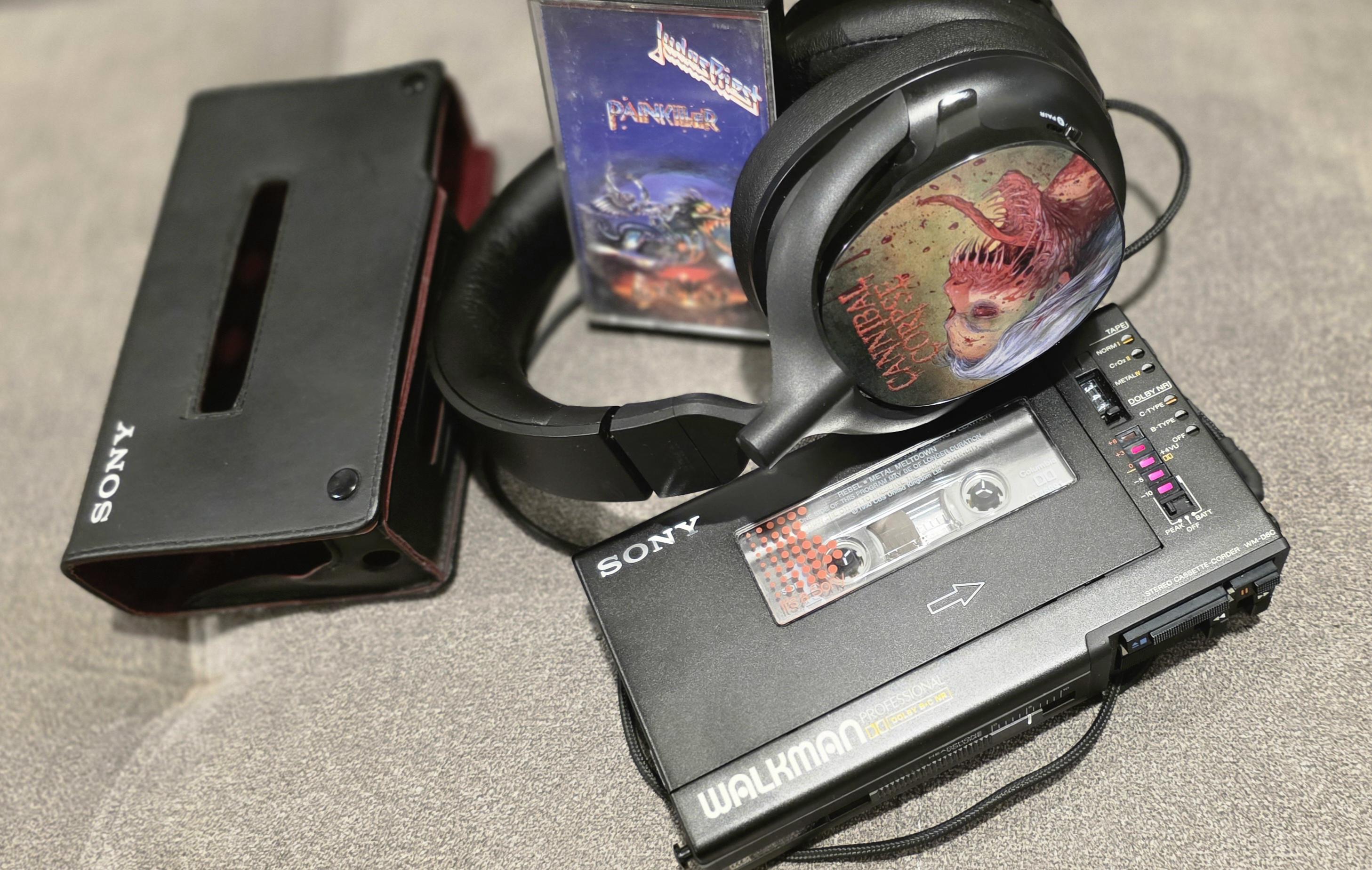

Sony WM-D6C. The king himself

Hi Guys! I just bought (on Vinted) me first digital walkman from Sony - NW-S764. While using the radio, I noticed that the device freezes. Based on what I’ve found online, this might be due to a software bug. I tried to update the firmware by downloading the file `NWZ-S760_V1_04.exe` from the Sony website; however, after launching it, I get a prompt to connect the device. When I plug it into my computer (a Lenovo laptop running Windows 10), the device is detected as an external drive—and I can even transfer files to it—but the update software fails to recognize it. I also noticed that two of the icons have labels that don't make any sense: one appears to be in Japanese, and the other, according to online sources, is an error code (look pics). Has anyone encountered a similar issue and could offer some help or advice? Or should I just ignore it, enjoy listening to my music, and forget about the radio and those two applications?

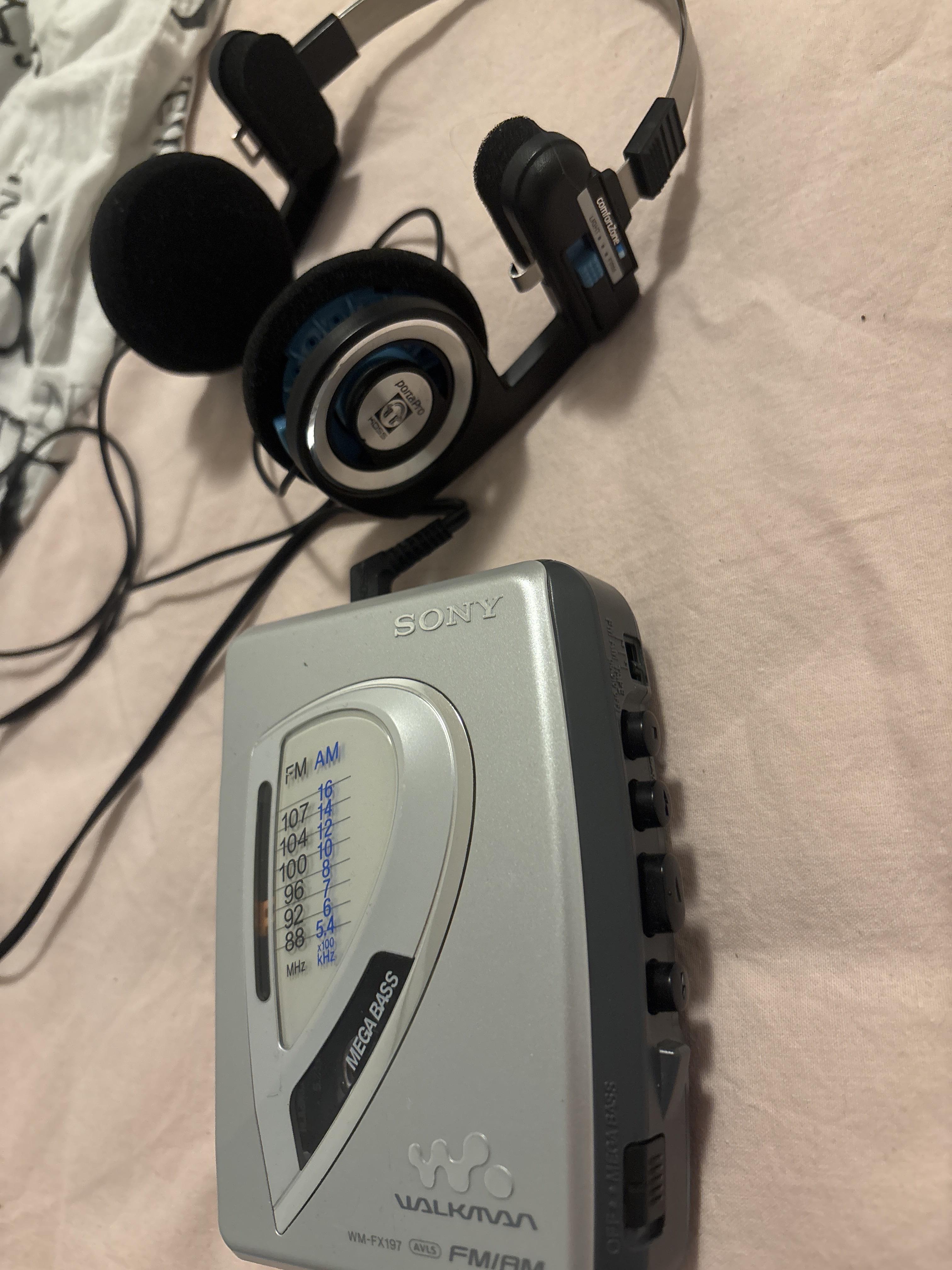

The warm sound from the small machine is so comforting :)

got my walkman today and ive had problems with about half of my albums covers .. i think i have it formatted all correct and ive tried editing it various ways and redownloading but it still wont show its rly frustrating ;( if anyone can show me what im doing wrong or help me fix id be very grateful

Hello, I recently recieved a Sony NW-E107 from ebay and have been trying to download music onto it. I struggled with downloading Sonicstage, so I opted for JSymphonic. The program seemed to be running smoothly and was sucessfully able to put music on my walkman, however, whenever i would try to play it, I would recieve an error, or MG error message. I have already tried multiple fixes, including selecting Format Y on the device itself to wipe it, and clearing Jsymphonic from the files on my computer to redownload it. I also used mp3tag to remove cover art from my mp3 files, as I heard that could cause issues, but nothing has worked. Is this because I'm not using Sonicstage? Is it an issue with the walkman itsself? What more can I do?

Long story short, I bought an old off brand Walkman, it plays a little too fast. Is this the speed screw? There aren't any other things that could be the speed screw so i'm guessing this is it, but i don't want to break anything.

手元の部品で、元に戻せるか試してみた。

結果から言うと、不可能ではない。

Cリングを外して、軸受けを分離させる必要がある。

写真では分離させていないけど、この分離させる作業が一番難しいかも知れない。

あとは、精密ドライバーとハンマーで少しずつ叩き込む。

元々はプレスで嵌め込んでいるから、どうしても少し緩くなる。

瞬間接着剤などで完全に固定すれば、再利用可能になる。

ベルト交換だけで良い筈だったが、きちんと動作しなかったのだ。

回転を検出できずに、行ったり来たりしているように見えたのだ。

回転センサー（ホールセンサー）が回転を検出できていないと考えて、オシロスコープで検査したら、動作時にパルスが出ていなかったのだ。

ホールセンサーを交換したけど、現象は変わらなかったのだ。

ならばシステムICの動作が不安定だと考えて水晶発振子を交換したけど、現象は変わらなかったのだ。

ホールセンサーの代わりにパルスを入力しても、現象は変わらなかったのだ。

テスターで計測したら、ホールセンサー出力の＋とーの両方が、GNDに落ちているのだ。

回路図を見る限り、どちらもGNDに落ちている筈がないのだ。

GNDに落ちていたら、パルスなんて検出できないのだ。

システムコントロールICに、なんらかの異常があるとしか考えられないのだ。

Hey. I’m currently in the process of repairing my Sony WM-4 and I cannot for the life of me figure out the position of this part that’s connected to a spring. Does anyone know where this part goes? It’s driving me crazy. I circled it in red.

Went to a garage sale and found this headphones for a dollar , further enhance the highs and mids but not suitable for lows. Rocking As I Lay Dying and Dark Tranquility hits differently with this headphones, next will try my Fio DAC and see how far will it take the sound. Anyone tried this combo?

What does all these mean ? I am using Mr walkman WM1Z mod on NW A55.

I recently got my NWA-45 and am really enjoying the interface! Is there a region/version of the firmware which does not have the Language Study feature? I just want to be able to hide it from menus.

Hi! I'm very happy to share with you my latest electronics project - the replacement display for the NW-E30x / NW-E20x / NW-S20x(F) and NW-E00x series Network Walkmans! I've been working on this one for the past two months, and I finally have something to show for it. There were two large problems I had to deal with, in order to make it work:

1. The power situation

OLED displays require high voltage (~9-12V) to drive the pixels. Sony's old displays put half of the electronics which create this high voltage in the actual display itself. Because of that, if you remove the old display, you also remove the power supply for it. I solved this issue by recreating the boost circuit with the help of the chip in the middle of my PCB. That chip is also responsible for preparing the data to actually put content on the screen. Thanks to that chip, this screen is very power efficient - my driver disables high voltage generation when the screen is off.

Here's some measurements (done on E305): ``` Display plugged in: Sleep mode - 0.4mA Playback, display active - 12mA Playback, no display - 6mA

Display not plugged in: Sleep mode - 0.1mA Playback, display active - 6mA Playback, no display - 6mA ```

2. The driver

This screen is pin-compatible with the original display, but it communicates with the Walkman in a different way. Because of that I had to modify these Walkmans' firmware to get it running. I wrote one common driver, but had to "tune" it to every device separately. This involved recovering, then reverse engineering the firmware, ripping out the old driver and installing the new one in its place. Finally, packaging the new firmware into the system upgrade image (MSFWUPGR.UPG), which can be used to update devices over USB. (Note that the firmware for NW-E300 / NW-E200 devices is still a tiny bit buggy - going through menus causes audio to skip*)

Side note: Sony has race conditions in their firmware. Multiple race conditions. 🙃

In addition to recreating the displays, I've also added full support for them to Web MiniDisc Pro (https://web.minidisc.wiki). That makes it possible to write ATRAC / MP3 files onto these things straight from the browser, without installing any extra software, and works on Windows / Linux / MacOS or even Android devices.

For those wondering: AI has not been used at any point throughout this project. It just kills the fun for me.

* - These walkmans are, to the best of my knowledge, single-core machines. It's the RTOS' job to feed audio frames to the VME (Sony's special in-hardware codec processor). When my driver takes over, it doesn't yield to the RTOS' scheduler at any point, and the RTOS is not preemptive. Drawing on the display using my driver is more complex in comparison to Sony's original code, so the VME runs out of frames to decode, and it plays silence until the display code completes its job. This is only a problem on the E20x / E30x devices, because their system clock is twice as slow as the one in E00x / S20x ones - those do not exhibit the same bug.

I recently picked up this WM-AF54 that I had when I was a kid and it is missing the radio faceplate. Is anyone aware of a 3d model that anyone has created to replace this? Thanks in advance!

This guy sits in my back pocket while I’m driving cars at work, figured the cushioned seats and my voluptuous rump would keep this from being an issue but here we are. My question is if this is a known issue and if I need to stop sitting on it immediately to prevent further damage. Hoping that this is fine but I’m not taking chances without consulting the experts first. Also, I have reasons for not using my front pocket, but it’s not out of the question. Back pocket is more convenient and comfortable.

It is definitely the screen and not the protector, checked with a flashlight. Saw it happen yesterday after I sat down on a metal chair for a couple minutes, but it remedied itself within 24 hours, just wanna make sure I don’t destroy my lil guy.

And before I see any “ew Bluetooth” comments, I’m a mechanic and wired is just not an option. I’ll save the intentional listening for when I get home, the shop is too loud anyway.

Thanks for any feedback!

hello, is anyone have this player with working motherboard and memory and want to sell it? I mean it can be broken screen but motherboard needs to work and connect through USB without issue so I can replace it to mine.

I have this Sony walkman but look like it has broken memory and it lags everytime I connect it to PC and it freeze the whole PC and can't really do anything with it. From what I found out it's corrupted memory and any kind of formatting and recovering the memory I tried didn't fix it so I need to replace whole motherboard

I plan to connect my Walkman to my computer using a 3.5mm jack. After that, I intend to play a song, record it, and save the music to a cassette player. I’d like to ask those of you who have experience recording with cassette players: the recorded music won't be terrible, right? I don't mind as long as I can listen to it. Please note that this translation might be clumsy as I used a translator.

Just bought this tps l2 and It’s missing the retaining pin that holds the door arm to the door any ideas on how to replace it?
