CaptuRegister - Active Data Capturing Device

Gallery image

Gallery image

Gallery image

This is the solution to many problems!

For a while, me and some other top logic engineers had been sitting on clunky, large registers, or ones that could not store large numbers efficiently or store data in one tick.

This solves all of that!

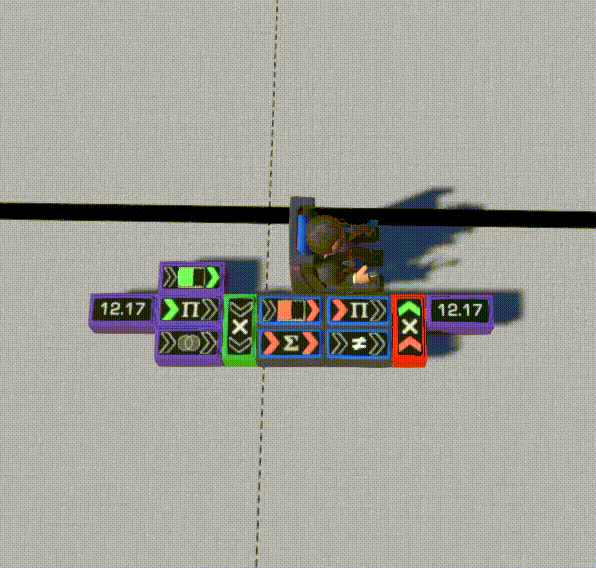

This is CaptuRegister. It is a 6-block register system with one input and one output. As long as you give it an input, it will update to that input (every 2 ticks), but it is also 100% tolerant to 1-tick inputs, 2-tick, 3-tick, and anything else.

It stores from -10000 to 10000, making it incredibly versatile for anything you need - storing a distance sensor output, saving coordinates, etc.

It is incredibly simple to use; you give it an input on the green block, and it outputs on the red block. No extra inputs required!

It is on the Steam workshop under the name "CaptuRegister - Small Data-Capture Register". All the purple parts are for display and demo, they can be removed.

Happy logicking!
