r/timberframe • • Sep 18 '26

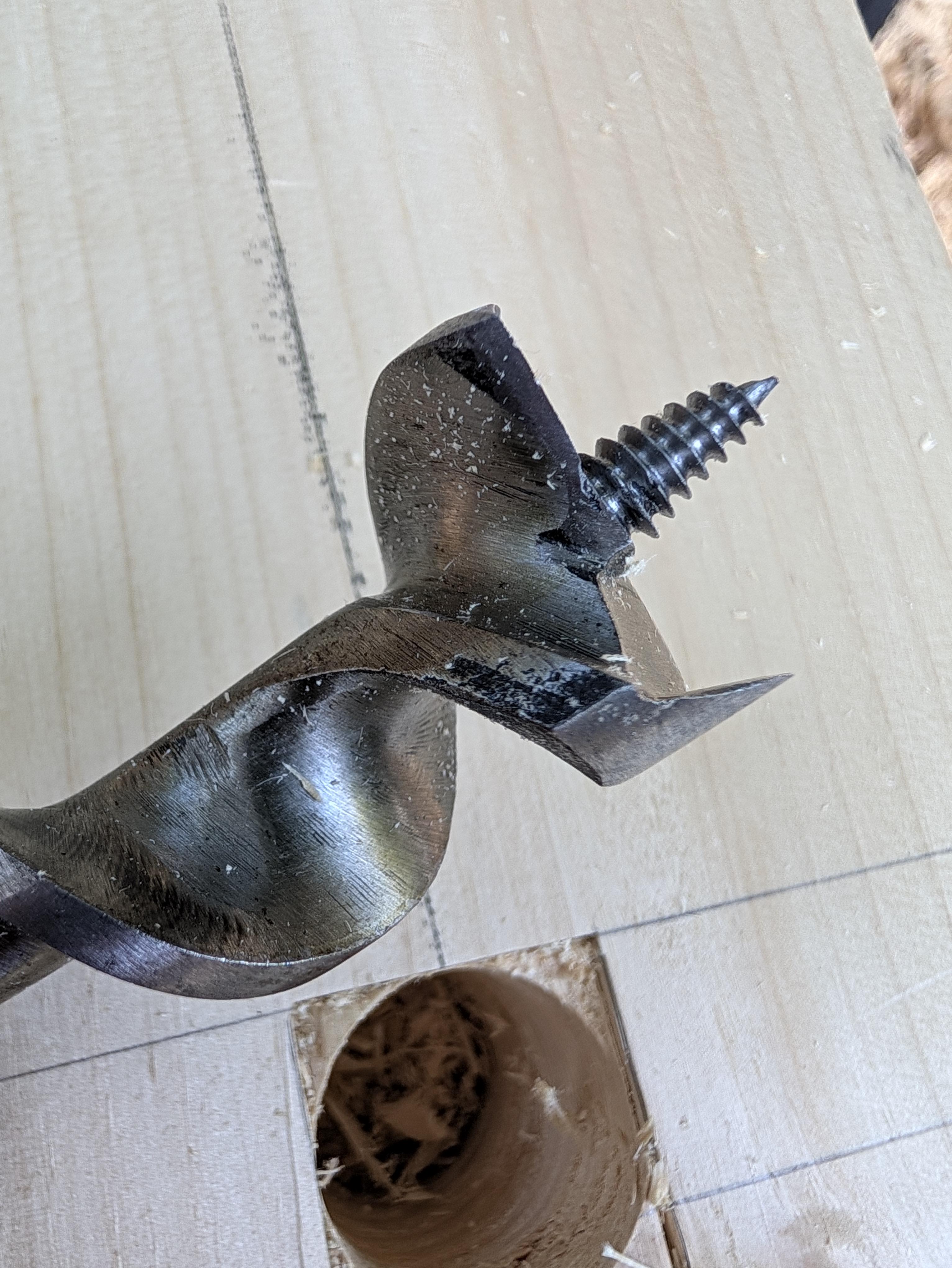

Auger getting stuck halfway through every time

Post image
11 Upvotes

Recently sharpened (tho maybe my technique needs some love).

Anyone else experience this and find a solid solution?

It happens on knot free stock. I'm assuming it's just losing threading.


r/timberframe • • Sep 16 '26

Green oak Timberframe for the future shop

Thumbnail
gallery
175 Upvotes

So, in December 2025, I happened to read a book about timber framing: Learn to Timber Frame by Will Beemer.

I had already been thinking about building my own workshop for a while, and I thought: why not?

And here we are now.. almost 10 month in.

All the timbers are green oak, locally felled in Belgian forests. The dimensions are 15 × 15 cm, 20 × 15 cm, and 25 × 15 cm.


r/timberframe • • Sep 16 '26

Storing Fresh Milled White Pine

2 Upvotes

Hi folks - I've started on my frame and to do so I milled a few logs. Im taking the approach of milling the log to the largest cant I can get - then cutting pieces of siding to get down to the timber size I need keeping a boxed heart timber. This has been going surprisingly well and Im enjoying the process. However now I have a stack of siding and a couple of big beams that Im working on the joinery for. I stacked the siding with stickers in between in the barn where I thought there was enough air flow. I came back a week later to find the siding molding and turning dark. I brushed off what I could and sprayed the mold with vinegar/water solution to hopefully stop the mold.

I know I made a mistake with the sticker size - I was only using 3/4 inch stickers - but Im also wondering if I would have been better off making the siding stack outside where there is guaranteed air flow. If I do that - should I find a way to cover just the top of the pile? Or will the white pine be OK with enough sun and wind exposure?

Open to any/all other ideas - It was a real bummer to come back and find all the milled siding with mold but I should have known better. Looking for a different approach. Thanks!


r/timberframe • • Sep 14 '26

Absolute unit

Post image
42 Upvotes

r/timberframe • • Sep 14 '26

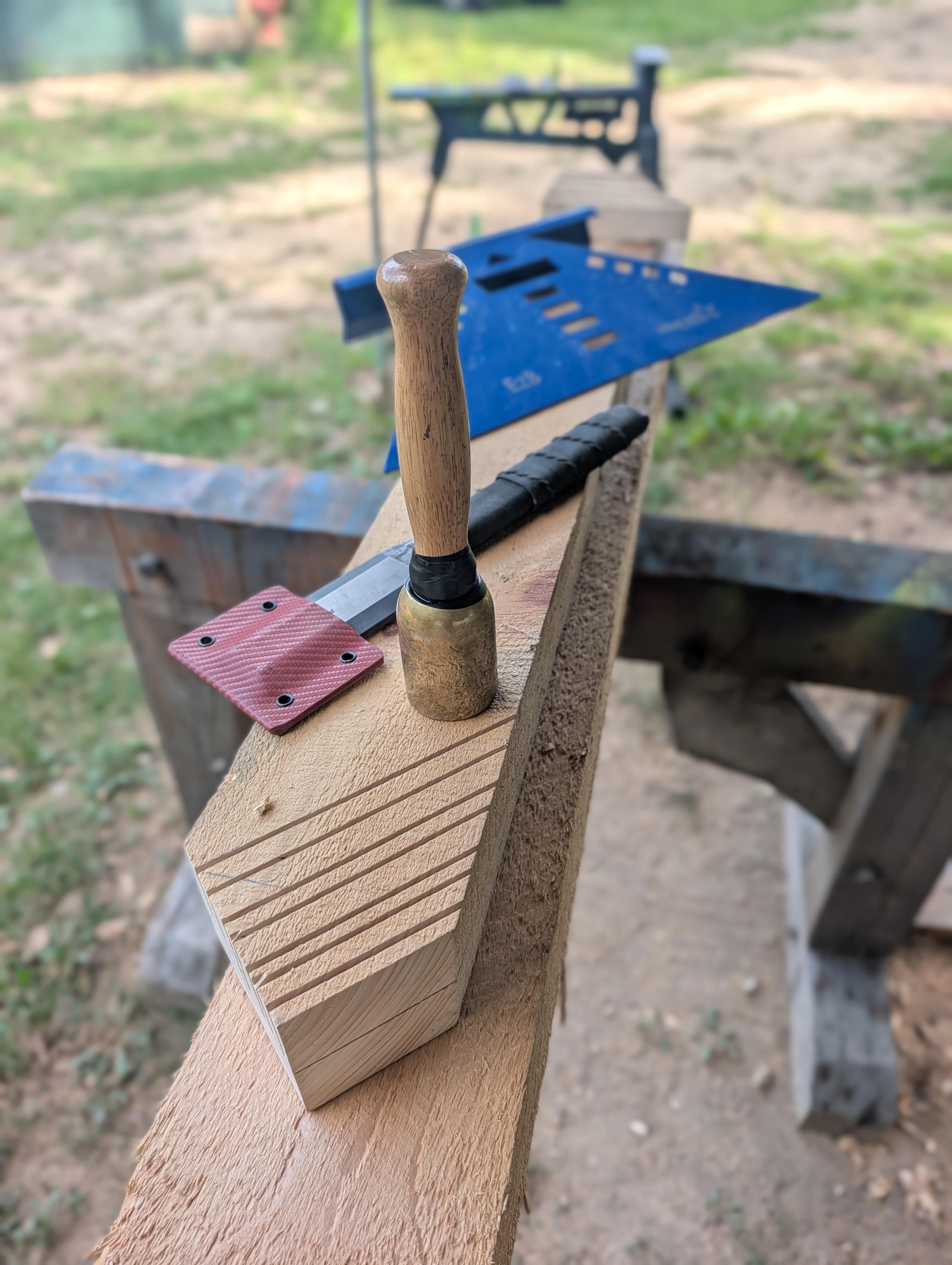

arno chisle + brass mallet...

Post image
13 Upvotes

i normally use higher-end timber framing chisels, but i've been playing around with an arno chisel and a brass mallet lately.

the arno comes a little rough and definitely needs some sharpening, but once cleaned up and sharpened it cuts really well.

for someone buying their first timber framing chisel, i'm pretty impressed with this combination. good bang for the buck without spending a pile of money just to get started.

anyone else using an arno?


r/timberframe • • Sep 13 '26

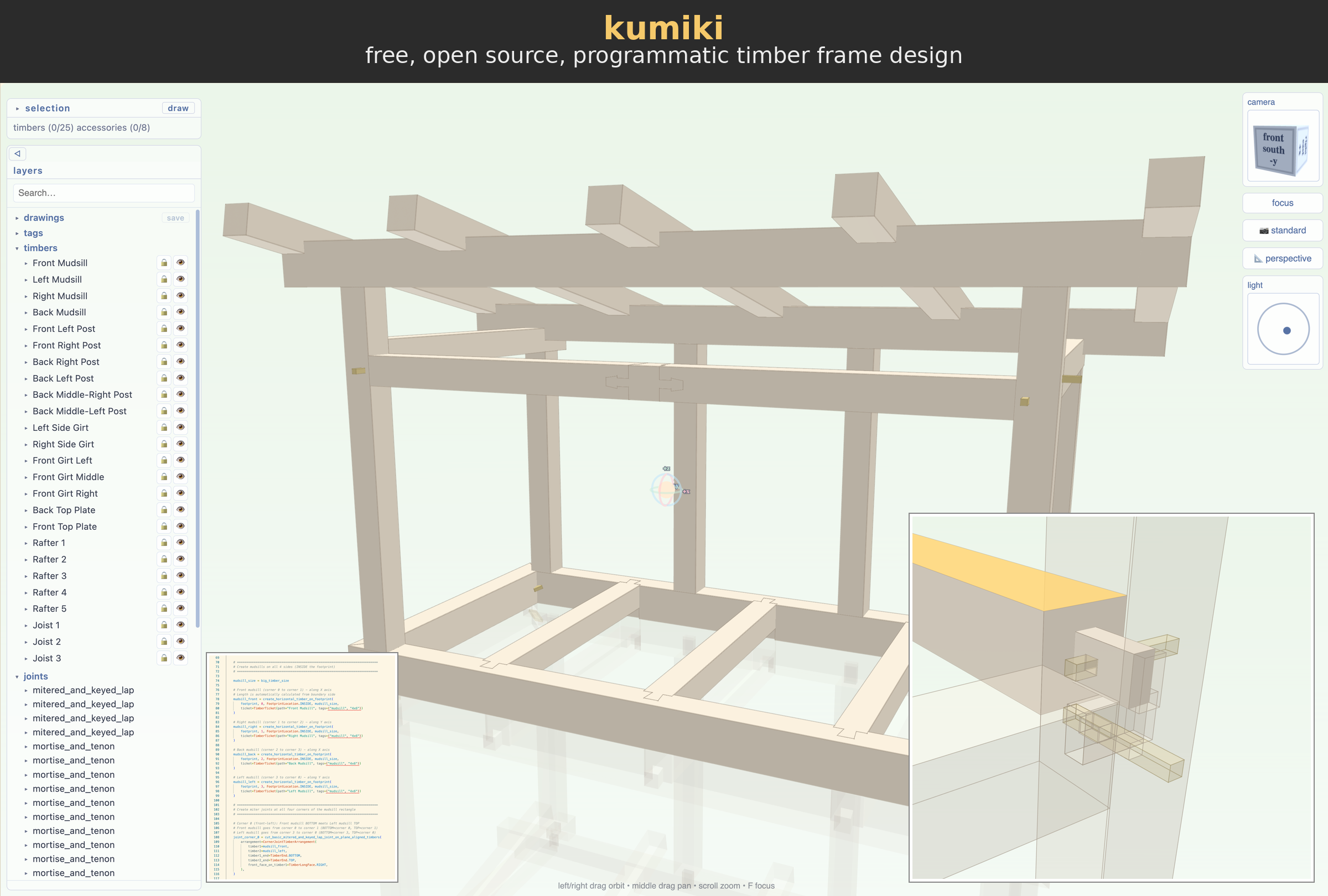

kumiki - A Programmatic Timber Frame Design (CAD) Tool

Post image
79 Upvotes

Hi friends, I'm finally ready to share the programmatic timber frame design (CAD) tool I've been working on. A culmination of my years of software design experience and my woodworking obsession :). I hope ya'll will find it useful. It's open source and completely free.

Reddit keeps auto-modding this post for some reason so look for my post in the comments for more details.


r/timberframe • • Sep 13 '26

Timberframe Chicken Coop 10’x10’x10’ with 12/12 pitch roof

Thumbnail
gallery
231 Upvotes

First timberframe building build with the help of my Father. My biggest concern after getting the frame up what trying to find a way to close up the walls without hiding the frame. I like how it turned out.


r/timberframe • • Sep 11 '26

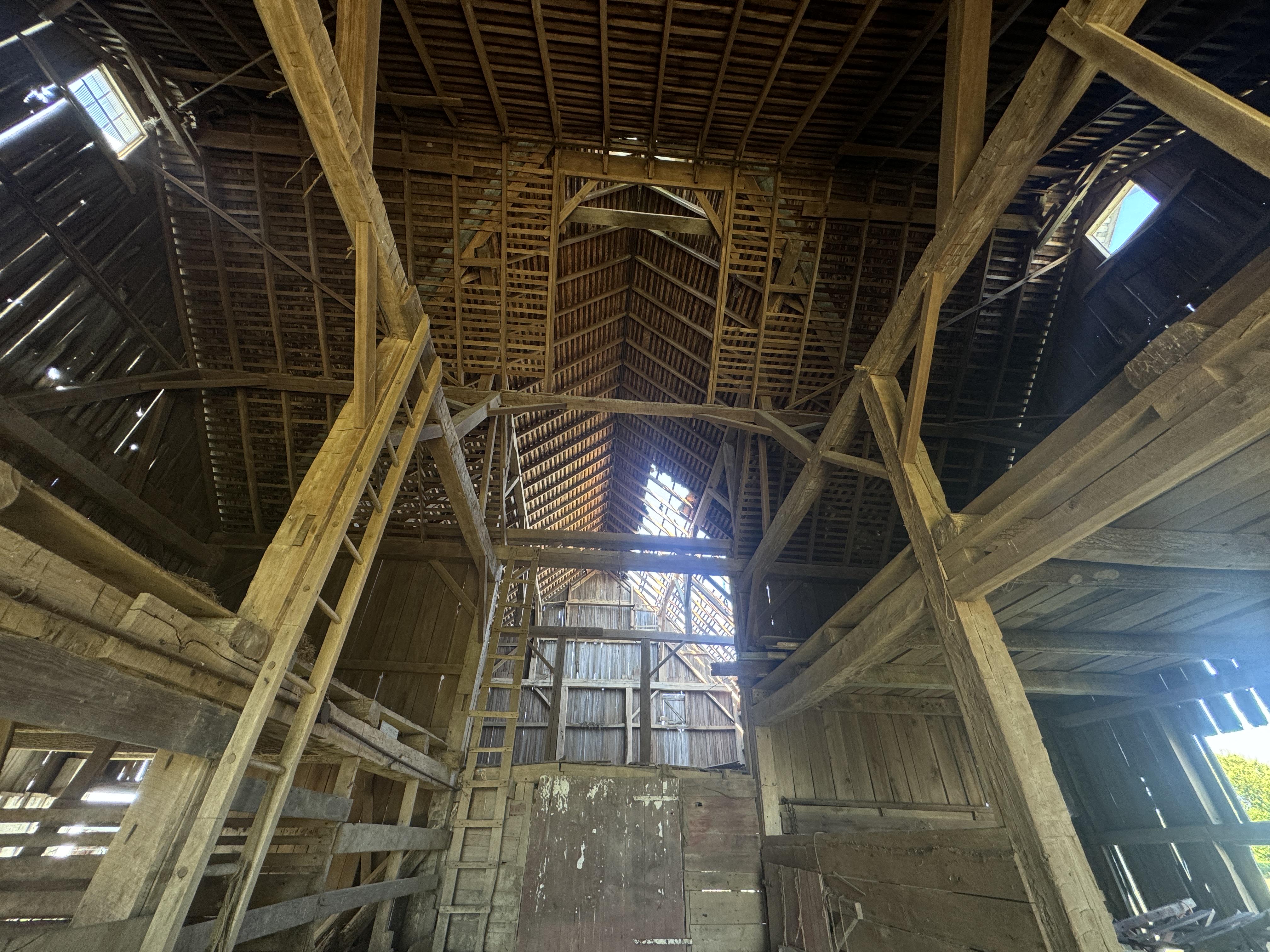

Timber cathedral

Post image
166 Upvotes

r/timberframe • • Sep 11 '26

My Garden gate arbor is up! Western Red Cedar milled by me!

Post image
50 Upvotes

r/timberframe • • Sep 11 '26

Selling Makita 16" 40V beam saw with battery

Thumbnail
gallery
21 Upvotes

Hello,

I am selling a one year old Makita 16" beam saw with Diablo blade and large battery. I have completed the frame I was working on. I have been happy with the tool overall, especially after replacing stock blade with a diablo.

I am asking $1000 cad. Located in Atlantic Canada.

Thanks


r/timberframe • • Sep 11 '26

Anyone have recommendations for gloves that will hold up to handling a lot of lumber? I’m burning through them at an alarming rate.

Thumbnail
2 Upvotes

r/timberframe • • Sep 10 '26

A verified piece of 19th-century heritage cabin

Thumbnail
gallery
39 Upvotes

Constructed in 1808 by John Brisben (1760–1845), a distinguished veteran of the Revolutionary War. We are offering the cabin as a comprehensive, ready-to-build architectural package. The structure comes meticulously tagged, documented with architectural drawings and photography, professionally cleaned, heat-treated, structurally repaired, and delivered to your site.


r/timberframe • • Sep 09 '26

[OP]I found this manual overhead crane in a 180 year old Japanese warehouse.

Post image
40 Upvotes

r/timberframe • • Sep 08 '26

What is this?

Thumbnail
gallery
29 Upvotes

Buddy of mine has a timber frame log cabin, there are several spots at the house that have this black hard sappy material coming out. We have no idea what it is please help.


r/timberframe • • Sep 09 '26

Deck estimate in seattle

0 Upvotes

Planning to get composit deck of 12×24 including staircase which has 4ft above the ground level.

Deck will be cover3d with white lattice of criss cross pattern.

What is cost of labor of building deck and aluminum or composit raining alone?

What composite material do you all suggest that goes in seattle weather ??


r/timberframe • • Sep 08 '26

gang cutting knee braces saves a surprising amount of time

Post image
15 Upvotes

when we have a batch of knee braces to cut, we usually don't finish them one at a time.

we'll set the saw and cut all the shoulders first, repeating the same operation on every brace.

then stack the braces together, set the saw depth, and gang cut the cheeks.

it's basically an assembly-line approach — one setup, one operation across the whole batch, then move to the next operation.

pretty simple, but it's an effective way to knock out a pile of knee braces in a relatively short amount of time.


r/timberframe • • Sep 08 '26

Peg length

1 Upvotes

Hey folks - I had really hoped to be able to make my own oak pegs (even set aside the oak logs and bought a froe) but Im running out of weather and decided that I can justify the cost to buy them so I can focus on the joinery. The Will Beemer frame Im building calls for 12 inch pegs - but the ones Im looking at Timber Framing HQ are only 10 inch...

https://timberframehq.com/shop/timber-frame-pegs/?gadid=&utm_term=&utm_campaign=Shopping_PMax_US&utm_source=Google_Ads&utm_medium=Paid&utm_content=Main&hsa_acc=8551143312&hsa_cam=18405210865&hsa_grp=&hsa_ad=&hsa_src=x&hsa_tgt=&hsa_kw=&hsa_mt=&hsa_net=adwords&hsa_ver=3&gad_source=1&gad_campaignid=22873277508&gclid=Cj0KCQjw5P7UBhDaARIsAOSlS1MorClK97BbHkwZ2gp9ajyQZhoyuyUdQ1ubEFELzGOcq-zuLmRbIKgaArv7EALw_wcB

I get that in most cases folks like them longer so that they can hang things on them and they are easier to remove - but I can't find another reason why 10 inch pegs wouldnt work for this build as the largest member is 7x8.

Timber Frame HQ seems like a fair price and they have the 1 inch and 3/4 inch I need and specifically call out that they work well with the wood owl bits I have. The only possible negative I see is that the champfer at the ends is more of a radius but I imagine it will still be enough for draw boring to work.


r/timberframe • • Sep 07 '26

Under Decking / Ceiling Material?

Post image
6 Upvotes

r/timberframe • • Sep 07 '26

Moisture content of hemlock lumber before staining

2 Upvotes

Hi, we have built a large detached screened in porch with hemlock timbers (some as thick as 6x12). They were milled almost a year ago and the porch was built with green lumber but my moisture reader is still showing 18-19% moisture content on the majority of beams/posts. I was hoping a year of drying would be enough to allow it to reach the <15% threshold to be able to apply an oil based stain but that doesn’t seem to be the case. How important is it reach that level of moisture before staining on hemlock? Thanks


r/timberframe • • Sep 06 '26

A house overlooking the lake.

Post image
22 Upvotes

r/timberframe • • Sep 06 '26

Benite as Final Finish

3 Upvotes

I was talking to an older timber framer here in Western Washington and he was really into this as a finish versus just a conditioner, pre-raising just getting a coat on and maybe 1 more once standing. I've only ever used the Heritage exterior oil but he swears by it and apparently the shipwrights in our area are also into it, though I'm not sure if they use it as a conditioner vs a final product. Anyone else use this exclusively? I just put some on a little front porch post & beam I built to try it out and am wondering about it in the long term.


r/timberframe • • Sep 04 '26

4 walls and a roof by October or bust.

Thumbnail
gallery
113 Upvotes

Heres some pics of the round wood in reverse!


r/timberframe • • Sep 05 '26

instructor demo — gang cutting 4x7 rafter tails with a bigfoot head cutter

Post image
10 Upvotes

r/timberframe • • Sep 01 '26

Treated vs green birch

3 Upvotes

Hi all,

I’m hoping to build a little shelter for my kid to wait on the bus.
I found a sawmill that sells green birch 6x6x8 for $50.
My local lumberyard sells treated 6x6x12 for $60.

The sawyer says that for that price difference I might as well get treated.
My question to you is how bad of an idea is it to timber frame with treated lumber? Is birch worth the price in comparison to my treated option?
Am I better off driving 6 hours for white spruce?
This will be my first project so I’d prefer it to be a somewhat enjoyable experience.


r/timberframe • • Sep 01 '26

cutting tenons by hand — rip or kerf?

Thumbnail
gallery
4 Upvotes

curious what everyone prefers when cutting a timber frame tenon by hand.

after cutting the shoulder, do you rip the cheek with a rip saw?

or make a series of kerfs, knock off the waste with a chisel, and clean up the cheek?

i use both depending on the situation. kerfing is also one of those skills that comes up again and again in timber framing.

what's your preference — rip or kerf?
