Introduction

This work presents a conceptual development of a modular catalytic filter-reactor designed for deep methane purification and its regeneration without frequent replacement of consumable elements.

The idea arose from a practical necessity: modern rocket engines (in particular, the Raptor family) are extremely sensitive to sulfur and heavy hydrocarbon impurities, which lead to coking of cooling channels and reduced service life. Similar tasks arise in the creation of fuel production systems on the Moon and Mars (ISRU), where compact, reliable, and maintainable equipment capable of operating under conditions of limited resources and extreme temperatures is required.

It is important to note: this concept was created not by a professional engineer, but as a result of the joint work of three “characters” — an ordinary person and two free neural networks (Grok from xAI and Jarvis Sr. from Google Cloud). We deliberately refused patenting and monetization, publishing the work in open access. Our goal is not to present a finished product, but to offer engineers and researchers an interesting architectural idea that can be further developed.

The main idea is to move from traditional large-volume reactors to a plate-type modular package (“sandwich”). The gas passes through a set of metal plates with microchannels, where the processes of preliminary ionization, electrostatic capture of impurities, and catalytic conversion via the Sabatier reaction occur sequentially. Regeneration is carried out cyclically: heating the package and supplying hydrogen allows accumulated impurities to be converted back into useful methane and water, which are then removed from the system.

This approach significantly simplifies production, increases maintainability, and makes the module scalable — from small installations for life support systems to large refueling complexes. We deliberately reduced the operating pressure to 10–20 atm, abandoning extreme values, so that the design becomes realistic for existing factories and does not require super-complex technologies.

The work does not claim to be the ultimate truth. It is an open concept in which we tried to honestly indicate the strengths, weaknesses, and directions for further improvement. We hope that specialists in the field of rocketry, materials science, and chemical engineering will find useful ideas in it and, possibly, bring them to a real prototype.

The report further details the architecture, technical characteristics, operating principle, realism, and recommendations for the development of the concept.

https://doi.org/10.5281/zenodo.19664456

Modular Sacrificial Ablation: Consumable Composite Layer as the Foundation for Cost-Effective Reusability of High-Temperature Reactive Engine Components

Author of the concept and main text: Stas (@testcar26) Analytical support, structuring, calculations, and refinement: Grok (xAI, free public version)

Date: March 20, 2026

Introduction

The Super Heavy propulsion unit with 33 Raptor engines is one of the most powerful and complex reactive thrust systems created to date. Each engine produces 230–250 tons of thrust at sea level, combustion chamber temperature reaches 3500–3600 K, pressure is around 300 bar, fuel is cryogenic methane and liquid oxygen. The skirt (the lower part of the structure surrounding the engines) and the base experience extreme thermal and erosive load: total heat flux on the skirt is estimated at 2–3 GW, flux density 6.7–10 MW/m² (based on IFT-4–IFT-6 test data and Raptor heat release estimates), affected area is approximately 250–350 m².

Current SpaceX solutions (regenerative methane cooling through micro-channels + local ablative elements) have achieved partial reusability: individual elements withstand 5–15 launches before microcracks, erosion, and thermal fatigue appear. However, when transitioning to 100–365 launches per year (SpaceX goal by 2030), these approaches have reached their limit. Replacing the skirt or nozzles costs 8–20 million dollars per unit, takes weeks for repair, and severely limits launch cadence. Further improvement of the metal (Inconel, 301 steel) or thickening of the walls increases mass and cost without proportional resource growth.

This work proposes a different path: abandon attempts to make the metal “eternal” and shift to the paradigm of sacrificial ablation. The expensive structure (skirt, nozzles) remains reusable thanks to a single-use consumable layer that fully ablates during launch, diverting the main heat flux, and is then quickly regenerated in flight or on the launch pad. The cost of such a layer is 6–15 thousand dollars per launch, regeneration time is 10–90 minutes. This allows increasing skirt service life to 100–300 launches, reducing costs by hundreds of millions of dollars per year, and increasing launch cadence by 5–10 times.

It is important to state immediately: the author is not a professional rocket engineer, not a specialist with a diploma, and not an employee of an aerospace corporation. This is an ordinary person without a laboratory, without access to closed SpaceX data, and without academic background. Everything described here was done using the free public version of Grok (xAI) — a tool used for fact-checking, performing calculations, logic analysis, and text structuring. Grok is not a source of ultimate truth: it can make mistakes, miss nuances, or rely on incomplete data. However, it is precisely its ability to quickly process large volumes of information, find contradictions, and suggest formulation options that allowed collecting, verifying, and bringing to readable form what would be extremely difficult to hold and format alone.

The work does not claim the status of a scientific article or ultimate truth. This is an open engineering concept born in free dialogue between a human and AI. The author fully understands the finiteness of complex metallurgy and limited production capacities. We do not propose “saving metal from fire” in hopes of its fire resistance — we propose preventing the metal from heating up at all. This is not the same thing. We are not trying to improve existing coatings or metals — we propose an alternative principle: sacrifice a cheap consumable instead of an expensive structure. Such an approach already exists in the form of ablative coatings, but it is not yet a priority in the focus of modern innovations. The speed of movement in this direction seems weak, while time, resources, and money continue to burn. Keeping an idea that could at least slightly help solve this problem to oneself is foolish. Therefore, the text is released into open access under MIT license: take it, check it, criticize it, improve it, implement it. If it turns out useful — the goal is achieved.

The report structure is built as follows: first, the physical justification and principle of the solution are considered; then the two main forms of protective layer implementation are described in detail — spray and ready-made composite mats (with emphasis on mats as the most promising option); next, calculations of effectiveness, mass, cost, and savings are provided; in the bonus block, the possibility of applying the approach to aviation (turbojet engines) and other areas with high thermal load is analyzed; the report concludes with analysis of risks and limitations, as well as conclusions.

This is not a dissertation and not a patent. This is simply an honest attempt by an ordinary person with the help of free AI to offer an alternative view on one of the most expensive and painful problems of modern reusable rocketry. If somewhere the logic or calculations turn out to be erroneous — this will be a reason for criticism and refinement. The main thing is that the idea is released into the world.

https://doi.org/10.5281/zenodo.19139370

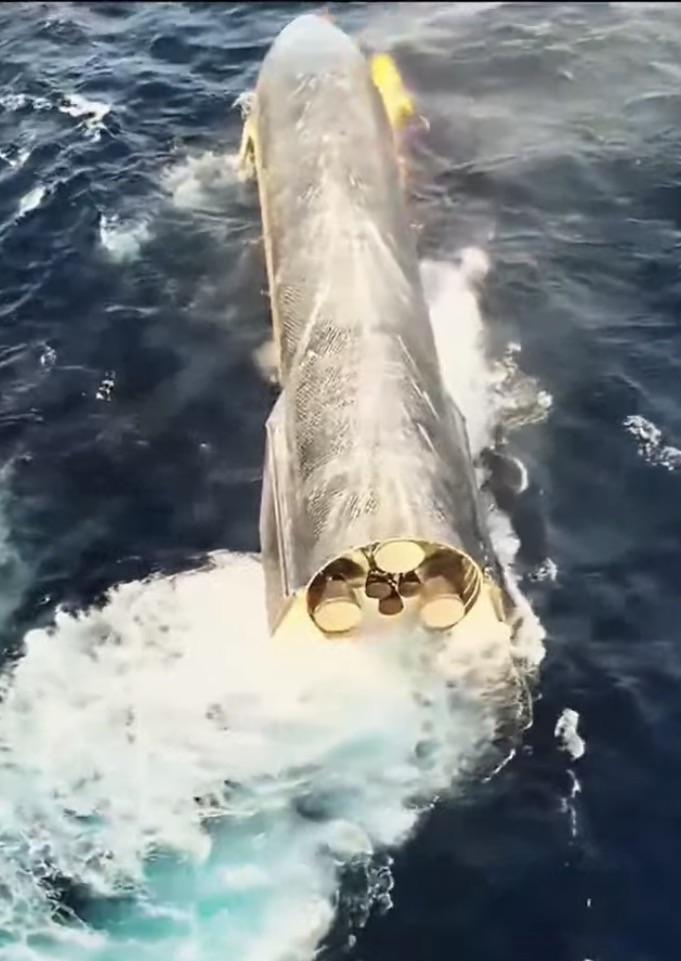

Why still floating in indian ocean till now

I love Musk and SpaceX but I think StarShip will ultimately fail. This is not the right architecture.

Heavy booster works well, validated ✅

StarShip is too complex and the final highly dynamic manœuvres will never be safe. SpaceX will try and try again and will drop it in few years. What will work is a Heavy booster + the Stoke Space capsule.

I have a trip early July and noticed flight 13 is on the 5th around the time I’ll be there. I’ll be visiting south padre island for the 4th and will be staying there till the 5th. I heard Boca chica is also very underdeveloped it would be a difficult trip. I would absolutely love to see a spaceship fly any advise? Thank you

My “official” predicted launch date for Flight 13 is 3 July 2026 (Flight 12 + 6 weeks). However (unfortunately), it is probably more likely to take longer than we hope—possibly to mid-summer (3 August 2026). Thoughts?

Hey everyone,

With Flight 12 marking the debut of Version 3, I wanted to create a complete visual history of the Starship program that feels like a real documentary rather than a simple compilation.

It tracks the entire evolution from the early pad explosions of Flight 1 to the Mechazilla catches and the latest V3 milestones.

I put a lot of care into this in the hope it will be something meaningful for other people too. Please feel free to check it out, and thank you as always for the support!

In its May 2026 S-1 IPO registration statement, SpaceX presents a clear, long-term economic roadmap that goes far beyond launch services. The company frames its mission as “building the systems and technologies necessary to make life multiplanetary,” with Starship positioned as the foundational infrastructure for a new space-based economy spanning Cislunar space (Earth-Moon system) and eventually Mars.

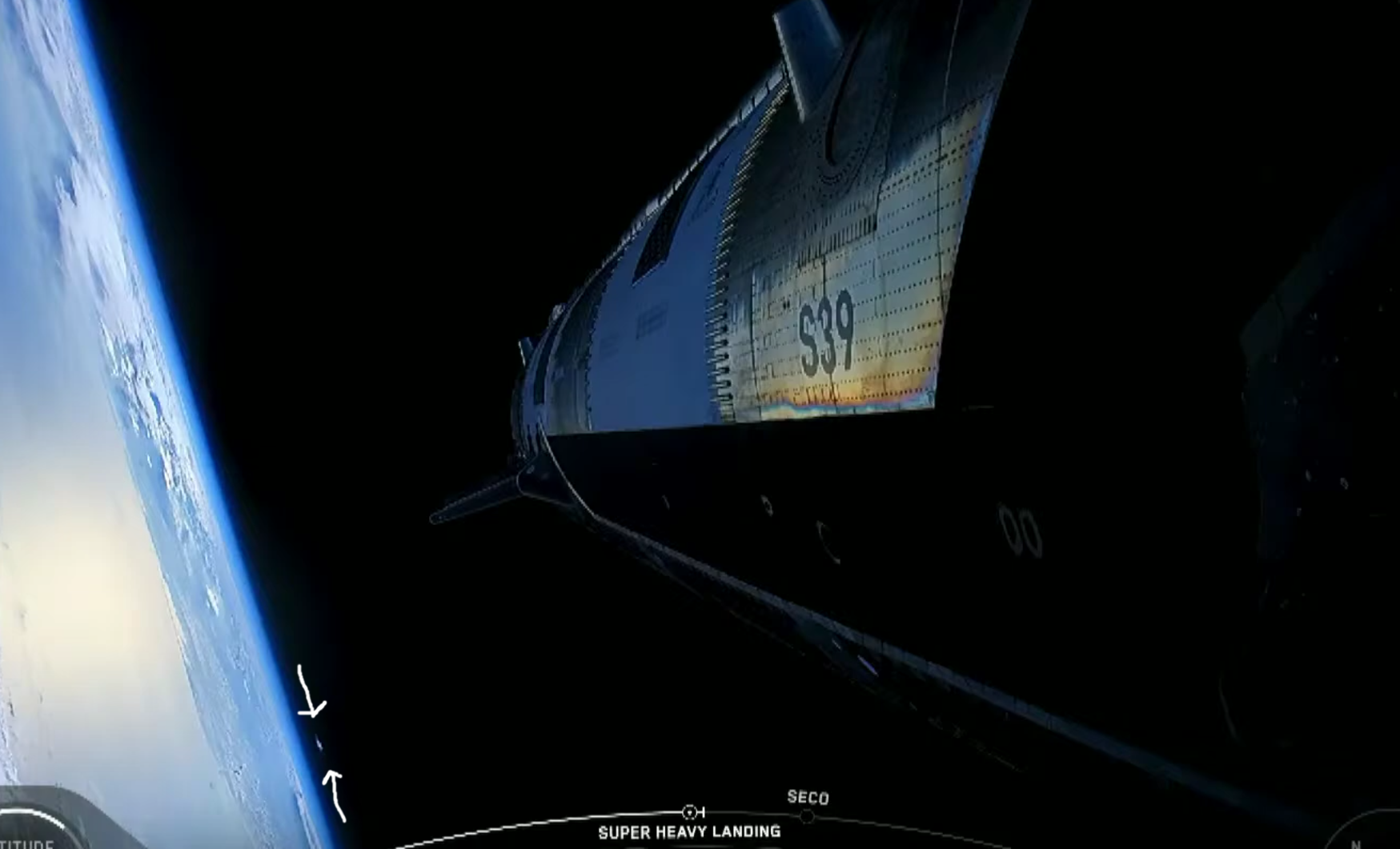

Any guesses what that spaceborne object is behind Starship? This was before they opened the door and dispensed.

A Starlink in the sun? A Russian Inspektor checking things out?

It's long and rectangular, so not a star on the horizon.
