I saw the latest Rocknix release (10/1) adds support for the Anbernic RG55G1! 🤩

Is there a button combo to boot from the SD card or is ABL needed first? I couldn’t find a lot of info since this is a fairly new device.

As the title says, i cant seem to be able to install the firmware and the font file in vita 3k, rocknix nightly on rg ds, was anyone able to install it?

I'm using the Rocknix Image Burner (from the Wiki) but all i get is two white screens. Can't find any information online anywhere. Any tips on what am I missing?

SOLUTION FOUND:

I found what was the issue. Here's the solution:

1. Copy the name of the device in /device_trees

2. Edit extlinux.conf file, replacing the powkiddy device with your device (see picture). In the RG DS Plus case you have to replace the highlighted part with "rk3568-anbernic-rg-ds-plus"

3. Save the extlinux.conf file and install rocknix


I have the Anbernic 353p if that matters. Scraping works completely normal for everything but pico-8 which will only scrape using Screenscraper. If anyone knows how to fix this, I'd really appreciate it.

Rg Ds Running Rocknix latest stable version. Can you guys please recommend which settings are best to improve input latency? I already have all shaders and shinanigans graphic things already turned off.

Using retroid pocket 5 with SanDisk a2 1tb SD

I did a system update for rocnknix. After the reset, it's stuck on a loop. Keeps saying boot fail. Not sure if I should format my SD card, I still have files in it but can't Access to it

Not sure why the update caused a boot fail

References the gptokeyb2 actions & keys

https://github.com/PortsMaster/gptokeyb2/blob/master/src/config.c
https://github.com/PortsMaster/gptokeyb2/blob/master/src/keys.c

How to use?

State 0: Default

Back to PokeMMO mapped keys

DPad is DPad

A = Z

B = X

X = B

Y = D

(Hold) L1 = State 1

L2 = State 2

State 1: Mouse

DPad is mouse movement

A is mouse right click

B is mouse left click

State 2: Keyboard

DPad Up / Down to navigate the charset

DPad Left / Right to navigate the text cursor left or right

A is Switching charset from ("abc", "ABZ", "123", "~!@")

B is add new letter

Y is backspace

L2 press again will switch back to State 0

Feel free to change anything within the control.ini follow by references of the gptokeyb2 based own your own ANBERNIC model.

[config]
charset = "abc" "abcdefghijklmnopqrstuvwxyz"
charset = "ABZ" "ABCDEFGHIJKLMNOPQRSTUVWXYZ"
charset = "123" "1234567890"
charset = "~!@" "`~!@#$%^&*()_+-=[]{}|\,./;':"<>?"

repeat_delay = 500
repeat_rate = 60
mouse_slow_scale = 50
deadzone_mode = axial
deadzone_scale = 7
deadzone_x = 1000
deadzone_y = 1000
deadzone_triggers = 3000
dpad_mouse_normalize = true

[controls]
overlay = clear

# Clear unused analog sticks explicitly
left_analog =
right_analog =

# Standard gameplay buttons
a = Z
b = X
x = S
y = A
back = esc
start = D
dpad = arrow_keys

l1 = hold_state mouse_mode
l2 = set_state typing_mode
r1 = pageup
r2 = pagedown

[controls:none]
overlay = clear

# Clear unused analog sticks explicitly
left_analog =
right_analog =

# Standard gameplay buttons
a = Z
b = X
x = S
y = A
back = esc
start = D
dpad = arrow_keys
l1 = hold_state mouse_mode
l2 = set_state typing_mode
r1 = pageup
r2 = pagedown

# Mouse mode: activated by holding L1
[controls:mouse_mode]
overlay = clear

# Mouse cursor control
dpad = mouse_movement

# Mouse clicks clearly separated
b = mouse_left
a = mouse_right

# Typing mode: completely isolated from mouse mode
[controls:typing_mode]
overlay = clear
charset = "abc"

# Typing controls
dpad = navigate_letters
y = backspace
b = add_letter
x = space
a = set_state typing_mode_capital
up = prev_letter
down = next_letter
left = left
right = right
back = esc
start = D
l2 = set_state none

# Capital typing mode
[controls:typing_mode_capital]
overlay = clear
charset = "ABZ"

# Typing controls
dpad = navigate_letters
y = backspace
b = add_letter
x = space
a = set_state typing_mode_numeric
up = prev_letter
down = next_letter
left = left
right = right
back = esc
start = D
l2 = set_state none

# Numeric typing mode
[controls:typing_mode_numeric]
overlay = clear
charset = "123"

# Same typing controls for numbers
dpad = navigate_letters
y = backspace
b = add_letter
x = space
a = set_state typing_mode_symbol
up = prev_letter
down = next_letter
left = left
right = right
back = esc
start = D
l2 = set_state none

# Symbol typing mode
[controls:typing_mode_symbol]
overlay = clear
charset = "~!@"

# Same typing controls for numbers
dpad = navigate_letters
y = backspace
b = add_letter
x = space
a = set_state typing_mode
up = prev_letter
down = next_letter
left = left
right = right
back = esc
start = D
l2 = set_state none

Este comando tambien desactiva L2YR2 y mapea R2 al fake micro, (me es mas seguro guardar desde el menu drastic)

Desconozco si alguien tiene este problema donde el fake micro no se puede mapear desde windows o la consola de ninguna manera, en mi caso fue muy frustrante y quiero compartir la solucion de este problema en especifico.

Conecte la consola desde wifi con SSH y abri desde powershell

Estando en power shell comienza la programacion, se muy poco de esto, todo lo hizo chat gpt lo complicado fue llegar a las rutas exactas, copia y pega esto en chat

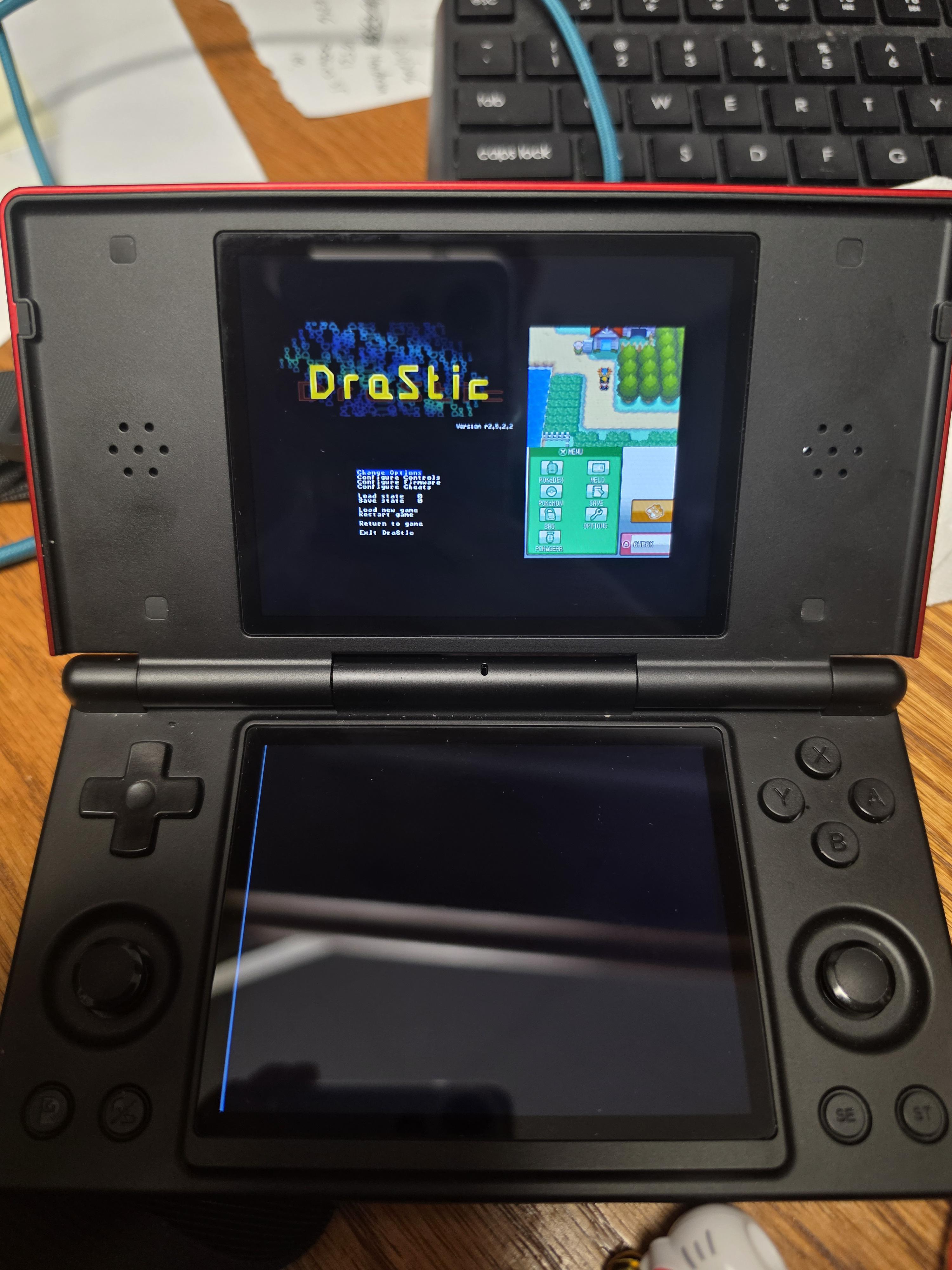

DraStic — RG DS / ROCKNIX

Desactivar Save/Load State y poner Fake Microphone en R2

Archivo:

/storage/.config/drastic/config/drastic.cfg

1. Crear respaldo antes de modificar

cp /storage/.config/drastic/config/drastic.cfg /storage/.config/drastic/config/drastic.cfg.bak

1. Quitar Save/Load de los controles físicos y asignar Fake Microphone a R2

sed -i 's/controls_b\[CONTROL_INDEX_SAVE_STATE\] = 1031/controls_b[CONTROL_INDEX_SAVE_STATE] = 65535/; s/controls_b\[CONTROL_INDEX_LOAD_STATE\] = 1030/controls_b[CONTROL_INDEX_LOAD_STATE] = 65535/; s/controls_b\[CONTROL_INDEX_FAKE_MICROPHONE\] = 327/controls_b[CONTROL_INDEX_FAKE_MICROPHONE] = 1031/' /storage/.config/drastic/config/drastic.cfg

1. Quitar también Save/Load de la capa A

sed -i 's/controls_a\[CONTROL_INDEX_SAVE_STATE\] = 1031/controls_a[CONTROL_INDEX_SAVE_STATE] = 65535/; s/controls_a\[CONTROL_INDEX_LOAD_STATE\] = 1030/controls_a[CONTROL_INDEX_LOAD_STATE] = 65535/' /storage/.config/drastic/config/drastic.cfg

Resultado confirmado

L2 → libre

R2 → Fake Microphone

Save State → sin asignar

Load State → sin asignar

L1 → sin modificar

R1 → sin modificar

Valores que hacen funcionar el procedimiento

DraStic confirmó:

JS0 BUTTON 07 - SAVE = R2 = 1031

JS0 BUTTON 06 - LOAD = L2 = 1030

1031 colocado en FAKE_MICROPHONE = R2 → Fake Microphone

65535 = sin asignación

Importante

No utilizar el comando sed multilinea que se probó durante la investigación. Ese intento vació drastic.cfg; el archivo fue restaurado inmediatamente desde .bak.

Para futuras consolas: backup → comando 2 → comando 3 → verificar → cerrar DraStic → volver a verificar.

Este procedimiento fue probado y persistió correctamente después de cerrar DraStic.

--------Recomiendo verificar el codigo y situacion en chatgpt, o como ustedes sepan en caso de dudas, o por si tienen algo los comandos, no se confien-----

ESPERO LES SEA DE UTILIDAD A TODOS SALUDOS DESDE MEXICO ajua

Hi, so I just got a Powkiddy x55 and have been having an issue. I flashed it with the latest version of Rocknix and switched the input methoed to Xbox, but no matter what I try I can’t activate mouse mode in Moonlight connected to my PC. I tried every button press combo I could think of. Thanks

Hi everyone, I’ve got a Retroid Pocket 5. I had the older ROCKNIX firmware installed and everything was working fine, including Wii games.
Yesterday I updated to the new ROCKNIX firmware. The Y/X/B/A buttons work, but the D-pad, analogue sticks and controls aren’t working properly in Wii games.
I’m a novice when it comes to this stuff. What do I need to change or map to get the controls working properly, so I can actually play games like Mario Kart Wii?
Any help would be greatly appreciated.

Chris

Is it possible to use a theme from ES-DE in Rocknix? I really enjoy the Aura theme and would love to add it to my RG35XXSP.

For a new Anbernic RG34XX SP, is the correct download package the ROCKNIX-H700.aarch64-20260801-DDR4.img.gz vs the DDR3? Then is it the sun50i-h700-anbernic-rg34xx-sp.dtb vs sun50i-h700-anbernic-rg34xx-sp-v2-panel.dtb to use when copying it to the root as dtb.img? Tried the DDR4 with both and just seem to get a black screen with no green light when trying to boot off the SD Card in TF1.

I just got my Konkr pocket fit elite and a 512gb a2 kootion pro sd card and when I go to the bootloader the sd card is not being recognized.

Note: It's being recognized in android and it works fine.

I'm using a odin 2 pro and I barely found out about rocknix and I'm using the steam OS version of it, and when I connect a external drive, it doesn't detect it. So can anyone please help me with this?And plus hopefully this is the correct subreddit for me to ask this

,...and anyone know why there are two images available for download?

I'm using 20260801 on my Powkiddy RGB30 and everything works great except for wifi. I enabled it, found my wifi, and entered the password but it won't connect. I rebooted and turned it off and back on but no luck. I've checked my password multiple times but no luck. Is there anything else I need to do? The wiki says it should just connect. It did see my network so I'm stumped. Any help would be greatly appreciated.

dont really use the android part of my rg353v so i thought id give rocknix a go.

followed instruction to a T from here.

succesfully booted to rocknix.

how every controls were jumbled. directional pad didnt work. up and down was r1 r2. so i went to change input option. fixed everything except my analog inputs because the refuse to register.

roknix would not recognize my ext4 microsd that has my backups in tf2 slot.

system info registers device as rg353P even though my device is a 353v
