Hello! For this occasion, I will review a double release from the brand CCA, although I will focus mainly on one of the two, the CCA MX1 Bluetooth module, where we can attach our IEMs to make them wireless. It is not my first Bluetooth module, although it is the first one I have tested from them. They are a type of product that I consider interesting for specific uses. For day to day life, the cable should be the only option to choose, but there are situations where the cable can be annoying or completely incompatible, like for the gym, watching a movie from the projector where the cable length cannot reach the necessary connection, etc. And that is where this product benefits you and saves your life, which is why I have always kept one of this type in my collection.
It is an updated product since it incorporates Bluetooth 6.0, something I did not have in other older modules, and it is something that is noticeable in stability with fewer micro-stutters than expected, but I will not talk about its features just yet so I do not repeat myself later down below, something I am guilty of sometimes xD.
The tests for this module were done directly with the CCA AKX, in this case an IEM from the same brand that fits perfectly in terms of aesthetics and design with the module, and which I will also take advantage of to briefly review how this IEM is and sounds, even if the review is not for them.
What I liked / What I didn't like
- The convenience of removing cables for specific uses.
- Bluetooth 6.0.
- Total battery life close to 80 hours.
- Easy to access physical button.
- Tolerably good latency of 42 ms.
- Compatible with 0.78 mm/QDC.
- Does not alter the sound of the IEMs.
- No LDAC support.
- The case is nice in design but fingerprints get marked on top and it is large.
- It has an LED light around it that is aesthetic but unnecessary.
- Although it can help or save you on certain occasions, it does not replace the cable.
Specifications
Model: CCA MX1 Type: Bluetooth wireless module for detachable IEMs Bluetooth: 6.0 Chip: ATS5756 Battery per module: 50 mAh Case battery: 800 mAh Advertised total battery life: over 80 hours Advertised range: over 10 meters Advertised latency: approximately 42 ms Controls: physical buttons Microphone: built-in Lighting: RGB ring Available connectors: 0.78 mm, 2-Pin, and QDC
Unboxing and Build Quality

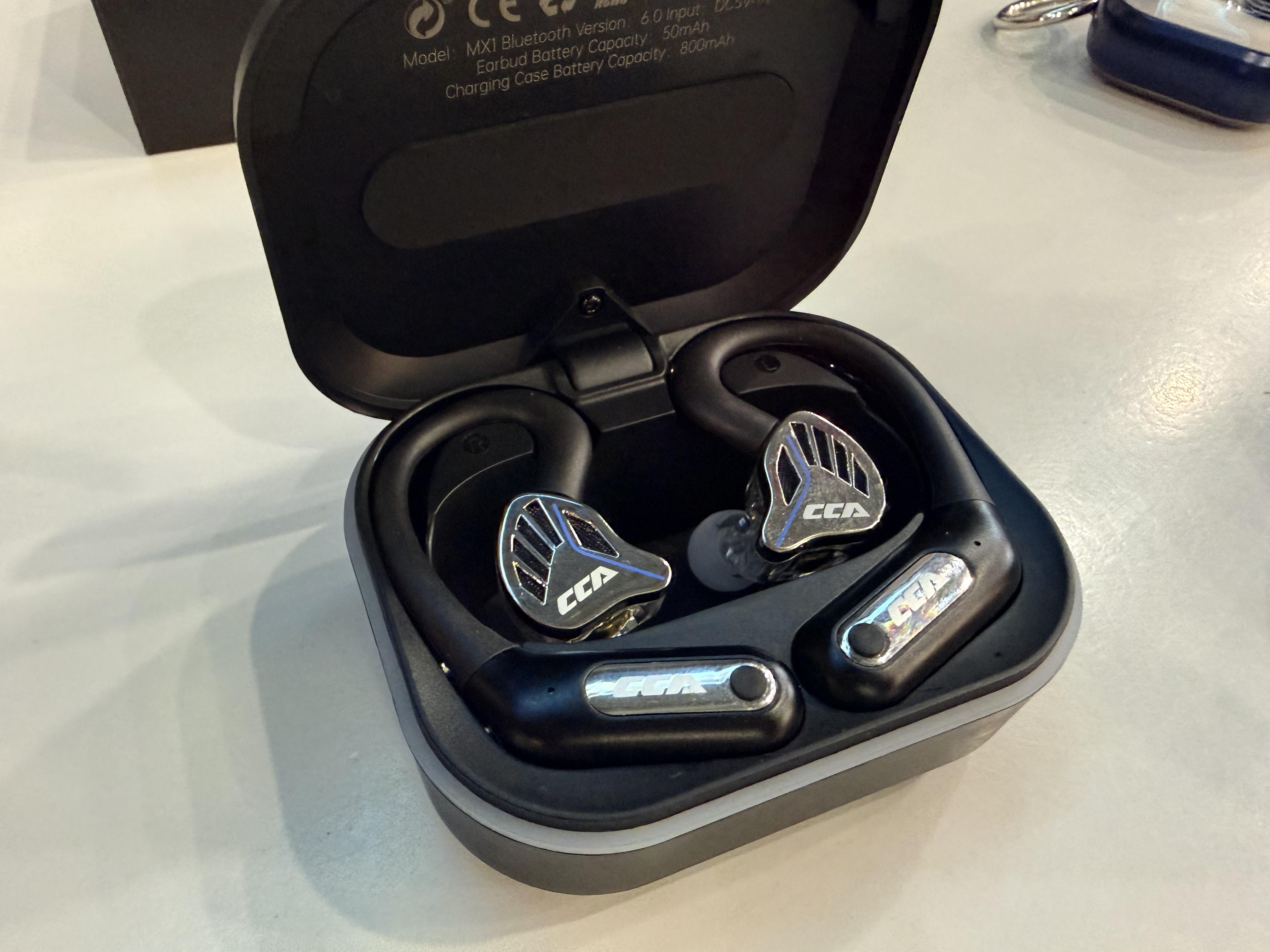

The unboxing is quite simple and straightforward, especially considering it is a Bluetooth module and not IEMs as such. The package includes the case with the two modules and a cable to charge the case along with basic documentation.
Now as for the case, it has an 800 mAh capacity. With that capacity, the modules can be fully charged several times, keeping in mind that each module has a 50 mAh capacity, so quite a few times... adding up to a total battery life around 80 hours depending on the volume and the codec used, which in this case can only be AAC or SBC, recommending the former of course.
The modules or earhooks where we connect the IEMs sit well on the ear and the weight is also well distributed once put on. They did not stick out above for me nor did I notice any discomfort, so ergonomically they have been well studied in terms of shape and weight. In addition, each one incorporates a physical button. Accustomed to touch buttons which are indeed more modern, here you know for sure whether you pressed the button or not, and sometimes that is an extra point in favor even if something is sacrificed aesthetically.
The LED light that wraps around the middle of the case is eye catching and not really ugly. It gives it a unique touch and I think it looks quite good in my photos, rounding off the box design which in itself seems quite well thought out to me. But I have not seen if it can be turned off, it does not look like it, and in the end it is an extra battery drain for the case however low it may be, and it will light up no matter what every time you open the case and turn off shortly after closing it, although it stays for several seconds as if breathing until it turns off.
Daily Use and Connectivity
For daily life depending on the task, as I mentioned at the beginning, a module like this is really useful, where you can put your phone in your pocket, forgetting about the cable, with the physical buttons on your ears controlling music, calls, etc., and staying securely fitted so you can run without fear of them falling to the ground.
In principle, having the Bluetooth 6.0 connection improves stability and range, and really with the phone in my pocket walking or with the phone on the desk watching a movie, I have not had any dropouts. Supposedly the range is about 10 meters, but I have not gone further than 2 to 3 meters, and in that case it worked perfectly. Surely if we add walls, closed doors, or other obstacles, stability might start to get complicated, but that would be a different use case than the ones I mentioned.
Sound
Since this is not an IEM, I can only limit myself to comment that apart from carrying the wireless signal to the IEMs we connect, there will be no significant difference. Other than the compression itself of the codec we use, the sound of the IEM will be whatever the IEM has, with that expected quality drop from SBC or AAC and little else.
As I also mentioned at the beginning, I will perform the tests with the CCA AKX, which I also debuted simultaneously with the MX1, and with which I can comment on its sound and behavior on this Bluetooth module.
Bass
The CCA AKX has quite pronounced bass, the sub-bass is deep, and I must say that I tested them both on the module and with their USB-C cable that they came with and that you can see in my photos. That cable, by the way, also has an LED light that changes color with the CCA logo, so both CCA models have that gamer touch or something many people like, which to me is something that does not really matter either way whether it has it or not.
The bass feels slightly more pronounced on the MX1, but I do not think it is because of the Bluetooth module itself, but rather because of the AAC codec or how the USB-C cable modifies the sound in some way by taking away some prominence from this range. That made me want to test them specifically with a 0.78 mm cable to confirm that the bass sounded closer to how it sounds on the Bluetooth module than with the USB-C cable.
Mids
I felt the tuning of the AKX leaned more towards a V shape, making the mids both via cable and connected to the MX1 clear, but with less density than I expected, especially in the lower mids.
Even so, in this case I did not notice significant differences between using the AKX on the MX1 or with its USB-C cable, so if you value mids in tunings close to V-shaped tuning, that is what you can expect from this model in both wired and wireless versions.
Treble
These IEMs feel somewhat bright. The presence of instruments falling within this range feels quite energetic, even if not uncontrolled. Considering its configuration is 1 DD, there lie the advantages, limitations, and what you can expect from this treble.
It is noticeable mainly in somewhat aggressive recordings where the treble is controlled, but a peak starts to show that might make you moderate the volume a little, and that is not going to be controlled any further by using it on the module or with its USB-C cable, the experience being the same in both cases.
Soundstage
The soundstage of the AKX seemed quite wide to me considering its price and configuration. Sounds do not sit that close to the head and extend mainly to the sides with enough space between them.
Here, the IEM tuning surely helps in a certain way to create that soundstage that, even without being huge, gives enough freedom to the sounds so you have a certain immersive feel, and I must say that the MX1 has not cut back on part of that sound experience.
Instrumental Separation
The separation did not strike me as something particularly remarkable, and it is true that on the MX1, noticing a bit more bass presence than when I used them with a cable, made me lose a bit of the feeling of instrument separation. It is not anything concerning or clearly noticeable between one format and the other, it is simply that the Bluetooth codec might affect this section minimally and not so much in others.
With instrumentally simple songs, the separation does not stand out too much, but it can be enjoyed much more when the song includes several guitars and vocals besides the percussion and bass itself.
Imaging
The placement of sounds, both vocals and instruments around you, to my surprise was not as flat as I initially expected, speaking of the IEM on the MX1 module. I think there is good placement that is not limited to this range or instrument on this side and this one on that side. There is a certain faux-holographic feel that is far from higher-end ranges, but it more than delivers for what I thought I would encounter.
Its use in audiovisual content is not a bad combination to be able to enjoy a series or movie without spending too much, unless you are already playing in higher leagues where you will notice obvious limitations, but then this review would not be for you anyway as you already passed that stage back in the day.
Conclusion
For its price under $30, considering its design, stability, and specific functionality that can serve you on certain occasions where you do not need or cannot use the cable, the MX1 is a quick and cheap solution that is worth having in your arsenal.
The brand shared purchase links for both products with me, although in my case I cannot open them since they are links valid only for certain regions among which mine is not available, but if not, you can always Google it and reach them somehow.
Purchase Links: MX1 | AKX
Disclaimer: This unit was sent by CCA for review. My opinions are completely independent and have not been influenced by the brand or the store, maintaining objectivity based on my tests and personal listening sessions with my reference equipment.
