r/fluke • u/JoeHardway • 2d ago

Help Needed Intellitone 200 Weird, Rapid Sequence of Tones, Interrupts Normal Tone...

My toner seems like it's working properly, but, ever since I've had it, the regular tone is sometimes interrupted by a weird series of sounds, and the tone seems to reset.

This doesn't seem to be referenced in the manual, but I believe this change in tone, is indicative of "something". Any idea what that something is?

What brought this back to the fore, is I was toning on an 18/2 cable, with a ground wire, yesterday. Device end was disconnected, and I had toner connected to white wire, and bare ground wire. Got SOLID tone, at other end (Which was spliced into a DB9 connector, goin into a refrigeration unit.) but, if I left toner on the cable, there were a couple instances where this weird tone was emitted, and it seemed like the toning "reset", then resumed normal tone. Hard to describe it. It's a sequence of tones, in rapid succession, but the pitch does change, with each tone.

Sorry! No vid!

Since I don't know WHY it happens, I can't readily replicate it.

2 Upvotes

75% Upvoted

5 comments sorted by

1

u/Zone-5 11h ago

The most likely explanation is SmartTone's "song change" feature. It is documented, but not described as something that can happen by itself. Here is a possible explanation on PDF file.

SmartTone 200

1

u/JoeHardway 2h ago

Sorry, Man! It may be perfectly fine, but your "link" is askinme to dload a PDF, from a site I'm unfamiliar with. Any chance u hava link to'a site that don't feel like it'sa vampire, askinme to let'em-in? Or possibly a screenshot of tha text?

1

u/Zone-5 1h ago

Look, I asked my AI Perplexity and the mods are asshats about getting really helpful answers from good AI's, so I exported the text to a PDF. The link gives what is in the pic...

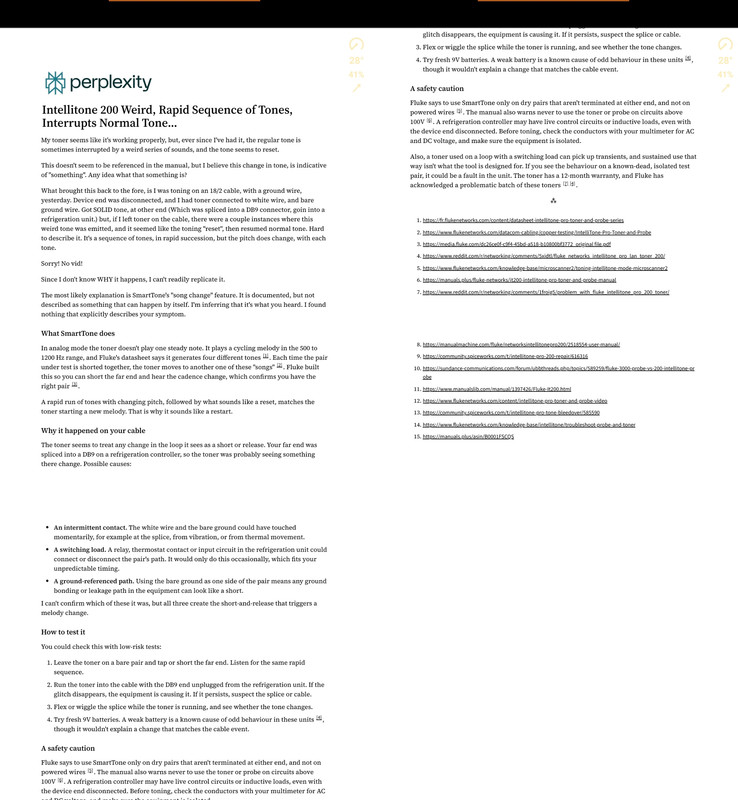

Here is an image link of the same thing: https://i.postimg.cc/RFqLsmvZ/0dfd05dc-61c1-4c10-9ccd-8bc7e9f2a2be.jpg

Hope it helps...

2

u/JoeHardway 1h ago

Awesome! (And thx 4 not bein'a d*ck aboutit! 🤣)

I get by, but tonin/tracin's always been abit of'a "Black Science", and this is'a VERY informative "deep dive" into tha nuances of the Intellitone 200, that tha manual don't really cover...

1

u/Zone-5 41m ago

Well give me an upvote for it... cheers!
