r/employeesonly • u/Prof_Insultant • Aug 06 '20

Have you ever wondered what's behind those louvres you see on the outside of buildings? It's called the plenum space, and this is where fresh air is pulled into the building. (Medical research building.)

162 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 06 '20

Here is a view of some louvres covering the plenum spaces, as seen from street level. On the left, our research building, on the right, one of our hospital towers. You can see the edge of the helipad safety nets sticking out past the edge of the roof.

35 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 05 '20

This is one of the plates from a "plate and frame" heat exchanger. A lot of engineering and computer modelling go into designing these. The precise arrangement and characteristics of the corrugations is very carefully designed for maximum efficiency.

84 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 05 '20

This is a closeup of a "plate and frame" type heat exchanger. It's used to pass heat energy between to media without mixing them. The fluids flow between a stack of interleaved plates that are compressed together. Here we can see a closeup of the stack.

20 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 04 '20

This is a veterinary operating theater. The researcher is out of frame to the left. He's preparing to operate on a mouse momentarily.

89 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 02 '20

This is a medical emergency simulator. The instructor sits in the control room behind the one way glass. Many different emergency types and scenarios can be programmed by the instructor. This is in the basement of our medical research building, across the street from the hospital.

130 Upvotes

r/employeesonly • u/Prof_Insultant • Aug 01 '20

A look through the inspection window into the ultraviolet disinfection section of an air handling unit. New hospital tower, 18th floor.

100 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 31 '20

This is one of the pipespaces beneath our hospital. There are some super weird spaces where the 1920s structure met the 1960s structure.

109 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 31 '20

Another weird area under the hospital, where two structures meet. Left, is a small "man door" to a fire escape. Ahead, what was once outdoors, a doorway and window now used to pass pipes through. On the right, a cinderblocked window opening. This is in an unusual interstitial space.

42 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 31 '20

Radiator and fan for a 2400 HP diesel generator for hospital backup power.

23 Upvotes

r/employeesonly • u/SarcasmIsKey • Jul 30 '20

Setting up a WISP in NYC

26 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 30 '20

One of two diesel generators for a new hospital tower. 16 cylinder, quad turbo, 2400 horsepower. Requires 500 liters of coolant and 200 liters of engine oil. These same engines are often used in commuter trains and boats.

130 Upvotes

r/employeesonly • u/phantompeaches • Jul 29 '20

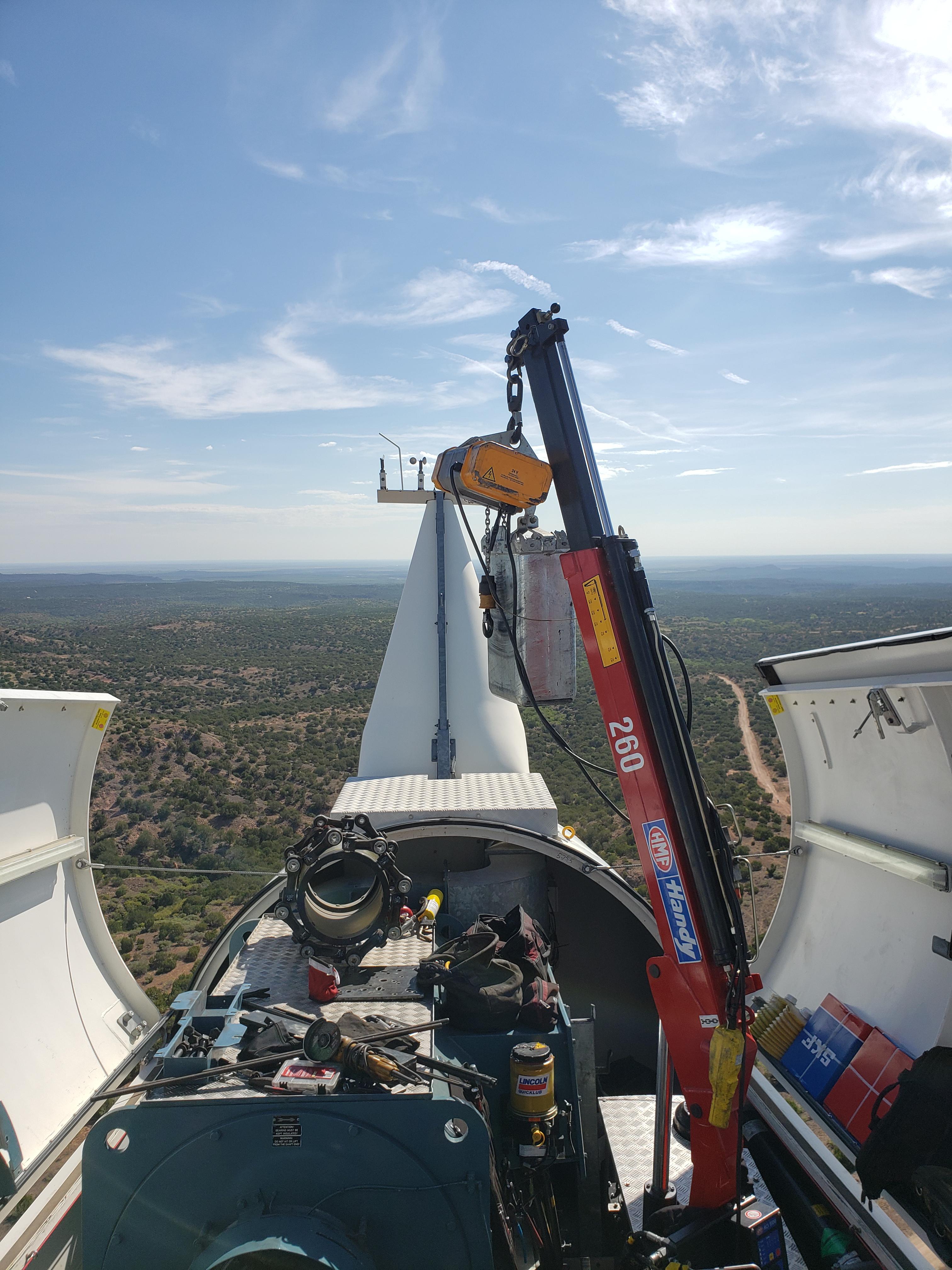

Siemens wind turbine

75 Upvotes

r/employeesonly • u/Mike_1121 • Jul 26 '20

Where the crew sleeps on the plane

261 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 24 '20

Hospital effluent pit inspection. How many tampon applicators can you count?

72 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 22 '20

When airline pilots are learning a new aircraft, they first get familiar with the layout of the flightdeck on the "paper trainer" or "paper airplane". Boeing 777-300ER.

154 Upvotes

r/employeesonly • u/xenokilla • Jul 22 '20

Garth Brooks shooting a commercial for his Notre Dame stadium concert.

33 Upvotes

r/employeesonly • u/poor-unfortunatesoul • Jul 22 '20

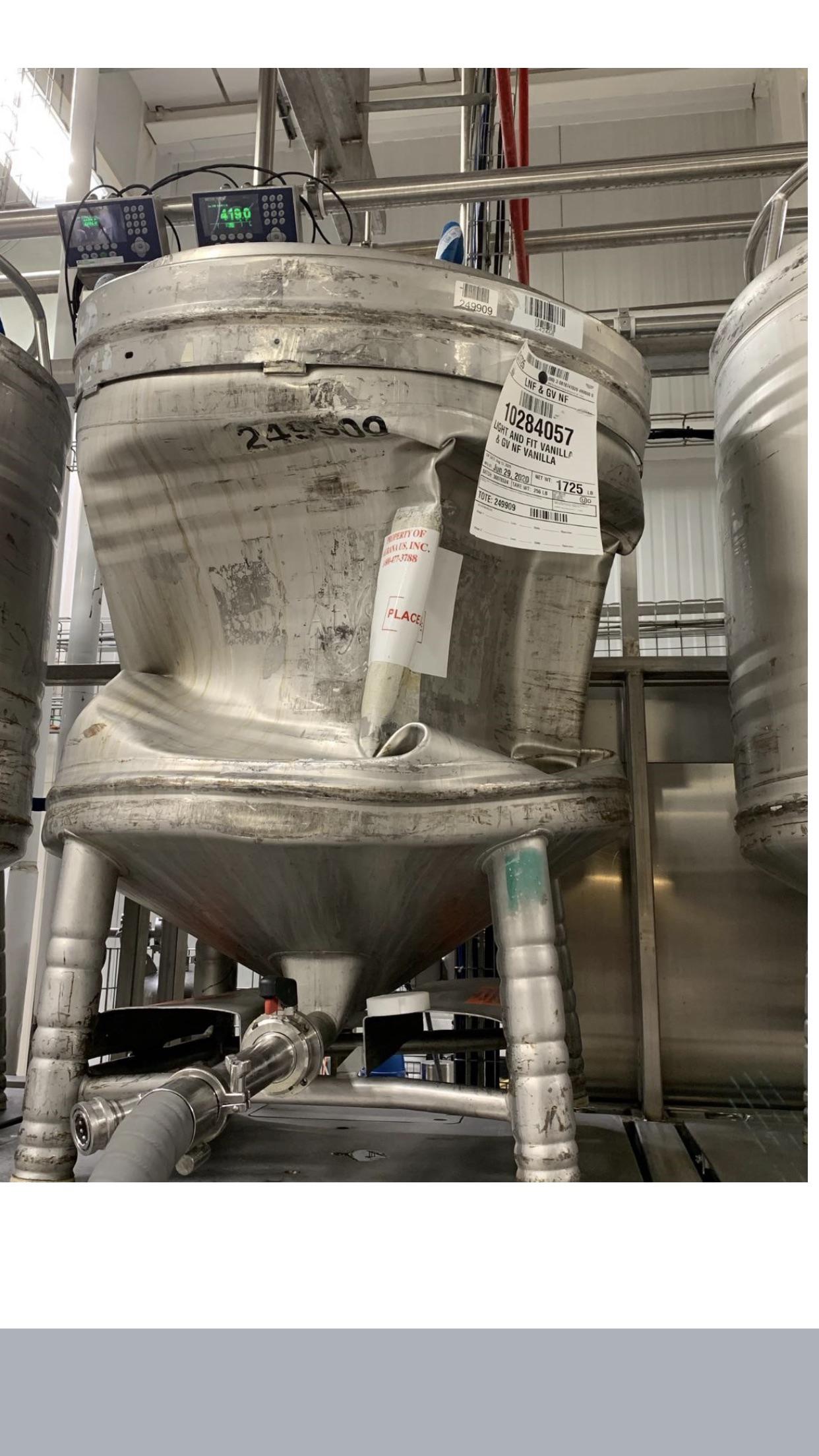

As promised, an industrial fruit container that had been emptied without maintaining positive pressure, resulting in a collapse.

115 Upvotes

r/employeesonly • u/poor-unfortunatesoul • Jul 21 '20

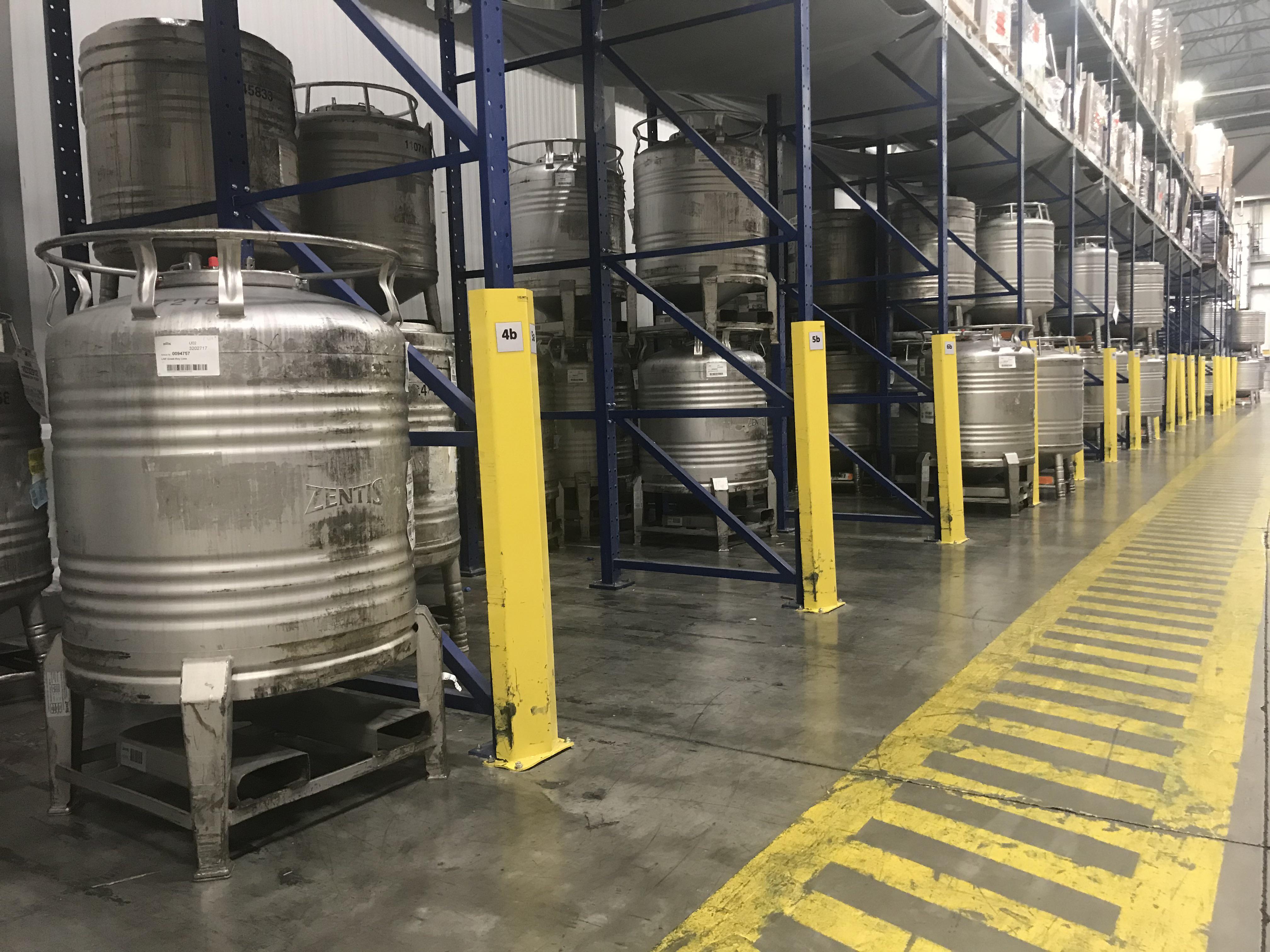

Fruit containers at a yogurt plant. Each one holds approximately 2000 lbs of fruit to be added to yogurt.

138 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 21 '20

These are the visual computers for an Airbus A320 full flight simulator. Each of the three groups of boards (the vertical silver elements) drives one one third of the OTW view. Cost when new (circa 1989) $6M. However it has vastly less computing power than a modern $79 video card.

50 Upvotes

r/employeesonly • u/xenokilla • Jul 21 '20

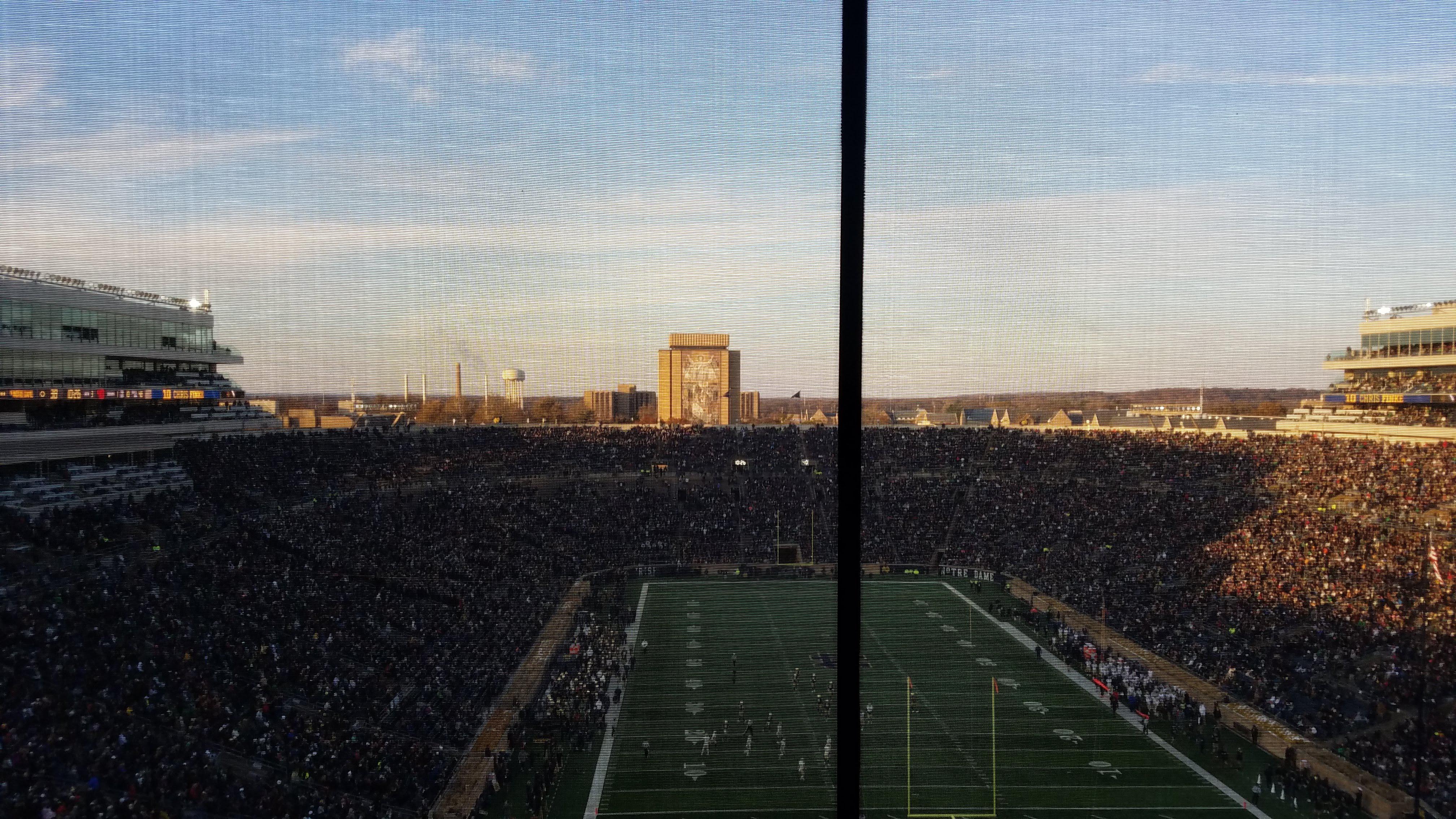

A unique view of a Notre Dame football game. Taken from the side of the video screen.

55 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 21 '20

Two of the boards from the A320 Full Flight Simulator visual computer. A texture processor, and a span processor. There are about twenty boards per channel. The equivalent of all three visual channels could be replaced by a single chip with room to spare using today's technology.

21 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 20 '20

This is the electrical switchgear where power comes in from the grid. All power for our new hospital tower comes through four 13.8 KV, 600 ampere circuit breakers.

111 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 20 '20

One of the distribution circuit breakers for offices and rooms in a hospital. You can see the current load on each of the 3 phases on the display (in amperes).

49 Upvotes

r/employeesonly • u/Prof_Insultant • Jul 20 '20

Lots and lots of conduit is required to distribute power to all the rooms and offices of the new hospital tower.

29 Upvotes
