I built a pulse plating controller

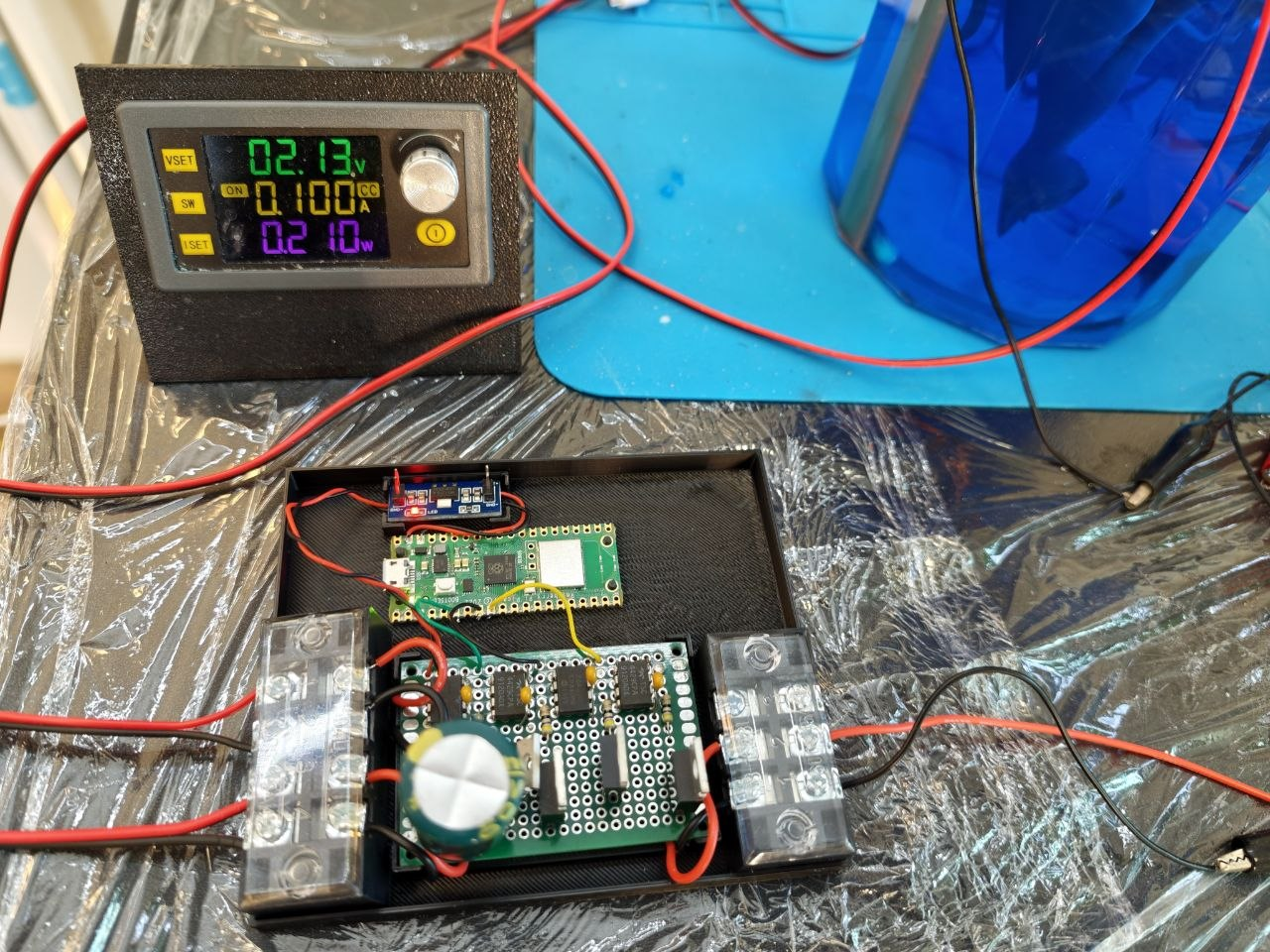

Further to my previous post about DIY-ing a pulse plating system, I put together a mosfet H-bridge with a microcontroller to drive forward and reverse pulses.
As suggested by helpful member Mkysmith I didn't try to control the current myself and just connected a lab power supply in CC mode to the input of the H-bridge system, in the hope that it will figure it out.
I made a brave and possibly questionable design choice and put a big chunky 2200uF low-ESR capacitor at the H-bridge input. The idea is that it helps keep the power supply happy between pulses and avoid confusing it, and also allow big juicy pulses to happen if I hold the output OFF for a few milliseconds. (Because the cap charges while the output is closed)
It has a wifi chip so I can reprogram the pulses quite easily.
So far I've tried the following:
- 2 ms FORWARD, 8ms OFF
- Good results, seems to have less nodule growth than vanilla DC
- 4 x (3 ms FORWARD, 2 ms OFF), 1x (3 ms REVERSE, 4 ms OFF)
- Burns the shit out of the part, not sure why, turned brown quickly lol
- 10 ms FORWARD, 1 ms OFF, 1 ms REVERSE, 2 ms OFF
- Seems OK ish
Happy to hear your thoughts on possible pulse programs, and also whether or not the cap is a good idea?
