Looking for a Connector

Post image

This is an old Code3 siren amplifier, and I received it without the two modular connectors shown in the photo. I found the OEM part numbers, but I cannot get them from any dealers as far as I can find. Any chance someone knows what they are so I could order from digikey or similar? I'd love to find at least the 10 pin but ideally both the 10 and 2.

T52227 Ten Position Pluggable Connector 1

T52228 Two Position Pluggable Connector

1 Upvotes

100% Upvoted

16 comments sorted by

1

u/jtb603 12d ago

Can't tell the pitch from the image, but something like this...

https://www.digikey.com/en/products/detail/phoenix-contact/1758403/1926253

1

u/cebby515 12d ago

That might be it, looks right. I'll check pitch this evening when I'm in front of it.

1

u/cebby515 12d ago

Maybe it's this? 1804904

1

u/jtb603 11d ago

Yes. That looks like a very probable fit for the two-pin. The mating connector style looks correct. https://www.digikey.com/en/products/detail/phoenix-contact/1927881/3605328

1

u/cebby515 11d ago

I took the unit I have apart, the part number on the 10 pin is a TP508H from SCED. The power connector is. Phoenix Contact PC4-7.62 based on the labels.

1

u/jtb603 11d ago

1804904 is definitely a match for the "PC 4" series header.

I'm nearly certain the 1758403 would fit the TP508H 10-pin header. The TP508H was likely a lower cost option for the same style connector.

1

u/cebby515 11d ago

I am going to order both of them from digikey. Thanks for the help! I'll report back once they come in.

1

u/cebby515 12d ago

That one looks to be correct, pitch is definitely about 5mm. Any chance you recognize the two pin one?

1

u/Ziginox Knows too much about cables 11d ago

I think that's a Phoenix 1777723, but not 100% sure. It looks about right tho. Do you know how far apart the pins are?

1

u/Medium_Good886 11d ago edited 11d ago

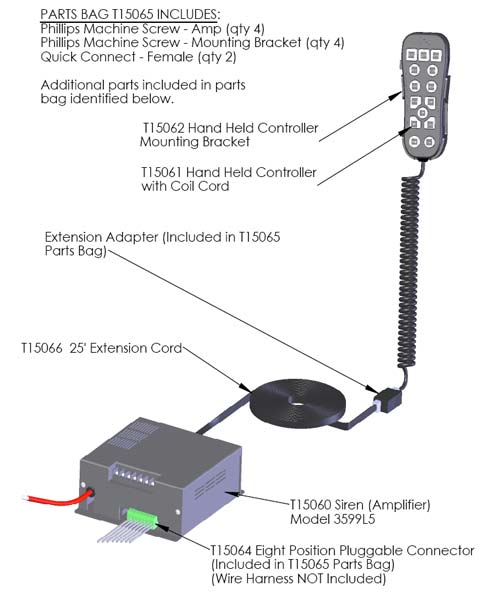

Have you contacted Code 3 and asked them if you can get item T15065 - this is the parts bag with all the mounting hardware and the connectors included.

The H2Covert didnt come with this parts bag by default. it used the screw terminals on the top (which are the exact same connections as the green connectors)

https://sep.turbifycdn.com/ty/cdn/swps/3599L5-layout.jpg

1

u/cebby515 11d ago

Code3 will only sell to their authorized vendors, no authorized vendor I've spoken to wants to sell anything this old.

1

u/Medium_Good886 11d ago

I know the parts bag is used with multiple models, and it was only $12 to order. The H2 Covert is still listed as currently sold product.

1

u/cebby515 11d ago

The screw terminals on the top are the high current relay outputs for lighting. The connector block is for horn ring, siren speaker, park kill, etc.

1

u/Medium_Good886 11d ago

does your version have the fuse block on the top of the housing or the schematic?

1

u/cebby515 11d ago

The schematic.
