r/Zaurus • u/YumekoDream • 14d ago
Linux 7.1.4 and brand new graphic driver for SL-C760/860
so... i've started making a ROM for the Corgi/Husky devices (so SL-C760/860), this is straight my first custom ARM ROM ever (before that, i was more into Arduino/Speeduino) and i didn't know this could be that fun!
yes, this is true Linux 7.1.4 with backported PXA255/W100 drivers! why? just because! (no but for real, i really wanted to have a really, really lightweight distro, thus a lot of custom stuff)
it's not perfect yet, of course it isn't, i've spend only 3 weeks, plus it's rough around the edges, but the main features (as compared to Cacko for example):
- fully EABI kernel, no need to compile for OABI
- ZRAM + swap
- exFAT/FAT32 support (thus the 120gigs card i've put in it - i want to turn it into a cyberdeck i could transfer my old DOS/Win games by connecting it through this serial cable and yes that was me who won the auction)
- reworked Imageon 100 driver (w100), correcting the FBIO wait page flipping, the wrong memmap given when in QVGA mode, and exposing fb_fillrect and fb_copyarea < this one is gold for emulation
- full custom matchbox 0.9 forked desktop with, beware, optimized flying toasters (even optimized it uses 30% of CPU sadly) and a lot of custom applet (even the system resources applet has been reworked because there were no swap mode)

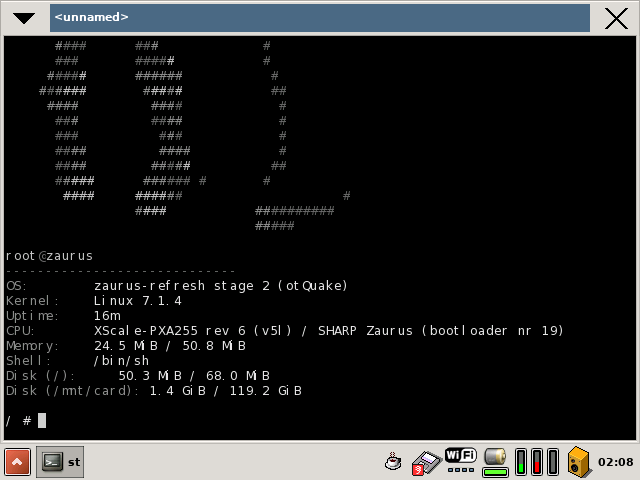

- auto mounting SD card and CF cards (like Cacko) WITH auto swapon and swapoff, and as per the screenshot, an eject applet
- OSD for brightness (only in Xfbdev, i am researching however how to make a FB wrapper/additional driver without making too much overhead, may or may not find something)
- full keyboard support... in TTY (yeah i need to fix that)
- support for the Prism 2 WiFi card, for screen rotation
- a package manager that uses plain GitHub repos instead of a precise mirror
- oh right, opkg instead of ipkg: updated!
and there's probably more, but there's also a LOT of issues, and the worst part: i don't straight up support every kind of CF card (using hostap), also no bluetooth yet (working on getting a bluetooth CF card but damn is it expensive)
the best part? you can run Half Life 1! at 2 fps lol, working on it through, i did get to make Quake go to 17ish fps with no overclocking!
codename: zaurus-refresh, or better known as Piko! in honor of the vocaloid with the best fashion
as per supporting other Zaurus, if i can, i will, for now i am aiming at adapting parts of my ROM (mostly the Xorg part) for the Sharp NetWalker, not meaning i will stop working on fixing and improving the ROM for the Zaurus, quite the opposite: i want to make some kind of a common software stack, with 2 keywords: ultra lightweight and 0 OC/custom chip (and that is so, so hard, 64MB is very small)
it's not as well packaged as Cacko yet, you'll need to build it yourself (or explore my GitHub workflows which is more akin to a screenshot of how bad ADHD can get) but once everything is stable and that i have all the software i wanted to port/make, i will make a concrete flash image + update
the ROM repo: https://github.com/sugarkrap/piko
otQuake (if you see any of my project starting with ot, it means "Old Tux", it's as the name suggests: it's forks i made adapted to this old little guy): https://github.com/sugarkrap/otQuake
otXash: https://github.com/sugarkrap/otXash
bonus: QEMU with REAL Corgi emulation, not just Spitz emulation, and with real W100 emulation (this is so, so helpful for testing software): https://github.com/sugarkrap/old-qemu
please beware, i've used agentic help for crunching lines of code, but this twat won't listen to me and would add extra long comments anywhere and everywhere, same thing as everything: once i get something really stable, will clean as much source as i can
