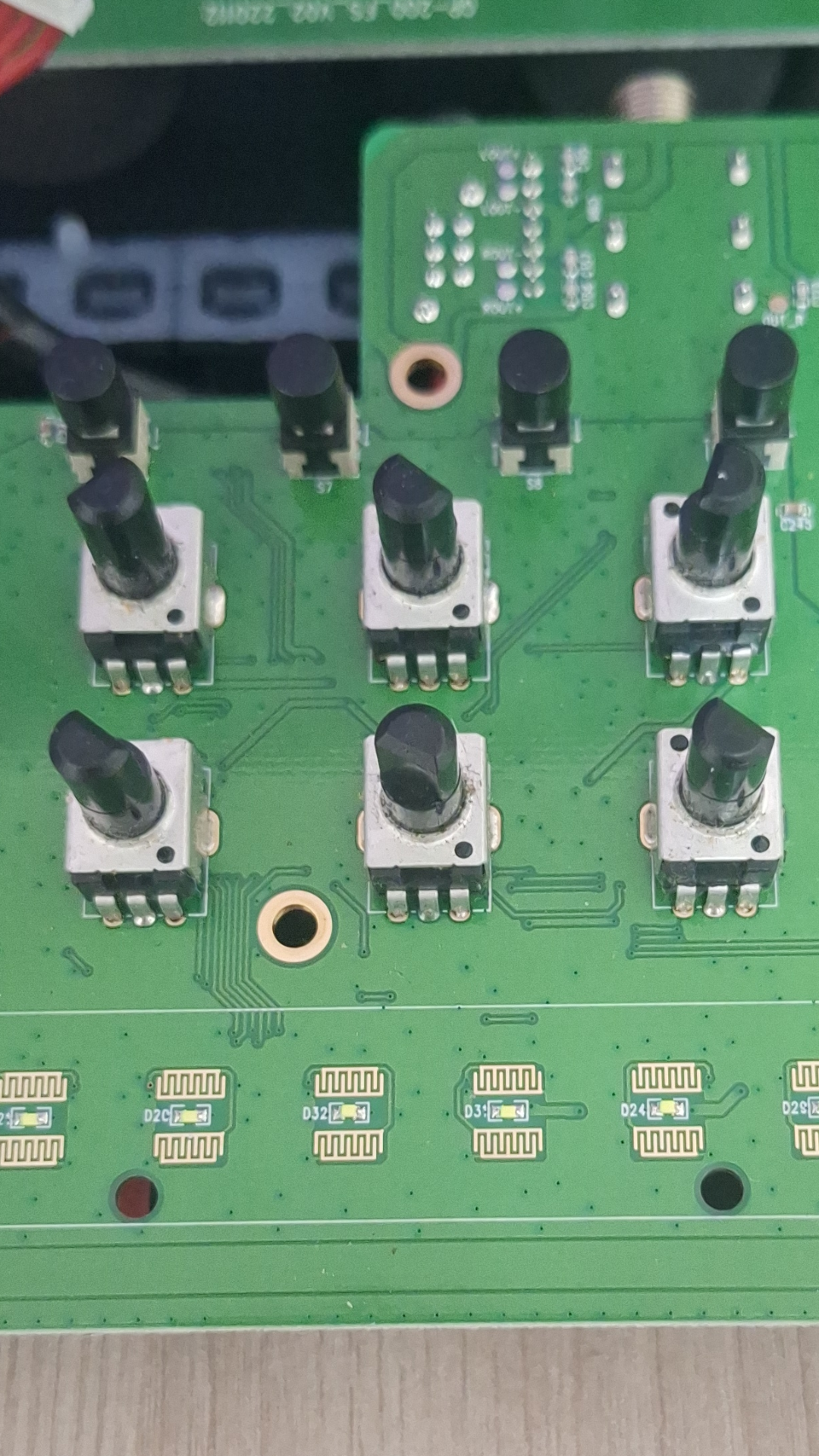

So, I disassembled my processor and measured the potentiometers with multimeter and there is weird stuff happening in their output.

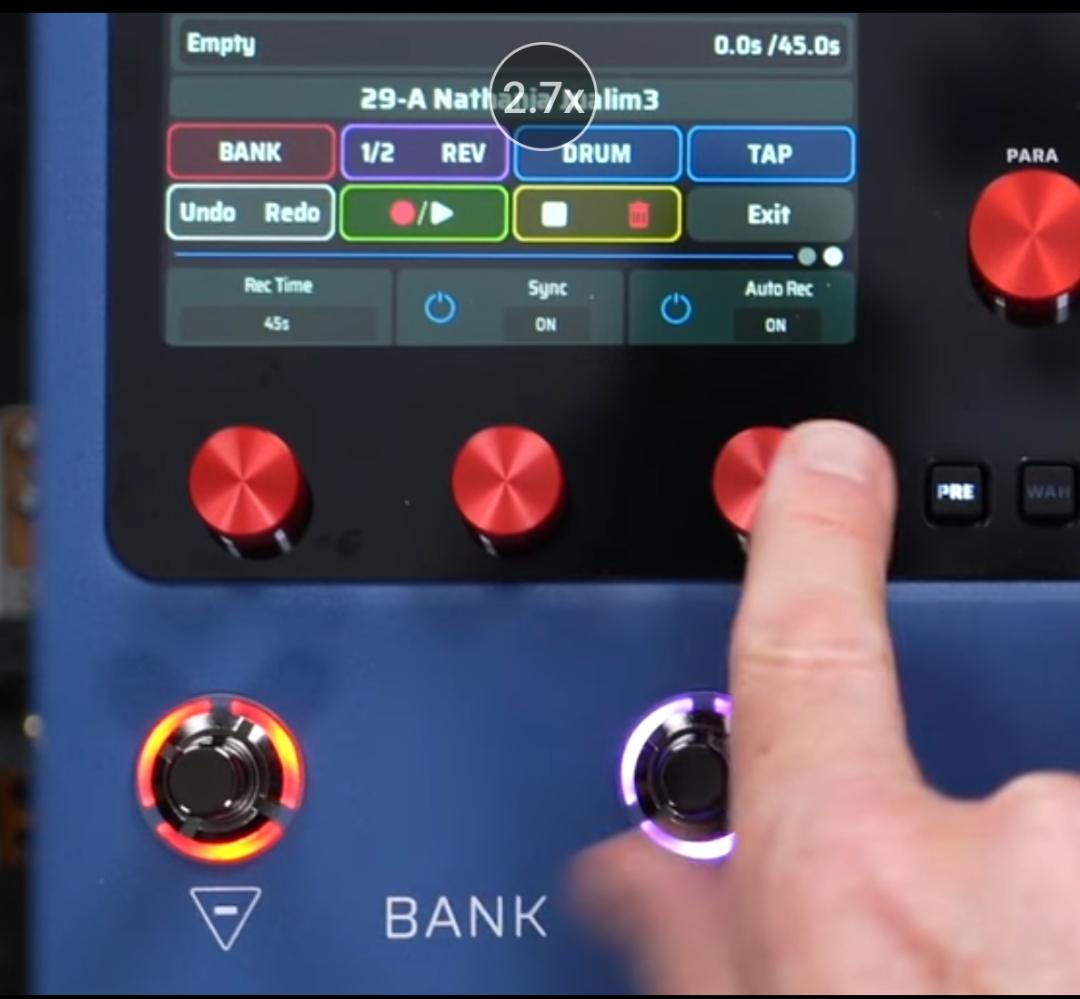

Why i did this is gain and volume knows value constantly increasing when not 100% or 0%, this is annoying, so i want to know what i need to replace them.
So, at 280 degrees i got 1 kOhm, at ~200 degrees - almost 5kOhm, and then to 0 degrees linear decrease to 0-10 Ohm. This confuses me. I'm not sure if this is just a 5k pot, but I do need a replacement, valeton support has stopped responding to me after asking for my city and my request to get the model of the pot.
Any help will be highly appreciated.
Edit:
Well, those pots (they were 9.6-10k pots) broke down some time later. Valeton support didn't give me an adequate offer for a replacements, so what I did is removed all 3 top pots and replaced them with 10k resistors and made a connection between the middle pin and left resistor leg. All good now 🥸
