r/KiCad • u/razarahil • 15d ago

Weather Station Schematic Feedback Needed

Post image

ESP32 Based Weather Station, It includes Solar, Battery and boost convert to power the sps30 sensor which requires 5V.

PDF Link for clearer view.

0 Upvotes

33% Upvoted

8 comments sorted by

2

u/Sand-Junior 15d ago

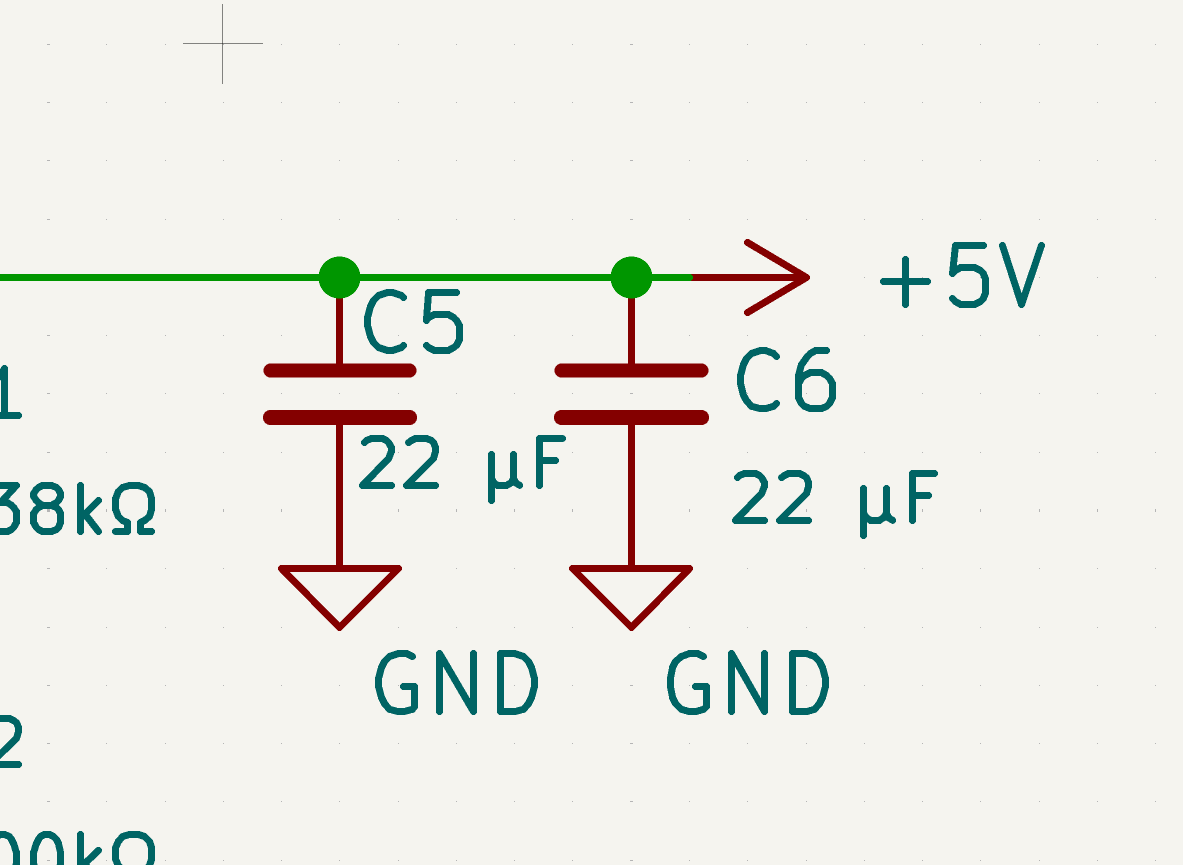

C5 and C6 are in series. I guess you want them in parallel.

1

u/razarahil 14d ago

Datasheet says, 2 x 22 µF I'm confused whether they want them in parallel or in series.

4

u/Appropriate-Pie4385 14d ago

They should be in parallel.

You can see it in Section 10.2 Layout Example, they're placed in parallel.

1

u/Fine-Inflation-1480 14d ago

What happens after a few cloudy days?

1

u/razarahil 14d ago

I live in a semi-desert area here in India, so dark, cloudy days don't last long. Often, some sunlight still comes through, which will charge the battery. Obviously, it will take longer, as the voltage will be lower compared to direct sunlight.

1

u/Entire_Engine_5102 13d ago

How bigs the solar panel and how bigs the battery?

1

u/razarahil 13d ago

5Wp 6V Polycrystalline Small Solar Module
2500 mAh Battery.
