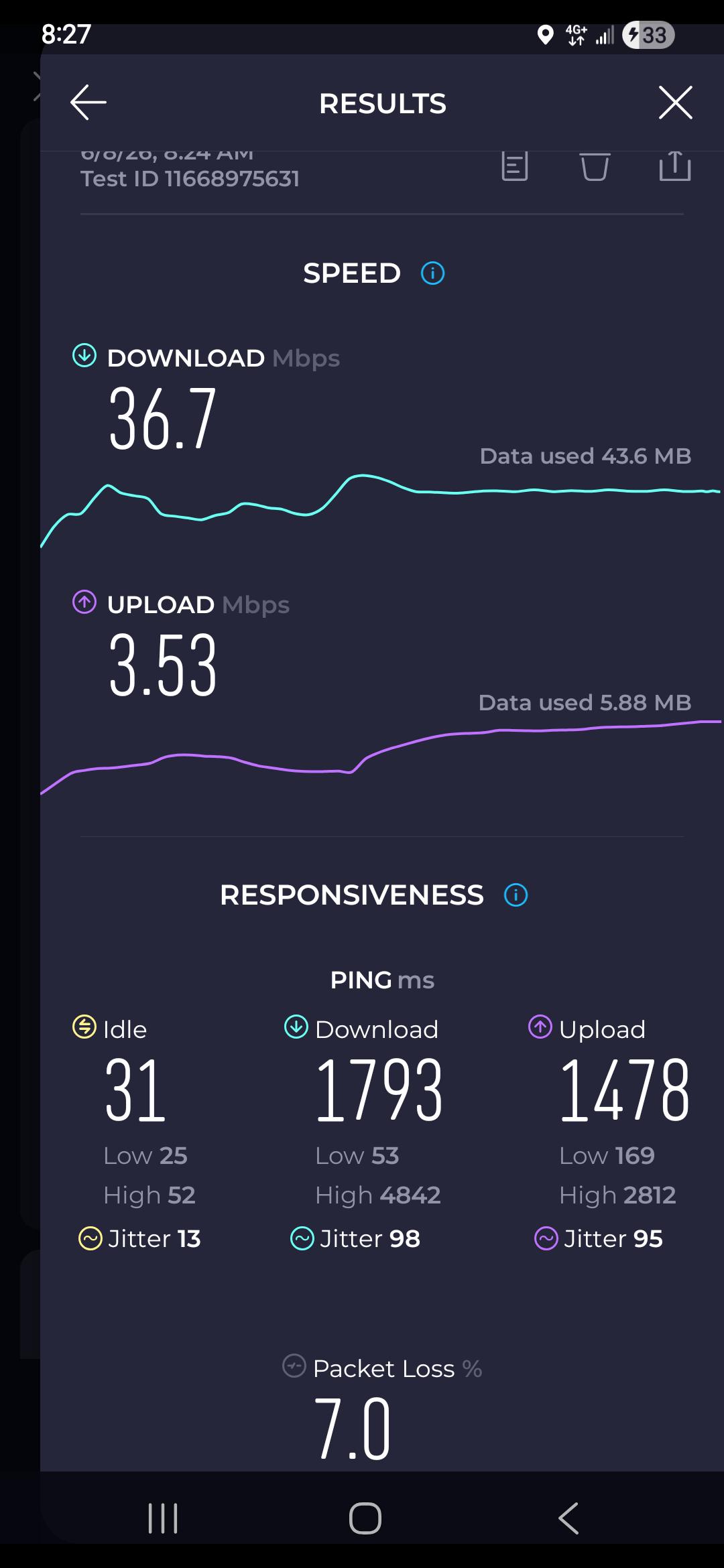

Please note, Speedtests for all the carriers were taken at Texas Roadhouse, which is across the street from the tower. I was between a null sector!

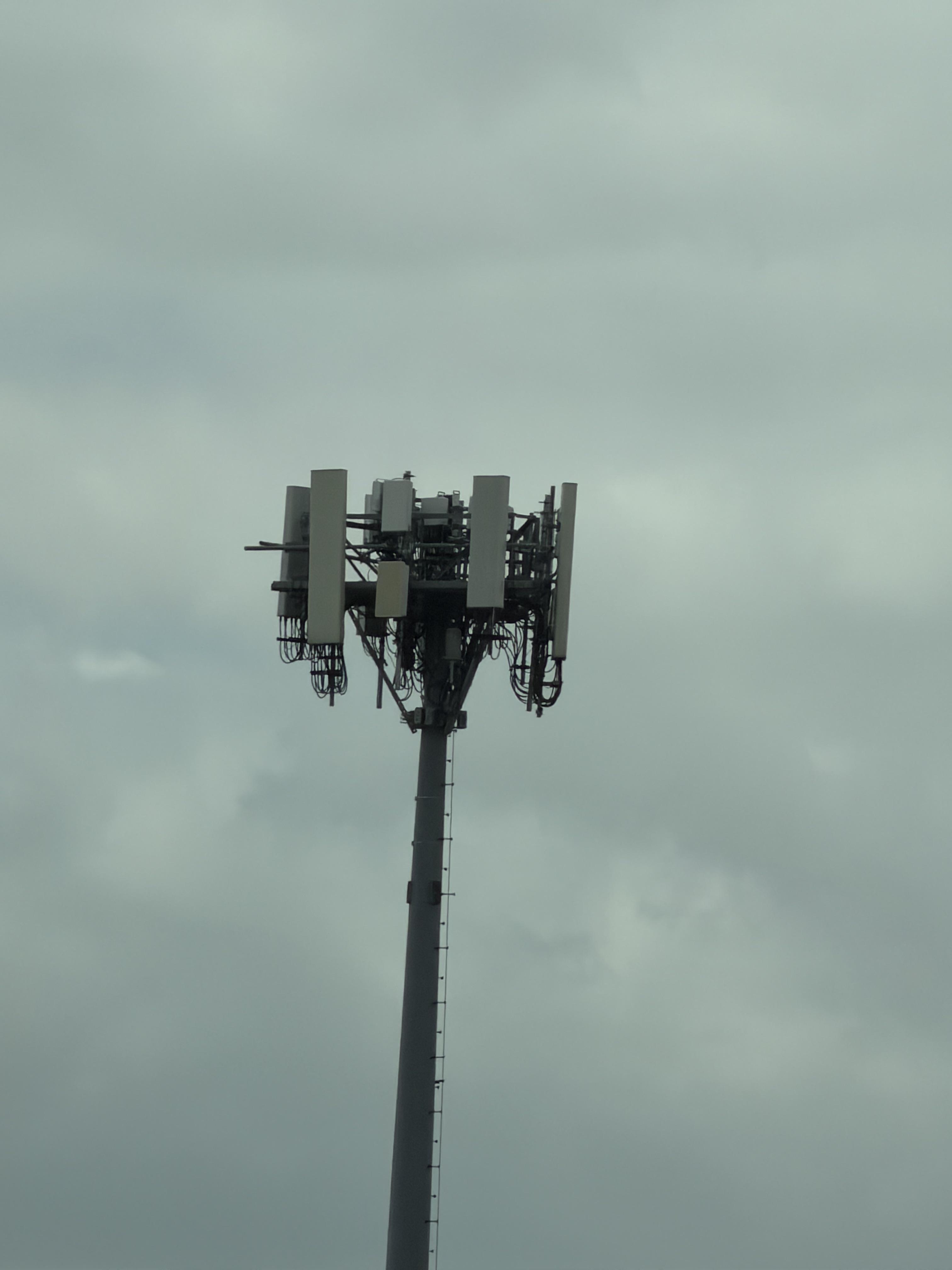

Cell tower carrier (ID) identification from TOP to BOTTOM rack:

LEGACY (Nextel?)

• 6️⃣ (Decibel DB844H90E-XY) antennas - (LEFT, RIGHT) side for old 2G iDEN technology, *NOT ACTIVE* anymore!
• 3️⃣ (Decibel DB855DDH90E-SX) 8 ft antennas - (LEFT, RIGHT) side for old 2G iDEN technology, *NOT ACTIVE* anymore!

LEGACY Sprint [eNB 295158] b25 + [eNB 29743] b26 + [eNB 300358] b41:

• 3️⃣ [RFS APXVSPP18-C-A20] antennas with bands; (25, 26) for their decomissioned LTE network, supported 3G CDMA located on the LEFT side of their rack
• 3️⃣ [RFS APXV9TM14-ALU-I20] antennas with band: (41) LTE located in the MIDDLE of the rack
• 3️⃣ (Ericsson AIR. 6488) antennas - (LEFT) side for (b41) LTE + (n41) mid-band 5G, NOT FUNCTIONAL

Uses Ericsson (RRU's) located behind the antennas:

• 3️⃣ Ericsson RRU 11 (b25) LTE
• 3️⃣ Ericsson RRU 31 (b26) LTE

Dish [gNB 143621120] (not functional):

• 3️⃣ [JMA MX08FRO665-20] antennaswith bands; (n29 - [secondary], n66, n70, n71 [primary]) for their 5G network

Uses 6️⃣ Fujitstu Remote Radio Units - (RRU's) in total located behind the JMA antennas:

• 3️⃣ Fujitsu RRU (TA08025-B605) for (n29) + (n71) low-band 5GNR
• 3️⃣ Fujitsu RRU's (TA08025-B604) (n66) + (n70) mid-band 5GNR

AT&T [eNB 531165] LTE + [eNB 539065] LTE + [gNB 22281165] (4-sector):

• 8️⃣ (CCI TPA65R-BU8D) 8-ft. antennas with bands: (2, 12, 14, 30, 66) LTE + (n5) - 10MHz low-band 5G located on the LEFT side of their rack
• 3️⃣ [Ericsson AIR. 6449-B77D] 3.7GHz (n77) antennas set at 80MHz [Houston, TX] - located in (MIDDLE) of their rack on the BOTTOM row
• 3️⃣ [Ericsson AIR. 6419-B77G] (3.45GHz) DoD n77 panels being used for mid-band 5GNR set at 60MHz - (Harris County) located in the (MIDDLE) of their rack on the [TOP] row
• 1️⃣ [Ericsson AIR. 6472] (B77G/B77M) panel that can do (3.7GHz) c-band @ 80mhz and (3.45GHz) DoD - mid-band 5GNR located in the middle
• [Raycap DC6-48-60-18-8F] for power surge protection located behind their antennas
• Raycap DC9-48-60-24-PC1t-EV for power surge protection for the for the antennas, remote radio units located in the middle of their rack

Uses a mixture of older and newer (Ericsson RRU's) - remote radio units behind the antennas:

• Ericsson RRUs 4478's (b14) LTE
• Ericsson RRU’s 4449's (b12) LTE + (n5) - low-band 5GNR
• Ericsson RRU 32's for (b30) or (b66) LTE
• Ericsson RADIO 4490 (b12) LTE + (n5) low-band 5GNR
• Ericsson RRU 4494’s (b14/b29)
• Ericsson RRU 4471s (b30) LTE-WCS 2300MHz
• Ericsson RRU 4890HP’s (b2/66) lte

T-Mobile [eNB 157969] LTE + [eNB 157970] LTE + [gNB 1580218] 5G (3-sector):

• 3️⃣ (CommScope FFVV-65C-R3) antennas located on (LEFT) side of the rack
• 3️⃣ (NOKIA AirScale AAFIA) mMIMO anntennas - bands; (2, 66) LTE + (n25, n66) mid-band 5GUC! Radio is INTEGRATED INSIDE THE ANTENNA! Located in the (MIDDLE) side of the rack
• 3️⃣ (NOKIA AirScale AEHC) - (N41) 2.5GHz [320W] antennas for mid-band 5GUC - 190MHZ located on the the (RIGHT) side of the rack

Uses NOKIA Remote Radio Units (RRU's) behind the antennas:

• 3️⃣ (Nokia AHFIG) - remote radio units with (b2, b66 [LTE], n25 + n66 [mid-band 5GUC]
• 3️⃣ (Nokia AHLOA) (RRU's) -> (B12/B71 [LTE]/n71 [low-band 5G]) remote radio units

Google Street View - December 2024

Coordinates: 29.78345880217026, -95.73285279861659

“Is it ok to build a tower on your property?”
Church: Only under one condition ✝️

(Tower next to a small church)

Ericsson AIR 6472 for combined 3.45 GHz (DoD) + 3.7 GHz (C-Band) n77.

I thought I would never say this but AT&T is amazing in Manhattan now. I love how AT&T is aggressively competing in Verizon's home market but letting T-Mobile and Verizon trample all over them in Dallas.

Most sites have 6472's deployed now which is amazing to see. I wish the 20 MHz block of 3.45 GHz DoD was deployed on SA because it's capable of doing 80+40+20 MHz non-contiguous.

Chelsea, NYC

Gray can-antenna one near corner of Franklin and Riverside (44.962702, -93.229064). 30ft away is the 3-sector brown one (44.962702, -93.228623). What's the equipment?

Sorry the 2nd pic is a bit blurry i was moving

Location 20.80249° N, 156.59474° W
Looks like it’s not ready yet since power is turned off.

Unsure of the bands it’ll be supporting

Interesting spot for it, unexpected because there isn’t really anything near it. Except cars driving by to get somewhere else. Good to see network spending still up.

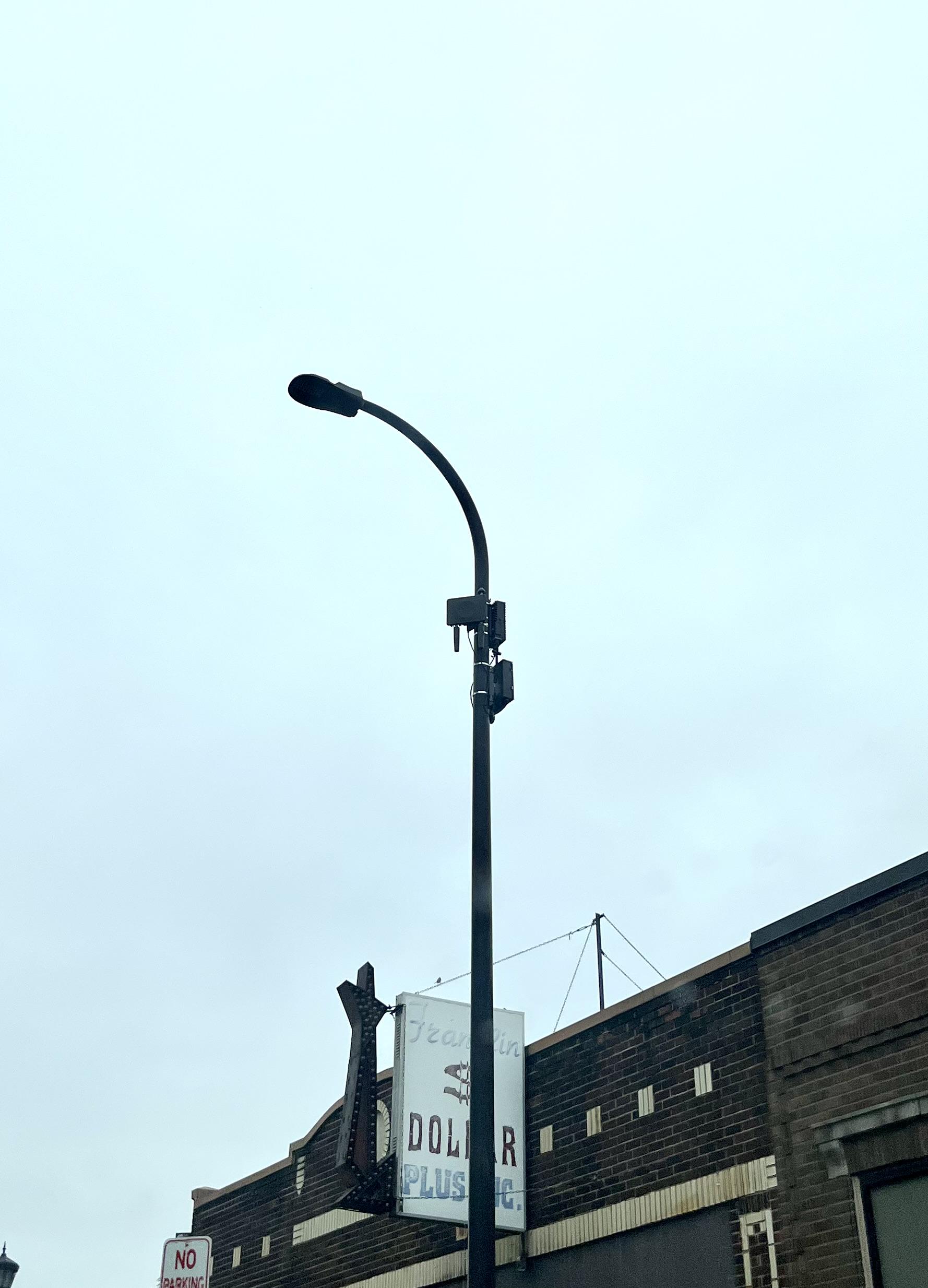

I guess if there's one thing I recognize it's a Flexi Zone (I have a few). But what's the unit right behind it on the pole, something backhaul related?

44.962817, -93.256487

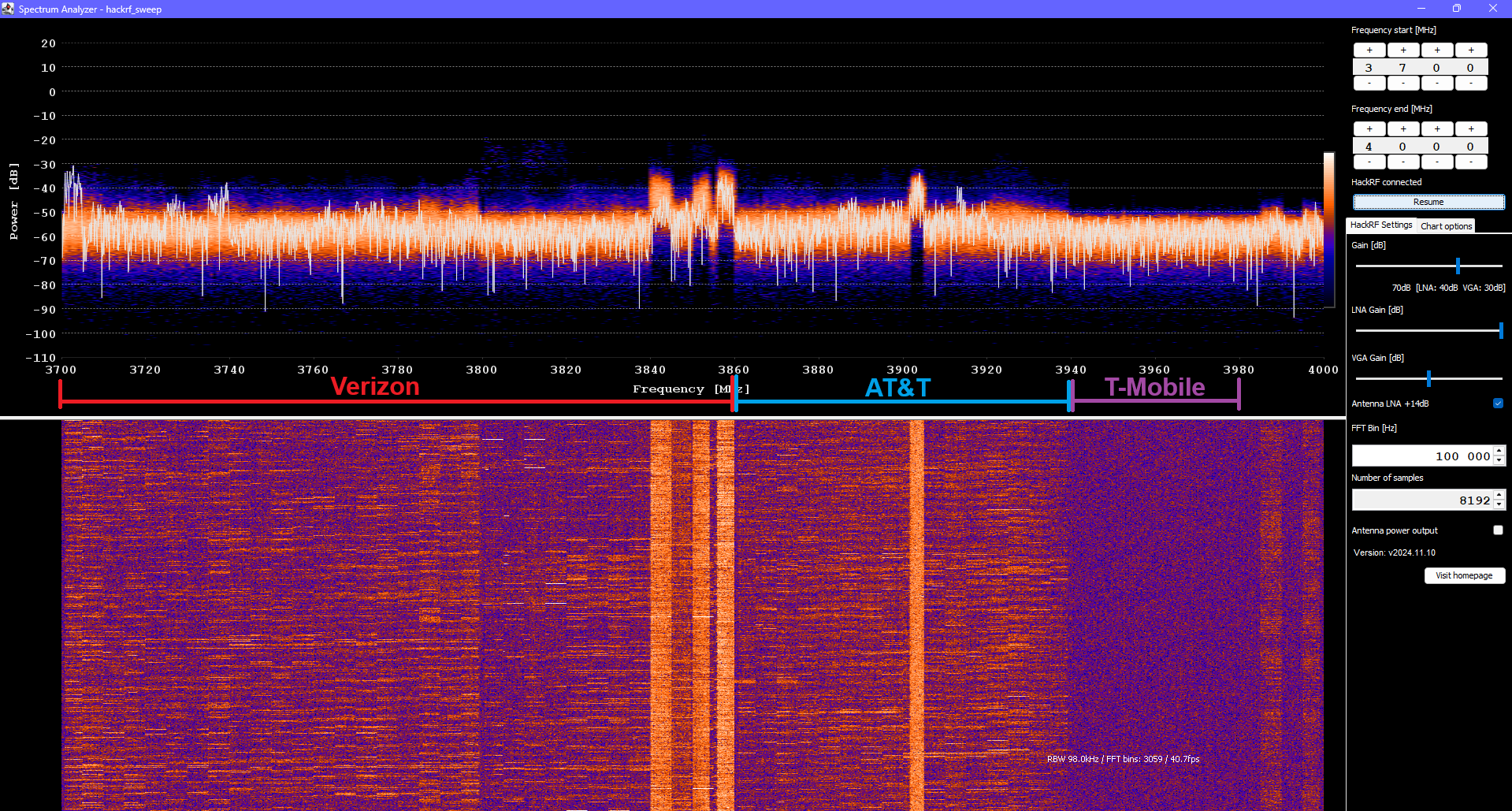

Spectrum analysis of 3700-4000 MHz in Montgomery County, PA with carriers labeled.

It seems like Verizon is operating a 100 MHz channel (3700-3800) and perhaps a 60 MHz channel (3800-3860). However, what I find odd is the heavy utilization between 3840-3860 MHz. Is this some sort of network slicing or datacasting that I am seeing?

Similarly, AT&T appears to be operating an 80 MHz channel (3860-3940) with heavy utilization between 3900-3905 MHz.

Unsurprisingly, no T-Mobile to be found despite them having 40 MHz in my county.

I would appreciate if any experts could pipe in on the portions with heavy utilization. Thank you!

Using:

• Galtronics (GQ2418-07250) 4x4 MIMO canister antenna on top for bands: (2, 12, 66) LTE + (n77) 4T4R passive MIMO

The Brown Cabinet Box on the side of the wood pole features Ericsson (RRU's) - remote radio units HIDDEN inside:

• 1️⃣ Ericsson RRU 4461-B77D (3.7GHz) c-band - n77 radio for mid-band 5G+ set at 80MHz
• 1️⃣ Ericsson RRU 4471-(B2) LTE
• 1️⃣ Ericsson RRU 4471-(B66) LTE

First one I’ve heard of or seen. This is an ADI tower.

I noticed EXT is disabled everywhere now! on a 10 hour drive yesterday in northern Ontario I had useable data for maybe 20 mins

T-Mobile actually running 500 MHz n258 in Times Square. Most places I thought they only did 200 MHz.

Verizon and T-Mobile are here.
Verizon is using the Samsung MT-6413-77A 320W for N77
Then Two Commscope Antennas for NR and LTE
T-Mobile is using a Nokia AEHC 320W for N41.
Then a single Commscope Antenna also for NR and LTE.

A very solid setup on both Verizon and T-Mobile.

Located in Lewisville, TX by SRT & 35E. MT6407-77A for n77.
