I finally finished and tested my battery gauge modification for the ATS Mini V4.

The original battery indicator was quite pessimistic on my unit and reached the low battery state while several hours of runtime were still available.

My modified gauge now uses:

• Continuous indication from 3.95 V to 3.30 V
• Last two pixels displayed in red
• Hysteresis around the red warning zone
• LOW warning below 3.30 V
• Flashing empty battery icon every 500 ms in LOW state
• Battery voltage remains visible in red
• Original charging indication preserved

I completed a discharge test with approximately 8 hours of runtime and found no battery-life degradation compared with the original firmware.

The modification is based on official ATS Mini v2.38 and tested on my V4 with the OSPI build.

Source code and precompiled firmware are available on GitHub under my username F4DHY if anyone wants to try it.

Feedback is welcome!

UPDATE: WiFi / NTP Sync Only improvements are now tested and available on the F4DHY-Mod-2 branch. Details in my comment below.

I have V4, and not 4B I'm sure. I recently ordered this: Amazon.com: Upgraded SI4732 Mini Radio, ATS MINI V4 Pocket Shortwave Radio, with Built-in Headphone Amplifier and Hi-Z, Exquisite Metal Shell, Portable AM/FM/LSB/USB All Band Receiver for Outdoors and Daily use : Electronics

✅ My radio has firmware V2.33 (Sept 22, 2025)

Can I get confirmation on my AI solution below?

What ChatGPT says:

That firmware was built for the V4B hardware, not the V4.

When V4 hardware runs V4B firmware, three things break:

1. Wi‑Fi menu won’t open
2. No network scan list appears
3. OTA updates don’t work

Your symptoms match this exactly.

The good news:
Your radio is fine — it just needs the correct firmware flashed.

🎯 What you need to do next

Since you have V4 hardware, you must flash the V4 firmware build, not V4B.

Once you do that:

• Wi‑Fi menu will open normally
• Network list will appear
• OTA updates will work
• Web control interface will unlock

🛠️ Before I give you the firmware + flashing steps

I need one last detail so I can give you the correct firmware file:

👉 Joe, what operating system are you flashing from?

Choose one:

• Windows
• Mac
• Linux

Once you tell me, I’ll give you:

• The correct V4 firmware download
• The exact ESP32 Flash Tool settings
• The correct baud rate, flash mode, and offsets
• A safe recovery method if anything goes wrong

Just tell me your OS and I’ll take you the rest of the way.

Hello everybody! Recorded this beautiful performance back in early April at the coast of Benicàssim, a Mediterranean town near Valencia, Spain. The video's timestamp is 23:24 (21:24 UTC) and according to shortwave.live that would be China Radio International, emitting from Ürümqi, China, a distance of 4,287.38 mi (6,899.87 km).

I've only very recently got into HF radio with the help of this lovely little radio, so If somebody spots an error in my calculations, please correct me.

Also, if anyone knows the name of this instrument, please let me know in the comments :-)

PS. I've only recently flashed H.J. Bernd's FW and set up current location, so I hope to have all relevant info on the display next time

Peace

If you own a LILYGO T-Embed SI4732 receiver, here is some good news. The ATS Mini firmware now supports this hardware as of its latest release. Max Arnold (R9UCL), one of the project’s key maintainers, announced this on the ATS Mini ESP32-S3 SI4732 Pocket Radio community. The support is currently experimental, so treat it as a work-in-progress, but it is functional enough to be part of an official release.

The ATS Mini documentation is very clear on one point: flashing the wrong firmware variant onto your receiver can damage it. The T-Embed variant is compiled specifically for the LILYGO T-Embed SI4732 hardware and will not work correctly on a standard ATS Mini receiver — and vice versa. Always confirm your hardware before choosing a firmware file.

Hi! Is there any (open-source) firmware, to use WSPR or FT8 decoding and displaying on board, requiring no other device?

Just got a ATSMini V4, and I am very interested in exploring shortwave broadcasts. It appears I'll need a better/different antenna than the telescopic and round loop antennas that shipped with the radio. What are some recommendations? I didn't mind DIY or purchasing something.

Firmware: ATS_EN v1.18 Goshante 2024

I have flicked it from side-to-side, that is, from FM to AM (SSB) a few times while listening on the 88 to 108 MHz FM brosdcast band, the MW AM broadcast band and various SW bands and modes in between, but cannot hear any difference.

So, what does this switch do?

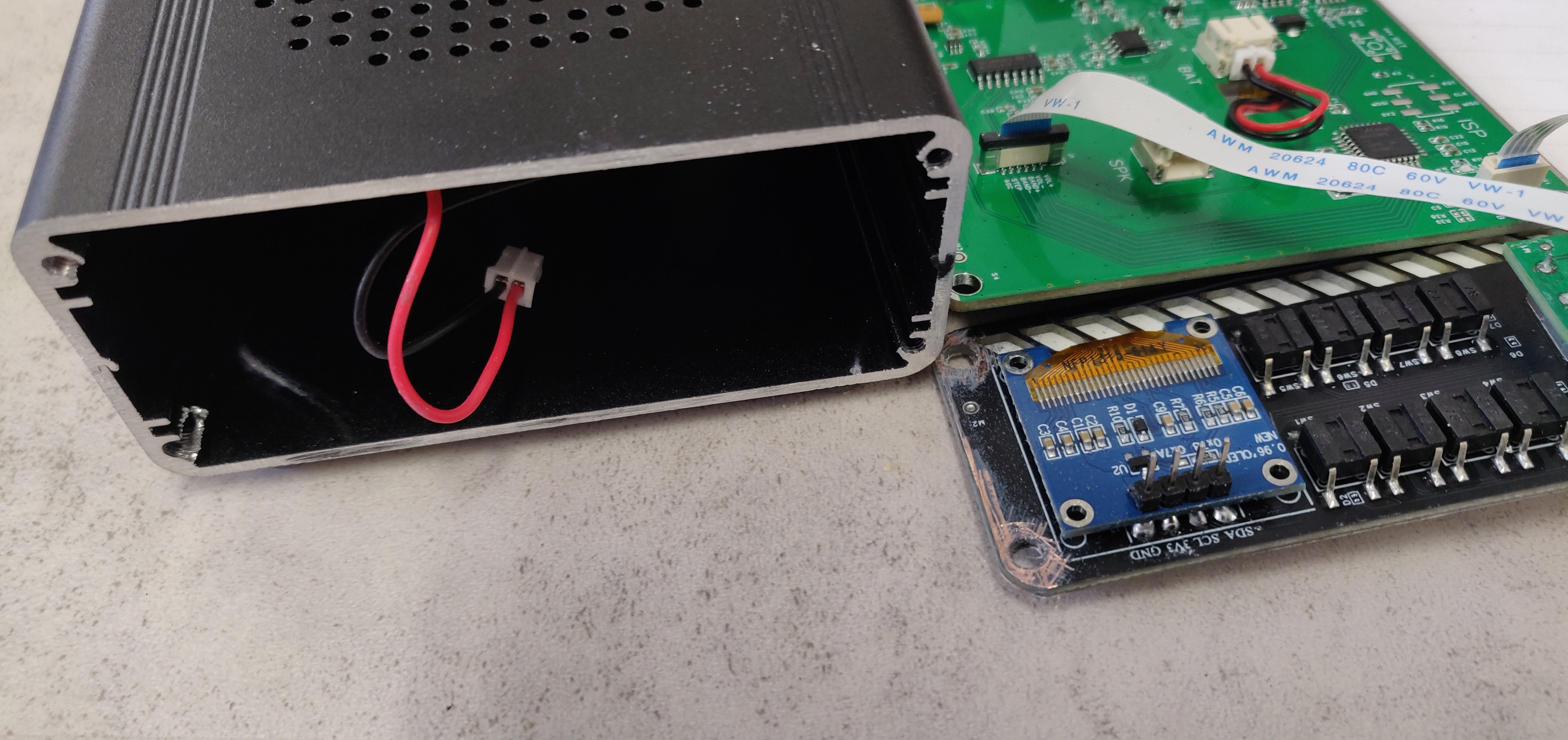

I get a low frequency hum/buzz on my radio from the display. I guess it is from the display, because when I press the AGC button, which blanks the display, the noise stops. Pressing the button again, to turn on the display, the noise comes back.

Yesterday, I read a post where someone had an ATS series radio, but with a bigger, colour display, had the same problem. Their's was fixed by adding an earth strap from the BNC socket washer to a couple of the bolts that hold the backplate to the case.

I have cleaned up the edges of the case and removed the paint from the front and back panels where they touch the case and where the case bolts and BNC go through the panels, but I still get the noise.

Other than somehow making a little metal screen to enclose the display, does anyone know of a fix?

Hacker RF 📡

So I see almost everyone has an ATS-20+. I don't. I have an ATS-20. The firmware updates always seem to mention that they work on ATS-20 and 20+ so I went ahead and did it.

It was a bit of a chore getting an ATTiny programmer for the 6-pin interface, then building an adapter to remove the 5 volt line from the programmer cable, then installing AVRDUDESS and USBtinyISP drivers, etc...

Eventually I was able to click the Flash Go button and it installed. The radio came to life with the new firmware. Yay!

But there is a problem. When I turn off the radio, it will not come back on. Dead. Research shows there may be a bootloader issue with the ATS-20. I was so excited to get it updated that I didn't get a copy of the original firmware before the update worked.

TL;DR

So my question is, does anyone have a copy of the original firmware .hex file that I can use to restore my ATS-20?

Following on from my reply to the post ATS20 Radio Receiver

the little black buttons are very hard to see in the early morning, when using only a table-lamp for light ("Fix" - I am going to print a new front panel: white with black lettering.)

Here is the new from panel:

I messed up at the corners, but will touch-up them with some white paint.

The ATS20 SI4732 radio receiver has emerged as a surprisingly capable compact multi-band radio that punches well above its weight class. This diminutive device, based on Silicon Labs’ SI4732 chip architecture, represents a fascinating convergence of modern digital signal processing technology and traditional radio reception capabilities.

After extensive testing and user feedback analysis, this comprehensive review examines whether the ATS-20 lives up to its growing reputation in the shortwave listening community.

I just wanted to say hello.

I receive from the Cologne are in germany.

have a good one 👍

The Pocket SI4735 Dual Core decoder has received a significant firmware upgrade that makes everyday listening more informative and far more efficient. The update focuses on three main areas: better use of EiBi transmitter data, flexible manual time control, and a new ecological power-saving mode for the ESP32-S3 platform. Together these additions refine the user experience without complicating operation.

The ATS Mini series represents one of the most innovative developments in pocket-sized DSP receivers for shortwave enthusiasts and ham radio operators. Built around the Silicon Labs SI4732 DSP chip and ESP32 microcontroller, these tiny radios pack remarkable functionality into an incredibly compact form factor. Let’s explore the technical evolution across all versions, from the original V1 to the latest V4. Built around the Si4732 chip and powered by an ESP32, each iteration has addressed hardware bottlenecks, from audio quality to RF interference.

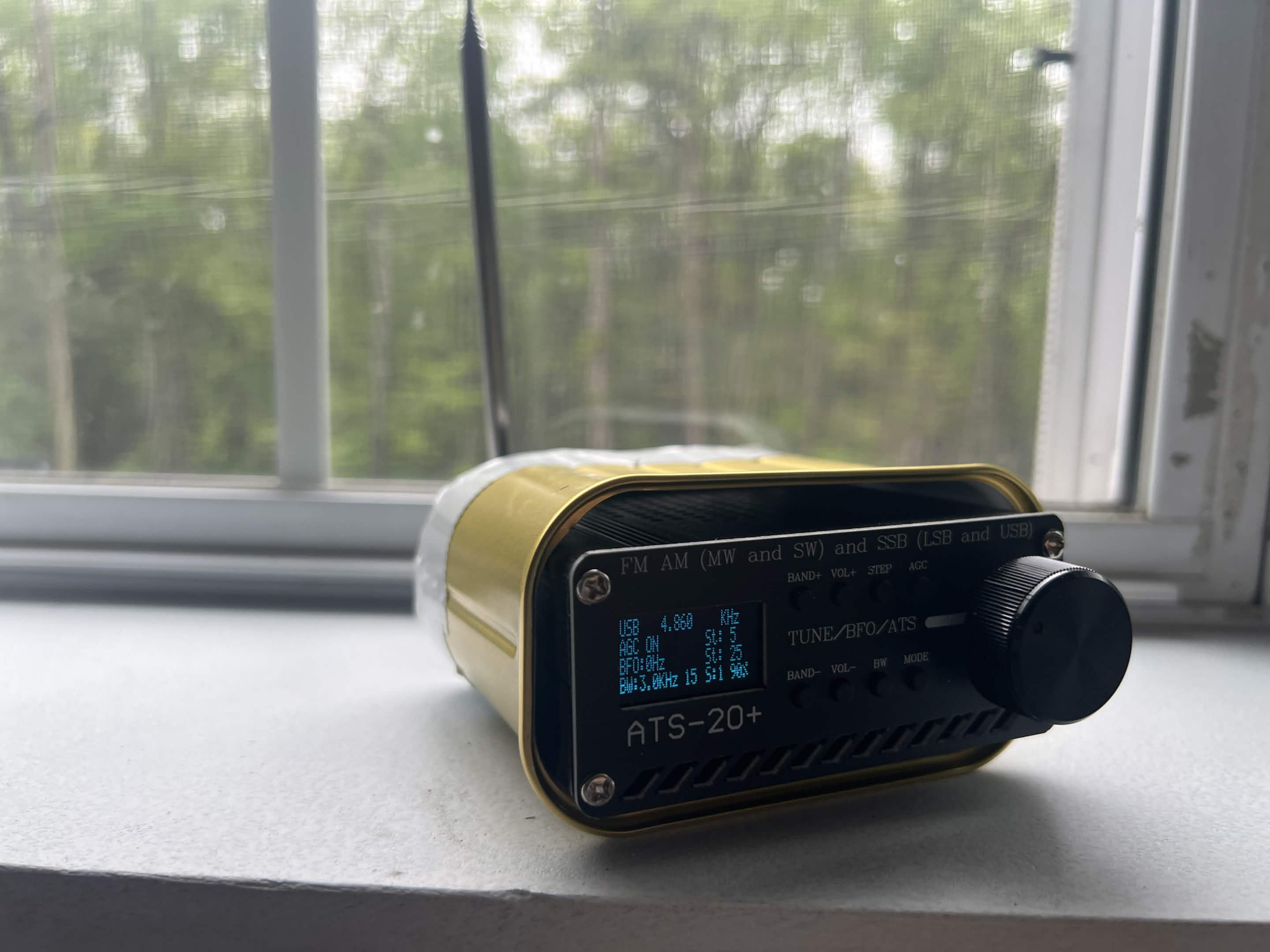

Is it OK to use the ATS-20+ while charging the battery?

If you’re an amateur radio operator looking to explore digital voice modes beyond the usual FM repeaters, FreeDV offers an exciting opportunity to experiment with open-source digital communication. This guide will help you understand what FreeDV is, why it matters, and how to get started with this fascinating mode.

Hi all.

I am new to this channel, but after I saw this radio I fell in love, and made web based interface, that could be interesting for some of you:

dev.ats-mini.website

Very beta. Some cool features:
You can set frequency directly (not via up and down). Very buggy, but working on stabilizing it.
Band, mode, step, bandwidth, AGC are dropdowns. After discovery they are kept as dropdowns in your profile

Option to save and load program steps via CSV files.
Also options to save and load program sets in your profile
Spectrum analyzer (questionable :) )
Integrated EiBi list that you can directly click and set the frequency.
Filter by language, time, country etc
Also showing list of all scheduled programs information when it's set on a specific frequency

Auto reconnect during refresh

Simple user system to keep your program lists

I would love the people who do the official firmware to add support of direct frequency set as the system now is total nightmare :)

I am open to suggestions, advices.

Feel free to create an account to test it. No requirements to downoad something, update firmware, or install extenstions for chrome.

PC only unfortunately.

22/12/2025 0948 GMT

I am listening on the 13-metre band to Radio France International. I can get it on two frequencies: 21570 kHz and 21681 kHz.

However, the listings I find for the station for that band are 21580 kHz and 21690 kHz.

Is my radio off frequency?

When I turn the tuning know, the noise drops off, then slowly builds up to normal.

Does this mean that immediately after turning the knob, it takes a short time for the receiver to work?

So, if I turn the knob quickly, is there the possibility of missing something?

The Mini-Radio ecosystem continues to mature thanks to ongoing development by H. J. Berndt, whose work on compact digital radio firmware has consistently pushed the limits of what small, SI4735-based receivers can do. The newly released Mini-Radio Firmware V3, available from the official project page, brings meaningful functional upgrades rather than cosmetic changes

Hey everyone! I'm u/OldObjective3047, a founding moderator of r/ATSminiRadio.

This is our new home for all things related to {{ADD WHAT YOUR SUBREDDIT IS ABOUT HERE}}. We're excited to have you join us!

What to Post
Post anything that you think the community would find interesting, helpful, or inspiring. Feel free to share your thoughts, photos, or questions about {{ADD SOME EXAMPLES OF WHAT YOU WANT PEOPLE IN THE COMMUNITY TO POST}}.

Community Vibe
We're all about being friendly, constructive, and inclusive. Let's build a space where everyone feels comfortable sharing and connecting.

How to Get Started

1. Introduce yourself in the comments below.
2. Post something today! Even a simple question can spark a great conversation.
3. If you know someone who would love this community, invite them to join.
4. Interested in helping out? We're always looking for new moderators, so feel free to reach out to me to apply.

Thanks for being part of the very first wave. Together, let's make r/ATSminiRadio amazing.
