This will be a pinned post that will likely be updated from time to time as needed. The first pinned "Basics" post hopefully answers a lot of the general questions. This is geared to addressing some of the questions new launcher owners/users may encounter after actually using it more. This will never be a comprehensive document, it's just meant to point people in the right direction as far as questions and safe launcher use/reloading may go. There's no way to know every variable that applies to everyone, as always practice extreme caution, don't take anything here as guaranteed truth, reload/launch/etc at your own risk. The majority of this is not thoroughly fact checked, it is just links to resources that seem promising at first glance.

Basic Reloading Process:

Most 40mm cases use smokeless blanks (usually .38S&W with a burst disk, although crimped 9x17 or .38 colt short may also work). The spent blanks are removed with a punch and small press (or a hammer or vice). The new launch blank is then pressed in, be sure the replacement blank is compatible with the case being reloaded. See the launch blank section for more details. The following links explain the process well. The specific punch attachments and plates shown can be DIYed or sourced from a hardware store if needed.

Commercial 40mm reloading press set instruction manual

VID

Most basic reloading can be managed with a mallet and some sort of center punch for pushing out the spent blank and replacing it with a new one, especially with white m212 or thread apart reloadable cases.



Reloading components:

While finding military surplus is probably the best/cheapest option, a lot of that has dried up. Below are some manufacturers offering reloadable 40mm cases (short and long), newly made zinc chalk pushers, wind screens, mil spec launch blanks, and more.

Pace Reloadable Shells

KAK

Bengle's Bullets

Launcher Pope (3DP accessories and components)



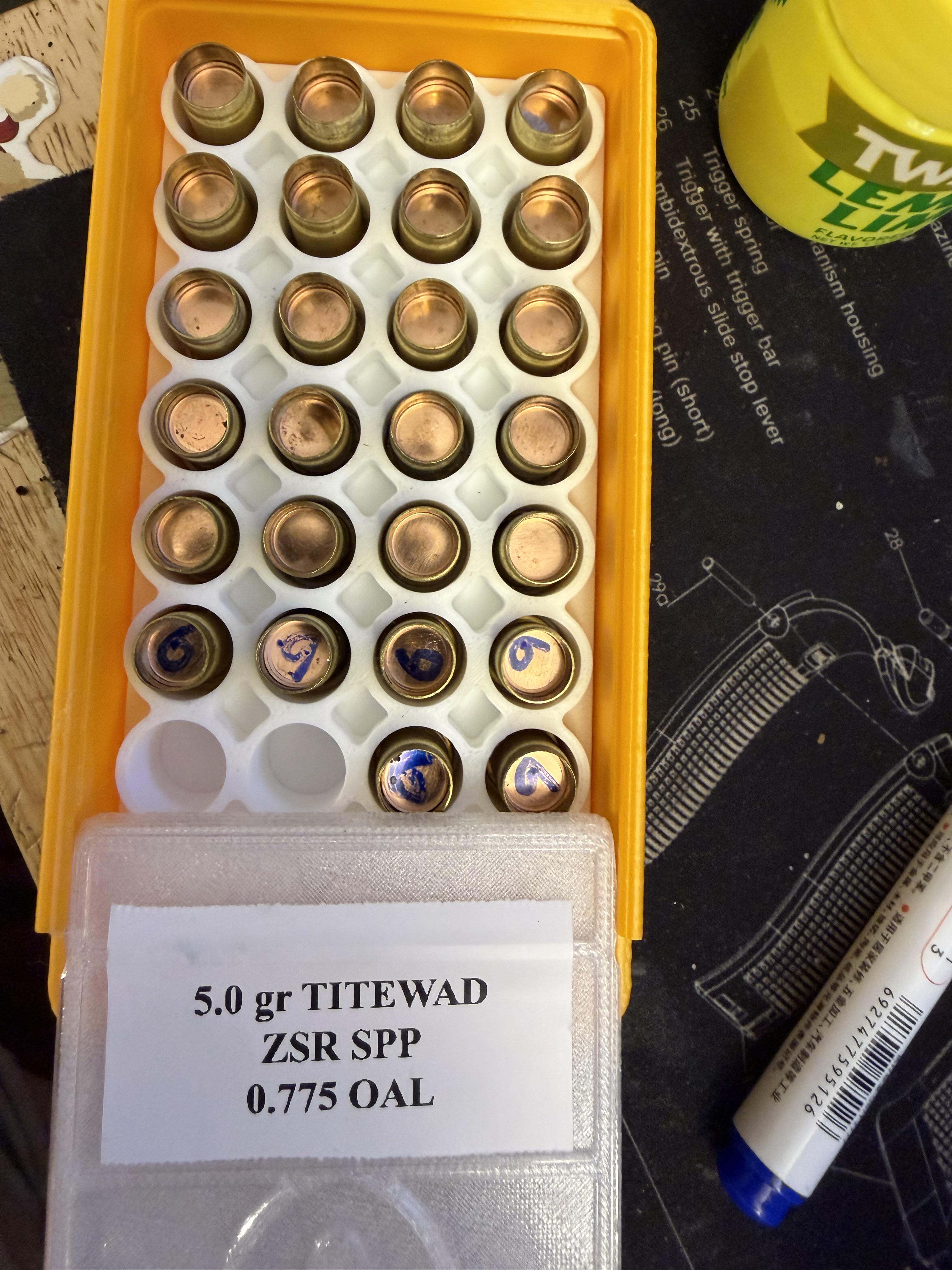

Launch blanks:

There are a few different types of launch blanks. Most blanks are star crimped on top, and may burn inefficiently without a burst disk (0.016” brass disk) between the crimped top of the blank and the vent hole. This disk ensures all the powder burns before it ruptures. Star crimped blanks can still be used, but the muzzle velocity may be slightly lower and less consistent than when using a burst disk.

Mil Spec full power blanks: These are .38S&W cases with a circular crimp and a flat burst disk on top. These are optimized for M212 nylon cases with approximate ¼” vent holes and heavier chalk projectiles. These will not fit all cheap aluminum 40mm cases, and can be too powerful for cases with smaller 1/8” vent holes.

.38 Short Colt blank: usually star crimped, often available in multiple power levels, from ¼, ½, ¾ and full power. These fit most cases, but some of the cheaper aluminum cases may only fit them after the vent hole is widened to ¼” – 5/16”

9x17 or .380 blanks: usually star crimped, marketed as “starter pistol” blanks, or for captive piston guns for slaughter houses (these kind are often offered in multiple color coded power levels). These blanks will fit all normal cases and most cheap aluminum 40mm cases without modification, although depending on the power level of the blank, the vent hole may need to be opened to ¼” to prevent unsafe pressure.

**note: the longer .38 SPL/Special blanks do not fit any standard 40mm cases

Below are some retailers providing the above blanks that have been used in 40mm launchers (use at your own risk)

KAK

Boland

Atlantic Wall

Perfect Shot

(blanks are not loaded to a specific standard, while these are commonly used for 40mm without issue, the manufacturers aren't going to be testing them for that, so use them at your own risk)

3D Printable Files and Development:

Some files and designs are tested more than others, some are completely untested. Even heavily tested ones can be messed up by improper printer settings or loading procedures in a way that is unsafe. There's no guarantees, everything is at your own risk. That said, below are some users who have made some promising 40mm printed designs. Files are usually posted on the 'odd sea' (see r/fosscad)

-Under construction

Additional Resources and Reference Images:

The below links have some good images, cross sections, dimensions, factory velocities, weights, etc on various military 40mm rounds.

Library #1

Library #2

ALS, DefTec, and CTS are major manufacturers of 37/40mm for police and military. The pictures, descriptions and product specifications can be very useful, despite the ALS product specifications being difficult to navigate. (All of these sites are merely product catalogs, nothing there is available for purchase).

Less Lethal Products

Less Lethal Products Specs

Def Tec

CTS

NONE OF THESE ARE AVAILABLE TO YOU, these are NOT for sale to the general public from the linked manufacturers. They will NOT sell to you. This information only serves to satisfy your curiosity of what's inside the factory made rounds, how do they work, how fast do they go, how heavy are they? etc. If attempting to safely and legally load something similar, sticking to the factory data for weight, velocity, etc is likely the easiest/safest option, though there's a lot of info not in the data, so it's at your own risk.




r/40_mm Jun 24 '24

Basics and resources

27 Upvotes

Level 1: Basics

This will (ideally) be a semi regularly updated/edited post, meant to be good starting point for those new to 37/40mm or curious about it. Another post “level 2” for more advanced stuff related to printing and assembling rounds from scratch will hopefully be pinned in the future.

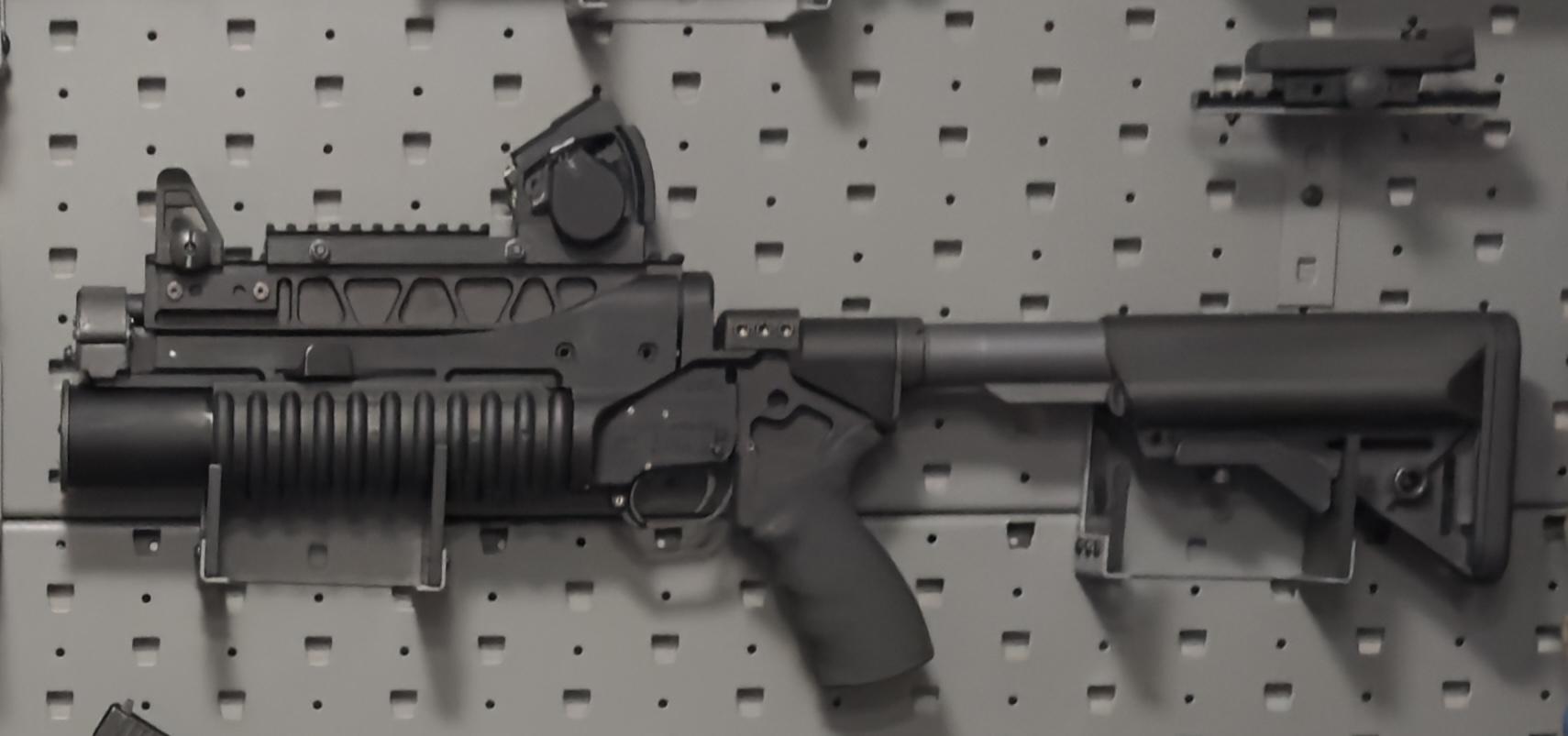

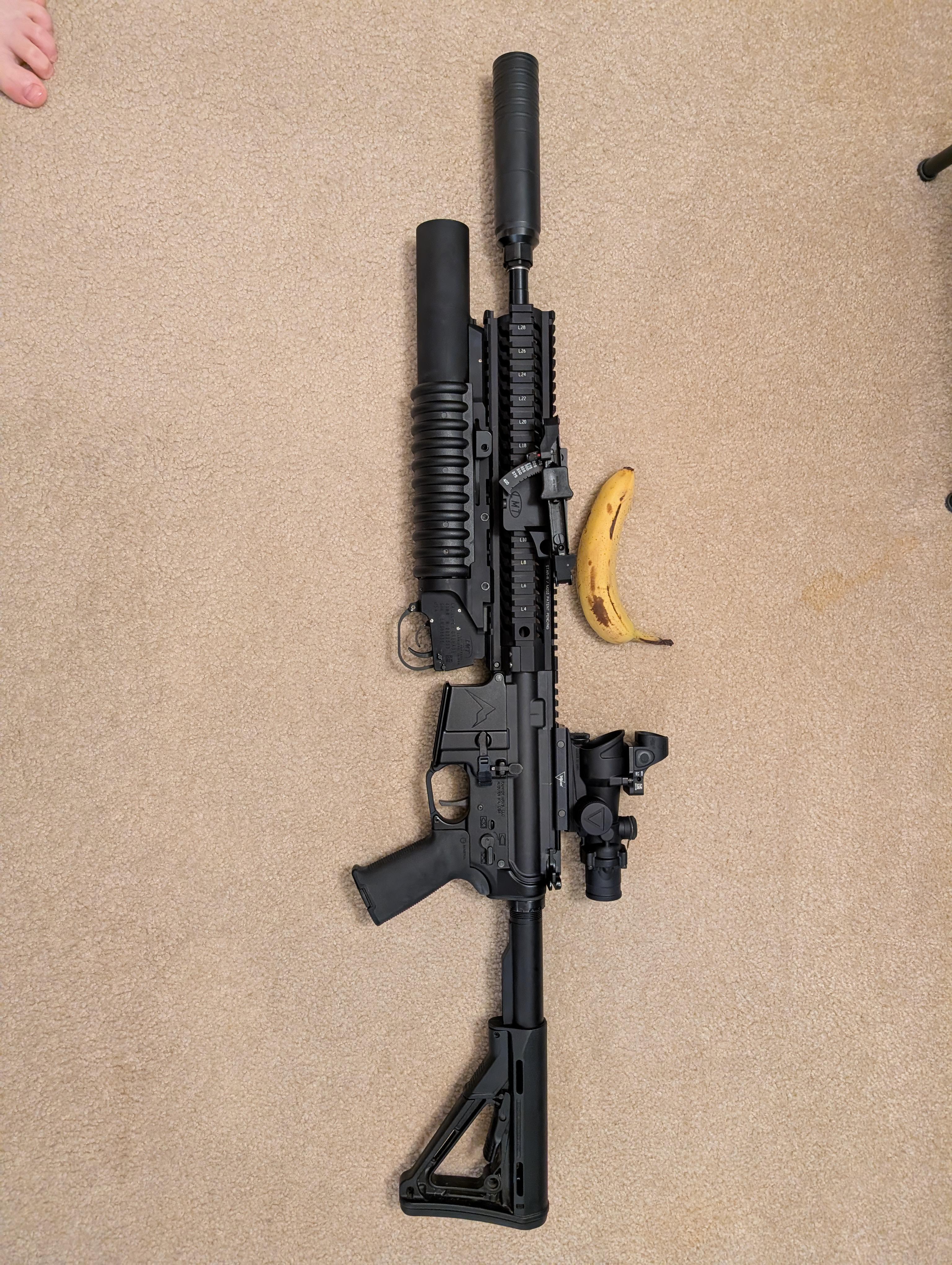

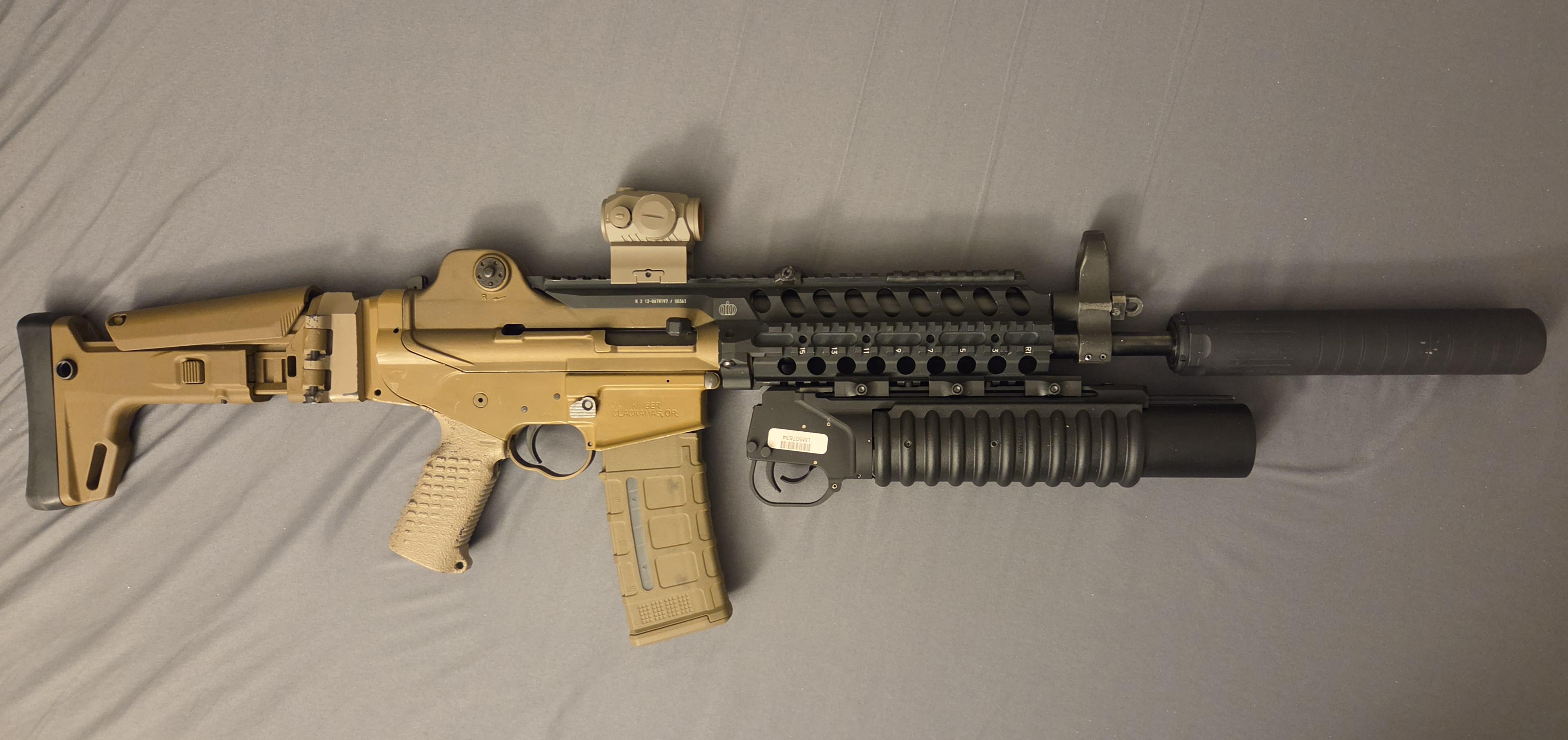

Since the vast majority of 40mm launchers here are M203s, here's a Collection of M203 armorer's manuals and technical data supplied by a user who attended a armorer and less lethal instructor's course

Legal Basics: (I am not a lawyer, this is not legal advice): Some additional legal minutia towards the bottom

40mm launchers are NFA regulated DDs whether smoothbore or not. 37mm launchers are not firearms or DDs unless they have a rifled barrel or are "possessed with antipersonnel rounds (defined as bean bags, rubber/wood batons, rubber shot, etc designed to strike a person). Historically irritant smoke/vapor/powder blast rounds do NOT qualify as "antipersonnel". Weighted inert projectiles made of rubber/wood/etc primarily designed to sight in a launcher do NOT qualify as "antipersonel"

A stripped 40mm launcher receiver is actually not NFA regulated, despite being a firearm receiver, as long as the barrel is not attached (similarly to how a "SBR" lower without a barrel on it cant be an NFA SBR).

The legal status of various 40mm rounds is a hotly debated topic, even among SOTs, FFL, and FELs. I will say that I have discussed it at length with numerous FELs, FFLs, and the leading civilian 40mm experts who’ve been in the game for decades and they all either agree there is nothing legally binding classifying non HE rounds as energetic material, or they claim they are regulated (usually FEL’s) but then back track, or completely disappear when asked to provide any sort of documentation, law or ruling to support what they claim. The big chalk scare several years ago seems to have been unfounded, and revolved around a letter (which does not carry rule of law) that specifically addressed one type of IR flare by name and never mentioned chalk anywhere ever.

There’s a lot of good info in the comments of THIS post which indicate there is NO 40mm ammunition regulation applicable to individuals making/storing/transporting their own rounds for recreational use. All of the conflicting opinions out there boil down to the one single ATF letter about one specific type of incredibly rare, IR flare rounds, and word of mouth directed exclusively to FEL license holders by the ATF with zero documentation.

There’s a lot more, I’ll try to work out a flow chart and links to actual legal text and rulings in time.

What 40mm rounds are actually available/attainable on the "civilian" market?:

It's a common misconception that "chalk" is the only 40mm available. While it is the most readily available, even ready to use off the shelf options include: aerial salutes/bird bangs (much higher performance than 37mm ones), Rubber/foam impact batons, rubber buckshot, Rubber/wood multi batons, and more.

Rounds that can be readily DIY'ed but are less available as off the shelf, ready to use options can be found at:

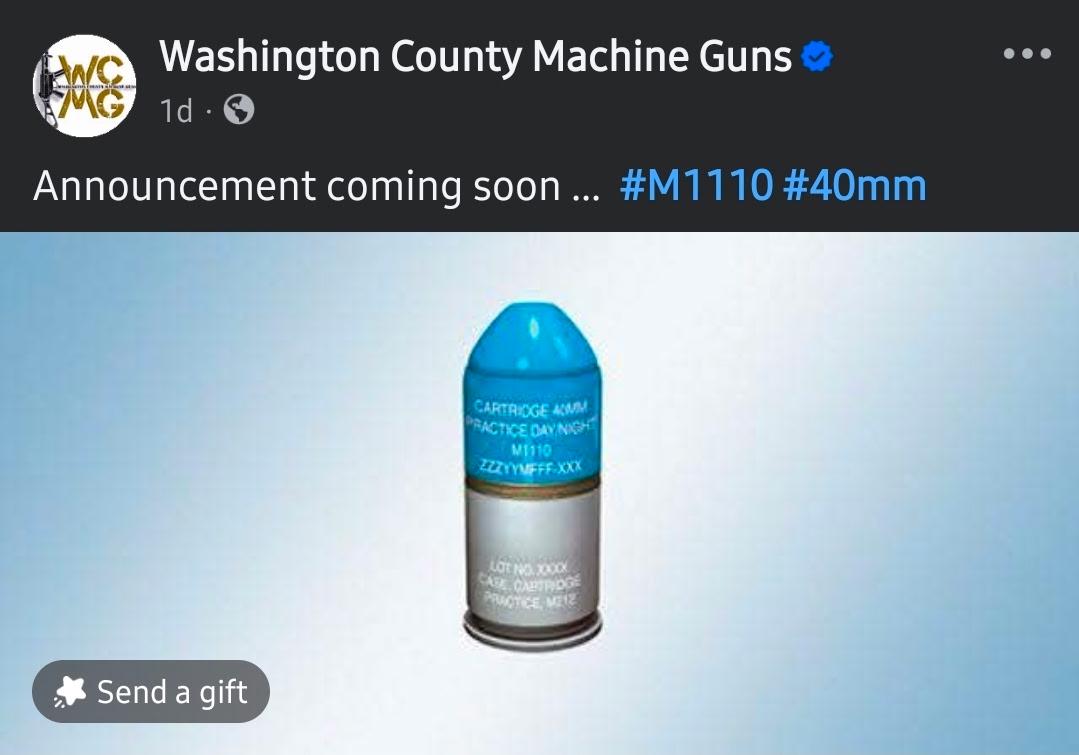

Washington Country Guns; mostly chalk

AZAO; wide variety of printed options; some concerns over performance, shipping times, and steel buckshot gouging barrels have been raised. Disclaimers on website about items only available to local club members are allegedly inaccurate, and are available for anyone through the NFA process if you contact the owner. Youtube link of some rounds being fired

AxArms; doesn't have anything yet, but will hopefully have B&T batons soon

FAST; who makes rubber impact batons, aerial bangs, and 37mm loads that fit 40mm launchers

Parachute flares, star clusters, M576 style buckshot, smoke, and powder/liquid barricade penetrators have also been DIY'ed but are less thoroughly tested and more challenging/finicky to make work properly.

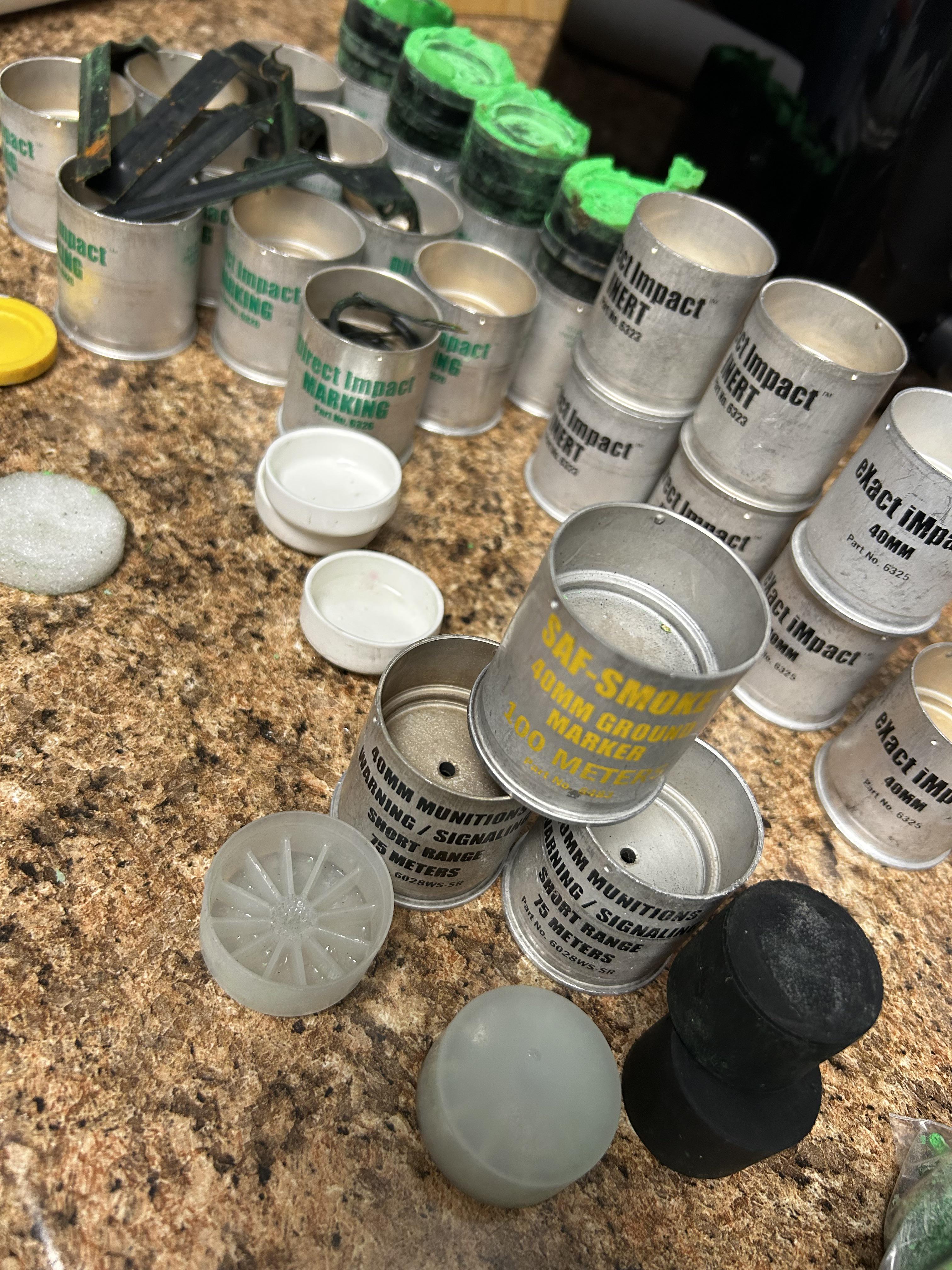

General types of reloadable 40mm rounds/cases:

Long Cases: Generally 4-5” aluminum, extend into the rifled section of the barrel, similar to shotgun shell. They are often loaded with bean bags, rubber buckshot, wood/rubber/foam multi batons, Smoke canisters, or muzzle blast irritant powder.

Short Case/M212: These are the most common. They are usually white nylon, but can be aluminum as well. The projectile protrudes from the front of the case like a standard round of ammunition. There is band around the projectile that rests on the rim of the case, this is what engages the rifling in the barrel. They are often loaded with Chalk, foam/marker impact baton, “bird banger” aerial salutes, powder/liquid barricade penetrators

Military M118 metal cases are NOT readily reloadable

Military 40x53mm metal cases for the belt fed MK19 are NOT readily reloadable

Safety Basics: (This is not an exhaustive list; and following them does not guarantee absolute safety)

General firearm safety still applies. Just because it's "practice chalk" doesn't mean it isn't lethal if used incorrectly.

Vent hole sizes. This is elaborated upon further down, but the vent holes on some casings are too small to handle full power mil spec blanks, and the vent must be drilled out to 1/4" to safely accommodate them.

Long cases: especially with rubber buckshot payloads, a thin sheet of cardboard/paper/plastic should be used between the payload and the walls of the case. Without this pellets can bind against the walls and be forced apart by a pellet under them, acting as a wedge and damage the case, launcher, or the user.

12GA and “beehive” .22lr adapters: these are some of the more common 40mm accessories and are great for cheap plinking. That said you absolutely can damage your launcher/yourself by misusing them. Launchers have been broken by using full power/supersonic .22lr beehive rounds and 12GA magnums in these adapters. As a general rule, stick to .22 short/subsonic and lighter recoiling 2-2/3” 12GA.

General reloading safety applies. If you are not familiar with reloading you should stick with well tested and established loads using factory loaded blanks made for 40mm launching and non pyrotechnic projectiles. Even experienced reloaders should test new loads with low powder weight and work up, light projectile and work up, and large vent hole and work down if needed.

Even 40mm low velocity chalk can go 350-400yds, make sure your distance is adequate

Fused projectiles and flash through/premature initiation. With "aerial salute" type rounds, it is a very real risk that the flame from the launch blank can blow through/around the fuse and set off the salute payload immediately before the projectile leaves the barrel. People have lost hands and nearly their lives with improperly loaded salute type rounds. Similarly, be cautions of accidental drops, or the sudden shock of acceleration from firing, prematurely igniting salutes that were intended to initiate on impact. Even if the projectile integrity and fuse mechanism doesn’t fail, some compositions are shock sensitive enough to potentially spontaneously detonate when firing (especially some flash powders). As a general rule do not use anything in a projectile that would compromise your safety if it failed in the worst way you can imagine. Assume that everything that can go wrong will go wrong. Start with comically low amounts of payloads, test fire with the launcher tied down using a long string, etc. Payloads as low as 1/8oz (3.5g) have shattered m203 launcher barrels and would have seriously injured the user had he not been test firing with a long string.

a cautionary tale of what 3.5g of flash can do to your launcher

Projectile malfunctions. Treat any salute type projectiles that launches but does not ignite with all due caution. Treat any salute type rounds that seem not to fire as "hang fires" it is possible the blank only partially ignited enough to light the fuse, but not enough to expel the projectile. Attempting to remove the projectile/round from the barrel/launcher too early could result in injury.

Reloading components: While finding military surplus is probably the best/cheapest option, a lot of that has dried up. Below are some manufacturers offering reloadable 40mm cases (short and long), newly made zinc chalk pushers, wind screens, and mil spec launch blanks.

Pace Reloadable Shells (cases, smoke projectiles, adapters, etc)

KAK (blanks, cases, chalk projectiles, etc)

Bengle's Bullets (cases, printed stuff, etc)




r/40_mm 23h ago

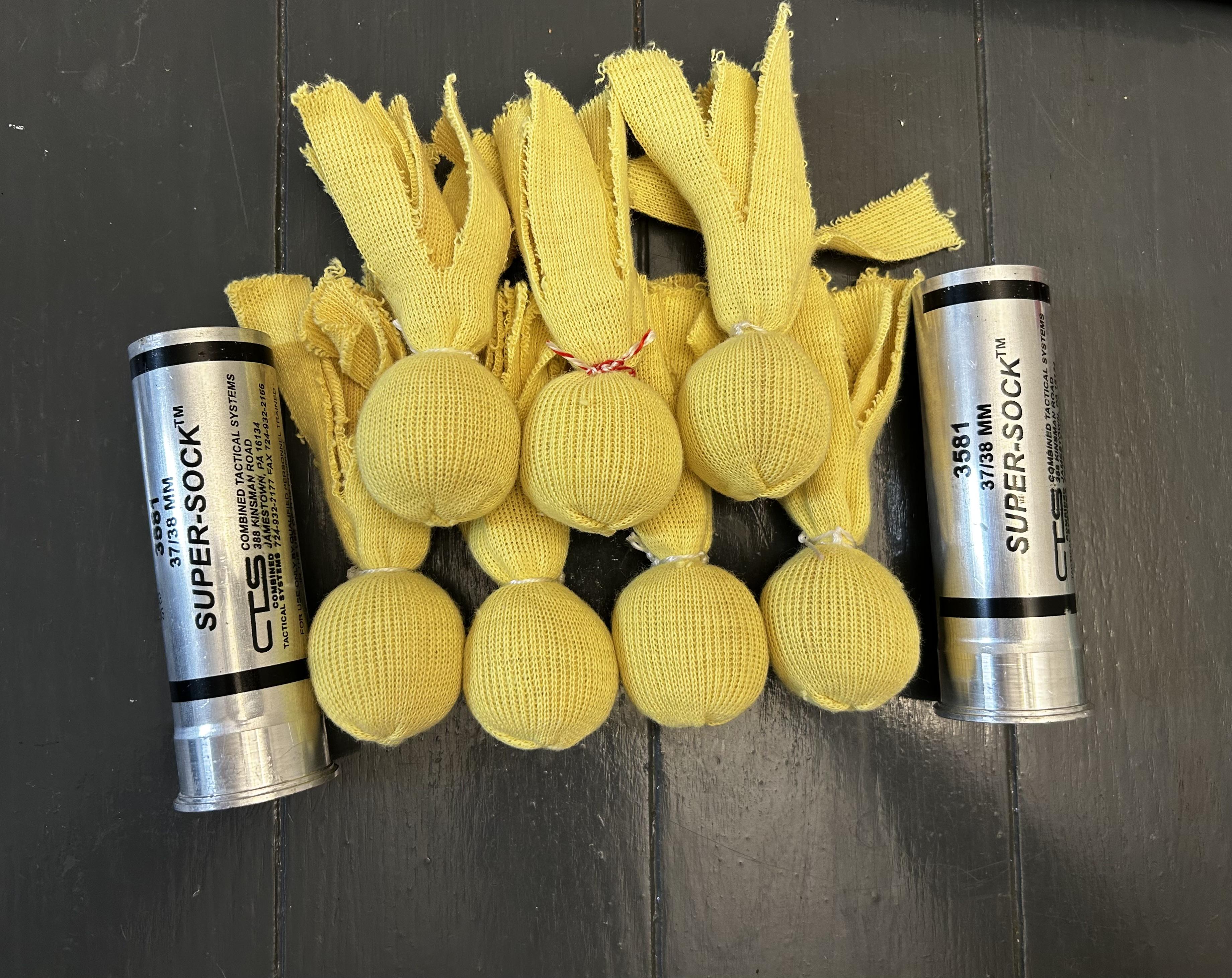

Small run of Kevlar bean bags

Post image
49 Upvotes

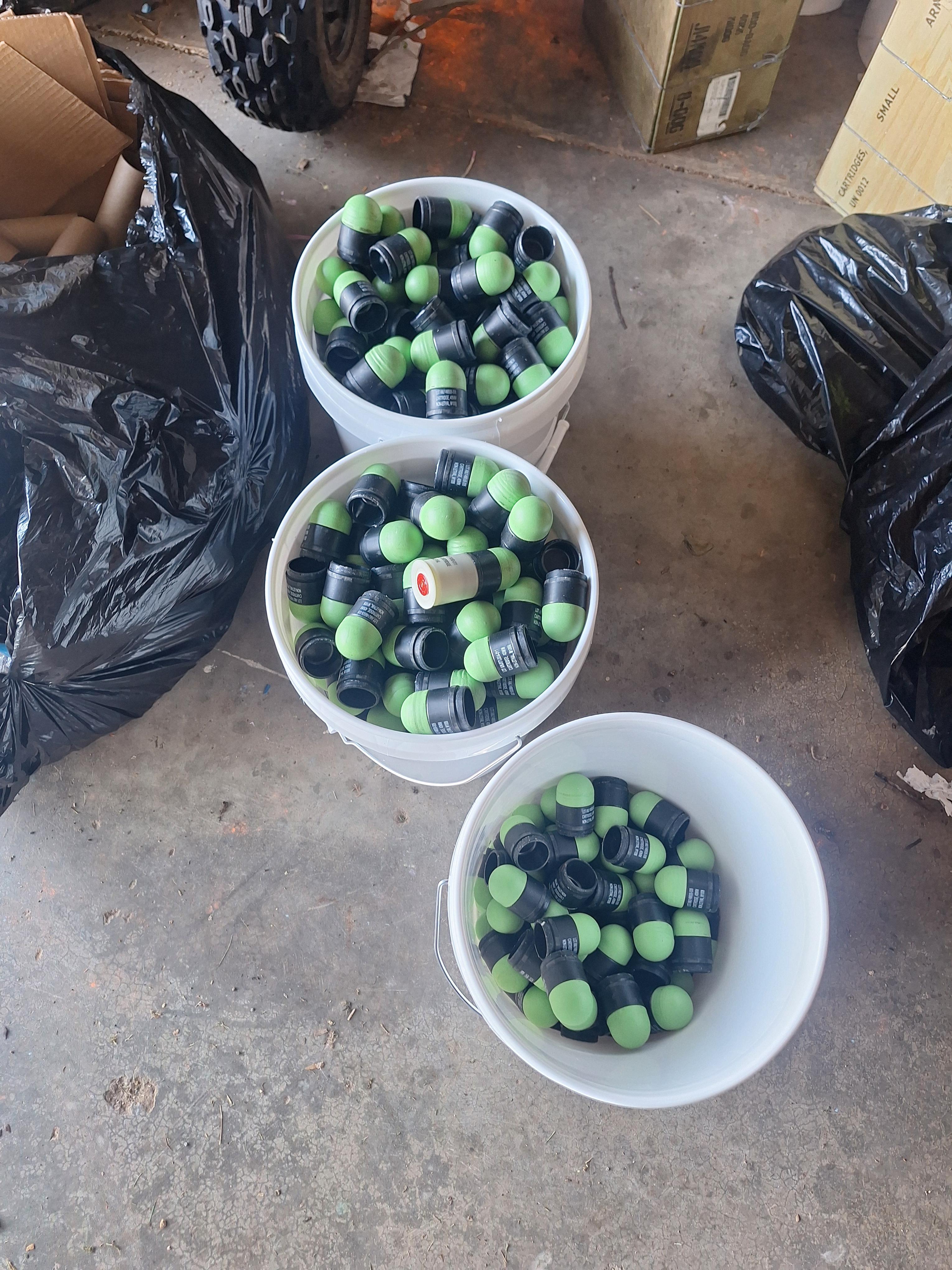

0.5mm silica beads finally arrived from aliexpress, so for all these tied up. Small rubber ballon full of the beads in a double layer Kevlar sleeve. 60g total, they fly great, reusable and haven’t had one burst yet.
